HAND OPERATED STACKER Model — DS-5 8 15 Capacity

HAND OPERATED STACKER Model - DS-5/8/15 Capacity : 500/800/1500 kg

HAND OPERATED STACKER Model - DS-5/8/15 Capacity: 500/800/1500 kg HANDLE Drawbar with finger protection clamp and release handle PUMP Simple and reliable Hydraulic System WHEELS Dust free nylon wheels with double sealed bearings

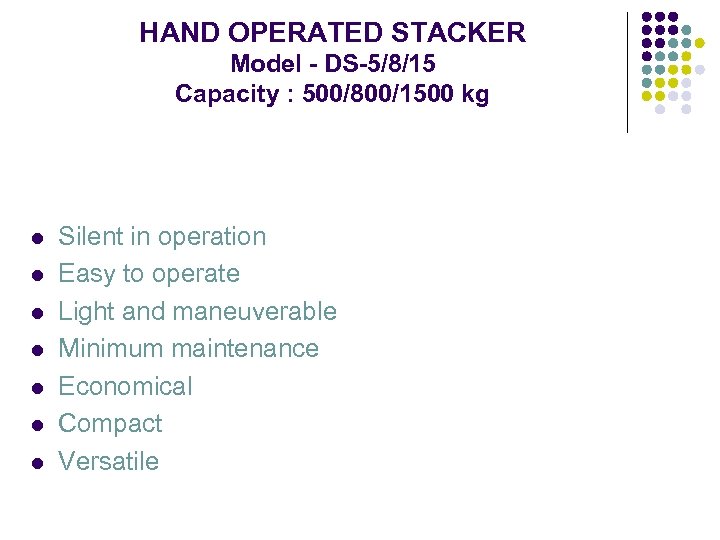

HAND OPERATED STACKER Model - DS-5/8/15 Capacity : 500/800/1500 kg l l l l Silent in operation Easy to operate Light and maneuverable Minimum maintenance Economical Compact Versatile

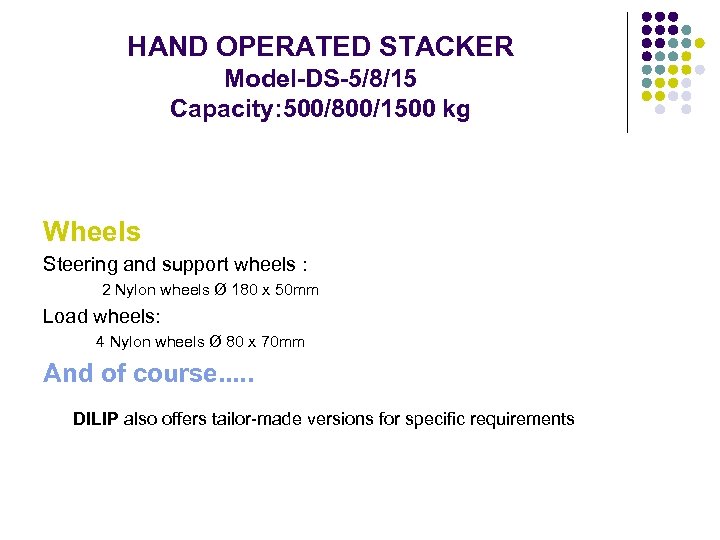

HAND OPERATED STACKER Model-DS-5/8/15 Capacity: 500/800/1500 kg Wheels Steering and support wheels : 2 Nylon wheels Ø 180 x 50 mm Load wheels: 4 Nylon wheels Ø 80 x 70 mm And of course. . . DILIP also offers tailor-made versions for specific requirements

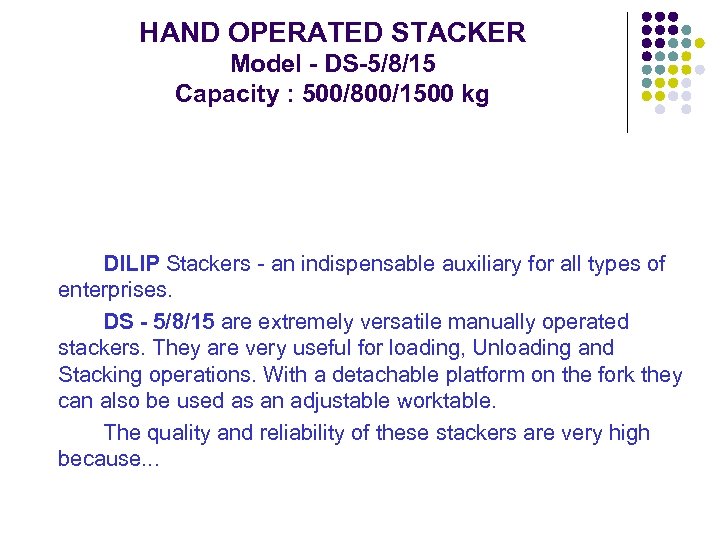

HAND OPERATED STACKER Model - DS-5/8/15 Capacity : 500/800/1500 kg DILIP Stackers - an indispensable auxiliary for all types of enterprises. DS - 5/8/15 are extremely versatile manually operated stackers. They are very useful for loading, Unloading and Stacking operations. With a detachable platform on the fork they can also be used as an adjustable worktable. The quality and reliability of these stackers are very high because. . .

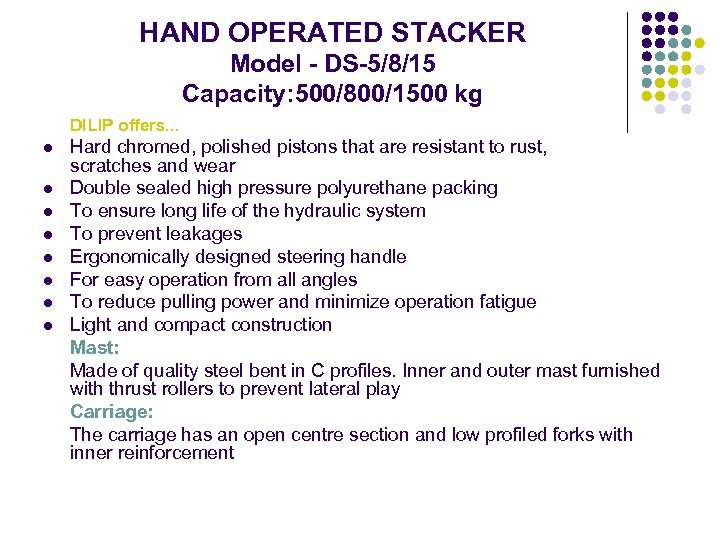

HAND OPERATED STACKER Model - DS-5/8/15 Capacity: 500/800/1500 kg DILIP offers. . . Hard chromed, polished pistons that are resistant to rust, scratches and wear l Double sealed high pressure polyurethane packing l To ensure long life of the hydraulic system l To prevent leakages l Ergonomically designed steering handle l For easy operation from all angles l To reduce pulling power and minimize operation fatigue l Light and compact construction Mast: Made of quality steel bent in C profiles. Inner and outer mast furnished with thrust rollers to prevent lateral play Carriage: The carriage has an open centre section and low profiled forks with inner reinforcement l

HAND OPERATED STACKER - Model - DS-5/8/15 Capacity: 500/800/1500 kg SPECIFICATIONS DS-5 1600 mm DS-5 2000 mm DS-5 3000 mm DS-8 1600 mm DS-15 1600 mm Mono Telescopic Mono Lift Height 'B' 1600 mm 2000 mm 3000 mm 1600 mm Shut Height 'A' 2000 mm 1600 mm 2500 mm 2000 mm Max Extended Height 'C' 2000 mm 2570 mm 3550 mm 2000 mm Basic load capacity 500 kg 800 kg 1500 kg Capacity at Max Height 500 kg 400 kg 800 kg 1500 kg Weight 180 kg 200 kg 250 kg 230 kg 280 kg Lift /Stroke 20 mm 20 mm MODEL Mast Type

HAND OPERATED STACKER Model - DS-5/8/15 Capacity : 500/800/1500 kg

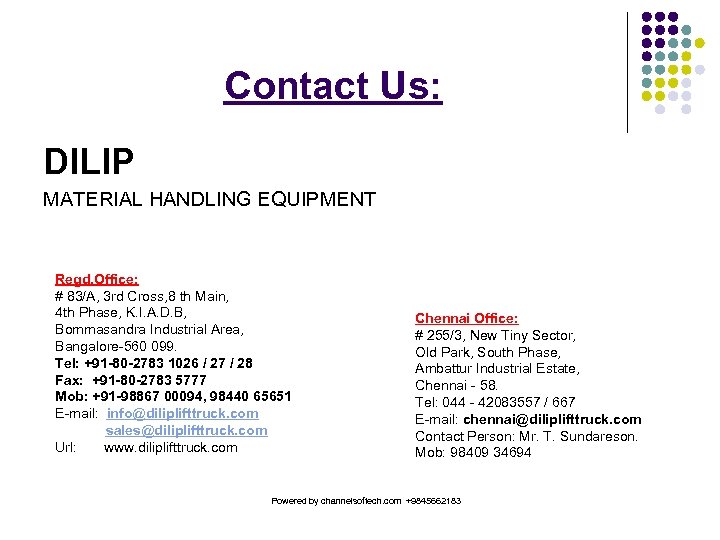

Contact Us: DILIP MATERIAL HANDLING EQUIPMENT Regd. Office: # 83/A, 3 rd Cross, 8 th Main, 4 th Phase, K. I. A. D. B, Bommasandra Industrial Area, Bangalore-560 099. Tel: +91 -80 -2783 1026 / 27 / 28 Fax: +91 -80 -2783 5777 Mob: +91 -98867 00094, 98440 65651 E-mail: info@diliplifttruck. com sales@diliplifttruck. com Url: www. diliplifttruck. com Chennai Office: # 255/3, New Tiny Sector, Old Park, South Phase, Ambattur Industrial Estate, Chennai - 58. Tel: 044 - 42083557 / 667 E-mail: chennai@diliplifttruck. com Contact Person: Mr. T. Sundareson. Mob: 98409 34694 Powered by channelsoftech. com +9845662183
