HAARP The HAARP Project By Ted Gerken
HAARP Introduction • High frequency Active Auroral Research Project • Located in Gakona Alaska • Investigates the properties and responses of the Ionosphere • Two main means – Active experimentation – Passive observation

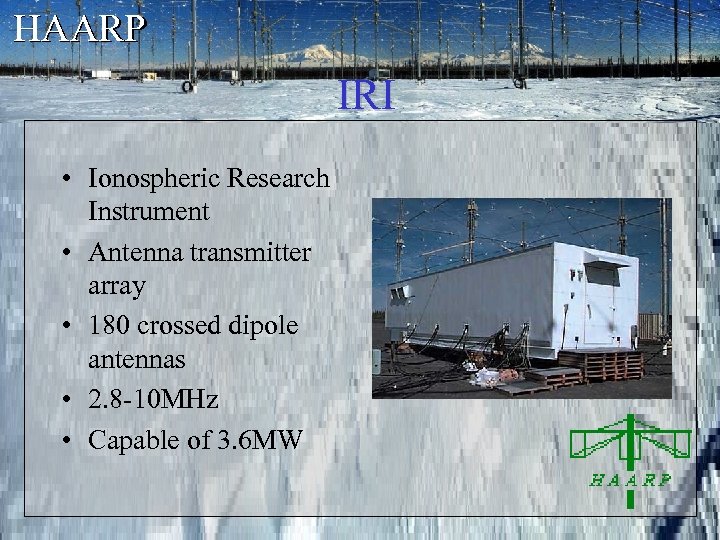

HAARP IRI • Ionospheric Research Instrument • Antenna transmitter array • 180 crossed dipole antennas • 2. 8 -10 MHz • Capable of 3. 6 MW

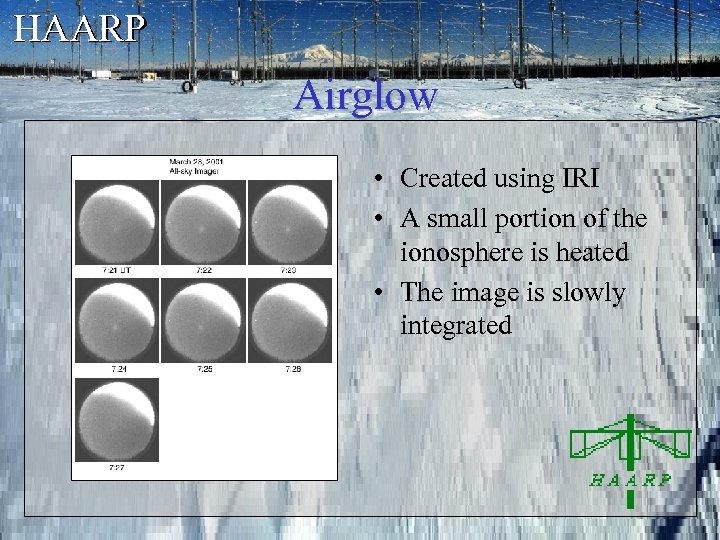

HAARP Airglow • Created using IRI • A small portion of the ionosphere is heated • The image is slowly integrated

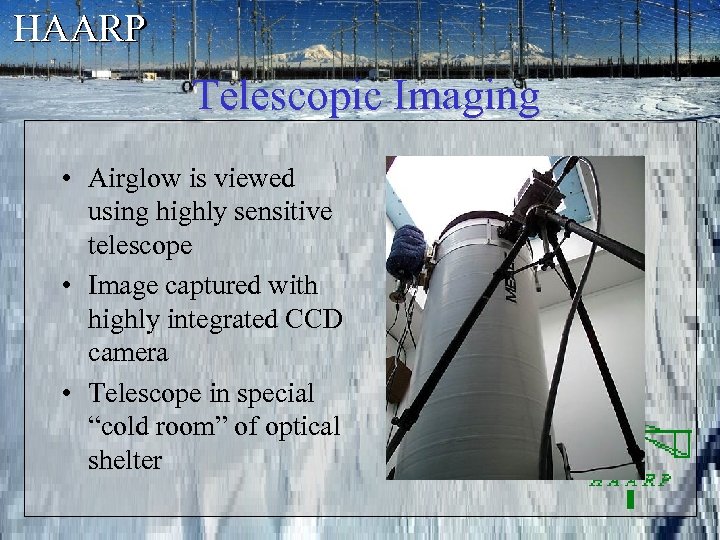

HAARP Telescopic Imaging • Airglow is viewed using highly sensitive telescope • Image captured with highly integrated CCD camera • Telescope in special “cold room” of optical shelter

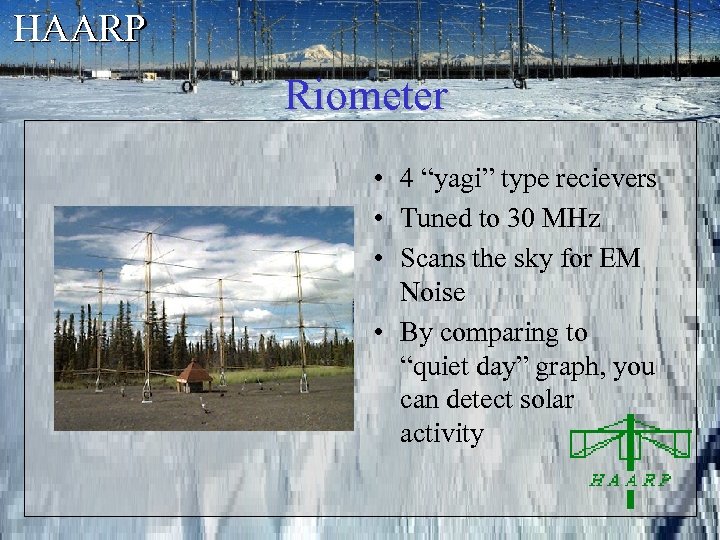

HAARP Riometer • 4 “yagi” type recievers • Tuned to 30 MHz • Scans the sky for EM Noise • By comparing to “quiet day” graph, you can detect solar activity

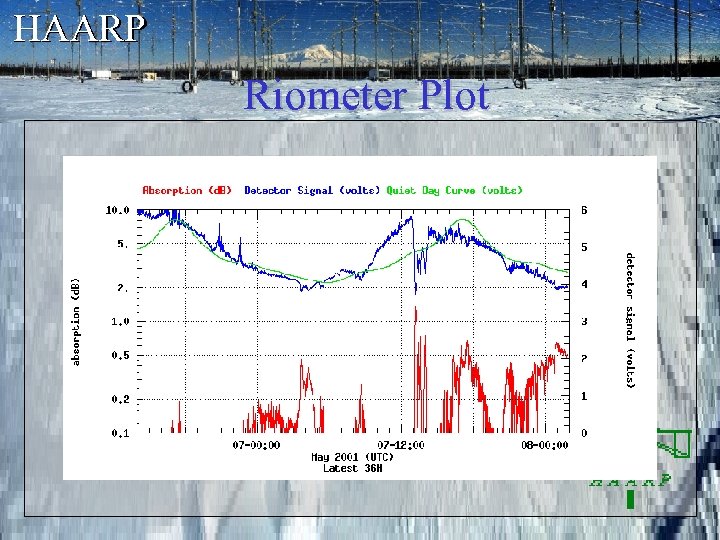

HAARP Riometer Plot

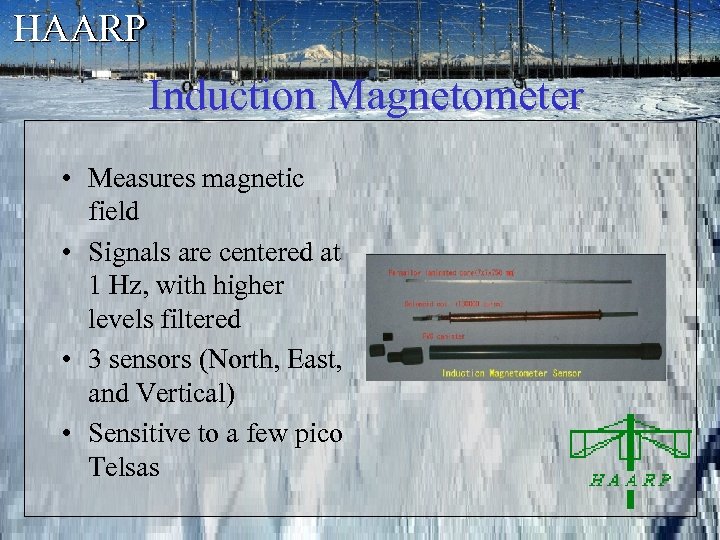

HAARP Induction Magnetometer • Measures magnetic field • Signals are centered at 1 Hz, with higher levels filtered • 3 sensors (North, East, and Vertical) • Sensitive to a few pico Telsas

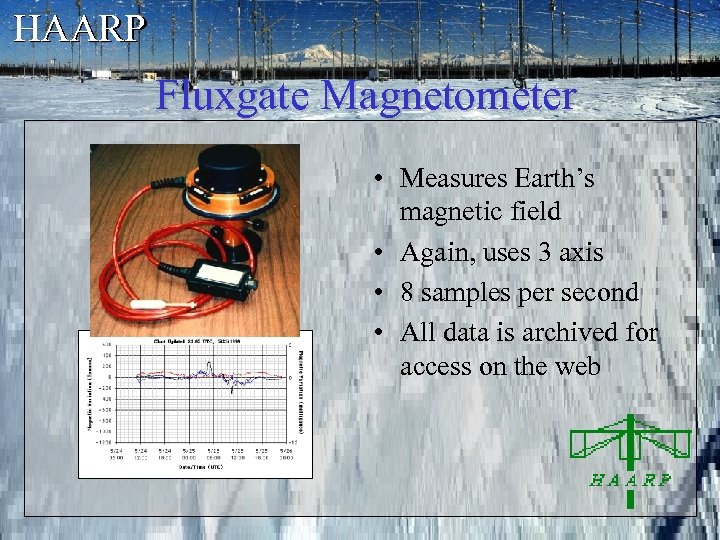

HAARP Fluxgate Magnetometer • Measures Earth’s magnetic field • Again, uses 3 axis • 8 samples per second • All data is archived for access on the web

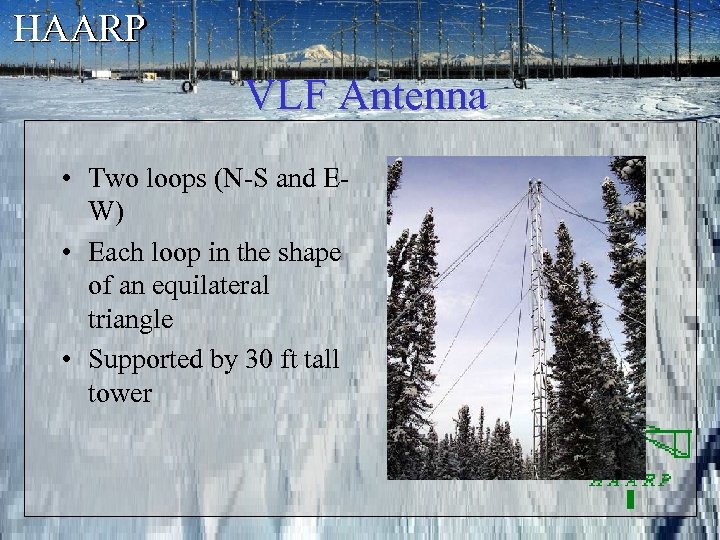

HAARP VLF Antenna • Two loops (N-S and EW) • Each loop in the shape of an equilateral triangle • Supported by 30 ft tall tower

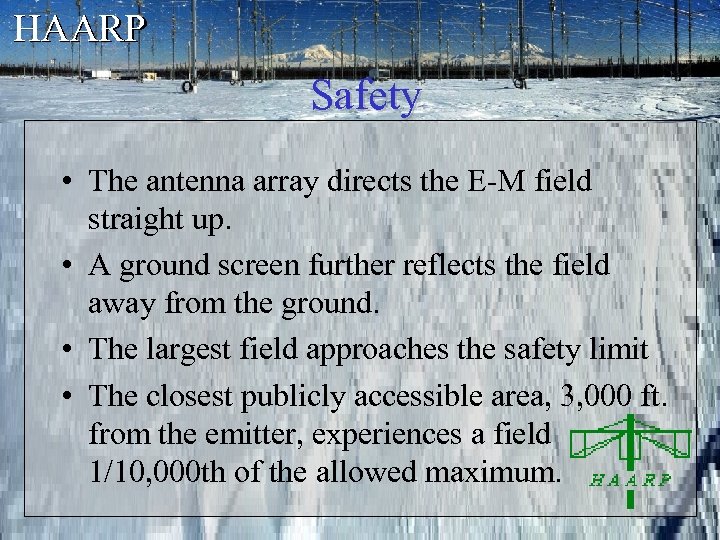

HAARP Safety • The antenna array directs the E-M field straight up. • A ground screen further reflects the field away from the ground. • The largest field approaches the safety limit • The closest publicly accessible area, 3, 000 ft. from the emitter, experiences a field 1/10, 000 th of the allowed maximum.

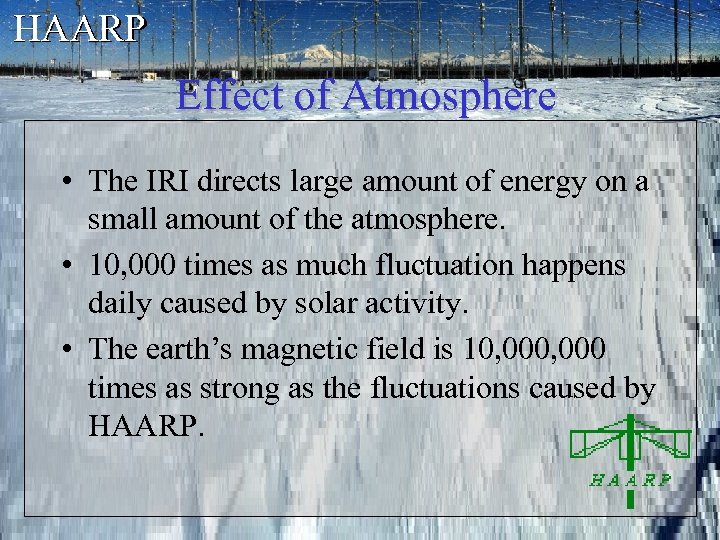

HAARP Effect of Atmosphere • The IRI directs large amount of energy on a small amount of the atmosphere. • 10, 000 times as much fluctuation happens daily caused by solar activity. • The earth’s magnetic field is 10, 000 times as strong as the fluctuations caused by HAARP.
HAARP Angel’s Don’t Play This HAARP • HAARP has received a lot of controversy • A large portion of funding for HAARP comes from the Do. D • Several theories have arisen – Weather controlling – Mind controlling – Destruction of the Ozone layer • Most Do. D applications involve defense.
HAARP Any Questions?
