Gustav W Emrich Product Manager GY-LS 300 CHE

Gustav. W. Emrich, Product. Manager GY-LS 300 CHE Product introduction

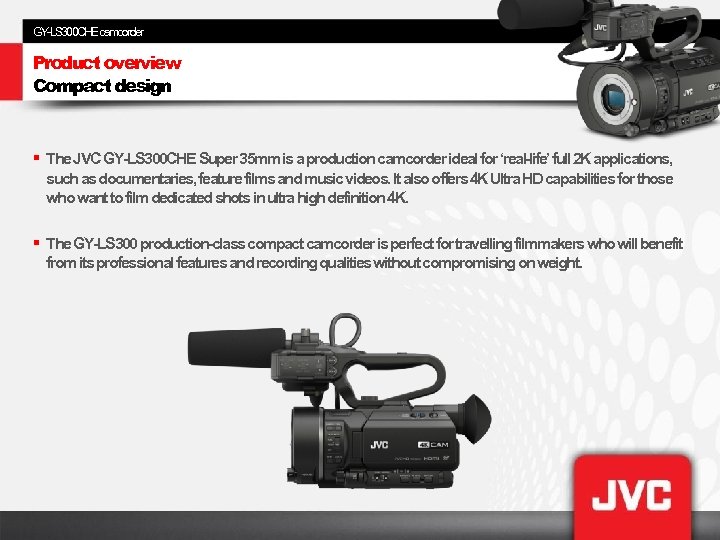

GY-LS 300 CHEcamcorder Product overview Compact design § The JVC GY-LS 300 CHE Super 35 mm is a production camcorder ideal for ‘real-life’ full 2 K applications, such as documentaries, feature films and music videos. It also offers 4 K Ultra HD capabilities for those who want to film dedicated shots in ultra high definition 4 K. § The GY-LS 300 production-class compact camcorder is perfect for travelling filmmakers who will benefit from its professional features and recording qualities without compromising on weight.

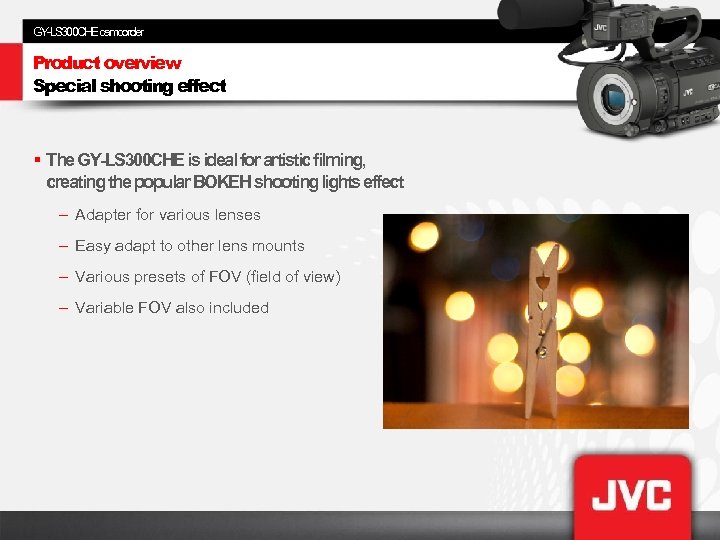

GY-LS 300 CHEcamcorder Product overview Special shooting effect § The GY-LS 300 CHE is ideal for artistic filming, creating the popular BOKEH shooting lights effect – Adapter for various lenses – Easy adapt to other lens mounts – Various presets of FOV (field of view) – Variable FOV also included

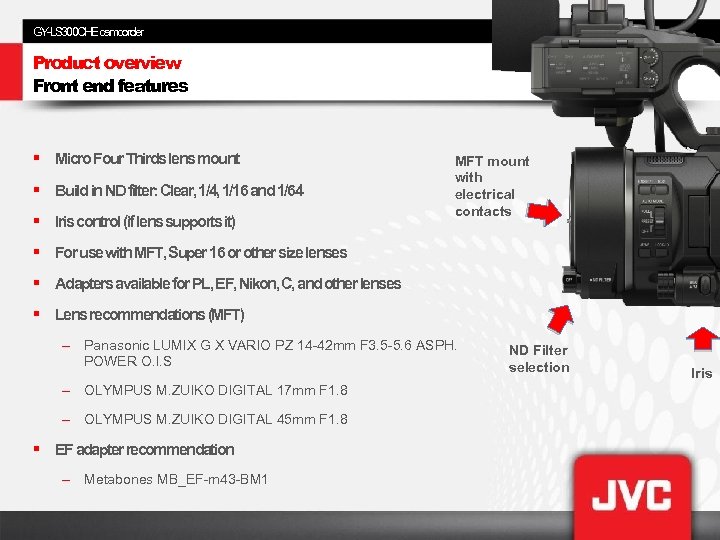

GY-LS 300 CHEcamcorder Product overview Front end features § Micro Four Thirds lens mount § Build in ND filter: Clear, 1/4, 1/16 and 1/64 § Iris control (if lens supports it) MFT mount with electrical contacts § For use with MFT, Super 16 or other size lenses § Adapters available for PL, EF, Nikon, C, and other lenses § Lens recommendations (MFT) – Panasonic LUMIX G X VARIO PZ 14 -42 mm F 3. 5 -5. 6 ASPH. POWER O. I. S – OLYMPUS M. ZUIKO DIGITAL 17 mm F 1. 8 – OLYMPUS M. ZUIKO DIGITAL 45 mm F 1. 8 § EF adapter recommendation – Metabones MB_EF-m 43 -BM 1 ND Filter selection Iris

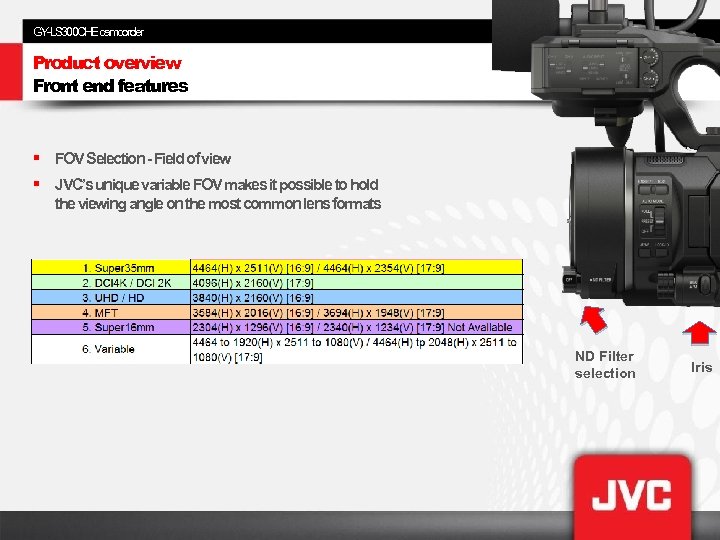

GY-LS 300 CHEcamcorder Product overview Front end features § FOV Selection - Field of view § JVC’s unique variable FOV makes it possible to hold the viewing angle on the most common lens formats ND Filter selection Iris

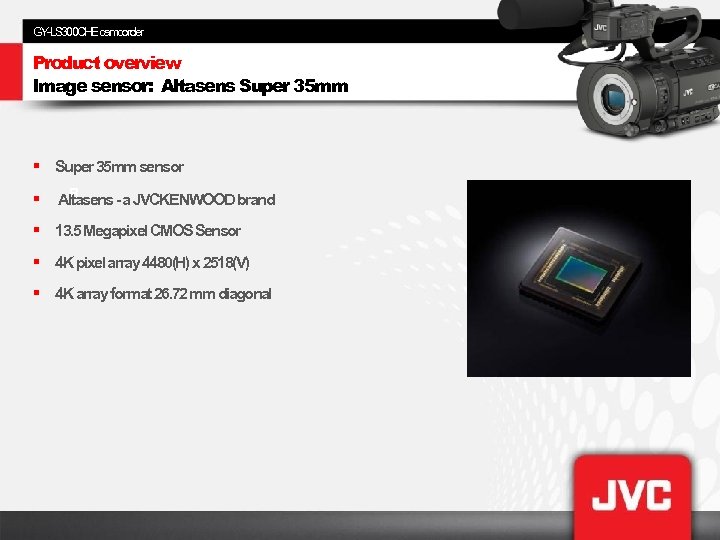

GY-LS 300 CHEcamcorder Product overview Image sensor: Altasens Super 35 mm § Super 35 mm sensor B § Altasens - a JVCKENWOOD brand § 13. 5 Megapixel CMOS Sensor § 4 K pixel array 4480(H) x 2518(V) § 4 K array format 26. 72 mm diagonal

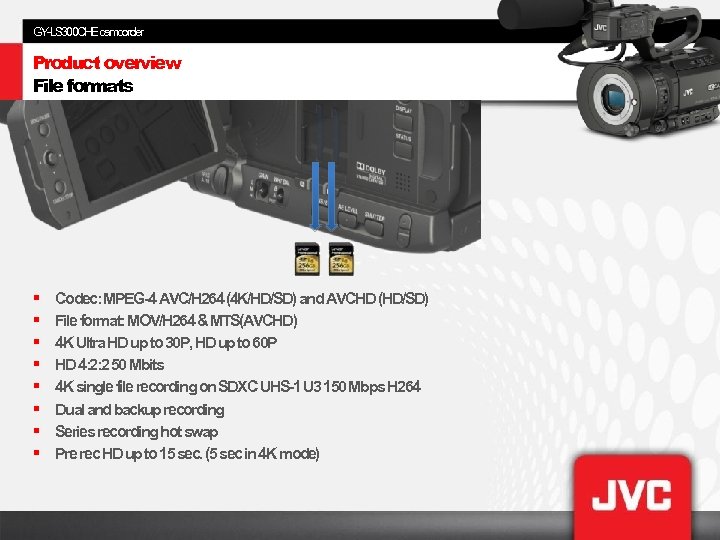

GY-LS 300 CHEcamcorder Product overview File formats § § § § Codec: MPEG-4 AVC/H 264 (4 K/HD/SD) and AVCHD (HD/SD) File format: MOV/H 264 & MTS(AVCHD) 4 K Ultra HD up to 30 P, HD up to 60 P HD 4: 2: 2 50 Mbits 4 K single file recording on SDXC UHS-1 U 3 150 Mbps H 264 Dual and backup recording Series recording hot swap Pre rec HD up to 15 sec. (5 sec in 4 K mode)

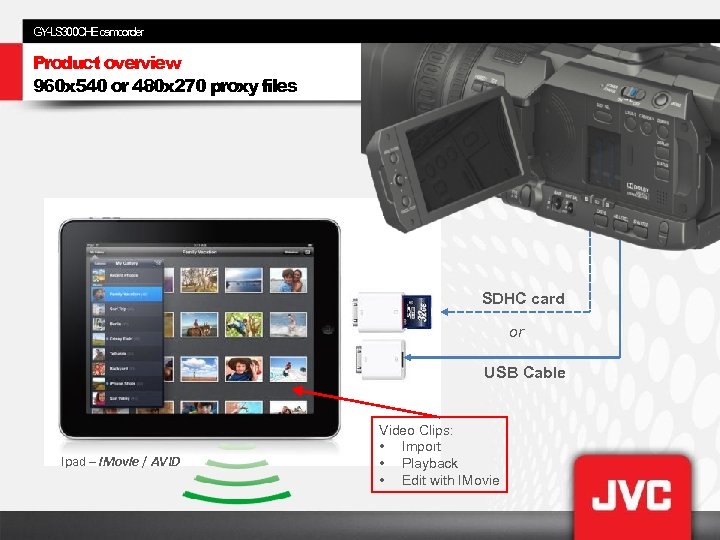

GY-LS 300 CHEcamcorder Product overview 960 x 540 or 480 x 270 proxy files SDHC card or USB Cable Ipad – i. Movie / AVID Video Clips: • Import • Playback • Edit with IMovie

GY-LS 300 CHEcamcorder Product overview Recording media 15 hours @ 35 Mbps § SDHC / SDXC x 2 / SDXC UHS-1 U 3 § Reliable and readily available § High capacity available § 7+ hours HD on 128 GB SDXC Proxy

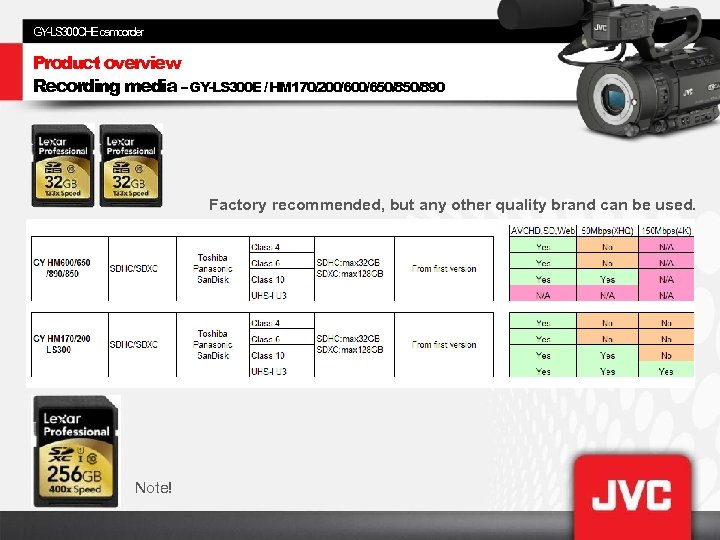

GY-LS 300 CHEcamcorder Product overview Recording media – GY-LS 300 E / HM 170/200/650/890 Factory recommended, but any other quality brand can be used. Note!

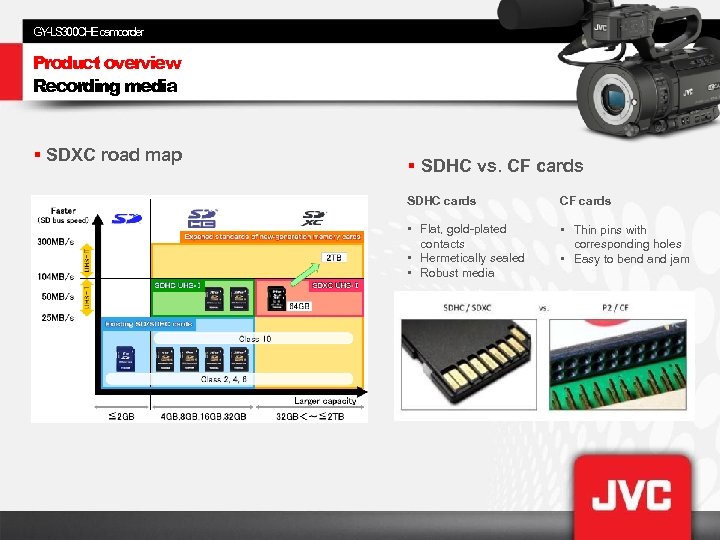

GY-LS 300 CHEcamcorder Product overview Recording media § SDXC road map § SDHC vs. CF cards SDHC cards CF cards • Flat, gold-plated contacts • Hermetically sealed • Robust media • Thin pins with corresponding holes • Easy to bend and jam

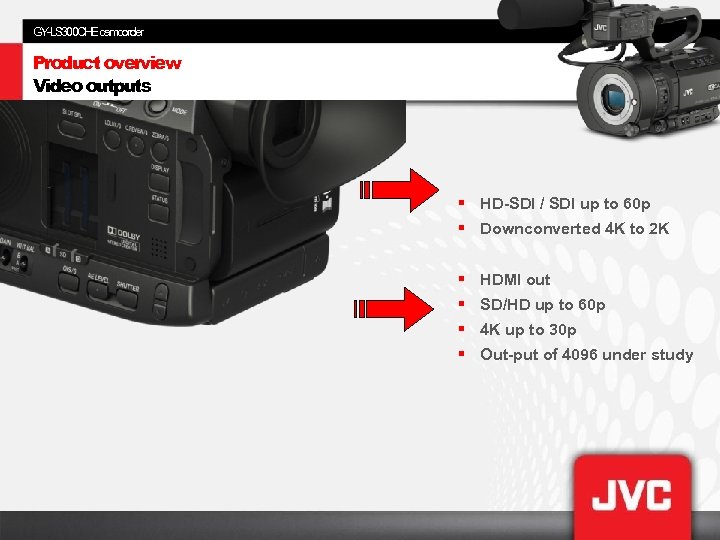

GY-LS 300 CHEcamcorder Product overview Video outputs § HD-SDI / SDI up to 60 p § Downconverted 4 K to 2 K § HDMI out § SD/HD up to 60 p § 4 K up to 30 p § Out-put of 4096 under study

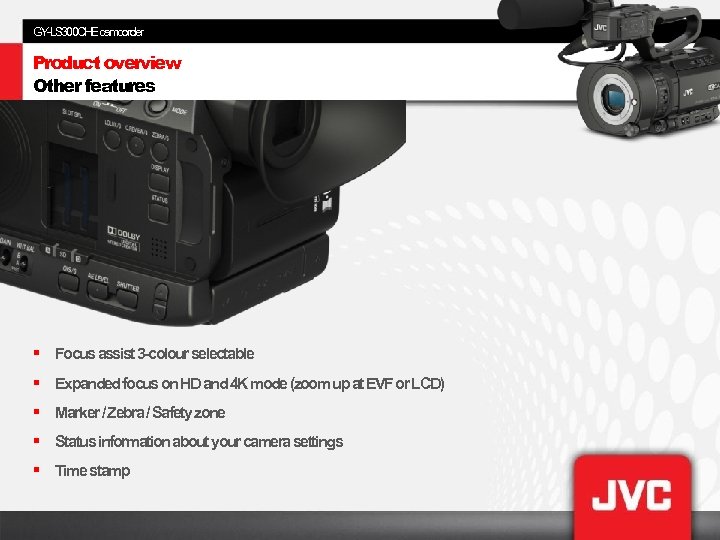

GY-LS 300 CHEcamcorder Product overview Other features § Focus assist 3 -colour selectable § Expanded focus on HD and 4 K mode (zoom up at EVF or LCD) § Marker / Zebra / Safety zone § Status information about your camera settings § Time stamp

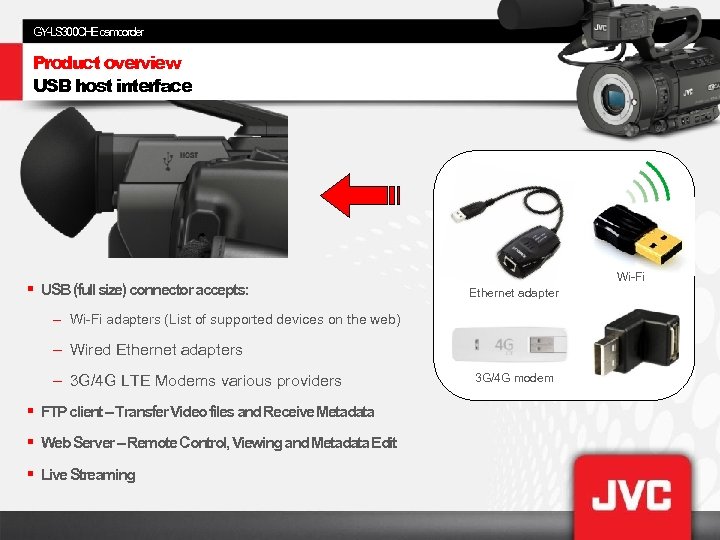

GY-LS 300 CHEcamcorder Product overview USB host interface § USB (full size) connector accepts: Wi-Fi Ethernet adapter – Wi-Fi adapters (List of supported devices on the web) – Wired Ethernet adapters – 3 G/4 G LTE Modems various providers § FTP client – Transfer Video files and Receive Metadata § Web Server – Remote Control, Viewing and Metadata Edit § Live Streaming 3 G/4 G modem

GY-LS 300 CHEcamcorder Product overview GY-LS 300 CHE live video streaming

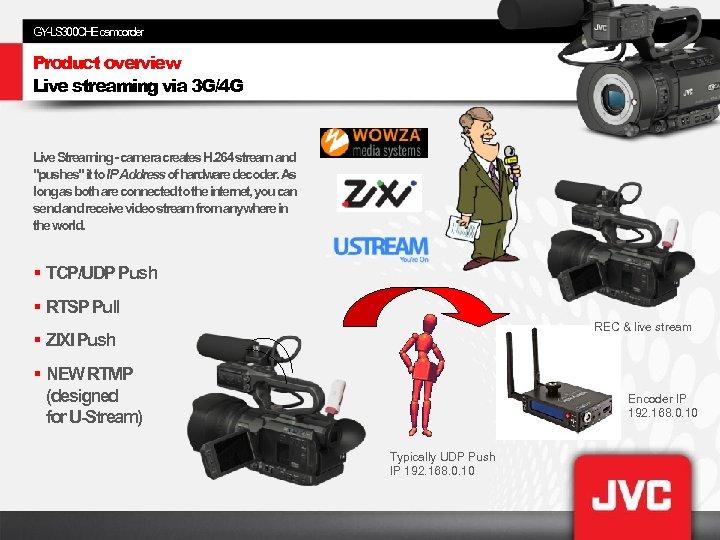

GY-LS 300 CHEcamcorder Product overview Live streaming via 3 G/4 G Live Streaming - camera creates H. 264 stream and "pushes" it to IP Address of hardware decoder. As long as both are connected to the internet, you can send and receive video stream from anywhere in the world. § TCP/UDP Push § RTSP Pull REC & live stream § ZIXI Push § NEW RTMP (designed for U-Stream) Encoder IP 192. 168. 0. 10 Typically UDP Push IP 192. 168. 0. 10

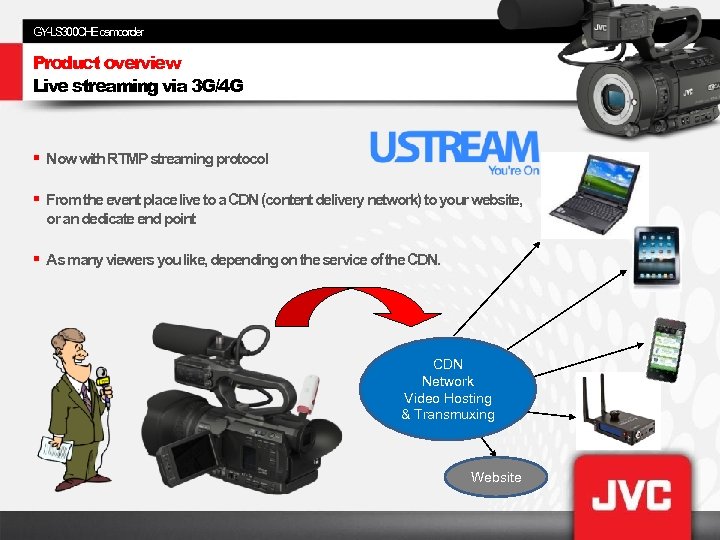

GY-LS 300 CHEcamcorder Product overview Live streaming via 3 G/4 G § Now with RTMP streaming protocol § From the event place live to a CDN (content delivery network) to your website, or an dedicate end point § As many viewers you like, depending on the service of the CDN Network Video Hosting & Transmuxing Website

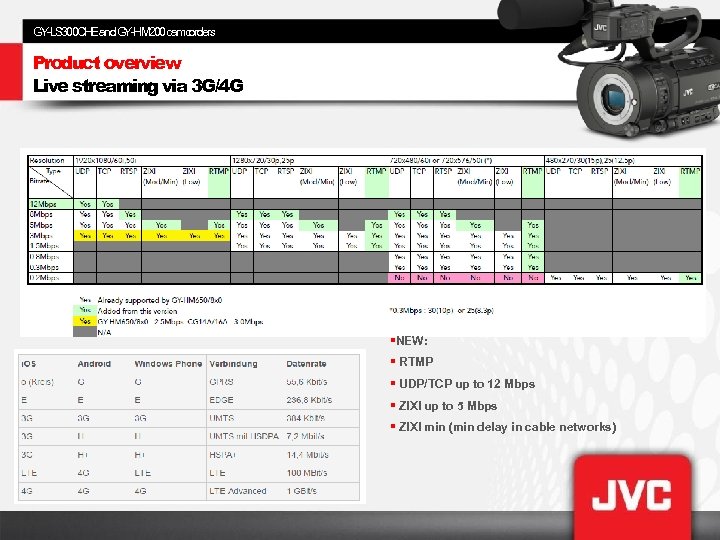

GY-LS 300 CHEand. GY-HM 200 camcorders Product overview Live streaming via 3 G/4 G §NEW: § RTMP § UDP/TCP up to 12 Mbps § ZIXI up to 5 Mbps § ZIXI min (min delay in cable networks)

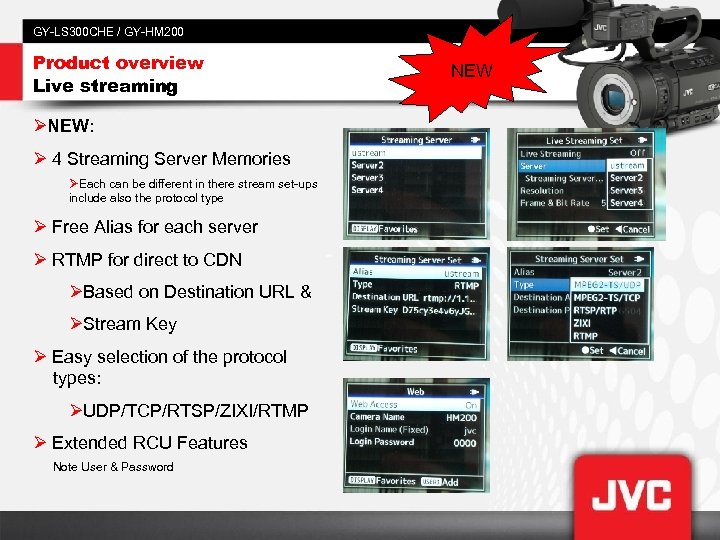

GY-LS 300 CHE / GY-HM 200 Product overview Live streaming ØNEW: Ø 4 Streaming Server Memories ØEach can be different in there stream set-ups include also the protocol type Ø Free Alias for each server Ø RTMP for direct to CDN ØBased on Destination URL & ØStream Key Ø Easy selection of the protocol types: ØUDP/TCP/RTSP/ZIXI/RTMP Ø Extended RCU Features Note User & Password NEW

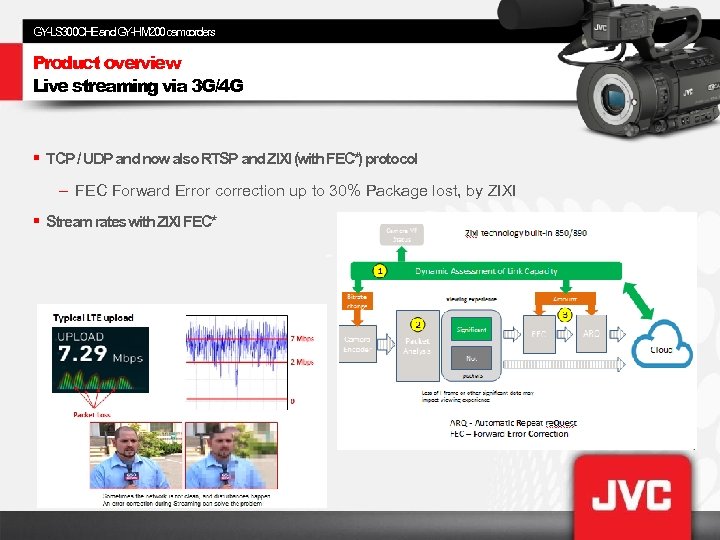

GY-LS 300 CHEand. GY-HM 200 camcorders Product overview Live streaming via 3 G/4 G § TCP / UDP and now also RTSP and ZIXI (with FEC*) protocol – FEC Forward Error correction up to 30% Package lost, by ZIXI § Stream rates with ZIXI FEC*

GY-LS 300 CHEand. GY-HM 200 camcorders Product overview GY-LS 300 CHE streaming and remote control Camera can be controlled via web interface while streaming. If you have a Fixed IP Address feature, you can control streaming cameras from any global location (ask your provider).

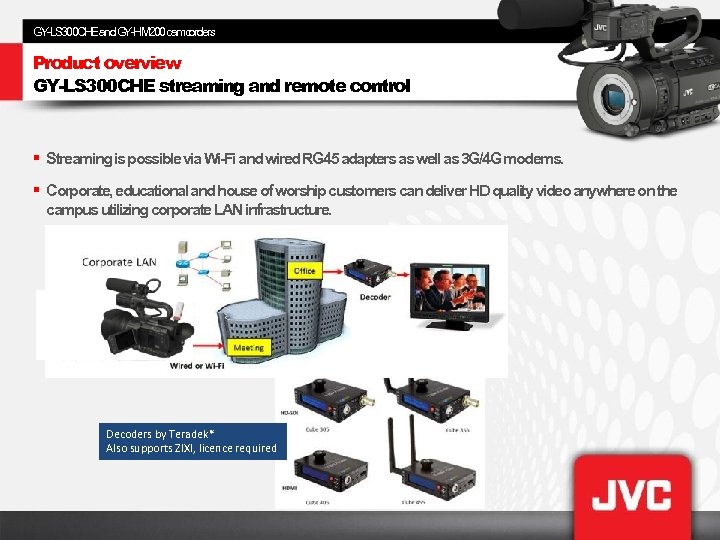

GY-LS 300 CHEand. GY-HM 200 camcorders Product overview GY-LS 300 CHE streaming and remote control § Streaming is possible via Wi-Fi and wired RG 45 adapters as well as 3 G/4 G modems. § Corporate, educational and house of worship customers can deliver HD quality video anywhere on the campus utilizing corporate LAN infrastructure. Decoders by Teradek* Also supports ZIXI, licence required

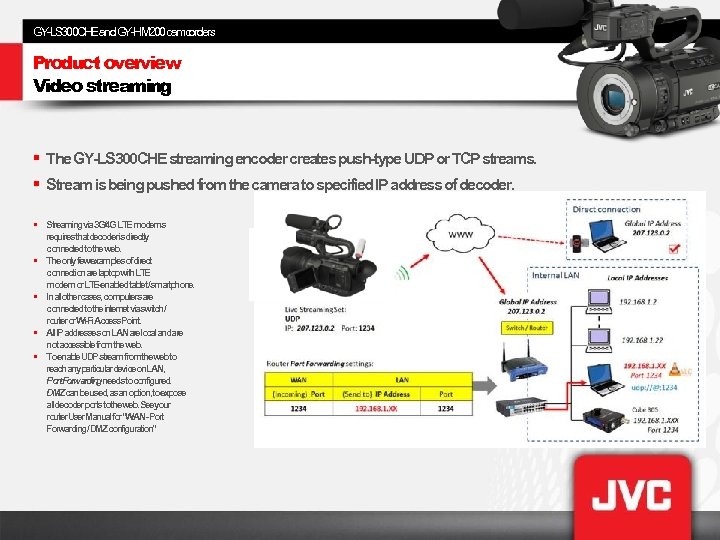

GY-LS 300 CHEand. GY-HM 200 camcorders Product overview Video streaming § The GY-LS 300 CHE streaming encoder creates push-type UDP or TCP streams. § Stream is being pushed from the camera to specified IP address of decoder. § Streaming via 3 G/4 G LTE modems requires that decoder is directly connected to the web. § The only few examples of direct connection are laptop with LTE modem or LTE-enabled tablet / smartphone. § In all other cases, computers are connected to the internet via switch / router or Wi-Fi Access Point. § All IP addresses on LAN are local and are not accessible from the web. § To enable UDP stream from the web to reach any particular device on LAN, Port. Forwardingneeds to configured. DMZ can be used, as an option, to expose all decoder ports to the web. See your router User Manual for “WAN - Port Forwarding / DMZ configuration”

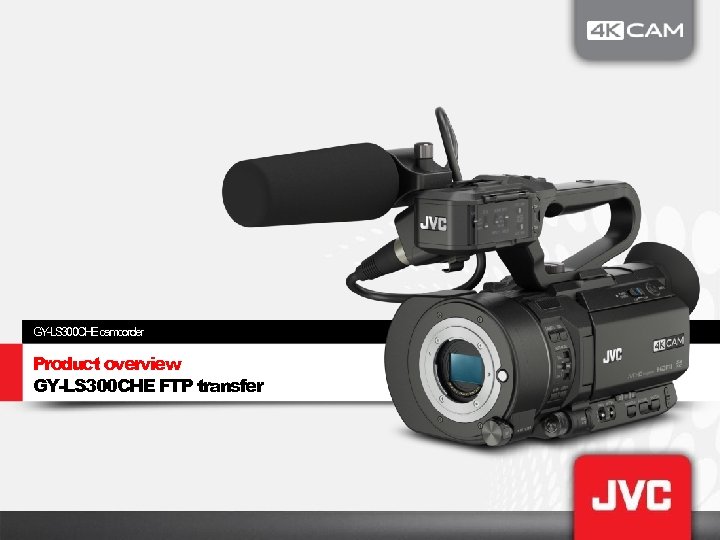

GY-LS 300 CHEcamcorder Product overview GY-LS 300 CHE FTP transfer

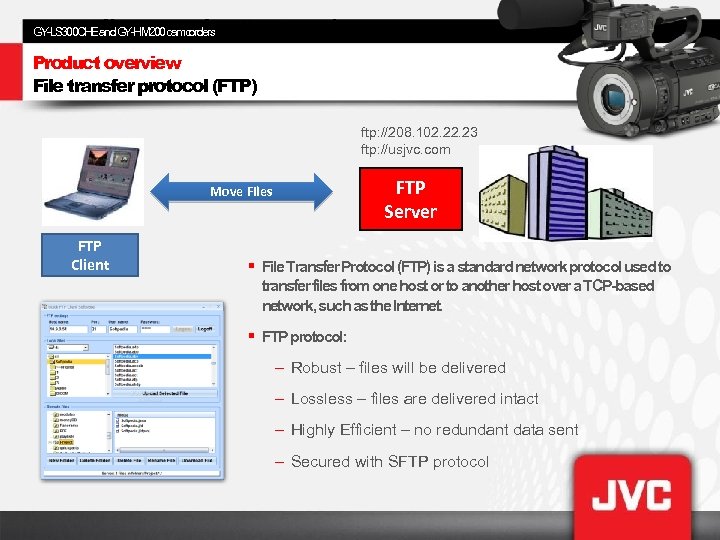

GY-LS 300 CHEand. GY-HM 200 camcorders FTP – File Transfer Protocol Product overview File transfer protocol (FTP) ftp: //208. 102. 23 ftp: //usjvc. com FTP Server Move Files FTP Client § File Transfer Protocol (FTP) is a standard network protocol used to transfer files from one host or to another host over a TCP-based network, such as the Internet. § FTP protocol: – Robust – files will be delivered – Lossless – files are delivered intact – Highly Efficient – no redundant data sent – Secured with SFTP protocol

GY-LS 300 CHEand. GY-HM 200 camcorders Product overview Why send files from the camera? Standard ENG workflow Wi-Fi Do they have time? No!

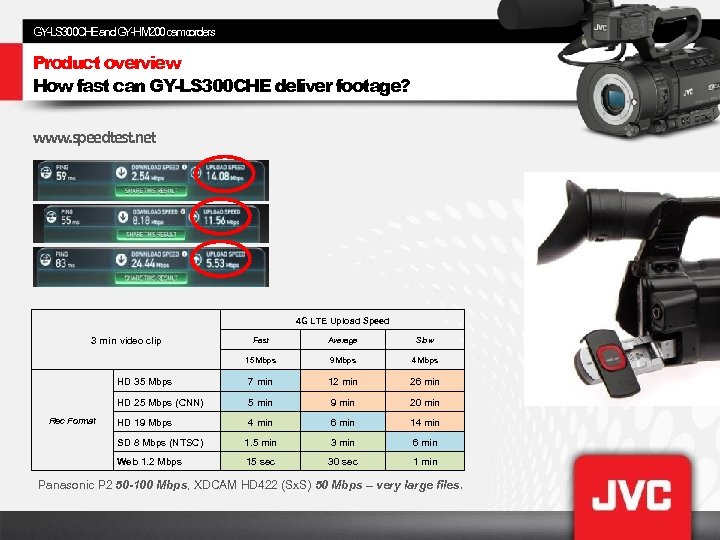

GY-LS 300 CHEand. GY-HM 200 camcorders Product overview How fast can GY-LS 300 CHE deliver footage? www. speedtest. net 4 G LTE Upload Speed 3 min video clip Average Slow 15 Mbps 9 Mbps 4 Mbps HD 35 Mbps 7 min 12 min 26 min HD 25 Mbps (CNN) 5 min 9 min 20 min HD 19 Mbps 4 min 6 min 14 min SD 8 Mbps (NTSC) 1. 5 min 3 min 6 min Web 1. 2 Mbps Rec Format Fast 15 sec 30 sec 1 min Panasonic P 2 50 -100 Mbps, XDCAM HD 422 (Sx. S) 50 Mbps – very large files.

GY-LS 300 CHE and GY-HM 200 camcorders Product overview FTP client ü Wi-Fi ü Ethernet ü 3 G/4 G LTE FTP Server 192. 168. 0. 100 § Communicate with FTP server(s) § Set server IP address, Port, User and PW § Send selected video clips § Receive Metadata

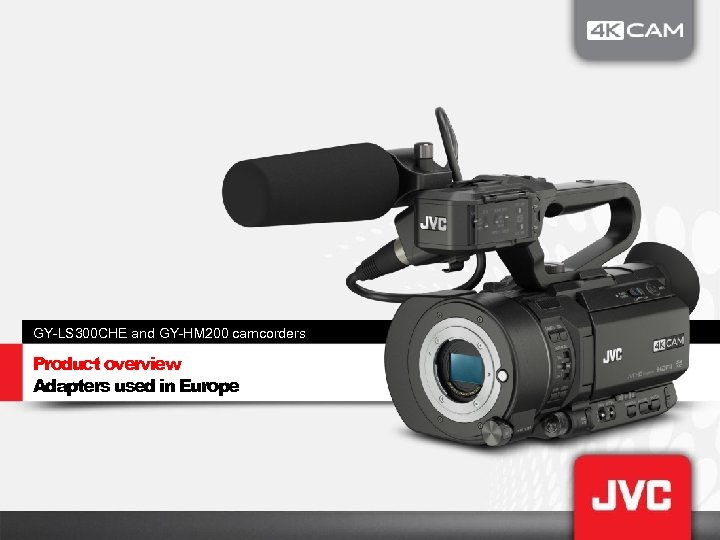

GY-LS 300 CHE and GY-HM 200 camcorders Product overview Adapters used in Europe

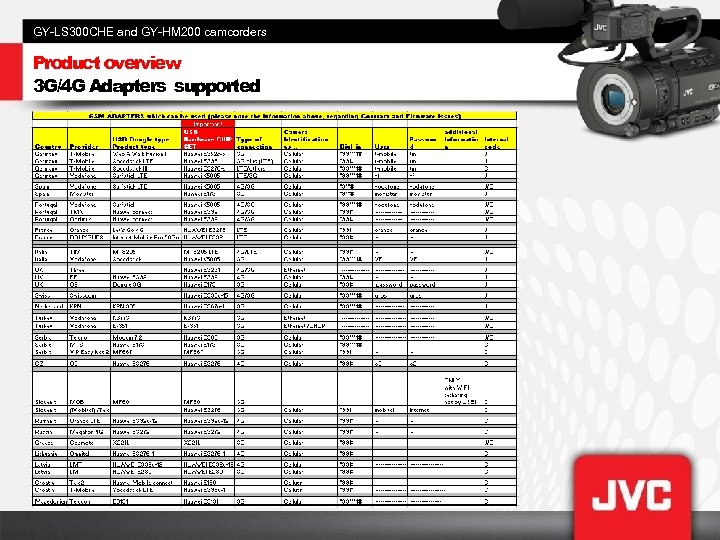

GY-LS 300 CHE and GY-HM 200 camcorders Product overview 3 G/4 G Adapters supported

GY-LS 300 CHE and GY-HM 200 camcorders Product overview Wi. Fi or cable adapters

GY-LS 300 CHEand. GY-HM 200 camcorders Product overview Cable adapters

GY-LS 300 CHE and GY-HM 200 camcorders Product overview Web access (server)

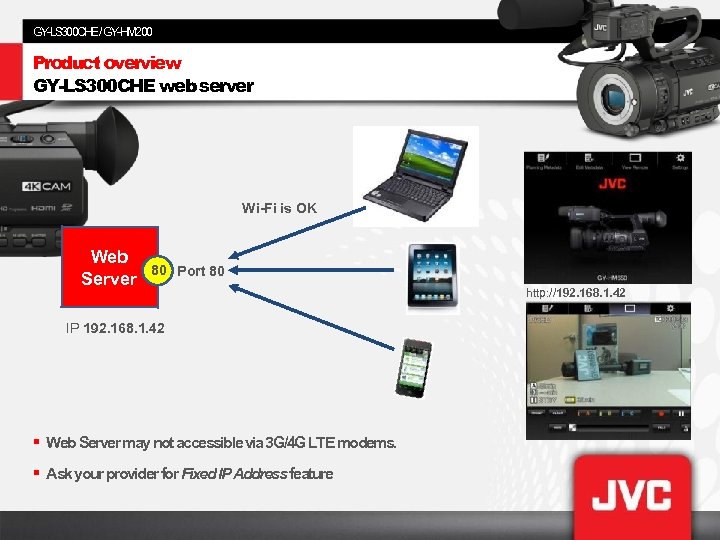

GY-LS 300 CHE/GY-HM 200 Product overview GY-LS 300 CHE web server Wi-Fi is OK Web Server 80 Port 80 IP 192. 168. 1. 42 § Web Server may not accessible via 3 G/4 G LTE modems. § Ask your provider for Fixed IP Address feature http: //192. 168. 1. 42

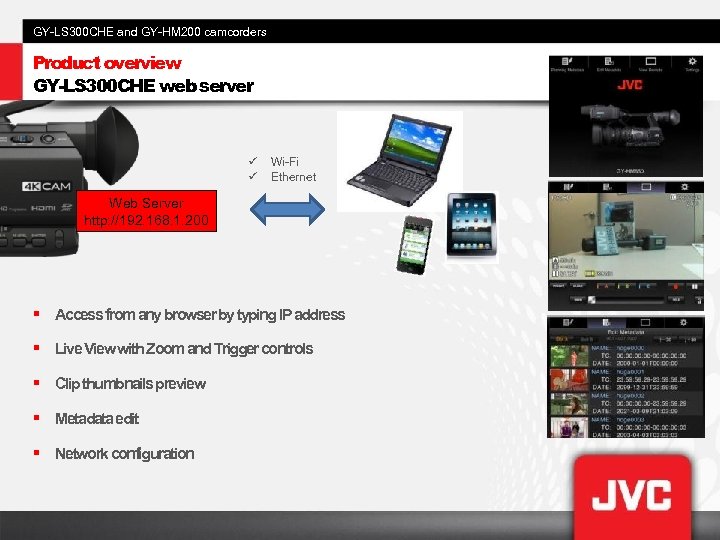

GY-LS 300 CHE and GY-HM 200 camcorders Product overview GY-LS 300 CHE web server ü ü Wi-Fi Ethernet Web Server http: //192. 168. 1. 200 § Access from any browser by typing IP address § Live View with Zoom and Trigger controls § Clip thumbnails preview § Metadata edit § Network configuration

GY-LS 300 CHE and GY-HM 200 camcorders Product overview Web-based RCU (remote control)

GY-LS 300 CHE and GY-HM 200 camcorders Product overview Live view and remote control

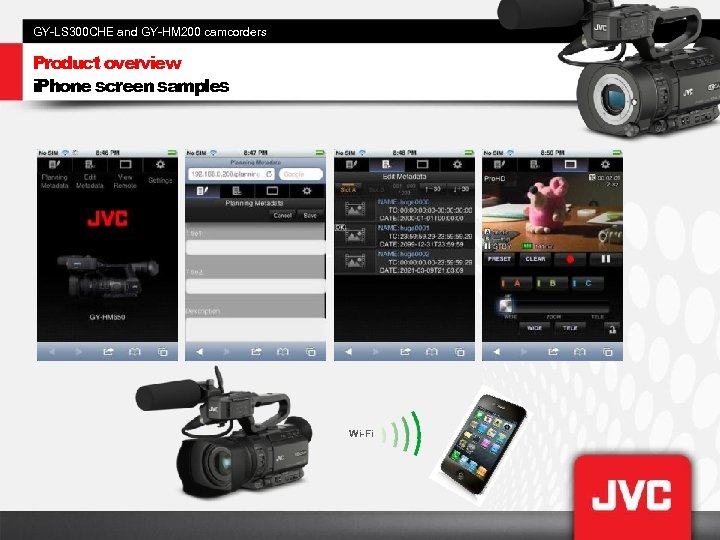

GY-LS 300 CHE and GY-HM 200 camcorders Product overview i. Phone screen samples Wi-Fi

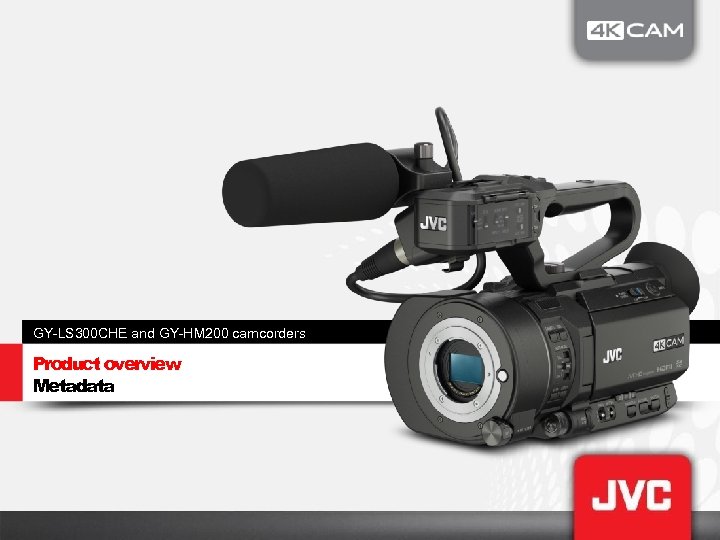

GY-LS 300 CHE and GY-HM 200 camcorders Product overview Metadata

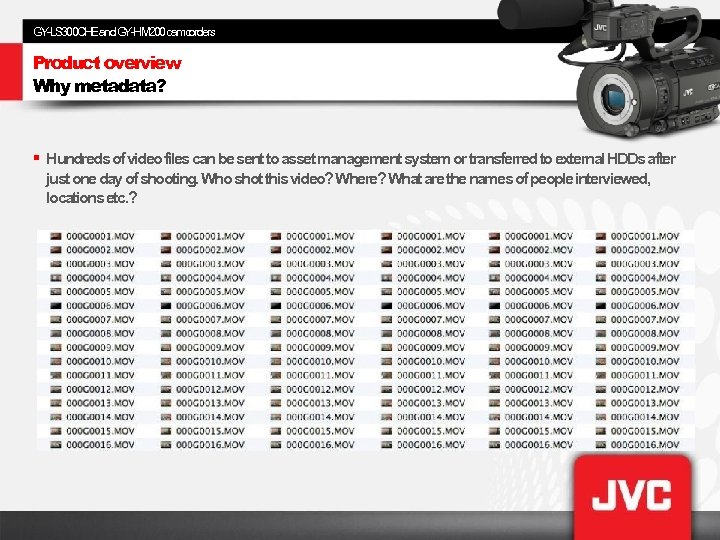

GY-LS 300 CHEand. GY-HM 200 camcorders Product overview Why metadata? § Hundreds of video files can be sent to asset management system or transferred to external HDDs after just one day of shooting. Who shot this video? Where? What are the names of people interviewed, locations etc. ?

GY-LS 300 CHE and GY-HM 200 camcorders Product overview Metadata embedded in each file Title 1 Title 2 Description Creator GY-LS 300 MOBILE PRODUCTION CAMERA An advanced mobile production camcorder. Pro. HD MOBILE Production Camera GY-LS 300 Pro. HD handheld news camera equipped with dual codecs, built-in FTP and Wi-Fi connectivity. Mobile Newsgathering is now faster and better then ever with the introduction of JVC's GY-HM 650. Small and light enough to be used anywhere, this advanced camera surpasses the performance of many traditional ENG style units and offers capabilities never before available on any model. Dual codecs make it possible to record for 2 screens simultaneously: full HD on one memory card and a smaller web-friendly file on another card. Transfer the footage back to the station with the GY-HM 650's built-in FTP and Wi. Fi connectivity. The GY-HM 650's long (23 x) wide angle lens is perfect for fast paced ENG. The camera offers superb low light performance with F 11 sensitivity at @2000 lux. News acquisition is changing, with more emphasis being placed on immediate electronic delivery. JVC is responding with the GY-HM 650, the world's first Pro. HD handheld news camera equipped with dual codecs, built-in FTP and Wi-Fi connectivity for shooting and delivering news footage faster than ever. JVC's revolutionary new dual codec design makes it possible to record in two resolutions on separate memory cards—one in full HD and one as a smaller web-friendly file. Smaller files can be quickly and easily transferred with built-in FTP. And, Wi-Fi connectivity lets you control the camera, add metadata, and even remotely view the live signal from a personal computer, tablet or even a smartphone. But the GY-HM 650 advantages don't end with its wireless connectivity. With a newly developed 23 x Fujinon lens and three full HD 1/3 -inch CMOS sensors, the GY-HM 650 produces image quality that surpasses many larger and more expensive cameras. And with flexible solid state recording options, including a new Ultra High Quality mode (H. 264 at 35 Mbps), your recordings are stored at the highest quality and are compatible with a wide range of post production workflows. At the heart of the GY-HM 650 are three, 1/3 -inch CMOS sensors, each capable of capturing full HD 1920 x 1080 resolution images. Offering an excellent sensitivity of F 11 (60 Hz) /F 12 (50 Hz) and more FALCONBRID™ is JVC's high-speed processor for advanced video applications. Delivering high processing power on a single chip. 63 127 2047 127

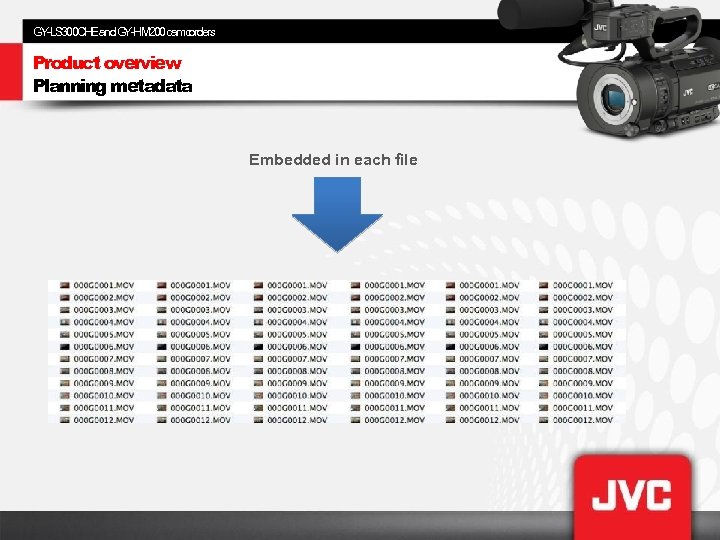

GY-LS 300 CHEand. GY-HM 200 camcorders Product overview Planning metadata Embedded in each file

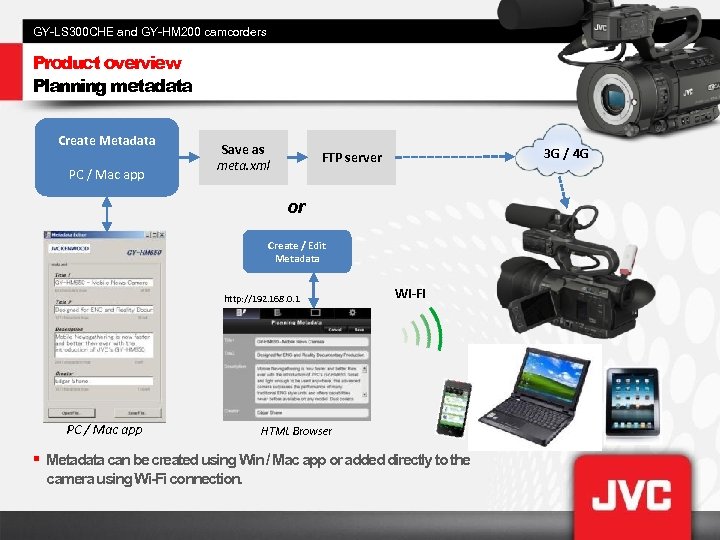

GY-LS 300 CHE and GY-HM 200 camcorders Product overview Planning metadata Create Metadata PC / Mac app Save as meta. xml 3 G / 4 G FTP server or Create / Edit Metadata http: //192. 168. 0. 1 PC / Mac app Wi-Fi HTML Browser § Metadata can be created using Win / Mac app or added directly to the camera using Wi-Fi connection.

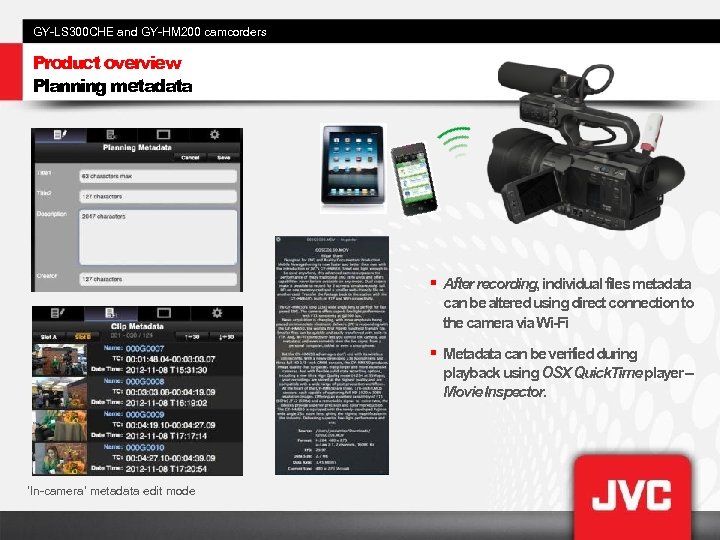

GY-LS 300 CHE and GY-HM 200 camcorders Product overview Planning metadata § After recording, individual files metadata can be altered using direct connection to the camera via Wi-Fi § Metadata can be verified during playback using OSX Quick. Time player – Movie Inspector. ‘In-camera’ metadata edit mode

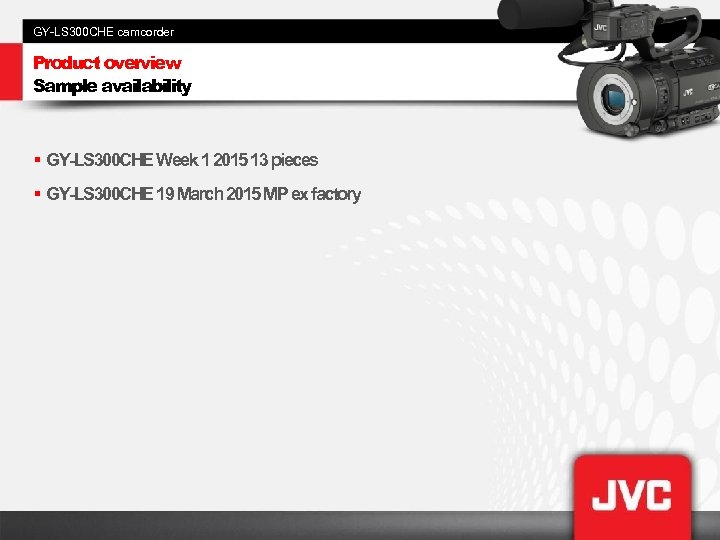

GY-LS 300 CHE camcorder Demo Samples Product overview Sample availability § GY-LS 300 CHE Week 1 2015 13 pieces § GY-LS 300 CHE 19 March 2015 MP ex factory
