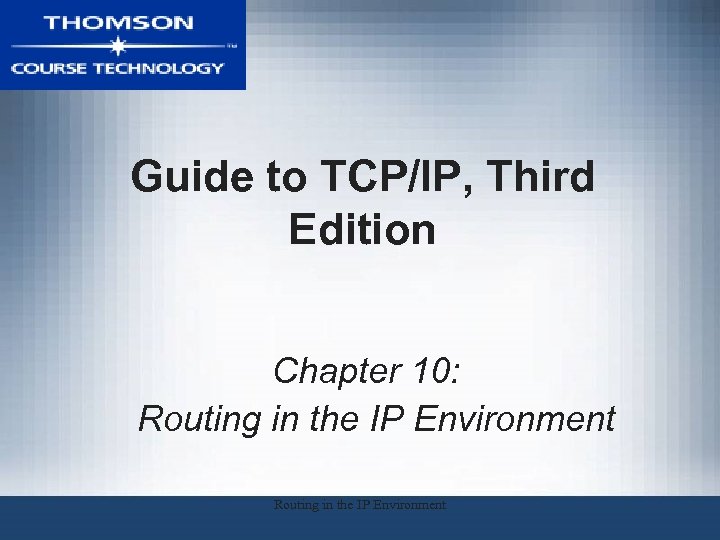

Guide to TCP/IP, Third Edition Chapter 10: Routing in the IP Environment Guide to TCP/IP, Third Edition Chapter 10: Routing in the IP Environment

Objectives • Understand how basic routing works • Describe various routing characteristics • Understand Objectives • Understand how basic routing works • Describe various routing characteristics • Understand interior gateway protocols, such as RIP, OSPF, and EIGRP • Understand BGP, an exterior gateway protocol • Describe how to manage routing on an in-house internetwork Routing in the IP Environment 2

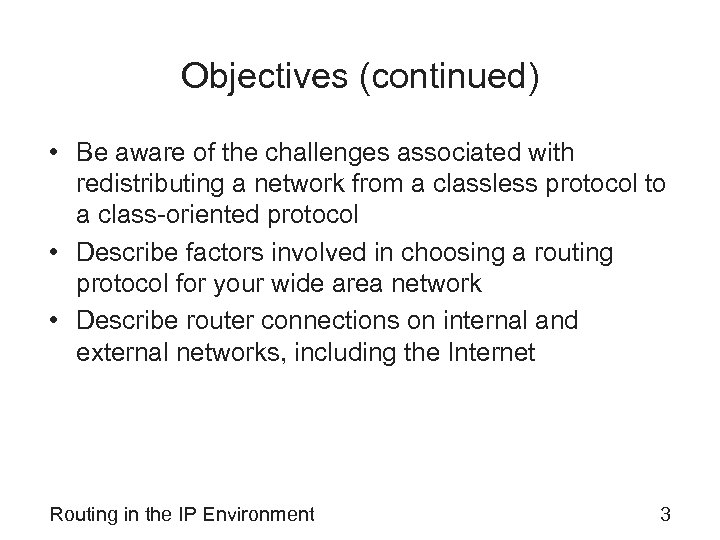

Objectives (continued) • Be aware of the challenges associated with redistributing a network from Objectives (continued) • Be aware of the challenges associated with redistributing a network from a classless protocol to a class-oriented protocol • Describe factors involved in choosing a routing protocol for your wide area network • Describe router connections on internal and external networks, including the Internet Routing in the IP Environment 3

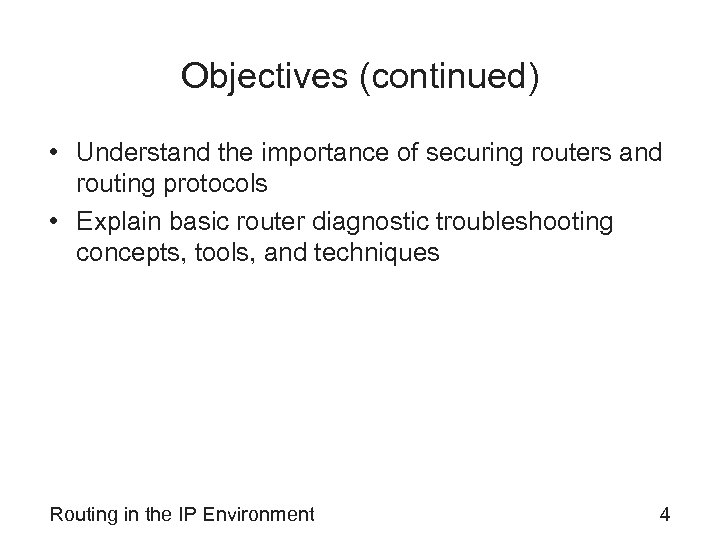

Objectives (continued) • Understand the importance of securing routers and routing protocols • Explain Objectives (continued) • Understand the importance of securing routers and routing protocols • Explain basic router diagnostic troubleshooting concepts, tools, and techniques Routing in the IP Environment 4

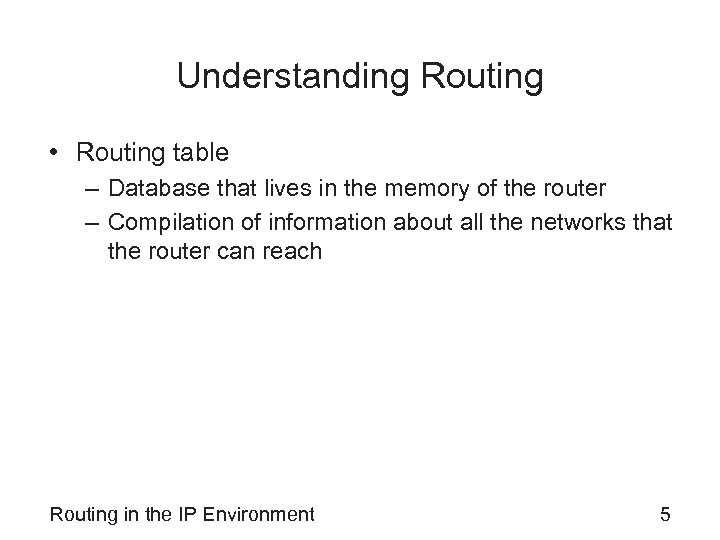

Understanding Routing • Routing table – Database that lives in the memory of the Understanding Routing • Routing table – Database that lives in the memory of the router – Compilation of information about all the networks that the router can reach Routing in the IP Environment 5

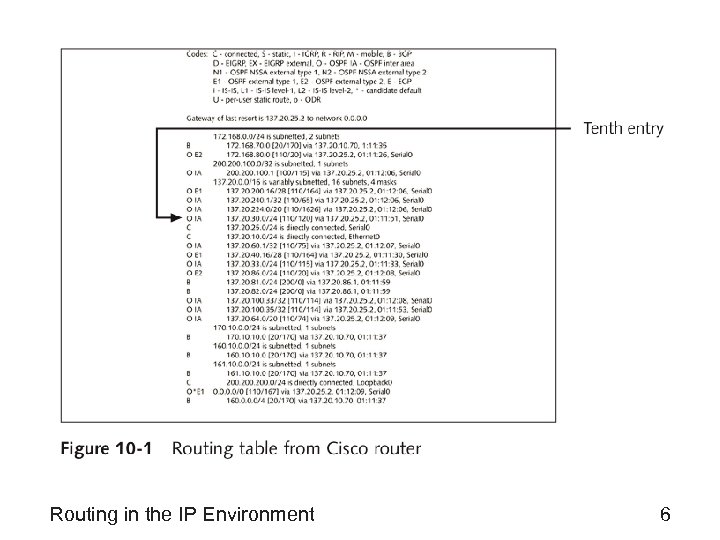

Routing in the IP Environment 6 Routing in the IP Environment 6

How Entries Are Placed in the Routing Table • Route entry can be placed How Entries Are Placed in the Routing Table • Route entry can be placed in a routing table in three basic ways – Through direct connection – It can be manually configured – An entry can be placed in a routing table is dynamically, by using a routing protocol Routing in the IP Environment 7

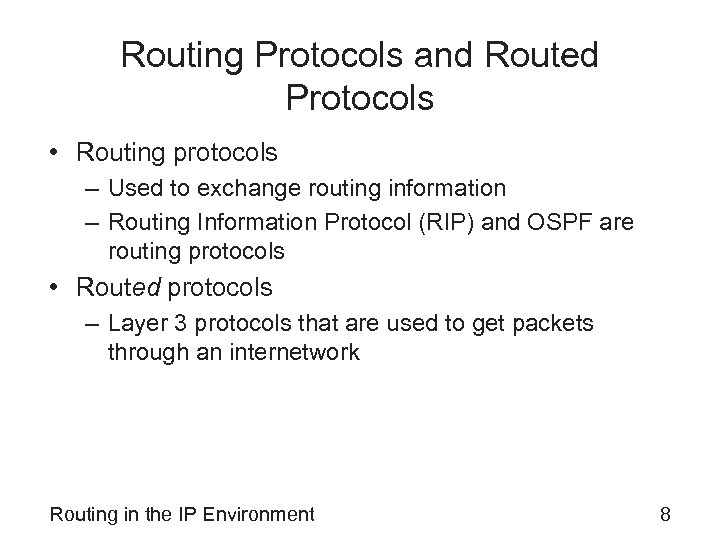

Routing Protocols and Routed Protocols • Routing protocols – Used to exchange routing information Routing Protocols and Routed Protocols • Routing protocols – Used to exchange routing information – Routing Information Protocol (RIP) and OSPF are routing protocols • Routed protocols – Layer 3 protocols that are used to get packets through an internetwork Routing in the IP Environment 8

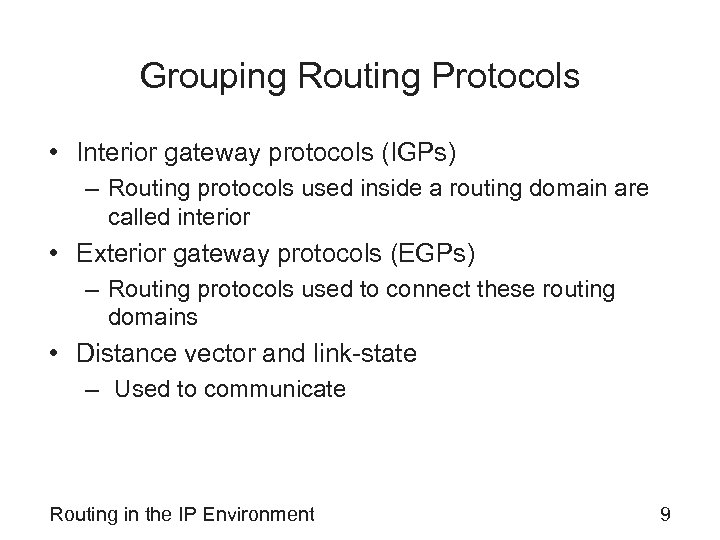

Grouping Routing Protocols • Interior gateway protocols (IGPs) – Routing protocols used inside a Grouping Routing Protocols • Interior gateway protocols (IGPs) – Routing protocols used inside a routing domain are called interior • Exterior gateway protocols (EGPs) – Routing protocols used to connect these routing domains • Distance vector and link-state – Used to communicate Routing in the IP Environment 9

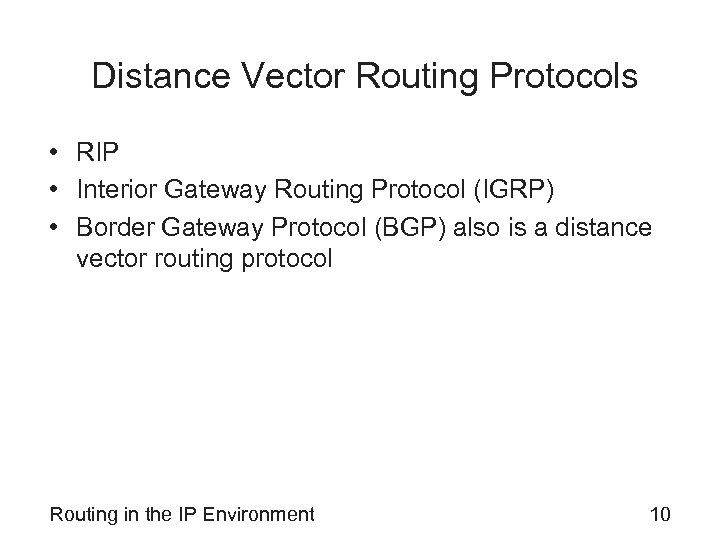

Distance Vector Routing Protocols • RIP • Interior Gateway Routing Protocol (IGRP) • Border Distance Vector Routing Protocols • RIP • Interior Gateway Routing Protocol (IGRP) • Border Gateway Protocol (BGP) also is a distance vector routing protocol Routing in the IP Environment 10

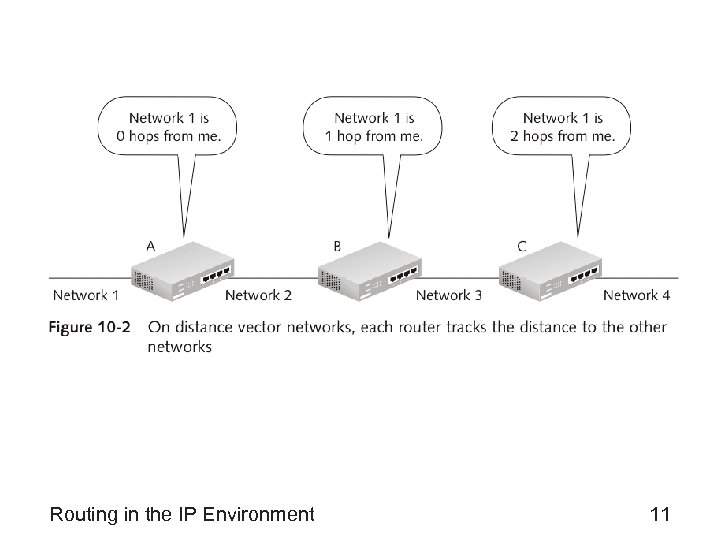

Routing in the IP Environment 11 Routing in the IP Environment 11

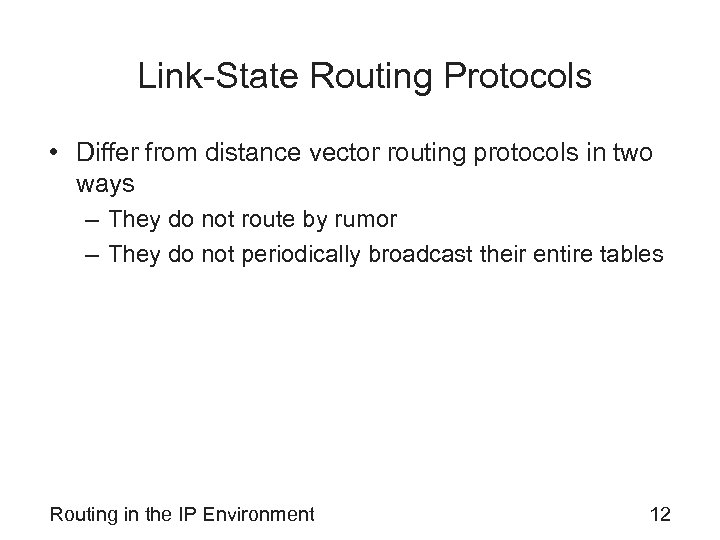

Link-State Routing Protocols • Differ from distance vector routing protocols in two ways – Link-State Routing Protocols • Differ from distance vector routing protocols in two ways – They do not route by rumor – They do not periodically broadcast their entire tables Routing in the IP Environment 12

Routing in the IP Environment 13 Routing in the IP Environment 13

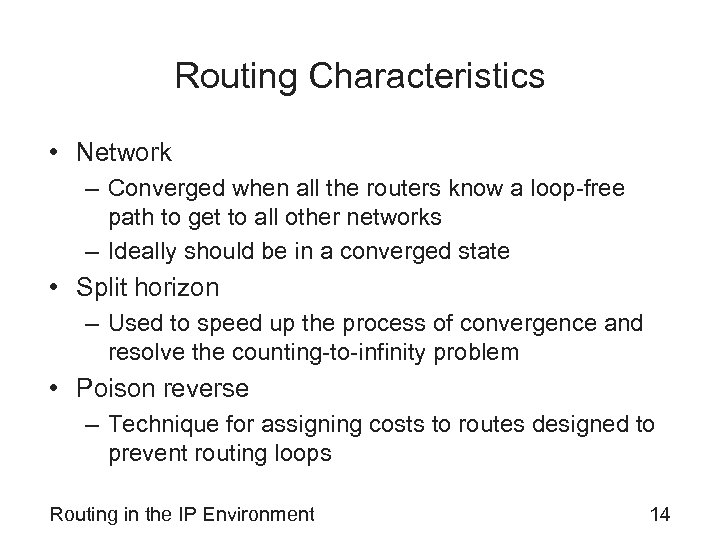

Routing Characteristics • Network – Converged when all the routers know a loop-free path Routing Characteristics • Network – Converged when all the routers know a loop-free path to get to all other networks – Ideally should be in a converged state • Split horizon – Used to speed up the process of convergence and resolve the counting-to-infinity problem • Poison reverse – Technique for assigning costs to routes designed to prevent routing loops Routing in the IP Environment 14

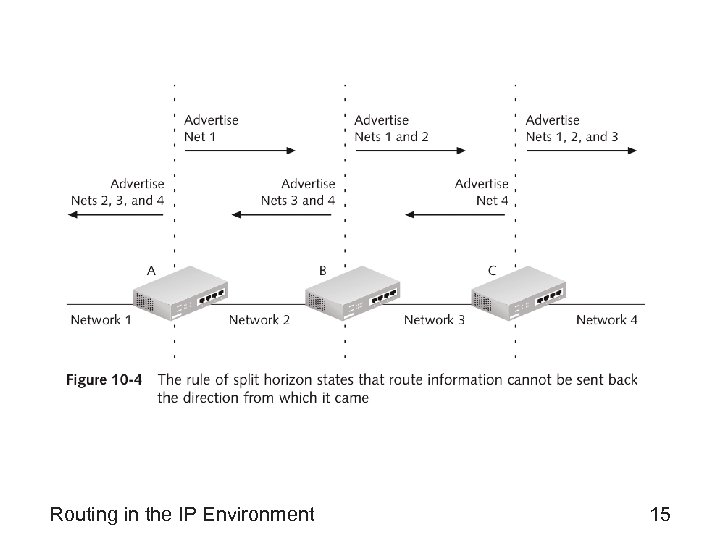

Routing in the IP Environment 15 Routing in the IP Environment 15

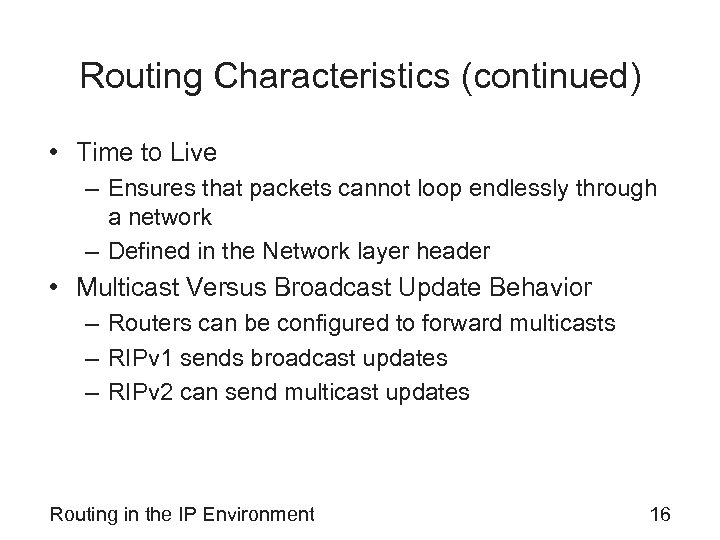

Routing Characteristics (continued) • Time to Live – Ensures that packets cannot loop endlessly Routing Characteristics (continued) • Time to Live – Ensures that packets cannot loop endlessly through a network – Defined in the Network layer header • Multicast Versus Broadcast Update Behavior – Routers can be configured to forward multicasts – RIPv 1 sends broadcast updates – RIPv 2 can send multicast updates Routing in the IP Environment 16

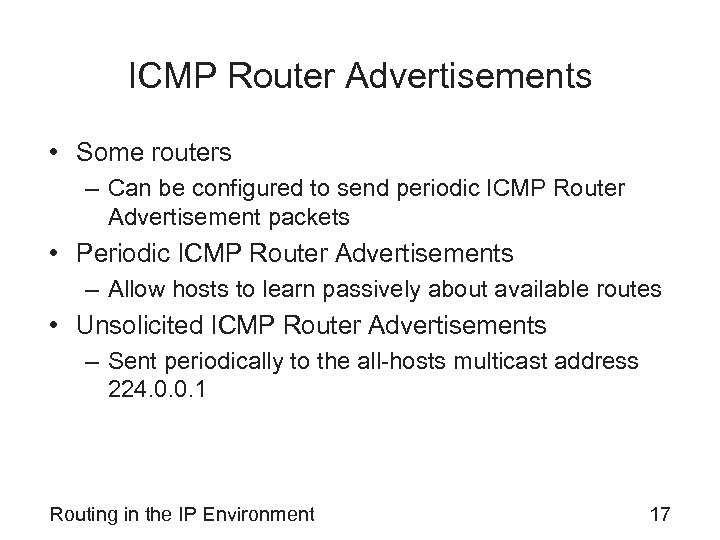

ICMP Router Advertisements • Some routers – Can be configured to send periodic ICMP ICMP Router Advertisements • Some routers – Can be configured to send periodic ICMP Router Advertisement packets • Periodic ICMP Router Advertisements – Allow hosts to learn passively about available routes • Unsolicited ICMP Router Advertisements – Sent periodically to the all-hosts multicast address 224. 0. 0. 1 Routing in the IP Environment 17

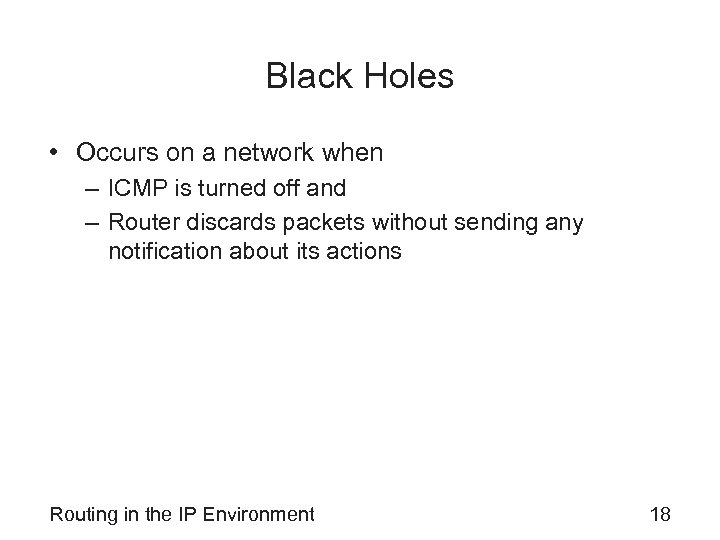

Black Holes • Occurs on a network when – ICMP is turned off and Black Holes • Occurs on a network when – ICMP is turned off and – Router discards packets without sending any notification about its actions Routing in the IP Environment 18

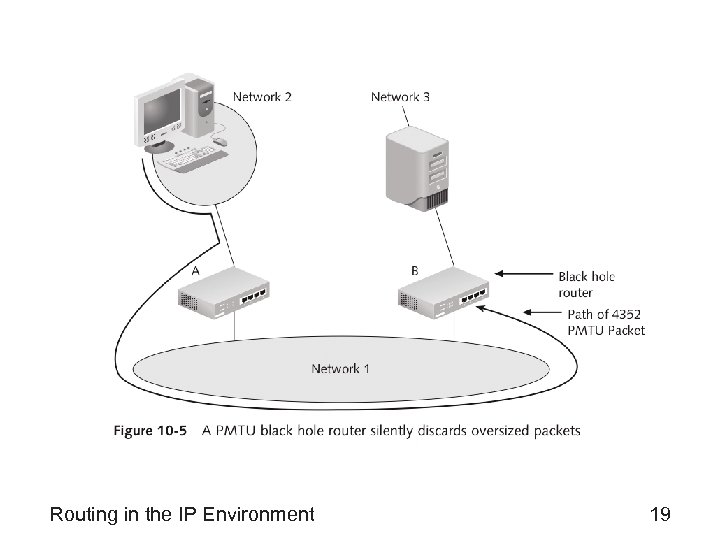

Routing in the IP Environment 19 Routing in the IP Environment 19

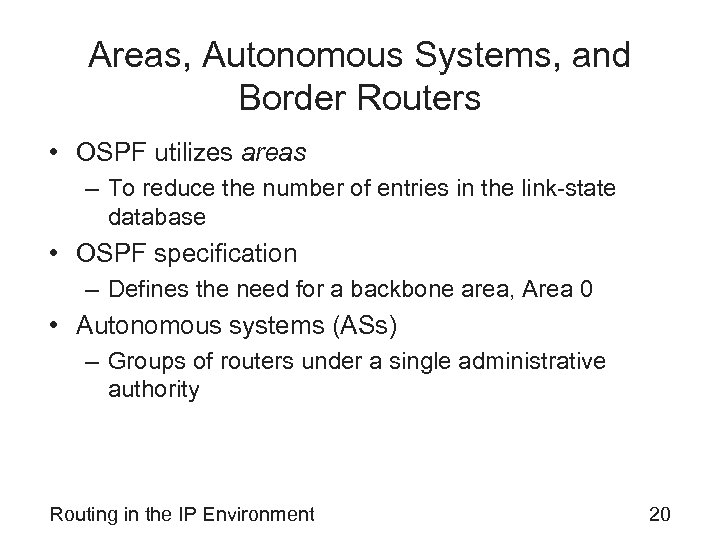

Areas, Autonomous Systems, and Border Routers • OSPF utilizes areas – To reduce the Areas, Autonomous Systems, and Border Routers • OSPF utilizes areas – To reduce the number of entries in the link-state database • OSPF specification – Defines the need for a backbone area, Area 0 • Autonomous systems (ASs) – Groups of routers under a single administrative authority Routing in the IP Environment 20

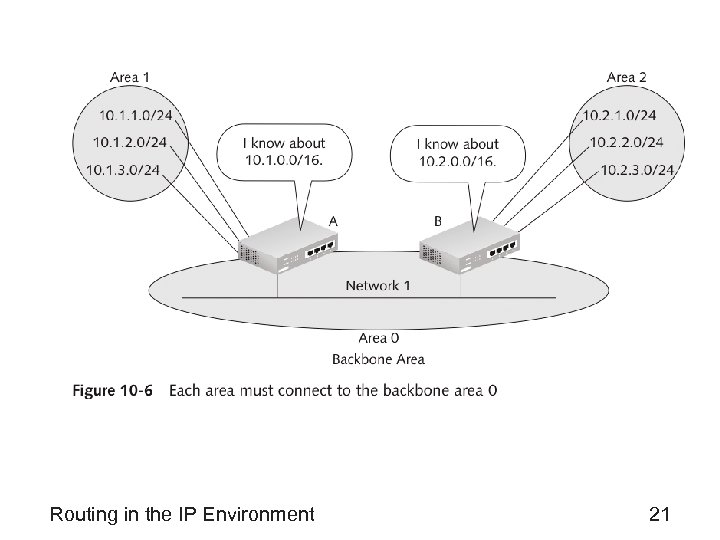

Routing in the IP Environment 21 Routing in the IP Environment 21

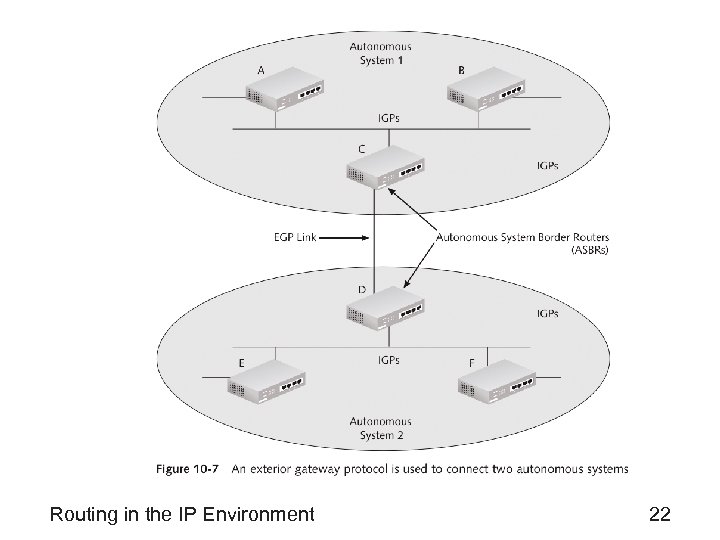

Routing in the IP Environment 22 Routing in the IP Environment 22

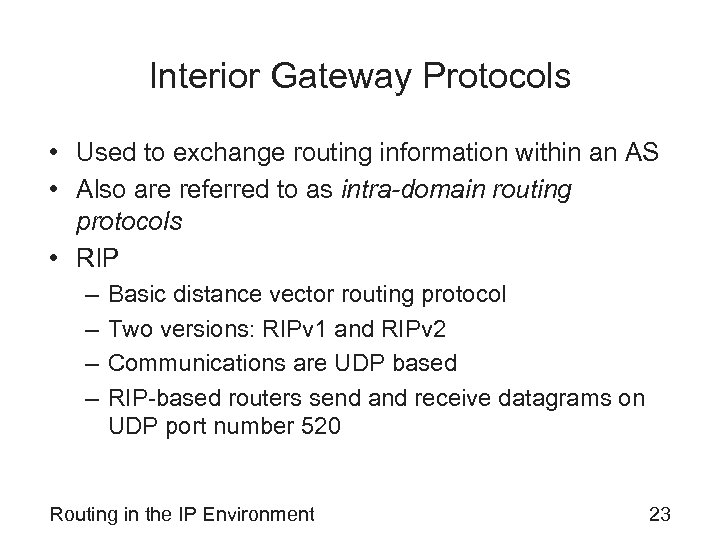

Interior Gateway Protocols • Used to exchange routing information within an AS • Also Interior Gateway Protocols • Used to exchange routing information within an AS • Also are referred to as intra-domain routing protocols • RIP – – Basic distance vector routing protocol Two versions: RIPv 1 and RIPv 2 Communications are UDP based RIP-based routers send and receive datagrams on UDP port number 520 Routing in the IP Environment 23

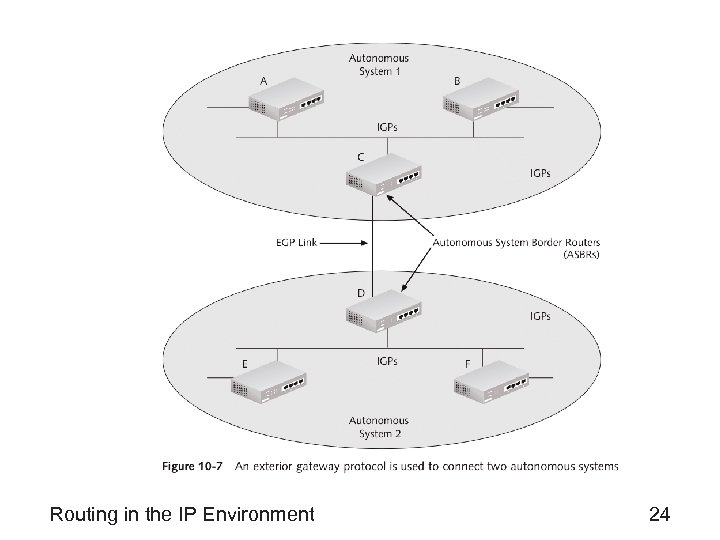

Routing in the IP Environment 24 Routing in the IP Environment 24

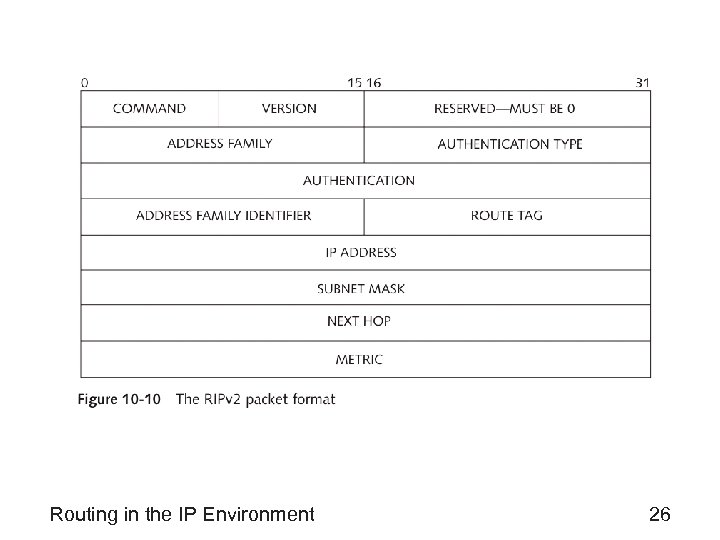

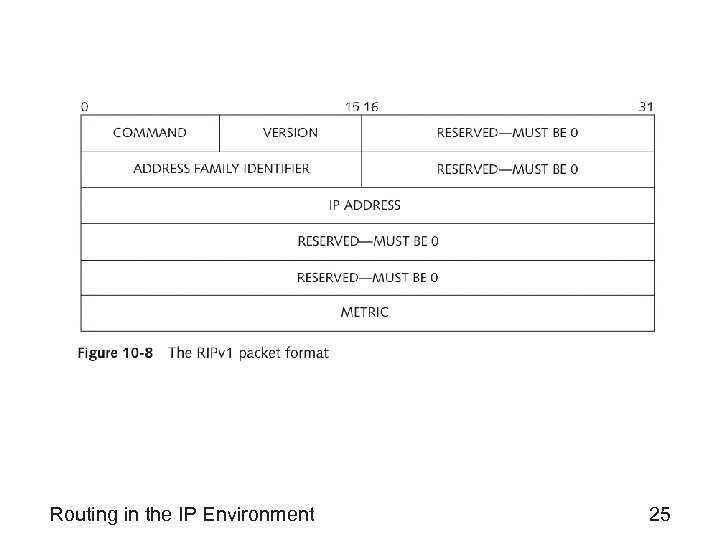

Routing in the IP Environment 25 Routing in the IP Environment 25

Routing in the IP Environment 26 Routing in the IP Environment 26

Open Shortest Path First • Defined in RFC 2328 • The premier link-state routing Open Shortest Path First • Defined in RFC 2328 • The premier link-state routing protocol used on TCP/IP networks • Based on – Configurable values (metrics) that may be based on network bandwidth, delay, or monetary cost Routing in the IP Environment 27

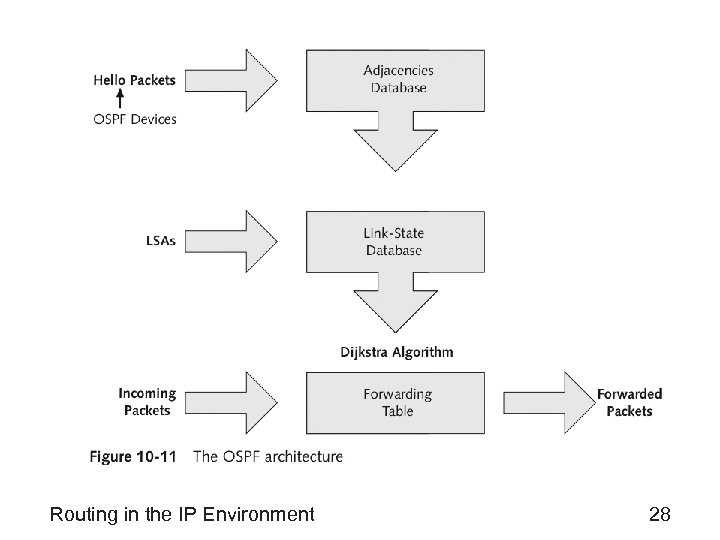

Routing in the IP Environment 28 Routing in the IP Environment 28

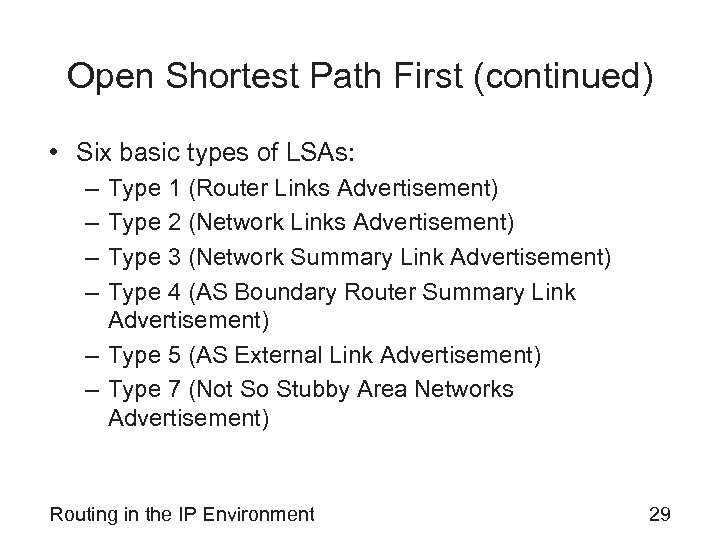

Open Shortest Path First (continued) • Six basic types of LSAs: – – Type Open Shortest Path First (continued) • Six basic types of LSAs: – – Type 1 (Router Links Advertisement) Type 2 (Network Links Advertisement) Type 3 (Network Summary Link Advertisement) Type 4 (AS Boundary Router Summary Link Advertisement) – Type 5 (AS External Link Advertisement) – Type 7 (Not So Stubby Area Networks Advertisement) Routing in the IP Environment 29

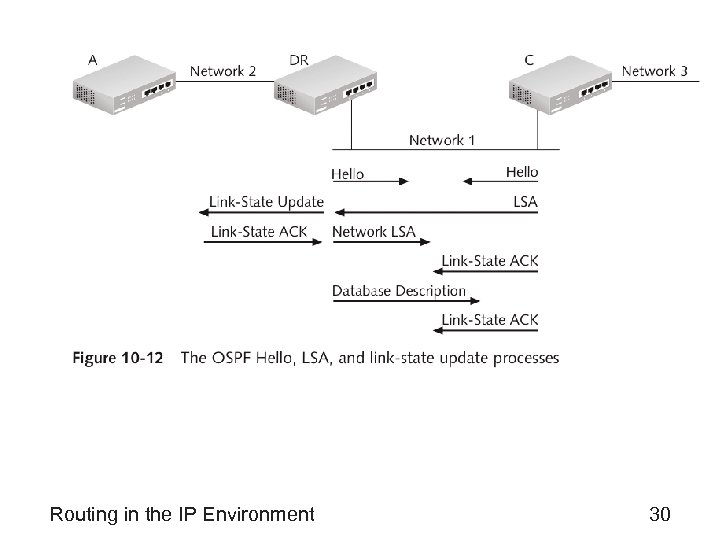

Routing in the IP Environment 30 Routing in the IP Environment 30

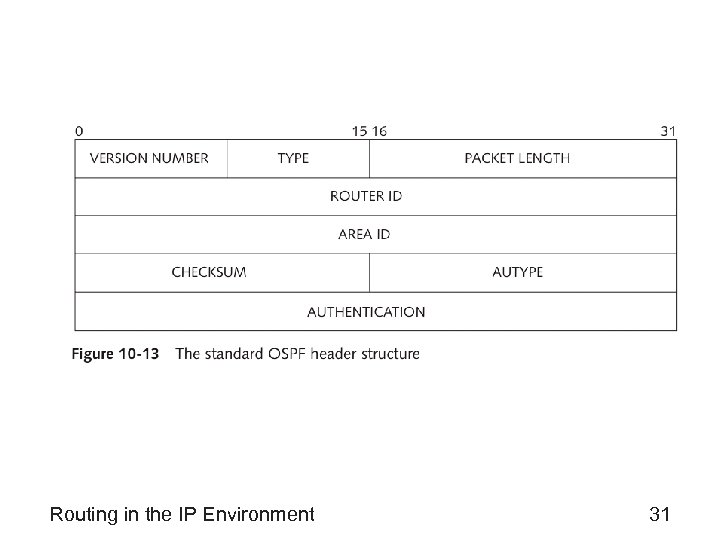

Routing in the IP Environment 31 Routing in the IP Environment 31

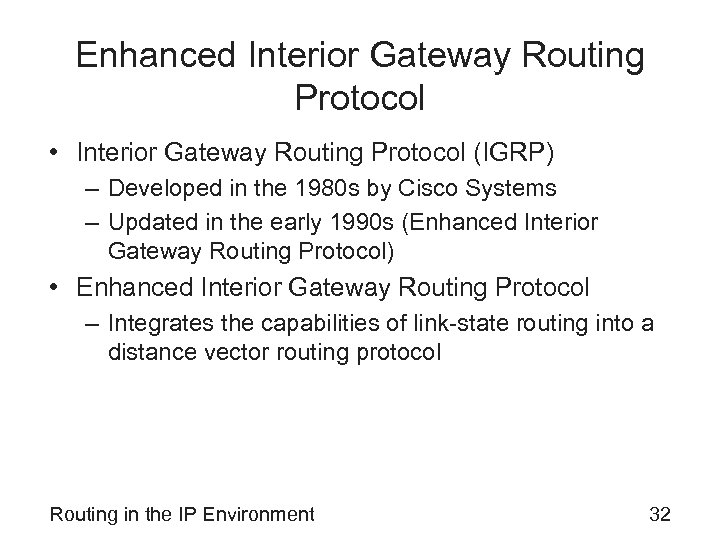

Enhanced Interior Gateway Routing Protocol • Interior Gateway Routing Protocol (IGRP) – Developed in Enhanced Interior Gateway Routing Protocol • Interior Gateway Routing Protocol (IGRP) – Developed in the 1980 s by Cisco Systems – Updated in the early 1990 s (Enhanced Interior Gateway Routing Protocol) • Enhanced Interior Gateway Routing Protocol – Integrates the capabilities of link-state routing into a distance vector routing protocol Routing in the IP Environment 32

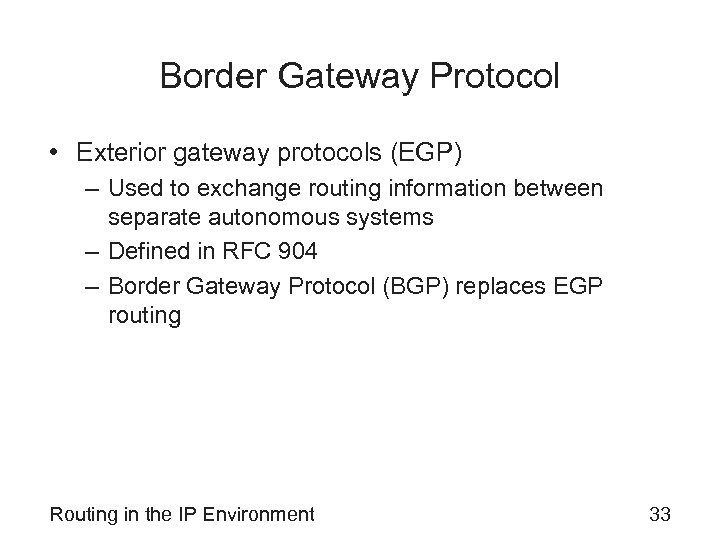

Border Gateway Protocol • Exterior gateway protocols (EGP) – Used to exchange routing information Border Gateway Protocol • Exterior gateway protocols (EGP) – Used to exchange routing information between separate autonomous systems – Defined in RFC 904 – Border Gateway Protocol (BGP) replaces EGP routing Routing in the IP Environment 33

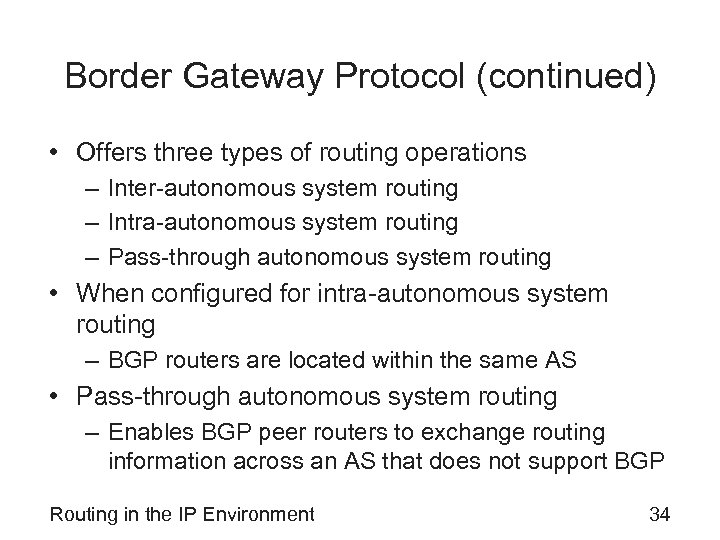

Border Gateway Protocol (continued) • Offers three types of routing operations – Inter-autonomous system Border Gateway Protocol (continued) • Offers three types of routing operations – Inter-autonomous system routing – Intra-autonomous system routing – Pass-through autonomous system routing • When configured for intra-autonomous system routing – BGP routers are located within the same AS • Pass-through autonomous system routing – Enables BGP peer routers to exchange routing information across an AS that does not support BGP Routing in the IP Environment 34

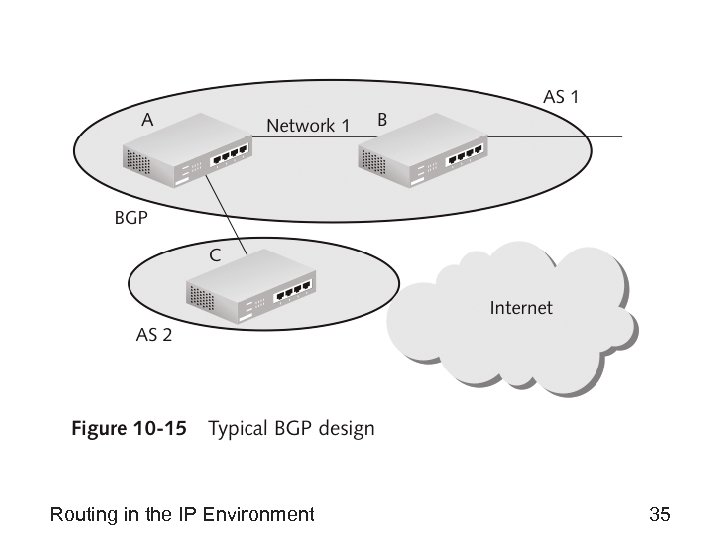

Routing in the IP Environment 35 Routing in the IP Environment 35

Managing Routing on an In-House Internetwork • IP routing protocols have a shortcoming – Managing Routing on an In-House Internetwork • IP routing protocols have a shortcoming – They do not discriminate between users, types of traffic, and so on – They only know how to get to a network – Policy-based routing addresses this shortcoming Routing in the IP Environment 36

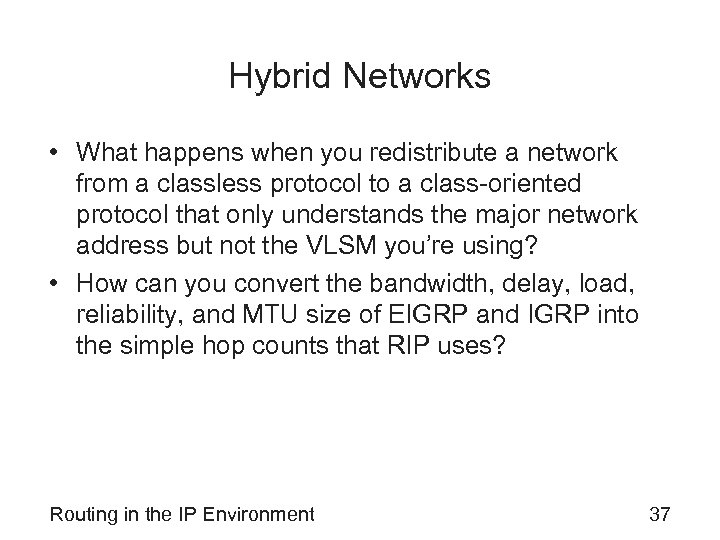

Hybrid Networks • What happens when you redistribute a network from a classless protocol Hybrid Networks • What happens when you redistribute a network from a classless protocol to a class-oriented protocol that only understands the major network address but not the VLSM you’re using? • How can you convert the bandwidth, delay, load, reliability, and MTU size of EIGRP and IGRP into the simple hop counts that RIP uses? Routing in the IP Environment 37

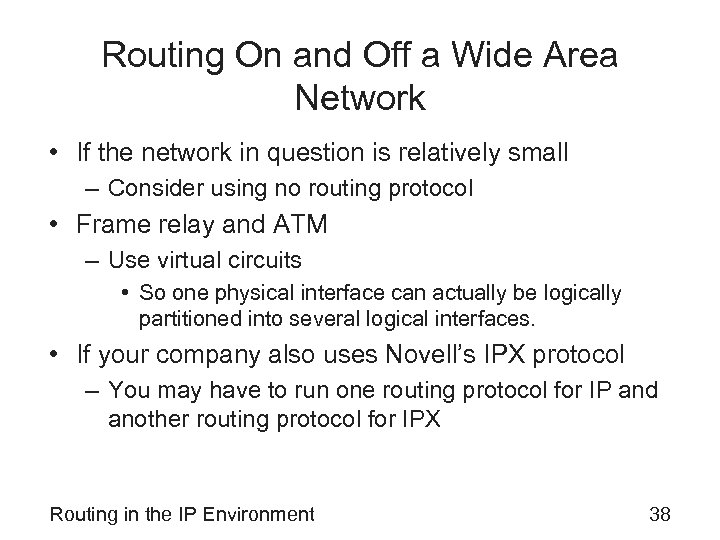

Routing On and Off a Wide Area Network • If the network in question Routing On and Off a Wide Area Network • If the network in question is relatively small – Consider using no routing protocol • Frame relay and ATM – Use virtual circuits • So one physical interface can actually be logically partitioned into several logical interfaces. • If your company also uses Novell’s IPX protocol – You may have to run one routing protocol for IP and another routing protocol for IPX Routing in the IP Environment 38

Mobile Users • Mobile IP – Defined by the IETF in RFCs 2003 through Mobile Users • Mobile IP – Defined by the IETF in RFCs 2003 through 2006 and RFC 3220 (which obsoletes RFC 2002) • Local Area Mobility – Cisco proprietary feature that is similar to Mobile IP – Operates by using the routing table Routing in the IP Environment 39

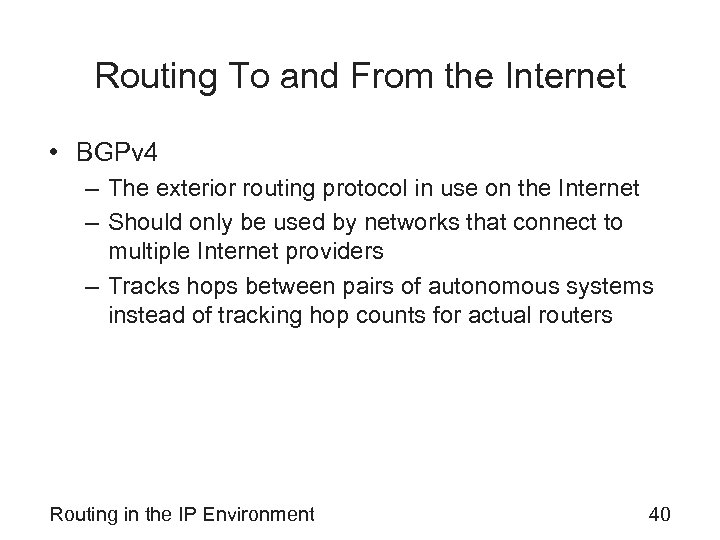

Routing To and From the Internet • BGPv 4 – The exterior routing protocol Routing To and From the Internet • BGPv 4 – The exterior routing protocol in use on the Internet – Should only be used by networks that connect to multiple Internet providers – Tracks hops between pairs of autonomous systems instead of tracking hop counts for actual routers Routing in the IP Environment 40

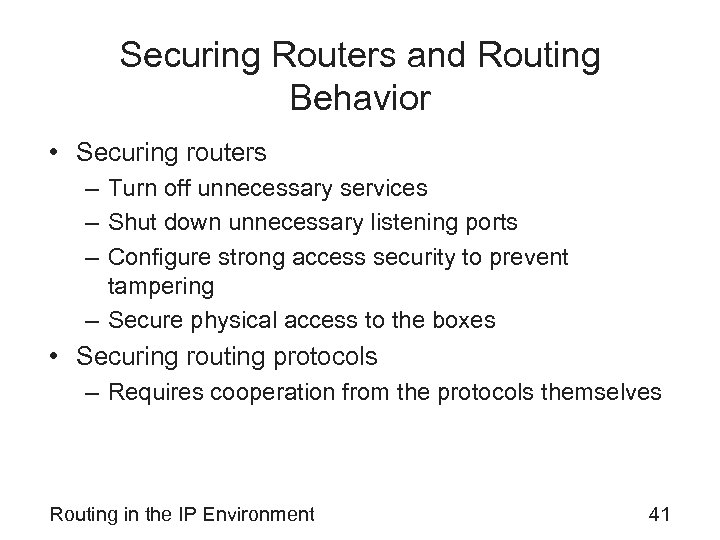

Securing Routers and Routing Behavior • Securing routers – Turn off unnecessary services – Securing Routers and Routing Behavior • Securing routers – Turn off unnecessary services – Shut down unnecessary listening ports – Configure strong access security to prevent tampering – Secure physical access to the boxes • Securing routing protocols – Requires cooperation from the protocols themselves Routing in the IP Environment 41

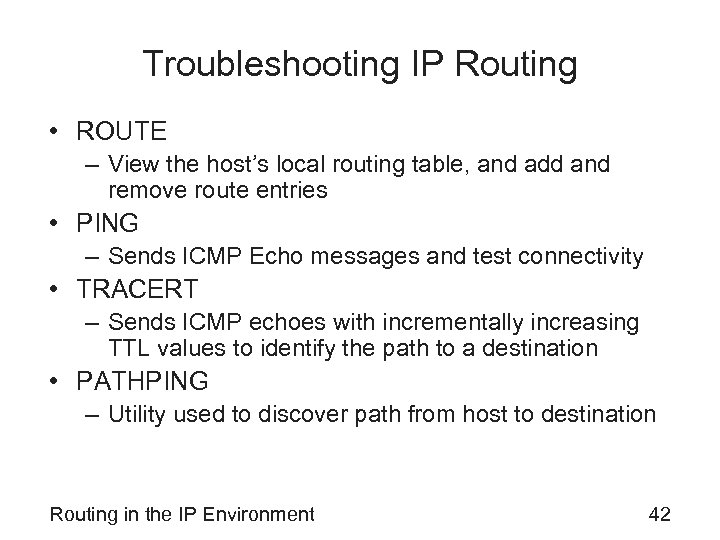

Troubleshooting IP Routing • ROUTE – View the host’s local routing table, and add Troubleshooting IP Routing • ROUTE – View the host’s local routing table, and add and remove route entries • PING – Sends ICMP Echo messages and test connectivity • TRACERT – Sends ICMP echoes with incrementally increasing TTL values to identify the path to a destination • PATHPING – Utility used to discover path from host to destination Routing in the IP Environment 42

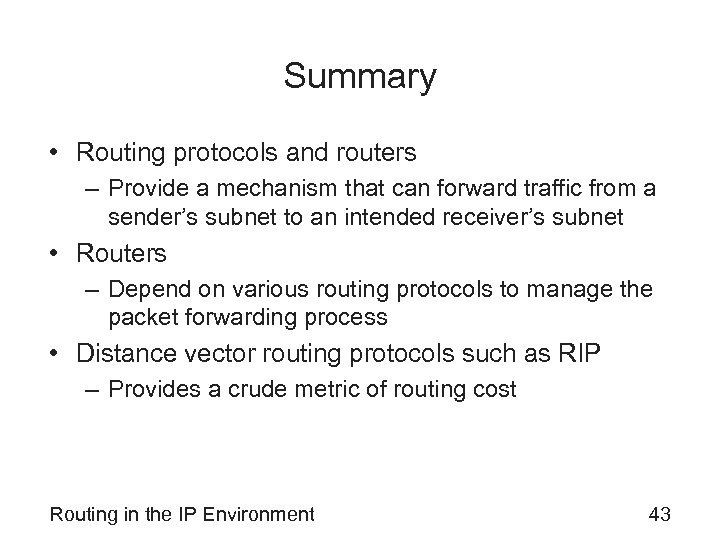

Summary • Routing protocols and routers – Provide a mechanism that can forward traffic Summary • Routing protocols and routers – Provide a mechanism that can forward traffic from a sender’s subnet to an intended receiver’s subnet • Routers – Depend on various routing protocols to manage the packet forwarding process • Distance vector routing protocols such as RIP – Provides a crude metric of routing cost Routing in the IP Environment 43

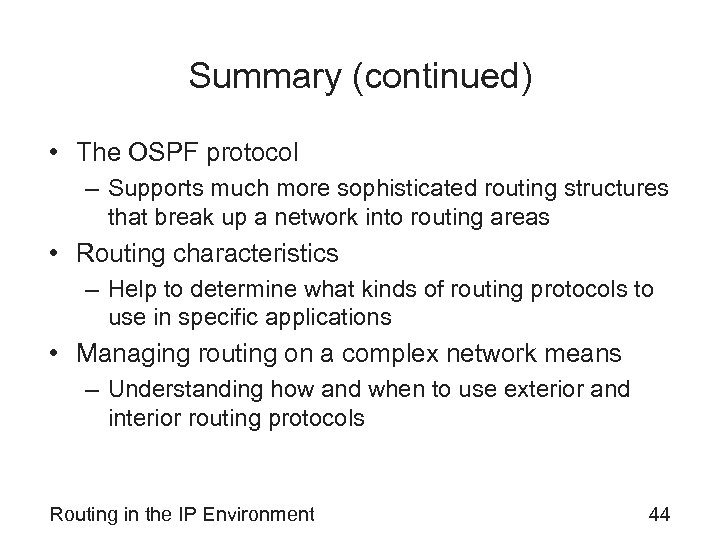

Summary (continued) • The OSPF protocol – Supports much more sophisticated routing structures that Summary (continued) • The OSPF protocol – Supports much more sophisticated routing structures that break up a network into routing areas • Routing characteristics – Help to determine what kinds of routing protocols to use in specific applications • Managing routing on a complex network means – Understanding how and when to use exterior and interior routing protocols Routing in the IP Environment 44

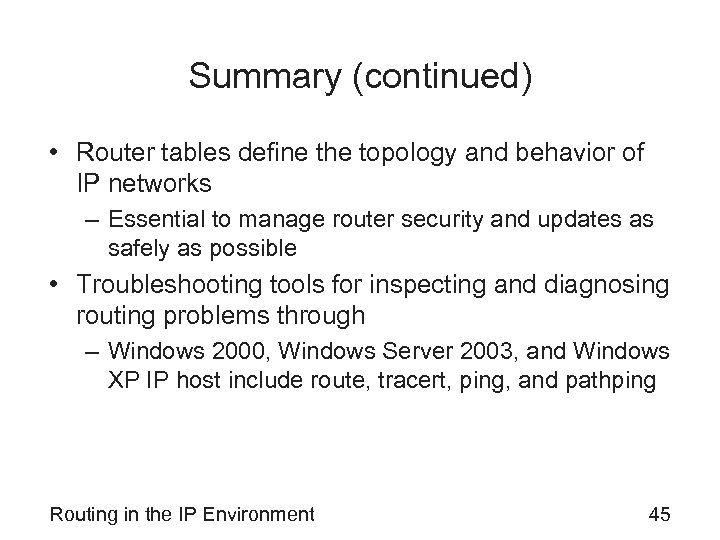

Summary (continued) • Router tables define the topology and behavior of IP networks – Summary (continued) • Router tables define the topology and behavior of IP networks – Essential to manage router security and updates as safely as possible • Troubleshooting tools for inspecting and diagnosing routing problems through – Windows 2000, Windows Server 2003, and Windows XP IP host include route, tracert, ping, and pathping Routing in the IP Environment 45
