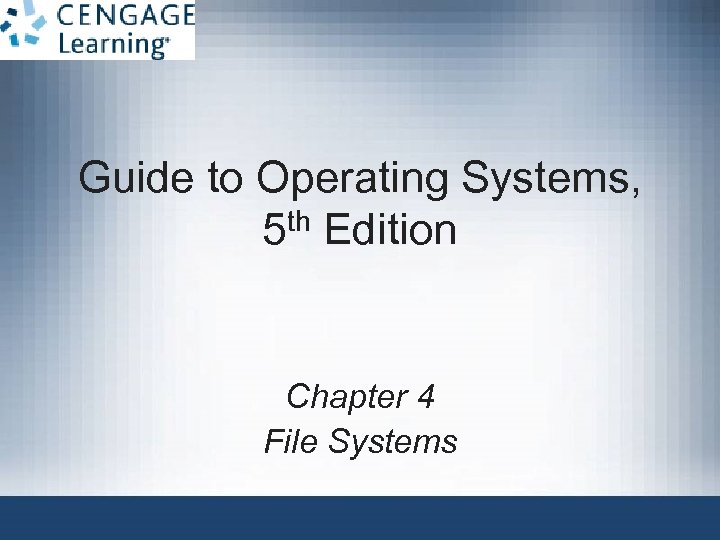

Guide to Operating Systems, th Edition 5 Chapter 4 File Systems Guide to Operating Systems, th Edition 5 Chapter 4 File Systems

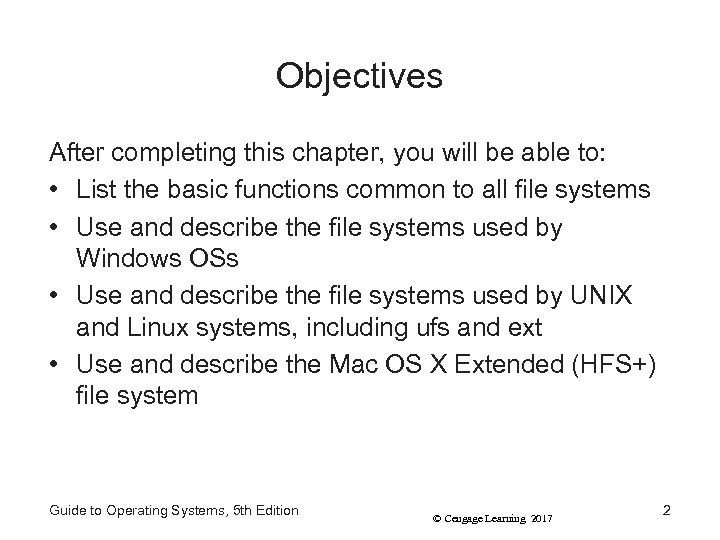

Objectives After completing this chapter, you will be able to: • List the basic Objectives After completing this chapter, you will be able to: • List the basic functions common to all file systems • Use and describe the file systems used by Windows OSs • Use and describe the file systems used by UNIX and Linux systems, including ufs and ext • Use and describe the Mac OS X Extended (HFS+) file system Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 2

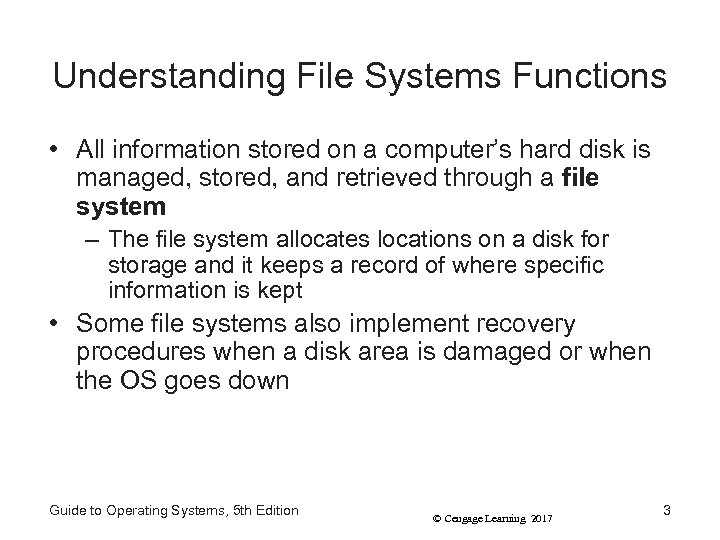

Understanding File Systems Functions • All information stored on a computer’s hard disk is Understanding File Systems Functions • All information stored on a computer’s hard disk is managed, stored, and retrieved through a file system – The file system allocates locations on a disk for storage and it keeps a record of where specific information is kept • Some file systems also implement recovery procedures when a disk area is damaged or when the OS goes down Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 3

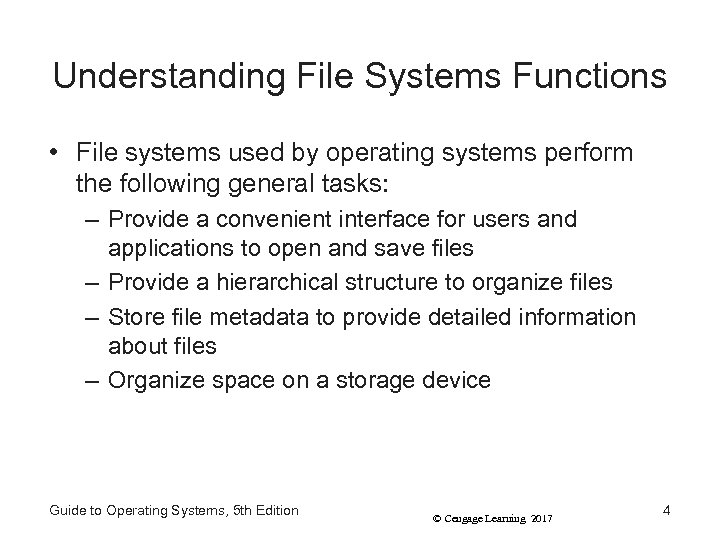

Understanding File Systems Functions • File systems used by operating systems perform the following Understanding File Systems Functions • File systems used by operating systems perform the following general tasks: – Provide a convenient interface for users and applications to open and save files – Provide a hierarchical structure to organize files – Store file metadata to provide detailed information about files – Organize space on a storage device Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 4

User Interface • When a user double-clicks a file to open it – The User Interface • When a user double-clicks a file to open it – The user interface calls the file system with a request to open the file • The file type determines exactly how the file is opened – If the file is an application, the application is loaded into memory and run by the CPU – If the file is a document, the application associated with the document type is loaded into memory and opens the file Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 5

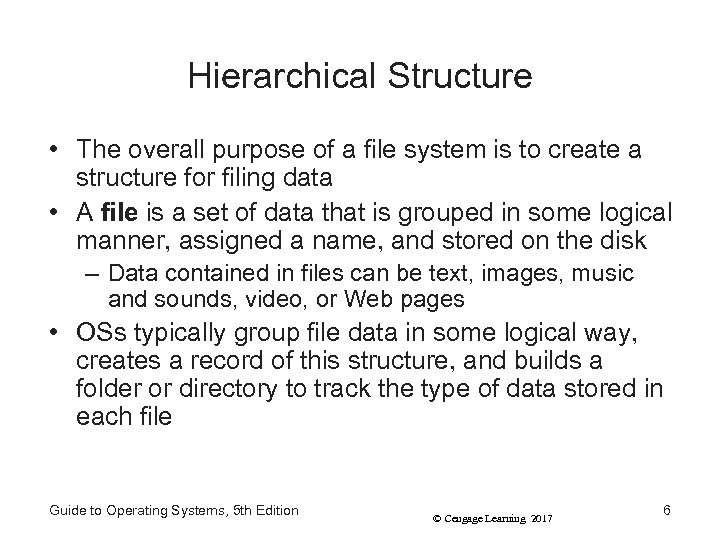

Hierarchical Structure • The overall purpose of a file system is to create a Hierarchical Structure • The overall purpose of a file system is to create a structure for filing data • A file is a set of data that is grouped in some logical manner, assigned a name, and stored on the disk – Data contained in files can be text, images, music and sounds, video, or Web pages • OSs typically group file data in some logical way, creates a record of this structure, and builds a folder or directory to track the type of data stored in each file Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 6

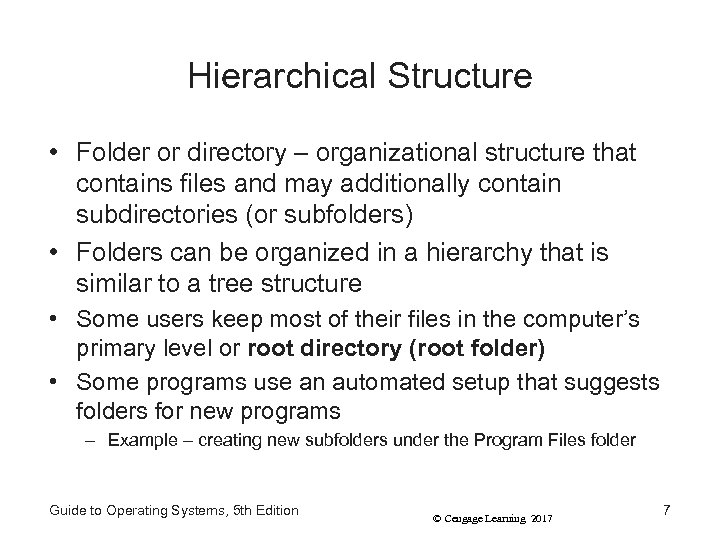

Hierarchical Structure • Folder or directory – organizational structure that contains files and may Hierarchical Structure • Folder or directory – organizational structure that contains files and may additionally contain subdirectories (or subfolders) • Folders can be organized in a hierarchy that is similar to a tree structure • Some users keep most of their files in the computer’s primary level or root directory (root folder) • Some programs use an automated setup that suggests folders for new programs – Example – creating new subfolders under the Program Files folder Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 7

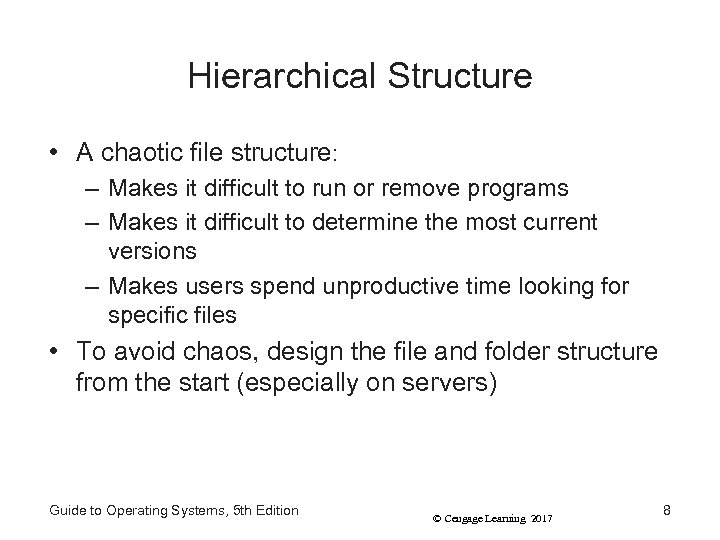

Hierarchical Structure • A chaotic file structure: – Makes it difficult to run or Hierarchical Structure • A chaotic file structure: – Makes it difficult to run or remove programs – Makes it difficult to determine the most current versions – Makes users spend unproductive time looking for specific files • To avoid chaos, design the file and folder structure from the start (especially on servers) Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 8

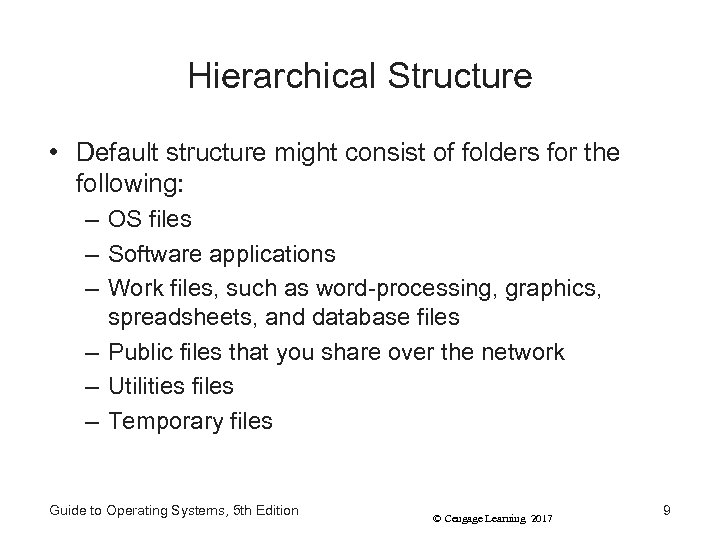

Hierarchical Structure • Default structure might consist of folders for the following: – OS Hierarchical Structure • Default structure might consist of folders for the following: – OS files – Software applications – Work files, such as word-processing, graphics, spreadsheets, and database files – Public files that you share over the network – Utilities files – Temporary files Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 9

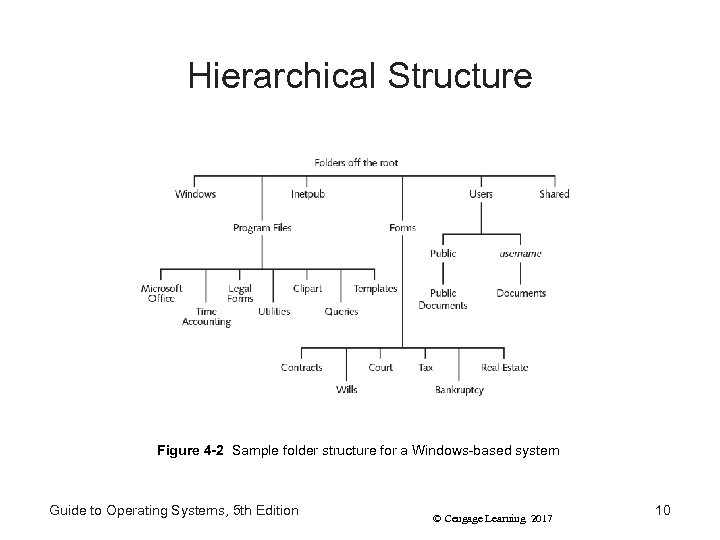

Hierarchical Structure Figure 4 -2 Sample folder structure for a Windows-based system Guide to Hierarchical Structure Figure 4 -2 Sample folder structure for a Windows-based system Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 10

Hierarchical Structure Figure 4 -3 Fedora root folders in the GNOME Files tool Guide Hierarchical Structure Figure 4 -3 Fedora root folders in the GNOME Files tool Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 11

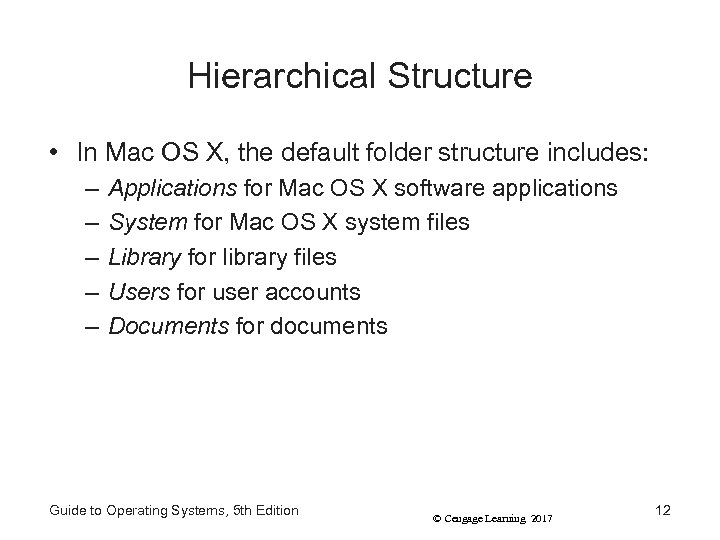

Hierarchical Structure • In Mac OS X, the default folder structure includes: – – Hierarchical Structure • In Mac OS X, the default folder structure includes: – – – Applications for Mac OS X software applications System for Mac OS X system files Library for library files Users for user accounts Documents for documents Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 12

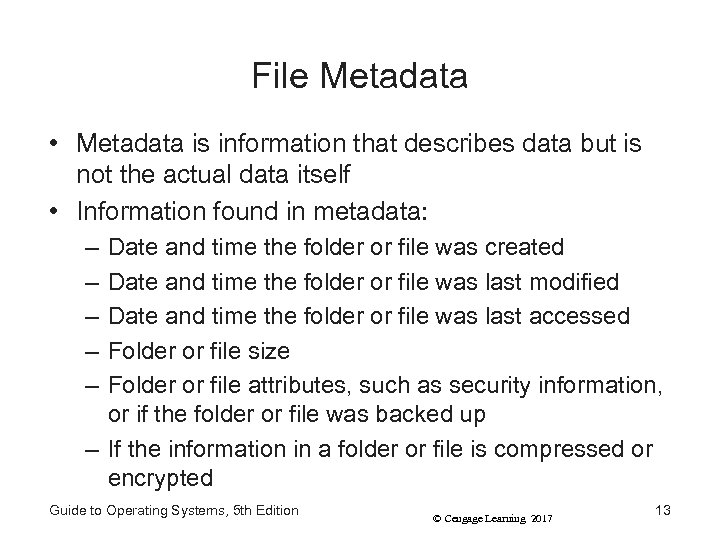

File Metadata • Metadata is information that describes data but is not the actual File Metadata • Metadata is information that describes data but is not the actual data itself • Information found in metadata: – – – Date and time the folder or file was created Date and time the folder or file was last modified Date and time the folder or file was last accessed Folder or file size Folder or file attributes, such as security information, or if the folder or file was backed up – If the information in a folder or file is compressed or encrypted Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 13

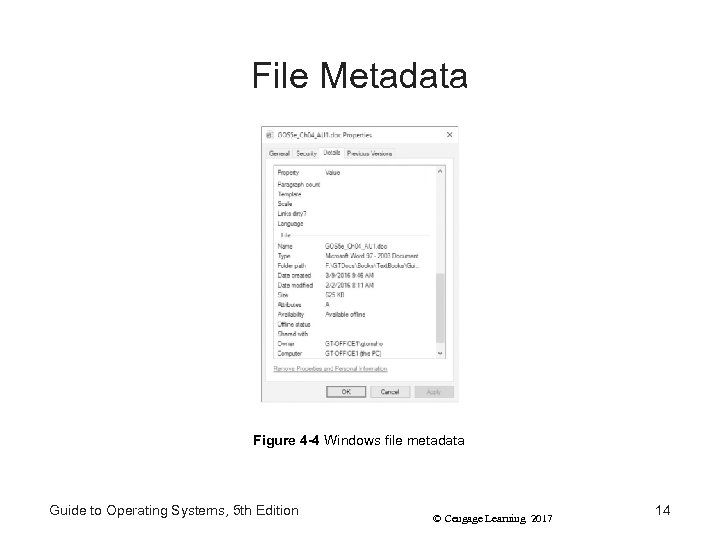

File Metadata Figure 4 -4 Windows file metadata Guide to Operating Systems, 5 th File Metadata Figure 4 -4 Windows file metadata Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 14

Storage Device Space Organization • Hard disks arrive from manufacturer with low-level formatting – Storage Device Space Organization • Hard disks arrive from manufacturer with low-level formatting – A low-level format is a software process that marks the location of disk tracks and sectors – Tracks are like several circles around a disk and each track is divided into sections of equal size called sectors Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 15

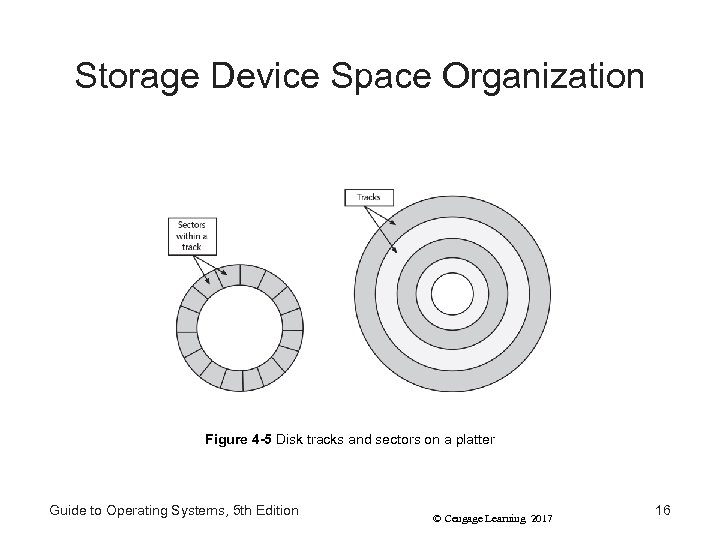

Storage Device Space Organization Figure 4 -5 Disk tracks and sectors on a platter Storage Device Space Organization Figure 4 -5 Disk tracks and sectors on a platter Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 16

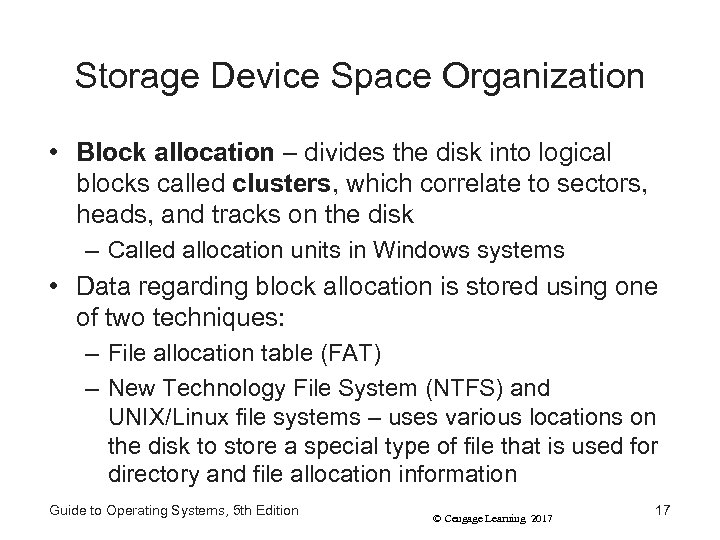

Storage Device Space Organization • Block allocation – divides the disk into logical blocks Storage Device Space Organization • Block allocation – divides the disk into logical blocks called clusters, which correlate to sectors, heads, and tracks on the disk – Called allocation units in Windows systems • Data regarding block allocation is stored using one of two techniques: – File allocation table (FAT) – New Technology File System (NTFS) and UNIX/Linux file systems – uses various locations on the disk to store a special type of file that is used for directory and file allocation information Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 17

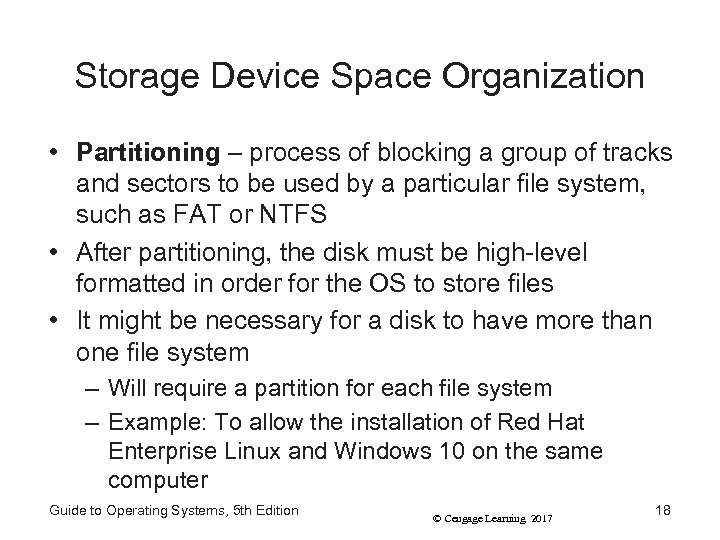

Storage Device Space Organization • Partitioning – process of blocking a group of tracks Storage Device Space Organization • Partitioning – process of blocking a group of tracks and sectors to be used by a particular file system, such as FAT or NTFS • After partitioning, the disk must be high-level formatted in order for the OS to store files • It might be necessary for a disk to have more than one file system – Will require a partition for each file system – Example: To allow the installation of Red Hat Enterprise Linux and Windows 10 on the same computer Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 18

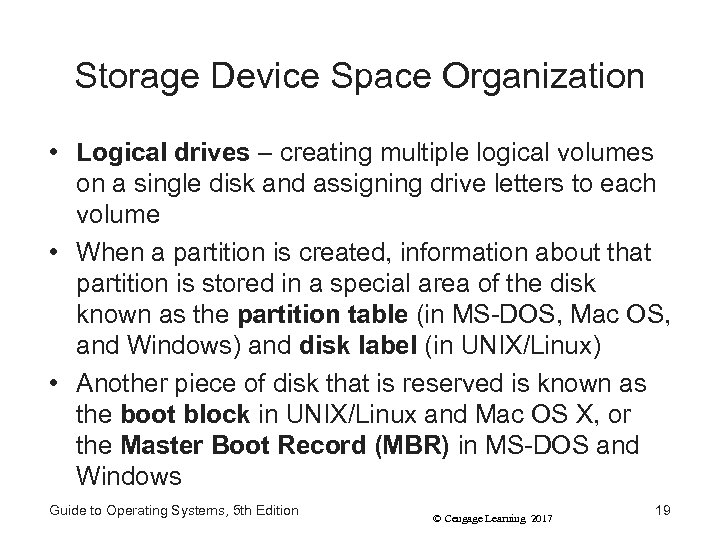

Storage Device Space Organization • Logical drives – creating multiple logical volumes on a Storage Device Space Organization • Logical drives – creating multiple logical volumes on a single disk and assigning drive letters to each volume • When a partition is created, information about that partition is stored in a special area of the disk known as the partition table (in MS-DOS, Mac OS, and Windows) and disk label (in UNIX/Linux) • Another piece of disk that is reserved is known as the boot block in UNIX/Linux and Mac OS X, or the Master Boot Record (MBR) in MS-DOS and Windows Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 19

Storage Device Space Organization Figure 4 -6 Multiple partitions used in one Windows 10 Storage Device Space Organization Figure 4 -6 Multiple partitions used in one Windows 10 system Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 20

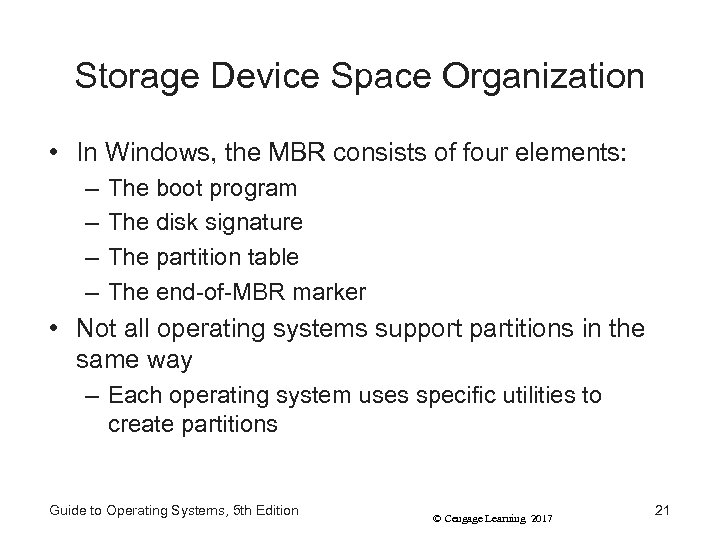

Storage Device Space Organization • In Windows, the MBR consists of four elements: – Storage Device Space Organization • In Windows, the MBR consists of four elements: – – The boot program The disk signature The partition table The end-of-MBR marker • Not all operating systems support partitions in the same way – Each operating system uses specific utilities to create partitions Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 21

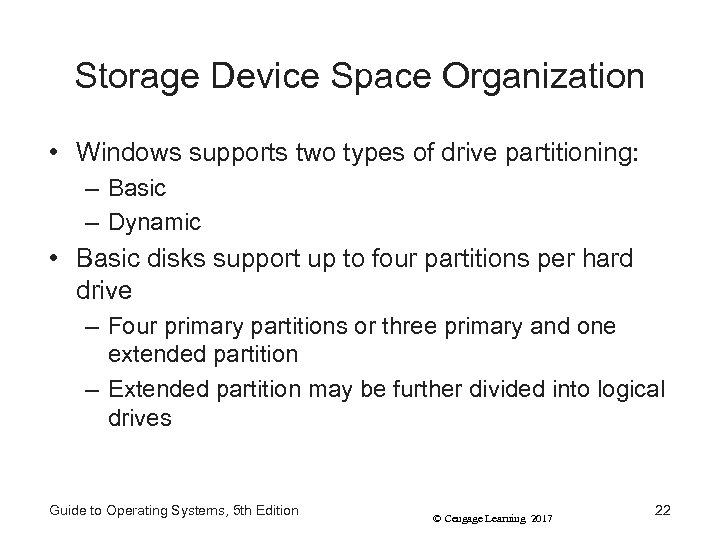

Storage Device Space Organization • Windows supports two types of drive partitioning: – Basic Storage Device Space Organization • Windows supports two types of drive partitioning: – Basic – Dynamic • Basic disks support up to four partitions per hard drive – Four primary partitions or three primary and one extended partition – Extended partition may be further divided into logical drives Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 22

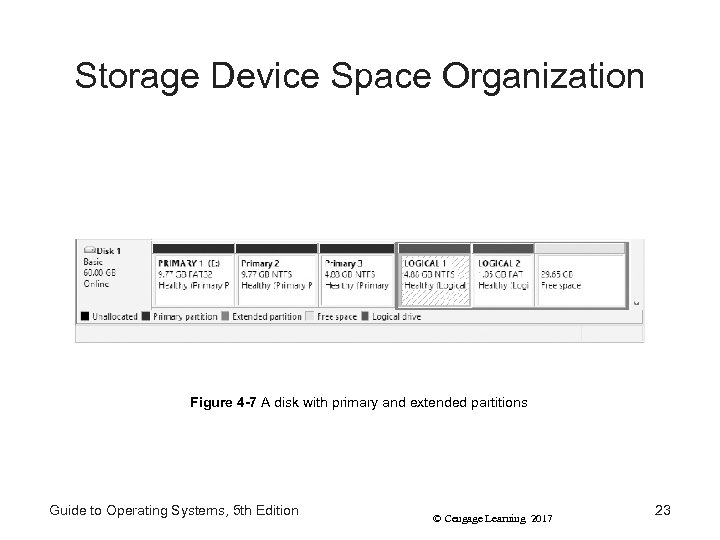

Storage Device Space Organization Figure 4 -7 A disk with primary and extended partitions Storage Device Space Organization Figure 4 -7 A disk with primary and extended partitions Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 23

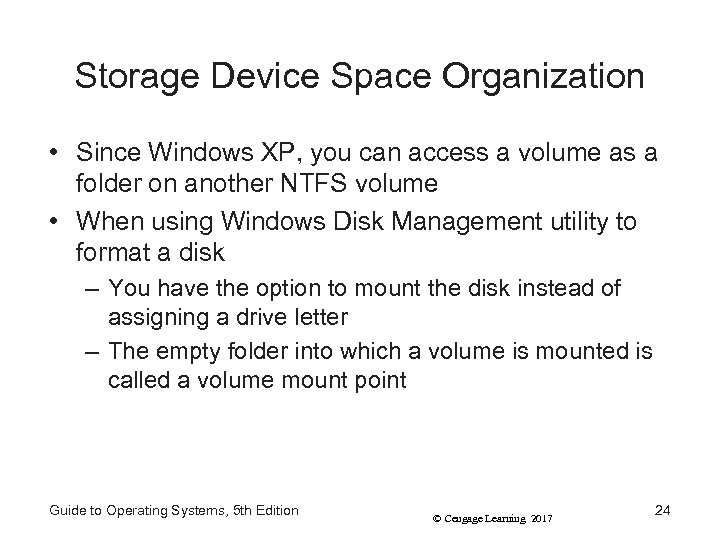

Storage Device Space Organization • Since Windows XP, you can access a volume as Storage Device Space Organization • Since Windows XP, you can access a volume as a folder on another NTFS volume • When using Windows Disk Management utility to format a disk – You have the option to mount the disk instead of assigning a drive letter – The empty folder into which a volume is mounted is called a volume mount point Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 24

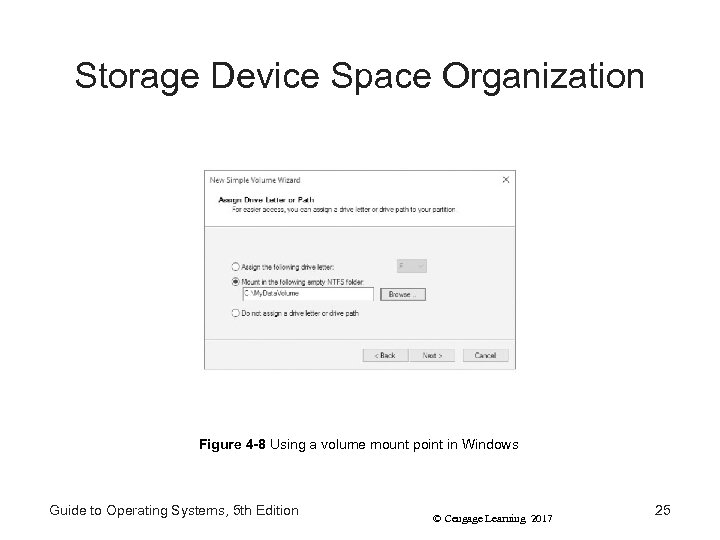

Storage Device Space Organization Figure 4 -8 Using a volume mount point in Windows Storage Device Space Organization Figure 4 -8 Using a volume mount point in Windows Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 25

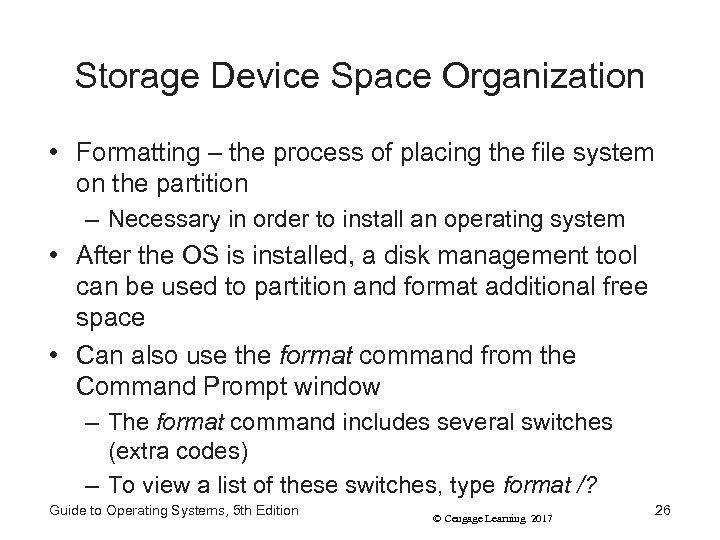

Storage Device Space Organization • Formatting – the process of placing the file system Storage Device Space Organization • Formatting – the process of placing the file system on the partition – Necessary in order to install an operating system • After the OS is installed, a disk management tool can be used to partition and format additional free space • Can also use the format command from the Command Prompt window – The format command includes several switches (extra codes) – To view a list of these switches, type format /? Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 26

Storage Device Space Organization Table 4 -1 Format command switches Guide to Operating Systems, Storage Device Space Organization Table 4 -1 Format command switches Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 27

Storage Device Space Organization Table 4 -1 Format command switches (continued) Guide to Operating Storage Device Space Organization Table 4 -1 Format command switches (continued) Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 28

Storage Device Space Organization • When a file is stored to disk: – Data Storage Device Space Organization • When a file is stored to disk: – Data is written to clusters on the disk – Filename is stored in the folder, along with the number of the first cluster the data is stored in – When the OS fills the first cluster, data is written to the next free cluster and the FAT entry corresponding with the first cluster points to the number of the second cluster used – When the second cluster is full, the OS continues with the next free cluster and the FAT entry for the second cluster points to the number of the third cluster used, and so on… – When a file is completely written to the disk, the FAT entry for the final cluster is filled with all 1 s (means end of file) – This is commonly referred to as the linked-list method Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 29

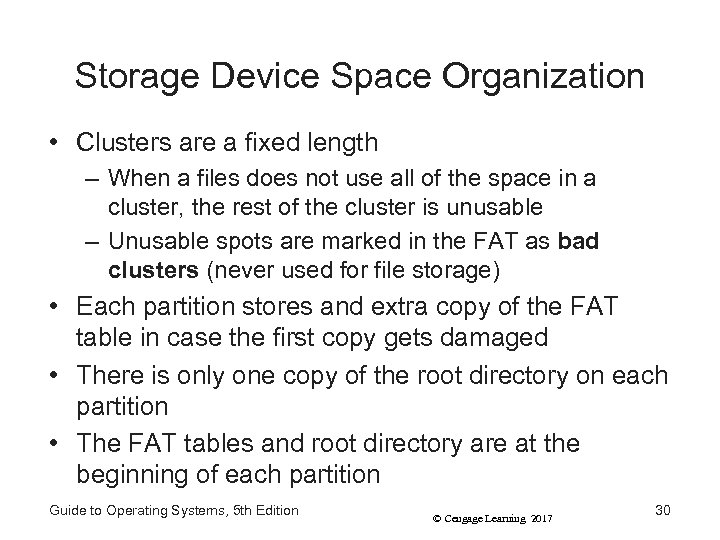

Storage Device Space Organization • Clusters are a fixed length – When a files Storage Device Space Organization • Clusters are a fixed length – When a files does not use all of the space in a cluster, the rest of the cluster is unusable – Unusable spots are marked in the FAT as bad clusters (never used for file storage) • Each partition stores and extra copy of the FAT table in case the first copy gets damaged • There is only one copy of the root directory on each partition • The FAT tables and root directory are at the beginning of each partition Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 30

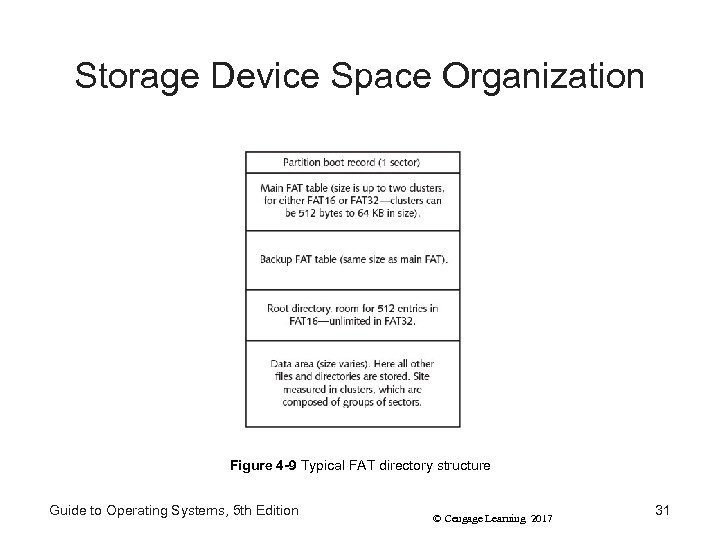

Storage Device Space Organization Figure 4 -9 Typical FAT directory structure Guide to Operating Storage Device Space Organization Figure 4 -9 Typical FAT directory structure Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 31

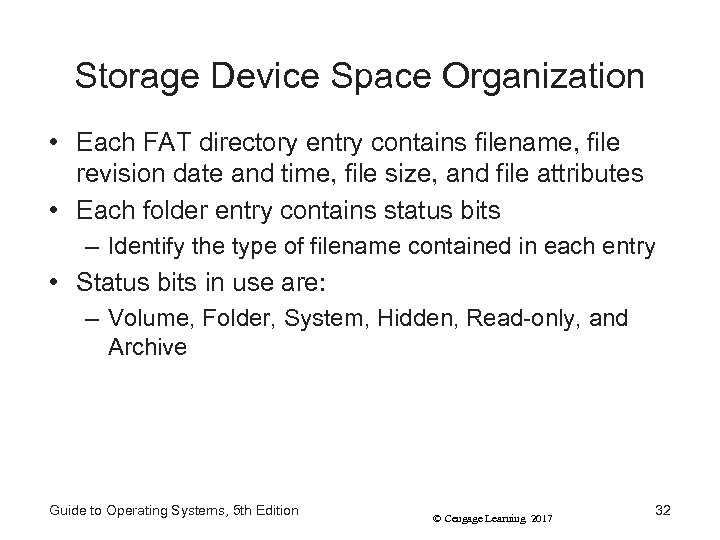

Storage Device Space Organization • Each FAT directory entry contains filename, file revision date Storage Device Space Organization • Each FAT directory entry contains filename, file revision date and time, file size, and file attributes • Each folder entry contains status bits – Identify the type of filename contained in each entry • Status bits in use are: – Volume, Folder, System, Hidden, Read-only, and Archive Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 32

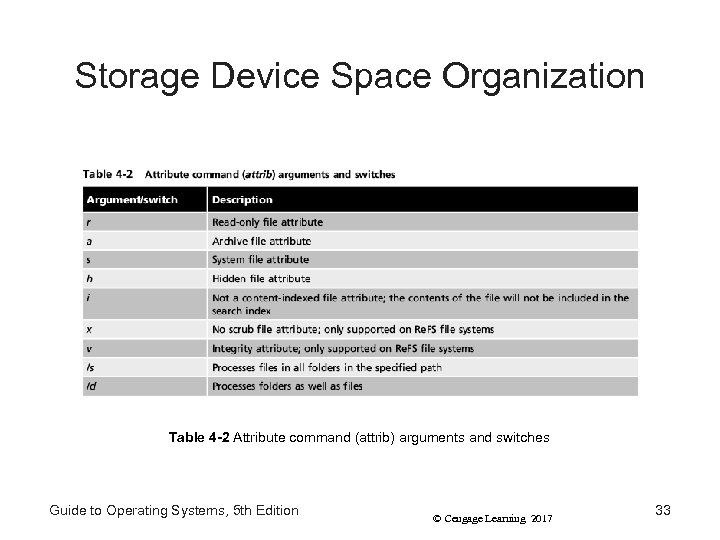

Storage Device Space Organization Table 4 -2 Attribute command (attrib) arguments and switches Guide Storage Device Space Organization Table 4 -2 Attribute command (attrib) arguments and switches Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 33

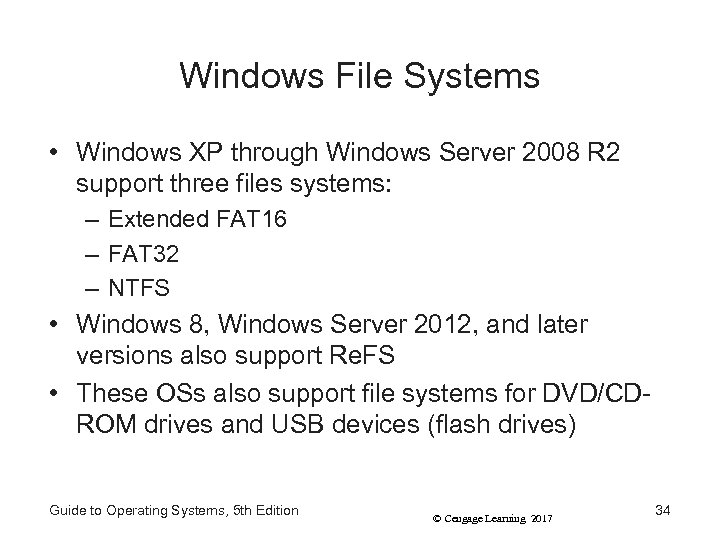

Windows File Systems • Windows XP through Windows Server 2008 R 2 support three Windows File Systems • Windows XP through Windows Server 2008 R 2 support three files systems: – Extended FAT 16 – FAT 32 – NTFS • Windows 8, Windows Server 2012, and later versions also support Re. FS • These OSs also support file systems for DVD/CDROM drives and USB devices (flash drives) Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 34

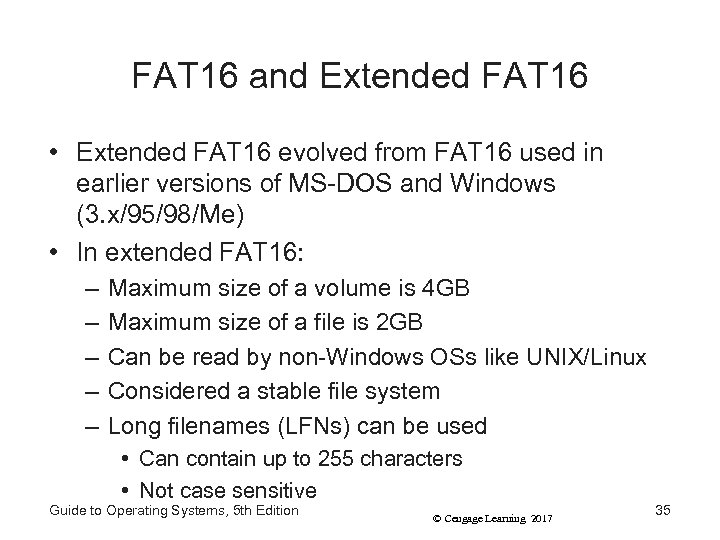

FAT 16 and Extended FAT 16 • Extended FAT 16 evolved from FAT 16 FAT 16 and Extended FAT 16 • Extended FAT 16 evolved from FAT 16 used in earlier versions of MS-DOS and Windows (3. x/95/98/Me) • In extended FAT 16: – – – Maximum size of a volume is 4 GB Maximum size of a file is 2 GB Can be read by non-Windows OSs like UNIX/Linux Considered a stable file system Long filenames (LFNs) can be used • Can contain up to 255 characters • Not case sensitive Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 35

FAT 32 • Support for FAT 32 started with Windows 95 Release 2 • FAT 32 • Support for FAT 32 started with Windows 95 Release 2 • Designed to accommodate larger capacity disks • FAT 32: – Root folder does not have to be at the beginning of a volume – Can use disk space more efficiently than FAT 16 • It uses smaller cluster sizes – Largest volume that can be formatted is 32 GB – Maximum file size is 4 GB – Offers fast response on small, 1 or 2 GB partitions Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 36

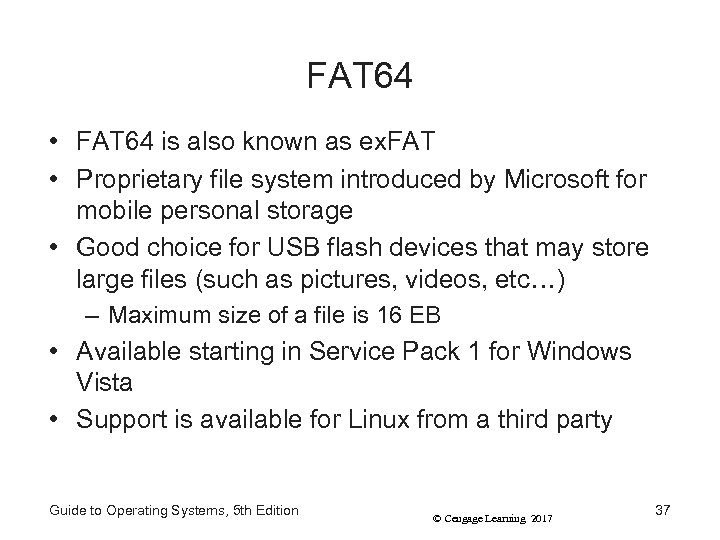

FAT 64 • FAT 64 is also known as ex. FAT • Proprietary file FAT 64 • FAT 64 is also known as ex. FAT • Proprietary file system introduced by Microsoft for mobile personal storage • Good choice for USB flash devices that may store large files (such as pictures, videos, etc…) – Maximum size of a file is 16 EB • Available starting in Service Pack 1 for Windows Vista • Support is available for Linux from a third party Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 37

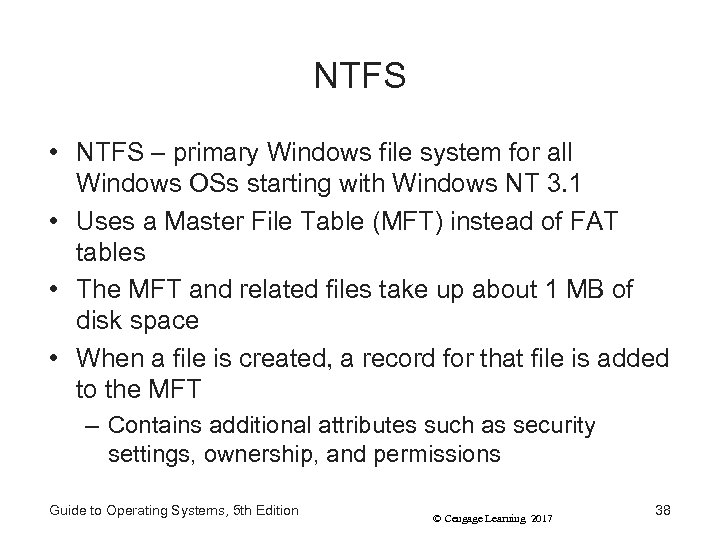

NTFS • NTFS – primary Windows file system for all Windows OSs starting with NTFS • NTFS – primary Windows file system for all Windows OSs starting with Windows NT 3. 1 • Uses a Master File Table (MFT) instead of FAT tables • The MFT and related files take up about 1 MB of disk space • When a file is created, a record for that file is added to the MFT – Contains additional attributes such as security settings, ownership, and permissions Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 38

NTFS • The MFT record reflects the sequence of clusters that a file uses NTFS • The MFT record reflects the sequence of clusters that a file uses • It is possible to have multiple filenames that refer to the same file – A technique known as hard linking – This feature is also available in UNIX/Linux file systems Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 39

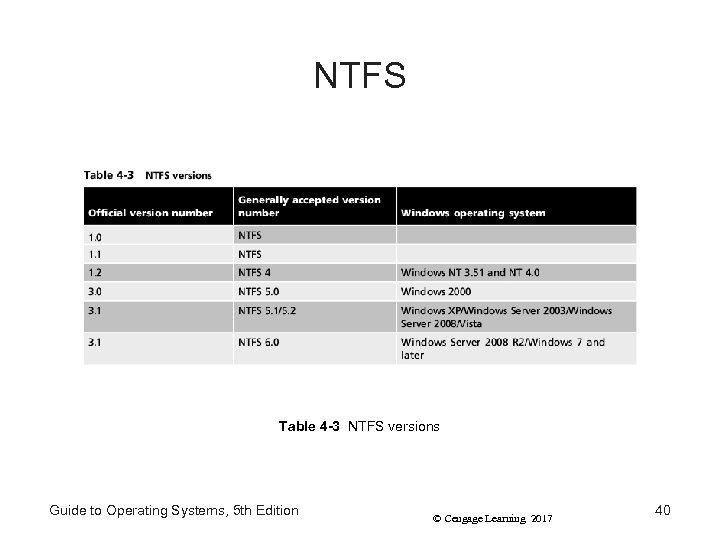

NTFS Table 4 -3 NTFS versions Guide to Operating Systems, 5 th Edition © NTFS Table 4 -3 NTFS versions Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 40

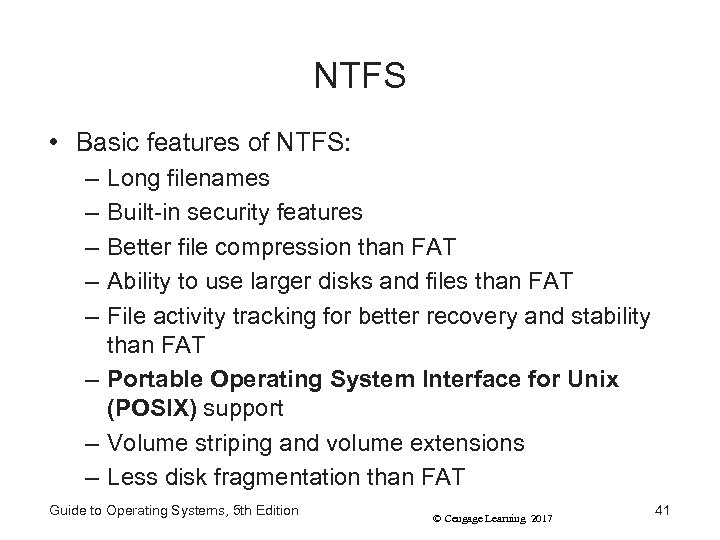

NTFS • Basic features of NTFS: – – – Long filenames Built-in security features NTFS • Basic features of NTFS: – – – Long filenames Built-in security features Better file compression than FAT Ability to use larger disks and files than FAT File activity tracking for better recovery and stability than FAT – Portable Operating System Interface for Unix (POSIX) support – Volume striping and volume extensions – Less disk fragmentation than FAT Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 41

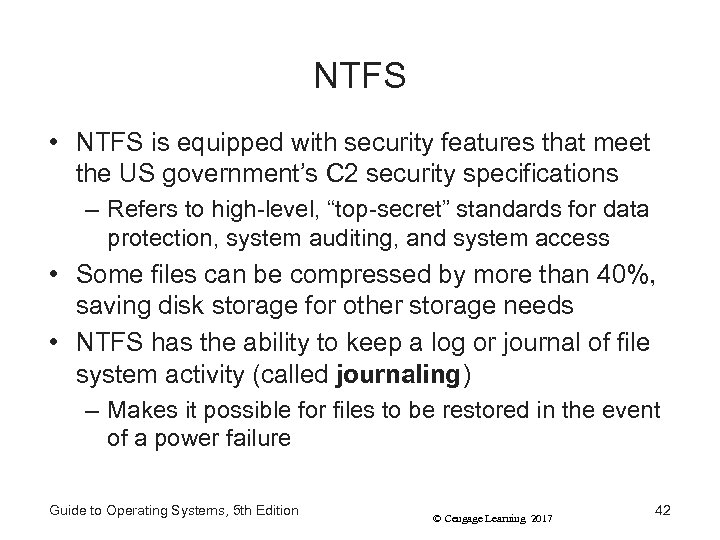

NTFS • NTFS is equipped with security features that meet the US government’s C NTFS • NTFS is equipped with security features that meet the US government’s C 2 security specifications – Refers to high-level, “top-secret” standards for data protection, system auditing, and system access • Some files can be compressed by more than 40%, saving disk storage for other storage needs • NTFS has the ability to keep a log or journal of file system activity (called journaling) – Makes it possible for files to be restored in the event of a power failure Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 42

NTFS • NTFS supports volume striping – Process that equally divides the contents of NTFS • NTFS supports volume striping – Process that equally divides the contents of each file across two or more volumes to extend disk life, enable fault tolerance, and balance disk load for better performance • NTFS has hot fix capabilities – If a bad disk area is detected, automatically copies the information to another disk area that is not damaged Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 43

NTFS • In addition to NTFS 4 features, NTFS 5 adds several new features: NTFS • In addition to NTFS 4 features, NTFS 5 adds several new features: – Ability to encrypt files – No system reboot required after creating an extended volume – Ability to reduce drive designations – Indexing for fast access – Ability to retain shortcuts and other file information when files and folders are placed on other volumes – Ability to establish disk quotas Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 44

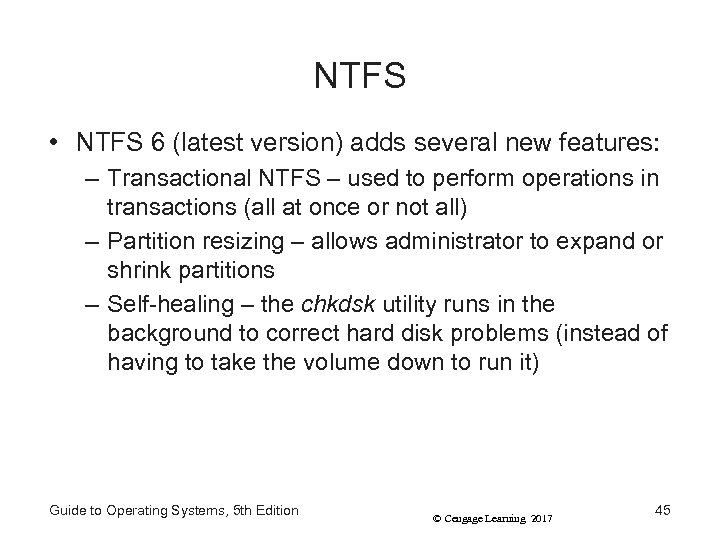

NTFS • NTFS 6 (latest version) adds several new features: – Transactional NTFS – NTFS • NTFS 6 (latest version) adds several new features: – Transactional NTFS – used to perform operations in transactions (all at once or not all) – Partition resizing – allows administrator to expand or shrink partitions – Self-healing – the chkdsk utility runs in the background to correct hard disk problems (instead of having to take the volume down to run it) Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 45

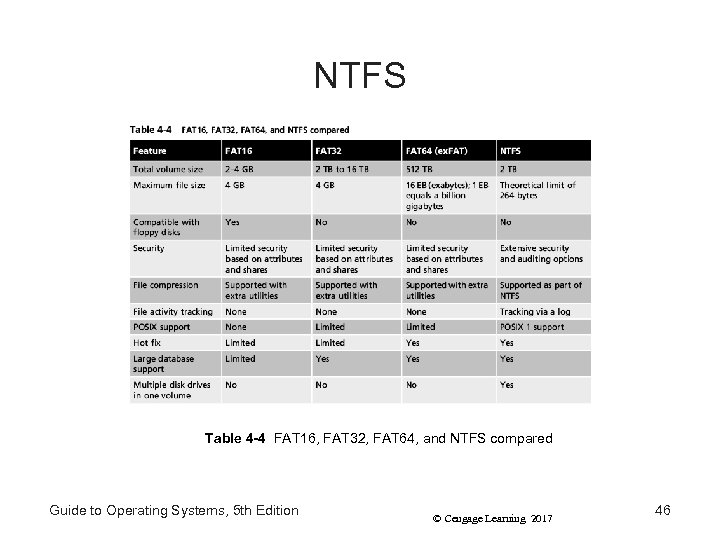

NTFS Table 4 -4 FAT 16, FAT 32, FAT 64, and NTFS compared Guide NTFS Table 4 -4 FAT 16, FAT 32, FAT 64, and NTFS compared Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 46

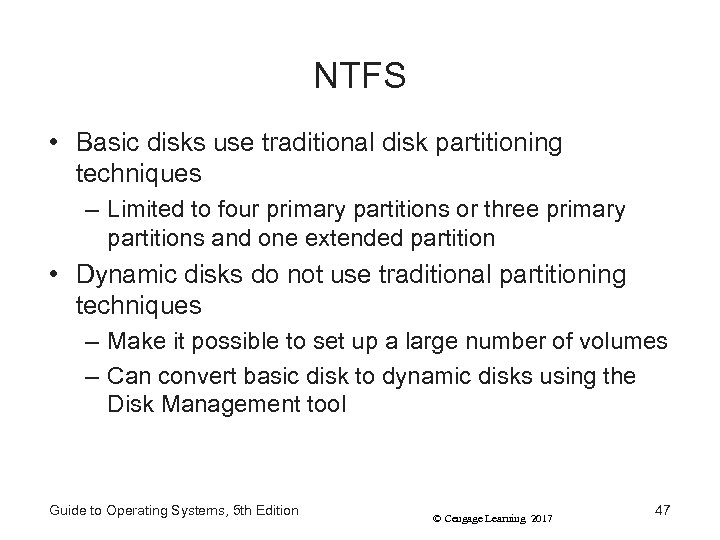

NTFS • Basic disks use traditional disk partitioning techniques – Limited to four primary NTFS • Basic disks use traditional disk partitioning techniques – Limited to four primary partitions or three primary partitions and one extended partition • Dynamic disks do not use traditional partitioning techniques – Make it possible to set up a large number of volumes – Can convert basic disk to dynamic disks using the Disk Management tool Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 47

NTFS • The chkdsk utility can detect and fix an extensive set of file NTFS • The chkdsk utility can detect and fix an extensive set of file system problems in FAT and NTFS system – This utility is available in all versions of Windows starting with Windows 2000 • Windows 2000 and later versions have a built-in disk defragmenting tool – A defragmenter is a tool that rearranges data on the disk in a continuous fashion, ridding the disk of scattered open clusters Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 48

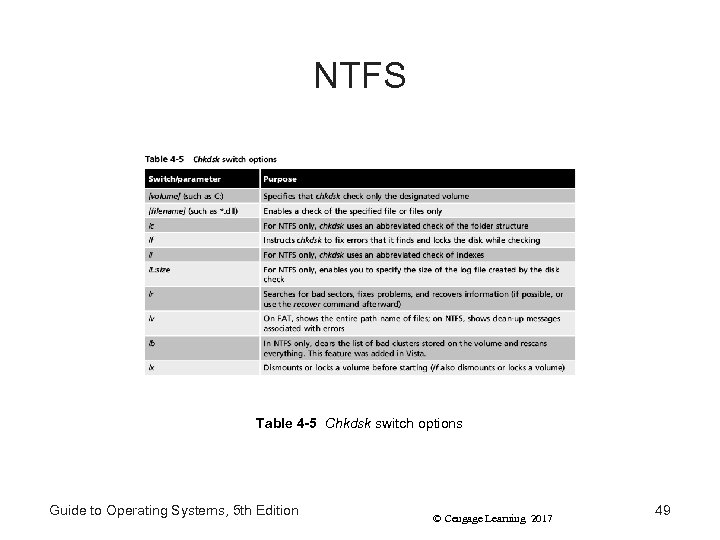

NTFS Table 4 -5 Chkdsk switch options Guide to Operating Systems, 5 th Edition NTFS Table 4 -5 Chkdsk switch options Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 49

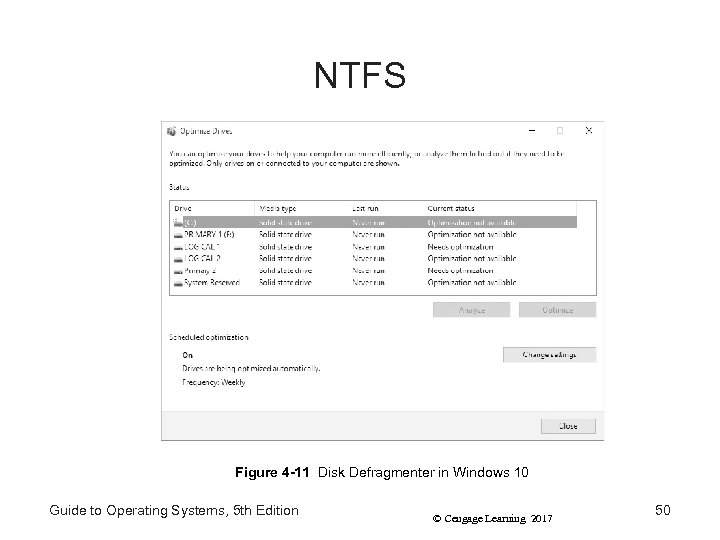

NTFS Figure 4 -11 Disk Defragmenter in Windows 10 Guide to Operating Systems, 5 NTFS Figure 4 -11 Disk Defragmenter in Windows 10 Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 50

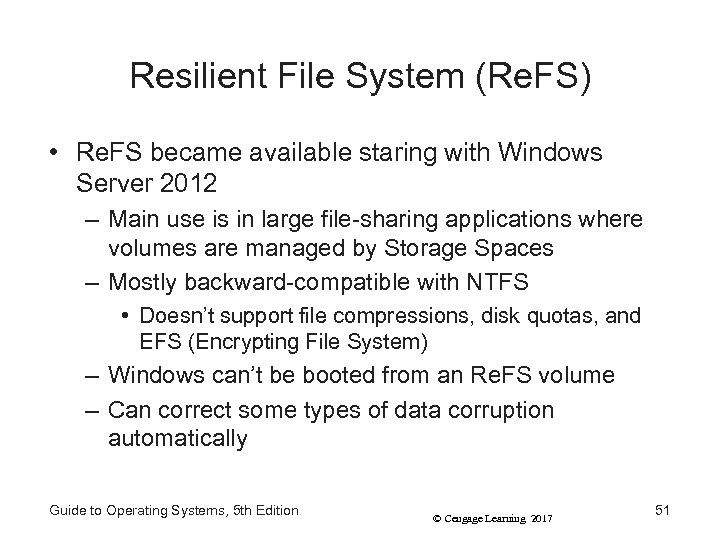

Resilient File System (Re. FS) • Re. FS became available staring with Windows Server Resilient File System (Re. FS) • Re. FS became available staring with Windows Server 2012 – Main use is in large file-sharing applications where volumes are managed by Storage Spaces – Mostly backward-compatible with NTFS • Doesn’t support file compressions, disk quotas, and EFS (Encrypting File System) – Windows can’t be booted from an Re. FS volume – Can correct some types of data corruption automatically Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 51

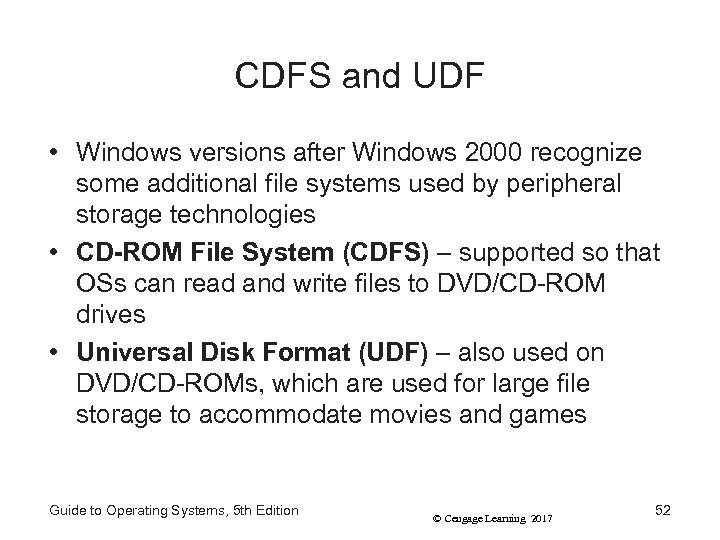

CDFS and UDF • Windows versions after Windows 2000 recognize some additional file systems CDFS and UDF • Windows versions after Windows 2000 recognize some additional file systems used by peripheral storage technologies • CD-ROM File System (CDFS) – supported so that OSs can read and write files to DVD/CD-ROM drives • Universal Disk Format (UDF) – also used on DVD/CD-ROMs, which are used for large file storage to accommodate movies and games Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 52

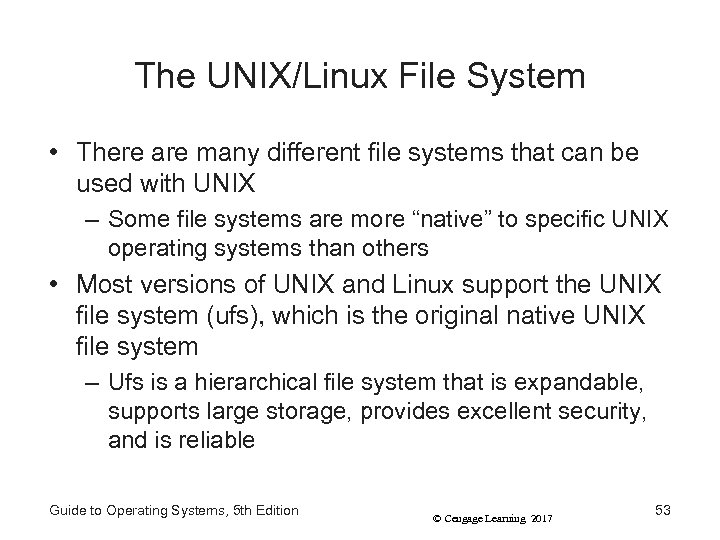

The UNIX/Linux File System • There are many different file systems that can be The UNIX/Linux File System • There are many different file systems that can be used with UNIX – Some file systems are more “native” to specific UNIX operating systems than others • Most versions of UNIX and Linux support the UNIX file system (ufs), which is the original native UNIX file system – Ufs is a hierarchical file system that is expandable, supports large storage, provides excellent security, and is reliable Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 53

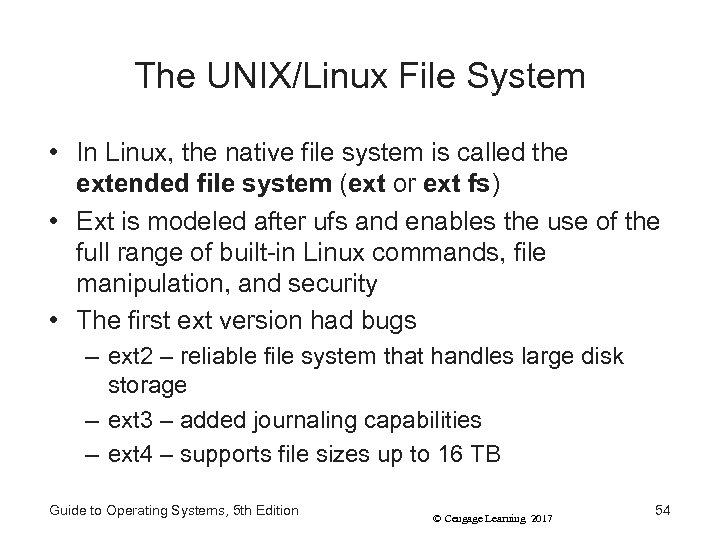

The UNIX/Linux File System • In Linux, the native file system is called the The UNIX/Linux File System • In Linux, the native file system is called the extended file system (ext or ext fs) • Ext is modeled after ufs and enables the use of the full range of built-in Linux commands, file manipulation, and security • The first ext version had bugs – ext 2 – reliable file system that handles large disk storage – ext 3 – added journaling capabilities – ext 4 – supports file sizes up to 16 TB Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 54

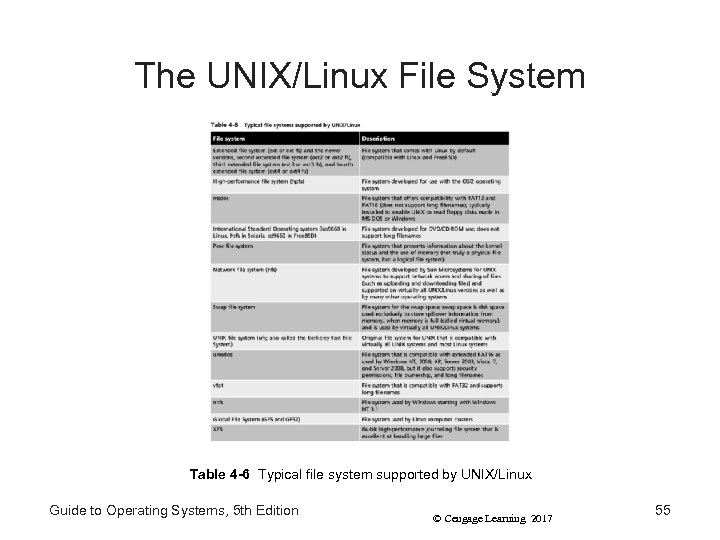

The UNIX/Linux File System Table 4 -6 Typical file system supported by UNIX/Linux Guide The UNIX/Linux File System Table 4 -6 Typical file system supported by UNIX/Linux Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 55

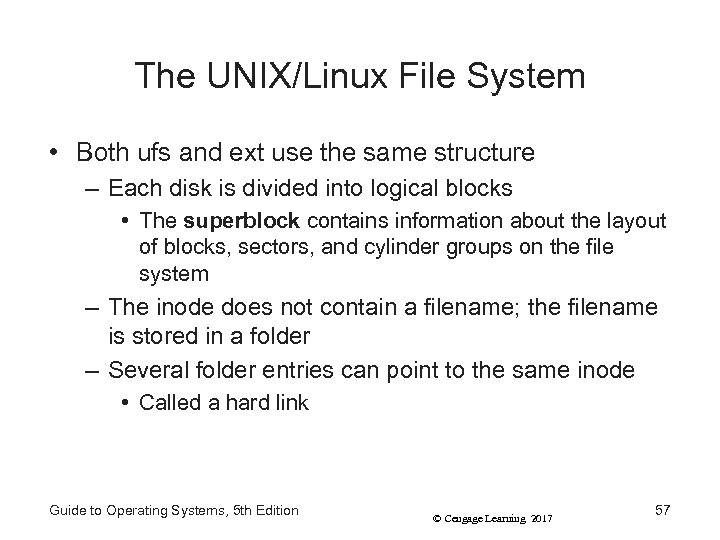

The UNIX/Linux File System • Both ufs and ext use the same structure – The UNIX/Linux File System • Both ufs and ext use the same structure – Built on the concept of information nodes (or inodes) – Each file has an inode and is identified by an inode number – An inode contains general information about that file such as: • User and group ownership, permissions, size and type of file, date the file was created, and the date the file was last modified and read Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 56

The UNIX/Linux File System • Both ufs and ext use the same structure – The UNIX/Linux File System • Both ufs and ext use the same structure – Each disk is divided into logical blocks • The superblock contains information about the layout of blocks, sectors, and cylinder groups on the file system – The inode does not contain a filename; the filename is stored in a folder – Several folder entries can point to the same inode • Called a hard link Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 57

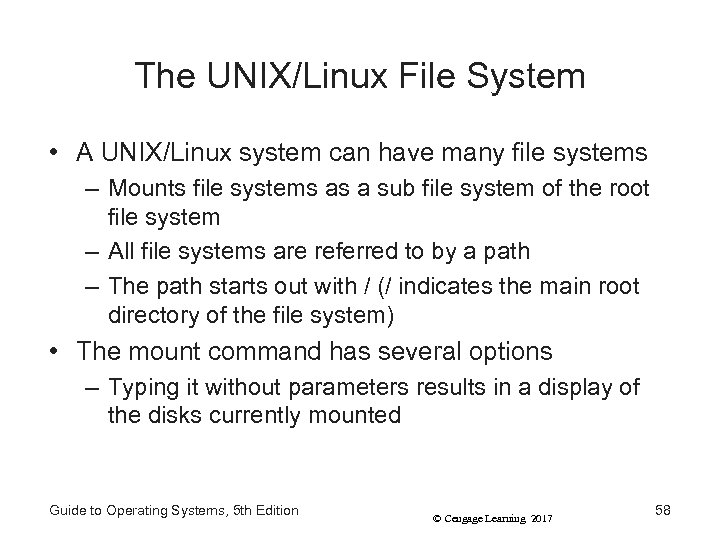

The UNIX/Linux File System • A UNIX/Linux system can have many file systems – The UNIX/Linux File System • A UNIX/Linux system can have many file systems – Mounts file systems as a sub file system of the root file system – All file systems are referred to by a path – The path starts out with / (/ indicates the main root directory of the file system) • The mount command has several options – Typing it without parameters results in a display of the disks currently mounted Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 58

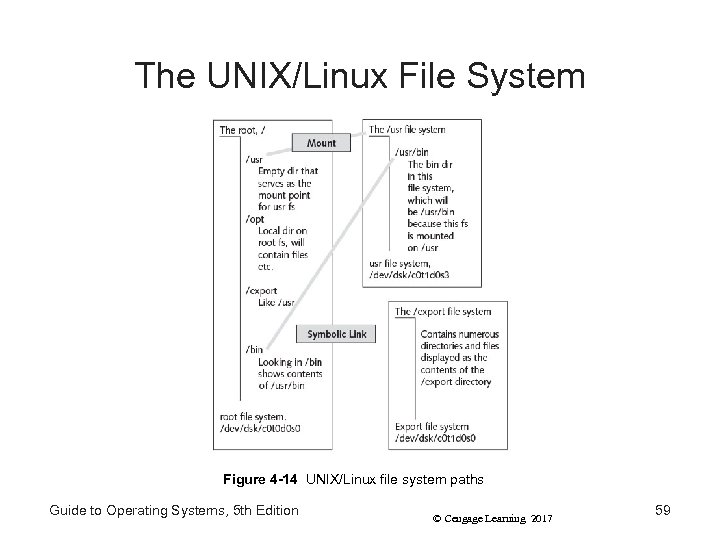

The UNIX/Linux File System Figure 4 -14 UNIX/Linux file system paths Guide to Operating The UNIX/Linux File System Figure 4 -14 UNIX/Linux file system paths Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 59

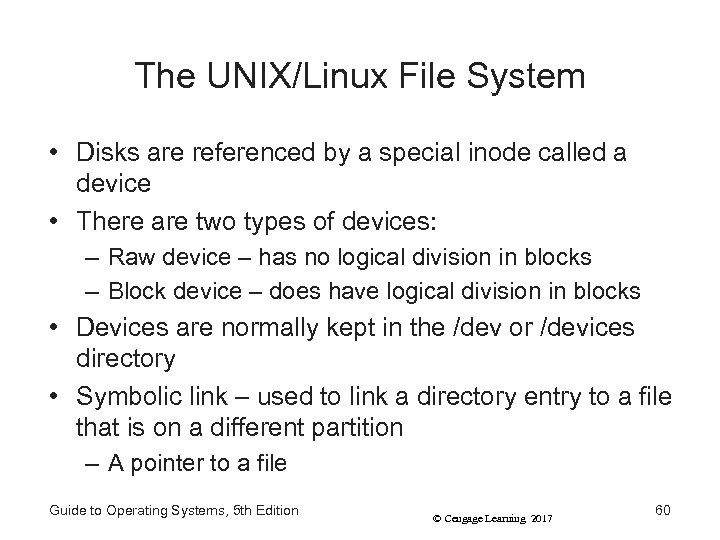

The UNIX/Linux File System • Disks are referenced by a special inode called a The UNIX/Linux File System • Disks are referenced by a special inode called a device • There are two types of devices: – Raw device – has no logical division in blocks – Block device – does have logical division in blocks • Devices are normally kept in the /dev or /devices directory • Symbolic link – used to link a directory entry to a file that is on a different partition – A pointer to a file Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 60

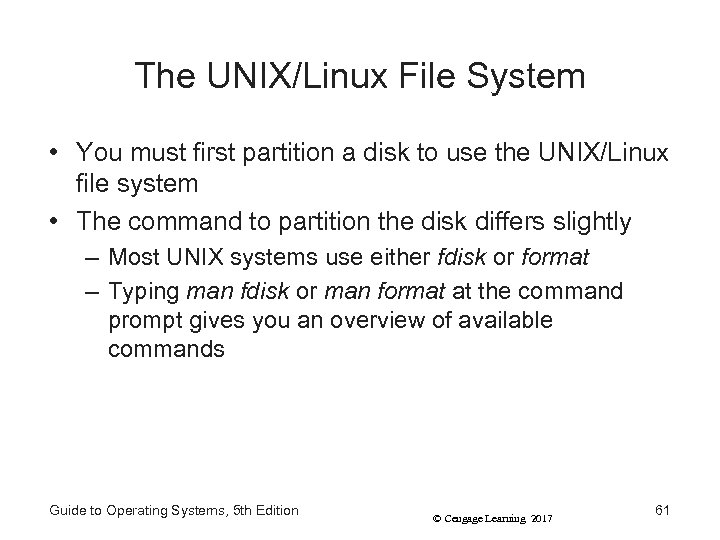

The UNIX/Linux File System • You must first partition a disk to use the The UNIX/Linux File System • You must first partition a disk to use the UNIX/Linux file system • The command to partition the disk differs slightly – Most UNIX systems use either fdisk or format – Typing man fdisk or man format at the command prompt gives you an overview of available commands Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 61

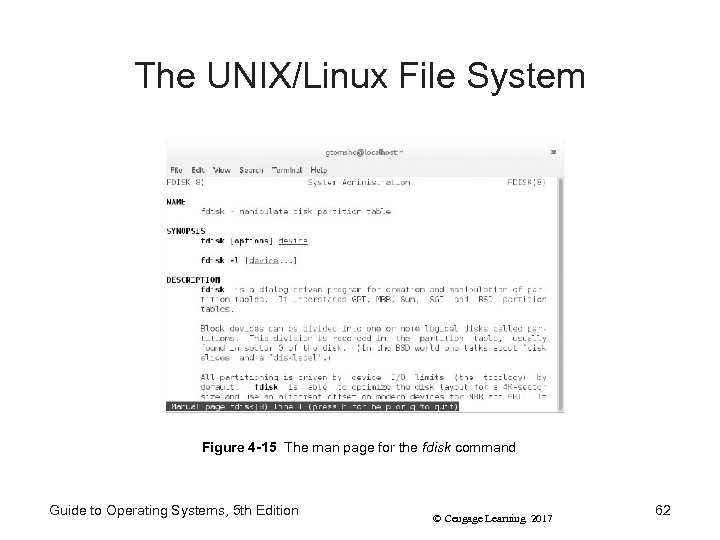

The UNIX/Linux File System Figure 4 -15 The man page for the fdisk command The UNIX/Linux File System Figure 4 -15 The man page for the fdisk command Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 62

The UNIX/Linux File System • Once a partition is made, a file system can The UNIX/Linux File System • Once a partition is made, a file system can be created – You must know the device name of the partition on which you wish to create a file system – Type newfs, followed by the name of the device – The newfs command is not available in all versions of Linux • Use the mkfs command instead Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 63

The UNIX/Linux File System • When a file is saved to disk, the system The UNIX/Linux File System • When a file is saved to disk, the system stores part of the data to memory – Until it has time to write to disk – If computer is shut down prior to data being written to disk, you can end up with a damaged file system – Manually force a write of all data in memory by using the sync command • Fsck – a utility that verifies the integrity of the superblock, the inodes, all cluster groups, and all directory entries Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 64

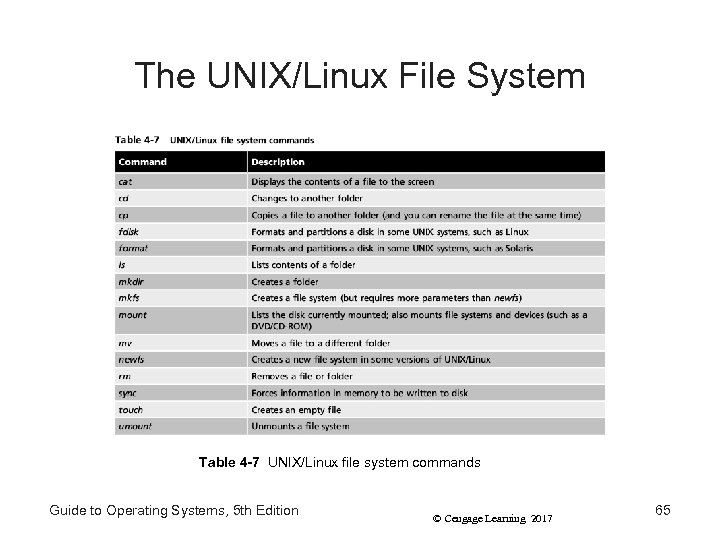

The UNIX/Linux File System Table 4 -7 UNIX/Linux file system commands Guide to Operating The UNIX/Linux File System Table 4 -7 UNIX/Linux file system commands Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 65

The Macintosh File System • Macintosh Filing System (MFS) of 1984 was limited – The Macintosh File System • Macintosh Filing System (MFS) of 1984 was limited – Kept track of 128 documents, applications or folders – Reasonable limit when the only storage device was a 400 KB floppy disk drive • In 1986, Apple created Hierarchical Filing System (HFS) – Divided a volume (disk partition) into allocation blocks – similar to clusters on PCs • In 1998, Apple released Mac OS 8. 1 with a new file system called Hierarchical Filing System Extended Format (HFS+) Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 66

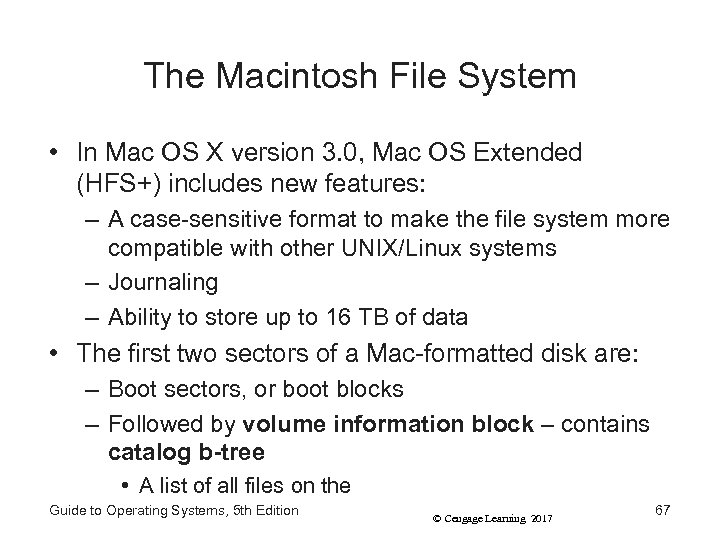

The Macintosh File System • In Mac OS X version 3. 0, Mac OS The Macintosh File System • In Mac OS X version 3. 0, Mac OS Extended (HFS+) includes new features: – A case-sensitive format to make the file system more compatible with other UNIX/Linux systems – Journaling – Ability to store up to 16 TB of data • The first two sectors of a Mac-formatted disk are: – Boot sectors, or boot blocks – Followed by volume information block – contains catalog b-tree • A list of all files on the Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 67

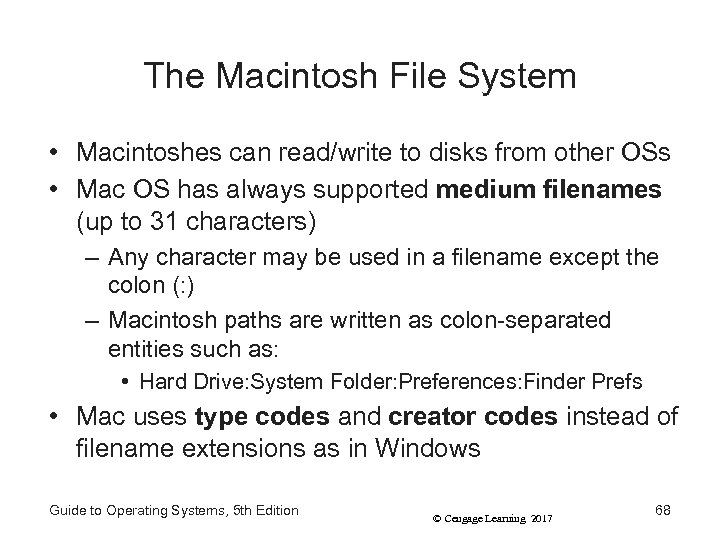

The Macintosh File System • Macintoshes can read/write to disks from other OSs • The Macintosh File System • Macintoshes can read/write to disks from other OSs • Mac OS has always supported medium filenames (up to 31 characters) – Any character may be used in a filename except the colon (: ) – Macintosh paths are written as colon-separated entities such as: • Hard Drive: System Folder: Preferences: Finder Prefs • Mac uses type codes and creator codes instead of filename extensions as in Windows Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 68

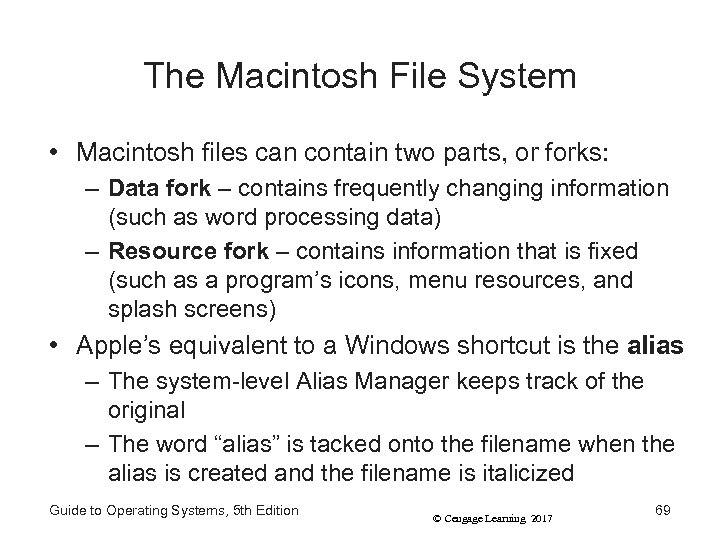

The Macintosh File System • Macintosh files can contain two parts, or forks: – The Macintosh File System • Macintosh files can contain two parts, or forks: – Data fork – contains frequently changing information (such as word processing data) – Resource fork – contains information that is fixed (such as a program’s icons, menu resources, and splash screens) • Apple’s equivalent to a Windows shortcut is the alias – The system-level Alias Manager keeps track of the original – The word “alias” is tacked onto the filename when the alias is created and the filename is italicized Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 69

The Macintosh File System • Mac OS X comes with two disk utilities: – The Macintosh File System • Mac OS X comes with two disk utilities: – Disk Utility – manages disk drives – Disk First Aid – repairs disk problems • Older versions of Mac OS X came with a utility (Sherlock) that searches disks for filenames and text within files – Spotlight replaced Sherlock in Mac OS X 10. 4 Tiger • Spotlight indexes by filenames and by metadata associated with documents – Does not work on files in the UNIX system/kernel Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 70

The Macintosh File System Figure 4 -19 A Spotlight search in Mac OS X The Macintosh File System Figure 4 -19 A Spotlight search in Mac OS X Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 71

The Macintosh File System • When a Mac is not shut down properly a The Macintosh File System • When a Mac is not shut down properly a disk integrity check will automatically run at the next startup • Macs will boot from a DVD/CD-ROM or various SCSI devices – To boot from a DVD/CD-ROM, press the “C” key while booting up – Pressing the Shift-Option-Delete-Apple (SODA) keys while booting will bypass the internal hard drive and boot from the next drive in a SCSI chain Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 72

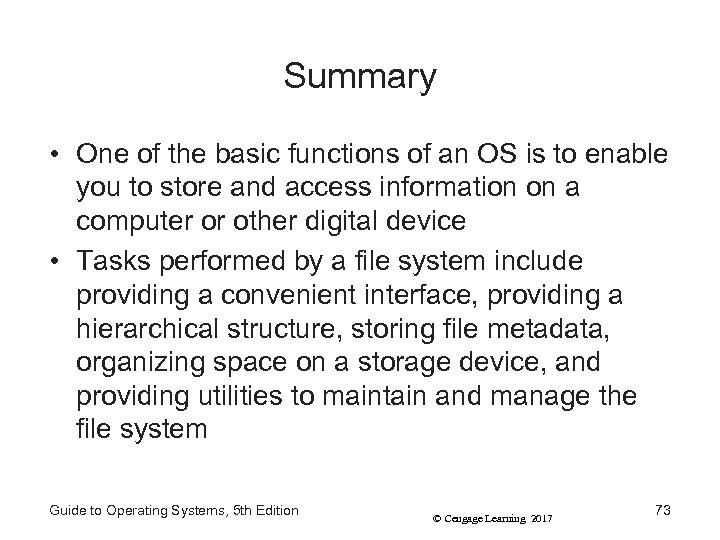

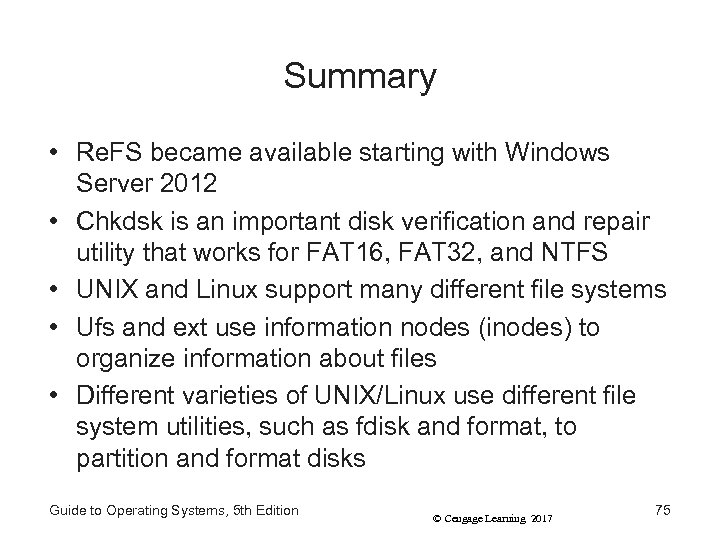

Summary • One of the basic functions of an OS is to enable you Summary • One of the basic functions of an OS is to enable you to store and access information on a computer or other digital device • Tasks performed by a file system include providing a convenient interface, providing a hierarchical structure, storing file metadata, organizing space on a storage device, and providing utilities to maintain and manage the file system Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 73

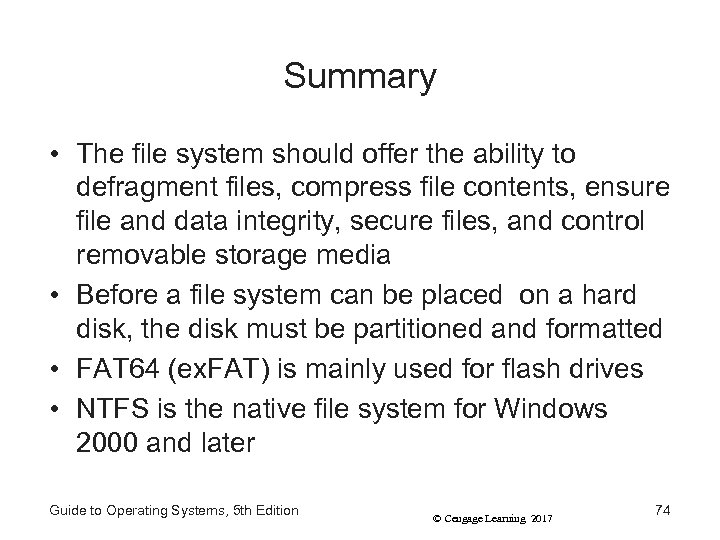

Summary • The file system should offer the ability to defragment files, compress file Summary • The file system should offer the ability to defragment files, compress file contents, ensure file and data integrity, secure files, and control removable storage media • Before a file system can be placed on a hard disk, the disk must be partitioned and formatted • FAT 64 (ex. FAT) is mainly used for flash drives • NTFS is the native file system for Windows 2000 and later Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 74

Summary • Re. FS became available starting with Windows Server 2012 • Chkdsk is Summary • Re. FS became available starting with Windows Server 2012 • Chkdsk is an important disk verification and repair utility that works for FAT 16, FAT 32, and NTFS • UNIX and Linux support many different file systems • Ufs and ext use information nodes (inodes) to organize information about files • Different varieties of UNIX/Linux use different file system utilities, such as fdisk and format, to partition and format disks Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 75

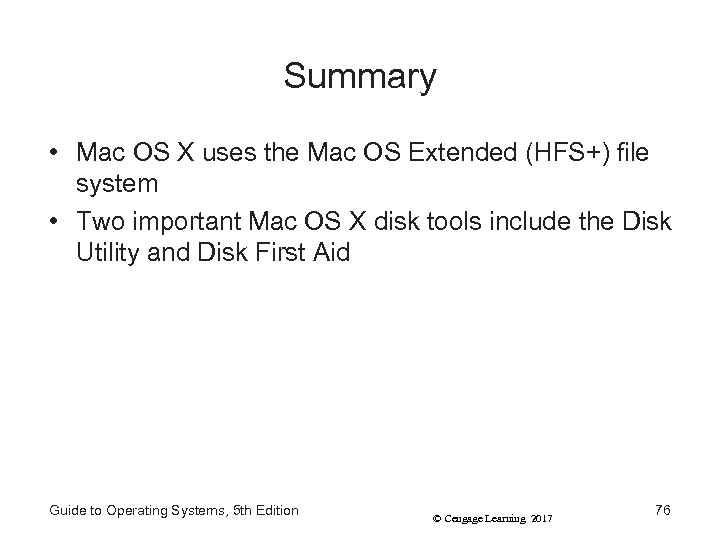

Summary • Mac OS X uses the Mac OS Extended (HFS+) file system • Summary • Mac OS X uses the Mac OS Extended (HFS+) file system • Two important Mac OS X disk tools include the Disk Utility and Disk First Aid Guide to Operating Systems, 5 th Edition © Cengage Learning 2017 76
