GS 3055 -I GSM Universal Wireless Alarm Communicator

GS 3055 -I Overview The GS 3055 -I is: 1. A GSM universal wireless alarm communicator that can be used in a backup or primary role. 2. A device that connects the alarm control panel to the GSM network and reports alarm signals directly to a monitoring station receiver (Sur-Gard System II/ System III). 3. A digital transmitter that provides full reporting from any control panel that communicates using Contact ID format. CONFIDENTIAL

GS 3055 -I GSM Network Terms: GSM – (Global System for Mobile Communication) – Digital Wireless Network for Voice and Data GPRS – (General Packet Radio Service) – GSM data channel, continuous connection up to 100 Kbs SMS – (Short Message Service) – Text-based messages no longer than 160 alphanumeric characters APN – (Access Point Name) – GSM provider’s gateway SIM – (Subscriber Identification Module) – Stores information used to identify users in a network CONFIDENTIAL

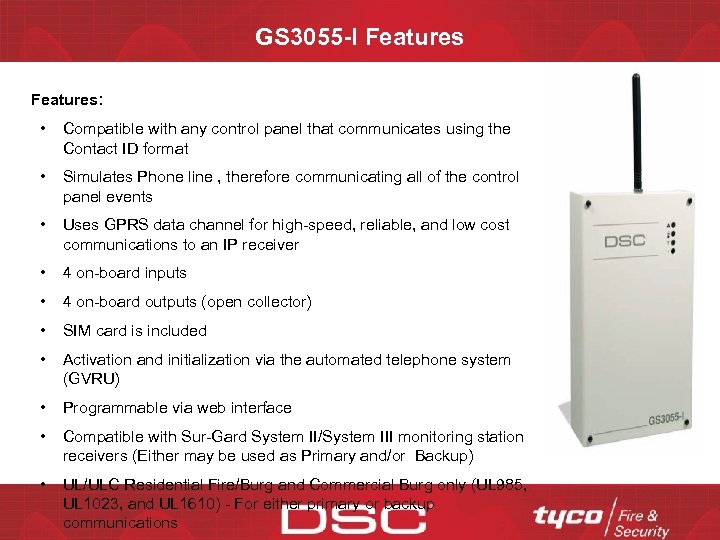

GS 3055 -I Features: • Compatible with any control panel that communicates using the Contact ID format • Simulates Phone line , therefore communicating all of the control panel events • Uses GPRS data channel for high-speed, reliable, and low cost communications to an IP receiver • 4 on-board inputs • 4 on-board outputs (open collector) • SIM card is included • Activation and initialization via the automated telephone system (GVRU) • Programmable via web interface • Compatible with Sur-Gard System II/System III monitoring station receivers (Either may be used as Primary and/or Backup) • UL/ULC Residential Fire/Burg and Commercial Burg only (UL 985, UL 1023, and UL 1610) - For either primary or backup CONFIDENTIAL communications

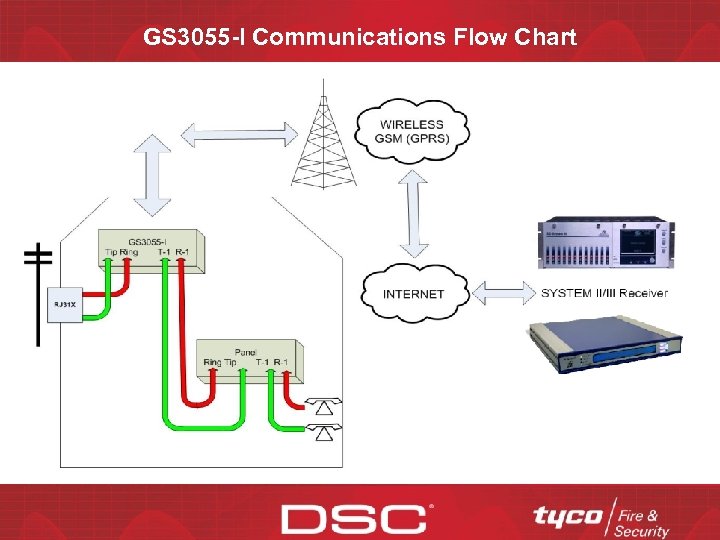

GS 3055 -I Communications Flow Chart CONFIDENTIAL

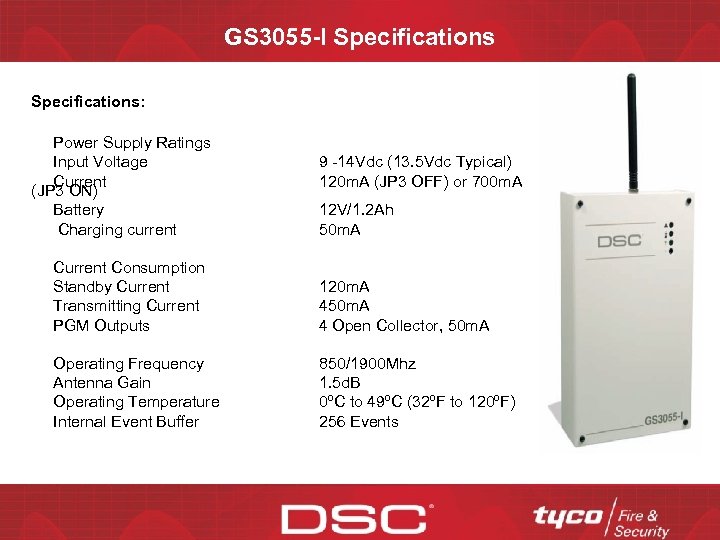

GS 3055 -I Specifications: Power Supply Ratings Input Voltage Current (JP 3 ON) Battery Charging current 9 -14 Vdc (13. 5 Vdc Typical) 120 m. A (JP 3 OFF) or 700 m. A 12 V/1. 2 Ah 50 m. A Current Consumption Standby Current Transmitting Current PGM Outputs 120 m. A 450 m. A 4 Open Collector, 50 m. A Operating Frequency Antenna Gain Operating Temperature Internal Event Buffer 850/1900 Mhz 1. 5 d. B 0ºC to 49ºC (32ºF to 120ºF) 256 Events CONFIDENTIAL

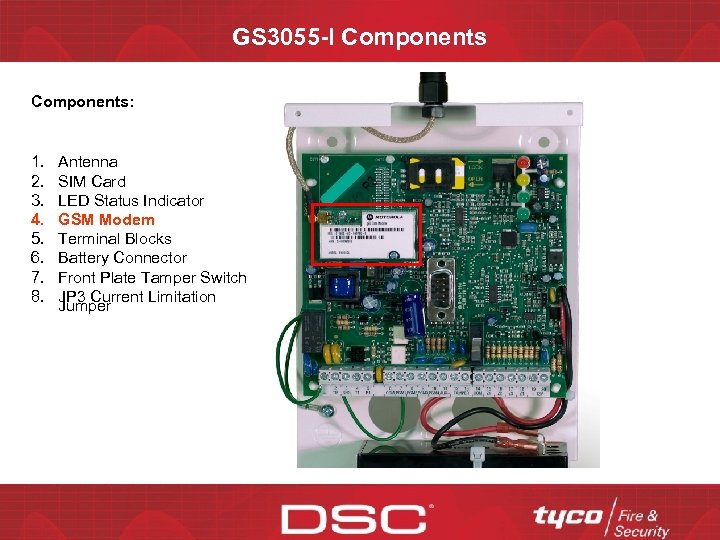

GS 3055 -I Components: 1. 2. 3. 4. 5. 6. 7. 8. Antenna SIM Card LED Status Indicator GSM Modem Terminal Blocks Battery Connector Front Plate Tamper Switch JP 3 Current Limitation Jumper CONFIDENTIAL

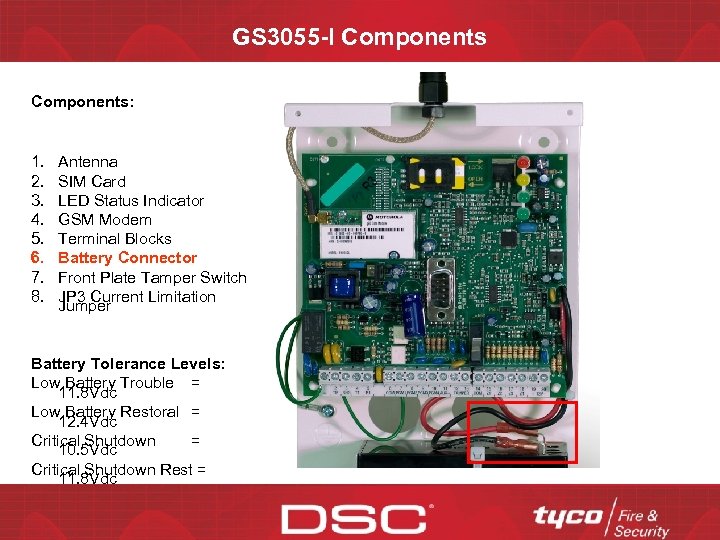

GS 3055 -I Components: 1. 2. 3. 4. 5. 6. 7. 8. Antenna SIM Card LED Status Indicator GSM Modem Terminal Blocks Battery Connector Front Plate Tamper Switch JP 3 Current Limitation Jumper Battery Tolerance Levels: Low Battery Trouble = 11. 8 Vdc Low Battery Restoral = 12. 4 Vdc Critical Shutdown = 10. 5 Vdc Critical Shutdown Rest = 11. 8 Vdc CONFIDENTIAL

GS 3055 -I Components: 1. 2. 3. 4. 5. 6. 7. Antenna SIM Card LED Status Indicator GSM Modem Terminal Blocks Battery Connector Front Plate Tamper Switch 8. JP 3 Current Limitation Jumper CONFIDENTIAL

GS 3055 -I Components: 1. 2. 3. 4. 5. 6. 7. 8. Antenna SIM Card LED Status Indicator GSM Modem Terminal Blocks Battery Connector Front Plate Tamper Switch JP 3 Current Limitation Jumper Note: When shorting the jumper, Please use the bottom 2 pins only CONFIDENTIAL

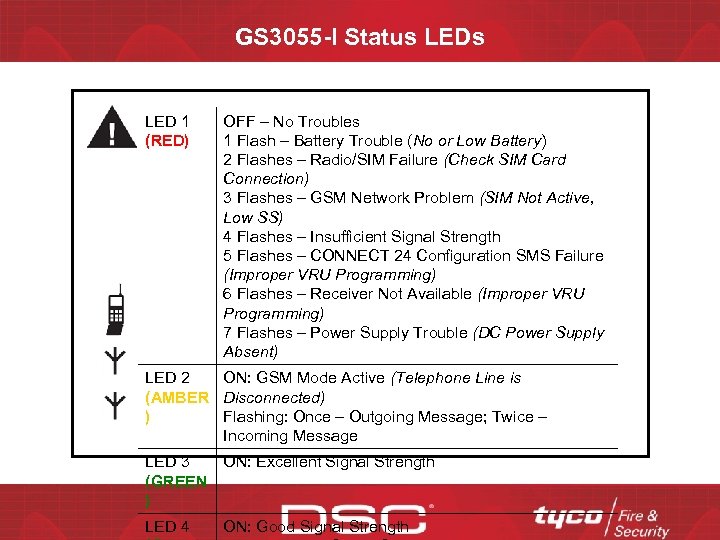

GS 3055 -I Status LED 1 (RED) OFF – No Troubles 1 Flash – Battery Trouble (No or Low Battery) 2 Flashes – Radio/SIM Failure (Check SIM Card Connection) 3 Flashes – GSM Network Problem (SIM Not Active, Low SS) 4 Flashes – Insufficient Signal Strength 5 Flashes – CONNECT 24 Configuration SMS Failure (Improper VRU Programming) 6 Flashes – Receiver Not Available (Improper VRU Programming) 7 Flashes – Power Supply Trouble (DC Power Supply Absent) LED 2 ON: GSM Mode Active (Telephone Line is (AMBER Disconnected) ) Flashing: Once – Outgoing Message; Twice – Incoming Message LED 3 ON: Excellent Signal Strength (GREEN ) CONFIDENTIAL LED 4 ON: Good Signal Strength

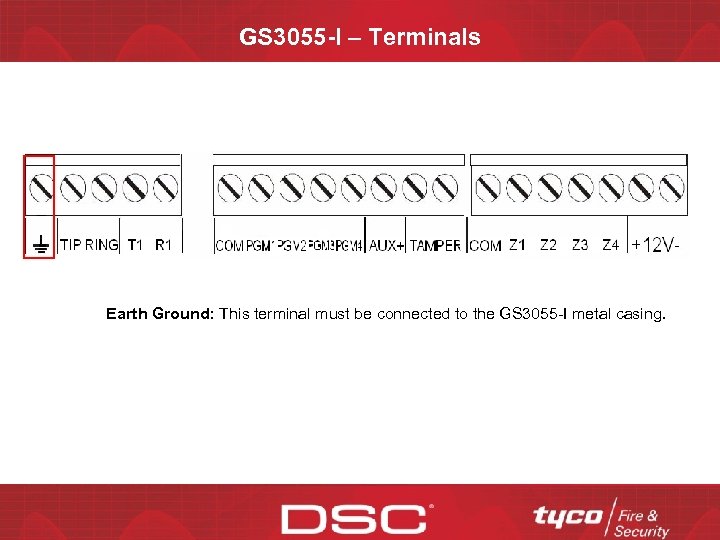

GS 3055 -I – Terminals Earth Ground: This terminal must be connected to the GS 3055 -I metal casing. CONFIDENTIAL

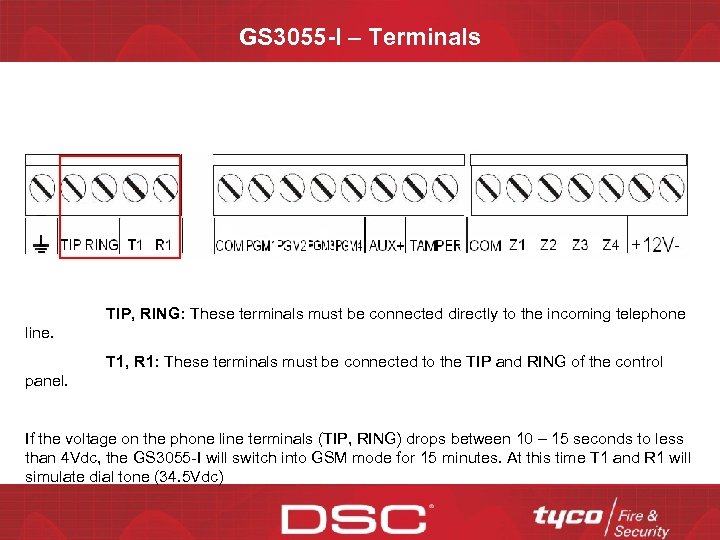

GS 3055 -I – Terminals TIP, RING: These terminals must be connected directly to the incoming telephone line. T 1, R 1: These terminals must be connected to the TIP and RING of the control panel. If the voltage on the phone line terminals (TIP, RING) drops between 10 – 15 seconds to less than 4 Vdc, the GS 3055 -I will switch into GSM mode for 15 minutes. At this time T 1 and R 1 will simulate dial tone (34. 5 Vdc) CONFIDENTIAL

GS 3055 -I – Terminals PGM 1 to PGM 4: These are 4 programmable output terminals (open-collector, maximum current of 50 m. A). PGM 1 – normally high and will switch to ground when the telephone line is down. PGM 2 – normally high and will switch to ground when the GS 3055 -I cannot communicate to GSM network. PGM 3 – normally high and will switch to ground when there is a problem with the PS or battery. PGM 4 – normally low and will switch to high. CONFIDENTIAL of the above occurs and/or on FTC when any condition

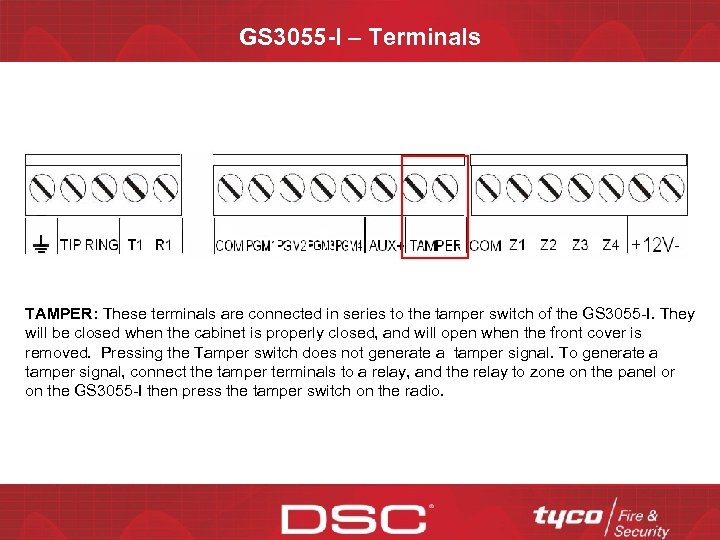

GS 3055 -I – Terminals TAMPER: These terminals are connected in series to the tamper switch of the GS 3055 -I. They will be closed when the cabinet is properly closed, and will open when the front cover is removed. Pressing the Tamper switch does not generate a tamper signal. To generate a tamper signal, connect the tamper terminals to a relay, and the relay to zone on the panel or on the GS 3055 -I then press the tamper switch on the radio. CONFIDENTIAL

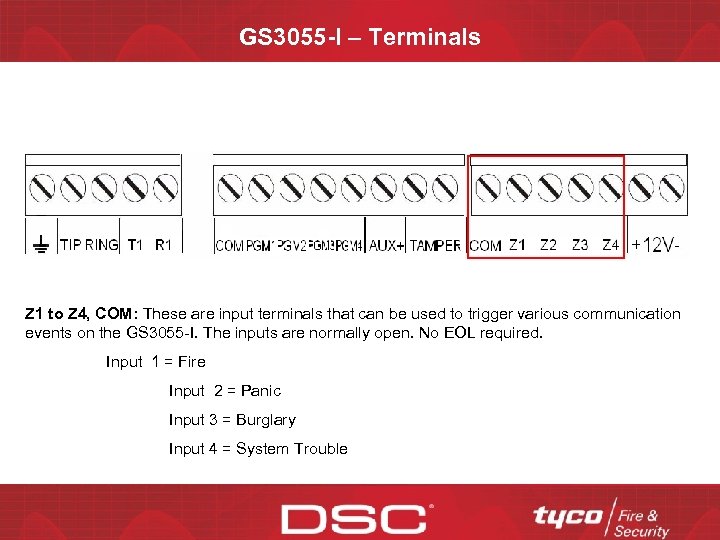

GS 3055 -I – Terminals Z 1 to Z 4, COM: These are input terminals that can be used to trigger various communication events on the GS 3055 -I. The inputs are normally open. No EOL required. Input 1 = Fire Input 2 = Panic Input 3 = Burglary Input 4 = System Trouble CONFIDENTIAL

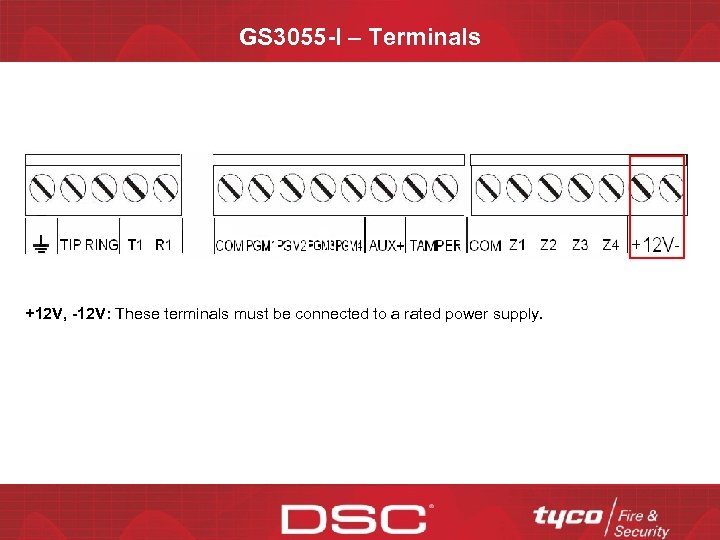

GS 3055 -I – Terminals +12 V, -12 V: These terminals must be connected to a rated power supply. CONFIDENTIAL

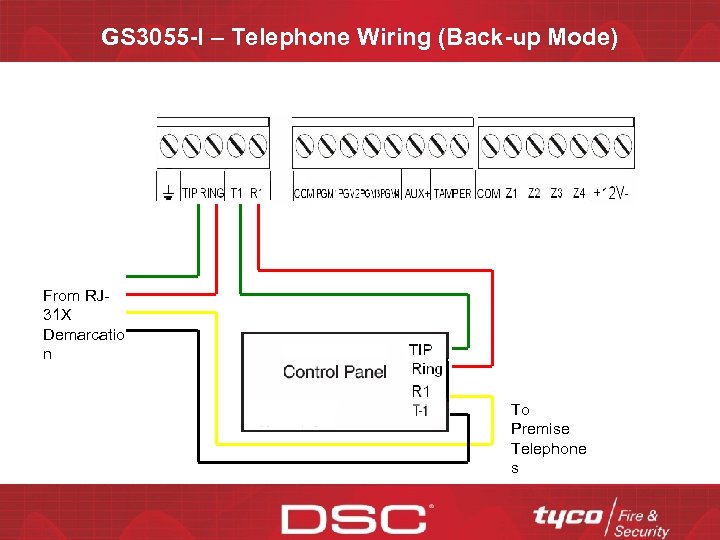

GS 3055 -I – Telephone Wiring (Back-up Mode) From RJ 31 X Demarcatio n To Premise Telephone s CONFIDENTIAL

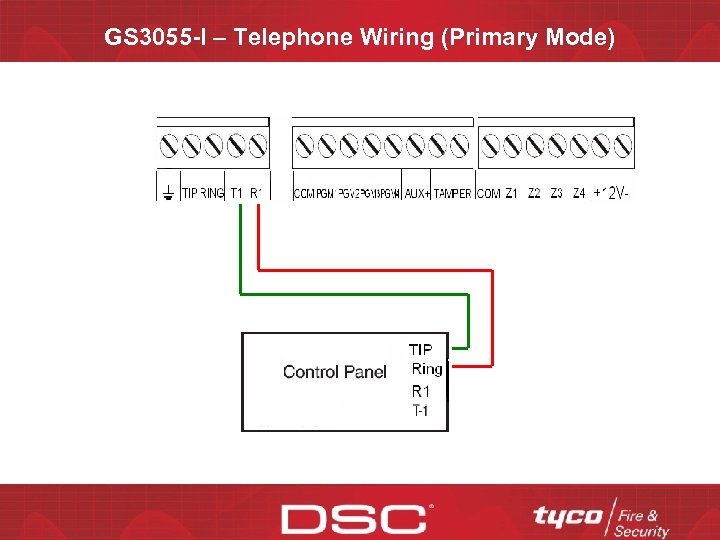

GS 3055 -I – Telephone Wiring (Primary Mode) CONFIDENTIAL

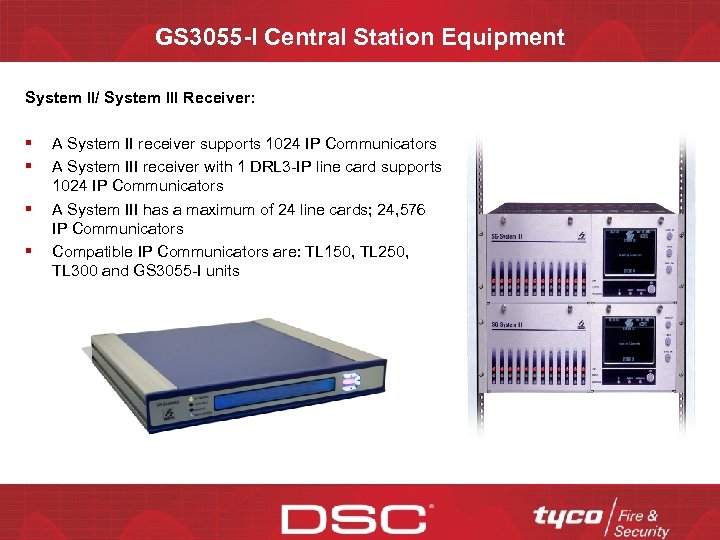

GS 3055 -I Central Station Equipment System II/ System III Receiver: § § A System II receiver supports 1024 IP Communicators A System III receiver with 1 DRL 3 -IP line card supports 1024 IP Communicators A System III has a maximum of 24 line cards; 24, 576 IP Communicators Compatible IP Communicators are: TL 150, TL 250, TL 300 and GS 3055 -I units CONFIDENTIAL

GS 3055 -I Questions? CONFIDENTIAL
