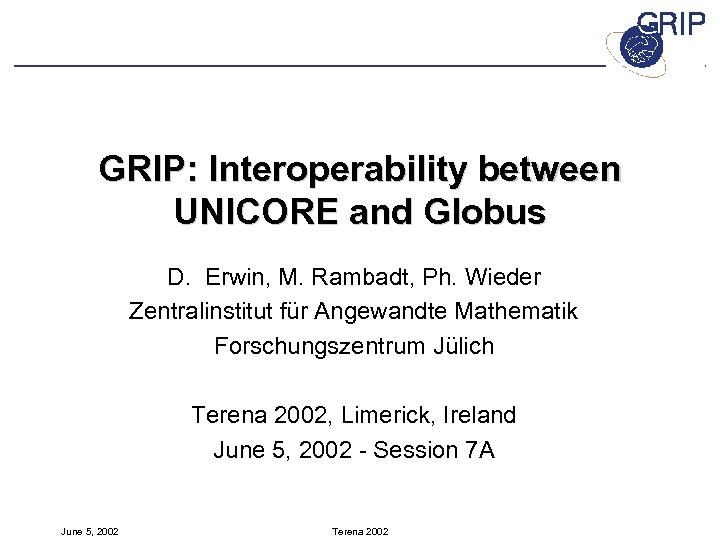

GRIP: Interoperability between UNICORE and Globus D. Erwin, M. Rambadt, Ph. Wieder Zentralinstitut für Angewandte Mathematik Forschungszentrum Jülich Terena 2002, Limerick, Ireland June 5, 2002 - Session 7 A June 5, 2002 Terena 2002
Contents GRIP Partners UNICORE and Globus GRIP Objectives The GRIP Architecture Experience with an early prototype GRIP and OSGA June 5, 2002 Terena 2002 2

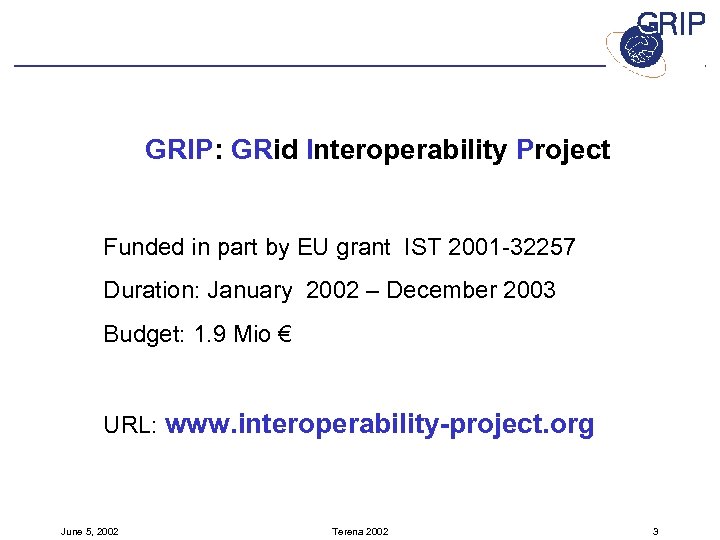

GRIP: GRid Interoperability Project Funded in part by EU grant IST 2001 -32257 Duration: January 2002 – December 2003 Budget: 1. 9 Mio € URL: www. interoperability-project. org June 5, 2002 Terena 2002 3

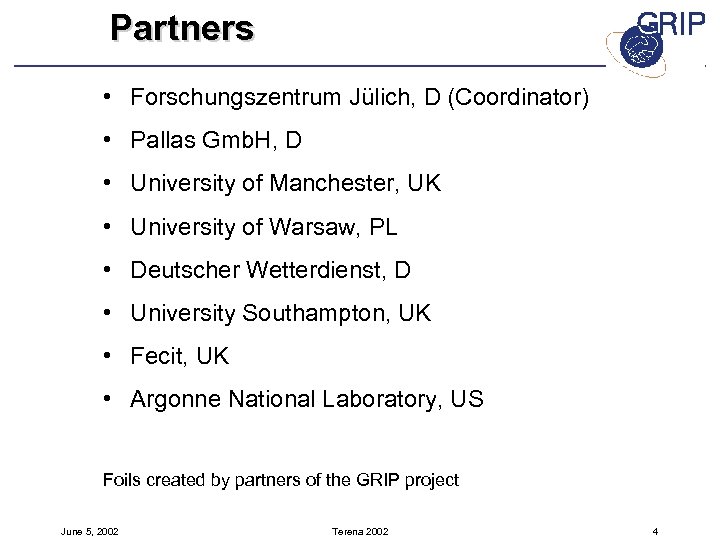

Partners • Forschungszentrum Jülich, D (Coordinator) • Pallas Gmb. H, D • University of Manchester, UK • University of Warsaw, PL • Deutscher Wetterdienst, D • University Southampton, UK • Fecit, UK • Argonne National Laboratory, US Foils created by partners of the GRIP project June 5, 2002 Terena 2002 4
GRIP Partners UNICORE and Globus GRIP Objectives The GRIP Architecture Experience with an early prototype GRIP and OSGA June 5, 2002 Terena 2002 5

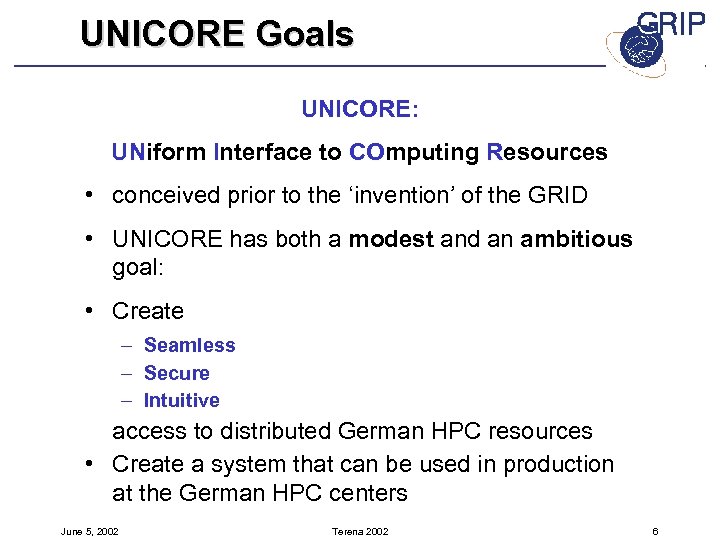

UNICORE Goals UNICORE: UNiform Interface to COmputing Resources • conceived prior to the ‘invention’ of the GRID • UNICORE has both a modest and an ambitious goal: • Create – Seamless – Secure – Intuitive access to distributed German HPC resources • Create a system that can be used in production at the German HPC centers June 5, 2002 Terena 2002 6
LRZ: SR 8000, VPP RUS: Hitachi, SX-5 FZJ: 2 x. T 3 E, T 90, SV 1 FZJ ZIB: T 3 E, SGI DWD: T 3 E, IBM SP RUKA: IBM SP PC²: hpc. Line Pallas TUD: SGI RUKa Pallas: Sun fecit: VPP, Sun June 5, 2002 Terena 2002 PC² DWD ZIB TUD RUS LRZ 7

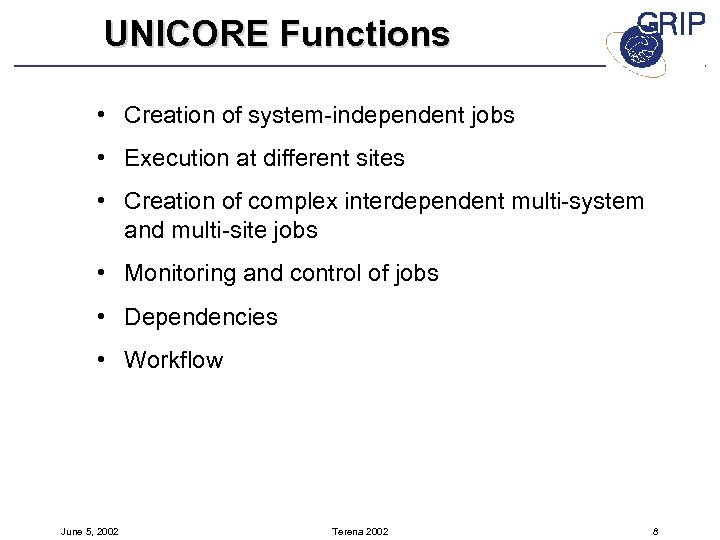

UNICORE Functions • Creation of system-independent jobs • Execution at different sites • Creation of complex interdependent multi-system and multi-site jobs • Monitoring and control of jobs • Dependencies • Workflow June 5, 2002 Terena 2002 8
UNICORE Functions • Transfer of data to and from the workstation • Automatic data transfer between systems and sites • Access to data in Unix file systems and archives • Application support • No changes to third party applications • Support for legacy job scripts • Support for Metacomputing • Performance analysis using VAMPIR June 5, 2002 Terena 2002 9

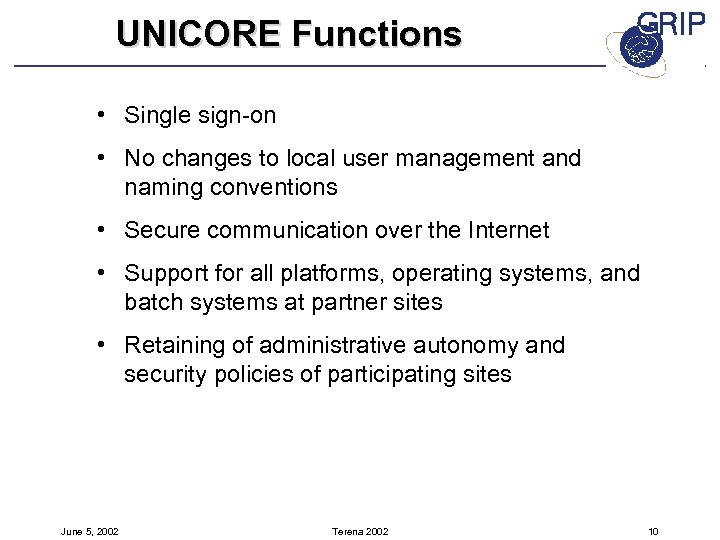

UNICORE Functions • Single sign-on • No changes to local user management and naming conventions • Secure communication over the Internet • Support for all platforms, operating systems, and batch systems at partner sites • Retaining of administrative autonomy and security policies of participating sites June 5, 2002 Terena 2002 10

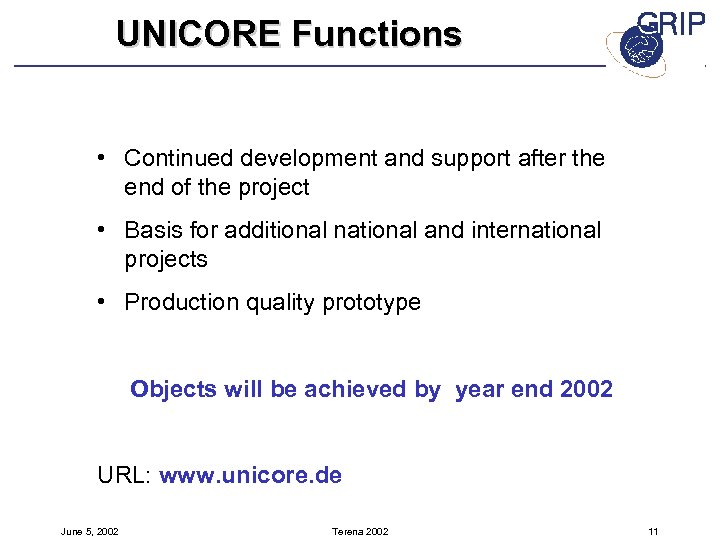

UNICORE Functions • Continued development and support after the end of the project • Basis for additional national and international projects • Production quality prototype Objects will be achieved by year end 2002 URL: www. unicore. de June 5, 2002 Terena 2002 11

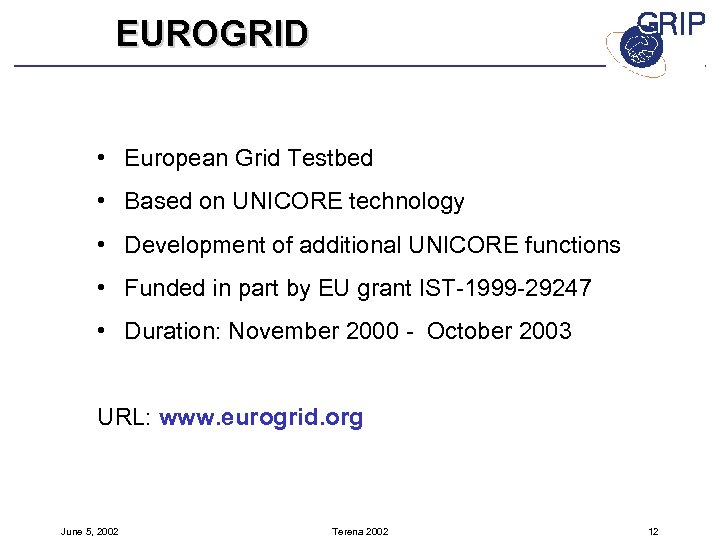

EUROGRID • European Grid Testbed • Based on UNICORE technology • Development of additional UNICORE functions • Funded in part by EU grant IST-1999 -29247 • Duration: November 2000 - October 2003 URL: www. eurogrid. org June 5, 2002 Terena 2002 12
Geography June 5, 2002 Terena 2002 13

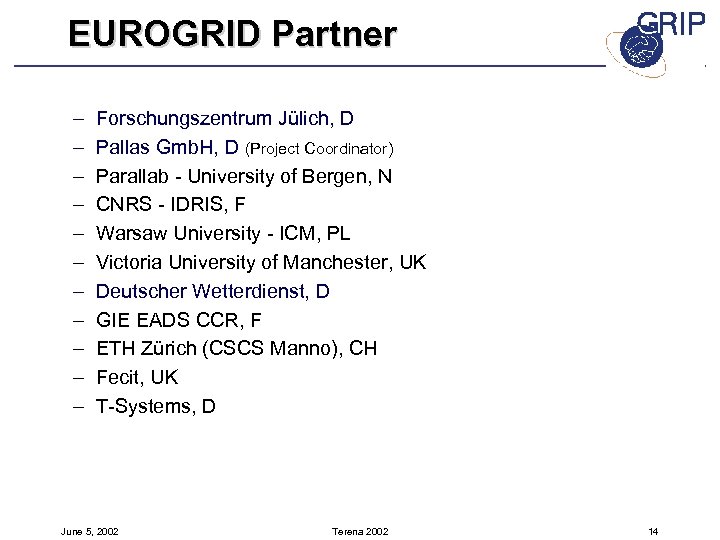

EUROGRID Partner – – – Forschungszentrum Jülich, D Pallas Gmb. H, D (Project Coordinator) Parallab - University of Bergen, N CNRS - IDRIS, F Warsaw University - ICM, PL Victoria University of Manchester, UK Deutscher Wetterdienst, D GIE EADS CCR, F ETH Zürich (CSCS Manno), CH Fecit, UK T-Systems, D June 5, 2002 Terena 2002 14

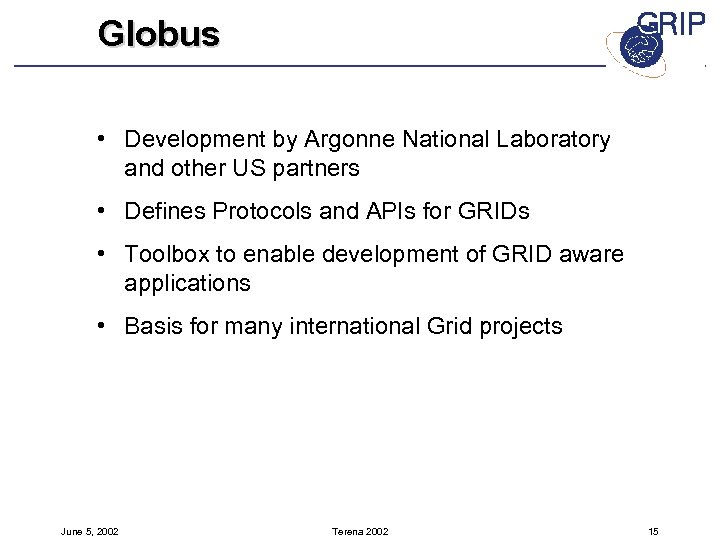

Globus • Development by Argonne National Laboratory and other US partners • Defines Protocols and APIs for GRIDs • Toolbox to enable development of GRID aware applications • Basis for many international Grid projects June 5, 2002 Terena 2002 15

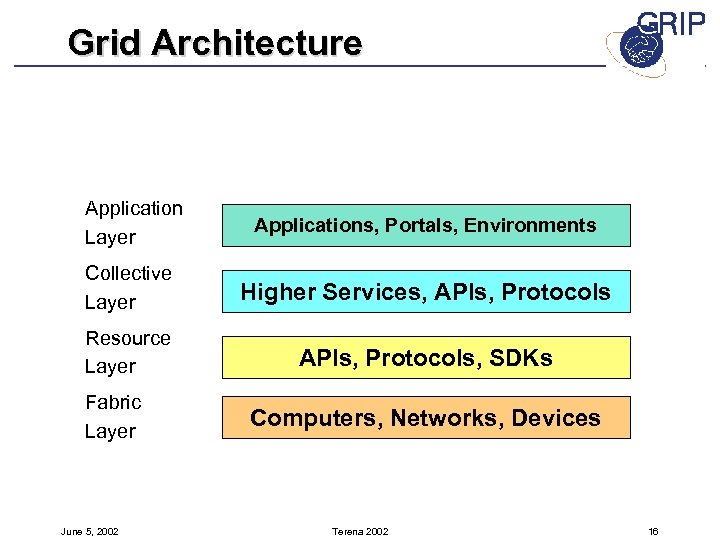

Grid Architecture Application Layer Applications, Portals, Environments Collective Layer Higher Services, APIs, Protocols Resource Layer APIs, Protocols, SDKs Fabric Layer June 5, 2002 Computers, Networks, Devices Terena 2002 16

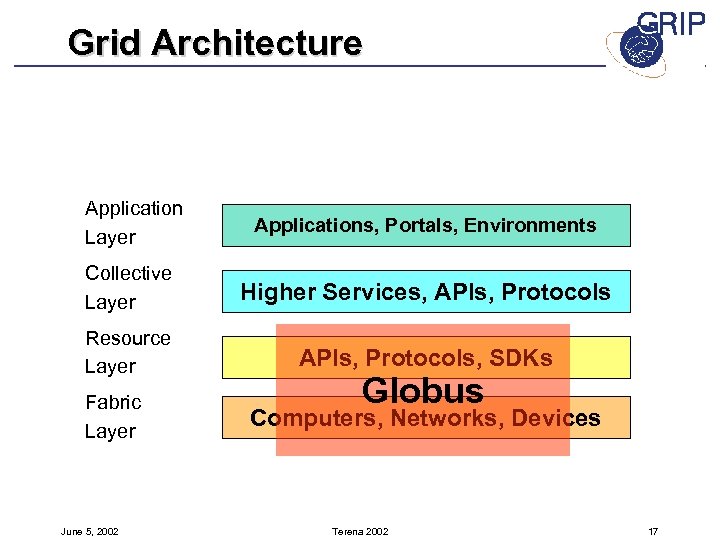

Grid Architecture Application Layer Applications, Portals, Environments Collective Layer Higher Services, APIs, Protocols Resource Layer APIs, Protocols, SDKs Fabric Layer June 5, 2002 Globus Computers, Networks, Devices Terena 2002 17

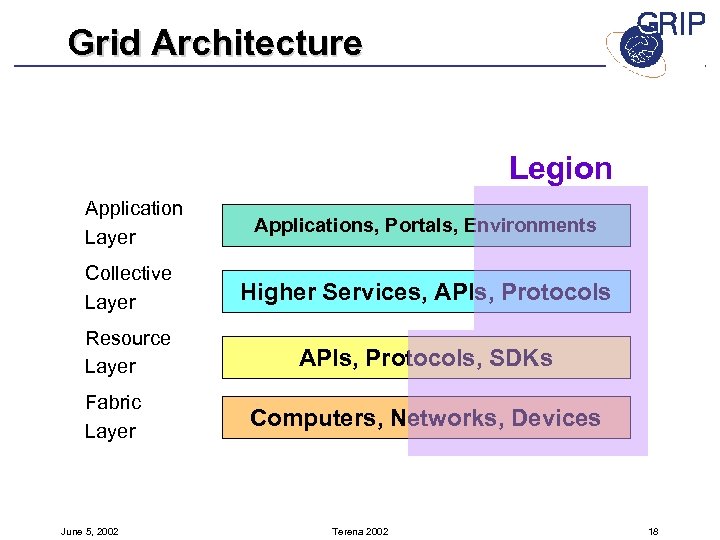

Grid Architecture Legion Application Layer Applications, Portals, Environments Collective Layer Higher Services, APIs, Protocols Resource Layer APIs, Protocols, SDKs Fabric Layer June 5, 2002 Computers, Networks, Devices Terena 2002 18

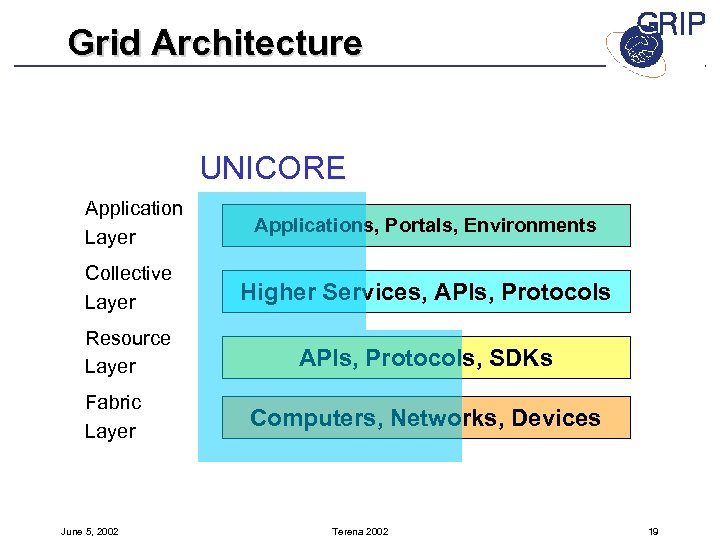

Grid Architecture UNICORE Application Layer Applications, Portals, Environments Collective Layer Higher Services, APIs, Protocols Resource Layer APIs, Protocols, SDKs Fabric Layer June 5, 2002 Computers, Networks, Devices Terena 2002 19

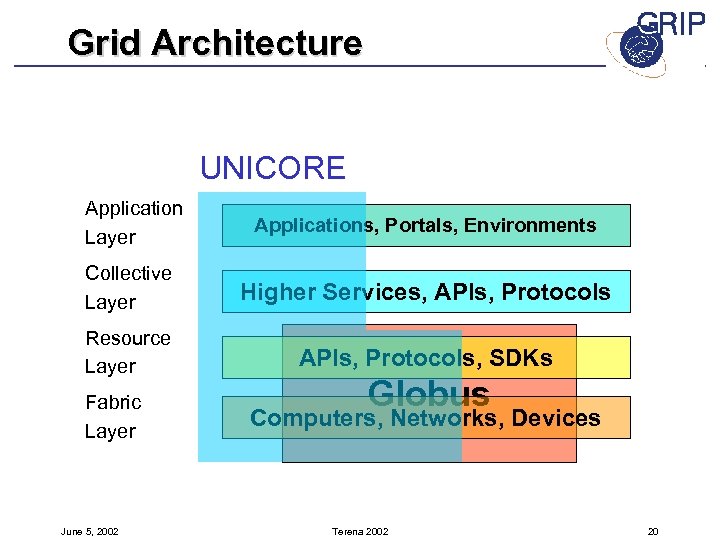

Grid Architecture UNICORE Application Layer Applications, Portals, Environments Collective Layer Higher Services, APIs, Protocols Resource Layer APIs, Protocols, SDKs Fabric Layer June 5, 2002 Globus Computers, Networks, Devices Terena 2002 20
GRIP Partners UNICORE and Globus GRIP Objectives The GRIP Architecture Experience with an early prototype GRIP and OSGA June 5, 2002 Terena 2002 21
GRIP Objectives • Develop software to facilitate interoperation between UNICORE and Globus combining the unique strength of each system (Pallas, fecit, Uo. M, FZJ, ANL) • Build and demonstrate biomolecular (MD & QC codes) and meteorological (RLM) inter-grid applications (ICM, DWD, SOTON) • Create wrappers to support commercial applications in a Grid (no code changes) • Contribute to and influence international Grid standards through the Global Grid Forum June 5, 2002 Terena 2002 22

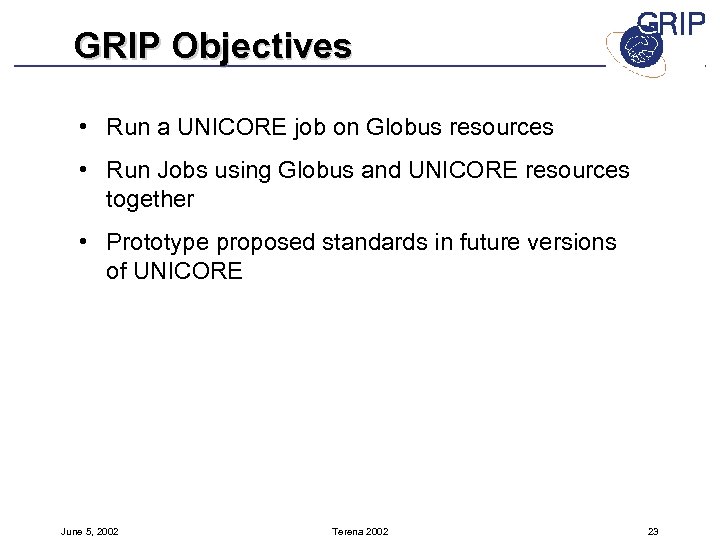

GRIP Objectives • Run a UNICORE job on Globus resources • Run Jobs using Globus and UNICORE resources together • Prototype proposed standards in future versions of UNICORE June 5, 2002 Terena 2002 23

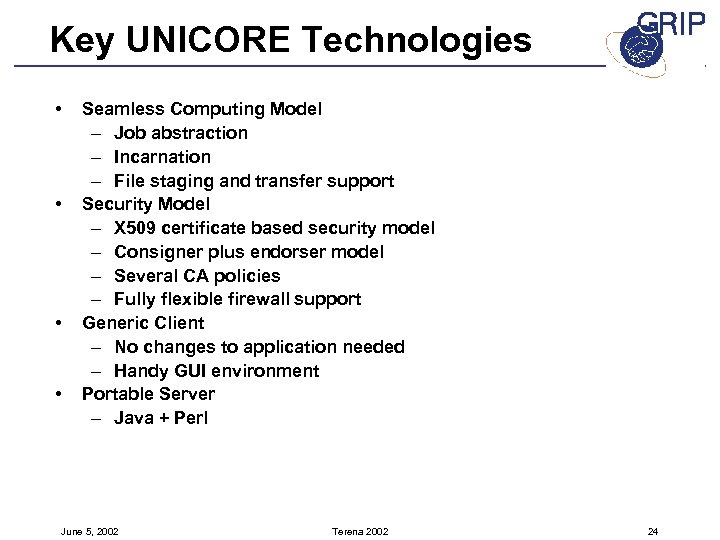

Key UNICORE Technologies • • Seamless Computing Model – Job abstraction – Incarnation – File staging and transfer support Security Model – X 509 certificate based security model – Consigner plus endorser model – Several CA policies – Fully flexible firewall support Generic Client – No changes to application needed – Handy GUI environment Portable Server – Java + Perl June 5, 2002 Terena 2002 24

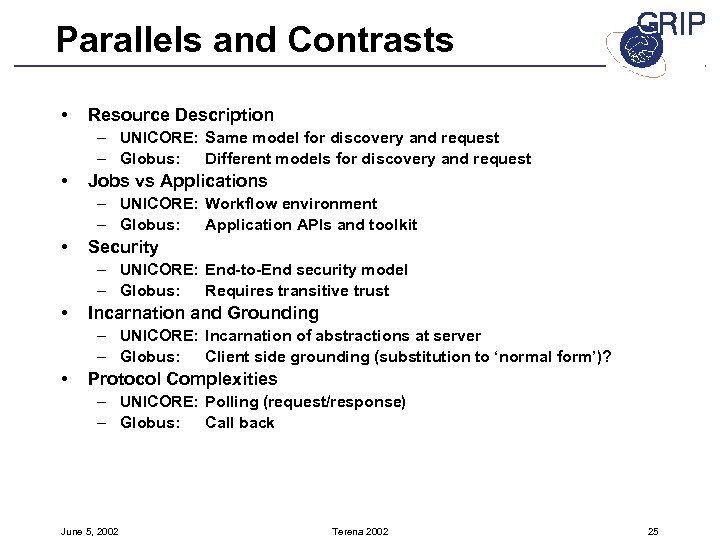

Parallels and Contrasts • Resource Description – UNICORE: Same model for discovery and request – Globus: Different models for discovery and request • Jobs vs Applications – UNICORE: Workflow environment – Globus: Application APIs and toolkit • Security – UNICORE: End-to-End security model – Globus: Requires transitive trust • Incarnation and Grounding – UNICORE: Incarnation of abstractions at server – Globus: Client side grounding (substitution to ‘normal form’)? • Protocol Complexities – UNICORE: Polling (request/response) – Globus: Call back June 5, 2002 Terena 2002 25

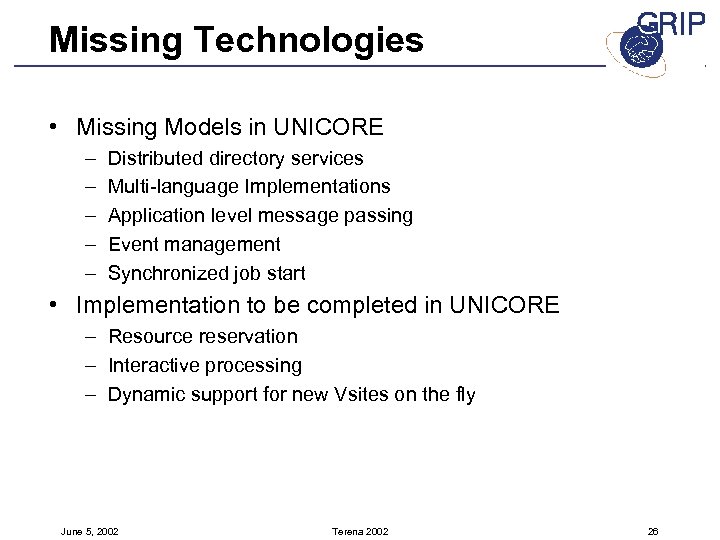

Missing Technologies • Missing Models in UNICORE – – – Distributed directory services Multi-language Implementations Application level message passing Event management Synchronized job start • Implementation to be completed in UNICORE – Resource reservation – Interactive processing – Dynamic support for new Vsites on the fly June 5, 2002 Terena 2002 26

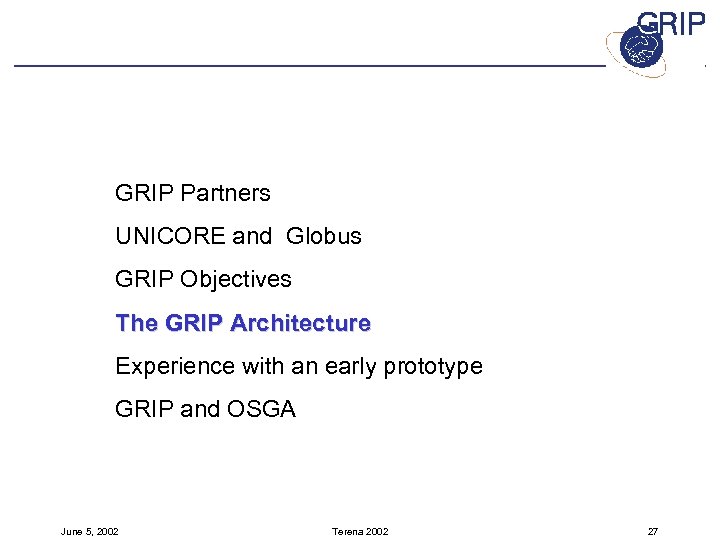

GRIP Partners UNICORE and Globus GRIP Objectives The GRIP Architecture Experience with an early prototype GRIP and OSGA June 5, 2002 Terena 2002 27

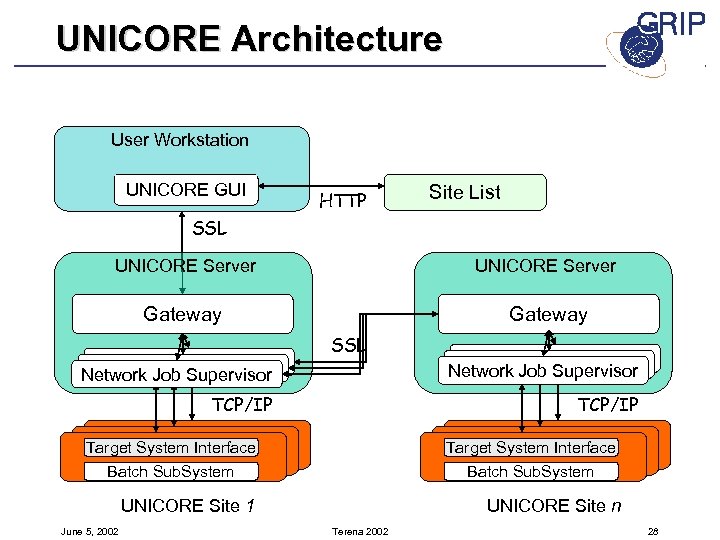

UNICORE Architecture User Workstation UNICORE GUI HTTP Site List SSL UNICORE Server Gateway Network Job Supervisor SSL TCP/IP Network Job Supervisor TCP/IP Batchsystem Target Batchsystem System Interface Batch Sub. System UNICORE Site 1 UNICORE Site n June 5, 2002 Terena 2002 28

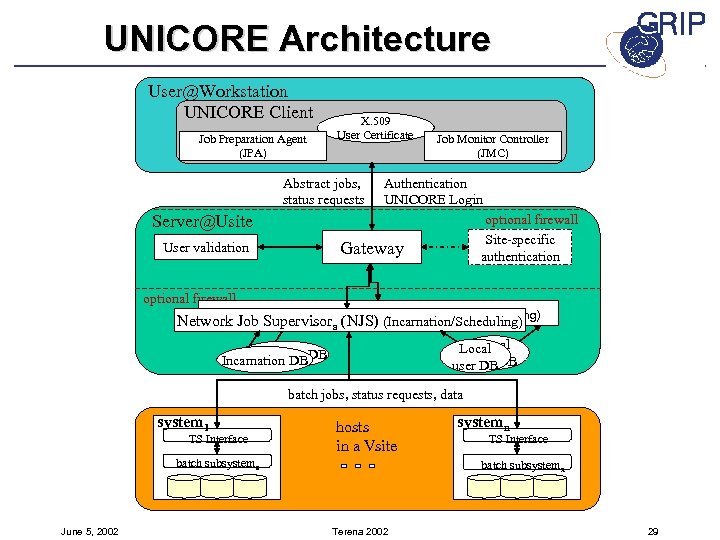

UNICORE Architecture User@Workstation UNICORE Client Job Preparation Agent (JPA) X. 509 User Certificate Abstract jobs, status requests Job Monitor Controller (JMC) Authentication UNICORE Login Server@Usite optional firewall Site-specific authentication Gateway User validation optional firewall Network Job Supervisor (NJS) (Incarnation/Scheduling) a Local user DBDB Incarnation DBDB batch jobs, status requests, data system 1 TS Interface hosts in a Vsite batch subsystema June 5, 2002 systemn TS Interface batch subsystemx Terena 2002 29
Proposed Architecture Client grid-proxy-init plugin Gateway (Logical) Globus Usite Generic Globus IDB Vsite A NJS IDB Host A Globus TSI Vsite B NJS IDB Host B Globus TSI IDB Maker Globus JM Host A June 5, 2002 GRIS Terena 2002 Globus GIIS GRIS Globus JM Host B 30

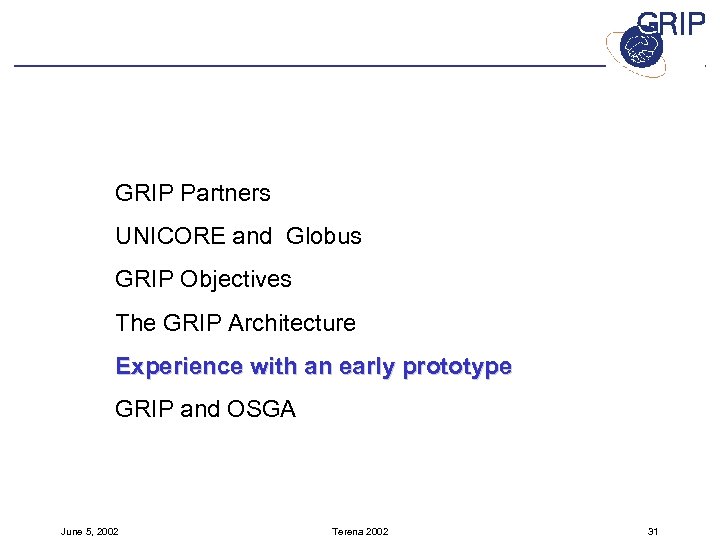

GRIP Partners UNICORE and Globus GRIP Objectives The GRIP Architecture Experience with an early prototype GRIP and OSGA June 5, 2002 Terena 2002 31

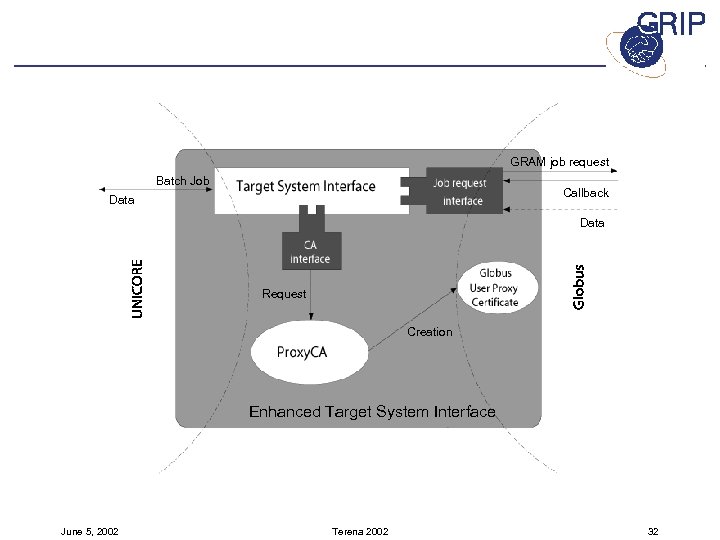

GRAM job request Batch Job Callback Data Request Creation Enhanced Target System Interface June 5, 2002 Terena 2002 32
Experience Simplified Architecture implemented by M. Rambadt as part of his Master thesis: • No changes to UNICORE or Globus • Fixed Globus resource as a Visite • Extended TSI interfaces UNICORE and Globus: – To create proxy certificates – To map AJO to RSL – To acts as Globus client – To return results and status from Globus to NJS and Client Proof of concept June 5, 2002 Terena 2002 33
GRIP Partners UNICORE and Globus GRIP Objectives The GRIP Architecture Experience with an early prototype GRIP and OSGA June 5, 2002 Terena 2002 34

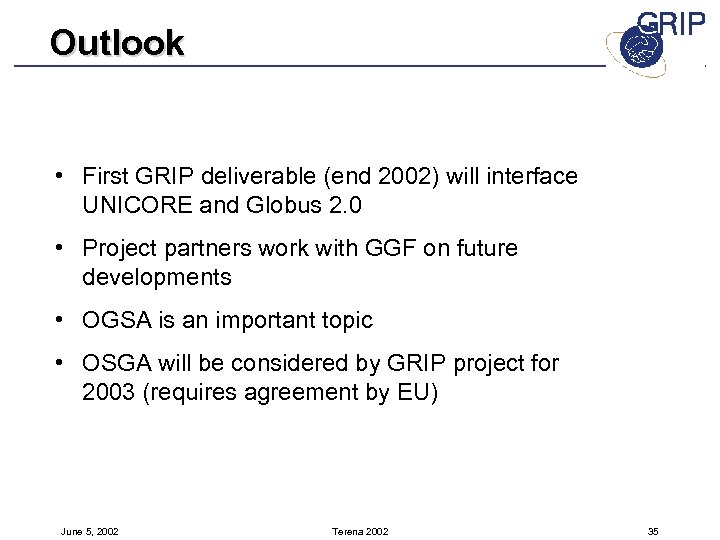

Outlook • First GRIP deliverable (end 2002) will interface UNICORE and Globus 2. 0 • Project partners work with GGF on future developments • OGSA is an important topic • OSGA will be considered by GRIP project for 2003 (requires agreement by EU) June 5, 2002 Terena 2002 35

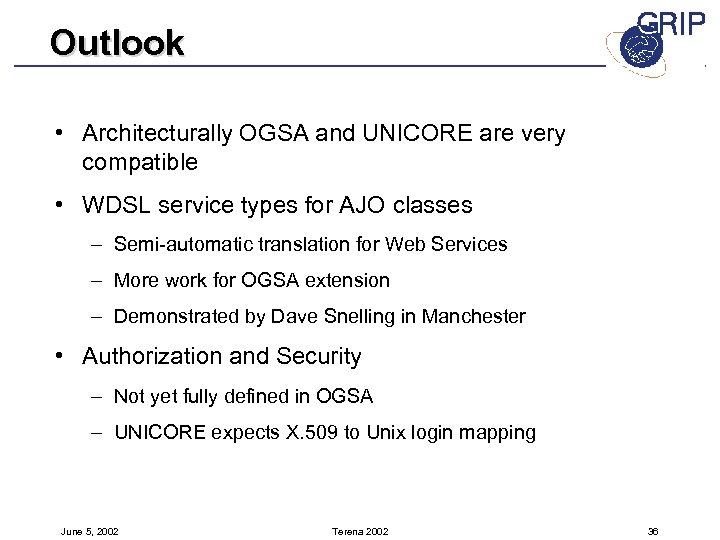

Outlook • Architecturally OGSA and UNICORE are very compatible • WDSL service types for AJO classes – Semi-automatic translation for Web Services – More work for OGSA extension – Demonstrated by Dave Snelling in Manchester • Authorization and Security – Not yet fully defined in OGSA – UNICORE expects X. 509 to Unix login mapping June 5, 2002 Terena 2002 36
Outlook • UNICORE will continue to contribute to Grid developments • Grid development will benefit from experience gained at UNICORE Test and Production sites • Accepted standards with proven implementations are essential June 5, 2002 Terena 2002 37

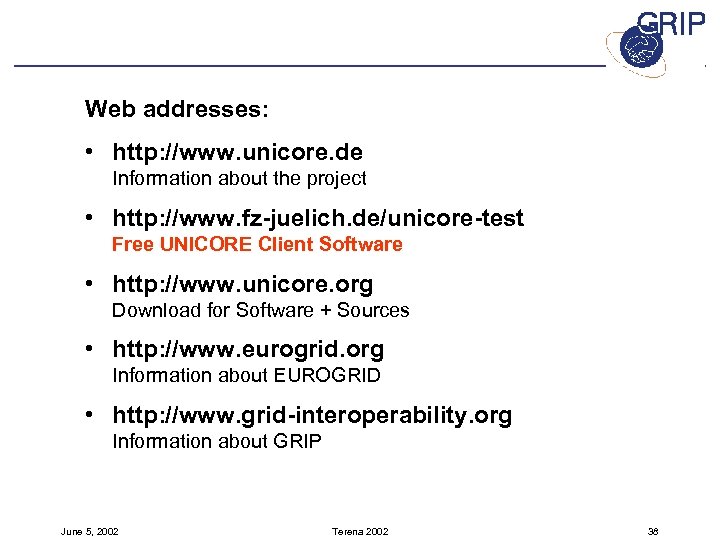

Web addresses: • http: //www. unicore. de Information about the project • http: //www. fz-juelich. de/unicore-test Free UNICORE Client Software • http: //www. unicore. org Download for Software + Sources • http: //www. eurogrid. org Information about EUROGRID • http: //www. grid-interoperability. org Information about GRIP June 5, 2002 Terena 2002 38

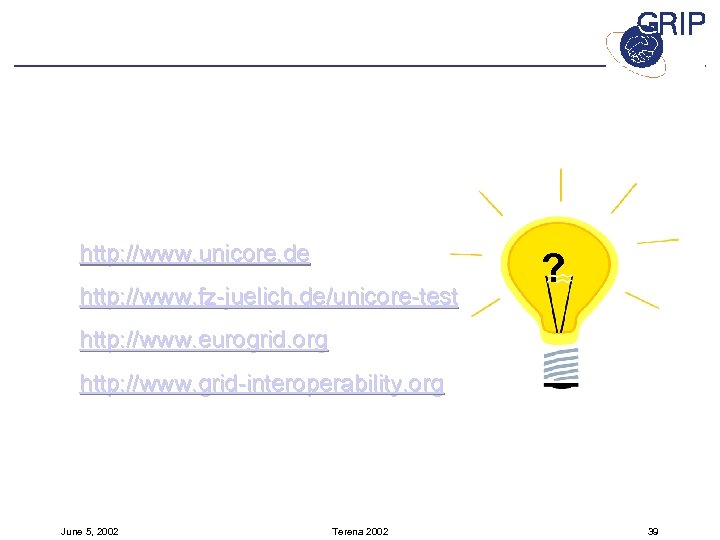

http: //www. unicore. de http: //www. fz-juelich. de/unicore-test ? http: //www. eurogrid. org http: //www. grid-interoperability. org June 5, 2002 Terena 2002 39
