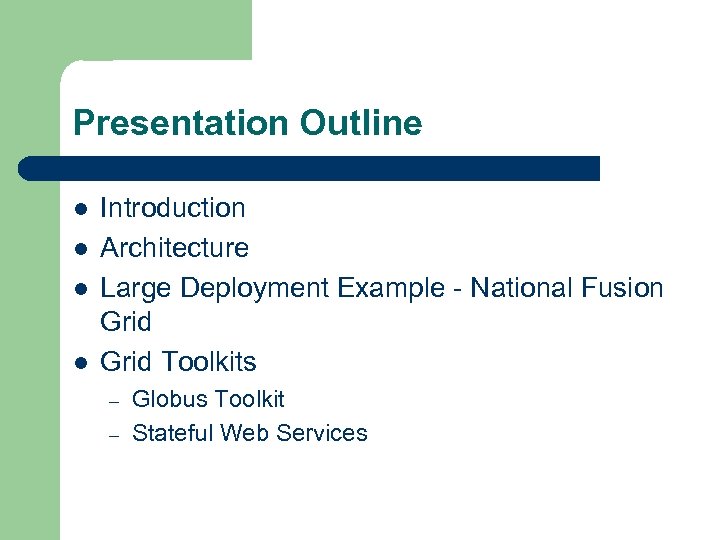

Presentation Outline l l Introduction Architecture Large Deployment Example - National Fusion Grid Toolkits – – Globus Toolkit Stateful Web Services

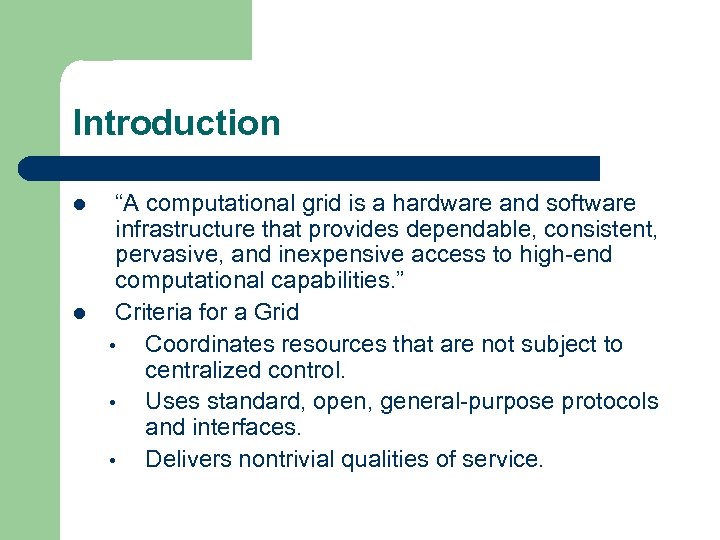

Introduction l l “A computational grid is a hardware and software infrastructure that provides dependable, consistent, pervasive, and inexpensive access to high-end computational capabilities. ” Criteria for a Grid • Coordinates resources that are not subject to centralized control. • Uses standard, open, general-purpose protocols and interfaces. • Delivers nontrivial qualities of service.

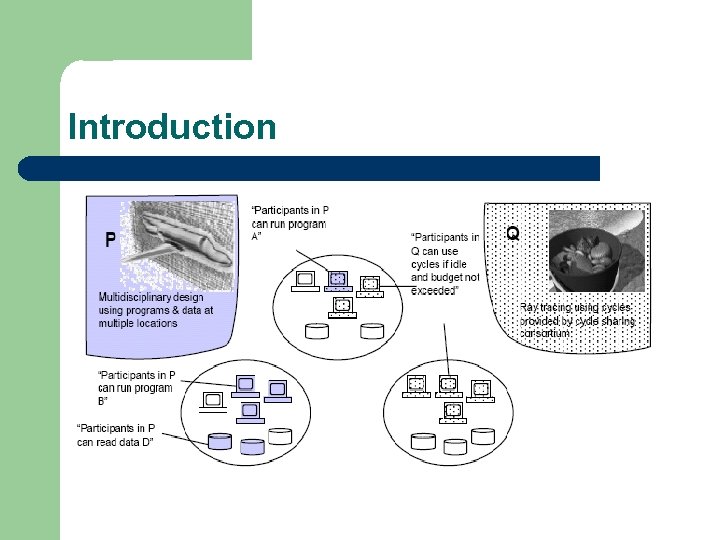

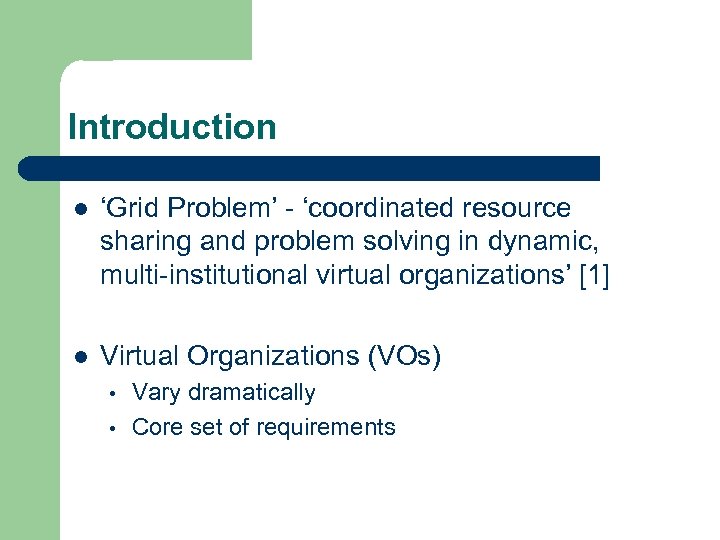

Introduction l ‘Grid Problem’ - ‘coordinated resource sharing and problem solving in dynamic, multi-institutional virtual organizations’ [1] l Virtual Organizations (VOs) • • Vary dramatically Core set of requirements

Introduction l VO requirements • • Flexibility Control Varied resources Usage modes

Introduction

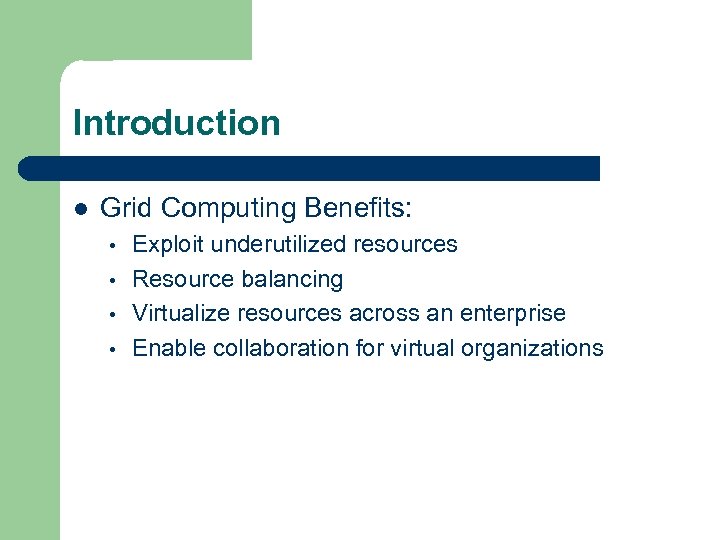

Introduction l Grid Computing Benefits: • • Exploit underutilized resources Resource balancing Virtualize resources across an enterprise Enable collaboration for virtual organizations

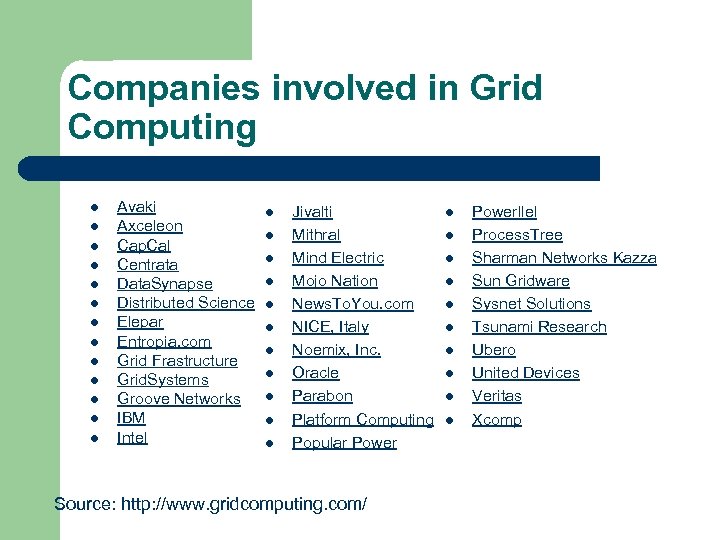

Companies involved in Grid Computing l l l l Avaki Axceleon Cap. Cal Centrata Data. Synapse Distributed Science Elepar Entropia. com Grid Frastructure Grid. Systems Groove Networks IBM Intel l l l Jivalti Mithral Mind Electric Mojo Nation News. To. You. com NICE, Italy Noemix, Inc. Oracle Parabon Platform Computing Popular Power Source: http: //www. gridcomputing. com/ l l l l l Powerllel Process. Tree Sharman Networks Kazza Sun Gridware Sysnet Solutions Tsunami Research Ubero United Devices Veritas Xcomp

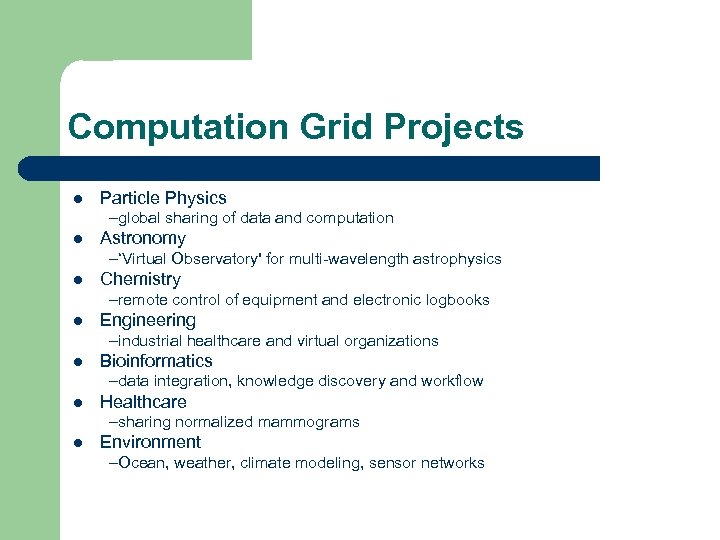

Computation Grid Projects l Particle Physics –global sharing of data and computation l Astronomy –‘Virtual Observatory' for multi-wavelength astrophysics l Chemistry –remote control of equipment and electronic logbooks l Engineering –industrial healthcare and virtual organizations l Bioinformatics –data integration, knowledge discovery and workflow l Healthcare –sharing normalized mammograms l Environment –Ocean, weather, climate modeling, sensor networks

Grid Architecture l l Protocol architecture Standards-based open architecture offers: • • • Interoperability Services API flexibility

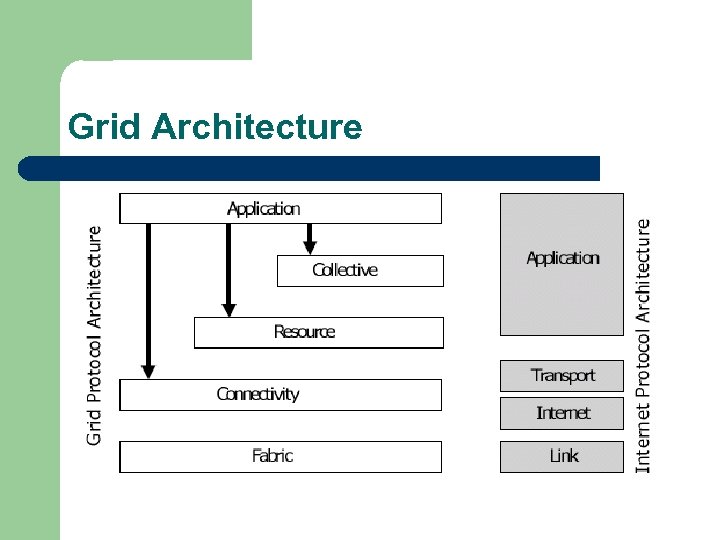

Grid Architecture

Grid Architecture l Fabric Layer – ‘provides the resources to which shared access is mediated by Grid protocols’ • • Resource-specific operations Functionality vs. simplicity

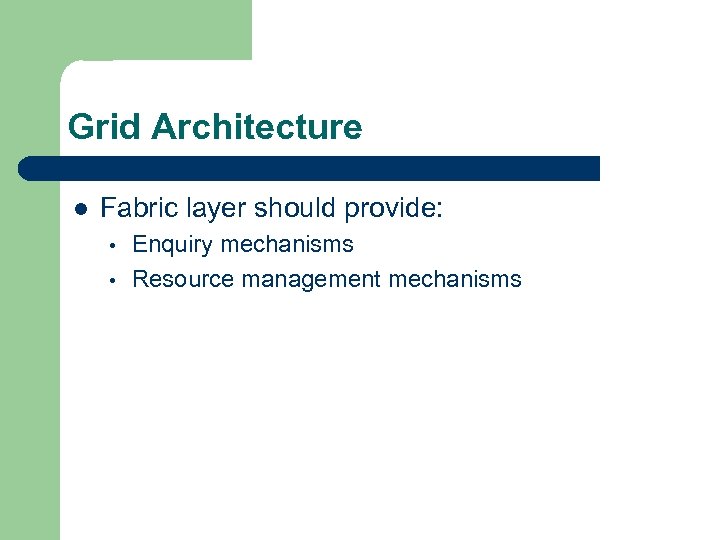

Grid Architecture l Fabric layer should provide: • • Enquiry mechanisms Resource management mechanisms

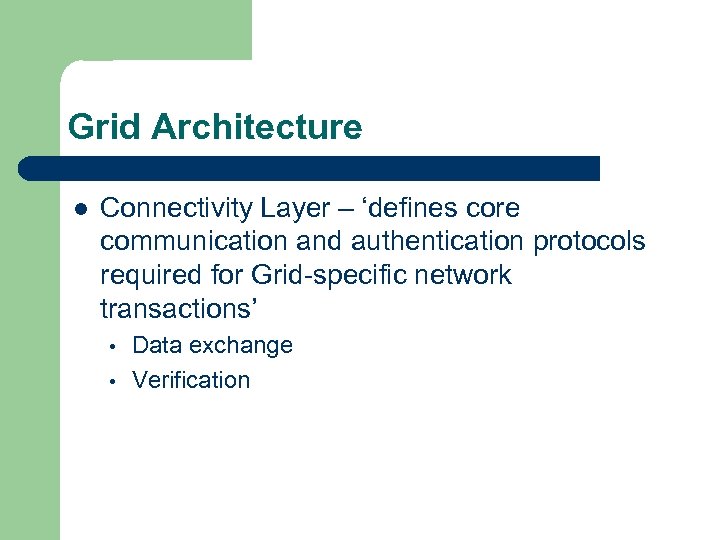

Grid Architecture l Connectivity Layer – ‘defines core communication and authentication protocols required for Grid-specific network transactions’ • • Data exchange Verification

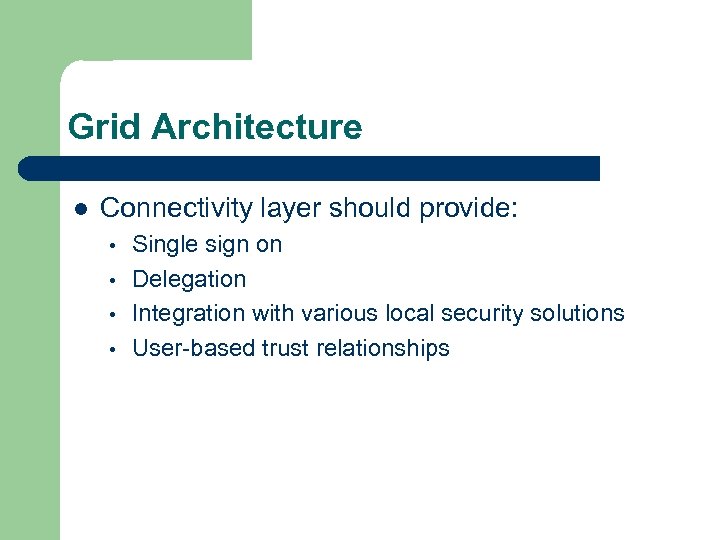

Grid Architecture l Connectivity layer should provide: • • Single sign on Delegation Integration with various local security solutions User-based trust relationships

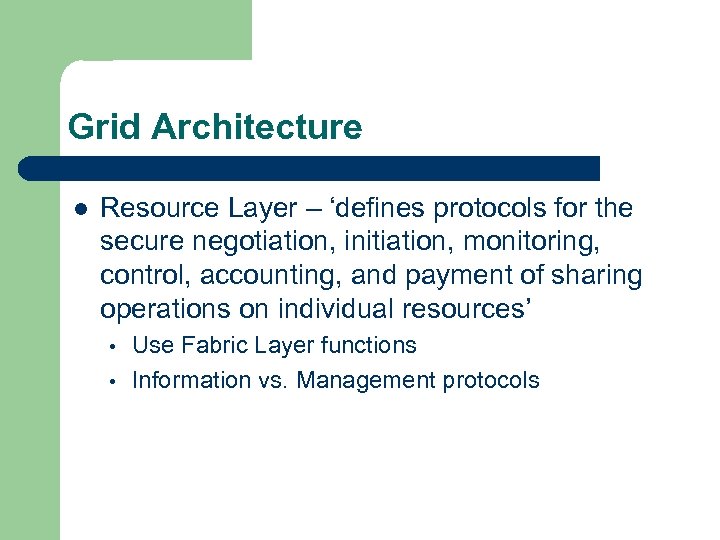

Grid Architecture l Resource Layer – ‘defines protocols for the secure negotiation, initiation, monitoring, control, accounting, and payment of sharing operations on individual resources’ • • Use Fabric Layer functions Information vs. Management protocols

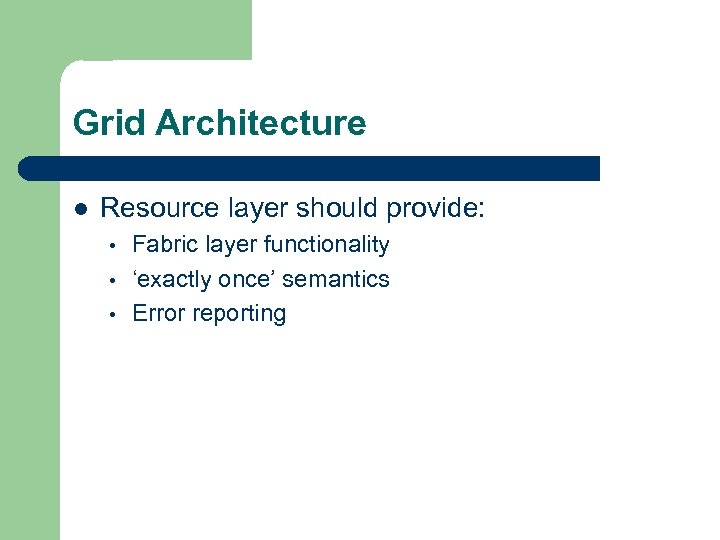

Grid Architecture l Resource layer should provide: • • • Fabric layer functionality ‘exactly once’ semantics Error reporting

Grid Architecture l Collective Layer – ‘contains protocols and services which capture interactions across collections of resources’ • General vs. specific purpose

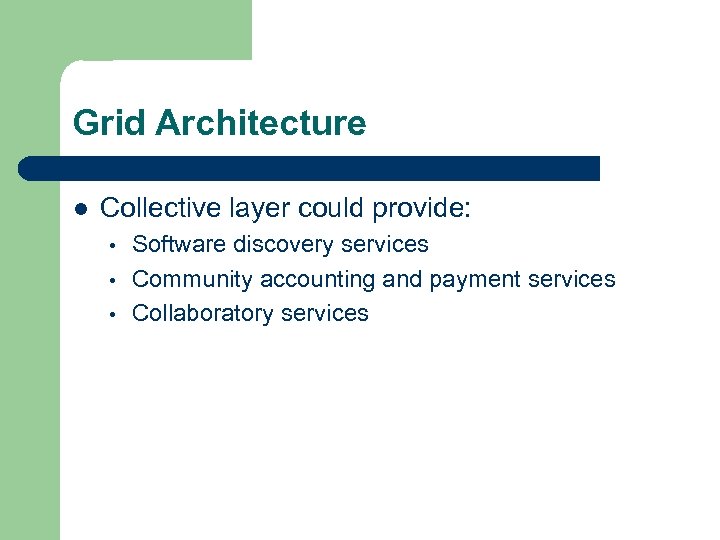

Grid Architecture l Collective layer could provide: • • • Software discovery services Community accounting and payment services Collaboratory services

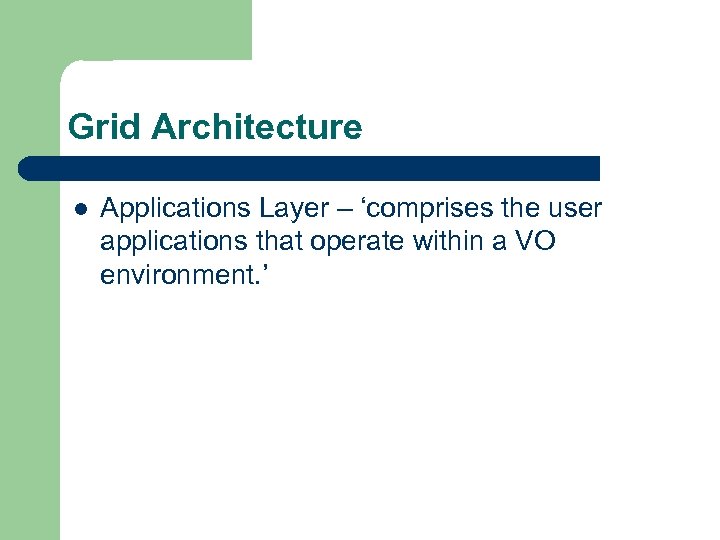

Grid Architecture l Applications Layer – ‘comprises the user applications that operate within a VO environment. ’

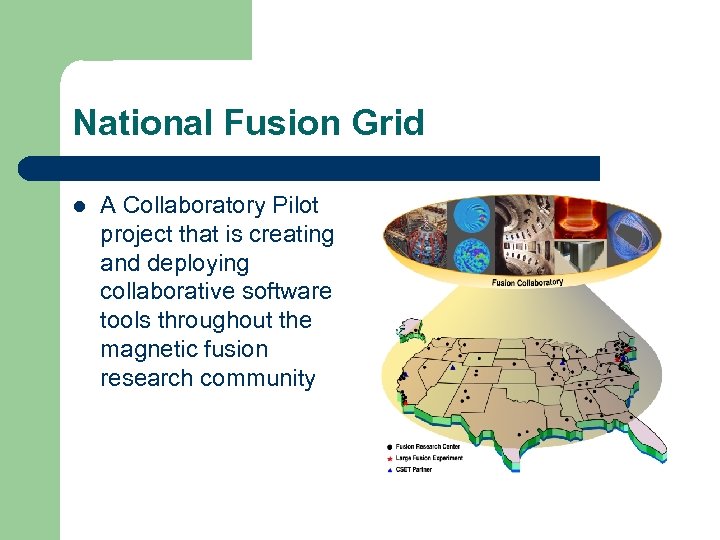

National Fusion Grid l A Collaboratory Pilot project that is creating and deploying collaborative software tools throughout the magnetic fusion research community

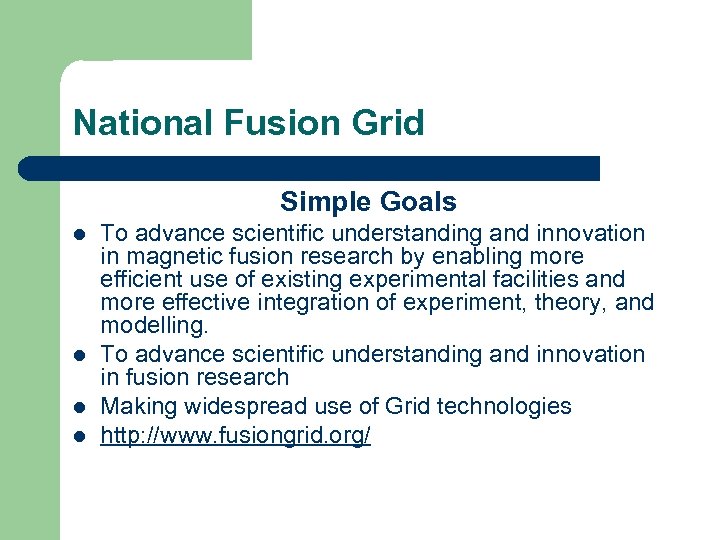

National Fusion Grid Simple Goals l l To advance scientific understanding and innovation in magnetic fusion research by enabling more efficient use of existing experimental facilities and more effective integration of experiment, theory, and modelling. To advance scientific understanding and innovation in fusion research Making widespread use of Grid technologies http: //www. fusiongrid. org/

National Fusion Grid VISION FOR THE FUSION GRID l Data, Codes, Analysis Routines, Visualization Tools should be thought of as network accessible services l Shared security infrastructure l Collaborative nature of research requires shared visualization applications and widely deployed collaboration technologies — Integrate geographically diverse groups l Not focused on CPU cycle scavenging or “distributed” supercomputing (typical Grid justifications) — Optimize the most expensive resource - people’s time

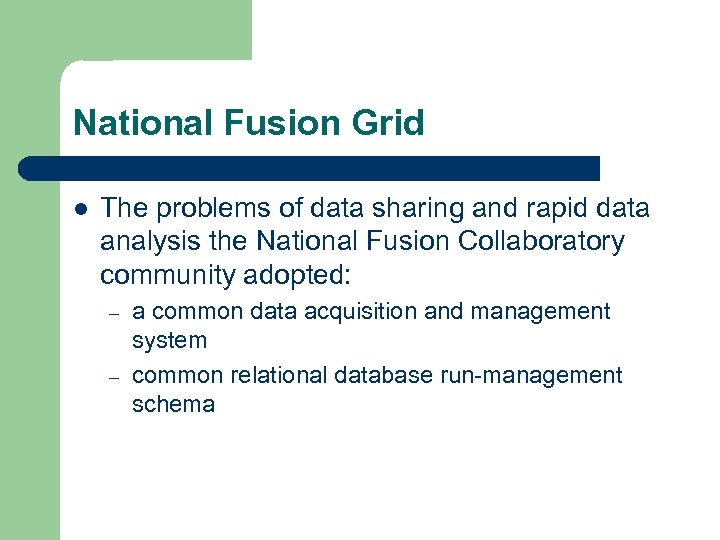

National Fusion Grid l The problems of data sharing and rapid data analysis the National Fusion Collaboratory community adopted: – – a common data acquisition and management system common relational database run-management schema

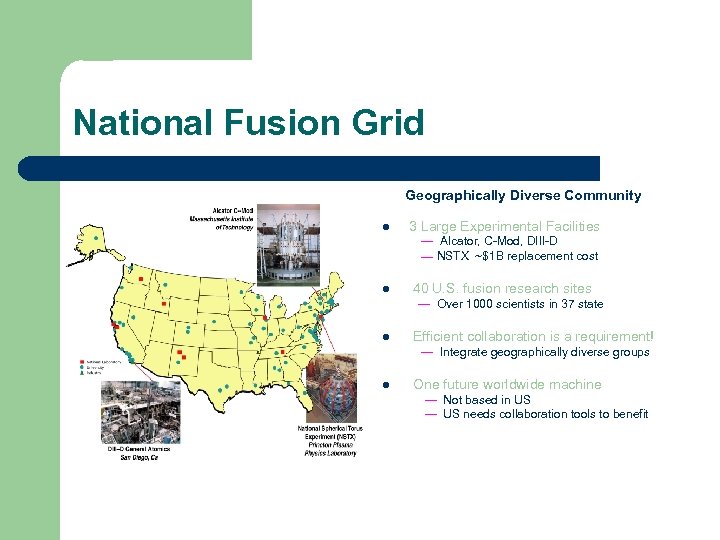

National Fusion Grid Geographically Diverse Community l 3 Large Experimental Facilities — Alcator, C-Mod, DIII-D — NSTX ~$1 B replacement cost l 40 U. S. fusion research sites — Over 1000 scientists in 37 state l Efficient collaboration is a requirement! — Integrate geographically diverse groups l One future worldwide machine — Not based in US — US needs collaboration tools to benefit

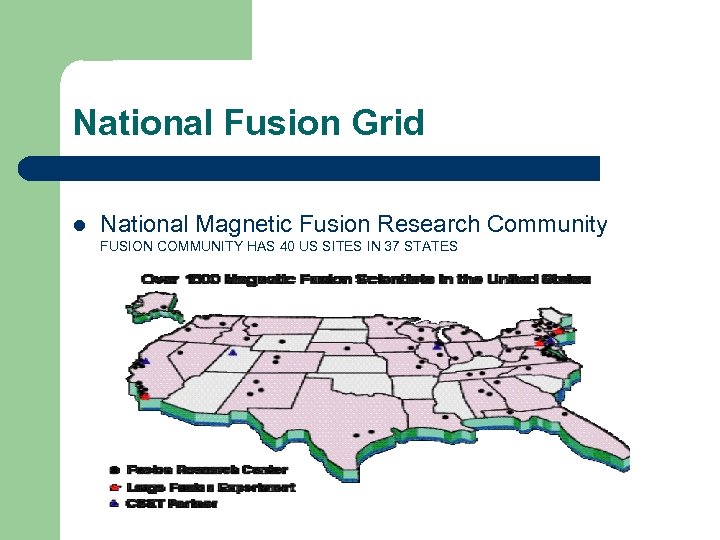

National Fusion Grid l National Magnetic Fusion Research Community FUSION COMMUNITY HAS 40 US SITES IN 37 STATES

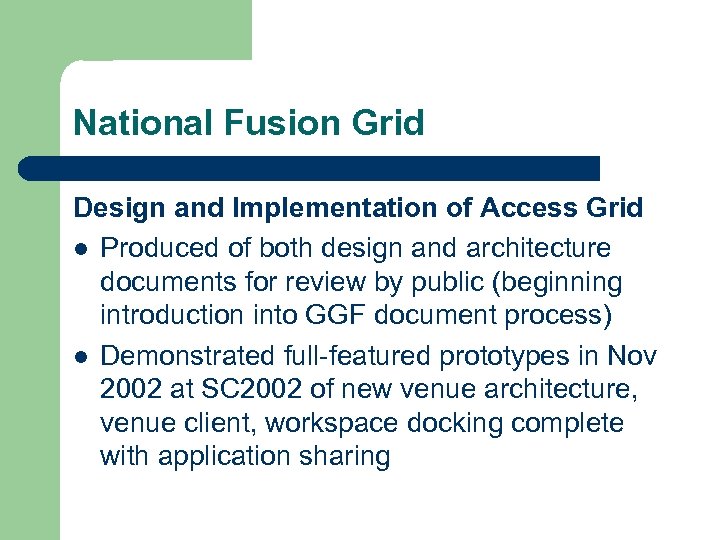

National Fusion Grid Design and Implementation of Access Grid l Produced of both design and architecture documents for review by public (beginning introduction into GGF document process) l Demonstrated full-featured prototypes in Nov 2002 at SC 2002 of new venue architecture, venue client, workspace docking complete with application sharing

National Fusion Grid Building the Fusion Grid (Progressive testbeds) l Deployment Phrase l Use Policies and Issues of Trust l Moving to Real-Time l Wrapping it up

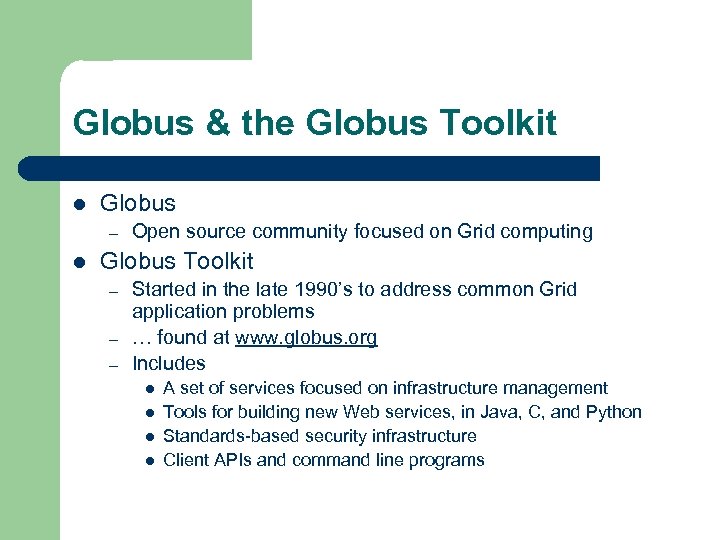

Globus & the Globus Toolkit l Globus – l Open source community focused on Grid computing Globus Toolkit – – – Started in the late 1990’s to address common Grid application problems … found at www. globus. org Includes l l A set of services focused on infrastructure management Tools for building new Web services, in Java, C, and Python Standards-based security infrastructure Client APIs and command line programs

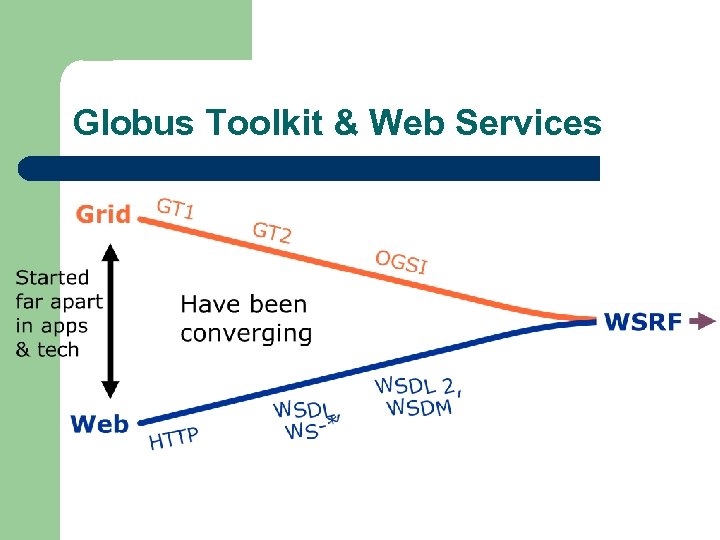

Globus Toolkit & Web Services

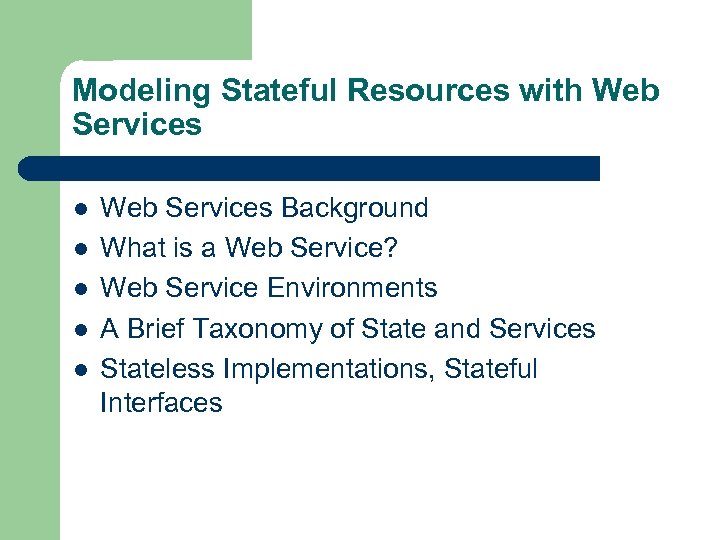

Modeling Stateful Resources with Web Services l l l Web Services Background What is a Web Service? Web Service Environments A Brief Taxonomy of State and Services Stateless Implementations, Stateful Interfaces

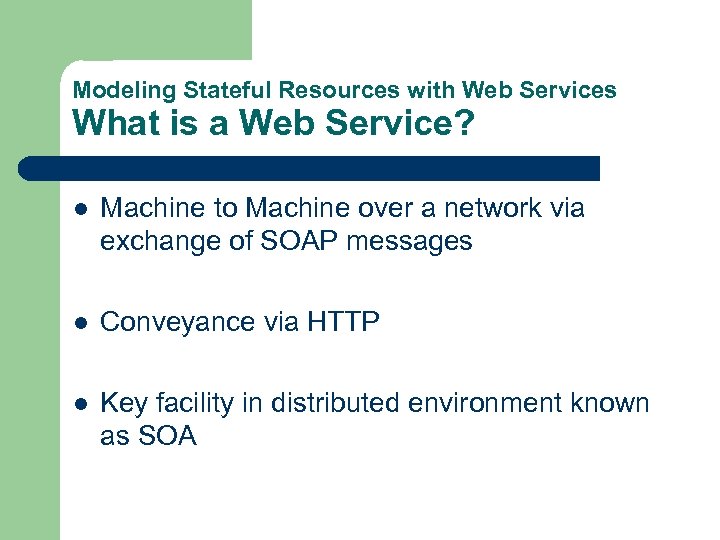

Modeling Stateful Resources with Web Services What is a Web Service? l Machine to Machine over a network via exchange of SOAP messages l Conveyance via HTTP l Key facility in distributed environment known as SOA

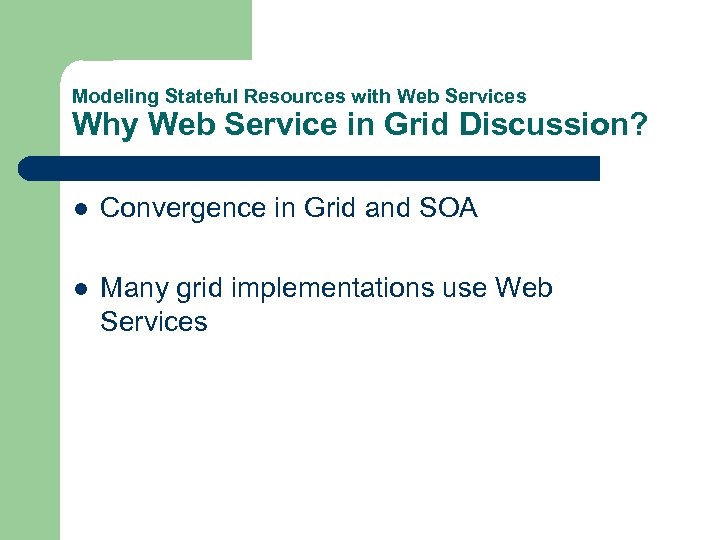

Modeling Stateful Resources with Web Services Why Web Service in Grid Discussion? l Convergence in Grid and SOA l Many grid implementations use Web Services

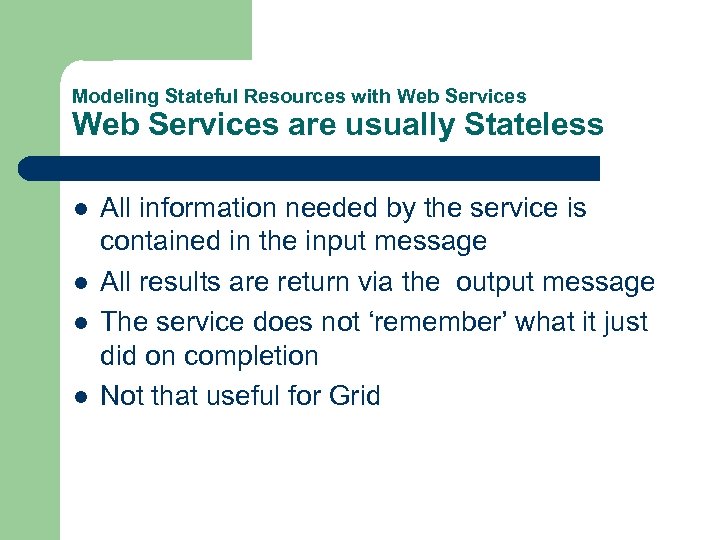

Modeling Stateful Resources with Web Services are usually Stateless l l All information needed by the service is contained in the input message All results are return via the output message The service does not ‘remember’ what it just did on completion Not that useful for Grid

Modeling Stateful Resources with Web Services State and Web Services l Most applications are not stateless l Grid application need their components to keep state l Web services can be components of Grid applications

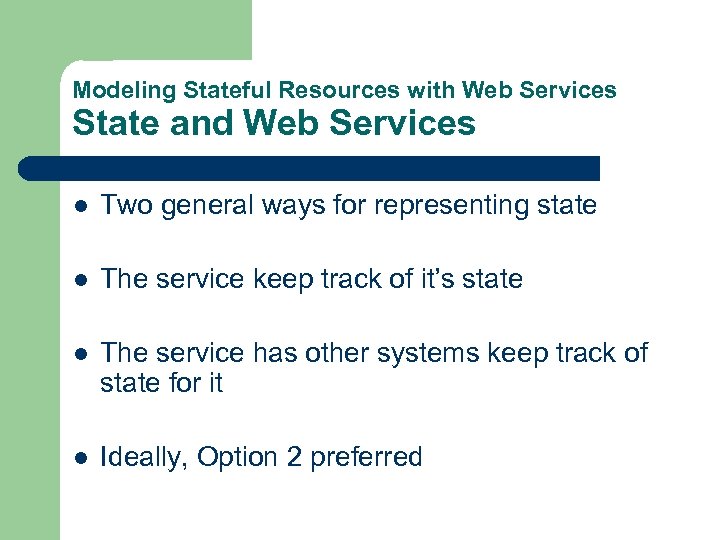

Modeling Stateful Resources with Web Services State and Web Services l Two general ways for representing state l The service keep track of it’s state l The service has other systems keep track of state for it l Ideally, Option 2 preferred

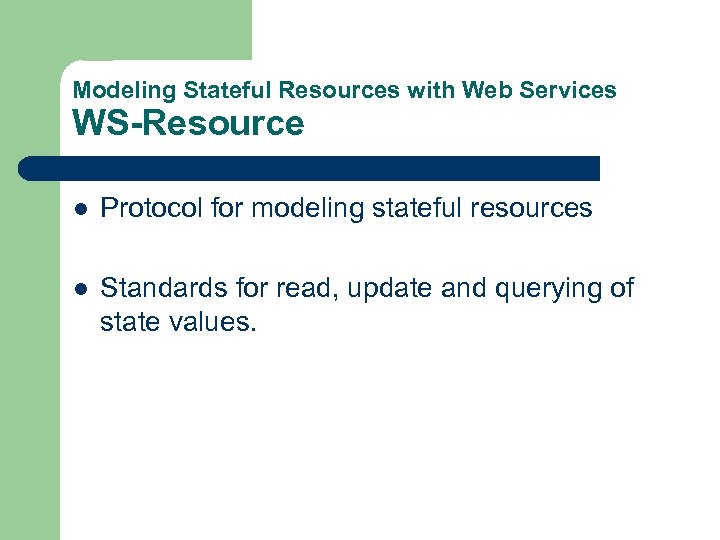

Modeling Stateful Resources with Web Services WS-Resource l Protocol for modeling stateful resources l Standards for read, update and querying of state values.

Modeling Stateful Resources with Web Services WS-Resource Lifecycle Creation Assignment & Use Destruction

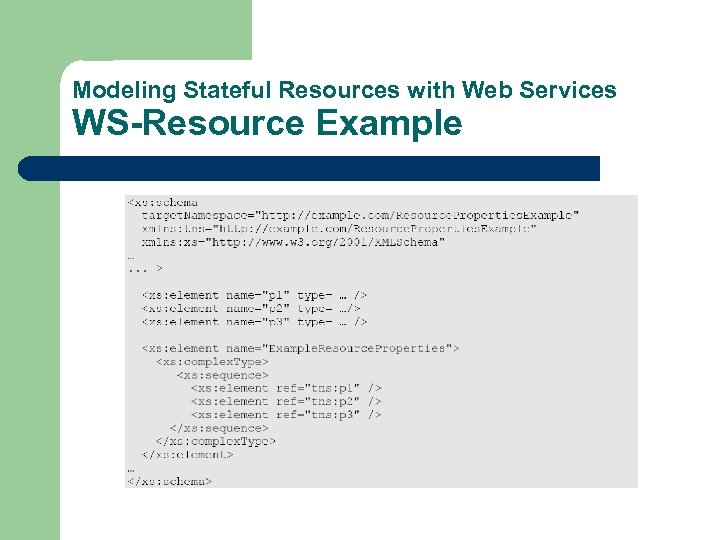

Modeling Stateful Resources with Web Services WS-Resource Example

Modeling Stateful Resources with Web Services WS Resource – ACID properties l Atomicity l Consistency l Isolation l Durability

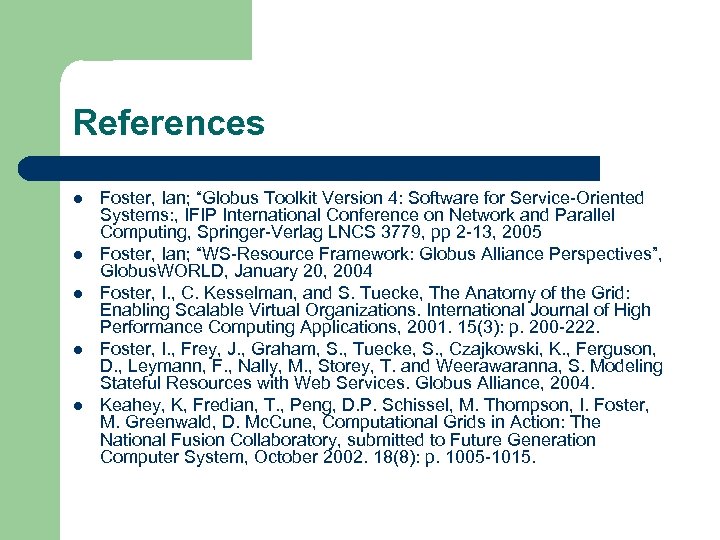

References l l l Foster, Ian; “Globus Toolkit Version 4: Software for Service-Oriented Systems: , IFIP International Conference on Network and Parallel Computing, Springer-Verlag LNCS 3779, pp 2 -13, 2005 Foster, Ian; “WS-Resource Framework: Globus Alliance Perspectives”, Globus. WORLD, January 20, 2004 Foster, I. , C. Kesselman, and S. Tuecke, The Anatomy of the Grid: Enabling Scalable Virtual Organizations. International Journal of High Performance Computing Applications, 2001. 15(3): p. 200 -222. Foster, I. , Frey, J. , Graham, S. , Tuecke, S. , Czajkowski, K. , Ferguson, D. , Leymann, F. , Nally, M. , Storey, T. and Weerawaranna, S. Modeling Stateful Resources with Web Services. Globus Alliance, 2004. Keahey, K, Fredian, T. , Peng, D. P. Schissel, M. Thompson, I. Foster, M. Greenwald, D. Mc. Cune, Computational Grids in Action: The National Fusion Collaboratory, submitted to Future Generation Computer System, October 2002. 18(8): p. 1005 -1015.
