Graduate Program in Business Information Systems Decision Analysis

Graduate Program in Business Information Systems Decision Analysis - Part 2 Aslı Sencer 1

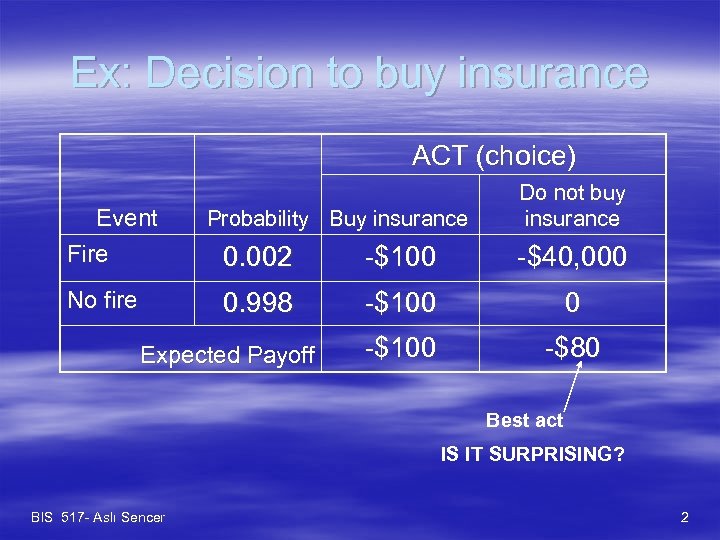

Ex: Decision to buy insurance ACT (choice) Event Fire Probability Buy insurance Do not buy insurance -$100 -$40, 000 0. 998 No fire 0. 002 -$100 0 -$100 -$80 Expected Payoff Best act IS IT SURPRISING? BIS 517 - Aslı Sencer 2

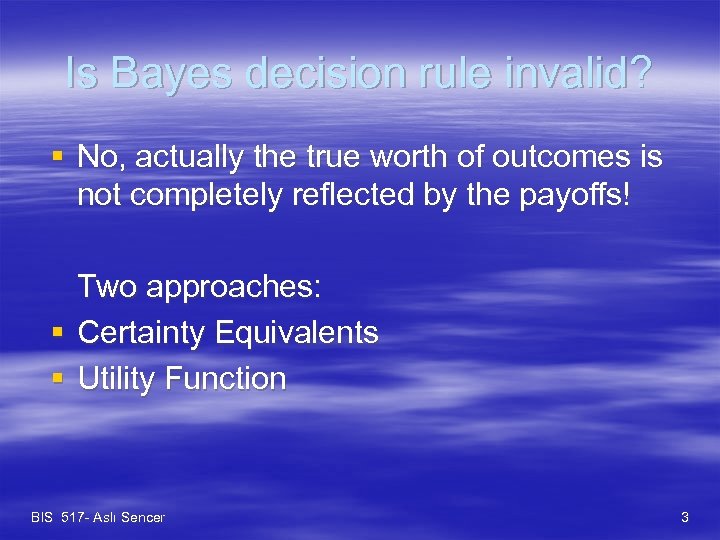

Is Bayes decision rule invalid? § No, actually the true worth of outcomes is not completely reflected by the payoffs! Two approaches: § Certainty Equivalents § Utility Function BIS 517 - Aslı Sencer 3

Decision Making Using Certainty Equivalents §The certainty equivalent (CE) is the payoff amount we would accept in lieu of undergoing the uncertain situation. §Shirley Smart would pay $25 to insure her 1983 Toyota against total theft loss. CE = – $25. §For $1, 000, Willy B. Rich would sell his Far. Fetched Lottery rights. CE = $1, 000. Game: win $5000 with probability 50% win 0 with probability 50% 4

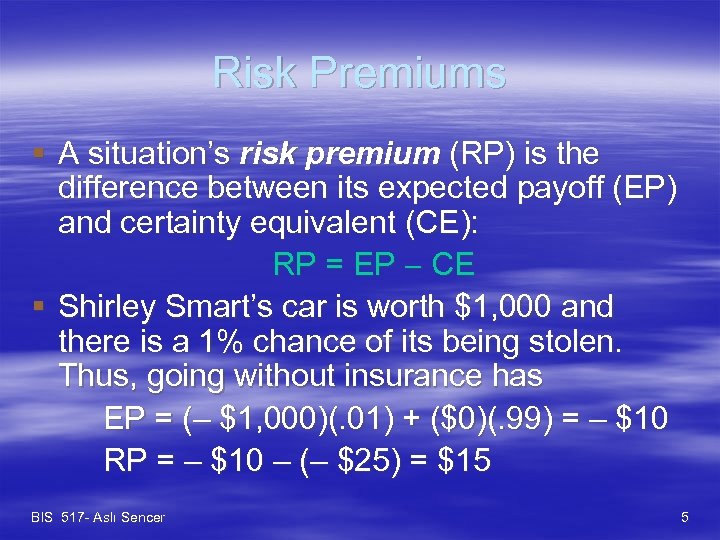

Risk Premiums § A situation’s risk premium (RP) is the difference between its expected payoff (EP) and certainty equivalent (CE): RP = EP - CE § Shirley Smart’s car is worth $1, 000 and there is a 1% chance of its being stolen. Thus, going without insurance has EP = (– $1, 000)(. 01) + ($0)(. 99) = – $10 RP = – $10 – (– $25) = $15 BIS 517 - Aslı Sencer 5

Risk Premiums § Playing the Far-Fetched Lottery has EP = $2, 500. Thus, § For Willy B. Rich, RP = EP – CE = $2, 500 – ($1, 000) = $1, 500 § For Lucky Chance, RP = EP – CE = $2, 500 – (– $100) = $2, 600 § Different people will have different CEs and RPs for the same circumstance. § They have different attitudes toward risk. BIS 517 - Aslı Sencer 6

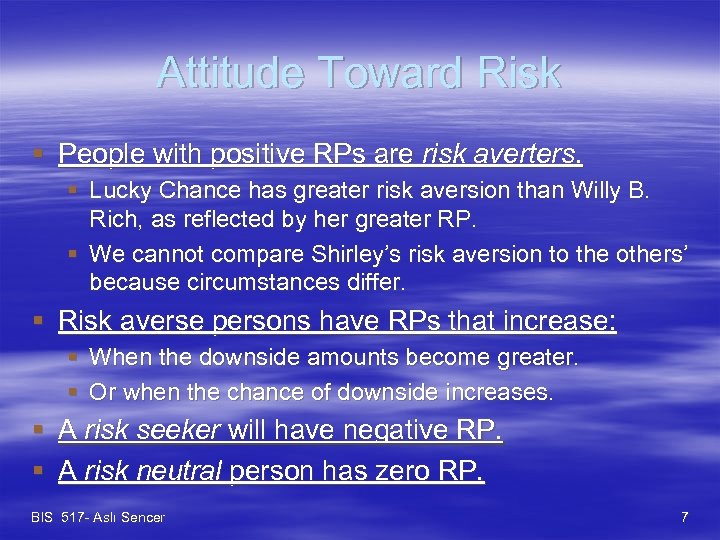

Attitude Toward Risk § People with positive RPs are risk averters. § Lucky Chance has greater risk aversion than Willy B. Rich, as reflected by her greater RP. § We cannot compare Shirley’s risk aversion to the others’ because circumstances differ. § Risk averse persons have RPs that increase: § When the downside amounts become greater. § Or when the chance of downside increases. § § A risk seeker will have negative RP. A risk neutral person has zero RP. BIS 517 - Aslı Sencer 7

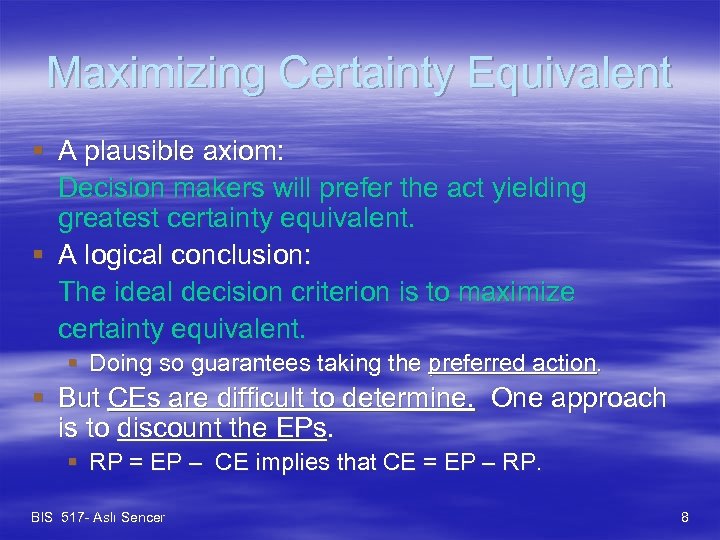

Maximizing Certainty Equivalent § A plausible axiom: Decision makers will prefer the act yielding greatest certainty equivalent. § A logical conclusion: The ideal decision criterion is to maximize certainty equivalent. § Doing so guarantees taking the preferred action. § But CEs are difficult to determine. One approach is to discount the EPs. § RP = EP – CE implies that CE = EP – RP. BIS 517 - Aslı Sencer 8

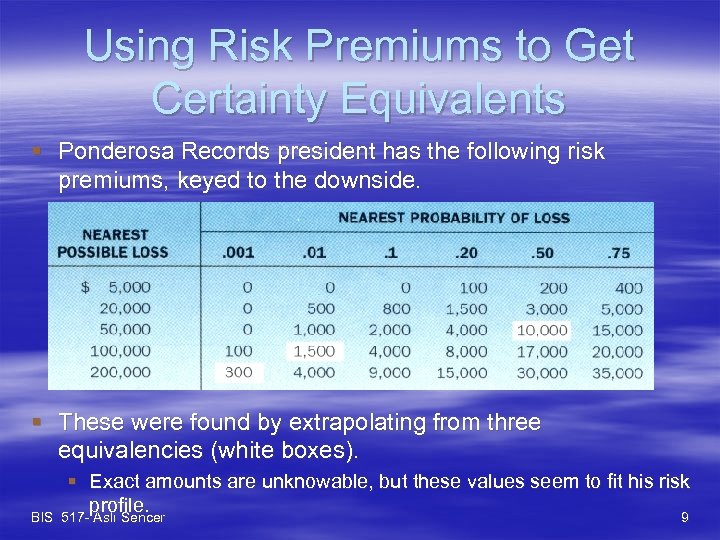

Using Risk Premiums to Get Certainty Equivalents § Ponderosa Records president has the following risk premiums, keyed to the downside. § These were found by extrapolating from three equivalencies (white boxes). BIS § Exact amounts are unknowable, but these values seem to fit his risk profile. 9 517 - Aslı Sencer

Calculation of Risk Premiums for Panderosa The president of panderosa Record Co. is asked the following: § How much would you be willing to pay for insuring $100. 000 recording equipment if there is 1% chance of losing them due to external occasions. Note that, here Expected payoff=$0(0. 99)+(-$100. 000)(0. 01)=-$1000 § He is willing to pay $2500 to get rid of this danger. Certainty equivalent= -$2500 RP=-1000 -(-2500)=$1500 BIS 517 - Aslı Sencer 10

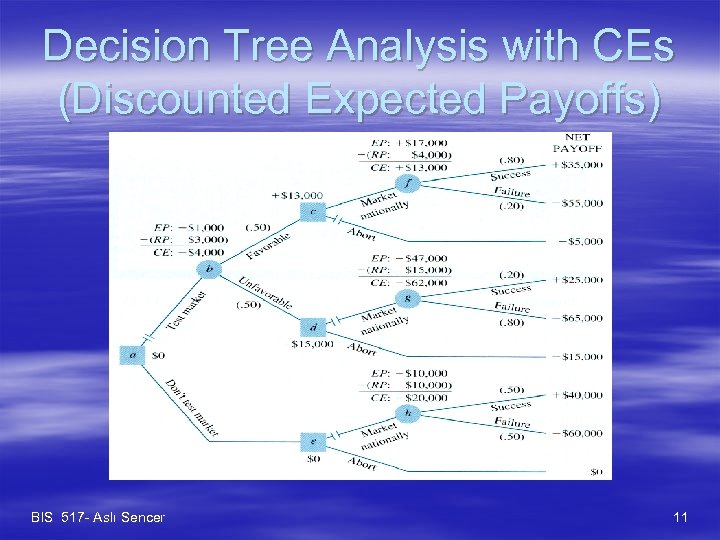

Decision Tree Analysis with CEs (Discounted Expected Payoffs) BIS 517 - Aslı Sencer 11

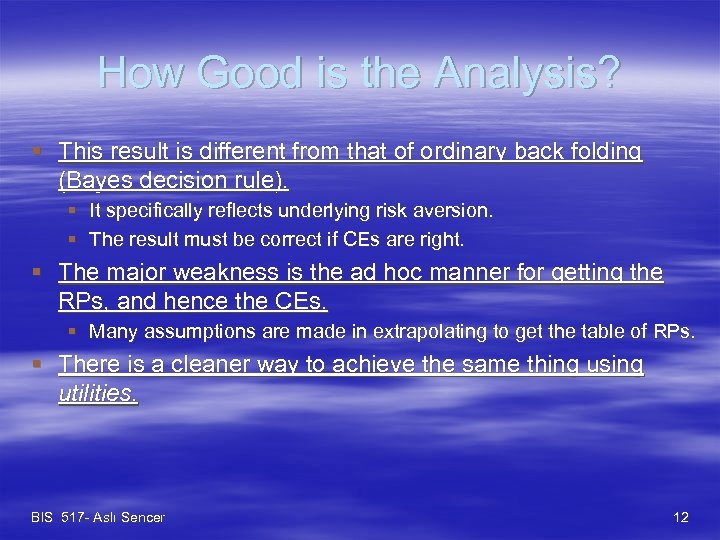

How Good is the Analysis? § This result is different from that of ordinary back folding (Bayes decision rule). § It specifically reflects underlying risk aversion. § The result must be correct if CEs are right. § The major weakness is the ad hoc manner for getting the RPs, and hence the CEs. § Many assumptions are made in extrapolating to get the table of RPs. § There is a cleaner way to achieve the same thing using utilities. BIS 517 - Aslı Sencer 12

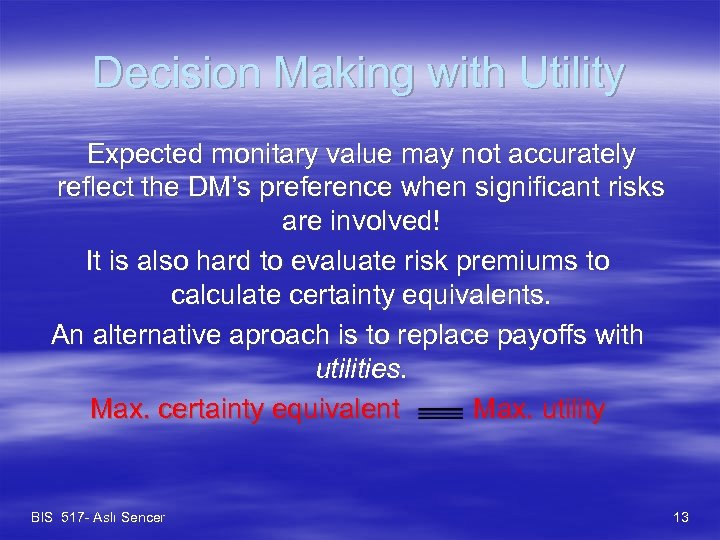

Decision Making with Utility Expected monitary value may not accurately reflect the DM’s preference when significant risks are involved! It is also hard to evaluate risk premiums to calculate certainty equivalents. An alternative aproach is to replace payoffs with utilities. Max. certainty equivalent Max. utility BIS 517 - Aslı Sencer 13

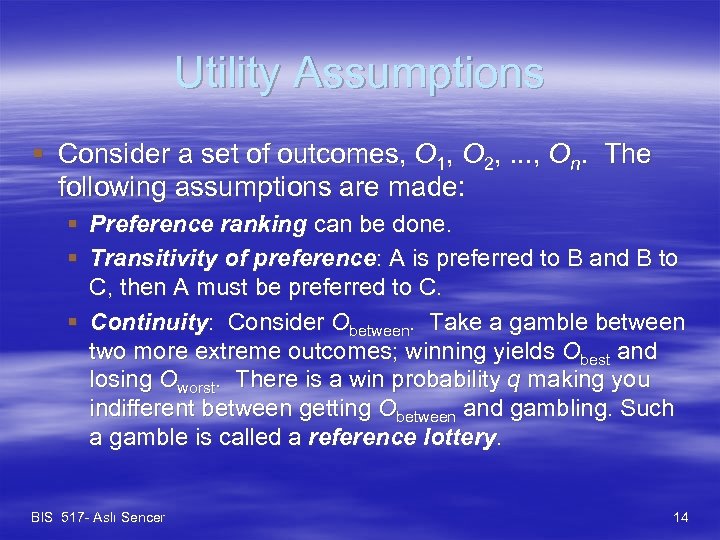

Utility Assumptions § Consider a set of outcomes, O 1, O 2, . . . , On. The following assumptions are made: § Preference ranking can be done. § Transitivity of preference: A is preferred to B and B to C, then A must be preferred to C. § Continuity: Consider Obetween. Take a gamble between two more extreme outcomes; winning yields Obest and losing Oworst. There is a win probability q making you indifferent between getting Obetween and gambling. Such a gamble is called a reference lottery. BIS 517 - Aslı Sencer 14

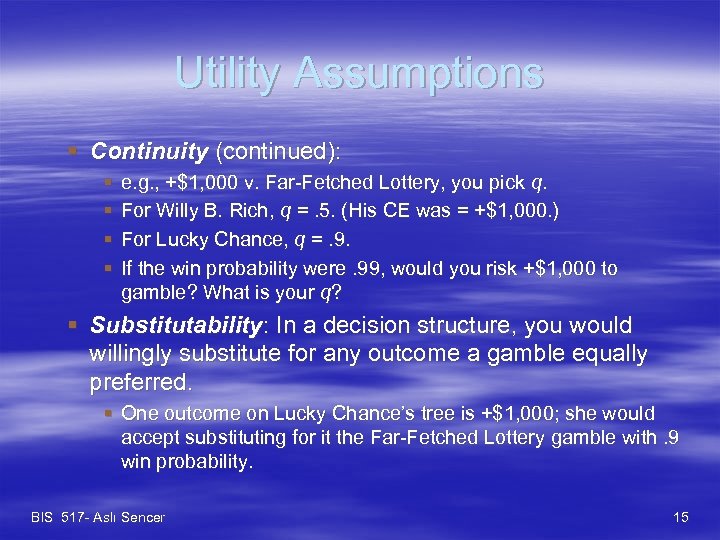

Utility Assumptions § Continuity (continued): § § e. g. , +$1, 000 v. Far-Fetched Lottery, you pick q. For Willy B. Rich, q =. 5. (His CE was = +$1, 000. ) For Lucky Chance, q =. 9. If the win probability were. 99, would you risk +$1, 000 to gamble? What is your q? § Substitutability: In a decision structure, you would willingly substitute for any outcome a gamble equally preferred. § One outcome on Lucky Chance’s tree is +$1, 000; she would accept substituting for it the Far-Fetched Lottery gamble with. 9 win probability. BIS 517 - Aslı Sencer 15

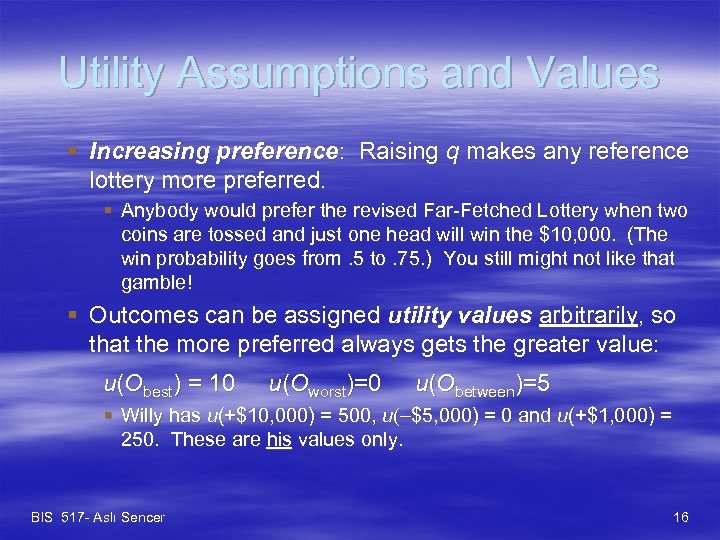

Utility Assumptions and Values § Increasing preference: Raising q makes any reference lottery more preferred. § Anybody would prefer the revised Far-Fetched Lottery when two coins are tossed and just one head will win the $10, 000. (The win probability goes from. 5 to. 75. ) You still might not like that gamble! § Outcomes can be assigned utility values arbitrarily, so that the more preferred always gets the greater value: u(Obest) = 10 u(Oworst)=0 u(Obetween)=5 § Willy has u(+$10, 000) = 500, u(-$5, 000) = 0 and u(+$1, 000) = 250. These are his values only. BIS 517 - Aslı Sencer 16

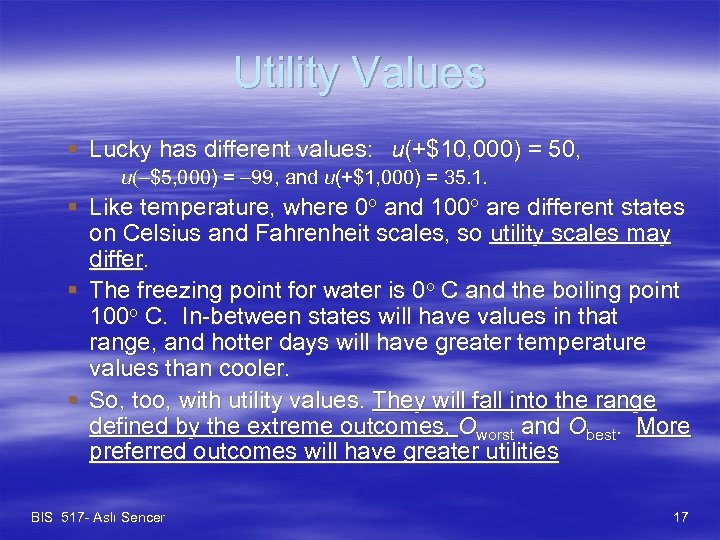

Utility Values § Lucky has different values: u(+$10, 000) = 50, u(-$5, 000) = -99, and u(+$1, 000) = 35. 1. § Like temperature, where 0 o and 100 o are different states on Celsius and Fahrenheit scales, so utility scales may differ. § The freezing point for water is 0 o C and the boiling point 100 o C. In-between states will have values in that range, and hotter days will have greater temperature values than cooler. § So, too, with utility values. They will fall into the range defined by the extreme outcomes, Oworst and Obest. More preferred outcomes will have greater utilities BIS 517 - Aslı Sencer 17

Utility Values § A reference lottery can be used to find the utility for an outcome Obetween by: § First, establish an indifference win probability qbetween making it equally preferred to the gamble: § Obest with probability qbetween and Oworst with probability 1 - qbetween § Second, compute the lottery’s expected utility: u(Obetween)=u(Obest)(qbetween) + u(Oworst)(1 - qbetween) BIS 517 - Aslı Sencer 18

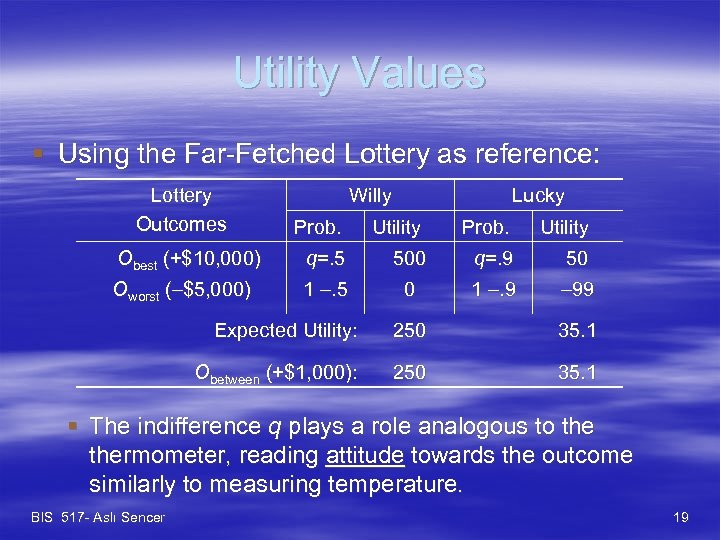

Utility Values § Using the Far-Fetched Lottery as reference: Lottery Outcomes Willy Lucky Prob. Utility Obest (+$10, 000) q=. 5 500 q=. 9 50 Oworst (-$5, 000) 1 -. 5 0 1 -. 9 -99 Expected Utility: 250 35. 1 Obetween (+$1, 000): 250 35. 1 § The indifference q plays a role analogous to thermometer, reading attitude towards the outcome similarly to measuring temperature. BIS 517 - Aslı Sencer 19

The Utility Function § Utility values assigned to monetary outcomes constitute a utility function. § From a few points we may graph the utility function and apply it over a monetary range. § Those points may be obtained from an interview posing hypothetical gambles. § Using u(+$10, 000)=100 and u(-$5, 000)=0 Shirley Smart gave the following equivalencies: § § A: +$10, 000 @ q. A v -$5, 000 ≡ +$1, 000 if q. A =. 70 B: +$10, 000 @ q. B v +$1, 000 ≡ +$5, 000 if q. B =. 75 C 1: +$1, 000 @ q. C 1 v -$5, 000 ≡ -$500 if q. C 1 =. 70 C 2: +$1, 000 @ q. C 2 v -$5, 000 ≡ -$2, 000 if q. C 2 =. 30 BIS 517 - Aslı Sencer 20

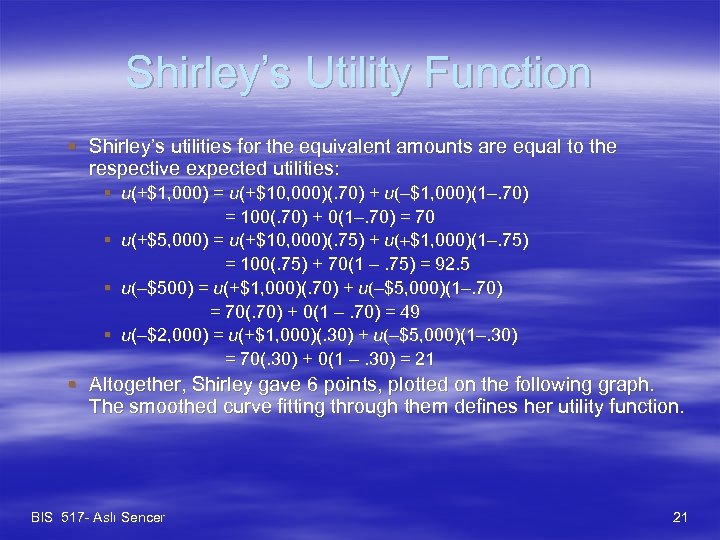

Shirley’s Utility Function § Shirley’s utilities for the equivalent amounts are equal to the respective expected utilities: § u(+$1, 000) = u(+$10, 000)(. 70) + u(-$1, 000)(1 -. 70) = 100(. 70) + 0(1 -. 70) = 70 § u(+$5, 000) = u(+$10, 000)(. 75) + u(+$1, 000)(1 -. 75) = 100(. 75) + 70(1 -. 75) = 92. 5 § u(-$500) = u(+$1, 000)(. 70) + u(-$5, 000)(1 -. 70) = 70(. 70) + 0(1 -. 70) = 49 § u(-$2, 000) = u(+$1, 000)(. 30) + u(-$5, 000)(1 -. 30) = 70(. 30) + 0(1 -. 30) = 21 § Altogether, Shirley gave 6 points, plotted on the following graph. The smoothed curve fitting through them defines her utility function. BIS 517 - Aslı Sencer 21

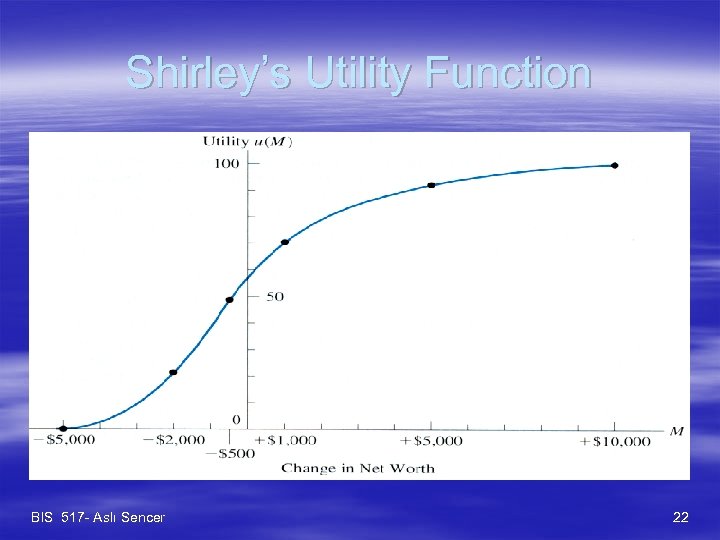

Shirley’s Utility Function BIS 517 - Aslı Sencer 22

Using the Utility Function § This utility function applies to the Ponderosa decision. BIS 517 - Aslı Sencer 23

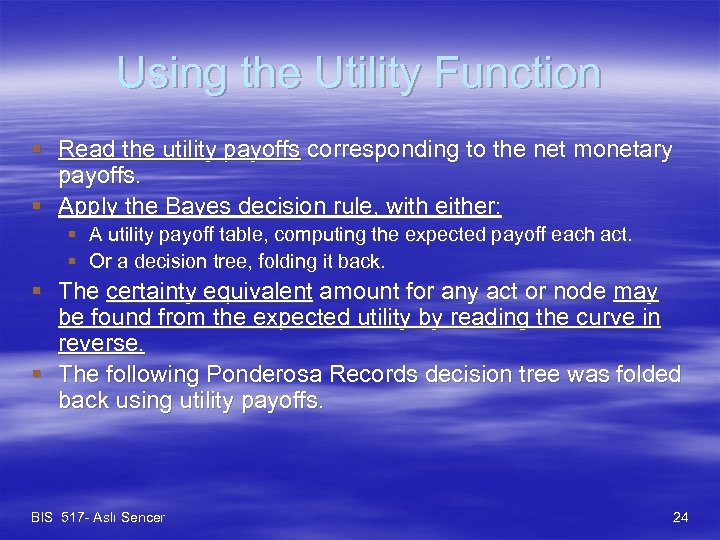

Using the Utility Function § Read the utility payoffs corresponding to the net monetary payoffs. § Apply the Bayes decision rule, with either: § A utility payoff table, computing the expected payoff each act. § Or a decision tree, folding it back. § The certainty equivalent amount for any act or node may be found from the expected utility by reading the curve in reverse. § The following Ponderosa Records decision tree was folded back using utility payoffs. BIS 517 - Aslı Sencer 24

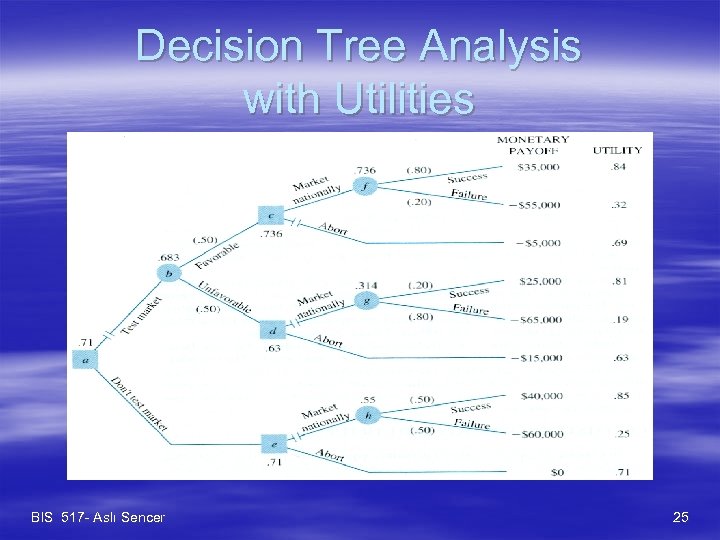

Decision Tree Analysis with Utilities BIS 517 - Aslı Sencer 25

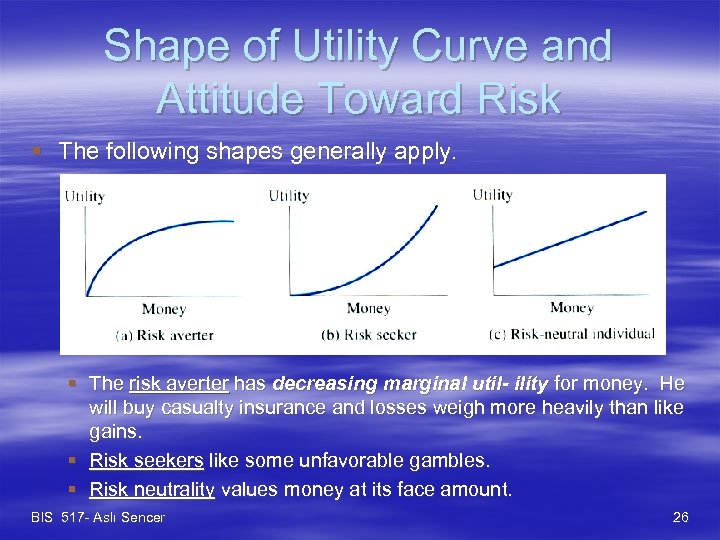

Shape of Utility Curve and Attitude Toward Risk § The following shapes generally apply. § The risk averter has decreasing marginal util- ility for money. He will buy casualty insurance and losses weigh more heavily than like gains. § Risk seekers like some unfavorable gambles. § Risk neutrality values money at its face amount. BIS 517 - Aslı Sencer 26

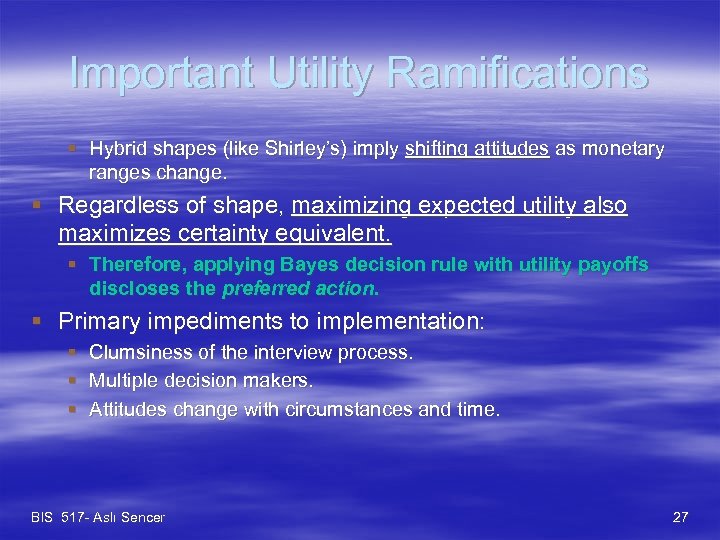

Important Utility Ramifications § Hybrid shapes (like Shirley’s) imply shifting attitudes as monetary ranges change. § Regardless of shape, maximizing expected utility also maximizes certainty equivalent. § Therefore, applying Bayes decision rule with utility payoffs discloses the preferred action. § Primary impediments to implementation: § § § Clumsiness of the interview process. Multiple decision makers. Attitudes change with circumstances and time. BIS 517 - Aslı Sencer 27

Ratification of Bayes Decision Rule § Over narrow monetary ranges, utility curves resemble straight lines. § For a straight line, expected utility equals the utility of the expected monetary payoff. § Maximizing expected monetary payoff then also maximizes expected utility. Thus: § The Bayes decision rule discloses the preferred action as long as the outcomes are not extreme. § Managers can then delegate decision making without having to find utilities. BIS 517 - Aslı Sencer Preferred actions will be found by the staff. 28

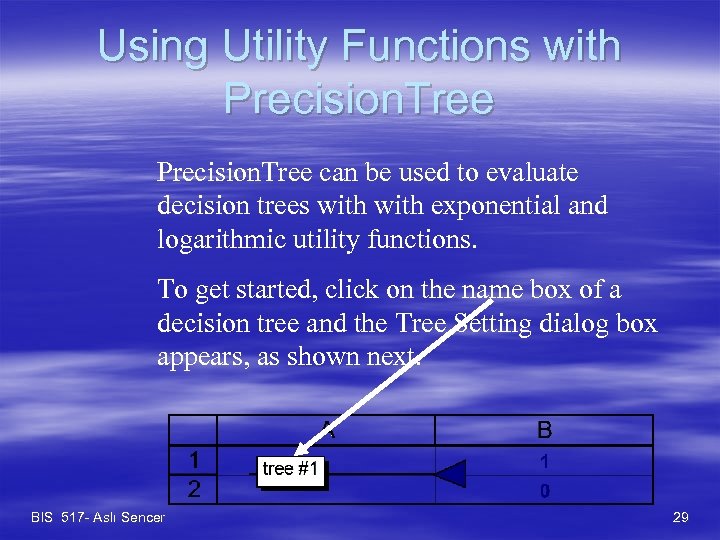

Using Utility Functions with Precision. Tree can be used to evaluate decision trees with exponential and logarithmic utility functions. To get started, click on the name box of a decision tree and the Tree Setting dialog box appears, as shown next. BIS 517 - Aslı Sencer 29

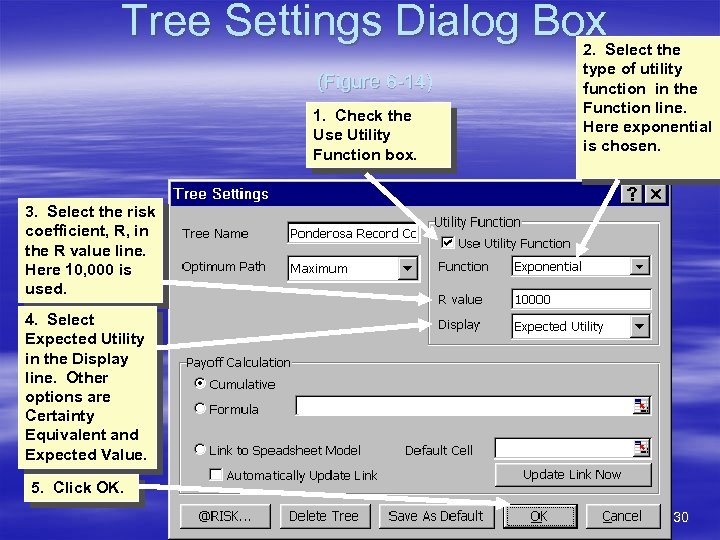

Tree Settings Dialog Box (Figure 6 -14) 1. Check the Use Utility Function box. 2. Select the type of utility function in the Function line. Here exponential is chosen. 3. Select the risk coefficient, R, in the R value line. Here 10, 000 is used. 4. Select Expected Utility in the Display line. Other options are Certainty Equivalent and Expected Value. 5. Click OK. 30

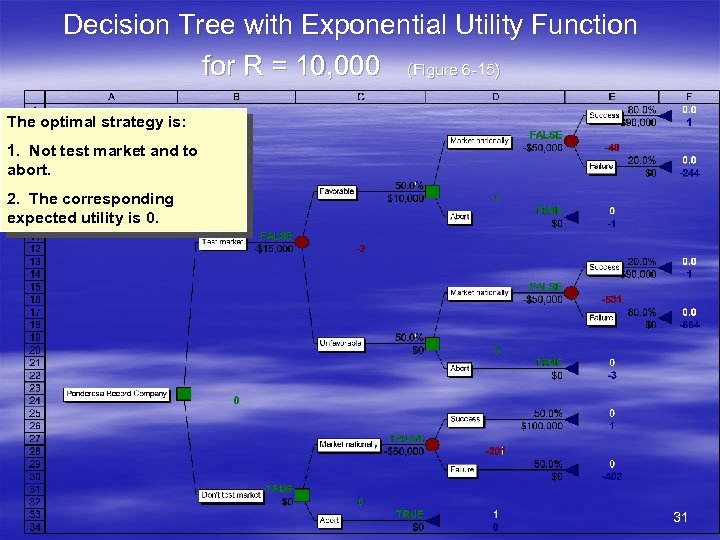

Decision Tree with Exponential Utility Function for R = 10, 000 (Figure 6 -15) The optimal strategy is: 1. Not test market and to abort. 2. The corresponding expected utility is 0. 31

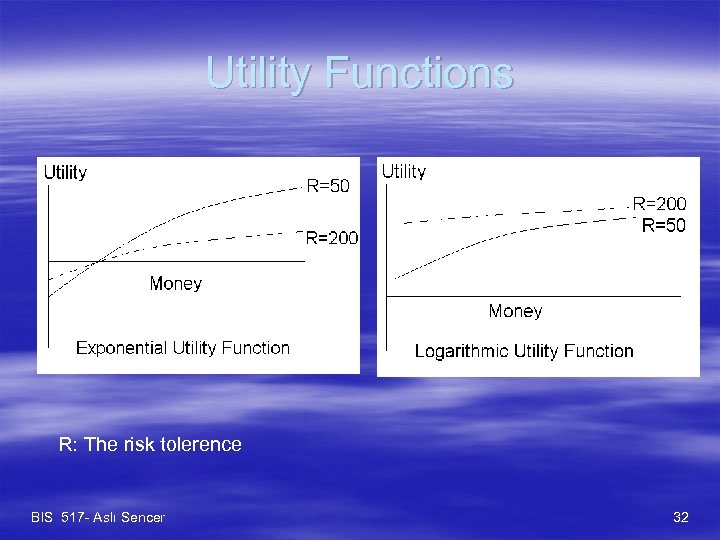

Utility Functions R: The risk tolerence BIS 517 - Aslı Sencer 32
