GOVERNMENT ENGINEERING COLLEGE DAHOD SUBJECT : FLUID POWER ENGINEERING
Presentation on : Automatic Hydraulic Door Closer § Prepared By : Guided By : - Prof M. B. Bariya Enrolment No. 140183119001 Bhaliya Dinesh S. 140183119006 Jethva Harshkumar K. 140183119008 Harshal Kadam P. 140183119015 Pawar Mayur S. 140183119017 Rane Vaibhav S. 140183119019 Sathwara Vipul P. 140183119020 Savaliya Nitin J. 130180119009 Bambhaniya Gopal H.

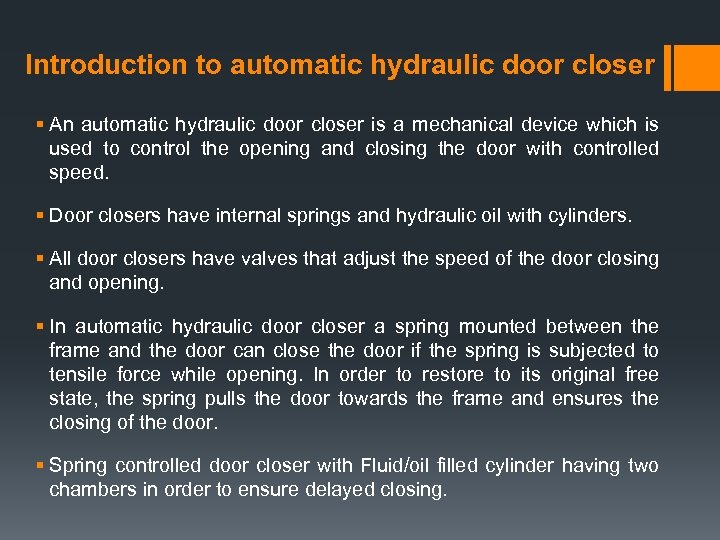

Introduction to automatic hydraulic door closer § An automatic hydraulic door closer is a mechanical device which is used to control the opening and closing the door with controlled speed. § Door closers have internal springs and hydraulic oil with cylinders. § All door closers have valves that adjust the speed of the door closing and opening. § In automatic hydraulic door closer a spring mounted between the frame and the door can close the door if the spring is subjected to tensile force while opening. In order to restore to its original free state, the spring pulls the door towards the frame and ensures the closing of the door. § Spring controlled door closer with Fluid/oil filled cylinder having two chambers in order to ensure delayed closing.

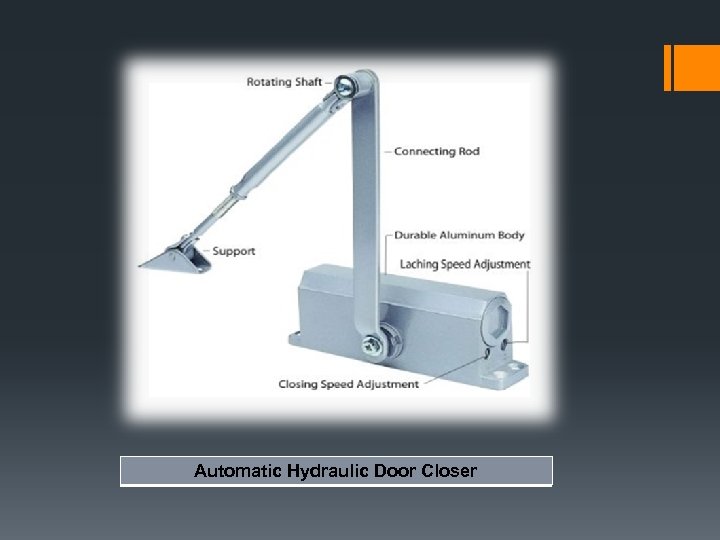

Automatic Hydraulic Door Closer

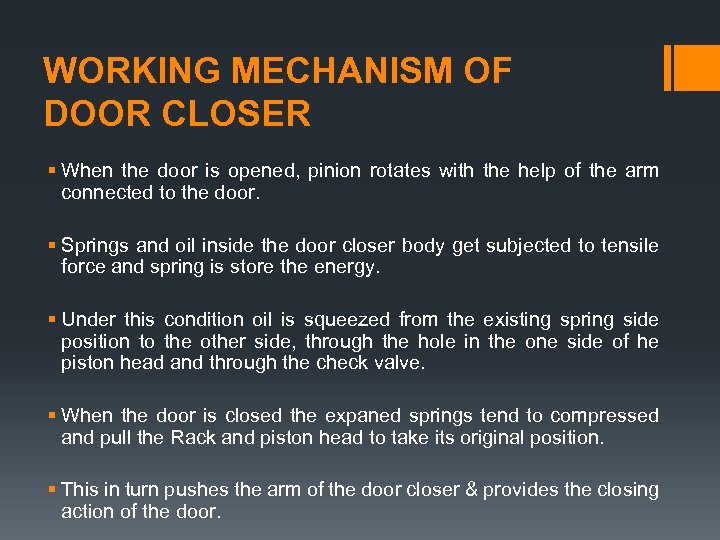

WORKING MECHANISM OF DOOR CLOSER § When the door is opened, pinion rotates with the help of the arm connected to the door. § Springs and oil inside the door closer body get subjected to tensile force and spring is store the energy. § Under this condition oil is squeezed from the existing spring side position to the other side, through the hole in the one side of he piston head and through the check valve. § When the door is closed the expaned springs tend to compressed and pull the Rack and piston head to take its original position. § This in turn pushes the arm of the door closer & provides the closing action of the door.
Hydraulic door closer Inside details.

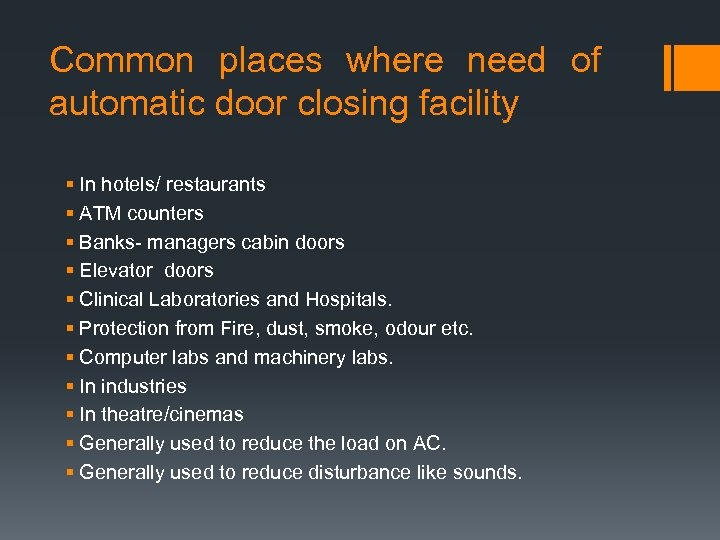

Common places where need of automatic door closing facility § In hotels/ restaurants § ATM counters § Banks- managers cabin doors § Elevator doors § Clinical Laboratories and Hospitals. § Protection from Fire, dust, smoke, odour etc. § Computer labs and machinery labs. § In industries § In theatre/cinemas § Generally used to reduce the load on AC. § Generally used to reduce disturbance like sounds.

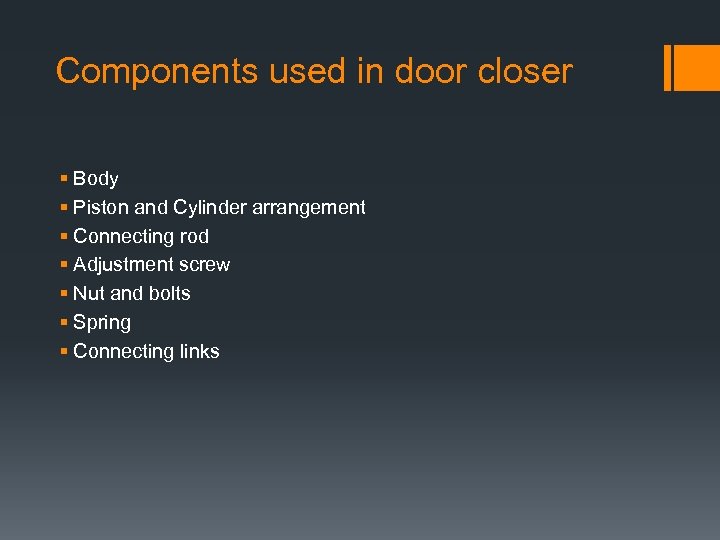

Components used in door closer § Body § Piston and Cylinder arrangement § Connecting rod § Adjustment screw § Nut and bolts § Spring § Connecting links
Working model
THANK YOU…
