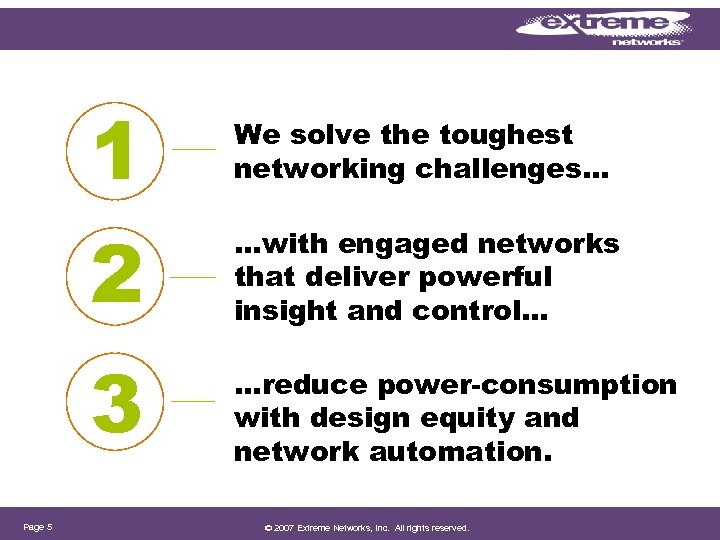

1 2 …with engaged networks that deliver powerful insight and control… 3 Page 5 We solve the toughest networking challenges… …reduce power-consumption with design equity and network automation. © 2007 Extreme Networks, Inc. All rights reserved.

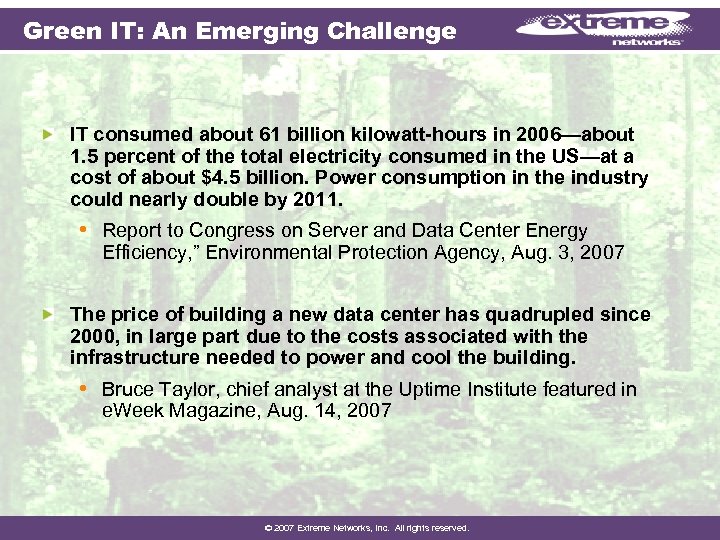

Green IT: An Emerging Challenge IT consumed about 61 billion kilowatt-hours in 2006—about 1. 5 percent of the total electricity consumed in the US—at a cost of about $4. 5 billion. Power consumption in the industry could nearly double by 2011. • Report to Congress on Server and Data Center Energy Efficiency, ” Environmental Protection Agency, Aug. 3, 2007 The price of building a new data center has quadrupled since 2000, in large part due to the costs associated with the infrastructure needed to power and cool the building. • Bruce Taylor, chief analyst at the Uptime Institute featured in e. Week Magazine, Aug. 14, 2007 © 2007 Extreme Networks, Inc. All rights reserved.

Green IT – Market Drivers Page 7 © 2007 Extreme Networks, Inc. All rights reserved.

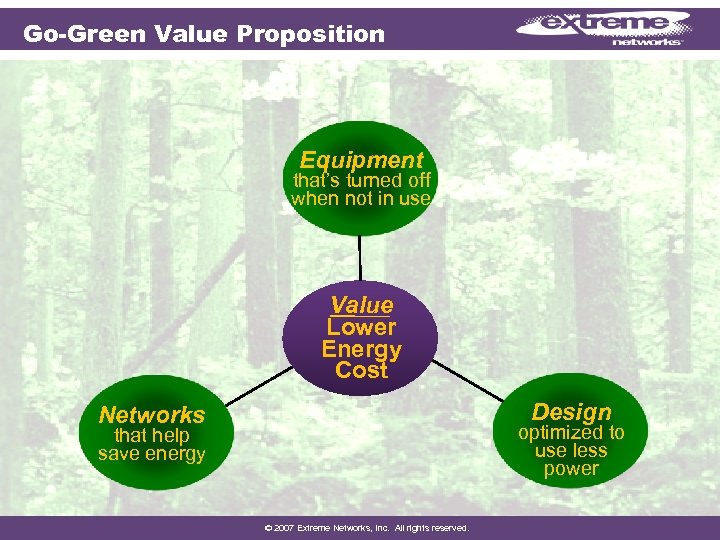

Go-Green Value Proposition Equipment that’s turned off when not in use Value Lower Energy Cost Design Networks optimized to use less power that help save energy © 2007 Extreme Networks, Inc. All rights reserved.

Network Design Optimized to use less Power 3 -Tier Network Design: 2 -Tier Network Design: • Higher hardware cost • More Switches More Power • More Sites Higher OPEX • • • Lower hardware cost Less Switches Less Power Less Sites Lower OPEX © 2007 Extreme Networks, Inc. All rights reserved.

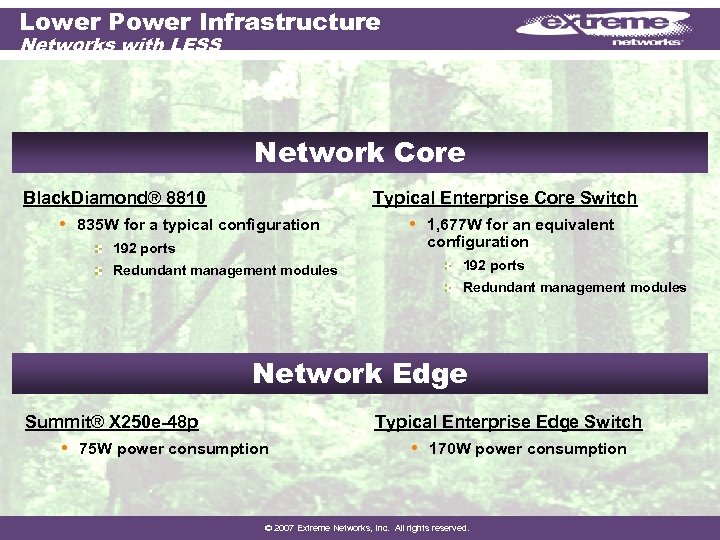

Lower Power Infrastructure Networks with LESS Network Core Black. Diamond® 8810 • 835 W for a typical configuration 192 ports Redundant management modules Typical Enterprise Core Switch • 1, 677 W for an equivalent configuration 192 ports Redundant management modules Network Edge Summit® X 250 e-48 p • 75 W power consumption Typical Enterprise Edge Switch • 170 W power consumption © 2007 Extreme Networks, Inc. All rights reserved.

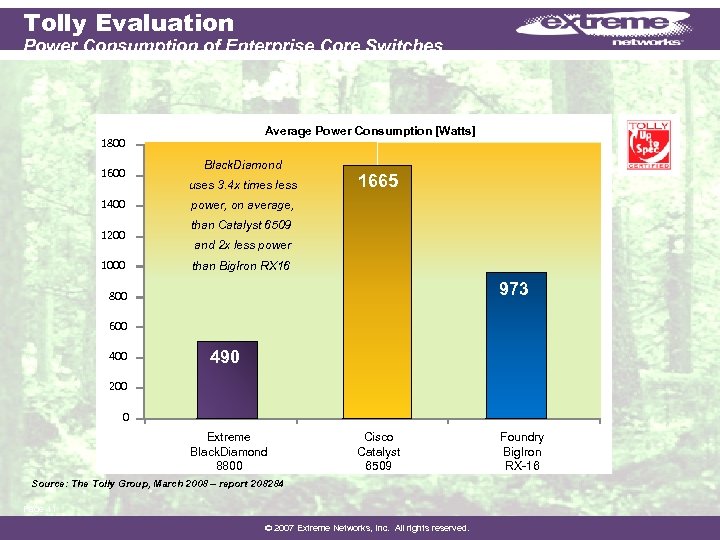

Tolly Evaluation Power Consumption of Enterprise Core Switches Average Power Consumption [Watts] 1800 1600 1400 1200 1000 Black. Diamond uses 3. 4 x times less 1665 power, on average, than Catalyst 6509 and 2 x less power than Big. Iron RX 16 973 800 600 490 200 0 Extreme Black. Diamond 8800 Cisco Catalyst 6509 Source: The Tolly Group, March 2008 – report 208284 Page 11 © 2007 Extreme Networks, Inc. All rights reserved. Foundry Big. Iron RX-16

The Value of Green IT in $ 50% - 65% less Power = 3 -5% of the investment cost or over the lifetime of a network 15 -25% of the investment cost or over a 5 -year period you save the cost of each 6 th Black. Diamond 8810! Page 12 © 2007 Extreme Networks, Inc. All rights reserved.

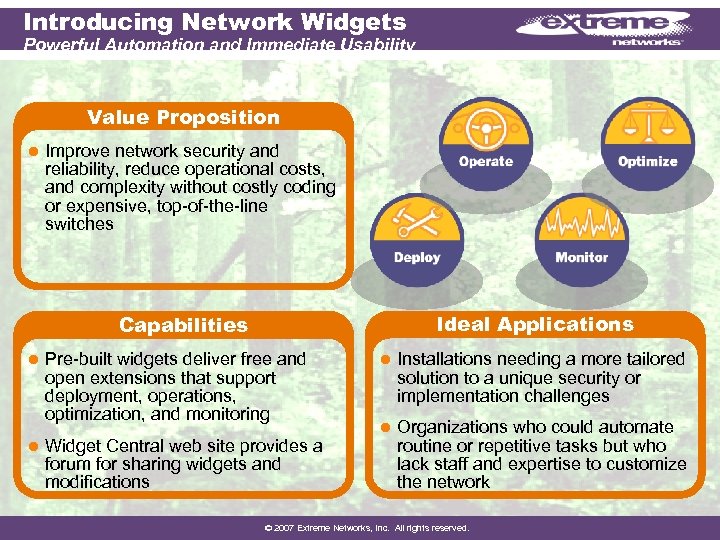

Introducing Network Widgets Powerful Automation and Immediate Usability Value Proposition ● Improve network security and reliability, reduce operational costs, and complexity without costly coding or expensive, top-of-the-line switches Ideal Applications Capabilities ● Pre-built widgets deliver free and open extensions that support deployment, operations, optimization, and monitoring ● Widget Central web site provides a forum for sharing widgets and modifications ● Installations needing a more tailored solution to a unique security or implementation challenges ● Organizations who could automate routine or repetitive tasks but who lack staff and expertise to customize the network © 2007 Extreme Networks, Inc. All rights reserved.

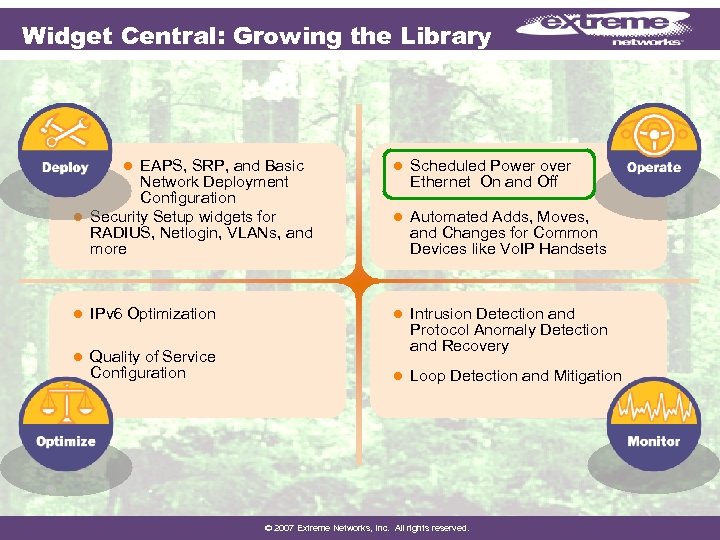

Widget Central: Growing the Library ● EAPS, SRP, and Basic Network Deployment Configuration ● Security Setup widgets for RADIUS, Netlogin, VLANs, and more ● IPv 6 Optimization ● Quality of Service Configuration ● Scheduled Power over Ethernet On and Off ● Automated Adds, Moves, and Changes for Common Devices like Vo. IP Handsets ● Intrusion Detection and Protocol Anomaly Detection and Recovery ● Loop Detection and Mitigation © 2007 Extreme Networks, Inc. All rights reserved.

Automated Power Management Turn Off Unused Devices Universal Port Framework • Port profiles reside on switches, execute based on defined triggers • Time-based triggers can power down non-essential devices at pre-defined times • Works with any IP handset Universal Port Manager • Design, troubleshoot, deploy and monitor Universal Port profiles • Centralized for easy management Universal Port: “the USB for Networks” © 2007 Extreme Networks, Inc. All rights reserved.

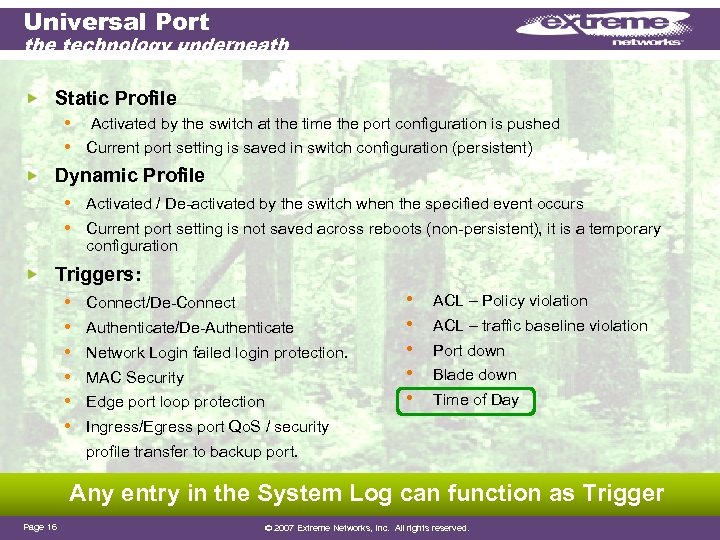

Universal Port the technology underneath Static Profile • Activated by the switch at the time the port configuration is pushed • Current port setting is saved in switch configuration (persistent) Dynamic Profile • Activated / De-activated by the switch when the specified event occurs • Current port setting is not saved across reboots (non-persistent), it is a temporary configuration Triggers: • • • Connect/De-Connect Authenticate/De-Authenticate Network Login failed login protection. MAC Security Edge port loop protection • • • ACL – Policy violation ACL – traffic baseline violation Port down Blade down Time of Day Ingress/Egress port Qo. S / security profile transfer to backup port. Any entry in the System Log can function as Trigger Page 16 © 2007 Extreme Networks, Inc. All rights reserved.

Adding it Up © 2007 Extreme Networks, Inc. All rights reserved.

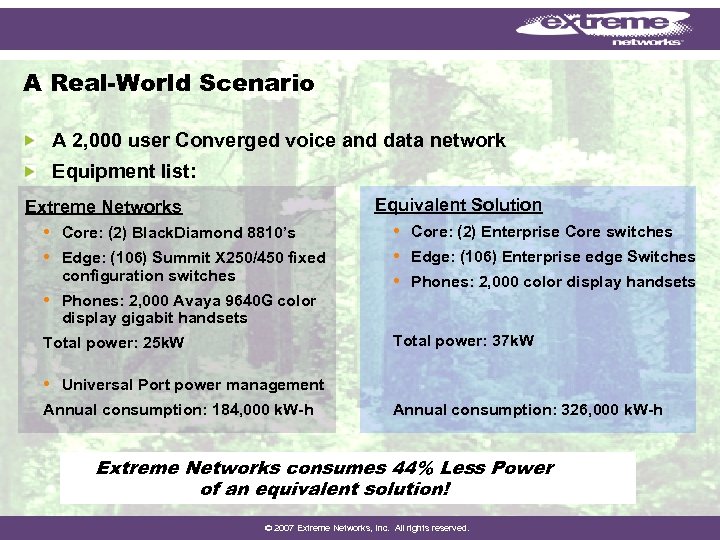

A Real-World Scenario A 2, 000 user Converged voice and data network Equipment list: Extreme Networks • Core: (2) Black. Diamond 8810’s • Edge: (106) Summit X 250/450 fixed configuration switches • Phones: 2, 000 Avaya 9640 G color Equivalent Solution • Core: (2) Enterprise Core switches • Edge: (106) Enterprise edge Switches • Phones: 2, 000 color display handsets display gigabit handsets Total power: 37 k. W Total power: 25 k. W • Universal Port power management Annual consumption: 184, 000 k. W-h Annual consumption: 326, 000 k. W-h Extreme Networks consumes 44% Less Power of an equivalent solution! © 2007 Extreme Networks, Inc. All rights reserved.
