GMES-GATO Rational Systems for Monitoring regional air quality

GMES-GATO: Rational Systems for Monitoring regional air quality Paul Monks – University of Leicester Andreas Volz-Thomas – FZ Jülich

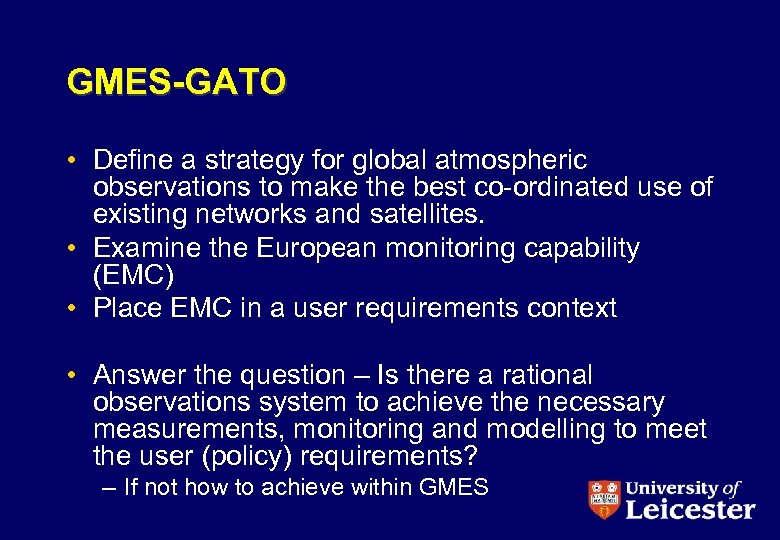

GMES-GATO • Define a strategy for global atmospheric observations to make the best co-ordinated use of existing networks and satellites. • Examine the European monitoring capability (EMC) • Place EMC in a user requirements context • Answer the question – Is there a rational observations system to achieve the necessary measurements, monitoring and modelling to meet the user (policy) requirements? – If not how to achieve within GMES

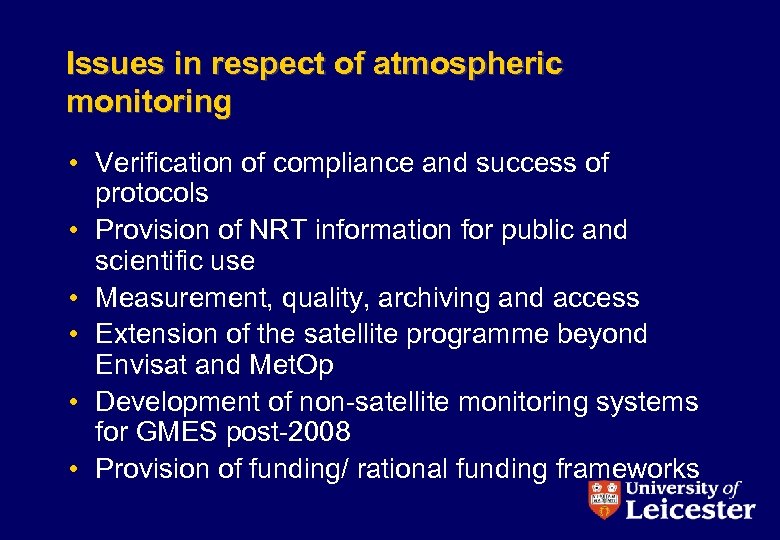

Issues in respect of atmospheric monitoring • Verification of compliance and success of protocols • Provision of NRT information for public and scientific use • Measurement, quality, archiving and access • Extension of the satellite programme beyond Envisat and Met. Op • Development of non-satellite monitoring systems for GMES post-2008 • Provision of funding/ rational funding frameworks

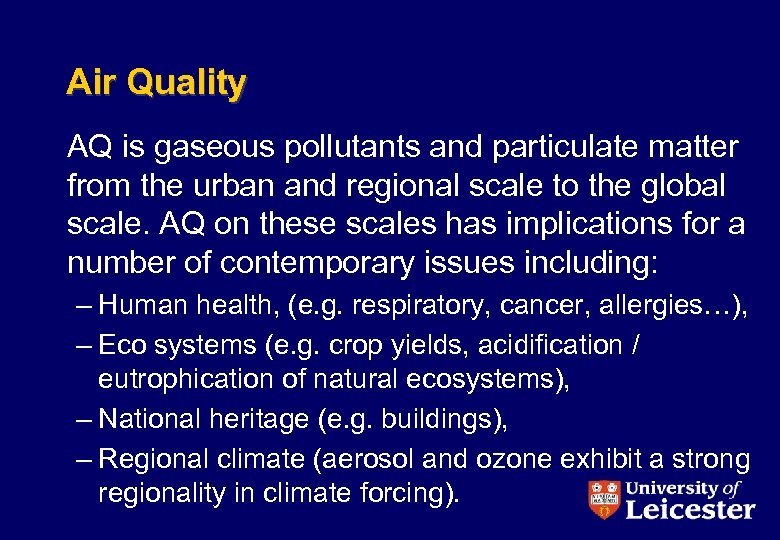

Air Quality AQ is gaseous pollutants and particulate matter from the urban and regional scale to the global scale. AQ on these scales has implications for a number of contemporary issues including: – Human health, (e. g. respiratory, cancer, allergies…), – Eco systems (e. g. crop yields, acidification / eutrophication of natural ecosystems), – National heritage (e. g. buildings), – Regional climate (aerosol and ozone exhibit a strong regionality in climate forcing).

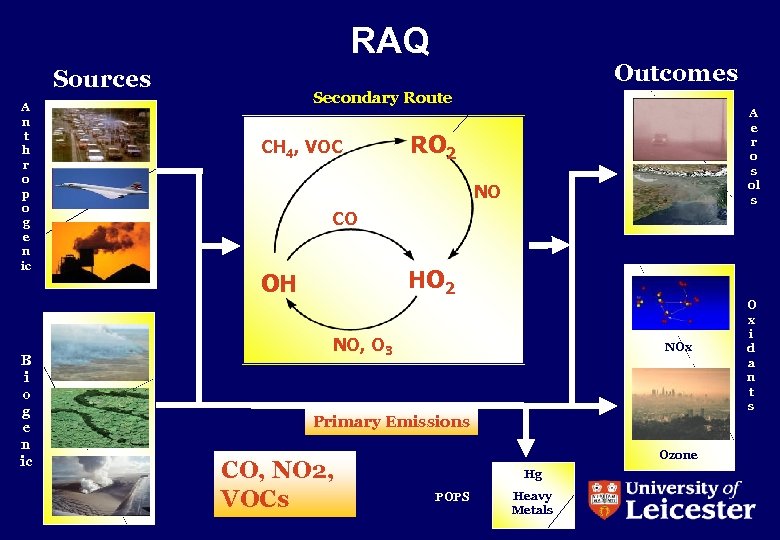

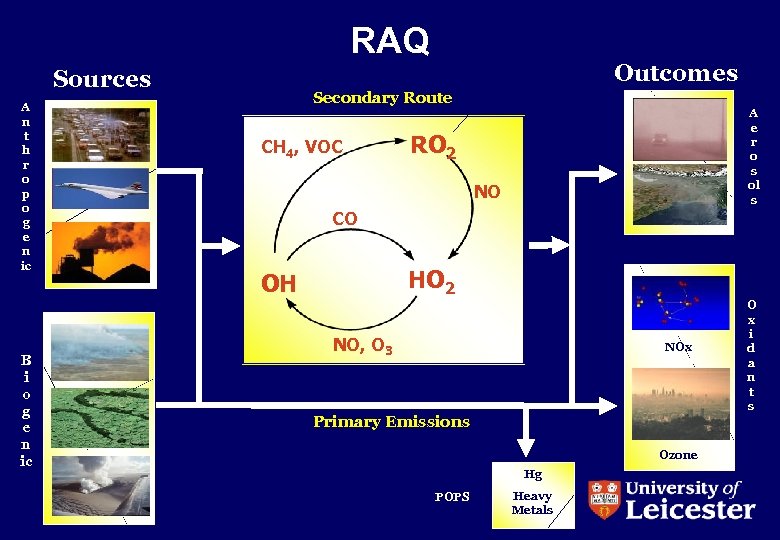

RAQ Sources A n t h r o p o g e n ic B i o g e n ic Outcomes Secondary Route CH 4, VOC A e r o s ol s RO 2 NO CO HO 2 OH NO, O 3 NOx Primary Emissions Ozone Hg POPS Heavy Metals O x i d a n t s

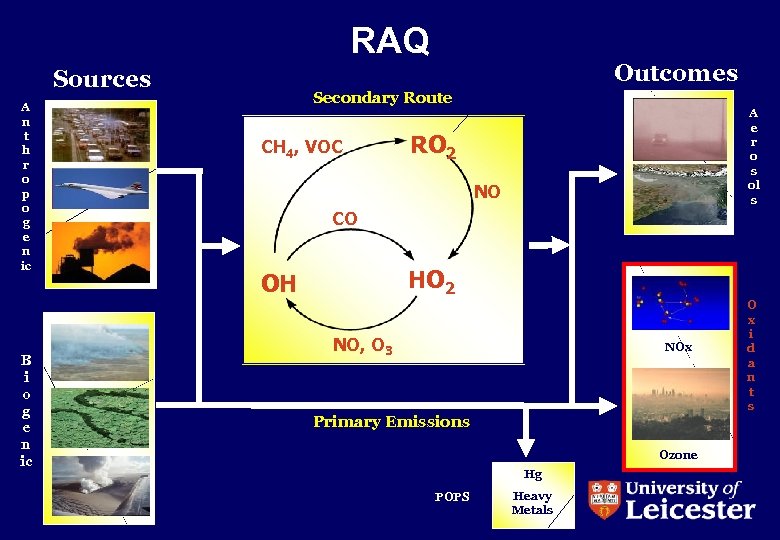

RAQ Sources A n t h r o p o g e n ic B i o g e n ic Outcomes Secondary Route CH 4, VOC A e r o s ol s RO 2 NO CO HO 2 OH NO, O 3 NOx Primary Emissions CO, NO 2, VOCs Ozone Hg POPS Heavy Metals O x i d a n t s

RAQ Sources A n t h r o p o g e n ic B i o g e n ic Outcomes Secondary Route CH 4, VOC A e r o s ol s RO 2 NO CO HO 2 OH NO, O 3 NOx Primary Emissions Ozone Hg POPS Heavy Metals O x i d a n t s

Wrong just to think of measurements of chemical or aerosol species … Often policy needs are met through modelling so information needs are subtly different

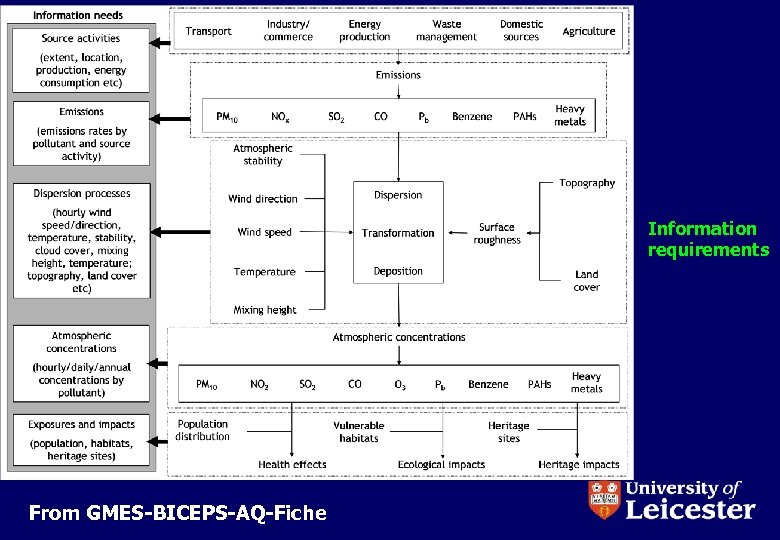

Information requirements From GMES-BICEPS-AQ-Fiche

The Policy Drivers

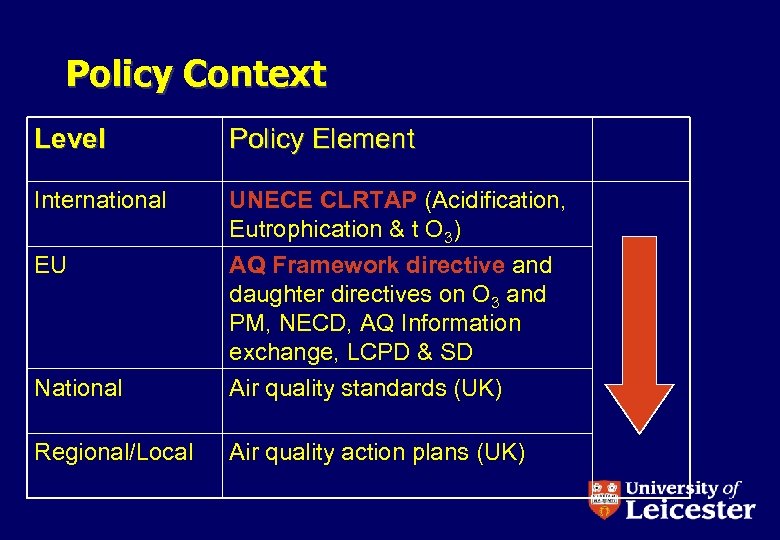

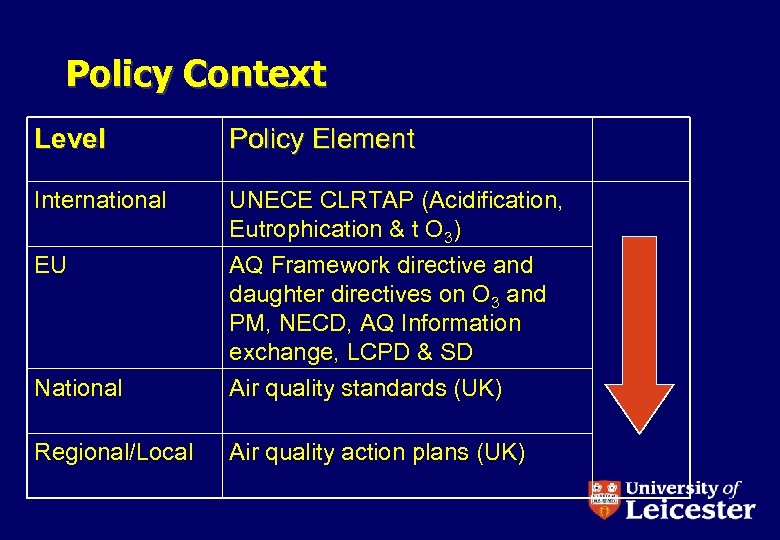

Policy Context Level Policy Element International UNECE CLRTAP (Acidification, Eutrophication & t O 3) EU National AQ Framework directive and daughter directives on O 3 and PM, NECD, AQ Information exchange, LCPD & SD Air quality standards (UK) Regional/Local Air quality action plans (UK)

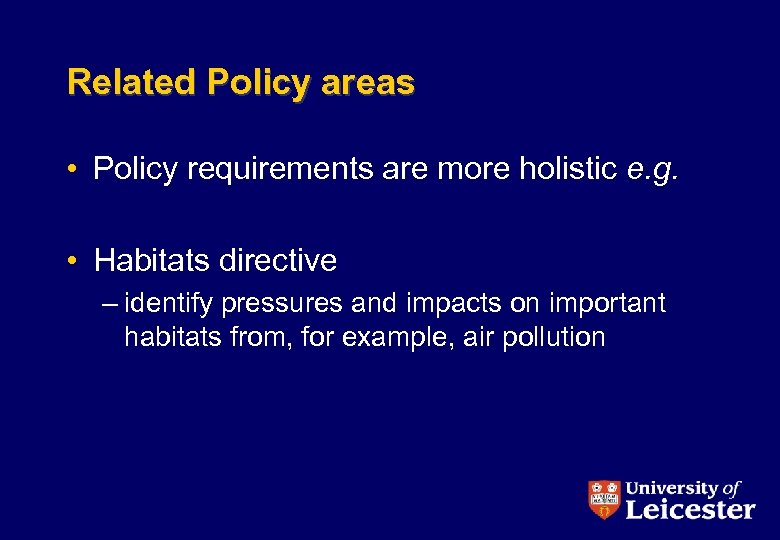

Related Policy areas • Policy requirements are more holistic e. g. • Habitats directive – identify pressures and impacts on important habitats from, for example, air pollution

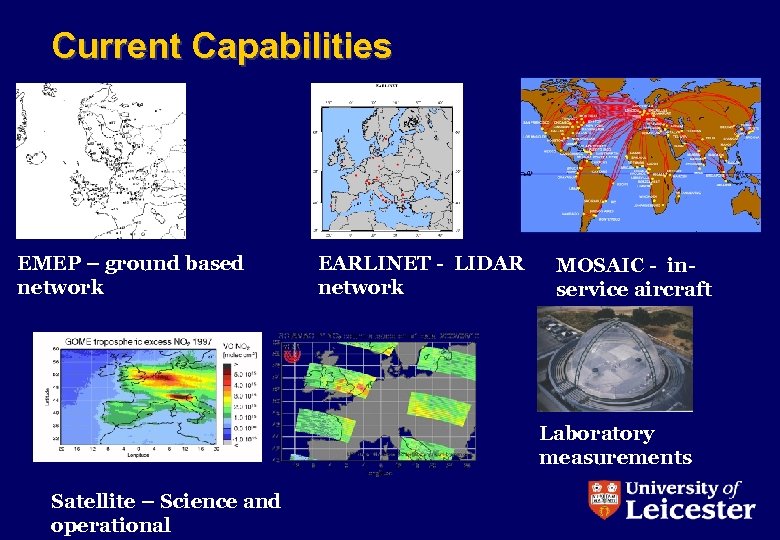

Current Capabilities EMEP – ground based network EARLINET - LIDAR network MOSAIC - inservice aircraft Laboratory measurements Satellite – Science and operational

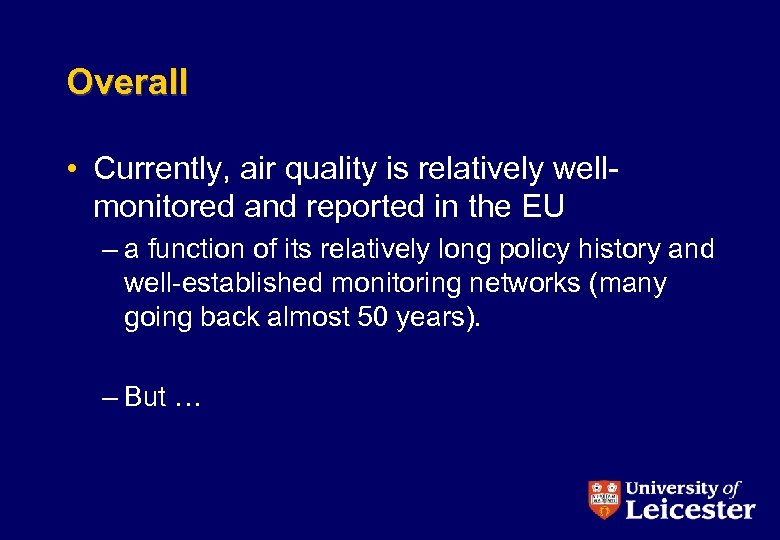

Overall • Currently, air quality is relatively wellmonitored and reported in the EU – a function of its relatively long policy history and well-established monitoring networks (many going back almost 50 years). – But …

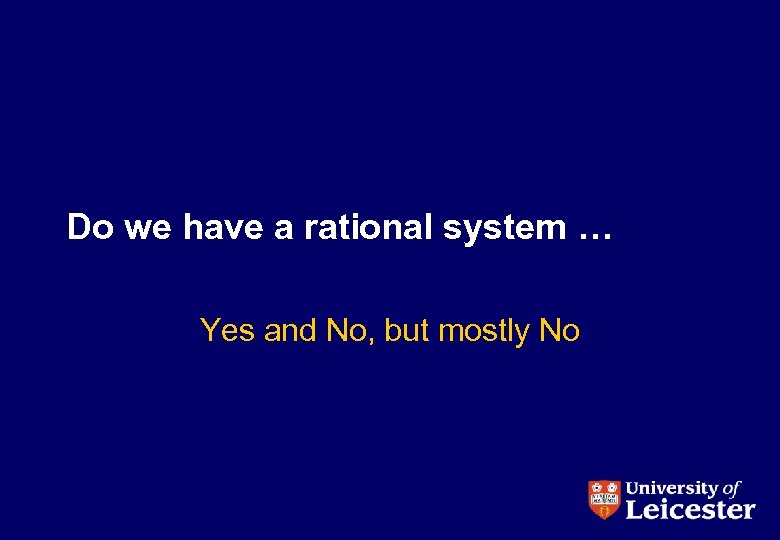

Do we have a rational system … Yes and No, but mostly No

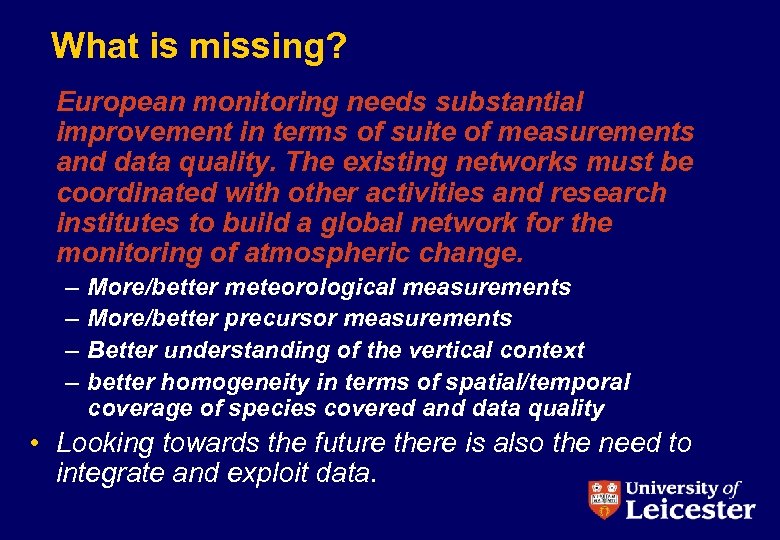

What is missing? European monitoring needs substantial improvement in terms of suite of measurements and data quality. The existing networks must be coordinated with other activities and research institutes to build a global network for the monitoring of atmospheric change. – – More/better meteorological measurements More/better precursor measurements Better understanding of the vertical context better homogeneity in terms of spatial/temporal coverage of species covered and data quality • Looking towards the future there is also the need to integrate and exploit data.

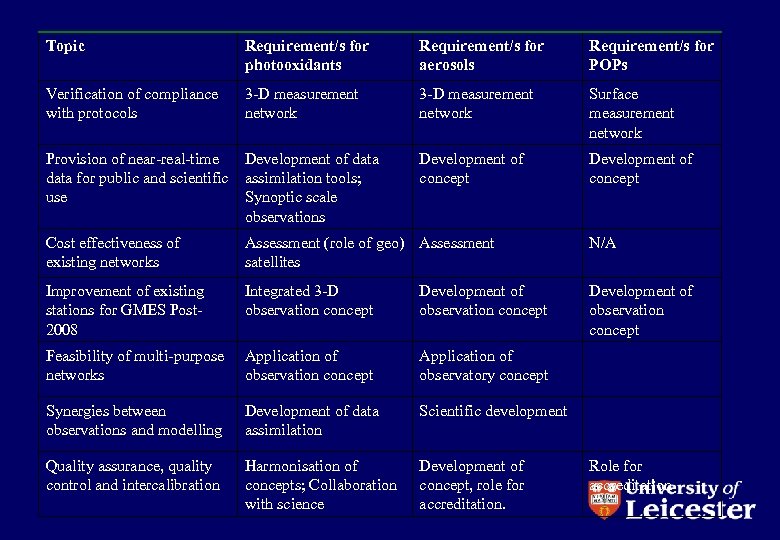

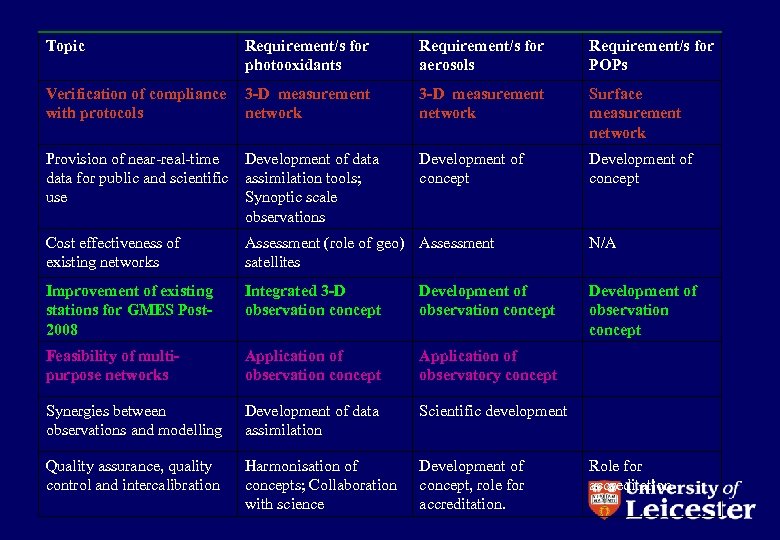

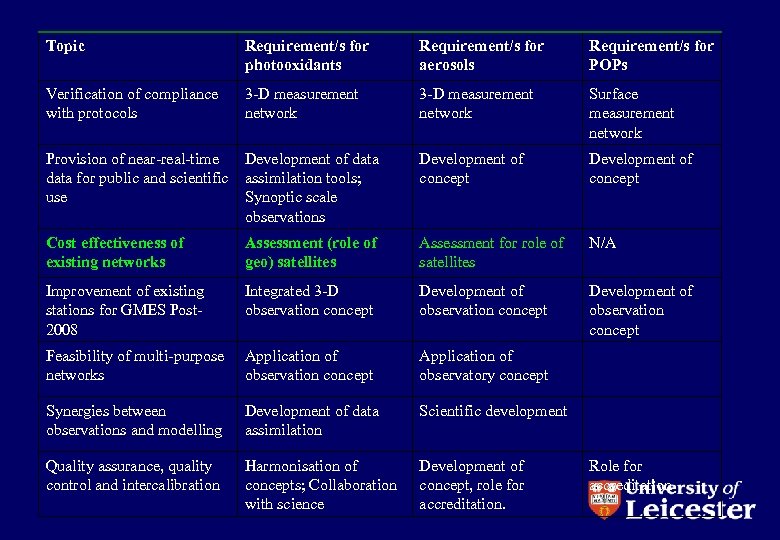

Topic Requirement/s for photooxidants Requirement/s for aerosols Requirement/s for POPs Verification of compliance with protocols 3 -D measurement network Surface measurement network Provision of near-real-time data for public and scientific use Development of data assimilation tools; Synoptic scale observations Development of concept Cost effectiveness of existing networks Assessment (role of geo) Assessment satellites N/A Improvement of existing stations for GMES Post 2008 Integrated 3 -D observation concept Development of observation concept Feasibility of multi-purpose networks Application of observation concept Application of observatory concept Synergies between observations and modelling Development of data assimilation Scientific development Quality assurance, quality control and intercalibration Harmonisation of concepts; Collaboration with science Development of concept, role for accreditation. Role for accreditation

Topic Requirement/s for photooxidants Requirement/s for aerosols Requirement/s for POPs Verification of compliance with protocols 3 -D measurement network Surface measurement network Provision of near-real-time data for public and scientific use Development of data assimilation tools; Synoptic scale observations Development of concept Cost effectiveness of existing networks Assessment (role of geo) Assessment satellites N/A Improvement of existing stations for GMES Post 2008 Integrated 3 -D observation concept Development of observation concept Feasibility of multipurpose networks Application of observation concept Application of observatory concept Synergies between observations and modelling Development of data assimilation Scientific development Quality assurance, quality control and intercalibration Harmonisation of concepts; Collaboration with science Development of concept, role for accreditation. Role for accreditation

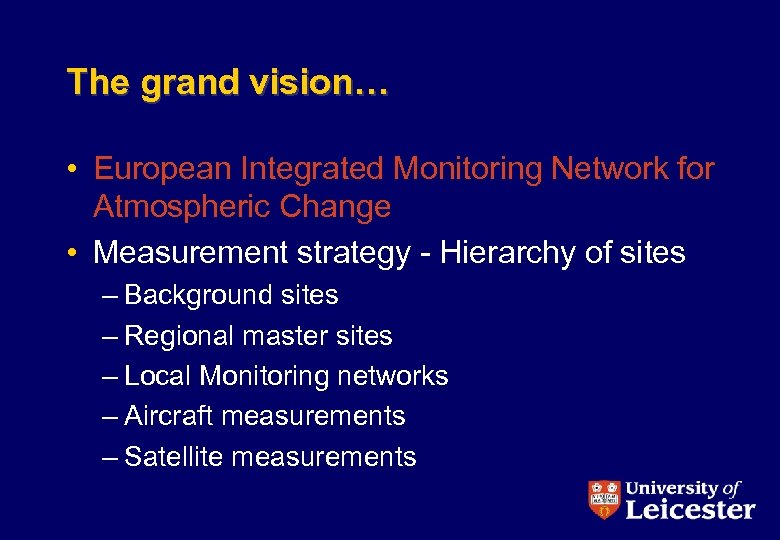

The grand vision… • European Integrated Monitoring Network for Atmospheric Change • Measurement strategy - Hierarchy of sites – Background sites – Regional master sites – Local Monitoring networks – Aircraft measurements – Satellite measurements

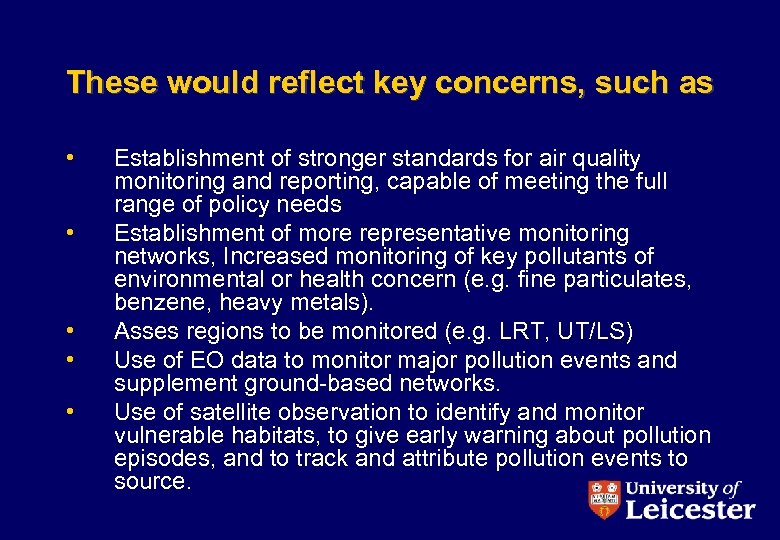

These would reflect key concerns, such as • • • Establishment of stronger standards for air quality monitoring and reporting, capable of meeting the full range of policy needs Establishment of more representative monitoring networks, Increased monitoring of key pollutants of environmental or health concern (e. g. fine particulates, benzene, heavy metals). Asses regions to be monitored (e. g. LRT, UT/LS) Use of EO data to monitor major pollution events and supplement ground-based networks. Use of satellite observation to identify and monitor vulnerable habitats, to give early warning about pollution episodes, and to track and attribute pollution events to source.

Its really not all about data …

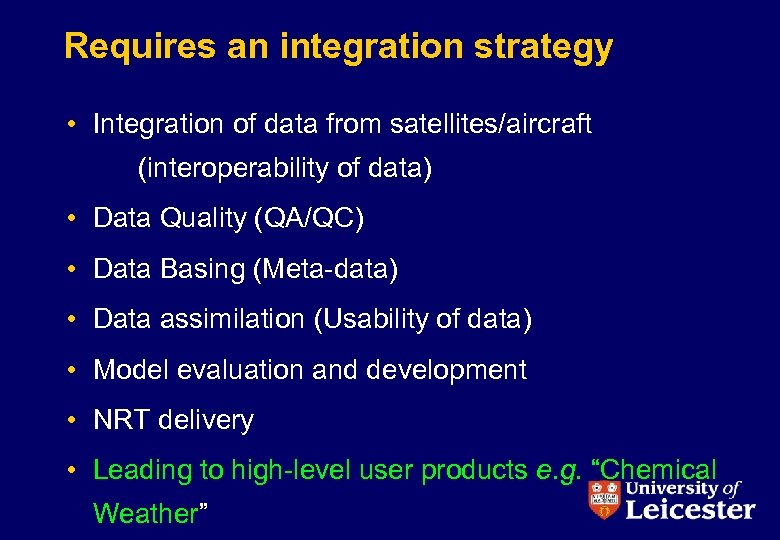

Requires an integration strategy • Integration of data from satellites/aircraft (interoperability of data) • Data Quality (QA/QC) • Data Basing (Meta-data) • Data assimilation (Usability of data) • Model evaluation and development • NRT delivery • Leading to high-level user products e. g. “Chemical Weather”

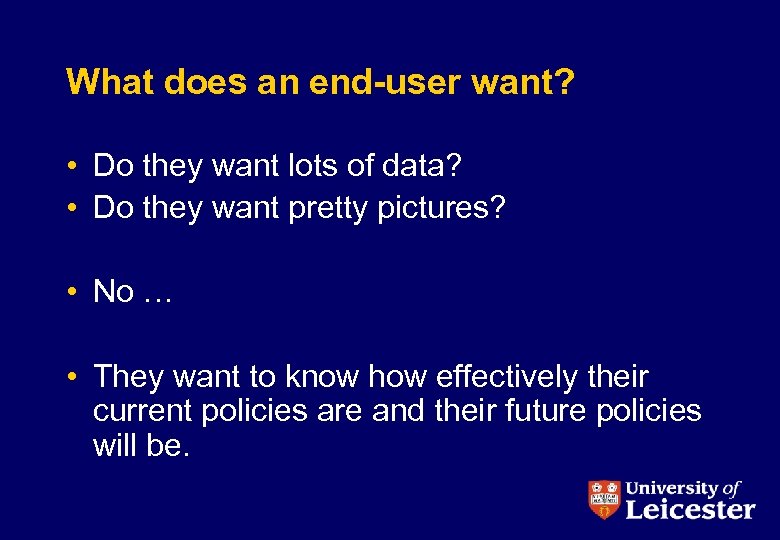

What does an end-user want? • Do they want lots of data? • Do they want pretty pictures? • No … • They want to know how effectively their current policies are and their future policies will be.

Topic Requirement/s for photooxidants Requirement/s for aerosols Requirement/s for POPs Verification of compliance with protocols 3 -D measurement network Surface measurement network Provision of near-real-time data for public and scientific use Development of data assimilation tools; Synoptic scale observations Development of concept Cost effectiveness of existing networks Assessment (role of geo) Assessment satellites N/A Improvement of existing stations for GMES Post 2008 Integrated 3 -D observation concept Development of observation concept Feasibility of multi-purpose networks Application of observation concept Application of observatory concept Synergies between observations and modelling Development of data assimilation Scientific development Quality assurance, quality control and intercalibration Harmonisation of concepts; Collaboration with science Development of concept, role for accreditation. Role for accreditation

Topic Requirement/s for photooxidants Requirement/s for aerosols Requirement/s for POPs Verification of compliance with protocols 3 -D measurement network Surface measurement network Provision of near-real-time data for public and scientific use Development of data assimilation tools; Synoptic scale observations Development of concept Cost effectiveness of existing networks Assessment (role of geo) satellites Assessment for role of satellites N/A Improvement of existing stations for GMES Post 2008 Integrated 3 -D observation concept Development of observation concept Feasibility of multi-purpose networks Application of observation concept Application of observatory concept Synergies between observations and modelling Development of data assimilation Scientific development Quality assurance, quality control and intercalibration Harmonisation of concepts; Collaboration with science Development of concept, role for accreditation. Role for accreditation

The Future GMES - Satellite Requirements

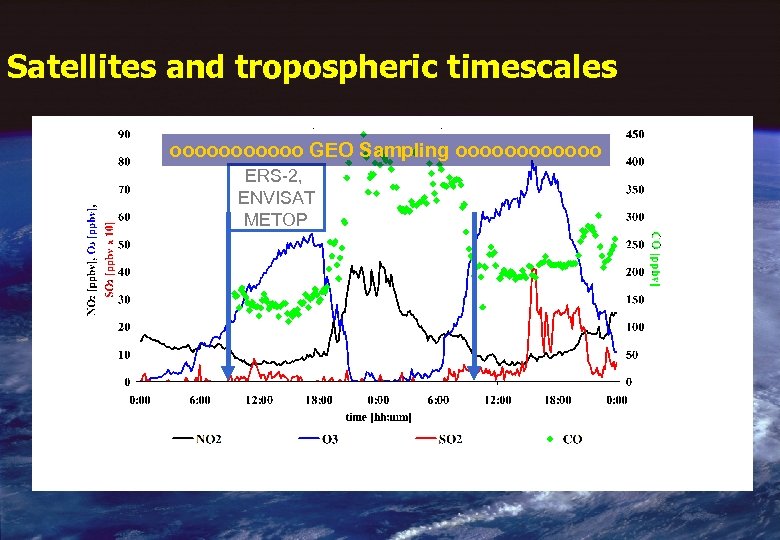

Satellites and tropospheric timescales oooooo GEO Sampling oooooo ERS-2, ENVISAT METOP

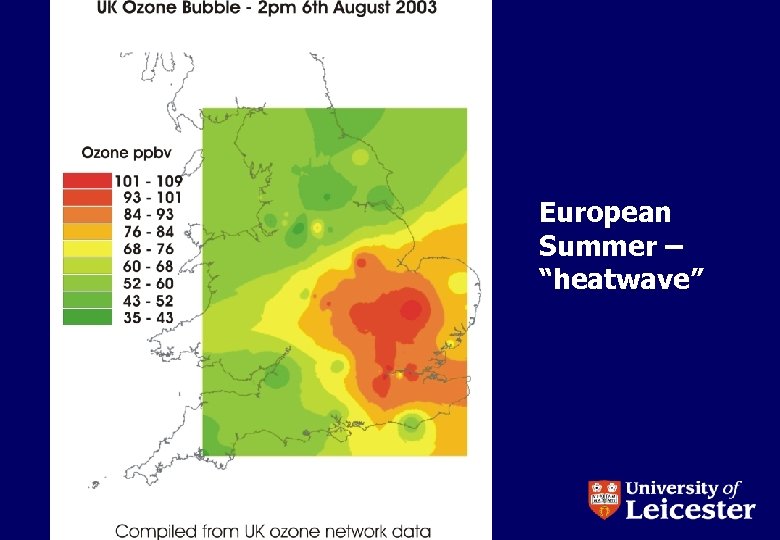

European Summer – “heatwave”

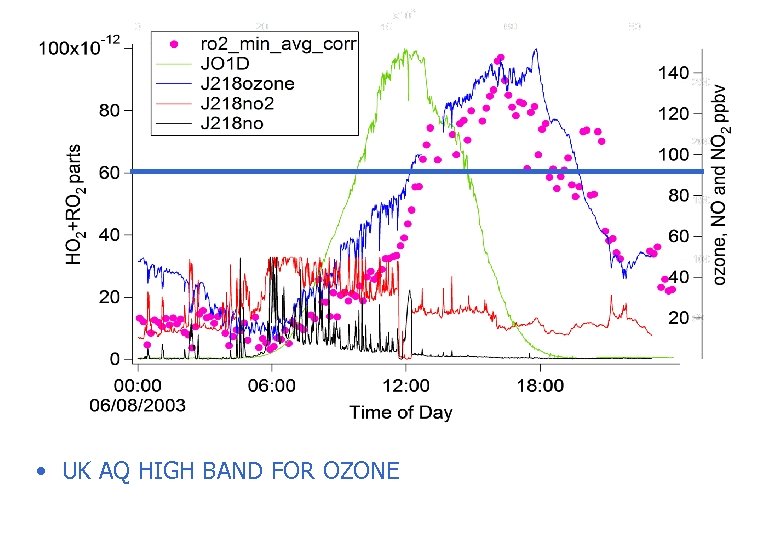

• UK AQ HIGH BAND FOR OZONE

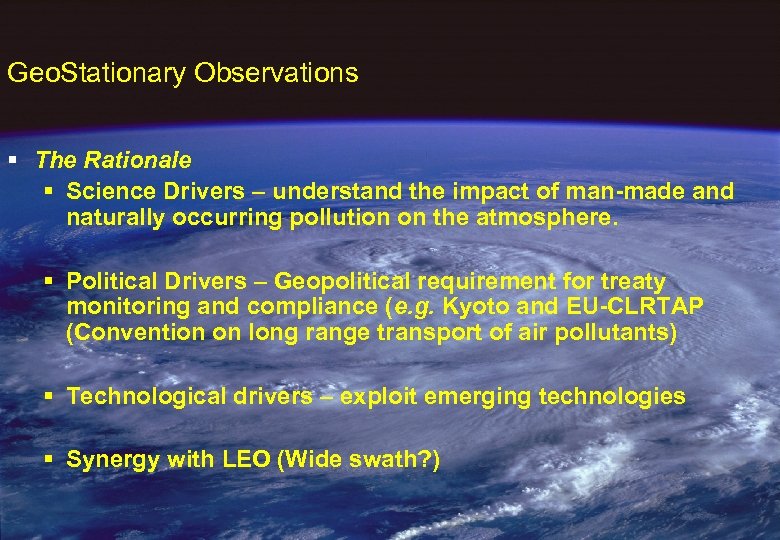

Geo. Stationary Observations § The Rationale § Science Drivers – understand the impact of man-made and naturally occurring pollution on the atmosphere. § Political Drivers – Geopolitical requirement for treaty monitoring and compliance (e. g. Kyoto and EU-CLRTAP (Convention on long range transport of air pollutants) § Technological drivers – exploit emerging technologies § Synergy with LEO (Wide swath? )

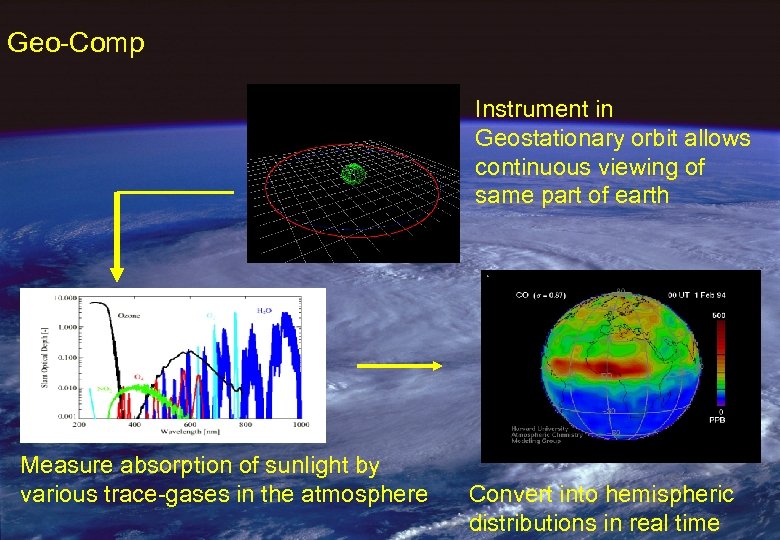

Geo-Comp Instrument in Geostationary orbit allows continuous viewing of same part of earth Measure absorption of sunlight by various trace-gases in the atmosphere Convert into hemispheric distributions in real time

Topic Requirement/s for photooxidants Requirement/s for aerosols Requirement/s for POPs Verification of compliance with protocols 3 -D measurement network Surface measurement network Provision of near-real-time data for public and scientific use Development of data assimilation tools; Synoptic scale observations Development of concept Cost effectiveness of existing networks Assessment (role of geo) Assessment satellites N/A Improvement of existing stations for GMES Post 2008 Integrated 3 -D observation concept Development of observation concept Feasibility of multi-purpose networks Application of observation concept Application of observatory concept Synergies between observations and modelling Development of data assimilation Scientific development Quality assurance, quality control and intercalibration Harmonisation of concepts; Collaboration with science Development of concept, role for accreditation. Role for accreditation

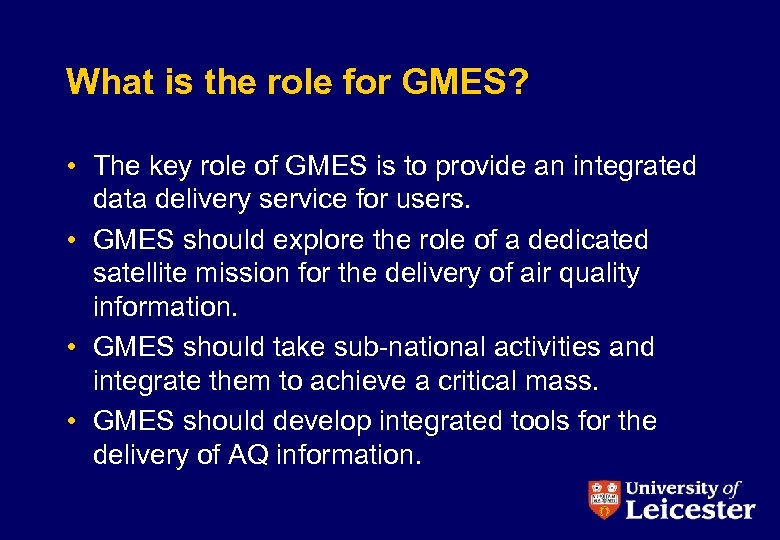

What is the role for GMES? • The key role of GMES is to provide an integrated data delivery service for users. • GMES should explore the role of a dedicated satellite mission for the delivery of air quality information. • GMES should take sub-national activities and integrate them to achieve a critical mass. • GMES should develop integrated tools for the delivery of AQ information.

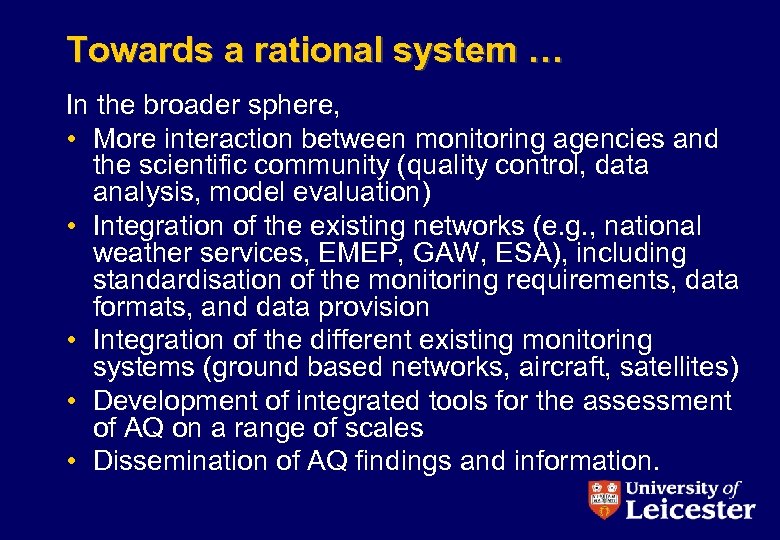

Towards a rational system … In the broader sphere, • More interaction between monitoring agencies and the scientific community (quality control, data analysis, model evaluation) • Integration of the existing networks (e. g. , national weather services, EMEP, GAW, ESA), including standardisation of the monitoring requirements, data formats, and data provision • Integration of the different existing monitoring systems (ground based networks, aircraft, satellites) • Development of integrated tools for the assessment of AQ on a range of scales • Dissemination of AQ findings and information.

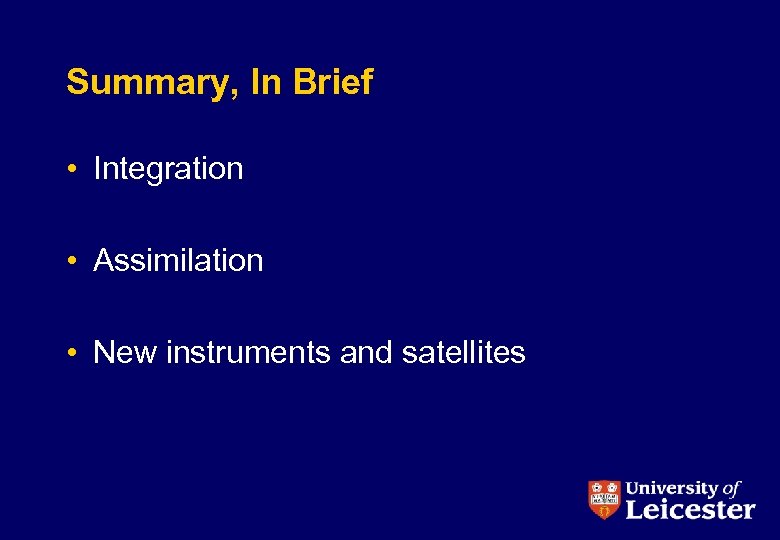

Summary, In Brief • Integration • Assimilation • New instruments and satellites
