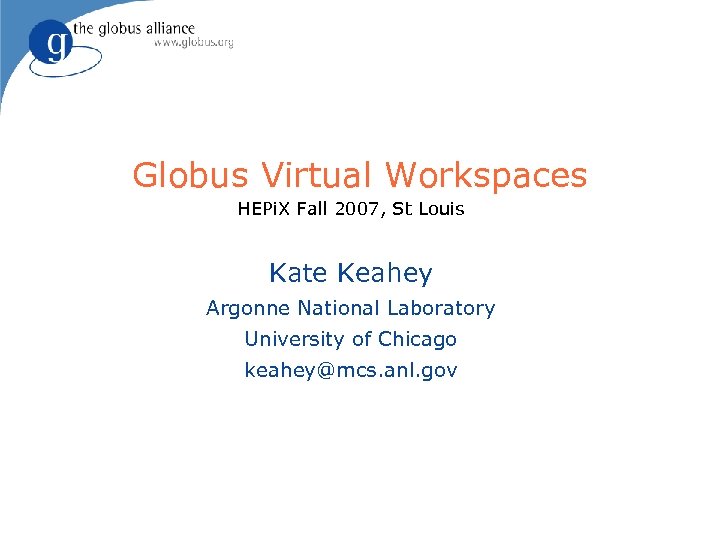

Globus Virtual Workspaces HEPi. X Fall 2007, St Louis Kate Keahey Argonne National Laboratory University of Chicago keahey@mcs. anl. gov

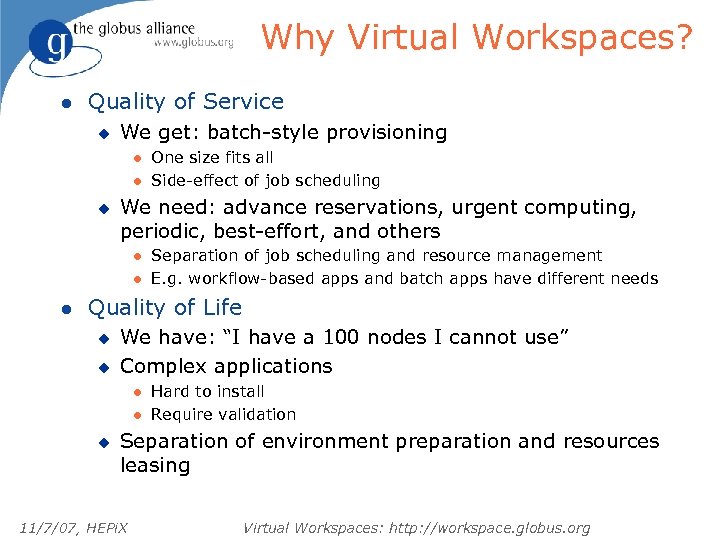

Why Virtual Workspaces? l Quality of Service u We get: batch-style provisioning l l u We need: advance reservations, urgent computing, periodic, best-effort, and others l l l One size fits all Side-effect of job scheduling Separation of job scheduling and resource management E. g. workflow-based apps and batch apps have different needs Quality of Life u u We have: “I have a 100 nodes I cannot use” Complex applications l l u Hard to install Require validation Separation of environment preparation and resources leasing 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

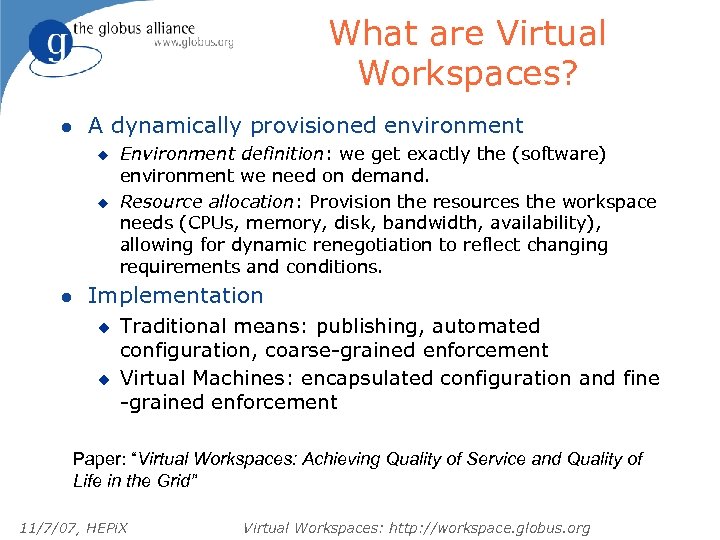

What are Virtual Workspaces? l A dynamically provisioned environment u u l Environment definition: we get exactly the (software) environment we need on demand. Resource allocation: Provision the resources the workspace needs (CPUs, memory, disk, bandwidth, availability), allowing for dynamic renegotiation to reflect changing requirements and conditions. Implementation u u Traditional means: publishing, automated configuration, coarse-grained enforcement Virtual Machines: encapsulated configuration and fine -grained enforcement Paper: “Virtual Workspaces: Achieving Quality of Service and Quality of Life in the Grid” 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

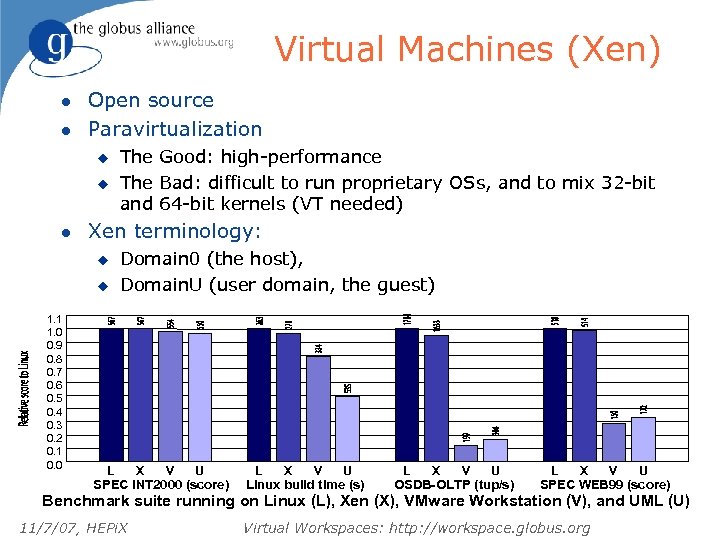

Virtual Machines (Xen) l l Open source Paravirtualization u u l Xen terminology: u u 1. 1 1. 0 0. 9 0. 8 0. 7 0. 6 0. 5 0. 4 0. 3 0. 2 0. 1 0. 0 The Good: high-performance The Bad: difficult to run proprietary OSs, and to mix 32 -bit and 64 -bit kernels (VT needed) Domain 0 (the host), Domain. U (user domain, the guest) L X V U SPEC INT 2000 (score) L X V U Linux build time (s) L X V U OSDB-OLTP (tup/s) L X V U SPEC WEB 99 (score) Benchmark suite running on Linux (L), Xen (X), VMware Workstation (V), and UML (U) 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

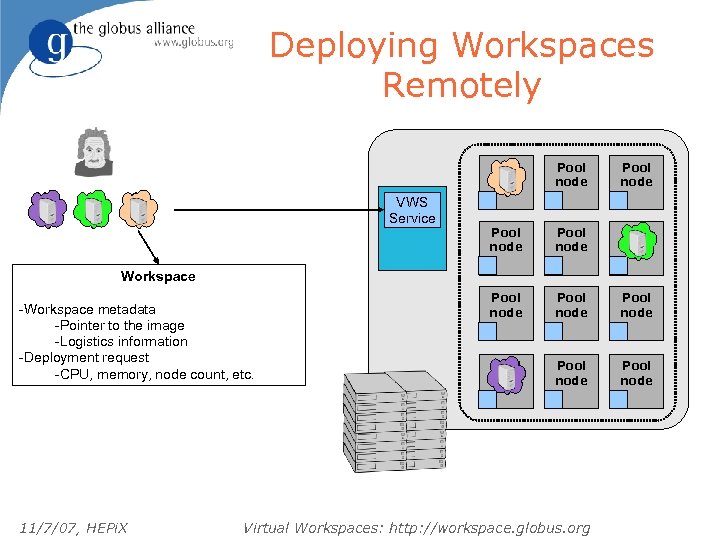

Deploying Workspaces Remotely Pool node VWS Service Pool node Pool node Pool node Workspace -Workspace metadata -Pointer to the image -Logistics information -Deployment request -CPU, memory, node count, etc. 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

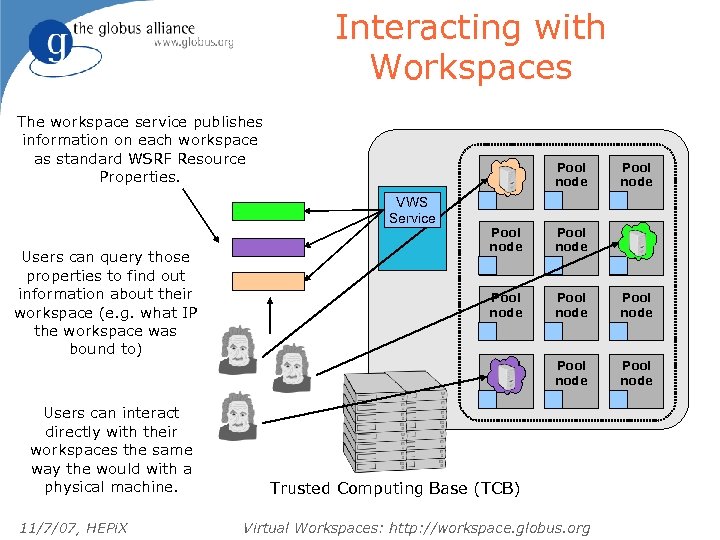

Interacting with Workspaces The workspace service publishes information on each workspace as standard WSRF Resource Properties. Pool node Users can interact directly with their workspaces the same way the would with a physical machine. 11/7/07, HEPi. X Pool node Pool node Users can query those properties to find out information about their workspace (e. g. what IP the workspace was bound to) Pool node VWS Service Pool node Trusted Computing Base (TCB) Virtual Workspaces: http: //workspace. globus. org
Workspace Service Components Workspace WSRF front-end that allows clients to deploy and manage virtual workspaces VWS Service Pool node Pool node Pool node Workspace back-end: Resource manager for a pool of physical nodes Deploys and manages Workspaces on the nodes Each node must have a VMM (Xen) installed, as well as the workspace control program that manages individual nodes Contextualization creates a common context for a virtual cluster 11/7/07, HEPi. X Trusted Computing Base (TCB) Virtual Workspaces: http: //workspace. globus. org

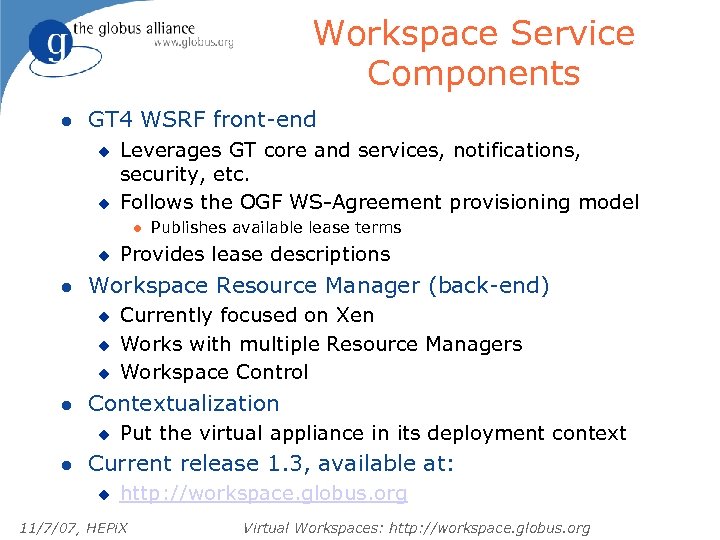

Workspace Service Components l GT 4 WSRF front-end u u Leverages GT core and services, notifications, security, etc. Follows the OGF WS-Agreement provisioning model l u u Currently focused on Xen Works with multiple Resource Managers Workspace Control Contextualization u l Provides lease descriptions Workspace Resource Manager (back-end) u l Publishes available lease terms Put the virtual appliance in its deployment context Current release 1. 3, available at: u http: //workspace. globus. org 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

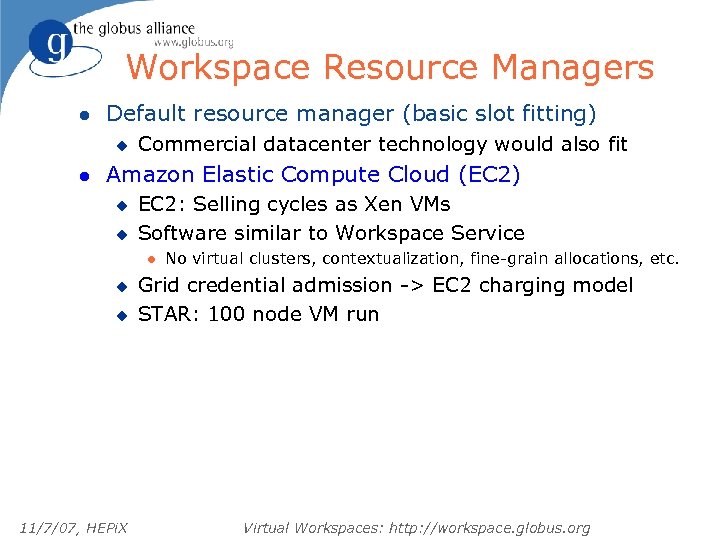

Workspace Resource Managers l Default resource manager (basic slot fitting) u l Commercial datacenter technology would also fit Amazon Elastic Compute Cloud (EC 2) u u EC 2: Selling cycles as Xen VMs Software similar to Workspace Service l u u 11/7/07, HEPi. X No virtual clusters, contextualization, fine-grain allocations, etc. Grid credential admission -> EC 2 charging model STAR: 100 node VM run Virtual Workspaces: http: //workspace. globus. org

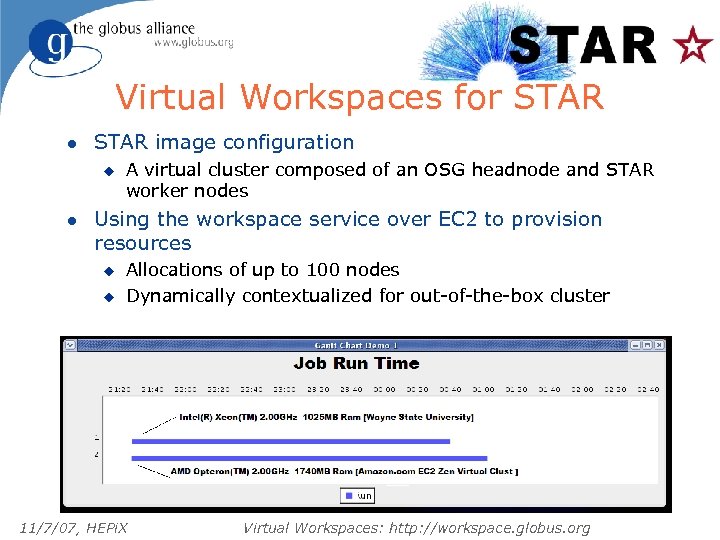

Virtual Workspaces for STAR l STAR image configuration u l A virtual cluster composed of an OSG headnode and STAR worker nodes Using the workspace service over EC 2 to provision resources u u Allocations of up to 100 nodes Dynamically contextualized for out-of-the-box cluster 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

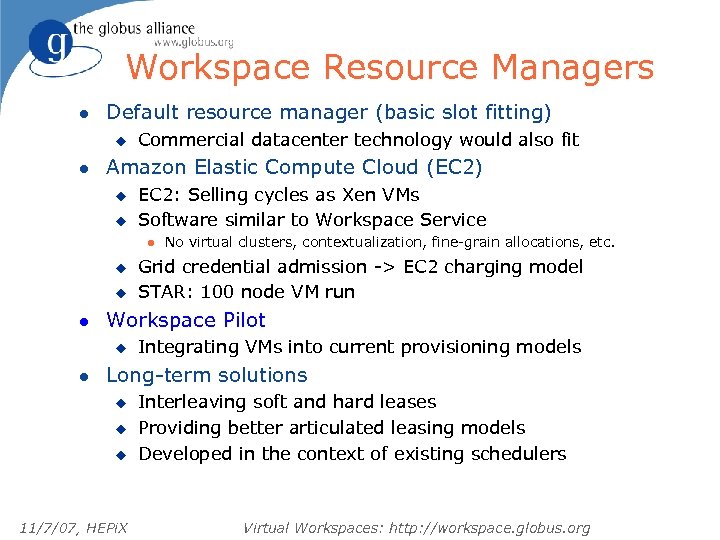

Workspace Resource Managers l Default resource manager (basic slot fitting) u l Commercial datacenter technology would also fit Amazon Elastic Compute Cloud (EC 2) u u EC 2: Selling cycles as Xen VMs Software similar to Workspace Service l u u l Grid credential admission -> EC 2 charging model STAR: 100 node VM run Workspace Pilot u l No virtual clusters, contextualization, fine-grain allocations, etc. Integrating VMs into current provisioning models Long-term solutions u u u 11/7/07, HEPi. X Interleaving soft and hard leases Providing better articulated leasing models Developed in the context of existing schedulers Virtual Workspaces: http: //workspace. globus. org

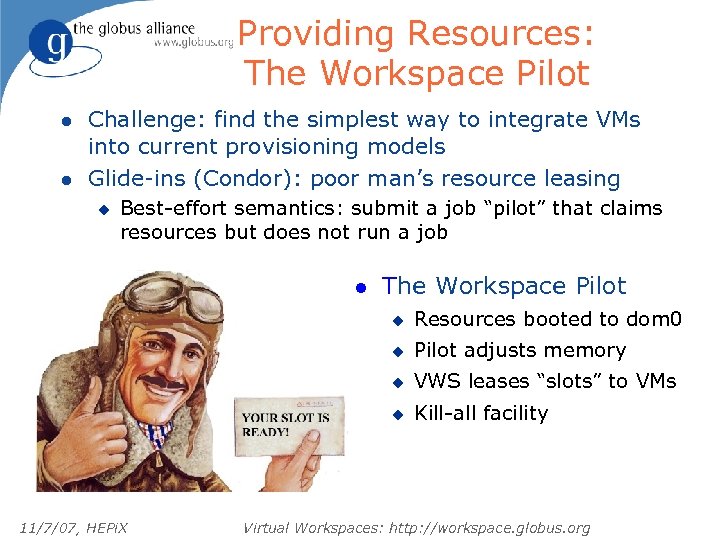

Providing Resources: The Workspace Pilot l l Challenge: find the simplest way to integrate VMs into current provisioning models Glide-ins (Condor): poor man’s resource leasing u Best-effort semantics: submit a job “pilot” that claims resources but does not run a job l The Workspace Pilot u u Pilot adjusts memory u VWS leases “slots” to VMs u 11/7/07, HEPi. X Resources booted to dom 0 Kill-all facility Virtual Workspaces: http: //workspace. globus. org
Workspace Control l VM control u u l Integrating into the network u u u l l Assigning MAC addresses and IP addresses DHCP Delivery tool Building up a trusted networking layer VM image propagation Image management and reconstruction u l Starting, stopping etc. To be replaced by Xen API creating blank partitions Talks to the workspace service via ssh 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

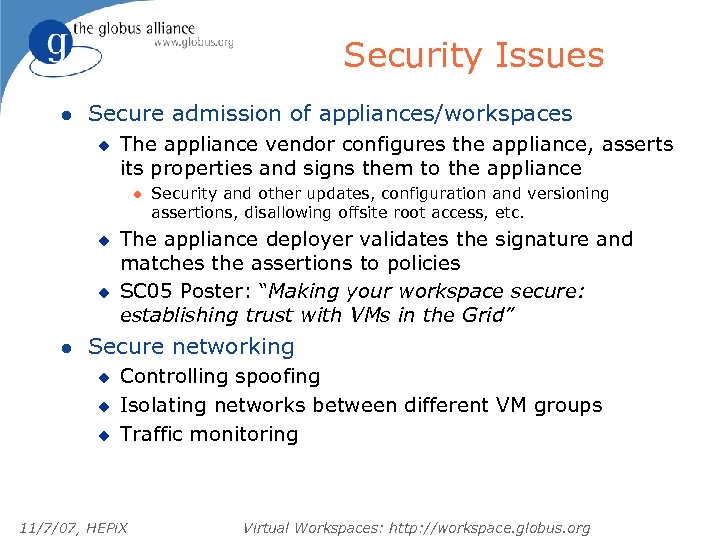

Security Issues l Secure admission of appliances/workspaces u The appliance vendor configures the appliance, asserts its properties and signs them to the appliance l u u l Security and other updates, configuration and versioning assertions, disallowing offsite root access, etc. The appliance deployer validates the signature and matches the assertions to policies SC 05 Poster: “Making your workspace secure: establishing trust with VMs in the Grid” Secure networking u u u Controlling spoofing Isolating networks between different VM groups Traffic monitoring 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

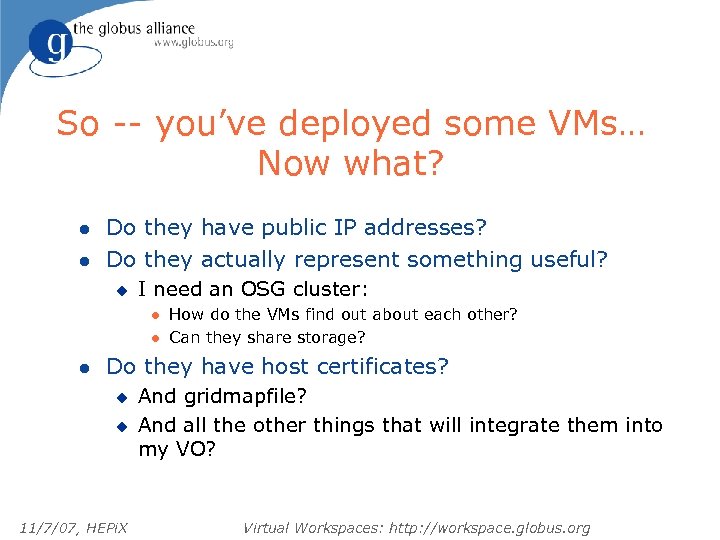

So -- you’ve deployed some VMs… Now what? l l Do they have public IP addresses? Do they actually represent something useful? u I need an OSG cluster: l l l How do the VMs find out about each other? Can they share storage? Do they have host certificates? u u 11/7/07, HEPi. X And gridmapfile? And all the other things that will integrate them into my VO? Virtual Workspaces: http: //workspace. globus. org

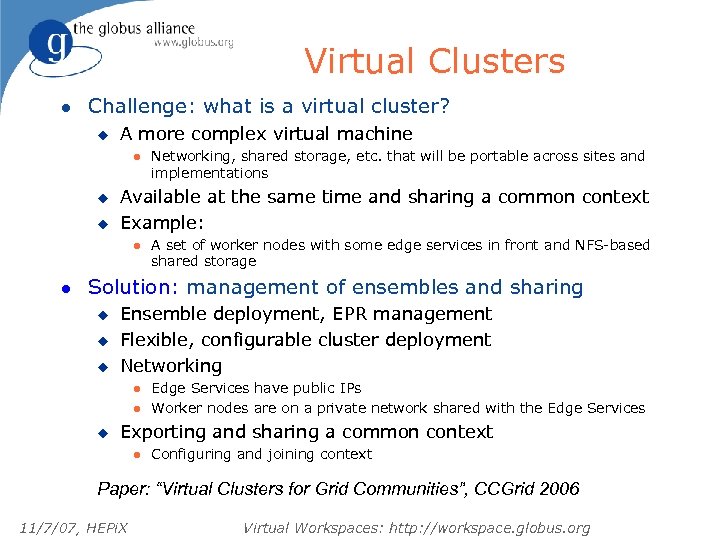

Virtual Clusters l Challenge: what is a virtual cluster? u A more complex virtual machine l u u Available at the same time and sharing a common context Example: l l Networking, shared storage, etc. that will be portable across sites and implementations A set of worker nodes with some edge services in front and NFS-based shared storage Solution: management of ensembles and sharing u u u Ensemble deployment, EPR management Flexible, configurable cluster deployment Networking l l u Edge Services have public IPs Worker nodes are on a private network shared with the Edge Services Exporting and sharing a common context l Configuring and joining context Paper: “Virtual Clusters for Grid Communities”, CCGrid 2006 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

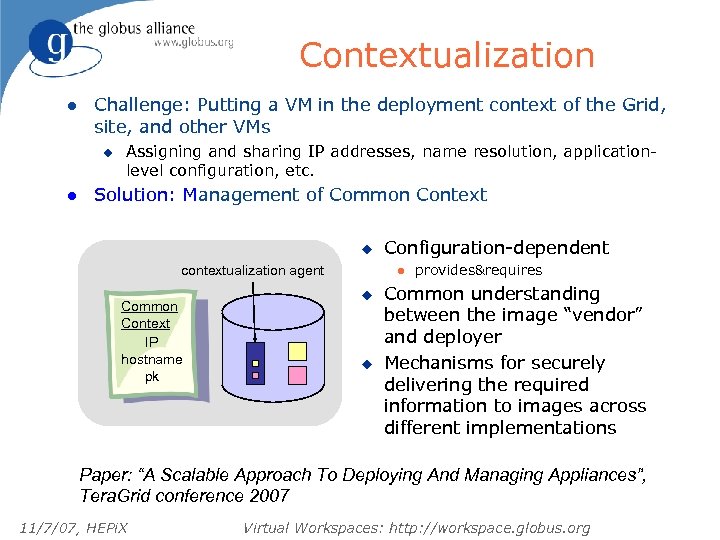

Contextualization l Challenge: Putting a VM in the deployment context of the Grid, site, and other VMs u l Assigning and sharing IP addresses, name resolution, applicationlevel configuration, etc. Solution: Management of Common Context u contextualization agent Common Context IP hostname pk Configuration-dependent l u u provides&requires Common understanding between the image “vendor” and deployer Mechanisms for securely delivering the required information to images across different implementations Paper: “A Scalable Approach To Deploying And Managing Appliances”, Tera. Grid conference 2007 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

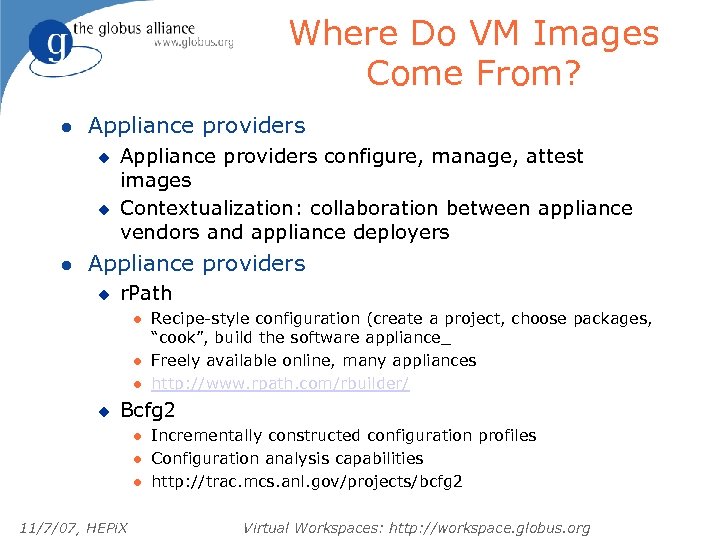

Where Do VM Images Come From? l Appliance providers u u l Appliance providers configure, manage, attest images Contextualization: collaboration between appliance vendors and appliance deployers Appliance providers u r. Path l l l u Recipe-style configuration (create a project, choose packages, “cook”, build the software appliance_ Freely available online, many appliances http: //www. rpath. com/rbuilder/ Bcfg 2 l l l 11/7/07, HEPi. X Incrementally constructed configuration profiles Configuration analysis capabilities http: //trac. mcs. anl. gov/projects/bcfg 2 Virtual Workspaces: http: //workspace. globus. org

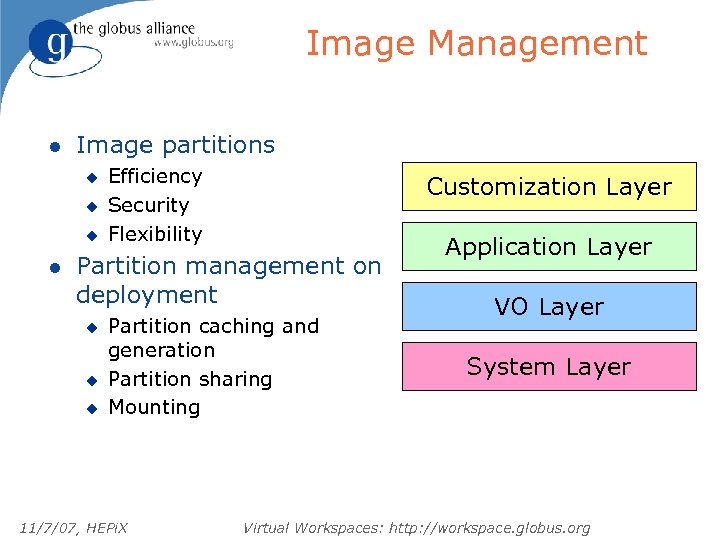

Image Management l Image partitions u u u l Efficiency Security Flexibility Customization Layer Partition management on deployment u u u Partition caching and generation Partition sharing Mounting 11/7/07, HEPi. X Application Layer VO Layer System Layer Virtual Workspaces: http: //workspace. globus. org

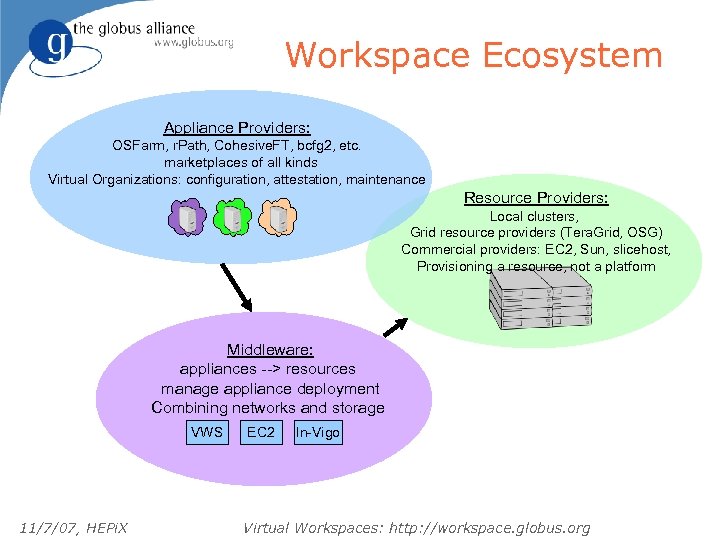

Workspace Ecosystem Appliance Providers: OSFarm, r. Path, Cohesive. FT, bcfg 2, etc. marketplaces of all kinds Virtual Organizations: configuration, attestation, maintenance Resource Providers: Local clusters, Grid resource providers (Tera. Grid, OSG) Commercial providers: EC 2, Sun, slicehost, Provisioning a resource, not a platform Middleware: appliances --> resources manage appliance deployment Combining networks and storage VWS 11/7/07, HEPi. X EC 2 In-Vigo Virtual Workspaces: http: //workspace. globus. org

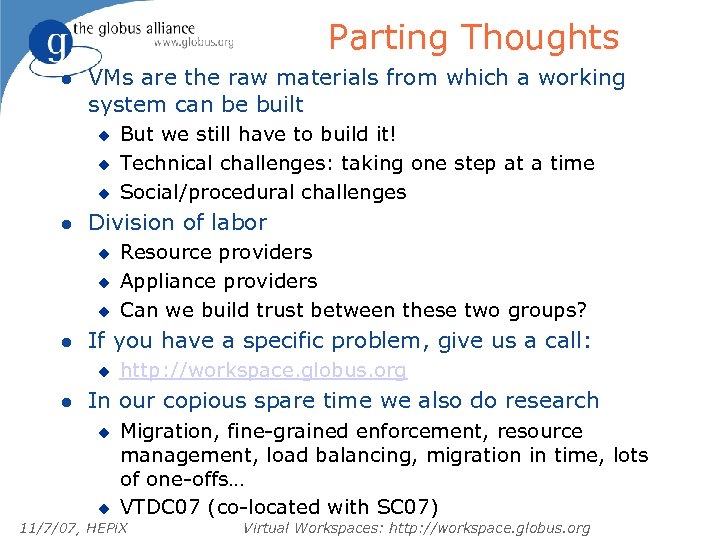

Parting Thoughts l VMs are the raw materials from which a working system can be built u u u l Division of labor u u u l Resource providers Appliance providers Can we build trust between these two groups? If you have a specific problem, give us a call: u l But we still have to build it! Technical challenges: taking one step at a time Social/procedural challenges http: //workspace. globus. org In our copious spare time we also do research u Migration, fine-grained enforcement, resource management, load balancing, migration in time, lots of one-offs… VTDC 07 (co-located with SC 07) u 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

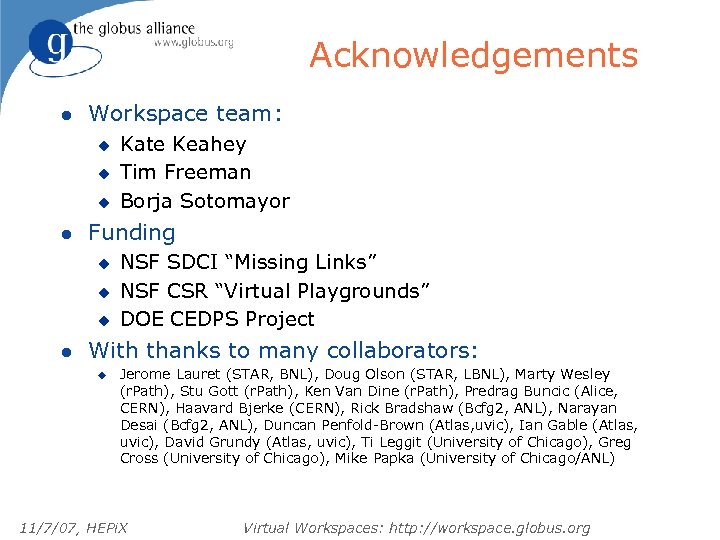

Acknowledgements l Workspace team: u u u l Funding u u u l Kate Keahey Tim Freeman Borja Sotomayor NSF SDCI “Missing Links” NSF CSR “Virtual Playgrounds” DOE CEDPS Project With thanks to many collaborators: u Jerome Lauret (STAR, BNL), Doug Olson (STAR, LBNL), Marty Wesley (r. Path), Stu Gott (r. Path), Ken Van Dine (r. Path), Predrag Buncic (Alice, CERN), Haavard Bjerke (CERN), Rick Bradshaw (Bcfg 2, ANL), Narayan Desai (Bcfg 2, ANL), Duncan Penfold-Brown (Atlas, uvic), Ian Gable (Atlas, uvic), David Grundy (Atlas, uvic), Ti Leggit (University of Chicago), Greg Cross (University of Chicago), Mike Papka (University of Chicago/ANL) 11/7/07, HEPi. X Virtual Workspaces: http: //workspace. globus. org

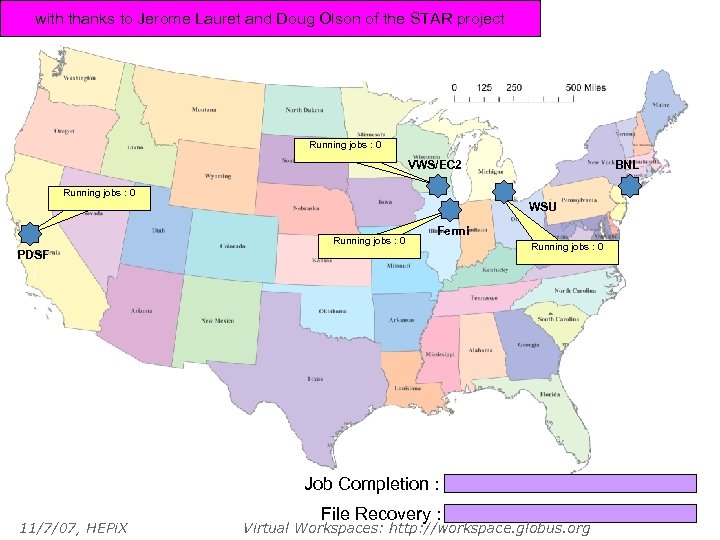

with thanks to Jerome Lauret and Doug Olson of the STAR project Running jobs : : : 94 Running jobs 142 Running jobs 124 109 42 73 0 Running jobs : 150 230 VWS/EC 2 Running jobs : : : 76 Running jobs 282 Running jobs 243 140 195 221 0 Running jobs : 300 PDSF BNL WSU Running jobs : : : 96 Running jobs 195 Running jobs 183 136 152 37 54 0 Running jobs : 200 150 Fermi Running jobs : : 50 Running jobs 39 15 21 27 34 0 9 Running jobs : 42 50 Job Completion : 11/7/07, HEPi. X File Recovery : Virtual Workspaces: http: //workspace. globus. org

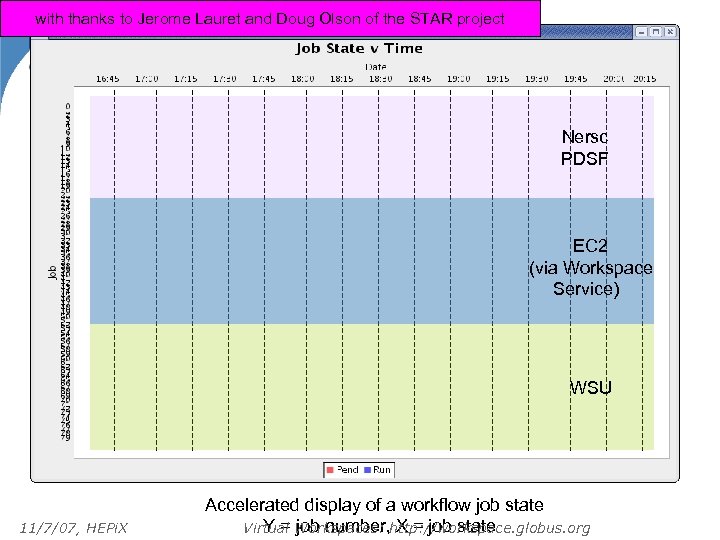

with thanks to Jerome Lauret and Doug Olson of STAR project thanks to Jerome Lauret and Doug Olson of the STAR project Nersc PDSF EC 2 (via Workspace Service) WSU 11/7/07, HEPi. X Accelerated display of a workflow job state Y = job number, X = job state Virtual Workspaces: http: //workspace. globus. org
