Global Network Overview z Elke Gerlach z Carrier Sales Germany z e. gerlach@vsnlinternational. com z Phone : +49 6102 367080 z z z Victor Haddad Director – Government and Education Sales v. haddad@vsnlinternational. com (732) 203 -3082 (m) (908) 227 -0357

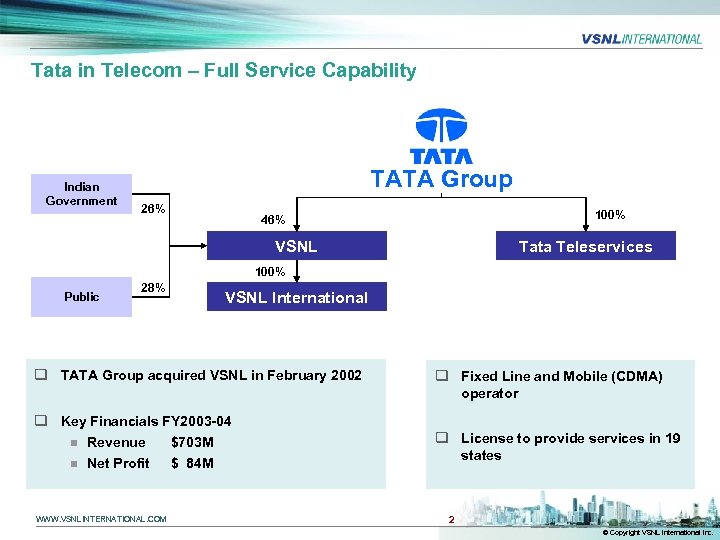

Tata in Telecom – Full Service Capability Indian Government TATA Group 26% 100% 46% VSNL Tata Teleservices 100% Public 28% VSNL International q TATA Group acquired VSNL in February 2002 q Fixed Line and Mobile (CDMA) operator q Key Financials FY 2003 -04 n n Revenue Net Profit WWW. VSNLINTERNATIONAL. COM $703 M $ 84 M q License to provide services in 19 states 2 © Copyright VSNL International Inc.
Wholesale International Bandwidth | High-quality Infrastructure Trans-America Trans-Atlantic Europe Intra-Asia Trans-Pacific (capacity) (submarine cable) (cable + capacity) (C 2 C dark fiber) (submarine cable) India/Asia to Europe SMW 3 / SMW 4 (Major Initial Investor) India to Asia TICS (submarine cable) WWW. VSNLINTERNATIONAL. COM 3 © Copyright VSNL International Inc.

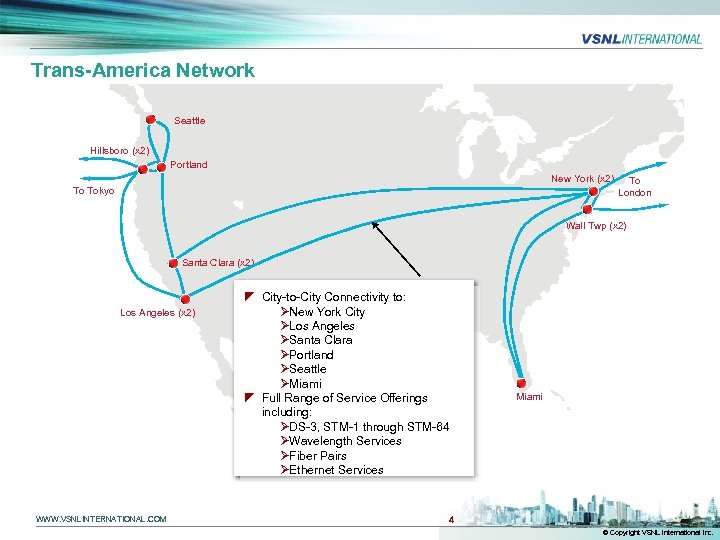

Trans-America Network Seattle Hillsboro (x 2) Portland New York (x 2) To Tokyo To London Wall Twp (x 2) Santa Clara (x 2) Los Angeles (x 2) WWW. VSNLINTERNATIONAL. COM z City-to-City Connectivity to: ØNew York City ØLos Angeles ØSanta Clara ØPortland ØSeattle ØMiami z Full Range of Service Offerings including: ØDS-3, STM-1 through STM-64 ØWavelength Services ØFiber Pairs ØEthernet Services Miami 4 © Copyright VSNL International Inc.

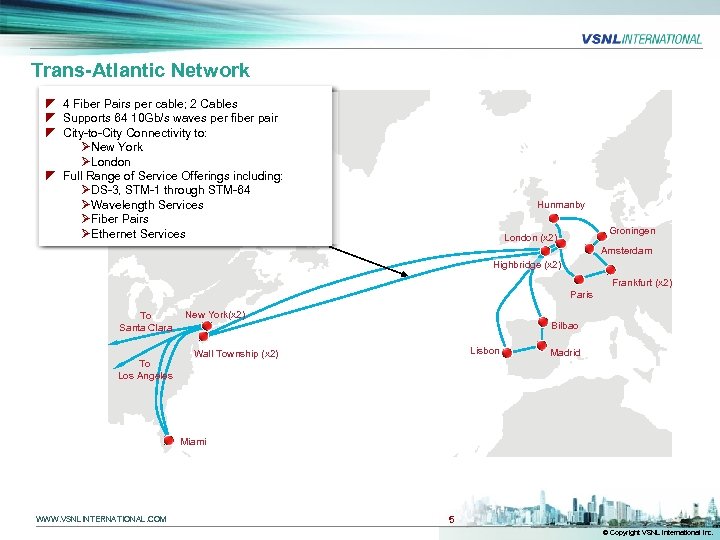

Trans-Atlantic Network z 4 Fiber Pairs per cable; 2 Cables z Supports 64 10 Gb/s waves per fiber pair z City-to-City Connectivity to: ØNew York ØLondon z Full Range of Service Offerings including: ØDS-3, STM-1 through STM-64 ØWavelength Services ØFiber Pairs ØEthernet Services Hunmanby Groningen London (x 2) Amsterdam Highbridge (x 2) Frankfurt (x 2) Paris To Santa Clara To Los Angeles New York(x 2) Bilbao Lisbon Wall Township (x 2) Madrid Miami WWW. VSNLINTERNATIONAL. COM 5 © Copyright VSNL International Inc.
European Network Hunmanby Groningen London (x 2) Highbridge (x 2) Amsterdam z European Ring z Supports > 64 10 Gb/s waves per fiber pair z City-to-City Connectivity to: ØLondon ØParis ØAmsterdam ØFrankfurt ØGroningen z Full Range of Service Offerings including: ØDS-3, STM-1 through STM-64 ØWavelength Services ØFiber Pairs ØEthernet Services Frankfurt (x 2) VSNL Portugal Telecom International Transit Partnership Paris VSNL Western Europe to London Bilbao Lisbon WWW. VSNLINTERNATIONAL. COM SAT 3/WASC/SAFE Madrid VSNL Western Europe to Madrid Lisbon Seixal Sesimbra Sea-ME-WE 3 6 © Copyright VSNL International Inc.

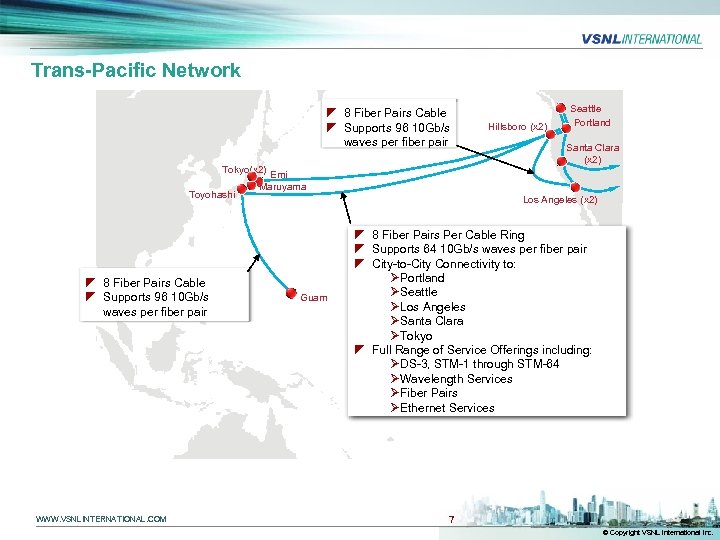

Trans-Pacific Network z 8 Fiber Pairs Cable z Supports 96 10 Gb/s waves per fiber pair Tokyo(x 2) Toyohashi z 8 Fiber Pairs Cable z Supports 96 10 Gb/s waves per fiber pair WWW. VSNLINTERNATIONAL. COM Hillsboro (x 2) Seattle Portland Santa Clara (x 2) Emi Maruyama Los Angeles (x 2) Guam z 8 Fiber Pairs Per Cable Ring z Supports 64 10 Gb/s waves per fiber pair z City-to-City Connectivity to: ØPortland ØSeattle ØLos Angeles ØSanta Clara ØTokyo z Full Range of Service Offerings including: ØDS-3, STM-1 through STM-64 ØWavelength Services ØFiber Pairs ØEthernet Services 7 © Copyright VSNL International Inc.
Diverse Connectivity to/from India z SMW 4 RFS Q 4 2005 Ø Network Administrator SEA-ME-WE 2 1994 SEA-ME-WE 4 2005 Delhi FLAG 1997 Kolkata SEA-ME-WE 3 1999 Mumbai Hyderabad Bangalore z Cable/Carrier Redundancy z Capacity on all cables coming into India z East and West bound International routes out of India z End-to-end visibility to monitor and control performance WWW. VSNLINTERNATIONAL. COM Chennai i 2 i Cochin TIC z Tata Indicom Cable (TIC) Ø 100% VSNL Owned and Operated SAFE 8 © Copyright VSNL International Inc.

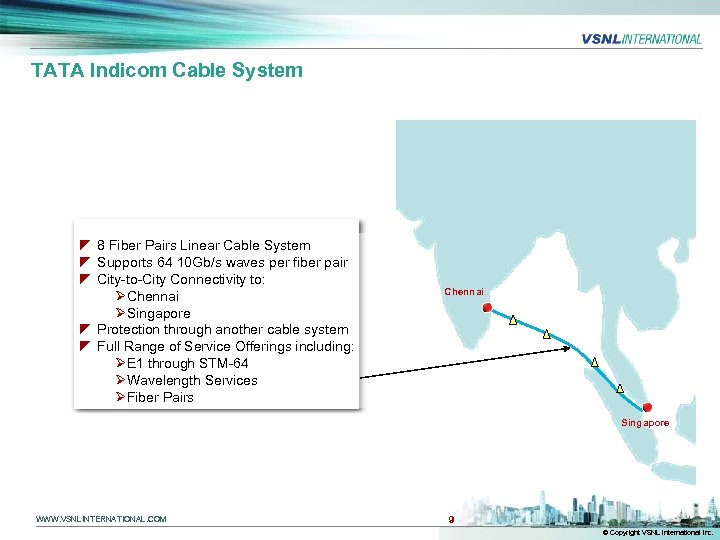

TATA Indicom Cable System z 8 Fiber Pairs Linear Cable System z Supports 64 10 Gb/s waves per fiber pair z City-to-City Connectivity to: ØChennai ØSingapore z Protection through another cable system z Full Range of Service Offerings including: ØE 1 through STM-64 ØWavelength Services ØFiber Pairs Chennai Singapore WWW. VSNLINTERNATIONAL. COM 9 © Copyright VSNL International Inc.

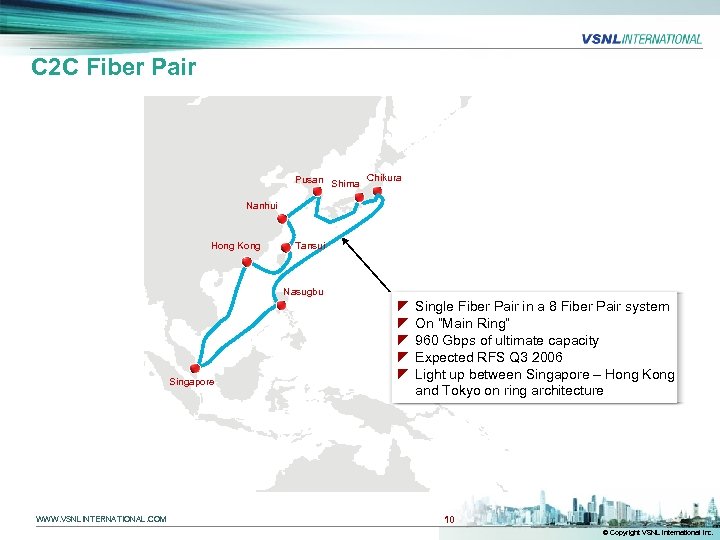

C 2 C Fiber Pair Pusan Shima Chikura Nanhui Hong Kong Tansui Nasugbu Singapore WWW. VSNLINTERNATIONAL. COM z z z Single Fiber Pair in a 8 Fiber Pair system On “Main Ring” 960 Gbps of ultimate capacity Expected RFS Q 3 2006 Light up between Singapore – Hong Kong and Tokyo on ring architecture 10 © Copyright VSNL International Inc.
Leveraging Our Worldwide Presence | Data Centers z 12 Centers z 280, 000 sf Europe USA India z 7 Centers z 13 Centers z 52, 000 sf z 386, 000 sf Asia z 8 Centers z 190, 000 sf First Service Provider in India to be Total z 40 Centers z 908, 000 sf WWW. VSNLINTERNATIONAL. COM 11 © Copyright VSNL International Inc.

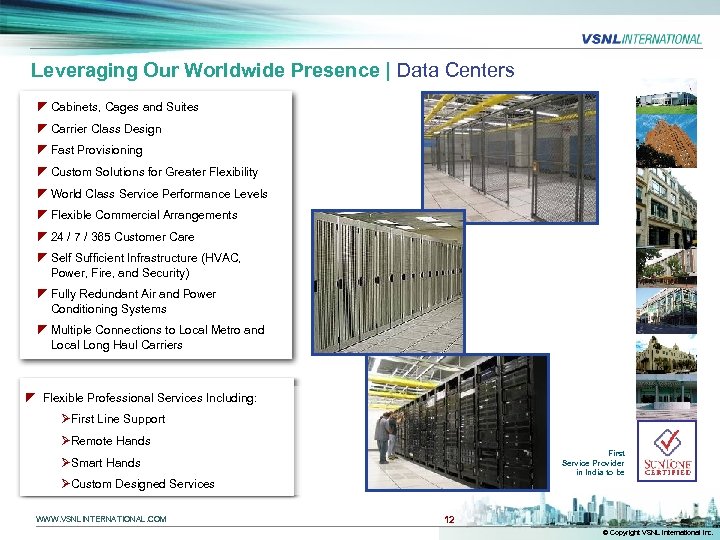

Leveraging Our Worldwide Presence | Data Centers z Cabinets, Cages and Suites z Carrier Class Design z Fast Provisioning z Custom Solutions for Greater Flexibility z World Class Service Performance Levels z Flexible Commercial Arrangements z 24 / 7 / 365 Customer Care z Self Sufficient Infrastructure (HVAC, Power, Fire, and Security) z Fully Redundant Air and Power Conditioning Systems z Multiple Connections to Local Metro and Local Long Haul Carriers z Flexible Professional Services Including: ØFirst Line Support ØRemote Hands First Service Provider in India to be ØSmart Hands ØCustom Designed Services WWW. VSNLINTERNATIONAL. COM 12 © Copyright VSNL International Inc.
Leveraging Our Worldwide Presence | Data Centers z Americas z New York City, USA 32 Avenue of the Americas (Tel. Exchange) New York, NY 10014 z 60 Hudson St. (POP) 9 th and 23 rd Floors MMR New York, NY 10013 z Wall Township, NJ, USA (NMC) 1400 Wall Church Road Wall Township, NJ 07719 z Miami, USA (POP) NAP of the Americas 50 NE 9 th Street, 2 nd Floor MMR Miami, FL 33132 z London, UK 78/102 The Broadway (Tel. Exchange) Stratford, London E 15 1 NG, UK z Telehouse East (POP) 14 Coriander Ave, Ground Floor, Rm G London, UK E 142 AA z Portland, Oregon, USA Brewery Block One (Tel. Exchange) 1225 West Burnside St. , Suite 300 Portland, OR 97209 -4111 z Pittock Building (Fiber only) 921 SW Washington Street Portland, OR 97205 z Seattle, WA (POP) The Westin Building 2001 Sixth Avenue, Suite 804 Seattle, WA 98121 z California, USA z Asia Los Angeles, Infomart (Tel. Exchange) 900 North Alameda Street Los Angeles, CA 90012 -2904 z Tokyo, Japan Shinagawa (Tel. Exchange) 3 -8 -21 Higashi-Shinagawa 3 -chome Shinagawa-Ku Tokyo 104 -0002, Japan z 1 Wilshire Blvd (POP) 624 S. Grand Avenue, 10 th Floor Los Angeles, CA 90012 -2904 z Comspace, Tokyo (POP) z 1100 Space Park Dr (Tel. Exchange) Comspace Bldg 4 F 5 -3 Nihonbashi Horidome-Cho 1 -chome Chuou-ku, Tokyo, Japan 103 -0012 Santa Clara, California, USA Santa Clara, CA 95054 -3400 z Equinix (POP) z Maruyama, Japan (Cable Station) 11 Great Oaks Blvd San Jose, CA 95119 z Mega-i. Advantage, Hong Kong (POP) 399 Chai Wan Road, Chai Wan, Hong Kong z Europe z Paris, France (POP) z Changi, Singapore (TIC Cable Station) Telehouse Paris 38 rue des Jeuneurs; 4 th floor Paris, France 75002 Global Switch, 2 Tai Seng Avenue Singapore 534408 z India z Frankfurt, Germany (POP) z Prabhadevi (VSNL Limited IDC) I. T. E. N. O. S. Building B 90 Kleyerstrasse Rebstöcker Strasse 25 -31 1 st Floor, B 106 Frankfurt, Germany 60326 Kashi Nath Dhuru Marg Prabhadevi Mumbai z Delhi (VSNL Limited IDC) GK 1, New Delhi z The Netherlands z Hyderabad (TATA Teleservices IDC) Amsterdam South East (POP) Telecity 2 Kuiperbergweg 13 Suite Z 4 AB, 1 st floor 1101 AE Amsterdam, The Netherlands Sanath Nagar Hyderabad z Chennai (VSNL Limited IDC) 4 Swamy Sivanand Salai Chennai – 2 z Groningen (Tel. Exchange) Zernikelaan 16 9747 AA Groningen, The Netherlands z Bangalore (Videsh Sanchar Bhavan IDC) VSNL Limited Sanjay Nagar Bangalore z Lisbon, Portugal (Tel. Exchange) Rue Serveriano Falcao 14 1 Andar 2685 -378 Prior Velho, Portugal z Madrid, Spain (POP) Edificio Telvent Housing C/Valgrande 6 Alcobendas, 28108 Madrid, Spain WWW. VSNLINTERNATIONAL. COM Note: All POPs are not manned 24 x 7 13 © Copyright VSNL International Inc.
