GLAST LAT Project ISOC CDR, 4 August 2004 GLAST Large Area Telescope: Gamma-ray Large GLAST LAT Project ISOC CDR, 4 August 2004 GLAST Large Area Telescope: Gamma-ray Large Area Space Telescope Instrument Science Operations Center CDR Section 3. 1 Command, Health and Safety Design Lori Bator ONE-SLAC ISOC Lead Engineer [email protected] stanford. edu (650) 926 -5352 Document: LAT-PR-04500 Section 3. 1 1

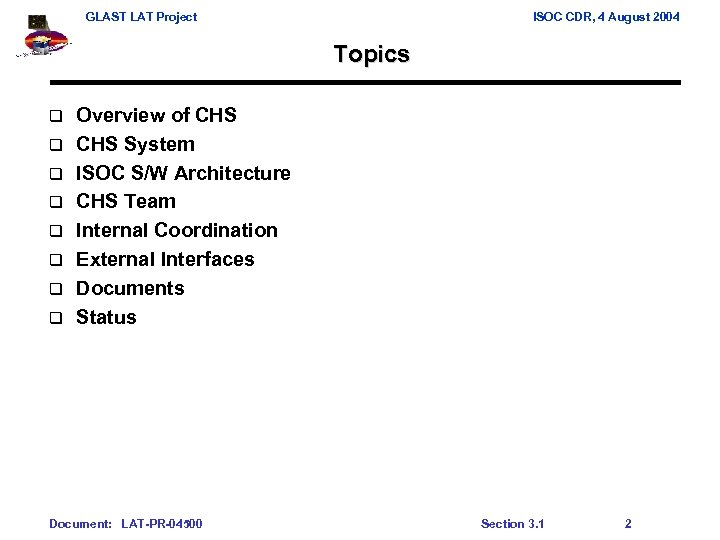

GLAST LAT Project ISOC CDR, 4 August 2004 Topics q q q q Overview GLAST LAT Project ISOC CDR, 4 August 2004 Topics q q q q Overview of CHS System ISOC S/W Architecture CHS Team Internal Coordination External Interfaces Documents Status Document: LAT-PR-04500 Section 3. 1 2

GLAST LAT Project ISOC CDR, 4 August 2004 Overview of CHS Commanding – Generation GLAST LAT Project ISOC CDR, 4 August 2004 Overview of CHS Commanding – Generation and validation of commands and command sequences – Passing commands on to the GSSC (and to MOC for early orbit operations and contingency commanding) – Verifying these commands were executed – Logging and archiving of all commands – Configuration and control of command plans, procedures and command database q Health and Safety – Receive and archive Level 0 data from the MOC – Monitor data to ascertain and track the health and safety of the instrument – Continuous knowledge of the configuration of the LAT – Configuration and control of telemetry database q Document: LAT-PR-04500 Section 3. 1 3

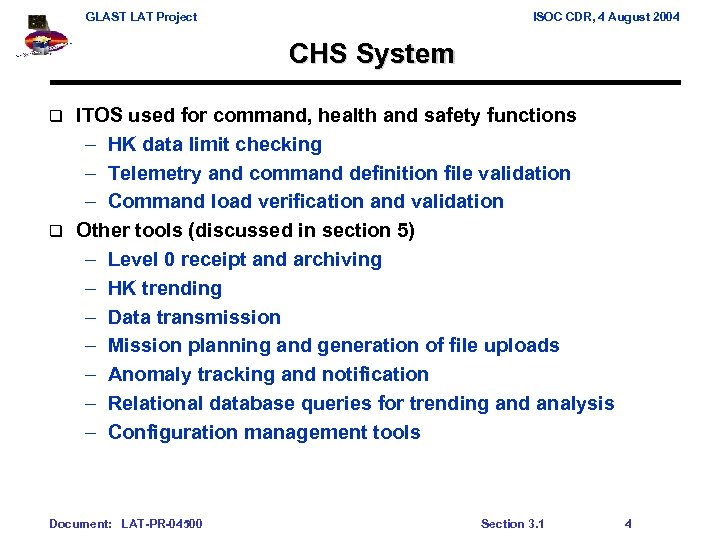

GLAST LAT Project ISOC CDR, 4 August 2004 CHS System ITOS used for command, GLAST LAT Project ISOC CDR, 4 August 2004 CHS System ITOS used for command, health and safety functions – HK data limit checking – Telemetry and command definition file validation – Command load verification and validation q Other tools (discussed in section 5) – Level 0 receipt and archiving – HK trending – Data transmission – Mission planning and generation of file uploads – Anomaly tracking and notification – Relational database queries for trending and analysis – Configuration management tools q Document: LAT-PR-04500 Section 3. 1 4

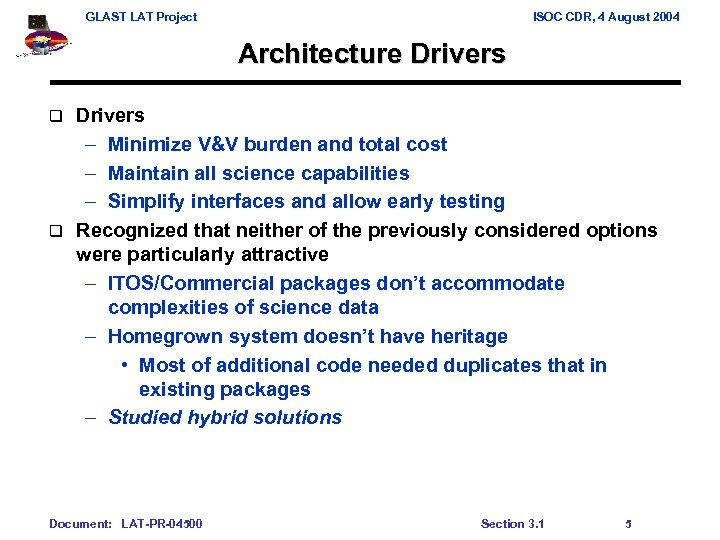

GLAST LAT Project ISOC CDR, 4 August 2004 Architecture Drivers – Minimize V&V burden GLAST LAT Project ISOC CDR, 4 August 2004 Architecture Drivers – Minimize V&V burden and total cost – Maintain all science capabilities – Simplify interfaces and allow early testing q Recognized that neither of the previously considered options were particularly attractive – ITOS/Commercial packages don’t accommodate complexities of science data – Homegrown system doesn’t have heritage • Most of additional code needed duplicates that in existing packages – Studied hybrid solutions q Document: LAT-PR-04500 Section 3. 1 5

GLAST LAT Project ISOC CDR, 4 August 2004 ITAR Issues Using ITOS Workstations running GLAST LAT Project ISOC CDR, 4 August 2004 ITAR Issues Using ITOS Workstations running ITOS – Password protected – File access controlled through permissions q User access to ITOS data display and analysis is through a non -ITAR controlled web interface q No impact on collaboration q SLAC has developed an official policy on ITAR issues that specifically addresses the use of ITOS within the ISOC. Availability of non-ITAR web interfaces to the data address all concerns based on Stanford and SLAC openness policies and the use of ITOS within the ISOC is approved. q Document: LAT-PR-04500 Section 3. 1 6

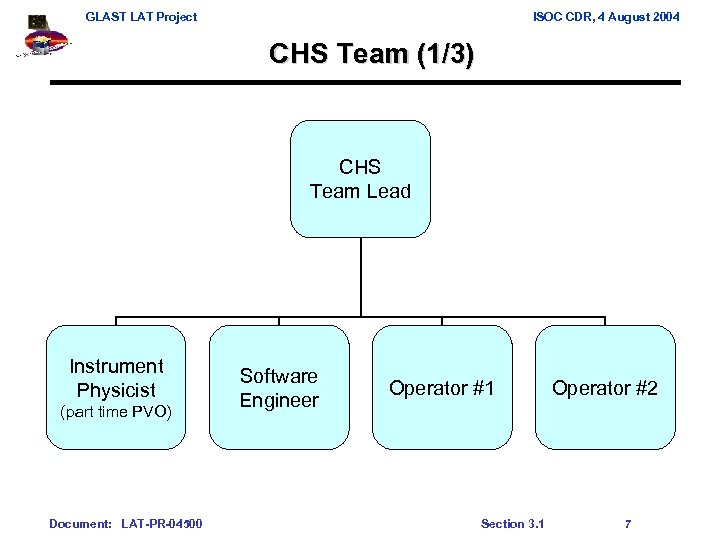

GLAST LAT Project ISOC CDR, 4 August 2004 CHS Team (1/3) CHS Team Lead GLAST LAT Project ISOC CDR, 4 August 2004 CHS Team (1/3) CHS Team Lead Instrument Physicist (part time PVO) Document: LAT-PR-04500 Software Engineer Operator #1 Section 3. 1 Operator #2 7

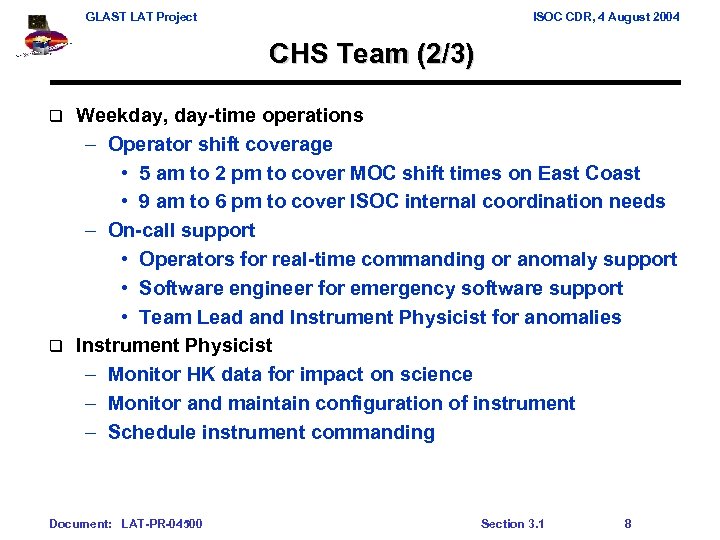

GLAST LAT Project ISOC CDR, 4 August 2004 CHS Team (2/3) Weekday, day-time operations GLAST LAT Project ISOC CDR, 4 August 2004 CHS Team (2/3) Weekday, day-time operations – Operator shift coverage • 5 am to 2 pm to cover MOC shift times on East Coast • 9 am to 6 pm to cover ISOC internal coordination needs – On-call support • Operators for real-time commanding or anomaly support • Software engineer for emergency software support • Team Lead and Instrument Physicist for anomalies q Instrument Physicist – Monitor HK data for impact on science – Monitor and maintain configuration of instrument – Schedule instrument commanding q Document: LAT-PR-04500 Section 3. 1 8

GLAST LAT Project ISOC CDR, 4 August 2004 CHS Team (3/3) Software Engineer Responsibilities GLAST LAT Project ISOC CDR, 4 August 2004 CHS Team (3/3) Software Engineer Responsibilities – Maintain ITOS configuration and other CHS tools – Maintain configuration control of command telemetry database q Operator Responsibilities – Generate command plans – Interface with MOC and GSSC – Monitor CHS system processes – Monitor real-time contacts during the shift – Monitor automated report generation – Respond to notification of alerts and anomalies – Serve as backup for Software Engineer to address system problems q Document: LAT-PR-04500 Section 3. 1 9

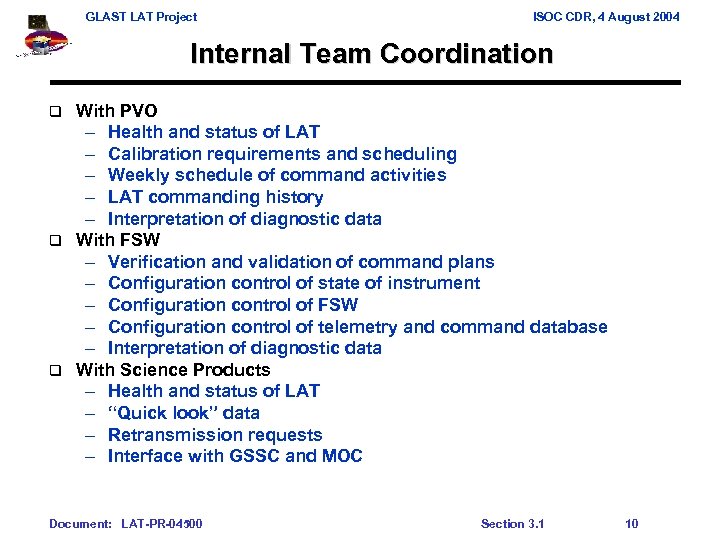

GLAST LAT Project ISOC CDR, 4 August 2004 Internal Team Coordination With PVO – GLAST LAT Project ISOC CDR, 4 August 2004 Internal Team Coordination With PVO – Health and status of LAT – Calibration requirements and scheduling – Weekly schedule of command activities – LAT commanding history – Interpretation of diagnostic data q With FSW – Verification and validation of command plans – Configuration control of state of instrument – Configuration control of FSW – Configuration control of telemetry and command database – Interpretation of diagnostic data q With Science Products – Health and status of LAT – “Quick look” data – Retransmission requests – Interface with GSSC and MOC q Document: LAT-PR-04500 Section 3. 1 10

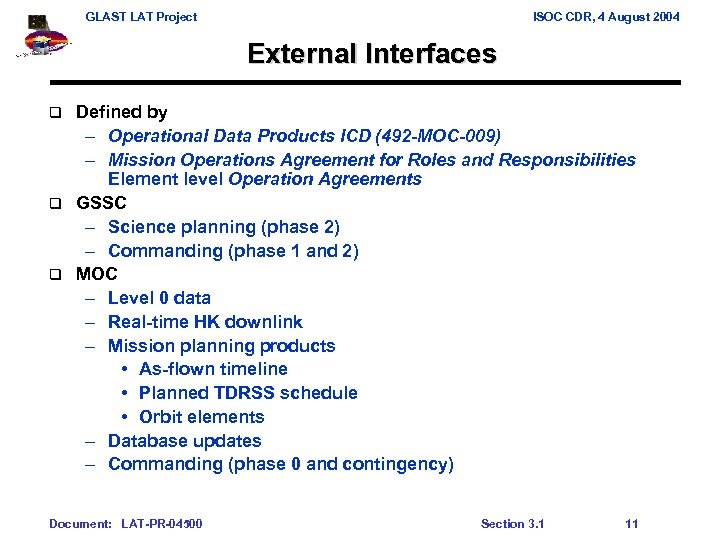

GLAST LAT Project ISOC CDR, 4 August 2004 External Interfaces Defined by – Operational GLAST LAT Project ISOC CDR, 4 August 2004 External Interfaces Defined by – Operational Data Products ICD (492 -MOC-009) – Mission Operations Agreement for Roles and Responsibilities Element level Operation Agreements q GSSC – Science planning (phase 2) – Commanding (phase 1 and 2) q MOC – Level 0 data – Real-time HK downlink – Mission planning products • As-flown timeline • Planned TDRSS schedule • Orbit elements – Database updates – Commanding (phase 0 and contingency) q Document: LAT-PR-04500 Section 3. 1 11

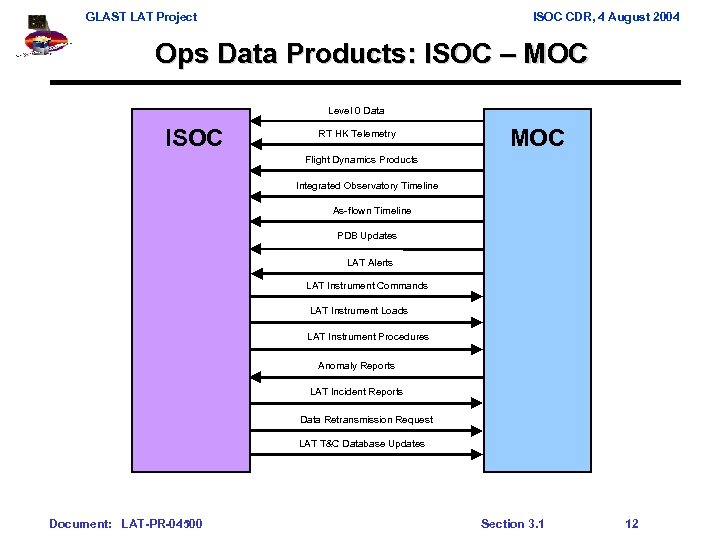

GLAST LAT Project ISOC CDR, 4 August 2004 Ops Data Products: ISOC – MOC GLAST LAT Project ISOC CDR, 4 August 2004 Ops Data Products: ISOC – MOC Level 0 Data ISOC RT HK Telemetry MOC Flight Dynamics Products Integrated Observatory Timeline As-flown Timeline PDB Updates LAT Alerts LAT Instrument Commands LAT Instrument Loads LAT Instrument Procedures Anomaly Reports LAT Incident Reports Data Retransmission Request LAT T&C Database Updates Document: LAT-PR-04500 Section 3. 1 12

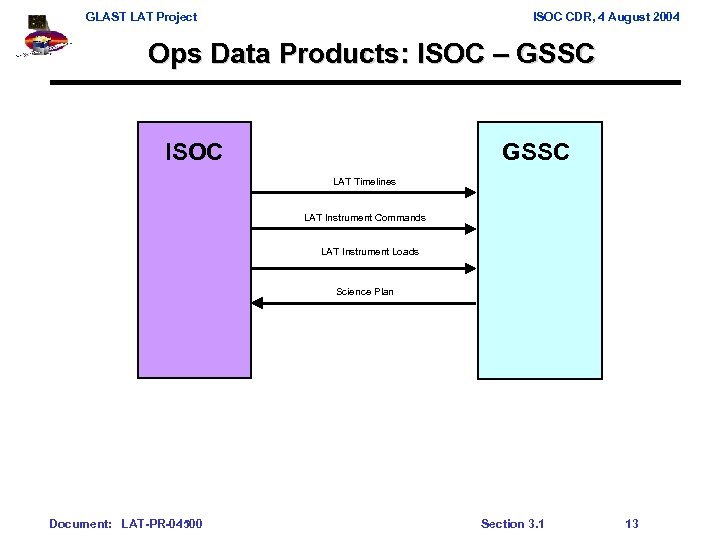

GLAST LAT Project ISOC CDR, 4 August 2004 Ops Data Products: ISOC – GSSC GLAST LAT Project ISOC CDR, 4 August 2004 Ops Data Products: ISOC – GSSC ISOC GSSC LAT Timelines LAT Instrument Commands LAT Instrument Loads Science Plan Document: LAT-PR-04500 Section 3. 1 13

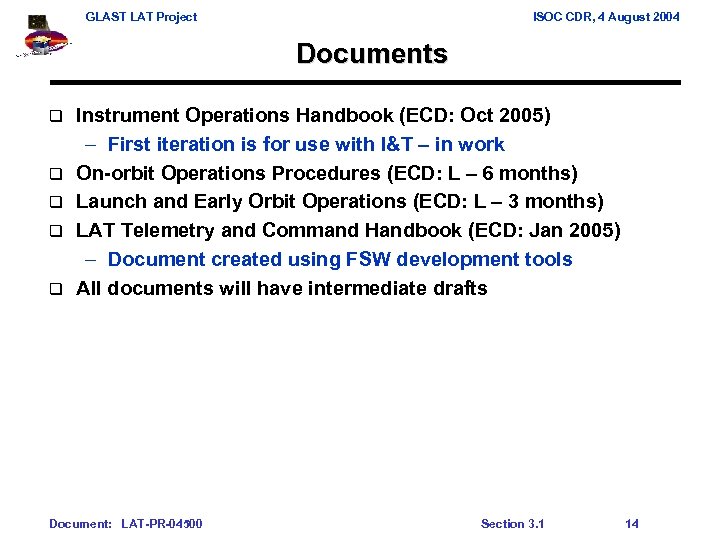

GLAST LAT Project ISOC CDR, 4 August 2004 Documents q q q Instrument Operations GLAST LAT Project ISOC CDR, 4 August 2004 Documents q q q Instrument Operations Handbook (ECD: Oct 2005) – First iteration is for use with I&T – in work On-orbit Operations Procedures (ECD: L – 6 months) Launch and Early Orbit Operations (ECD: L – 3 months) LAT Telemetry and Command Handbook (ECD: Jan 2005) – Document created using FSW development tools All documents will have intermediate drafts Document: LAT-PR-04500 Section 3. 1 14

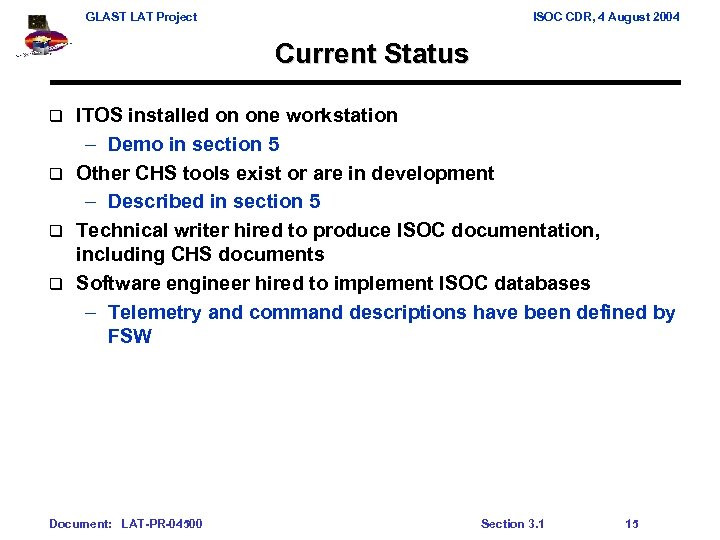

GLAST LAT Project ISOC CDR, 4 August 2004 Current Status ITOS installed on one GLAST LAT Project ISOC CDR, 4 August 2004 Current Status ITOS installed on one workstation – Demo in section 5 q Other CHS tools exist or are in development – Described in section 5 q Technical writer hired to produce ISOC documentation, including CHS documents q Software engineer hired to implement ISOC databases – Telemetry and command descriptions have been defined by FSW q Document: LAT-PR-04500 Section 3. 1 15

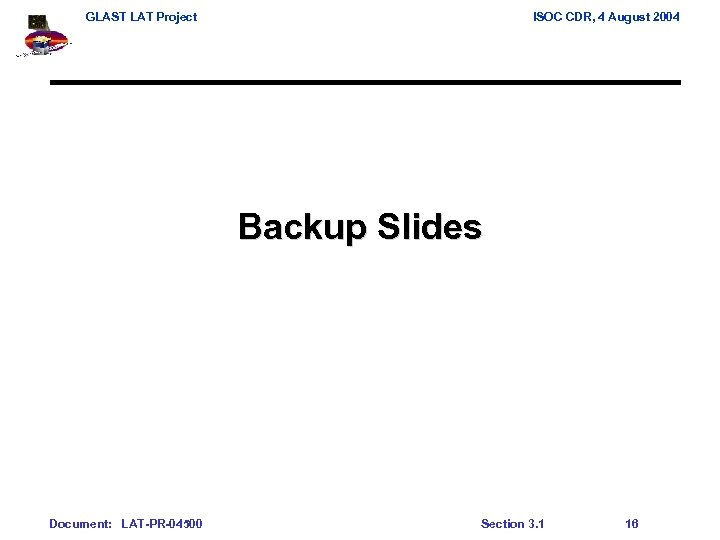

GLAST LAT Project ISOC CDR, 4 August 2004 Backup Slides Document: LAT-PR-04500 Section 3. GLAST LAT Project ISOC CDR, 4 August 2004 Backup Slides Document: LAT-PR-04500 Section 3. 1 16

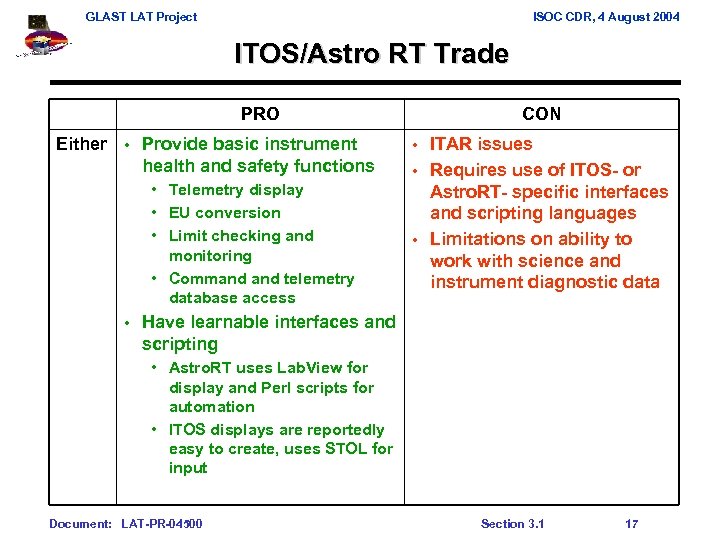

GLAST LAT Project ISOC CDR, 4 August 2004 ITOS/Astro RT Trade PRO Either • GLAST LAT Project ISOC CDR, 4 August 2004 ITOS/Astro RT Trade PRO Either • Provide basic instrument health and safety functions • Telemetry display • EU conversion • Limit checking and monitoring • Command telemetry database access • CON ITAR issues • Requires use of ITOS- or Astro. RT- specific interfaces and scripting languages • Limitations on ability to work with science and instrument diagnostic data • Have learnable interfaces and scripting • Astro. RT uses Lab. View for display and Perl scripts for automation • ITOS displays are reportedly easy to create, uses STOL for input Document: LAT-PR-04500 Section 3. 1 17

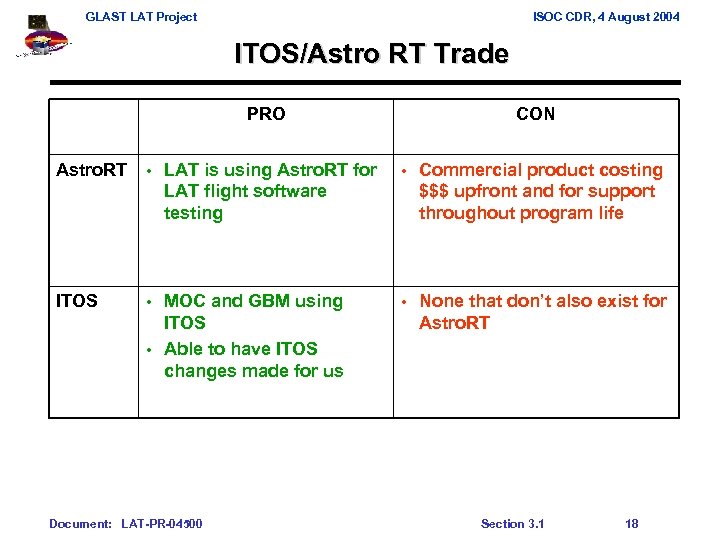

GLAST LAT Project ISOC CDR, 4 August 2004 ITOS/Astro RT Trade PRO Astro. RT GLAST LAT Project ISOC CDR, 4 August 2004 ITOS/Astro RT Trade PRO Astro. RT • ITOS LAT is using Astro. RT for LAT flight software testing • MOC and GBM using ITOS • Able to have ITOS changes made for us Document: LAT-PR-04500 CON • Commercial product costing $$$ upfront and for support throughout program life • None that don’t also exist for Astro. RT Section 3. 1 18
