GGF OGSA SEC WG History Status Presentation

GGF OGSA SEC WG History & Status Presentation Edited and Modified: Alan J Weissberger Data Communications Technology ajwdct@technologist. com OGSA SEC WG [OGSA= Open Grid Services Architecture] Co-chairs: Nataraj Nagaratnam, IBM, USA Marty Humphrey University of Virginia, USA GGF 9 WG session: Oct 7, 2003, Chicago, Illinois www. ggf. org

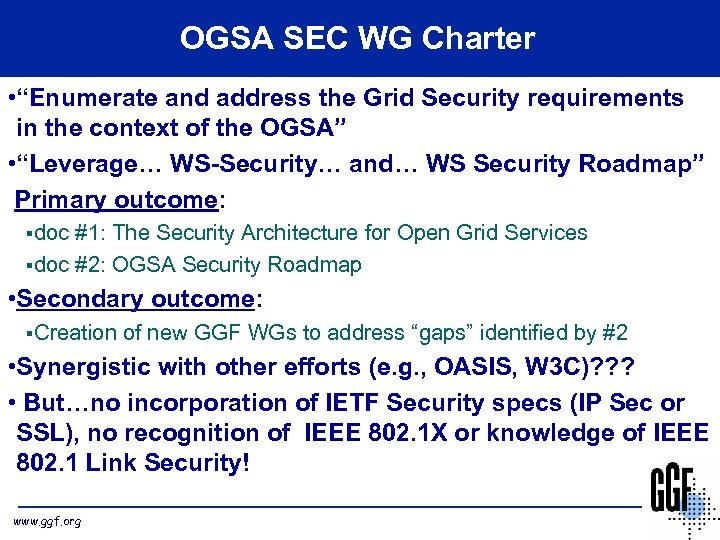

OGSA SEC WG Charter • “Enumerate and address the Grid Security requirements in the context of the OGSA” • “Leverage… WS-Security… and… WS Security Roadmap” Primary outcome: §doc #1: The Security Architecture for Open Grid Services §doc #2: OGSA Security Roadmap • Secondary outcome: §Creation of new GGF WGs to address “gaps” identified by #2 • Synergistic with other efforts (e. g. , OASIS, W 3 C)? ? ? • But…no incorporation of IETF Security specs (IP Sec or SSL), no recognition of IEEE 802. 1 X or knowledge of IEEE 802. 1 Link Security! www. ggf. org

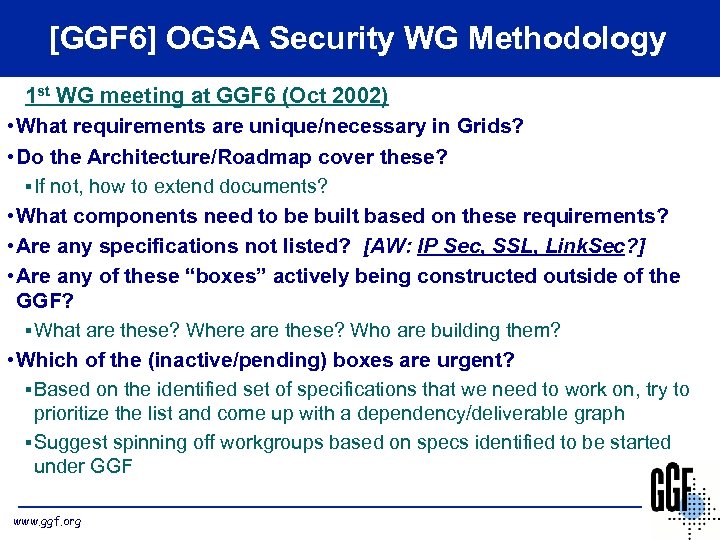

[GGF 6] OGSA Security WG Methodology 1 st WG meeting at GGF 6 (Oct 2002) • What requirements are unique/necessary in Grids? • Do the Architecture/Roadmap cover these? § If not, how to extend documents? • What components need to be built based on these requirements? • Are any specifications not listed? [AW: IP Sec, SSL, Link. Sec? ] • Are any of these “boxes” actively being constructed outside of the GGF? § What are these? Where are these? Who are building them? • Which of the (inactive/pending) boxes are urgent? § Based on the identified set of specifications that we need to work on, try to prioritize the list and come up with a dependency/deliverable graph § Suggest spinning off workgroups based on specs identified to be started under GGF www. ggf. org

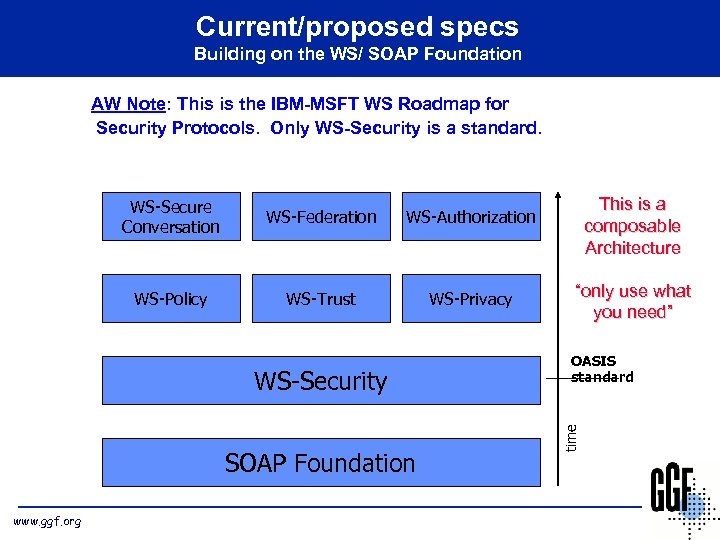

Current/proposed specs Building on the WS/ SOAP Foundation AW Note: This is the IBM-MSFT WS Roadmap for Security Protocols. Only WS-Security is a standard. WS-Federation WS-Policy WS-Trust WS-Privacy WS-Security SOAP Foundation www. ggf. org This is a composable Architecture WS-Authorization “only use what you need” OASIS standard time WS-Secure Conversation

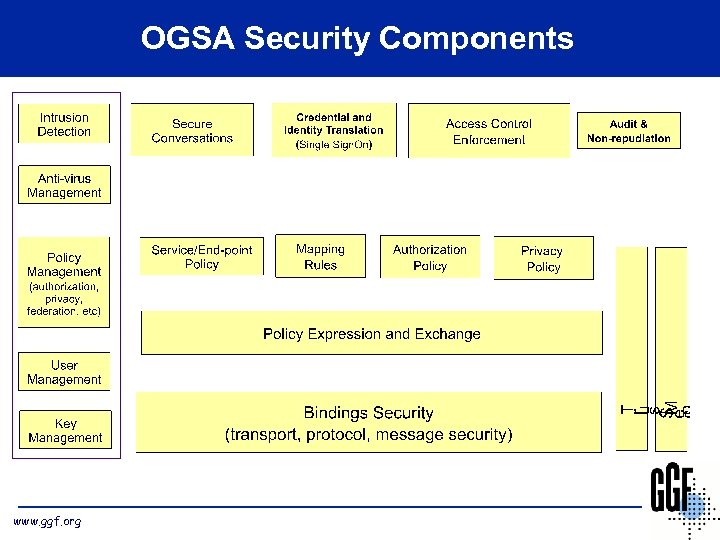

OGSA Security Components www. ggf. org

Building Blocks www. ggf. org

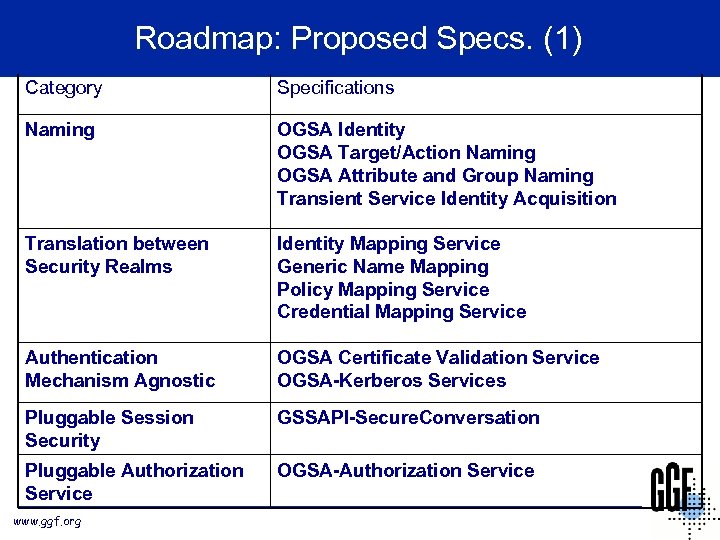

Roadmap: Proposed Specs. (1) Category Specifications Naming OGSA Identity OGSA Target/Action Naming OGSA Attribute and Group Naming Transient Service Identity Acquisition Translation between Security Realms Identity Mapping Service Generic Name Mapping Policy Mapping Service Credential Mapping Service Authentication Mechanism Agnostic OGSA Certificate Validation Service OGSA-Kerberos Services Pluggable Session Security GSSAPI-Secure. Conversation Pluggable Authorization Service OGSA-Authorization Service www. ggf. org

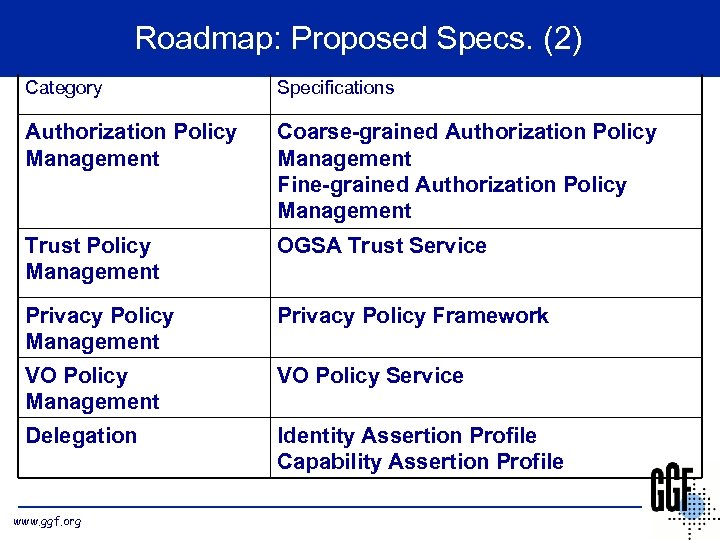

Proposed Specs. (2) Roadmap: Proposed Specs. (2) Category Specifications Authorization Policy Management Coarse-grained Authorization Policy Management Fine-grained Authorization Policy Management Trust Policy Management OGSA Trust Service Privacy Policy Management Privacy Policy Framework VO Policy Management VO Policy Service Delegation Identity Assertion Profile Capability Assertion Profile www. ggf. org

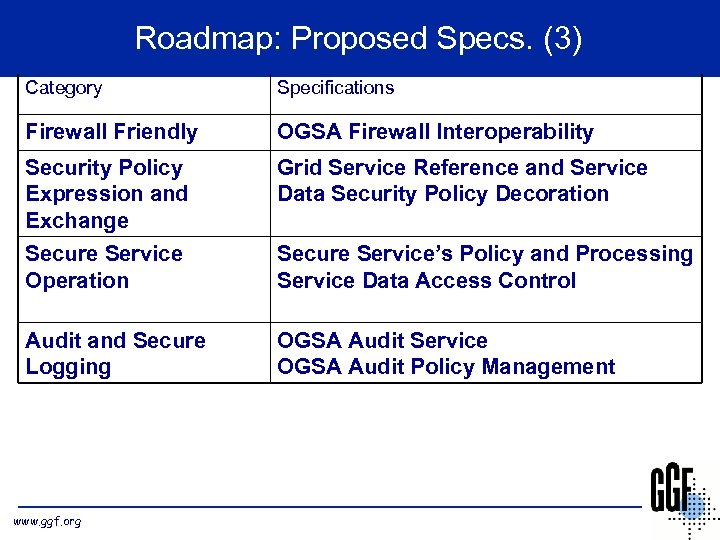

Proposed Specs. (3) Roadmap: Proposed Specs. (3) Category Specifications Firewall Friendly OGSA Firewall Interoperability Security Policy Expression and Exchange Grid Service Reference and Service Data Security Policy Decoration Secure Service Operation Secure Service’s Policy and Processing Service Data Access Control Audit and Secure Logging OGSA Audit Service OGSA Audit Policy Management www. ggf. org

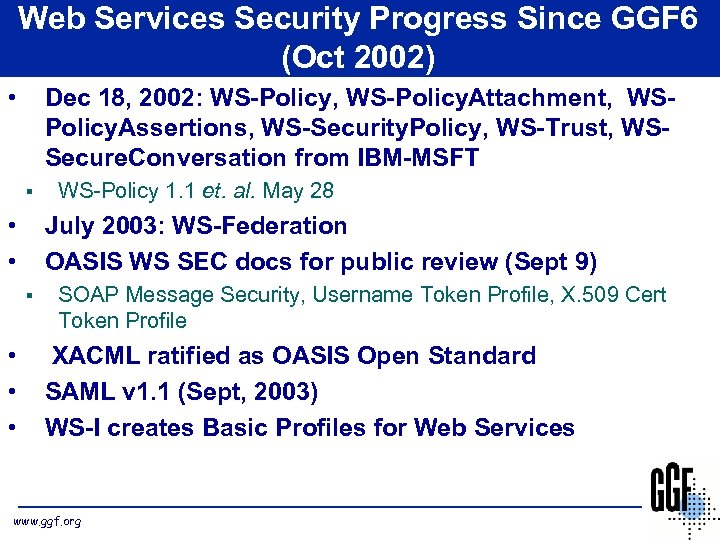

Web Services Security Progress Since GGF 6 (Oct 2002) • Dec 18, 2002: WS-Policy, WS-Policy. Attachment, WSPolicy. Assertions, WS-Security. Policy, WS-Trust, WSSecure. Conversation from IBM-MSFT § • • July 2003: WS-Federation OASIS WS SEC docs for public review (Sept 9) § • • • WS-Policy 1. 1 et. al. May 28 SOAP Message Security, Username Token Profile, X. 509 Cert Token Profile XACML ratified as OASIS Open Standard SAML v 1. 1 (Sept, 2003) WS-I creates Basic Profiles for Web Services www. ggf. org

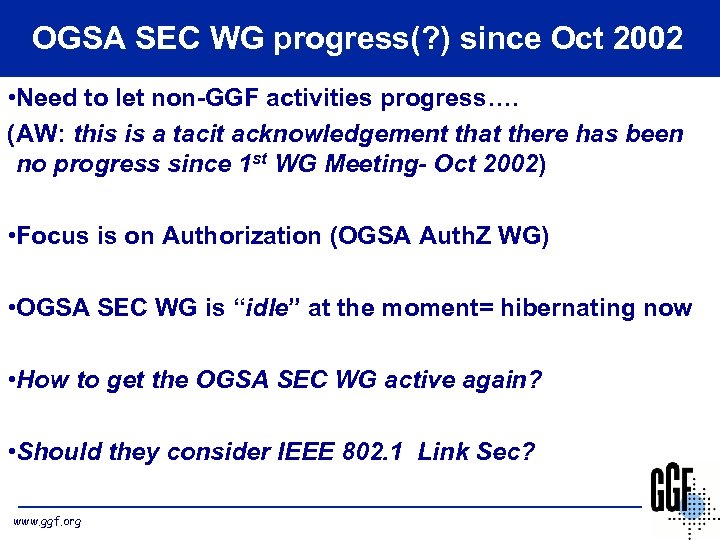

OGSA SEC WG progress(? ) since Oct 2002 • Need to let non-GGF activities progress…. (AW: this is a tacit acknowledgement that there has been no progress since 1 st WG Meeting- Oct 2002) • Focus is on Authorization (OGSA Auth. Z WG) • OGSA SEC WG is “idle” at the moment= hibernating now • How to get the OGSA SEC WG active again? • Should they consider IEEE 802. 1 Link Sec? www. ggf. org

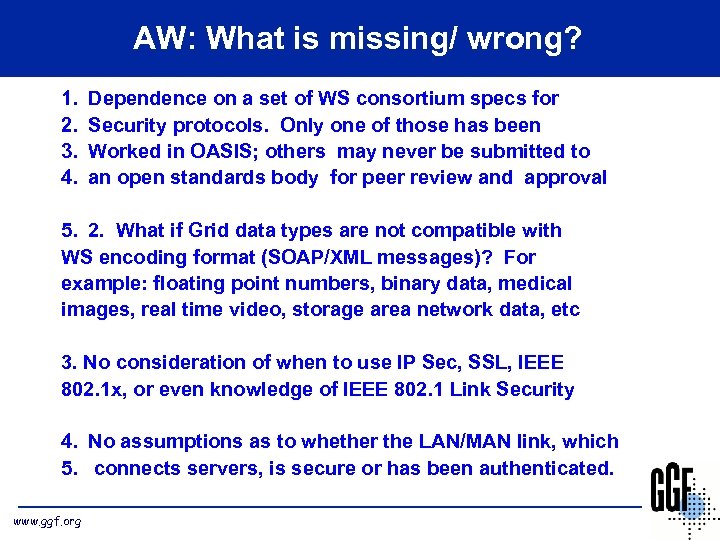

AW: What is missing/ wrong? 1. 2. 3. 4. Dependence on a set of WS consortium specs for Security protocols. Only one of those has been Worked in OASIS; others may never be submitted to an open standards body for peer review and approval 5. 2. What if Grid data types are not compatible with WS encoding format (SOAP/XML messages)? For example: floating point numbers, binary data, medical images, real time video, storage area network data, etc 3. No consideration of when to use IP Sec, SSL, IEEE 802. 1 x, or even knowledge of IEEE 802. 1 Link Security 4. No assumptions as to whether the LAN/MAN link, which 5. connects servers, is secure or has been authenticated. www. ggf. org

How to get Link Sec->OGSA Sec WG? • Objective: Include 802. 1 Link Sec in WG “Bindings Security” (see OGSA Security Components slide) as 1 st layer of transport (below IP and WS bindings- HTTP, SMTTP, MIME, etc). Defer on IPSec and SSL. Security Components • How to do this? [Assuming WG goes into active mode] - Could establish a liaison between IEEE 802 and GGF - Convey IEEE 802. 1 position on need to consider Link. Sec in Grid network environment • Individuals may participate in GGF WGs at no charge - Join email reflector and create a new thread(s) - Participate in conference calls and interim meetings • Grid Forge web site will get you to all GGF WGs http: //forge. gridforum. org/ www. ggf. org
