GGE 5083 Hydrographic Field Operations 2002 Overview

GGE 5083 : Hydrographic Field Operations 2002 Overview, Course Outline http: //www. omg. unb. ca/GGE/SE_5083. html John E. Hughes Clarke OMG/UNB jhc@omg. unb. ca 506 -453 -4568 GGE 5083 Hydrogrpahic Field Operations © J. E. Hughes Clarke, OMG/UNB

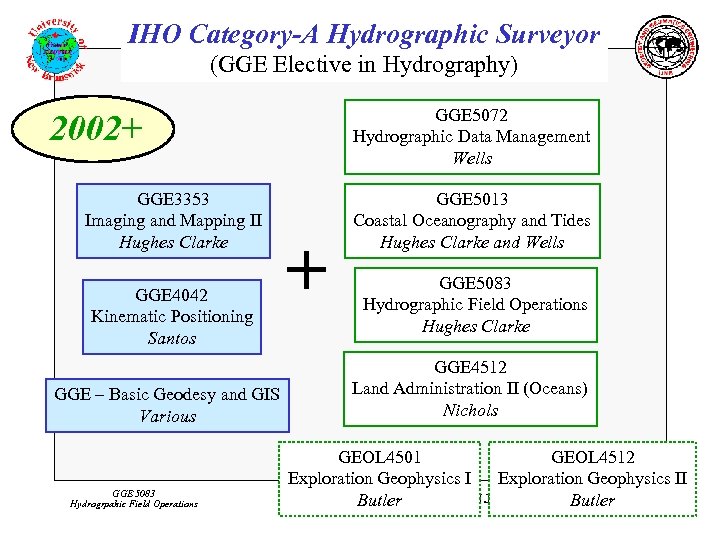

IHO Category-A Hydrographic Surveyor (GGE Elective in Hydrography) GGE 5072 Hydrographic Data Management Wells 2002+ GGE 3353 Imaging and Mapping II Hughes Clarke GGE 4042 Kinematic Positioning Santos GGE – Basic Geodesy and GIS Various GGE 5083 Hydrogrpahic Field Operations + GGE 5013 Coastal Oceanography and Tides Hughes Clarke and Wells GGE 5083 Hydrographic Field Operations Hughes Clarke GGE 4512 Land Administration II (Oceans) Nichols GEOL 4501 GEOL 4512 Exploration Geophysics II © J. E. Hughes Clarke, OMG/UNB Butler

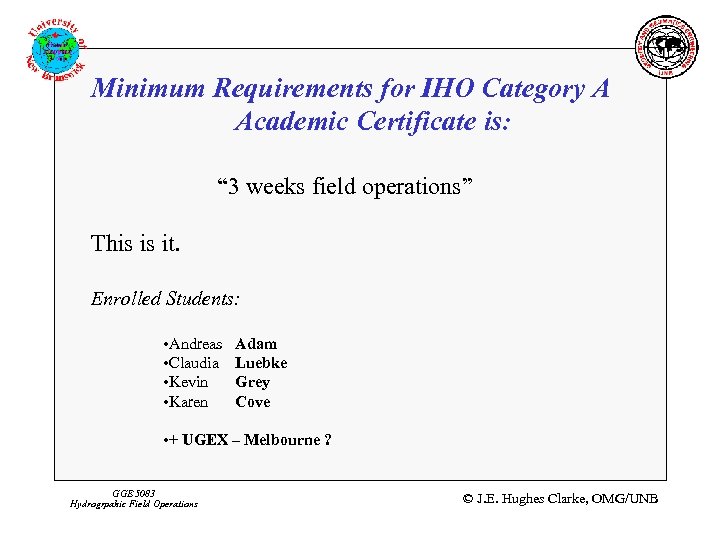

Minimum Requirements for IHO Category A Academic Certificate is: “ 3 weeks field operations” This is it. Enrolled Students: • Andreas • Claudia • Kevin • Karen Adam Luebke Grey Cove • + UGEX – Melbourne ? GGE 5083 Hydrogrpahic Field Operations © J. E. Hughes Clarke, OMG/UNB

RV Mary-O 43 ft Cape Island Knudsen 320 B/P RDI ADCP CSL Plover 31 ft P-boat Simrad EM 3000 S CSL Heron GGE 5083 Hydrogrpahic Field Operations 34 ft H-boat Simrad EM 3000 S © J. E. Hughes Clarke, OMG/UNB Knudsen 320 B/P RDI ADCP

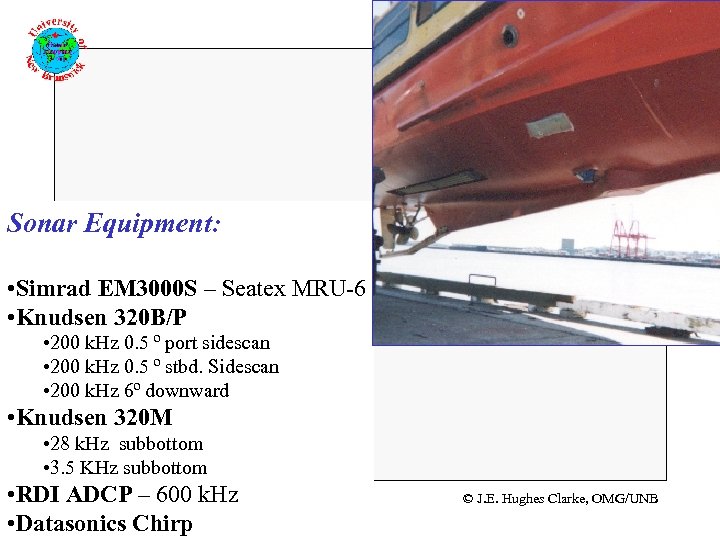

Sonar Equipment: • Simrad EM 3000 S – Seatex MRU-6 • Knudsen 320 B/P • 200 k. Hz 0. 5 º port sidescan • 200 k. Hz 0. 5 º stbd. Sidescan • 200 k. Hz 6º downward • Knudsen 320 M • 28 k. Hz subbottom • 3. 5 KHz subbottom GGE 5083 • RDI ADCPField Operationsk. Hz Hydrogrpahic – 600 • Datasonics Chirp © J. E. Hughes Clarke, OMG/UNB

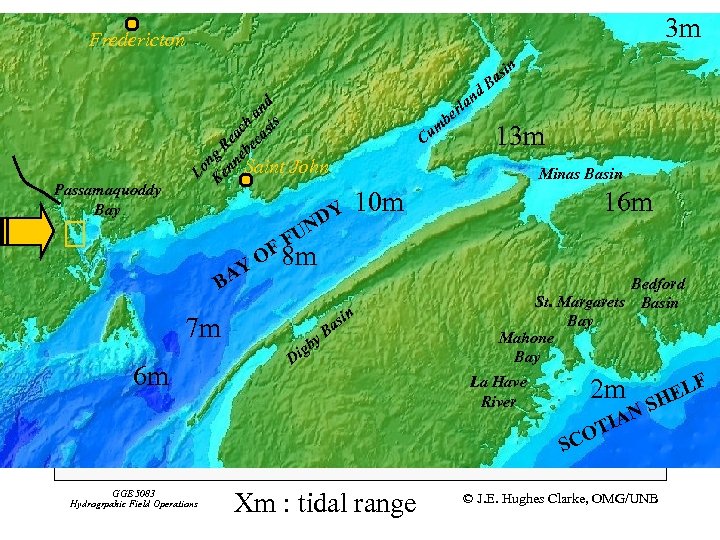

3 m Fredericton in d Lo Ke ng R nn ea eb ch ec a as nd is n rla be um C s Ba 13 m Saint John Passamaquoddy Bay AY B 7 m 6 m O FU F DY N Minas Basin 10 m 16 m 8 m y igb D in as B Bedford St. Margarets Basin Bay Mahone Bay La Have River 2 m NS IA T O SC GGE 5083 Hydrogrpahic Field Operations Xm : tidal range © J. E. Hughes Clarke, OMG/UNB F L HE

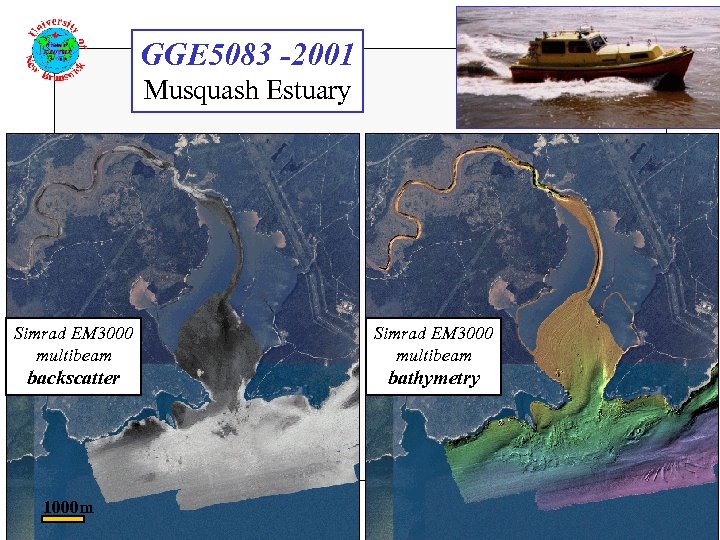

GGE 5083 -2001 Musquash Estuary Simrad EM 3000 multibeam backscatter bathymetry GGE 5083 Hydrogrpahic Field Operations 1000 m © J. E. Hughes Clarke, OMG/UNB

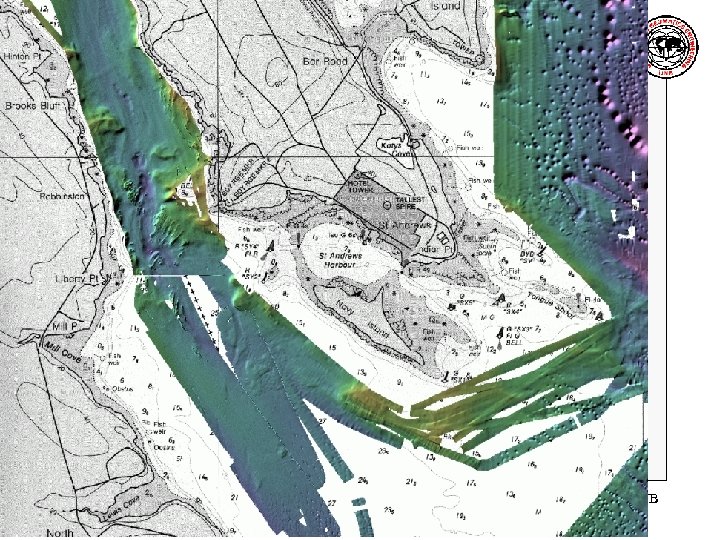

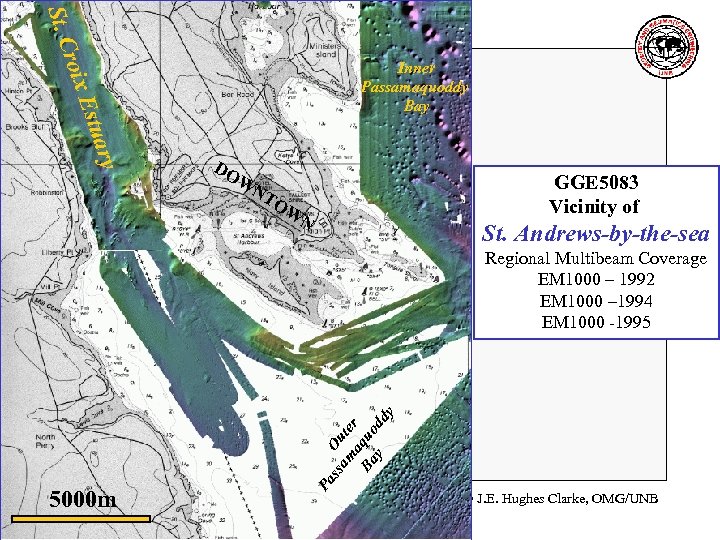

E roix St. C ry stua Inner Passamaquoddy Bay DO W GGE 5083 Vicinity of NT OW N St. Andrews-by-the-sea GGE 5083 Hydrogrpahic 5000 m Field Operations Pa ss O am ute a r Ba quo y dd y Regional Multibeam Coverage EM 1000 – 1992 EM 1000 – 1994 EM 1000 -1995 © J. E. Hughes Clarke, OMG/UNB

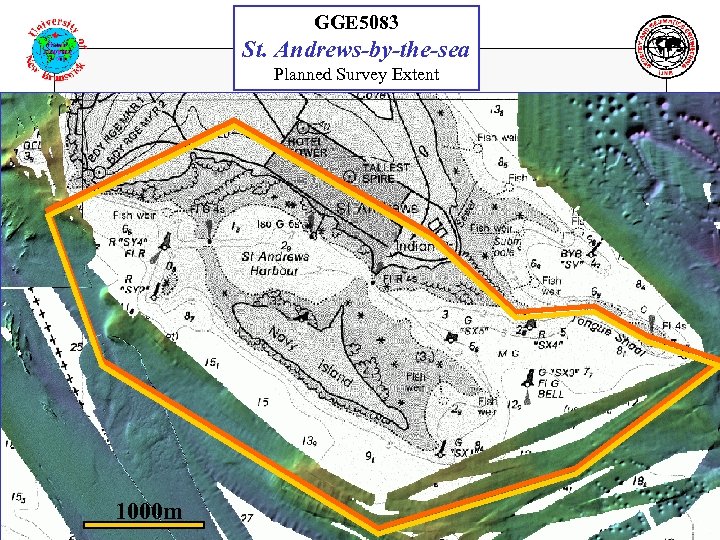

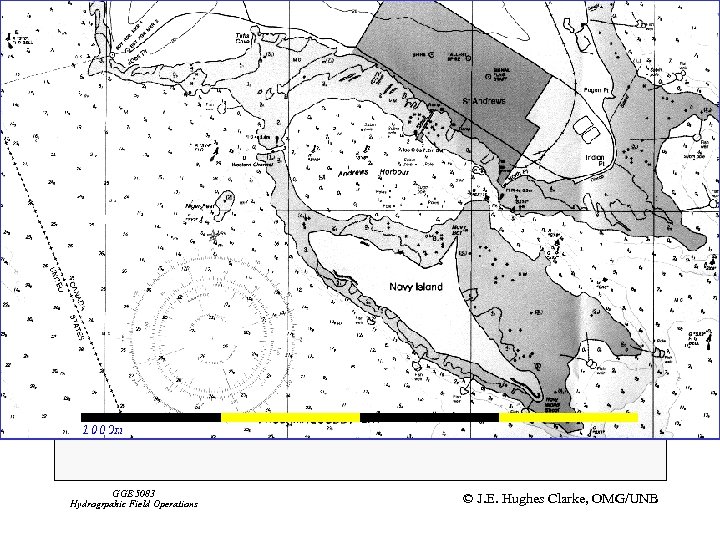

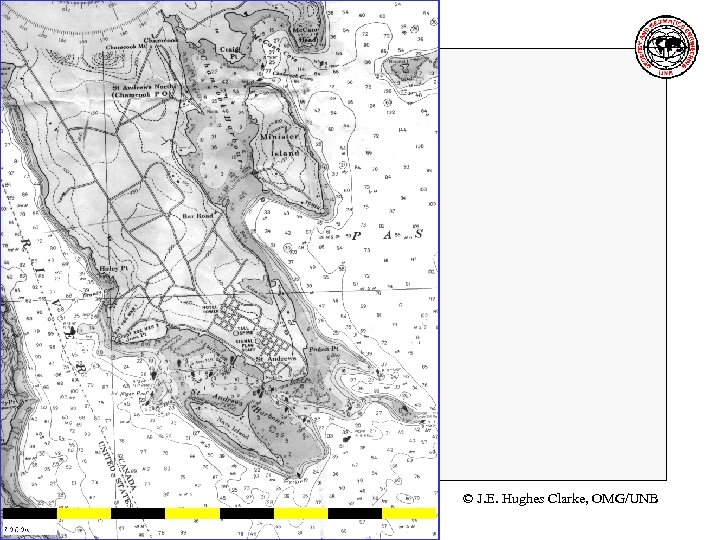

GGE 5083 St. Andrews-by-the-sea Planned Survey Extent GGE 5083 Hydrogrpahic Field Operations 1000 m © J. E. Hughes Clarke, OMG/UNB

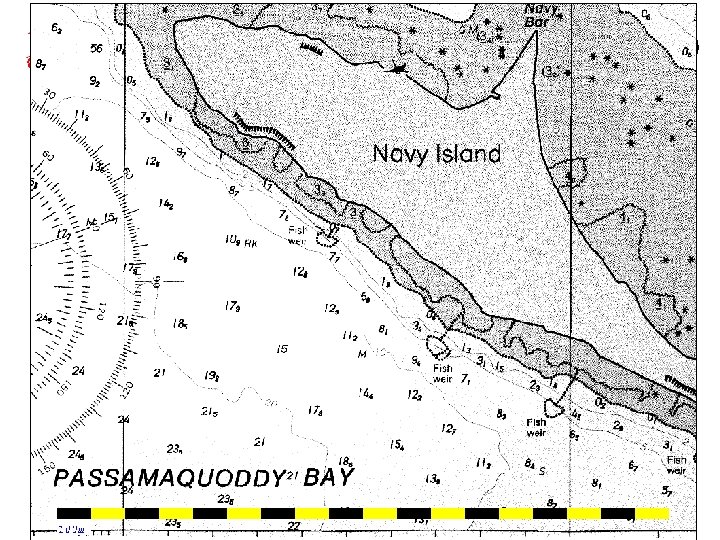

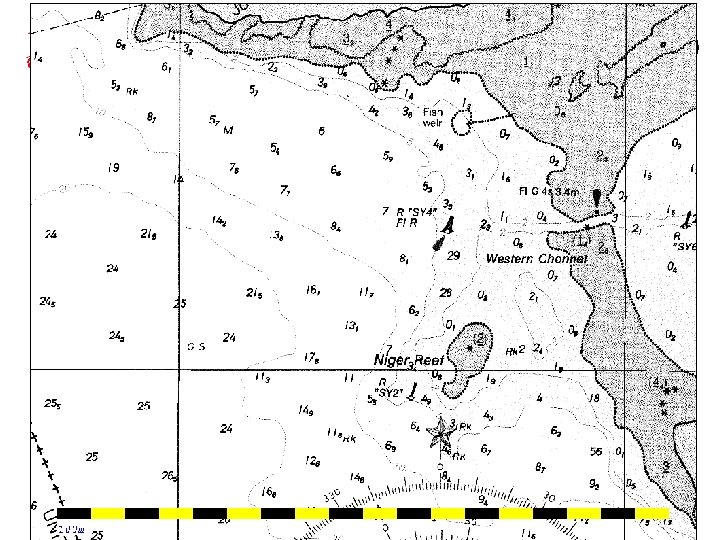

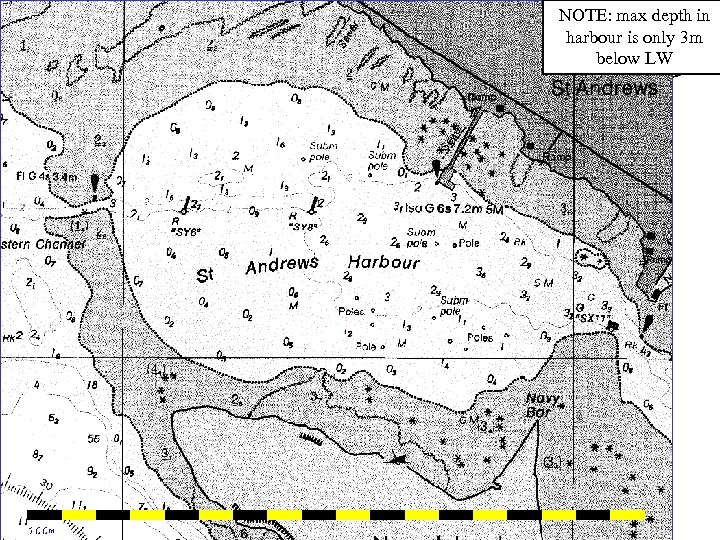

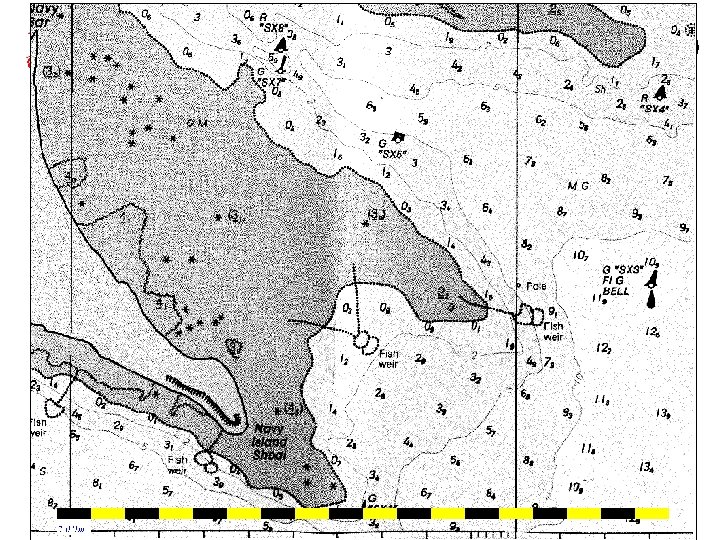

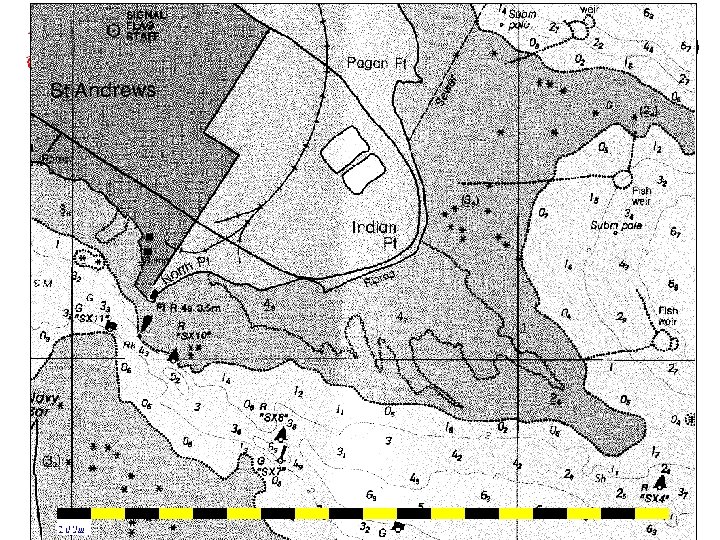

NOTE: max depth in harbour is only 3 m below LW GGE 5083 Hydrogrpahic Field Operations © J. E. Hughes Clarke, OMG/UNB

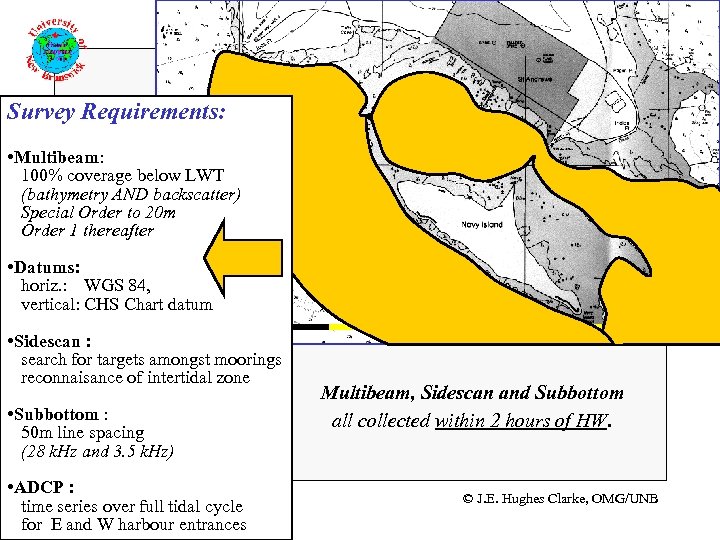

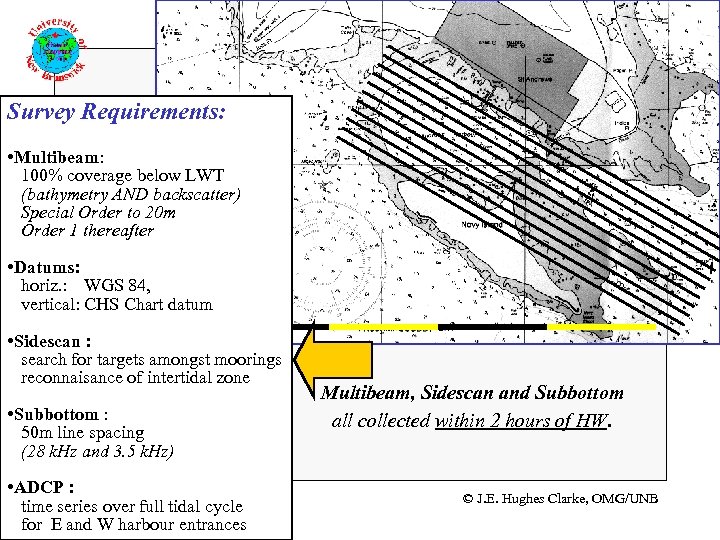

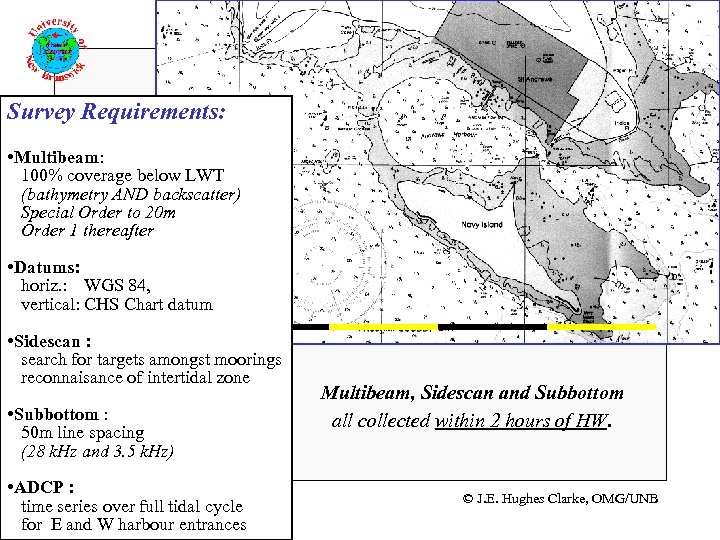

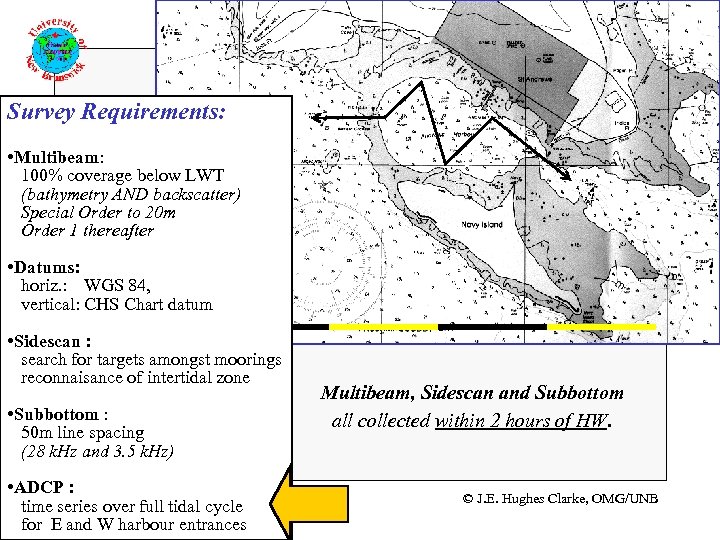

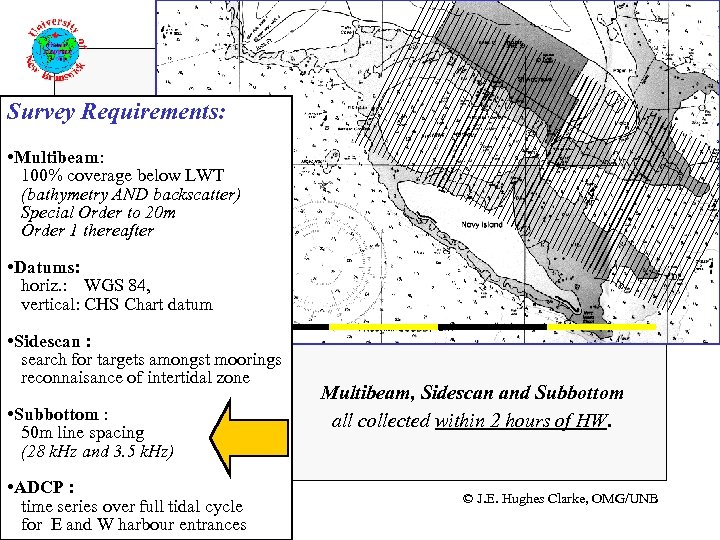

Survey Requirements: • Multibeam: 100% coverage below LWT (bathymetry AND backscatter) Special Order to 20 m Order 1 thereafter • Datums: horiz. : WGS 84, vertical: CHS Chart datum • Sidescan : search for targets amongst moorings reconnaisance of intertidal zone • Subbottom : 50 m line spacing (28 k. Hz and 3. 5 k. Hz) • ADCP : GGE 5083 Hydrogrpahic Field Operations time series over full tidal cycle for E and W harbour entrances Multibeam, Sidescan and Subbottom all collected within 2 hours of HW. © J. E. Hughes Clarke, OMG/UNB

Possible Extra Programs: • Reference Surface – establishment and testing of: • Seatex Seapath 200 -RTK • Applanix POS/MV 320 V. 3 CCGS Hart • Geophysical surveys with Geological Survey of Canada • Seistex Boomer • Datasonics Chirp • Simrad MS 972 towed sidescan • Grabs, cameras, USBL. Regional Surveys as dictated during LW periods • Extension of pockmark operations • T/S profiling of St. Croix Estuary. GGE 5083 Hydrogrpahic Field Operations © J. E. Hughes Clarke, OMG/UNB

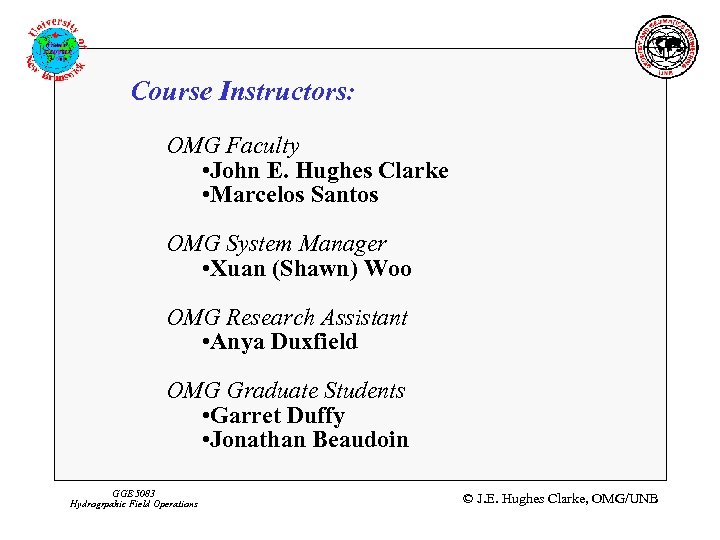

Course Instructors: OMG Faculty • John E. Hughes Clarke • Marcelos Santos OMG System Manager • Xuan (Shawn) Woo OMG Research Assistant • Anya Duxfield OMG Graduate Students • Garret Duffy • Jonathan Beaudoin GGE 5083 Hydrogrpahic Field Operations © J. E. Hughes Clarke, OMG/UNB

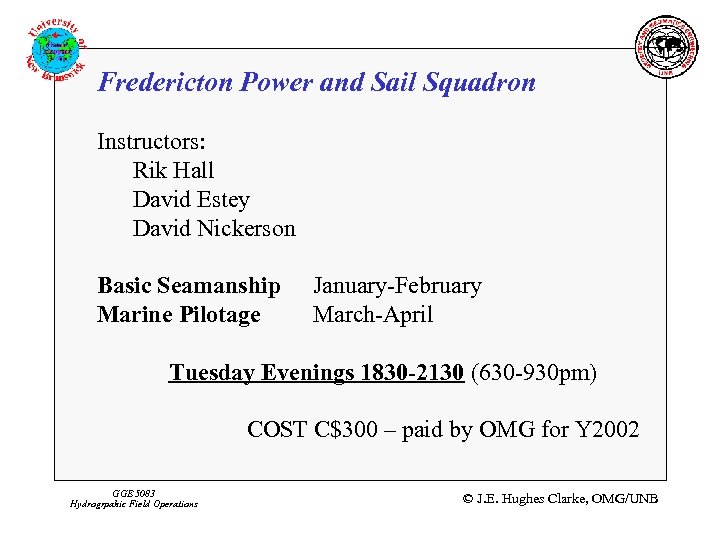

Fredericton Power and Sail Squadron Instructors: Rik Hall David Estey David Nickerson Basic Seamanship Marine Pilotage January-February March-April Tuesday Evenings 1830 -2130 (630 -930 pm) COST C$300 – paid by OMG for Y 2002 GGE 5083 Hydrogrpahic Field Operations © J. E. Hughes Clarke, OMG/UNB

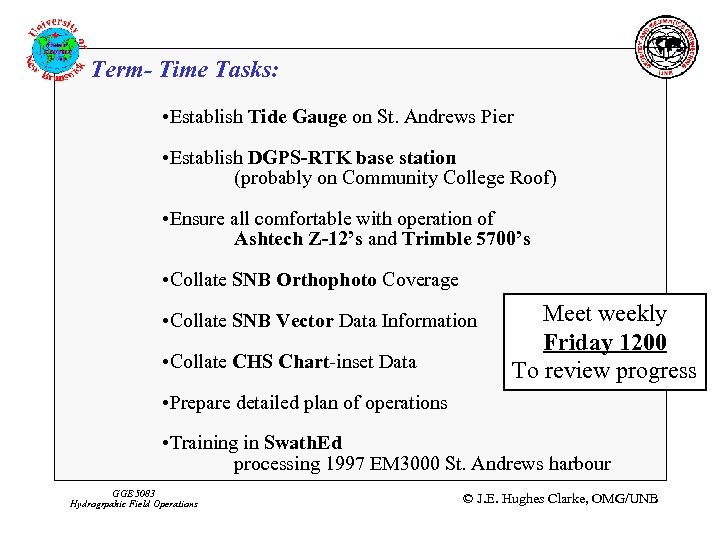

Term- Time Tasks: • Establish Tide Gauge on St. Andrews Pier • Establish DGPS-RTK base station (probably on Community College Roof) • Ensure all comfortable with operation of Ashtech Z-12’s and Trimble 5700’s • Collate SNB Orthophoto Coverage • Collate SNB Vector Data Information • Collate CHS Chart-inset Data Meet weekly Friday 1200 To review progress • Prepare detailed plan of operations • Training in Swath. Ed processing 1997 EM 3000 St. Andrews harbour GGE 5083 Hydrogrpahic Field Operations © J. E. Hughes Clarke, OMG/UNB
