Geostationary Operational Environmental Satellite (GOES) User’s Conference Current Status of the NOAA GOES Direct Services Paul Seymour – Broadcast Services Manager Marlin Perkins, Kay Metcalf and Tom Renkevens Santos Rodriguez and Rob Wagner Office of Satellite Data Processing and Distribution November 03, 2009

Purpose of Briefing Provide the latest status of GOES services • GOES VARiable (GVAR) • Low Rate Information Transmission (LRIT) • Direct Collection Services (DCS) • Emergency Managers Weather Information Network (EMWIN) • Search And Rescue Satellite Aided Tracking (SARSAT) System • http: //www. osdpd. noaa. gov/ml/svcs/index. html 3/17/2018 2

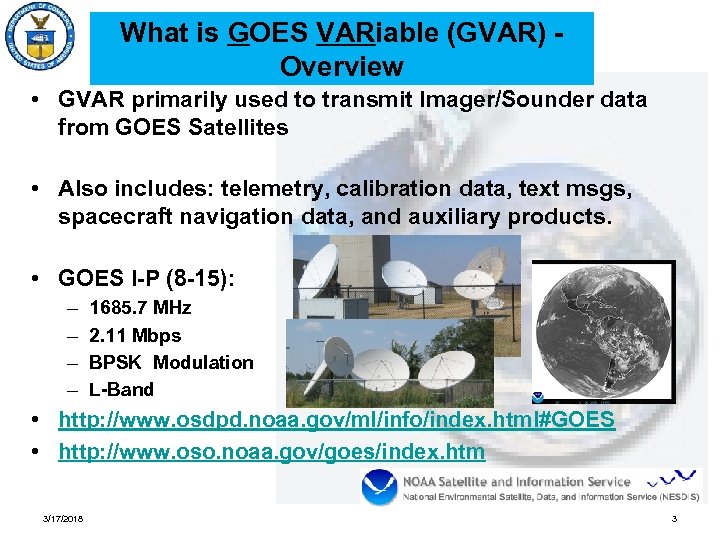

What is GOES VARiable (GVAR) Overview • GVAR primarily used to transmit Imager/Sounder data from GOES Satellites • Also includes: telemetry, calibration data, text msgs, spacecraft navigation data, and auxiliary products. • GOES I-P (8 -15): – – 1685. 7 MHz 2. 11 Mbps BPSK Modulation L-Band • http: //www. osdpd. noaa. gov/ml/info/index. html#GOES • http: //www. oso. noaa. gov/goes/index. htm 3/17/2018 3

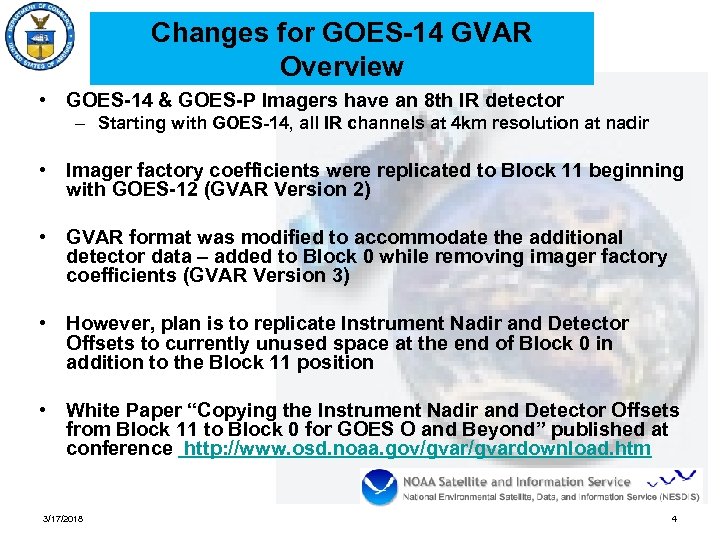

Changes for GOES-14 GVAR Overview • GOES-14 & GOES-P Imagers have an 8 th IR detector – Starting with GOES-14, all IR channels at 4 km resolution at nadir • Imager factory coefficients were replicated to Block 11 beginning with GOES-12 (GVAR Version 2) • GVAR format was modified to accommodate the additional detector data – added to Block 0 while removing imager factory coefficients (GVAR Version 3) • However, plan is to replicate Instrument Nadir and Detector Offsets to currently unused space at the end of Block 0 in addition to the Block 11 position • White Paper “Copying the Instrument Nadir and Detector Offsets from Block 11 to Block 0 for GOES O and Beyond” published at conference http: //www. osd. noaa. gov/gvardownload. htm 3/17/2018 4

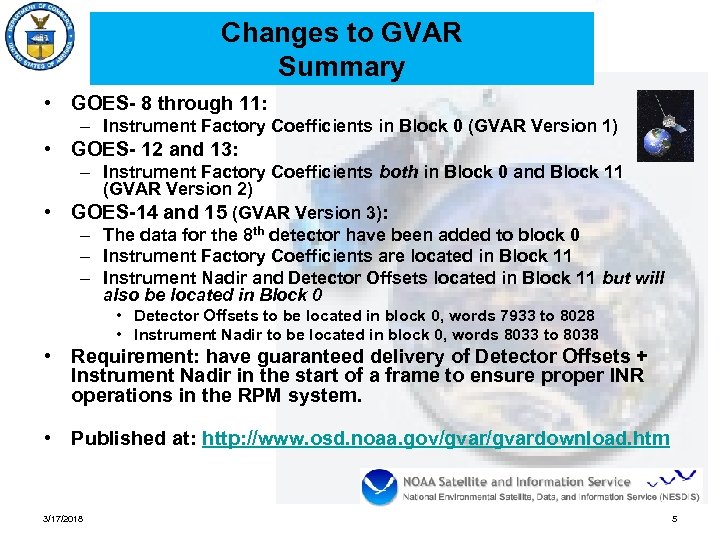

Changes to GVAR Summary • GOES- 8 through 11: – Instrument Factory Coefficients in Block 0 (GVAR Version 1) • GOES- 12 and 13: • – Instrument Factory Coefficients both in Block 0 and Block 11 (GVAR Version 2) GOES-14 and 15 (GVAR Version 3): – The data for the 8 th detector have been added to block 0 – Instrument Factory Coefficients are located in Block 11 – Instrument Nadir and Detector Offsets located in Block 11 but will also be located in Block 0 • Detector Offsets to be located in block 0, words 7933 to 8028 • Instrument Nadir to be located in block 0, words 8033 to 8038 • Requirement: have guaranteed delivery of Detector Offsets + Instrument Nadir in the start of a frame to ensure proper INR operations in the RPM system. • Published at: http: //www. osd. noaa. gov/gvardownload. htm 3/17/2018 5

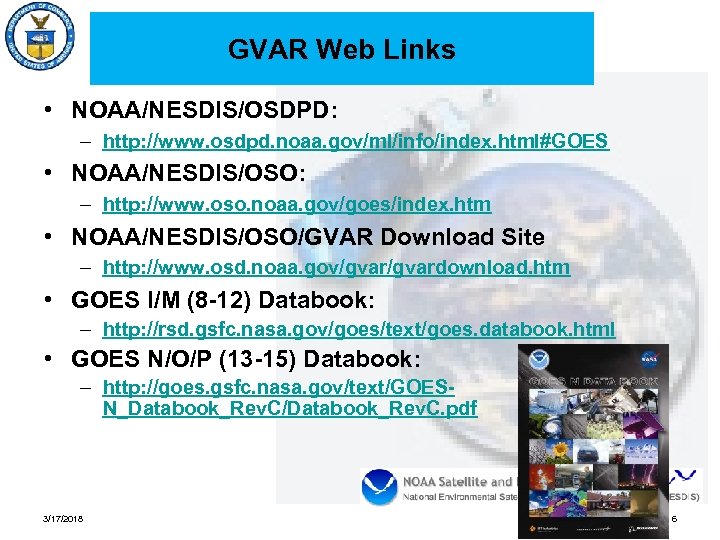

GVAR Web Links • NOAA/NESDIS/OSDPD: – http: //www. osdpd. noaa. gov/ml/info/index. html#GOES • NOAA/NESDIS/OSO: – http: //www. oso. noaa. gov/goes/index. htm • NOAA/NESDIS/OSO/GVAR Download Site – http: //www. osd. noaa. gov/gvardownload. htm • GOES I/M (8 -12) Databook: – http: //rsd. gsfc. nasa. gov/goes/text/goes. databook. html • GOES N/O/P (13 -15) Databook: – http: //goes. gsfc. nasa. gov/text/GOESN_Databook_Rev. C/Databook_Rev. C. pdf 3/17/2018 6

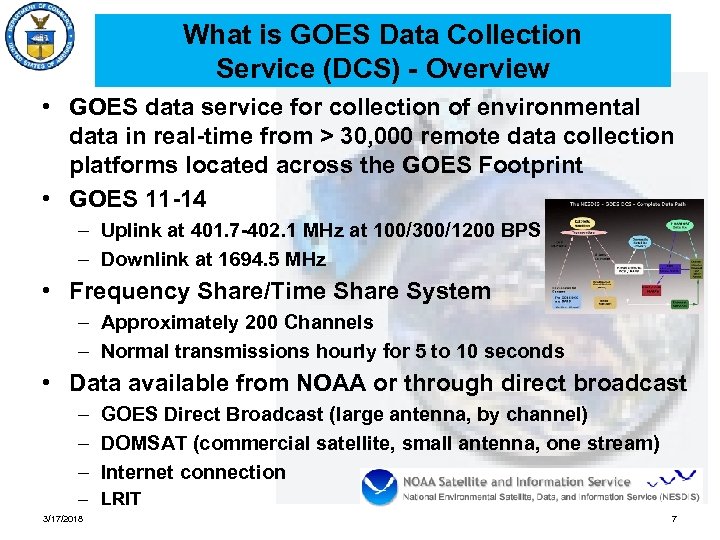

What is GOES Data Collection Service (DCS) - Overview • GOES data service for collection of environmental data in real-time from > 30, 000 remote data collection platforms located across the GOES Footprint • GOES 11 -14 – Uplink at 401. 7 -402. 1 MHz at 100/300/1200 BPS – Downlink at 1694. 5 MHz • Frequency Share/Time Share System – Approximately 200 Channels – Normal transmissions hourly for 5 to 10 seconds • Data available from NOAA or through direct broadcast – GOES Direct Broadcast (large antenna, by channel) – DOMSAT (commercial satellite, small antenna, one stream) – Internet connection – LRIT 3/17/2018 7

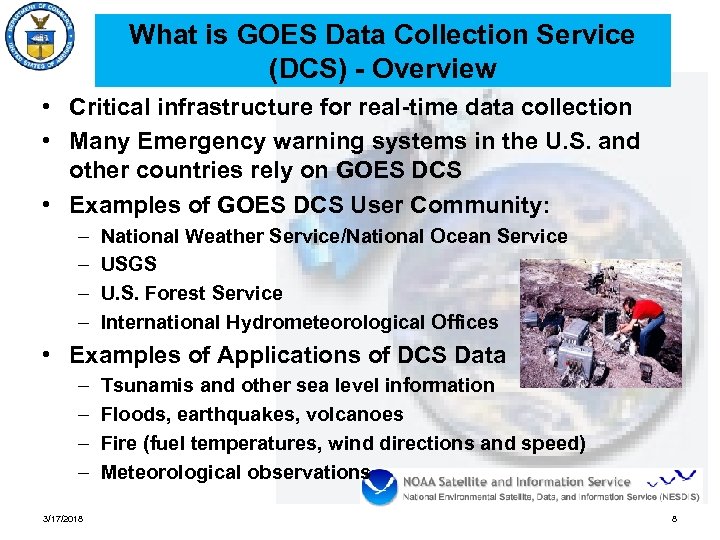

What is GOES Data Collection Service (DCS) - Overview • Critical infrastructure for real-time data collection • Many Emergency warning systems in the U. S. and other countries rely on GOES DCS • Examples of GOES DCS User Community: – – National Weather Service/National Ocean Service USGS U. S. Forest Service International Hydrometeorological Offices • Examples of Applications of DCS Data – – 3/17/2018 Tsunamis and other sea level information Floods, earthquakes, volcanoes Fire (fuel temperatures, wind directions and speed) Meteorological observations 8

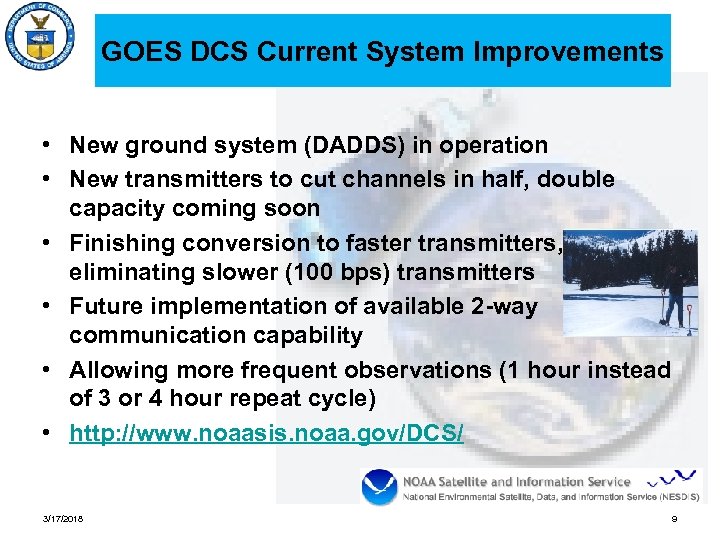

GOES DCS Current System Improvements • New ground system (DADDS) in operation • New transmitters to cut channels in half, double capacity coming soon • Finishing conversion to faster transmitters, eliminating slower (100 bps) transmitters • Future implementation of available 2 -way communication capability • Allowing more frequent observations (1 hour instead of 3 or 4 hour repeat cycle) • http: //www. noaasis. noaa. gov/DCS/ 3/17/2018 9

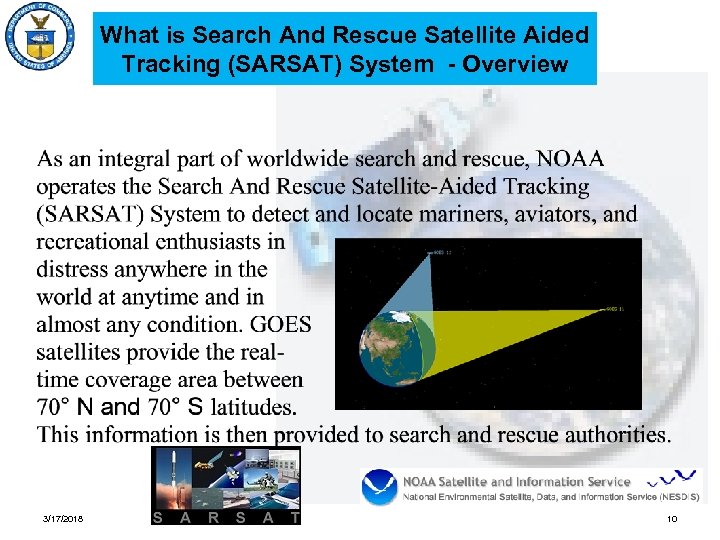

What is Search And Rescue Satellite Aided Tracking (SARSAT) System - Overview 3/17/2018 10

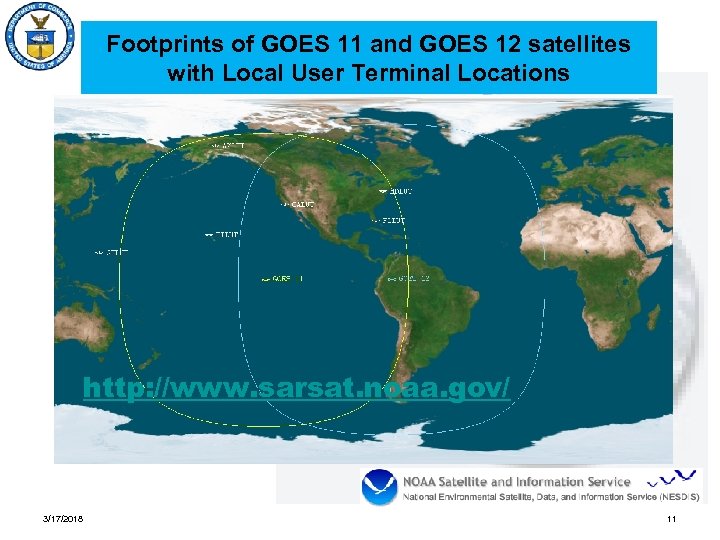

Footprints of GOES 11 and GOES 12 satellites with Local User Terminal Locations http: //www. sarsat. noaa. gov/ 3/17/2018 11

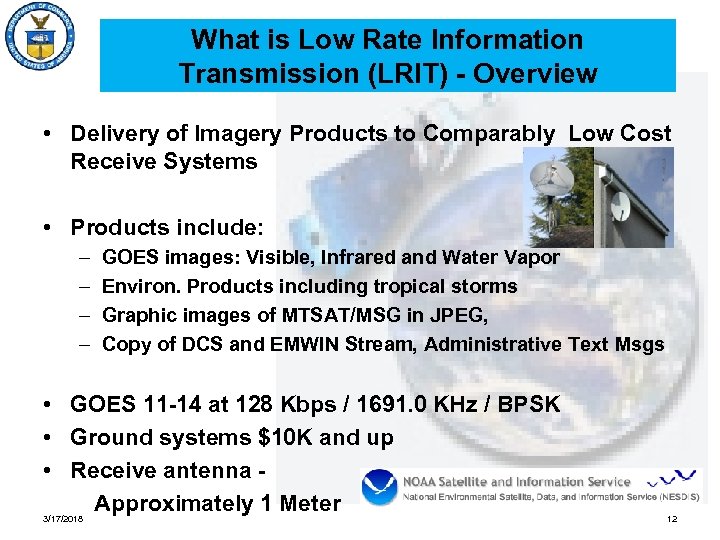

What is Low Rate Information Transmission (LRIT) - Overview • Delivery of Imagery Products to Comparably Low Cost Receive Systems • Products include: – – GOES images: Visible, Infrared and Water Vapor Environ. Products including tropical storms Graphic images of MTSAT/MSG in JPEG, Copy of DCS and EMWIN Stream, Administrative Text Msgs • GOES 11 -14 at 128 Kbps / 1691. 0 KHz / BPSK • Ground systems $10 K and up • Receive antenna Approximately 1 Meter 3/17/2018 12

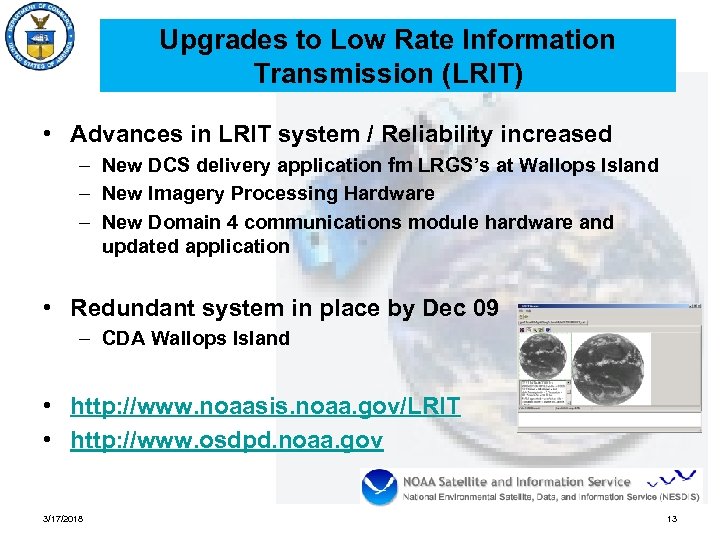

Upgrades to Low Rate Information Transmission (LRIT) • Advances in LRIT system / Reliability increased – New DCS delivery application fm LRGS’s at Wallops Island – New Imagery Processing Hardware – New Domain 4 communications module hardware and updated application • Redundant system in place by Dec 09 – CDA Wallops Island • http: //www. noaasis. noaa. gov/LRIT • http: //www. osdpd. noaa. gov 3/17/2018 13

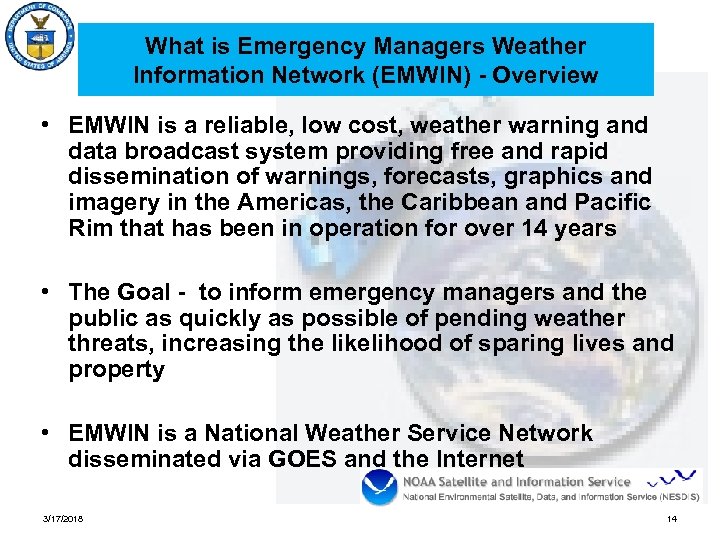

What is Emergency Managers Weather Information Network (EMWIN) - Overview • EMWIN is a reliable, low cost, weather warning and data broadcast system providing free and rapid dissemination of warnings, forecasts, graphics and imagery in the Americas, the Caribbean and Pacific Rim that has been in operation for over 14 years • The Goal - to inform emergency managers and the public as quickly as possible of pending weather threats, increasing the likelihood of sparing lives and property • EMWIN is a National Weather Service Network disseminated via GOES and the Internet 3/17/2018 14

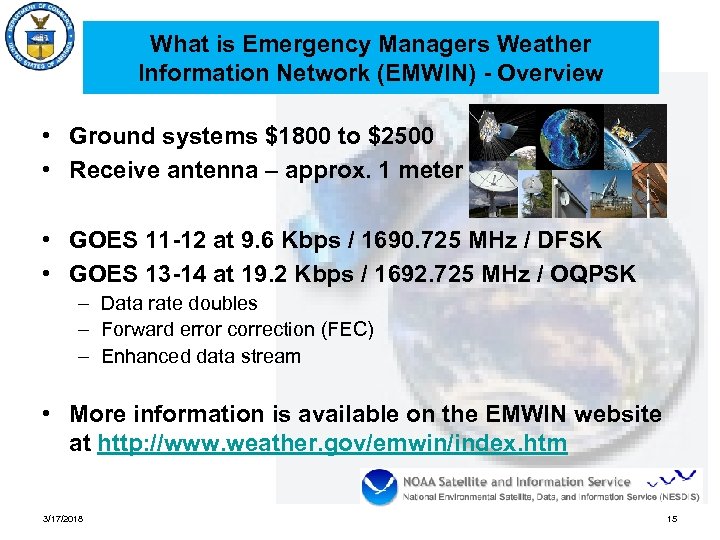

What is Emergency Managers Weather Information Network (EMWIN) - Overview • Ground systems $1800 to $2500 • Receive antenna – approx. 1 meter • GOES 11 -12 at 9. 6 Kbps / 1690. 725 MHz / DFSK • GOES 13 -14 at 19. 2 Kbps / 1692. 725 MHz / OQPSK – Data rate doubles – Forward error correction (FEC) – Enhanced data stream • More information is available on the EMWIN website at http: //www. weather. gov/emwin/index. htm 3/17/2018 15

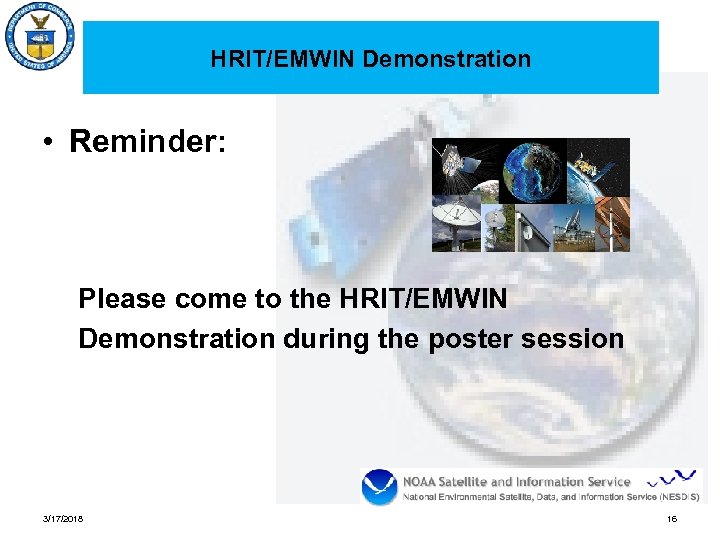

HRIT/EMWIN Demonstration • Reminder: Please come to the HRIT/EMWIN Demonstration during the poster session 3/17/2018 16

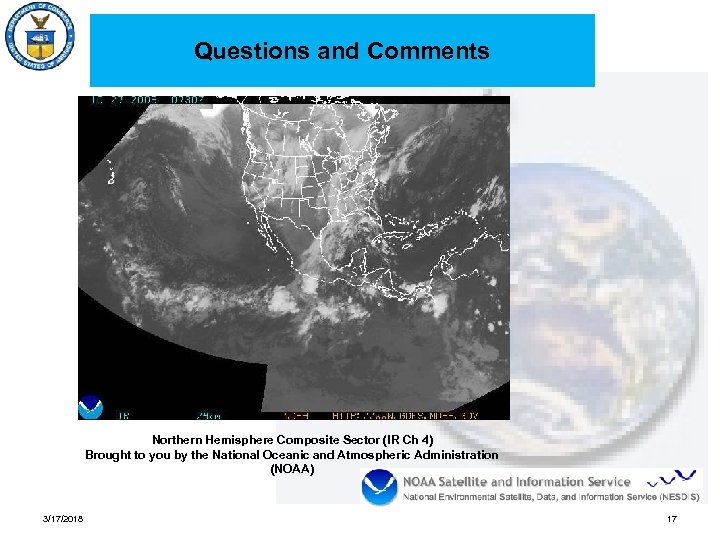

Questions and Comments Northern Hemisphere Composite Sector (IR Ch 4) Brought to you by the National Oceanic and Atmospheric Administration (NOAA) 3/17/2018 17

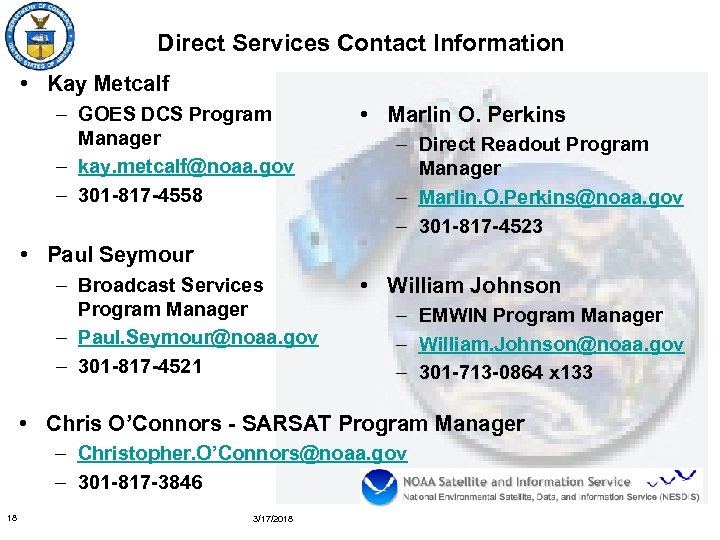

Direct Services Contact Information • Kay Metcalf – GOES DCS Program Manager – kay. metcalf@noaa. gov – 301 -817 -4558 • Marlin O. Perkins – Direct Readout Program Manager – Marlin. O. Perkins@noaa. gov – 301 -817 -4523 • Paul Seymour – Broadcast Services Program Manager – Paul. Seymour@noaa. gov – 301 -817 -4521 • William Johnson – EMWIN Program Manager – William. Johnson@noaa. gov – 301 -713 -0864 x 133 • Chris O’Connors - SARSAT Program Manager – Christopher. O’Connors@noaa. gov – 301 -817 -3846 18 3/17/2018

Backup Slides 3/17/2018 19

GVAR Overview 3/17/2018 20

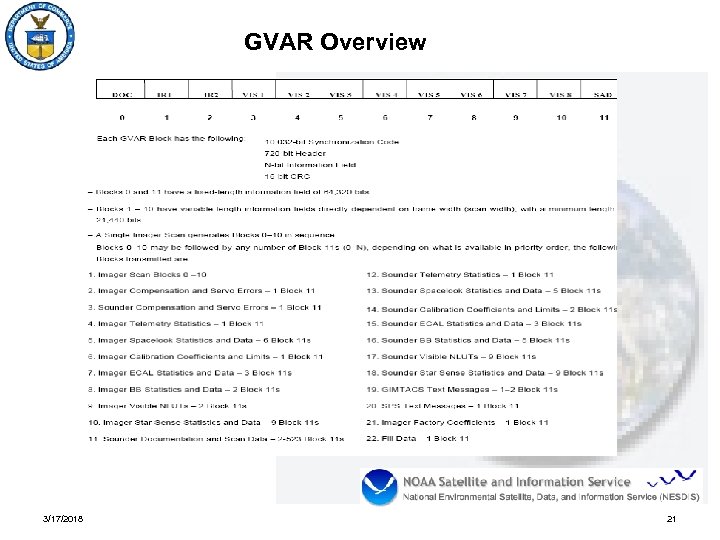

GVAR Overview 3/17/2018 21

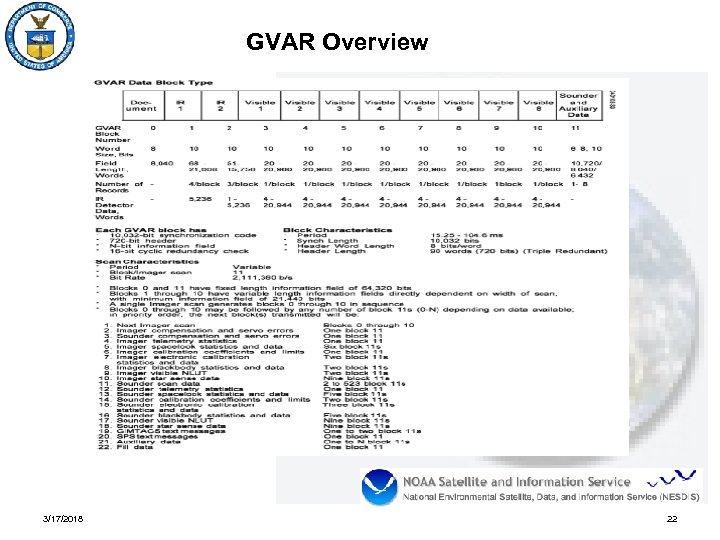

GVAR Overview 3/17/2018 22
