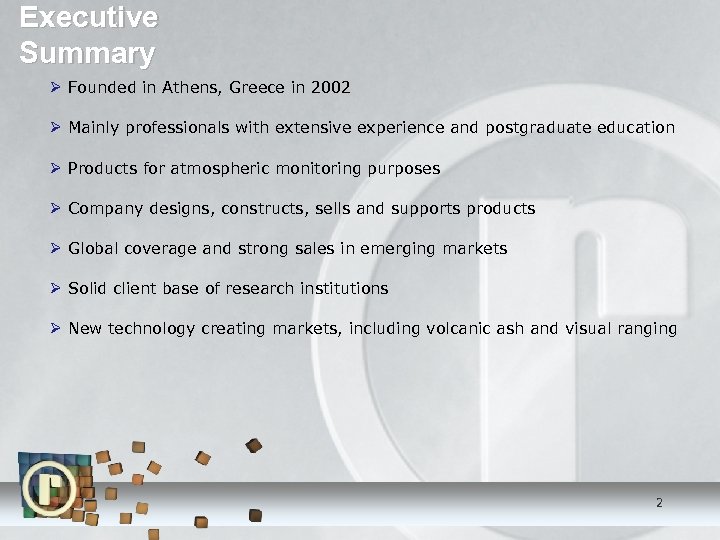

Executive Summary Founded in Athens, Greece in 2002 Mainly professionals with extensive experience and postgraduate education Products for atmospheric monitoring purposes Company designs, constructs, sells and supports products Global coverage and strong sales in emerging markets Solid client base of research institutions New technology creating markets, including volcanic ash and visual ranging 2

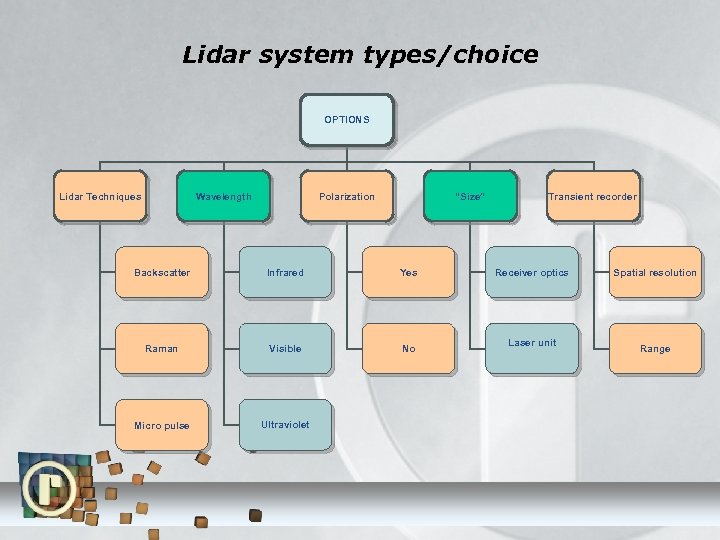

Lidar system types/choice OPTIONS Lidar Techniques Wavelength “Size” Polarization Backscatter Infrared Yes Raman Visible No Micro pulse Ultraviolet Transient recorder Receiver optics Laser unit Spatial resolution Range

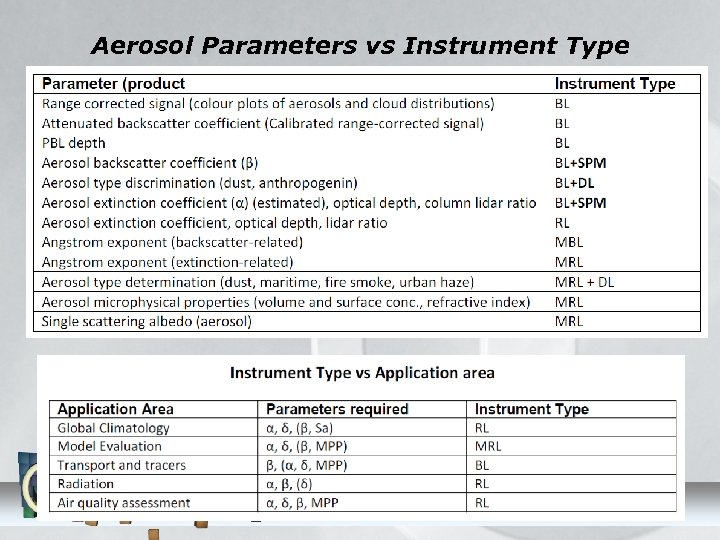

Aerosol Parameters vs Instrument Type

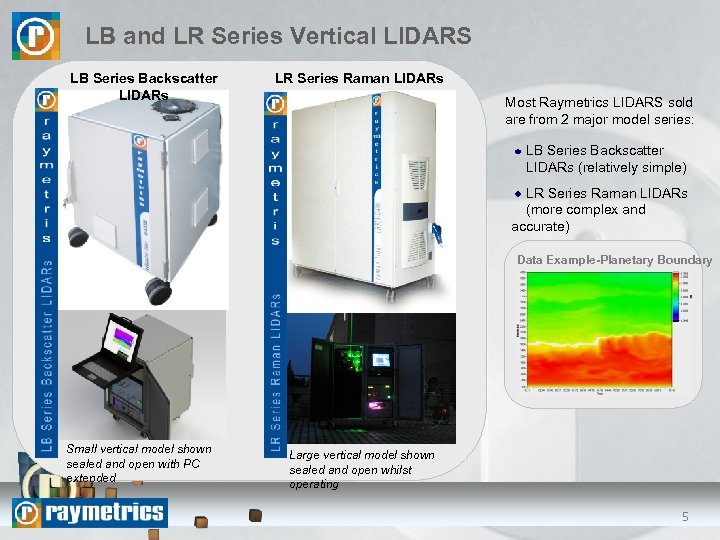

LB and LR Series Vertical LIDARS LB Series Backscatter LIDARs LR Series Raman LIDARs Most Raymetrics LIDARS sold are from 2 major model series: LB Series Backscatter LIDARs (relatively simple) LR Series Raman LIDARs (more complex and accurate) Data Example-Planetary Boundary Small vertical model shown sealed and open with PC extended Large vertical model shown sealed and open whilst operating 5

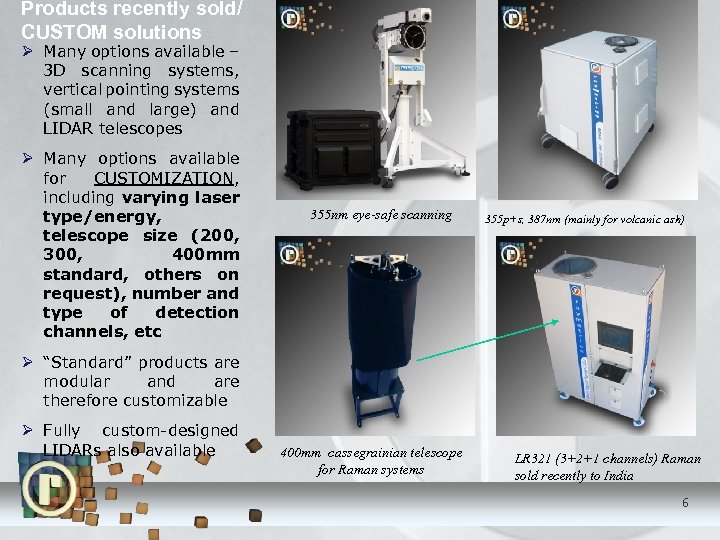

Products recently sold/ CUSTOM solutions Many options available – 3 D scanning systems, vertical pointing systems (small and large) and LIDAR telescopes Many options available for CUSTOMIZATION, including varying laser type/energy, telescope size (200, 300, 400 mm standard, others on request), number and type of detection channels, etc 355 nm eye-safe scanning 355 p+s, 387 nm (mainly for volcanic ash) “Standard” products are modular and are therefore customizable Fully custom-designed LIDARs also available 400 mm cassegrainian telescope for Raman systems LR 321 (3+2+1 channels) Raman sold recently to India 6

Size of a (custom) Raman LIDAR system Operating parameters Laser pulse energy: 10 – 200 m. J @ 532 nm 20 – 100 m. J @ 1064 nm 10 – 70 m. J @ 355 nm Repetition rate: 10 or 20 Hz Diameter of the primary mirror: 200 -400 mm Specifications • Total range • Spatial resolution • Temporal resolution • Signal to Noise Ratio (SNR) • Accuracy of retrieved parameters 3 Elastic (355, 532 & 1064)+ 2 Raman (387 & 408) 1 depolarization channel – 532 p+s sold to India (Bose Institute) in 2014 7

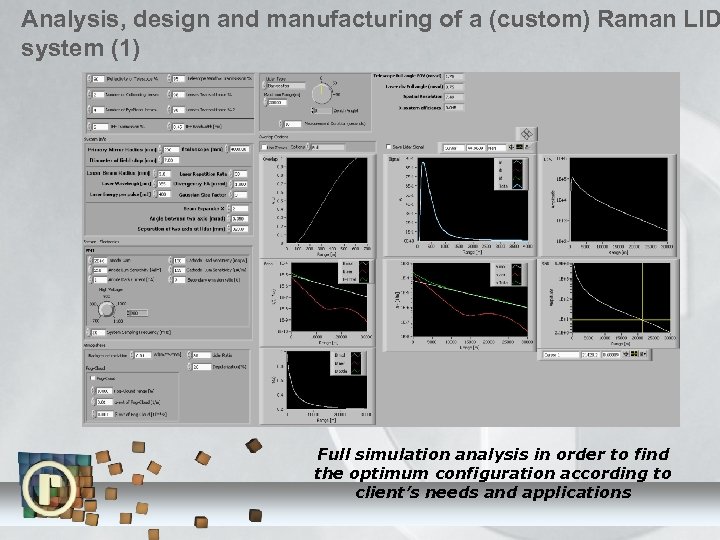

Analysis, design and manufacturing of a (custom) Raman LID system (1) Full simulation analysis in order to find the optimum configuration according to client’s needs and applications

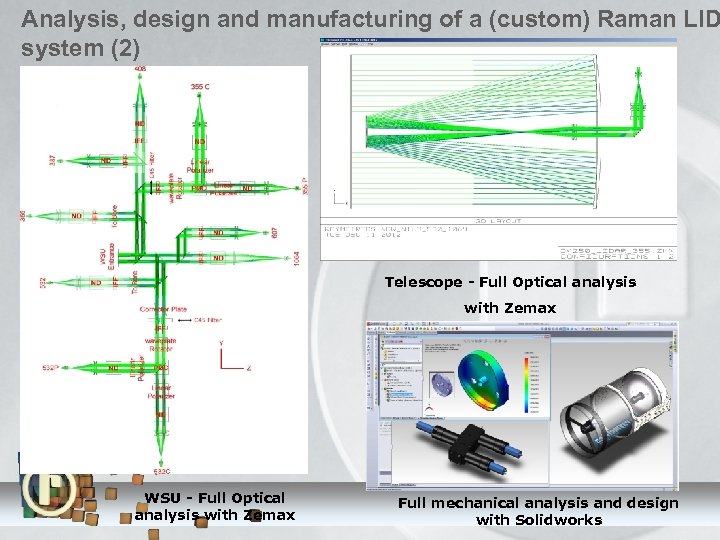

Analysis, design and manufacturing of a (custom) Raman LID system (2) Telescope - Full Optical analysis with Zemax WSU - Full Optical analysis with Zemax Full mechanical analysis and design with Solidworks

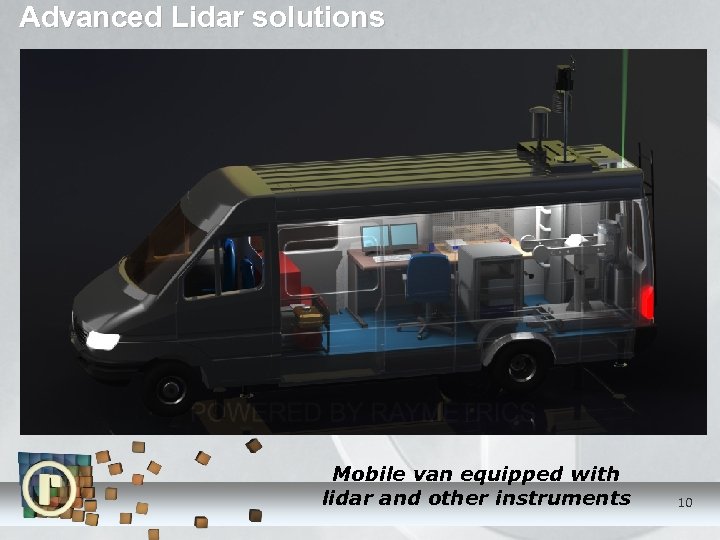

Advanced Lidar solutions Mobile van equipped with lidar and other instruments 10

Recent activity: fully automated multiwavelength lidar (CITRA project) – under development (1) System overview Lidar overview 11

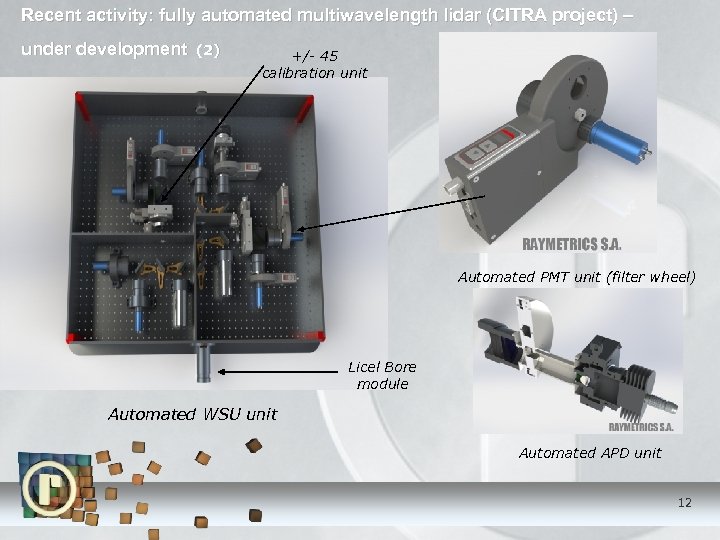

Recent activity: fully automated multiwavelength lidar (CITRA project) – under development (2) +/- 45 calibration unit Automated PMT unit (filter wheel) Licel Bore module Automated WSU unit Automated APD unit 12

Raymetrics Global Coverage Sales Permanent Distributors Non-permanent or in discussion for distribution 13

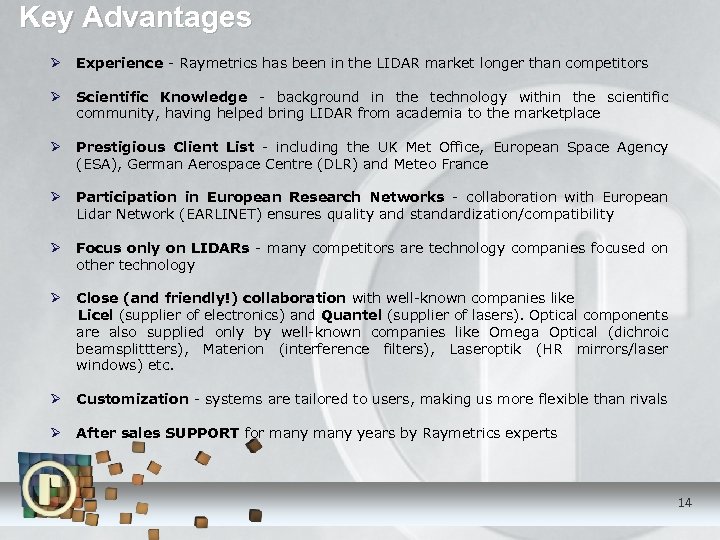

Key Advantages Experience - Raymetrics has been in the LIDAR market longer than competitors Scientific Knowledge - background in the technology within the scientific community, having helped bring LIDAR from academia to the marketplace Prestigious Client List - including the UK Met Office, European Space Agency (ESA), German Aerospace Centre (DLR) and Meteo France Participation in European Research Networks - collaboration with European Lidar Network (EARLINET) ensures quality and standardization/compatibility Focus only on LIDARs - many competitors are technology companies focused on other technology Close (and friendly!) collaboration with well-known companies like Licel (supplier of electronics) and Quantel (supplier of lasers). Optical components are also supplied only by well-known companies like Omega Optical (dichroic beamsplittters), Materion (interference filters), Laseroptik (HR mirrors/laser windows) etc. Customization - systems are tailored to users, making us more flexible than rivals After sales SUPPORT for many years by Raymetrics experts 14
