Geometry 6 Level 1 Parts of a

Geometry 6 Level 1

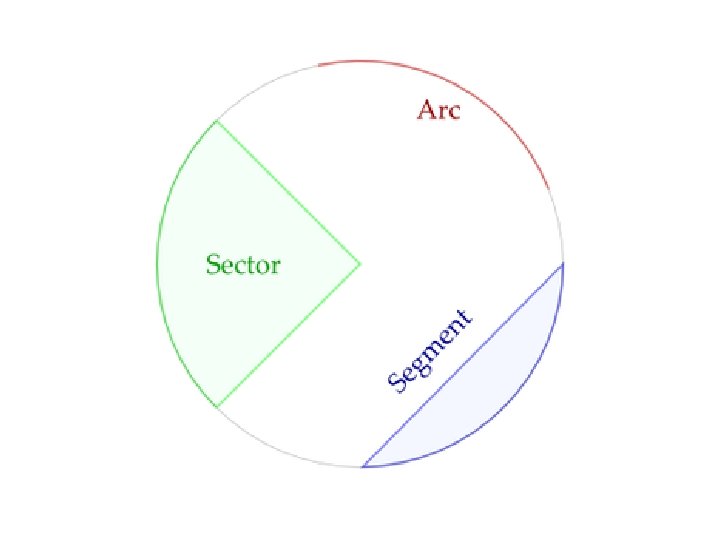

Parts of a circle

Why is this triangle isosceles?

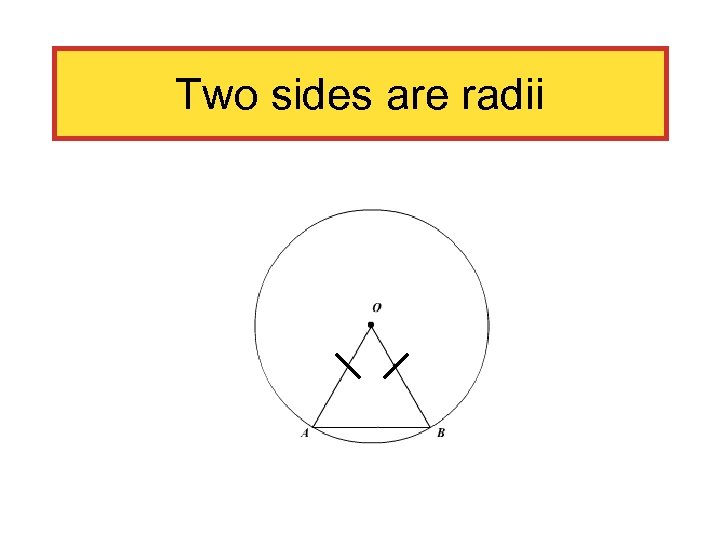

Two sides are radii

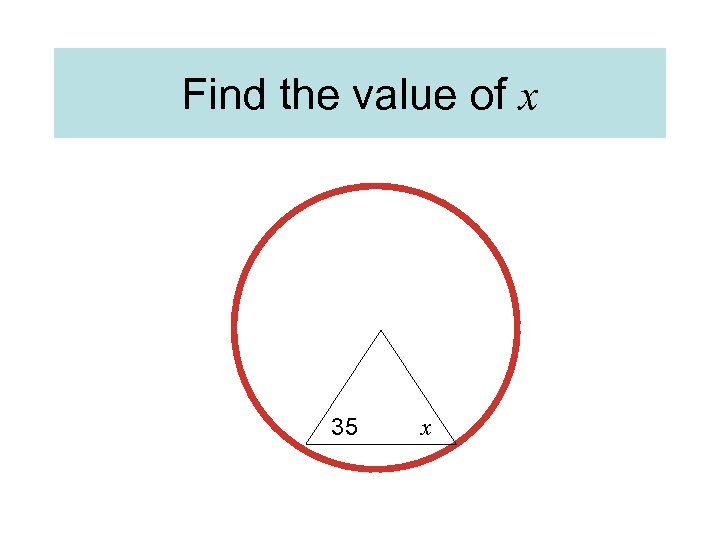

Find the value of x 35 x

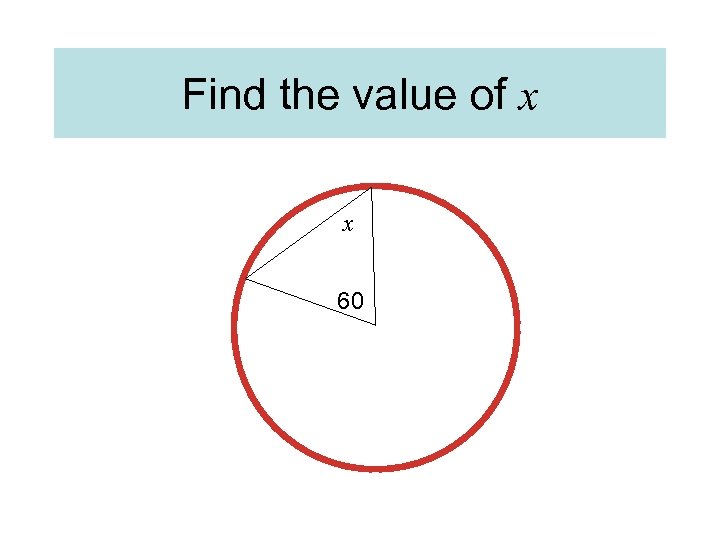

Find the value of x x 60

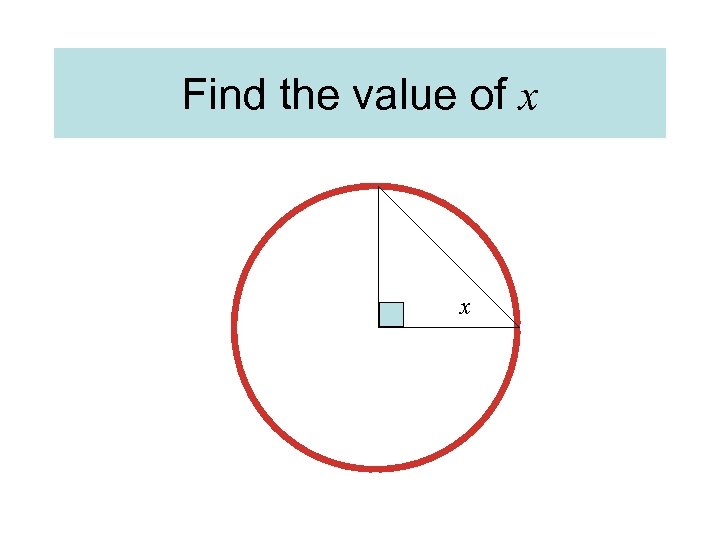

Find the value of x x

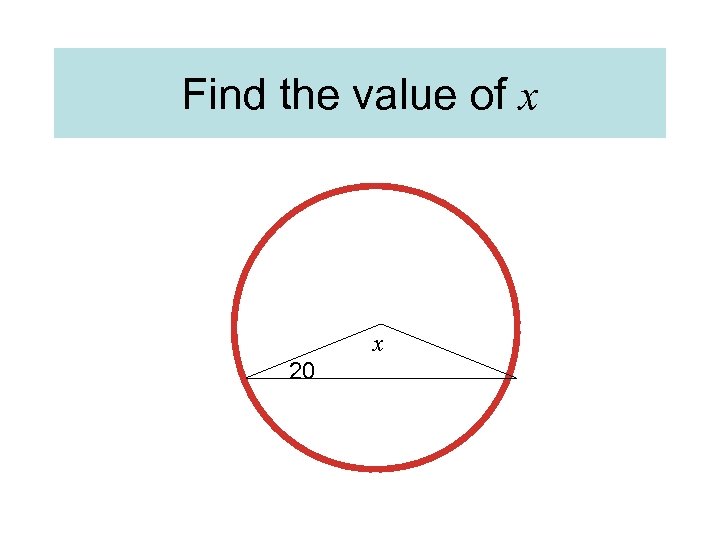

Find the value of x x 20

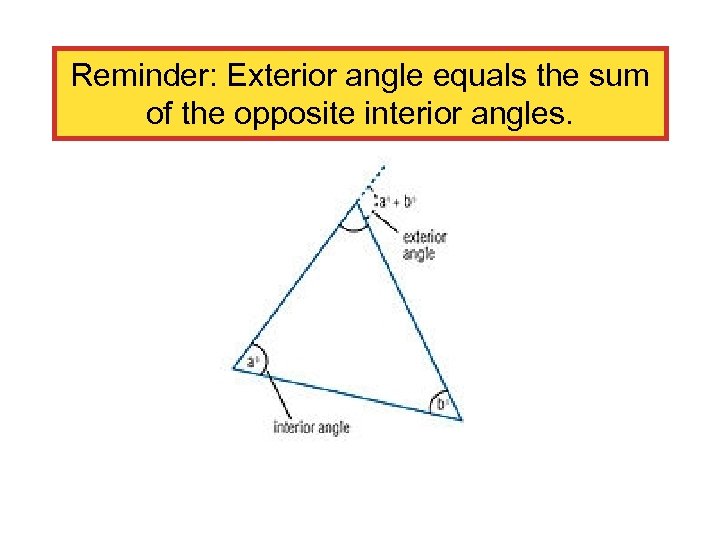

Reminder: Exterior angle equals the sum of the opposite interior angles.

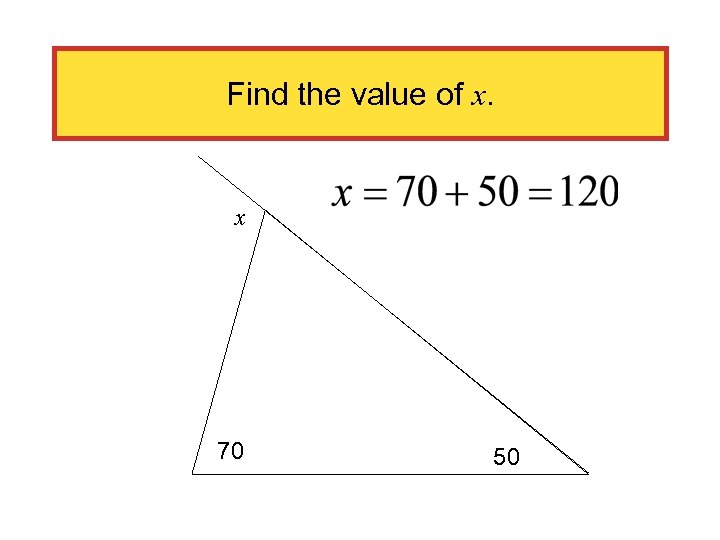

Find the value of x. x 70 50

Let’s investigate

We now have two isosceles triangles

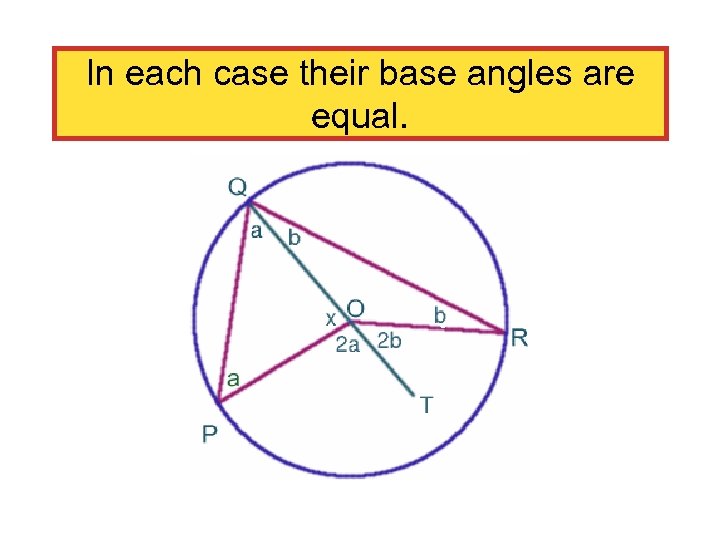

In each case their base angles are equal.

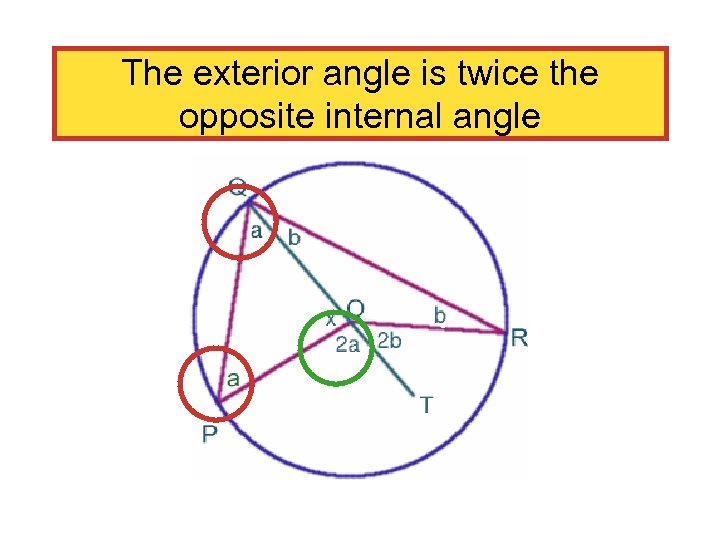

The exterior angle is twice the opposite internal angle

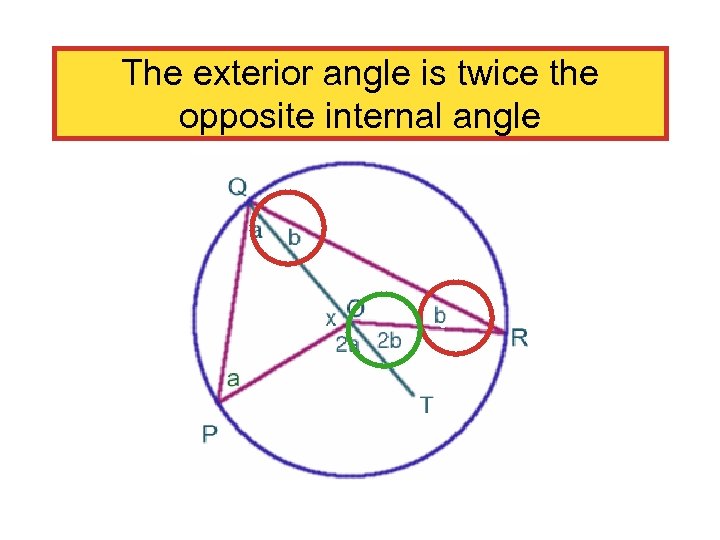

The exterior angle is twice the opposite internal angle

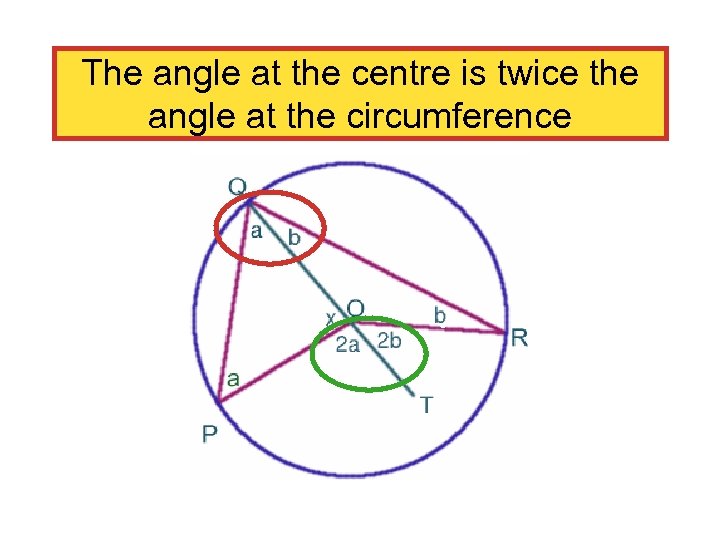

The angle at the centre is twice the angle at the circumference

at centre 2 x x

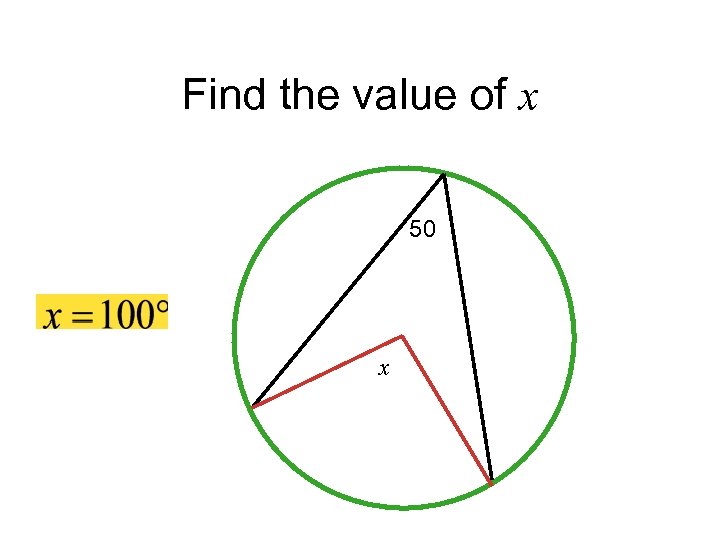

Find the value of x 50 x

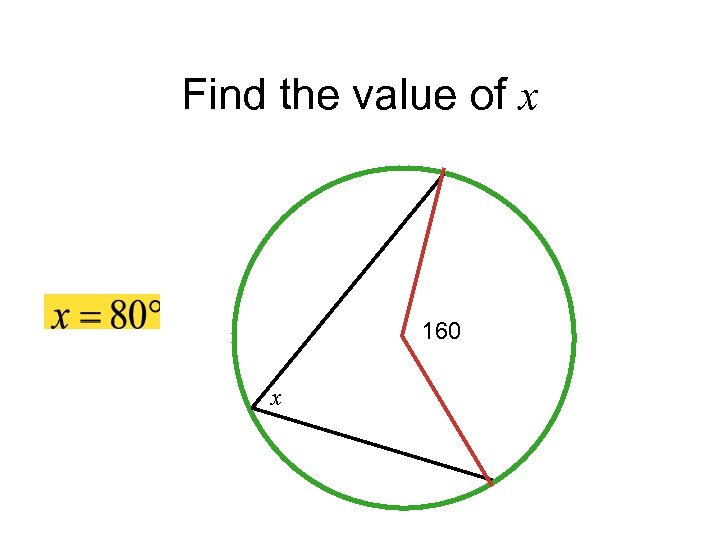

Find the value of x 160 x

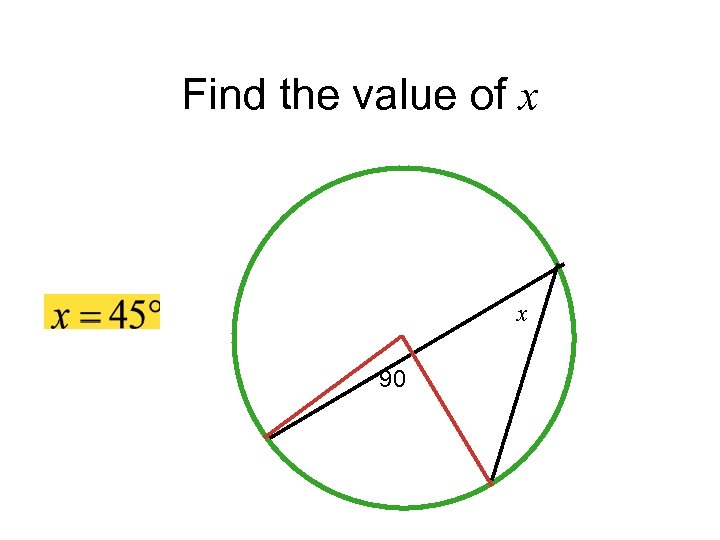

Find the value of x x 90

Find the value of x 60 x

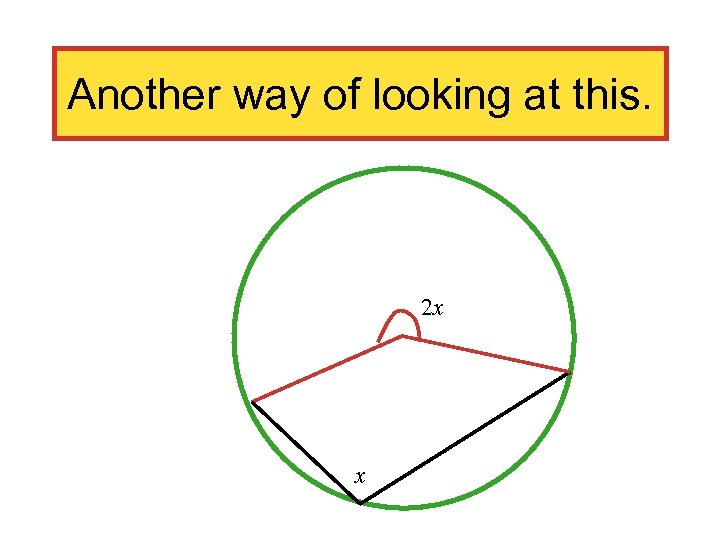

Another way of looking at this. 2 x x

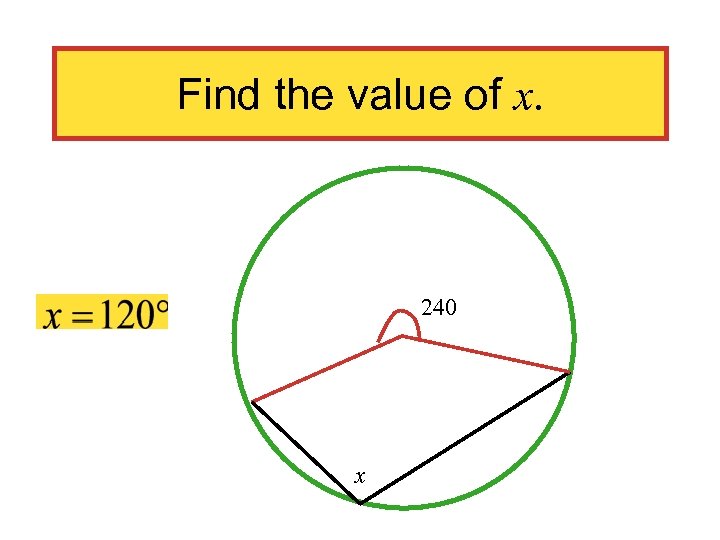

Find the value of x. 240 x

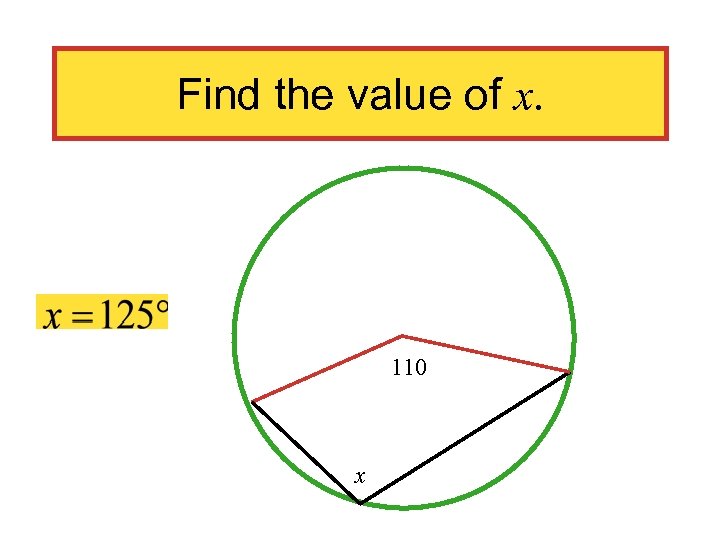

Find the value of x. 110 x

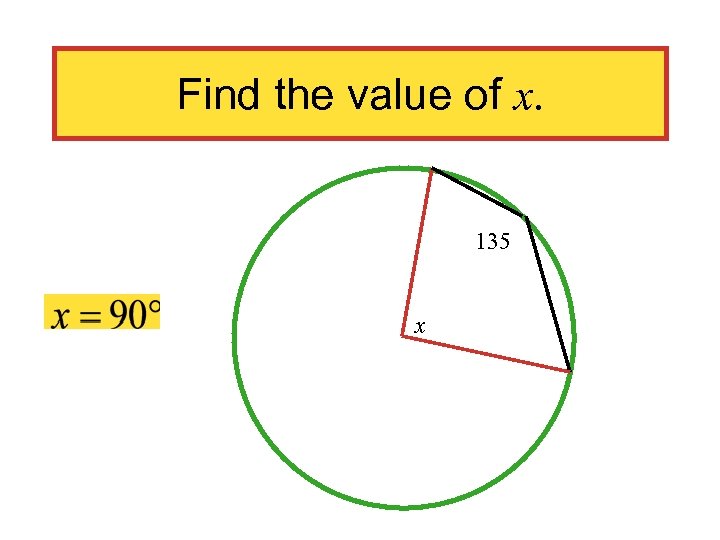

Find the value of x. 135 x

Notice if AC is a diameter x 2 x x

Find the value of x. x 55

Find the value of x. 80 x

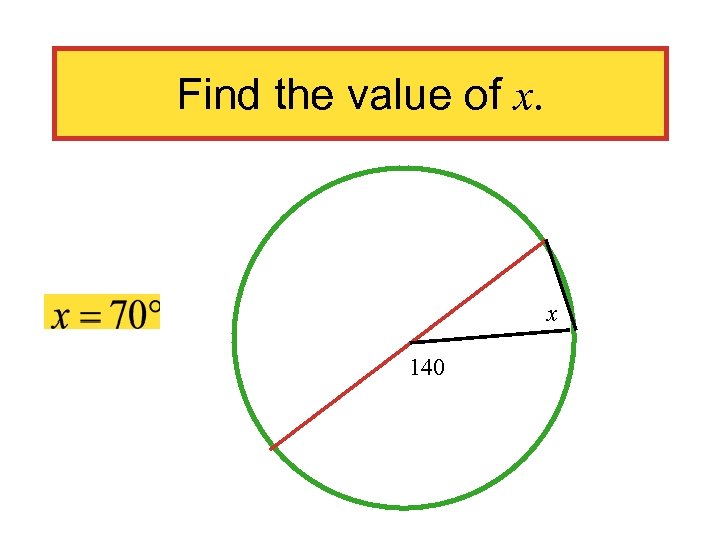

Find the value of x. x 140

Find the value of x. 50 x

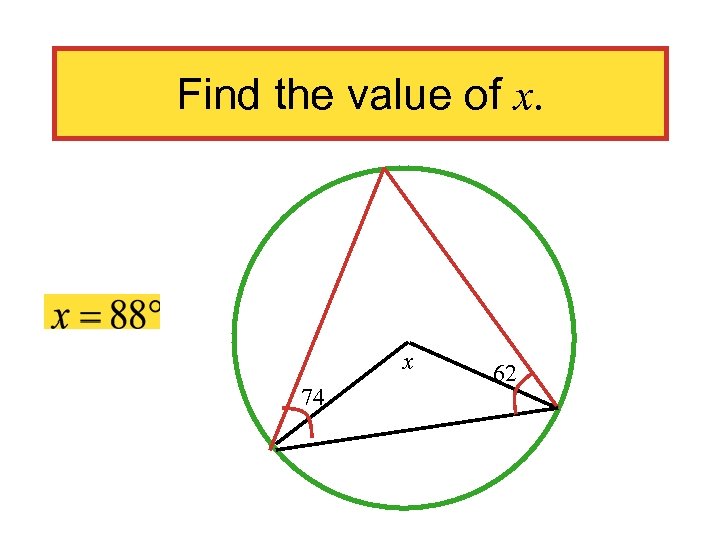

Find the value of x. x 74 62

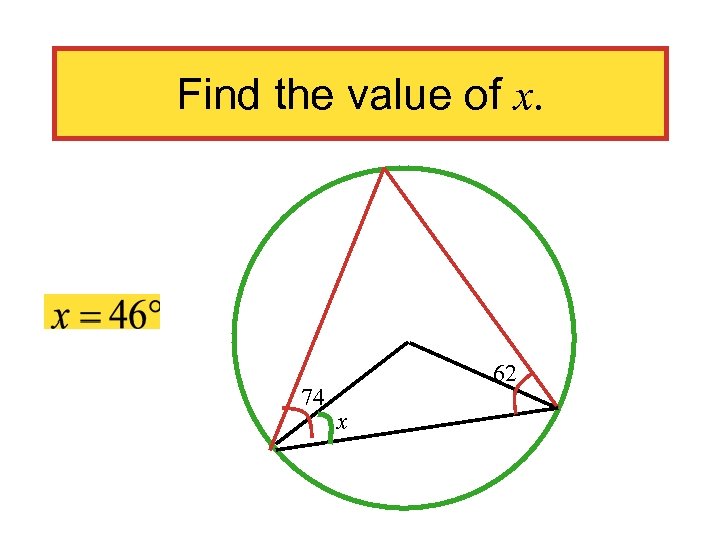

Find the value of x. 74 62 x

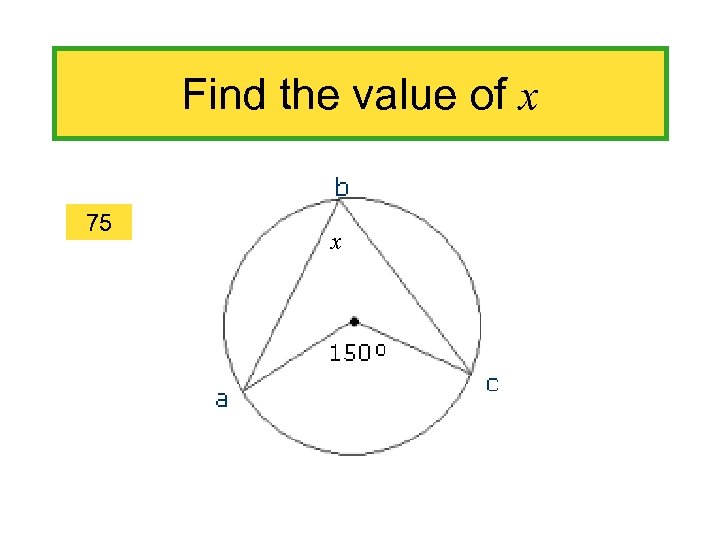

Find the value of x 75 x

Find the value of y 75 75 y

Find the value of z 75 75 z 75

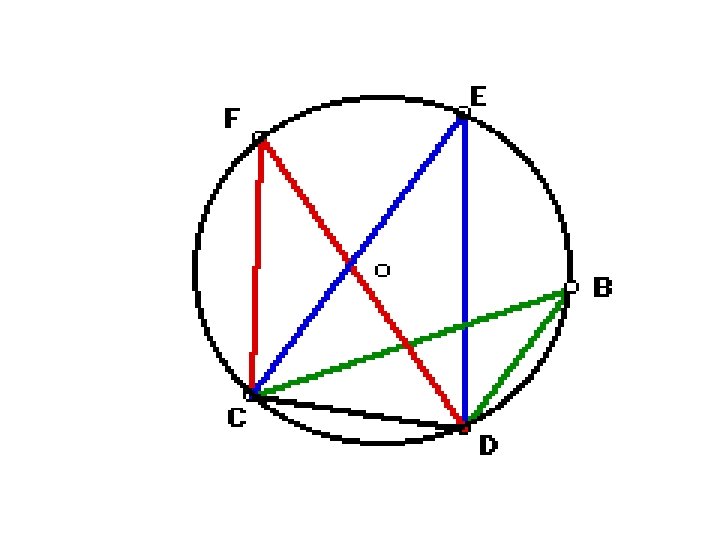

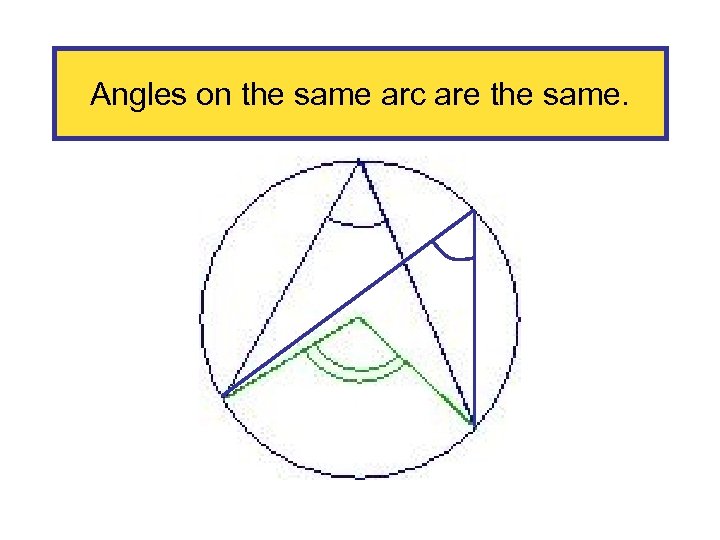

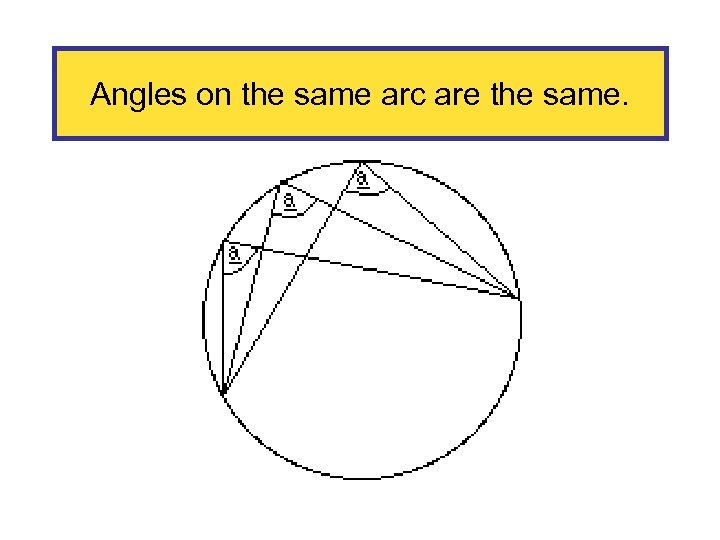

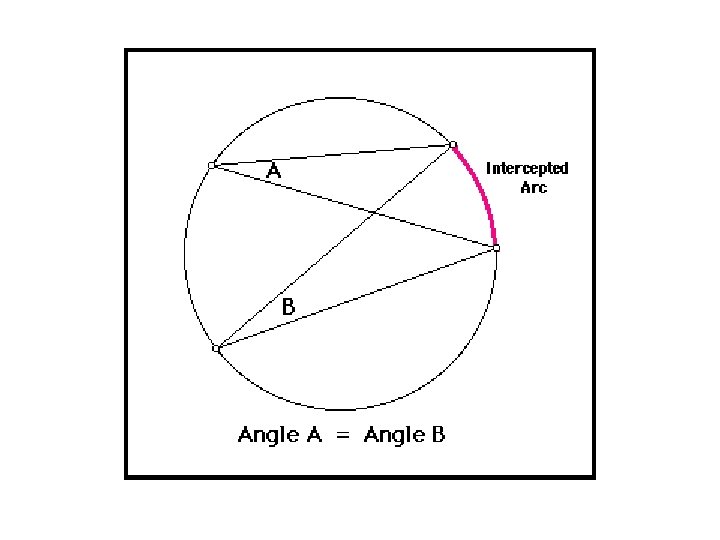

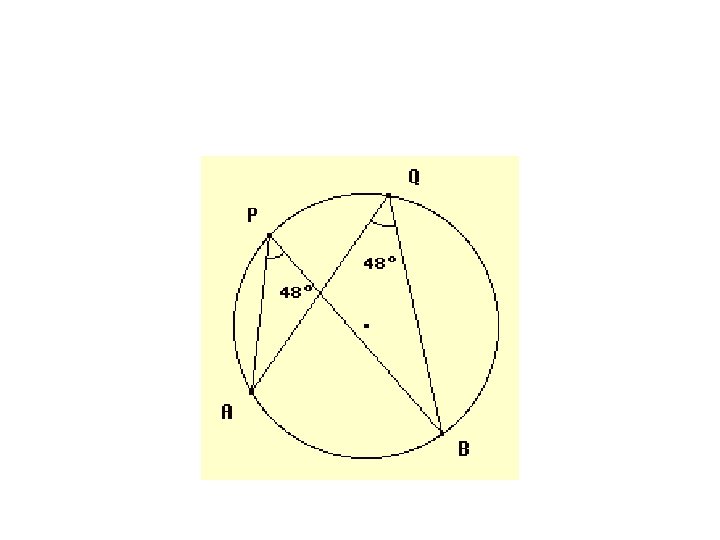

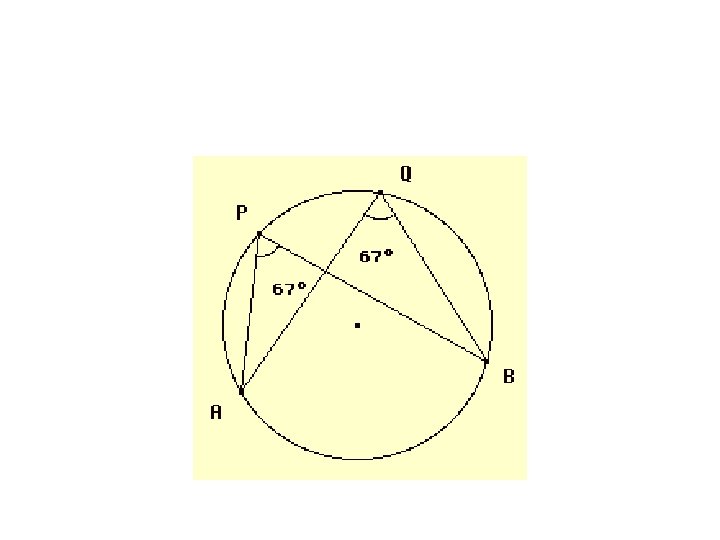

Angles on the same arc are the same.

Angles on the same arc are the same.

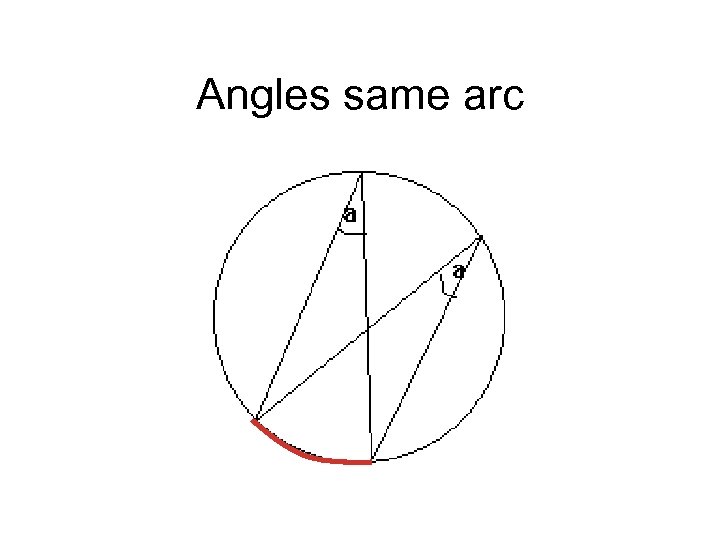

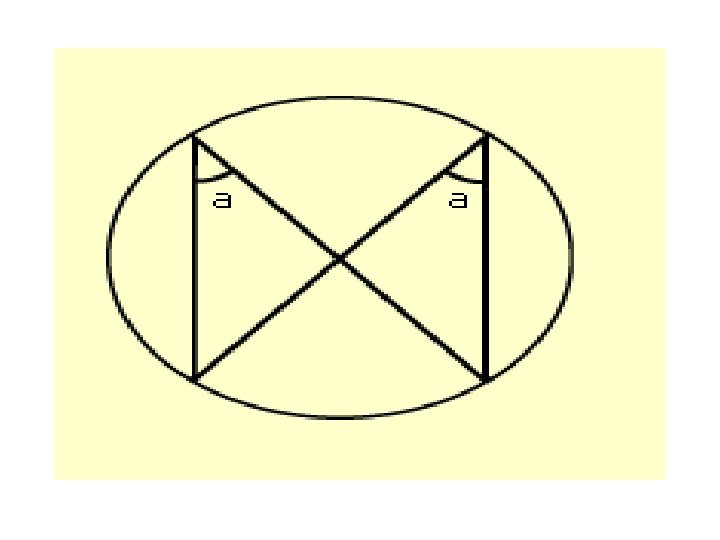

Angles same arc

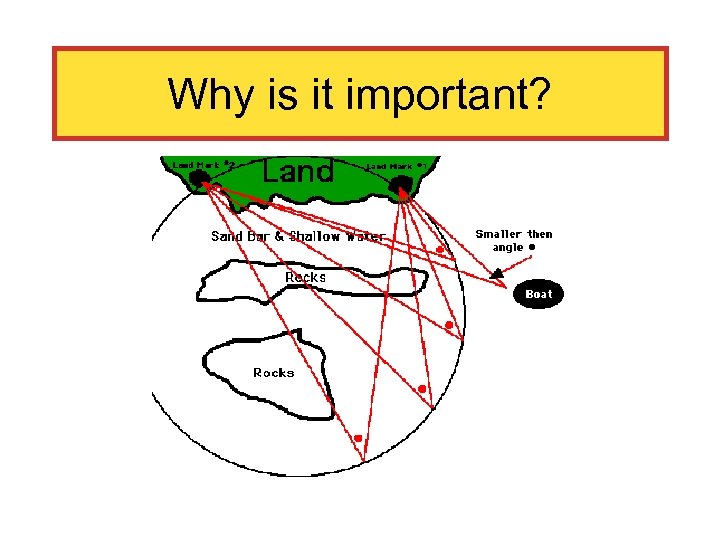

Why is it important?

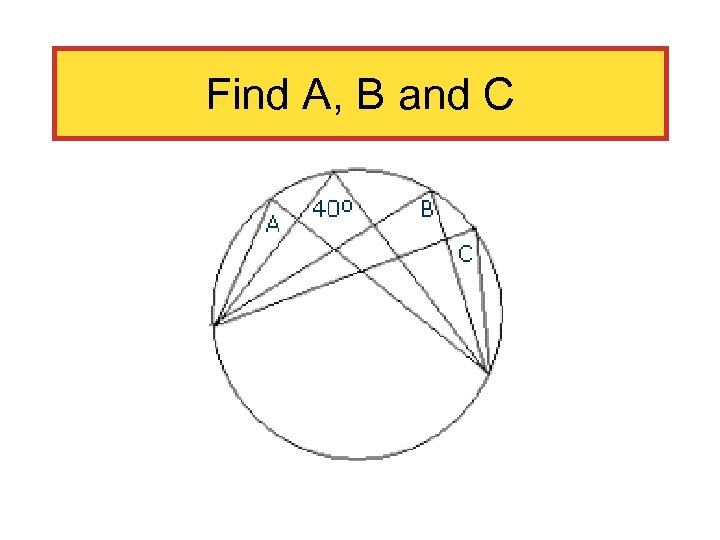

Find A, B and C

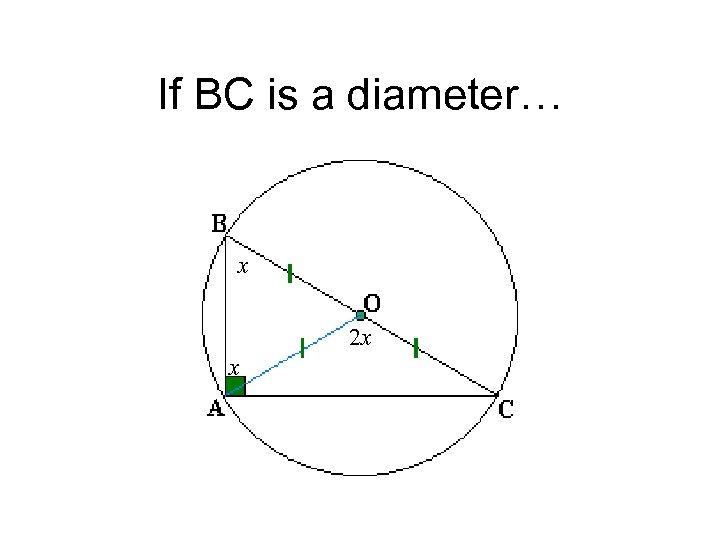

If BC is a diameter… x 2 x x

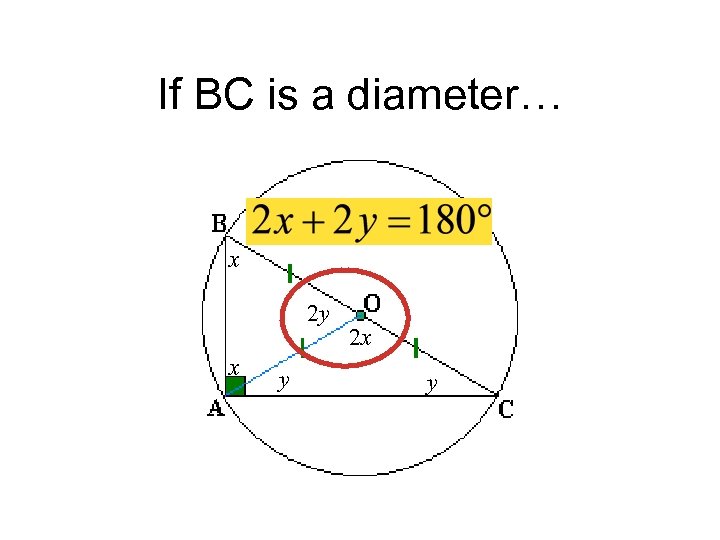

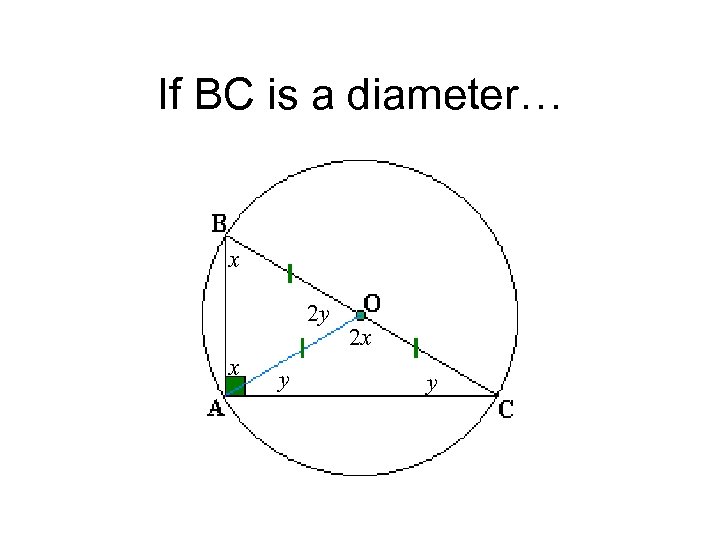

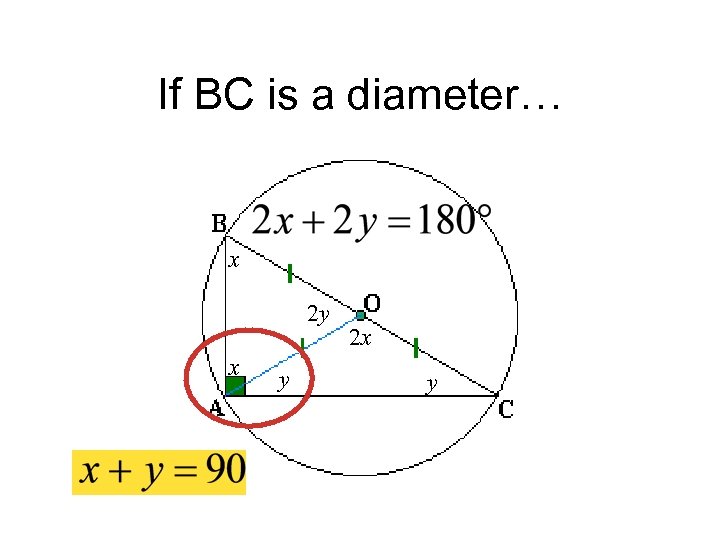

If BC is a diameter… x 2 y x y 2 x y

If BC is a diameter… x 2 y x y 2 x y

If BC is a diameter… x 2 y x y 2 x y

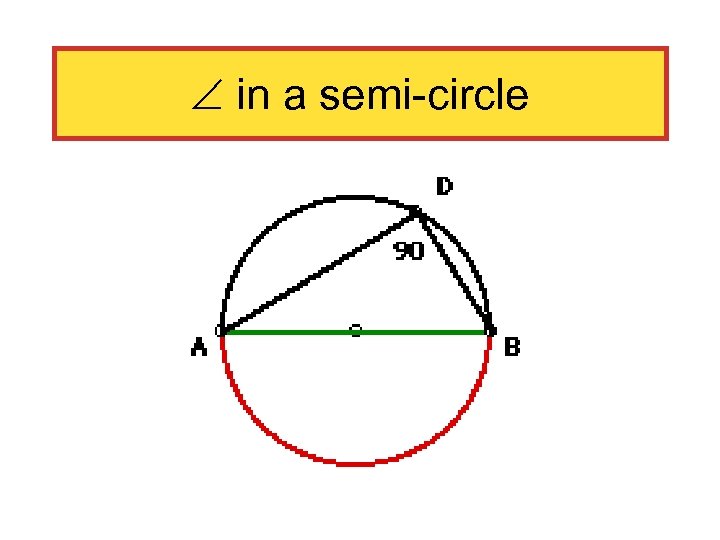

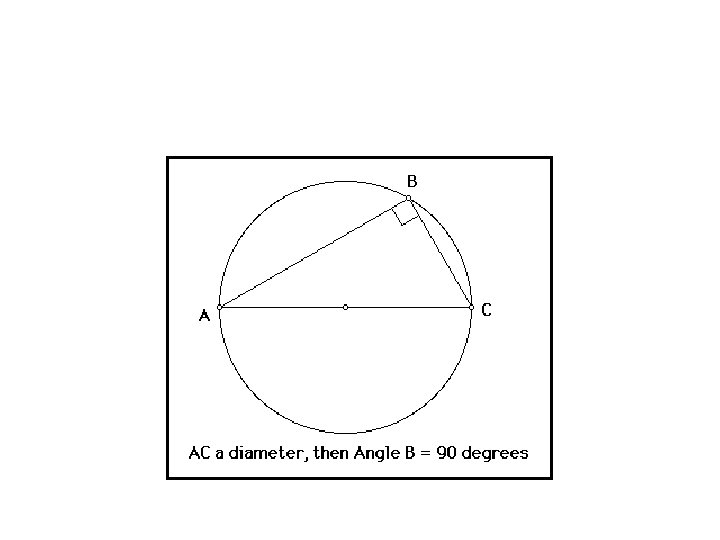

in a semi-circle

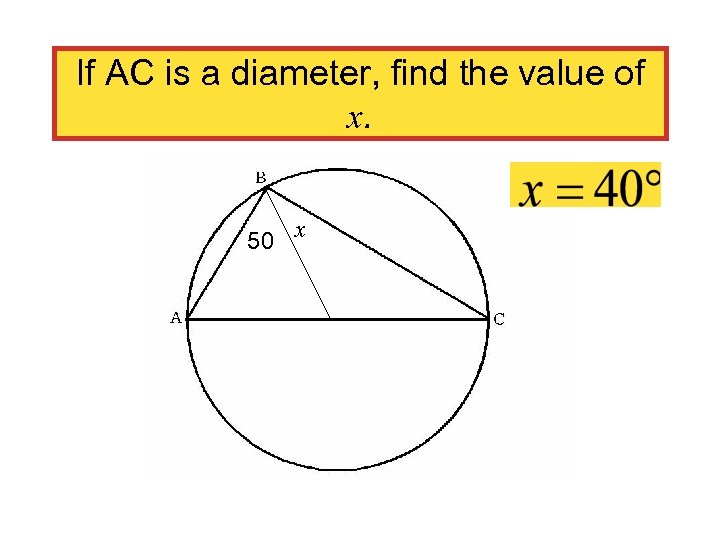

If AC is a diameter, find the value of x. 50 x

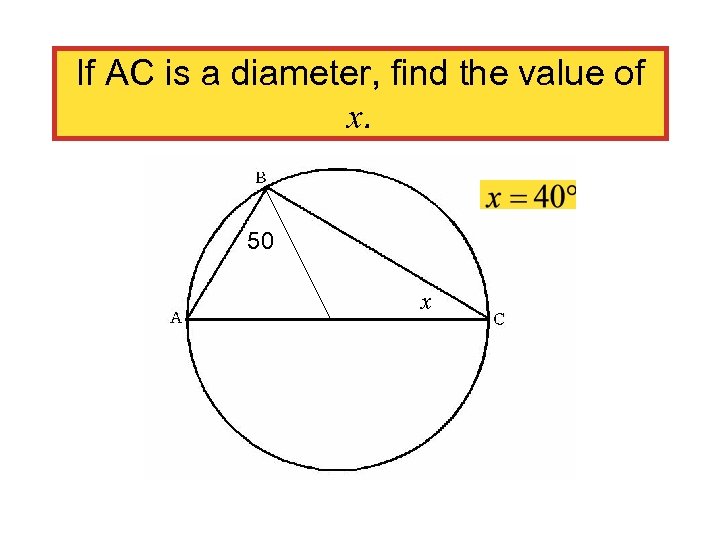

If AC is a diameter, find the value of x. 50 x

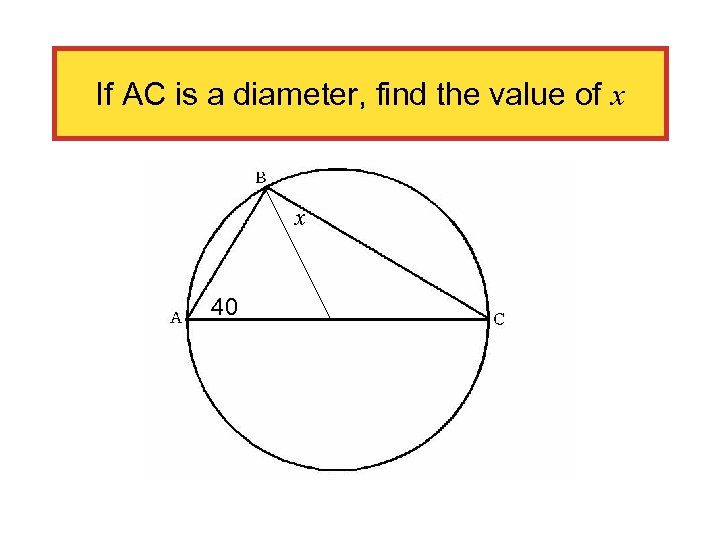

If AC is a diameter, find the value of x x 40

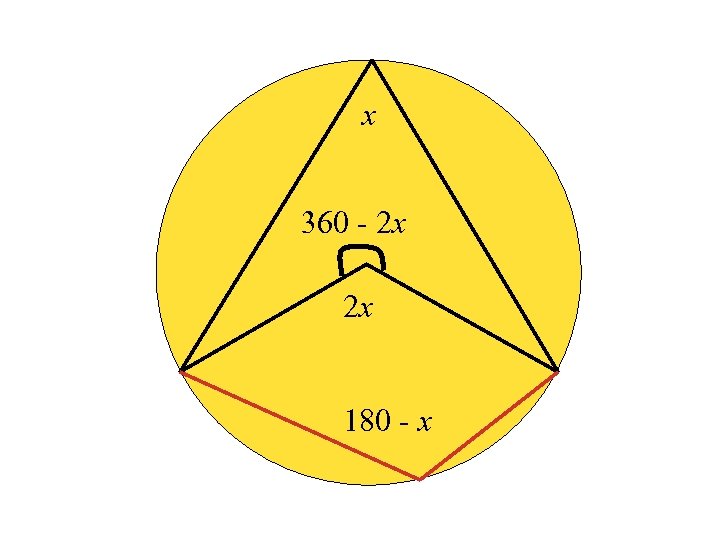

x 360 - 2 x 2 x 180 - x

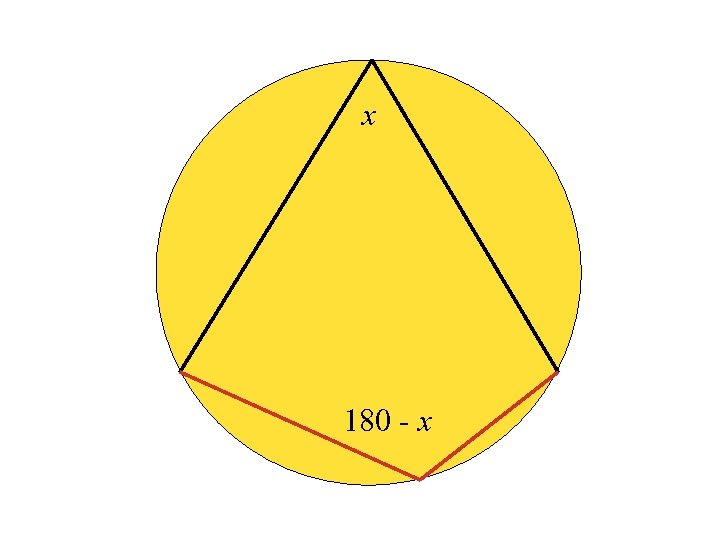

x 180 - x

Cyclic Quadrilateral Web animation Cyclic quadrilateral • Opposite angles in a cyclic quadrilateral sum to 180 degrees.

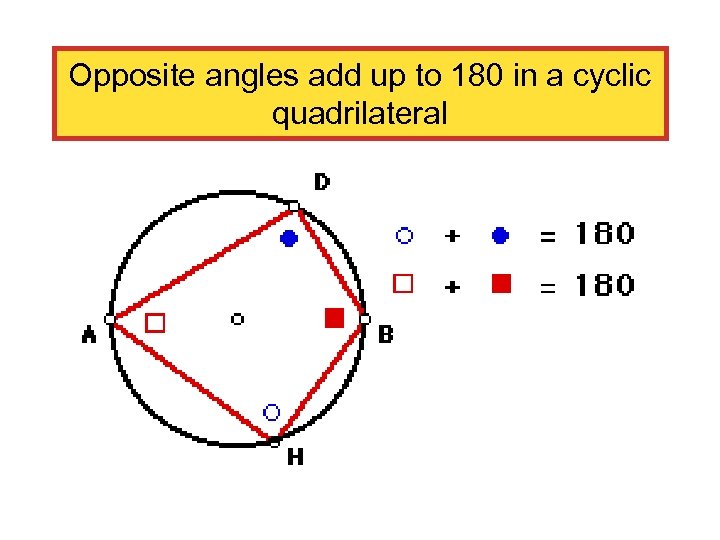

Opposite angles add up to 180 in a cyclic quadrilateral

Find the value of x x 120

Find the value of angles A and B.

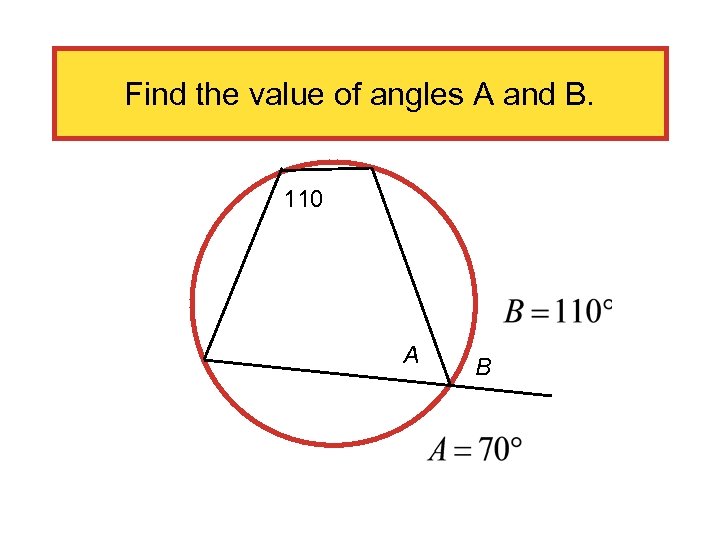

Find the value of angles A and B. 110 A B

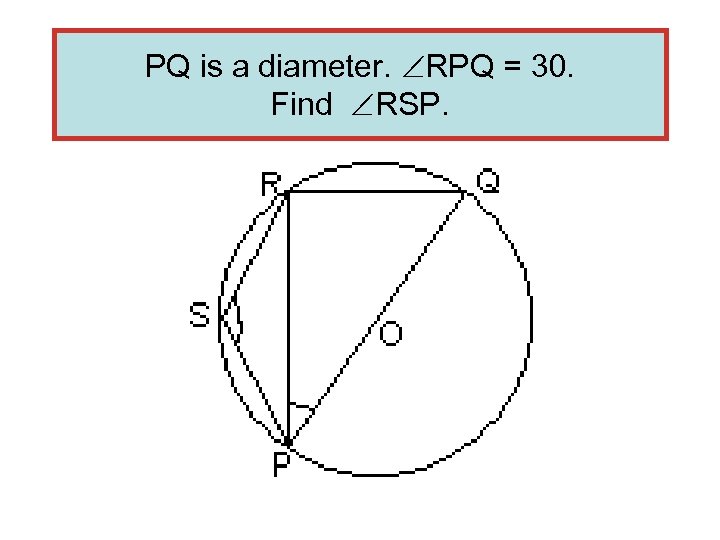

PQ is a diameter. RPQ = 30. Find RSP.

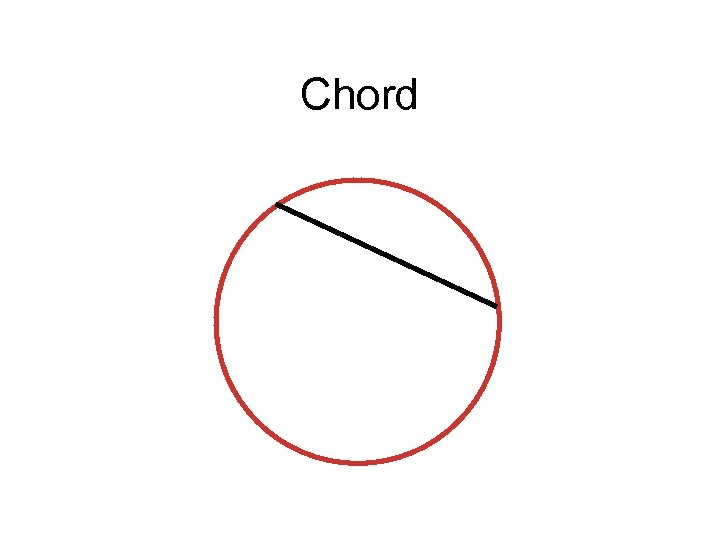

Chord

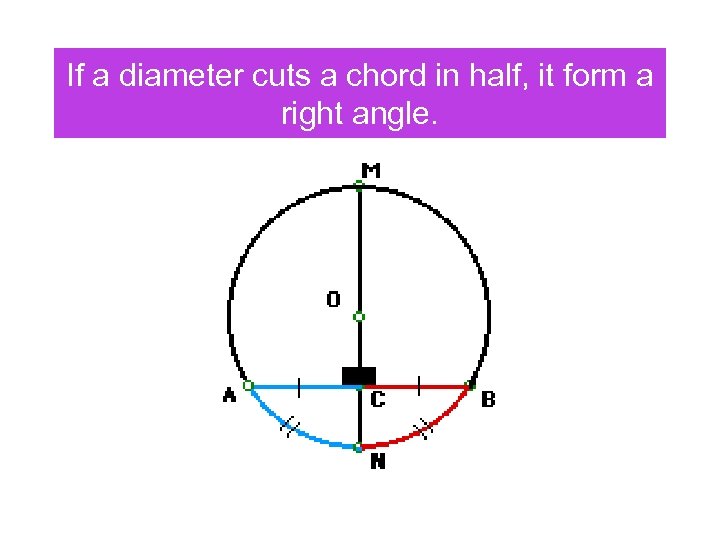

If a diameter cuts a chord in half, it form a right angle.

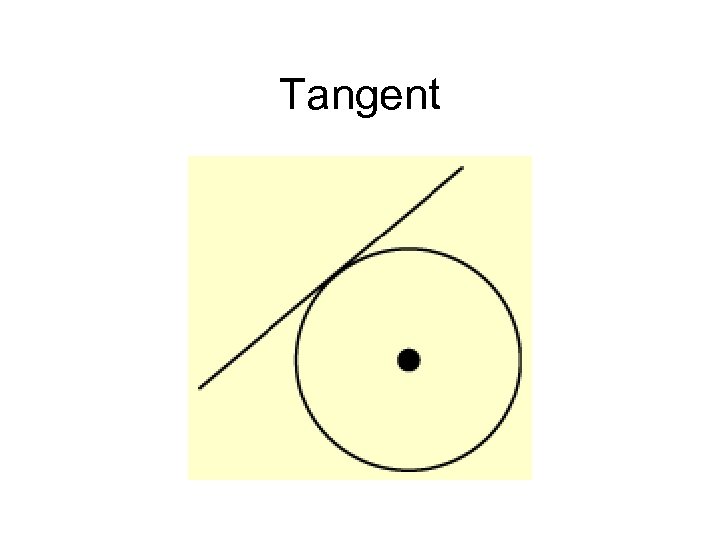

Tangent

A radius is always perpendicular to a tangent at the point of contact. Tgt rad

Find the values of x, y and z z y x 72

Find the values of x, y and z z y x 72

Find the values of x, y and z Tgt. — rad y z In semi-circle ’s ∆ x 72

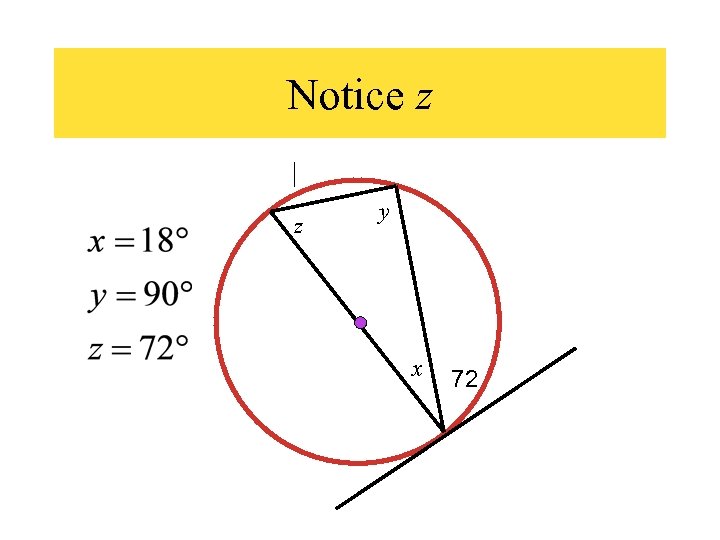

Notice z z y x 72

Notice z z y z x 72

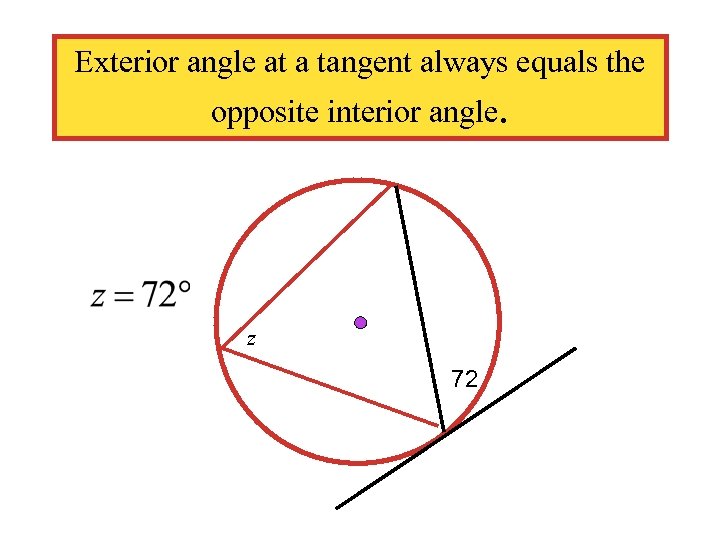

Exterior angle at a tangent always equals the opposite interior angle. z 72

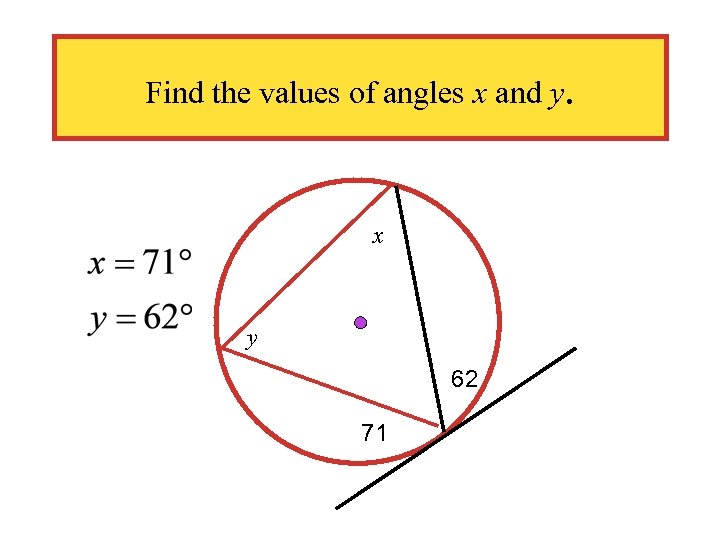

Find the values of angles x and y. x y 62 71

Find the angle ACB.

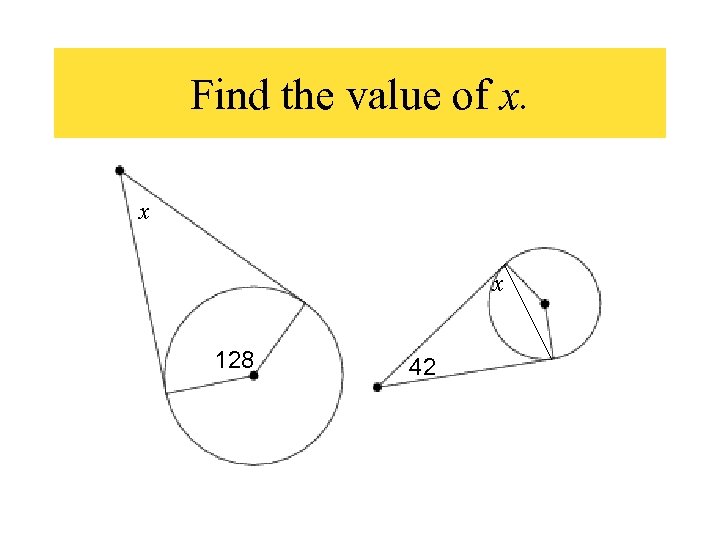

Find the value of x. x x 128 42

Find the value of x. x = 52 x =69 128 42

Find the value of x

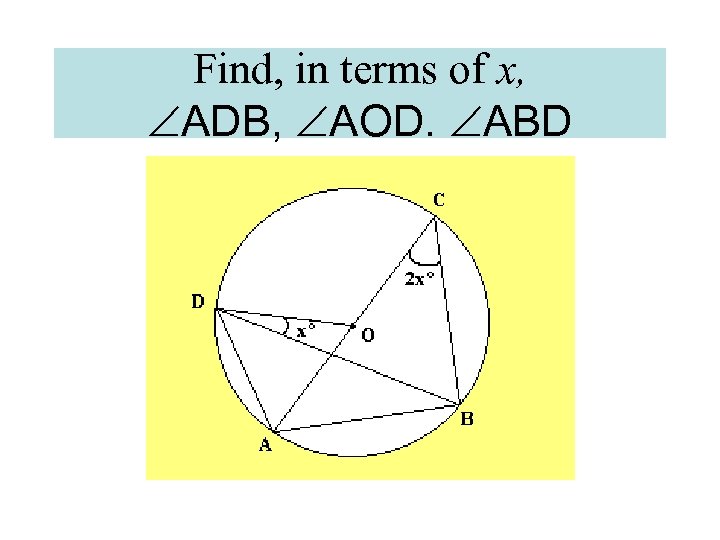

Find, in terms of x, ADB, AOD. ABD

ADB = 2 x, AOD = 180 - 6 x, ABD = 90 - 3 x

If the angle PCQ = 72, what is the reflex angle POQ ? 252

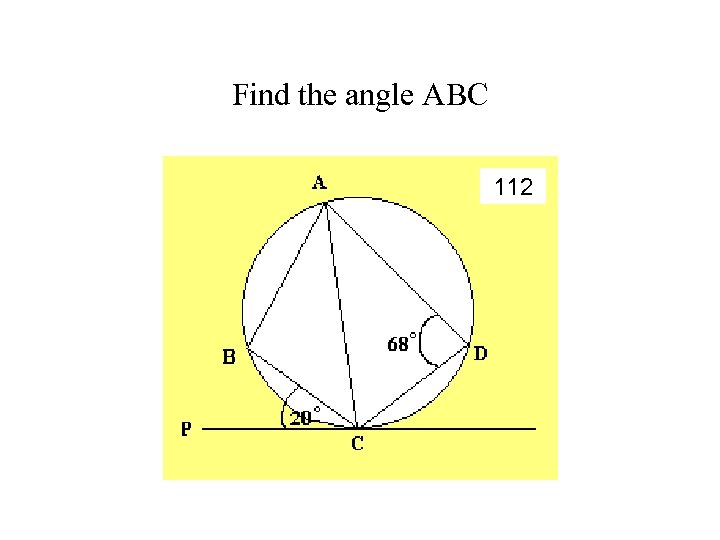

Find the angle ABC 112

a) Calculate the angle between the tangent and the line AC. b) Calculate the angle ABC.

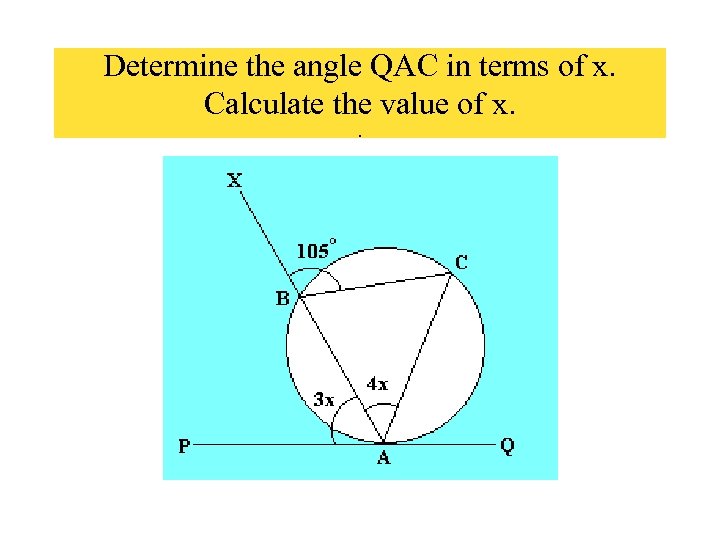

Determine the angle QAC in terms of x. Calculate the value of x. .

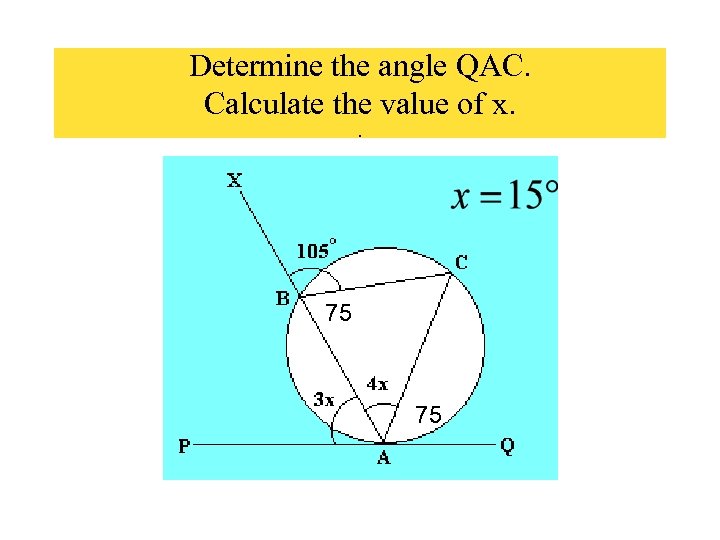

Determine the angle QAC. Calculate the value of x. . 75 75

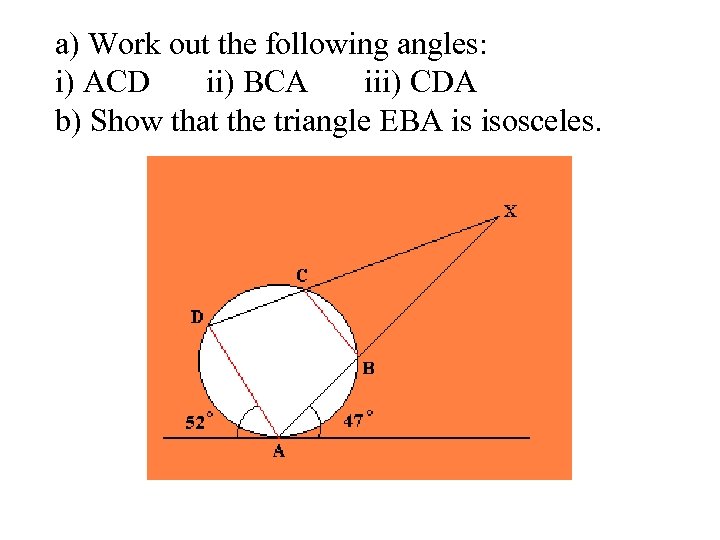

a) Work out the following angles: i) ACD ii) BCA iii) CDA b) Show that the triangle EBA is isosceles.

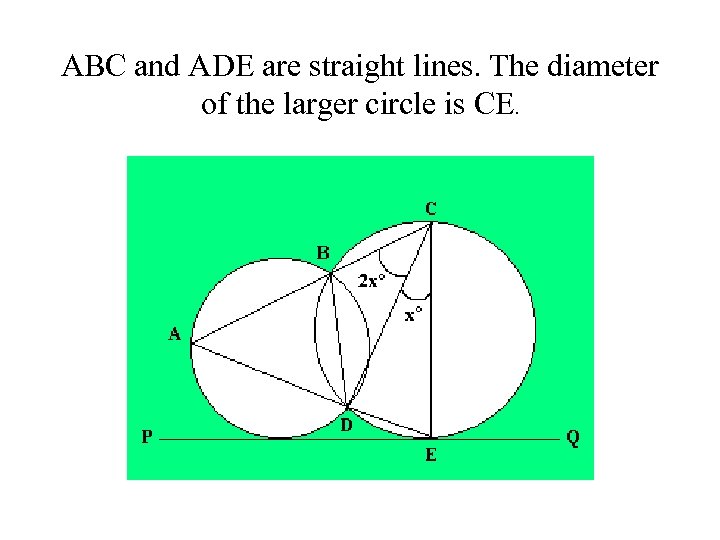

ABC and ADE are straight lines. The diameter of the larger circle is CE.

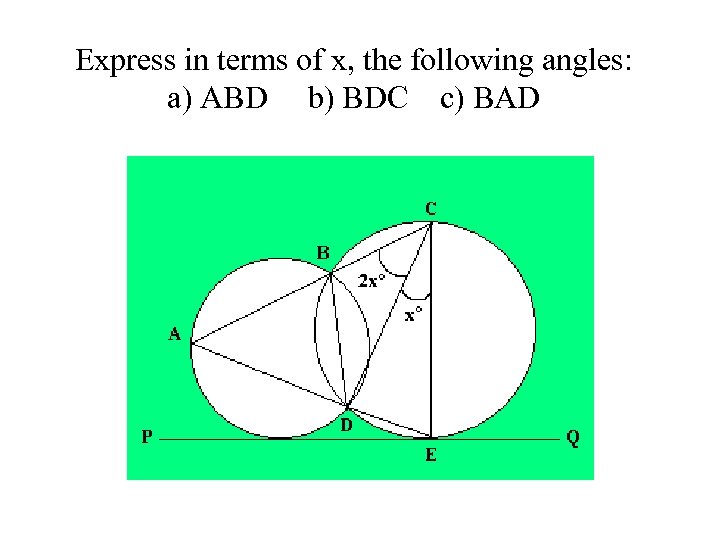

Express in terms of x, the following angles: a) ABD b) BDC c) BAD
