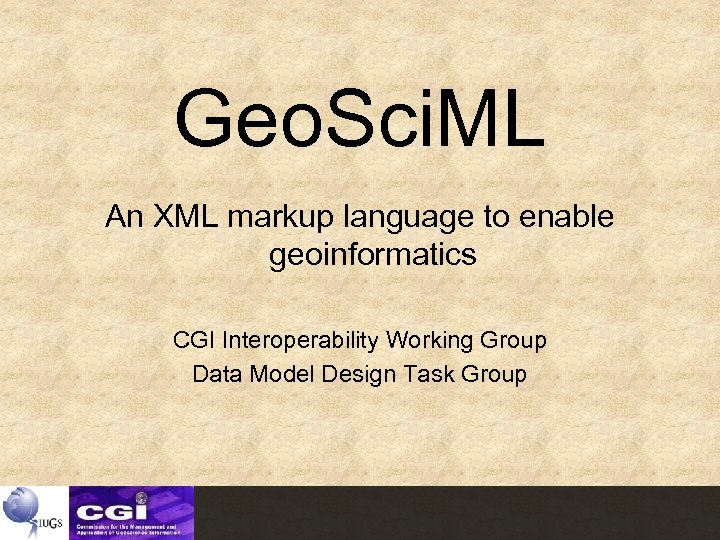

Geo. Sci. ML An XML markup language to enable geoinformatics CGI Interoperability Working Group Geo. Sci. ML An XML markup language to enable geoinformatics CGI Interoperability Working Group Data Model Design Task Group

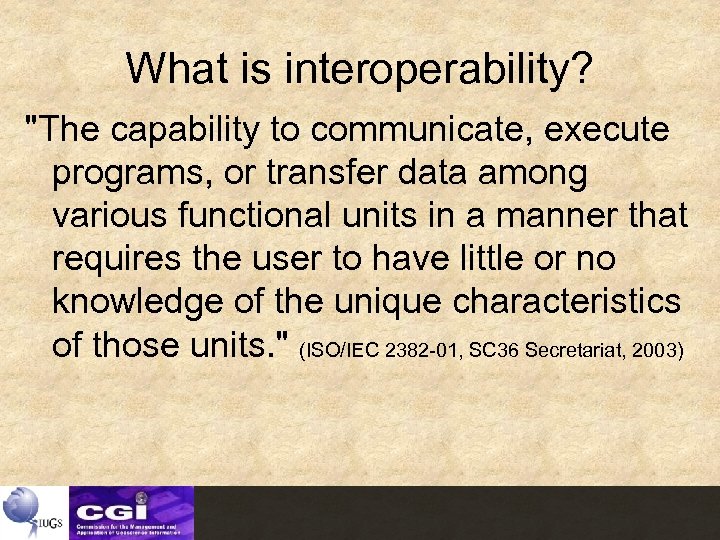

What is interoperability? What is interoperability? "The capability to communicate, execute programs, or transfer data among various functional units in a manner that requires the user to have little or no knowledge of the unique characteristics of those units. " (ISO/IEC 2382 -01, SC 36 Secretariat, 2003)

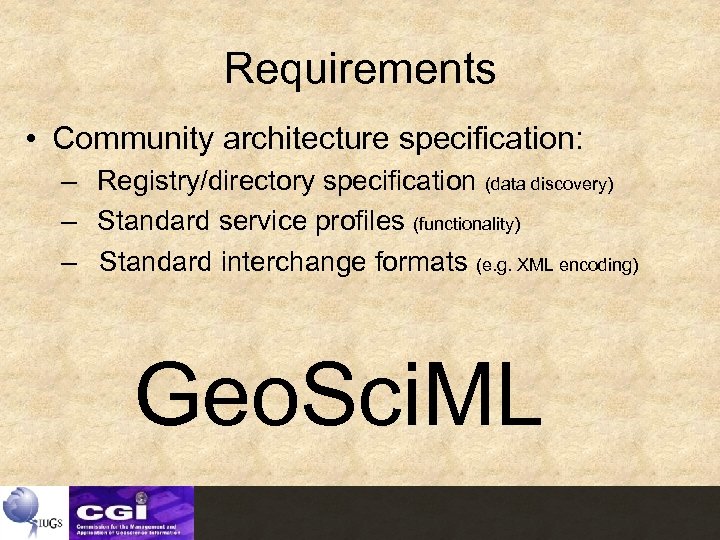

Requirements • Community architecture specification: – Registry/directory specification (data discovery) – Standard service profiles Requirements • Community architecture specification: – Registry/directory specification (data discovery) – Standard service profiles (functionality) – Standard interchange formats (e. g. XML encoding) Geo. Sci. ML

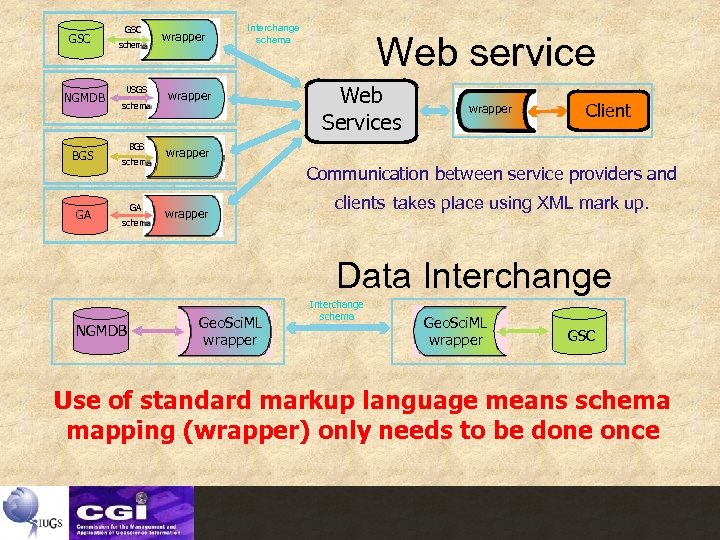

GSC NGMDB USGS BGS GA GSC schema USGS schema BGS schema GA schema wrapper GSC NGMDB USGS BGS GA GSC schema USGS schema BGS schema GA schema wrapper Interchange schema wrapper Web service Web Services wrapper Client wrapper Communication between service providers and wrapper clients takes place using XML mark up. Data Interchange NGMDB USGS Geo. Sci. ML wrapper Interchange schema Geo. Sci. ML wrapper GSC Use of standard markup language means schema mapping (wrapper) only needs to be done once

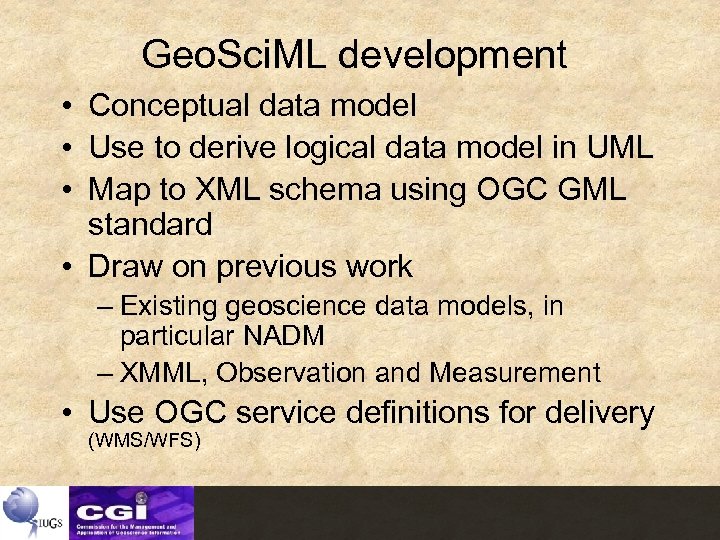

Geo. Sci. ML development • Conceptual data model • Use to derive logical data Geo. Sci. ML development • Conceptual data model • Use to derive logical data model in UML • Map to XML schema using OGC GML standard • Draw on previous work – Existing geoscience data models, in particular NADM – XMML, Observation and Measurement • Use OGC service definitions for delivery (WMS/WFS)

The IUGS/CGI Interoperability Working Group CGI interoperability working group Geo. Sci. ML development team: The IUGS/CGI Interoperability Working Group CGI interoperability working group Geo. Sci. ML development team: Christian Bellier (BRGM) Eric Boisvert (GSC) Boyan Brodaric (GSC) Simon Cox (CSIRO) Tim Duffy (BGS) Yuichiro Fusejima (GSJ) Dominique Janjou (BRGM) Bruce Johnson (USGS) Shinsuke Kodama (AIST) John Laxton (BGS) Face to Face meeting May 8 -15, 2007, Tucson, AZ Dale Percival (GA) • Develop version 2 of model Oliver Raymond (GA) Steve Richard (AZGS-USGS) • Additions: Francois Robida (BRGM) • Earth material model Marcus Sen (BGS) Jean-Jacques Serrano • Geologic structure with (BRGM) orientation Bruce Simons (GSV) • Link to ISO 19115 Lars Stolen (SGU) metadata Shinji Takarada (GSJ) Leslie Wyborn (GA)

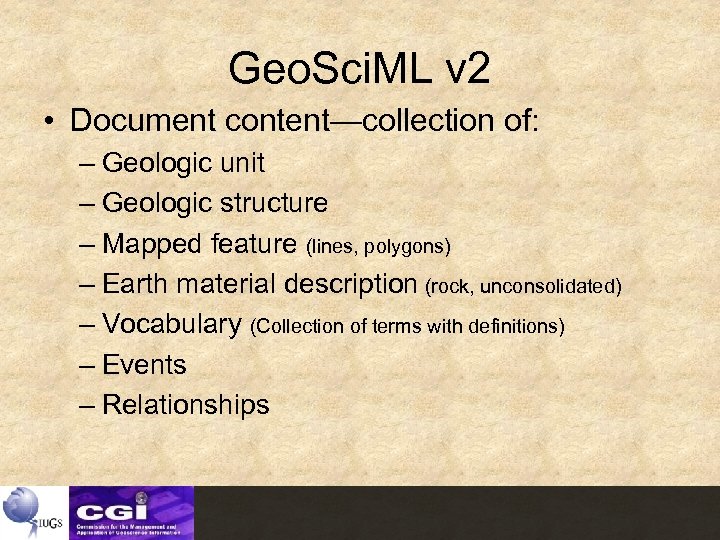

Geo. Sci. ML v 2 • Document content—collection of: – Geologic unit – Geologic Geo. Sci. ML v 2 • Document content—collection of: – Geologic unit – Geologic structure – Mapped feature (lines, polygons) – Earth material description (rock, unconsolidated) – Vocabulary (Collection of terms with definitions) – Events – Relationships

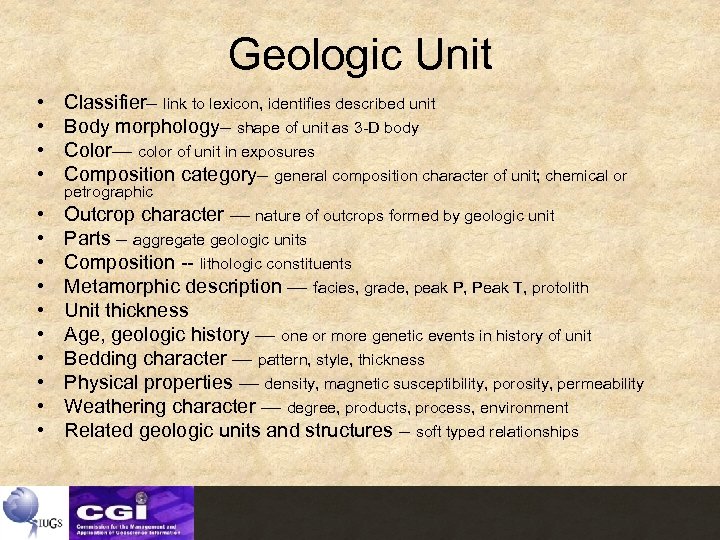

Geologic Unit • • Classifier– link to lexicon, identifies described unit Body morphology– shape Geologic Unit • • Classifier– link to lexicon, identifies described unit Body morphology– shape of unit as 3 -D body Color— color of unit in exposures Composition category– general composition character of unit; chemical or • • • Outcrop character — nature of outcrops formed by geologic unit Parts – aggregate geologic units Composition -- lithologic constituents Metamorphic description — facies, grade, peak P, Peak T, protolith Unit thickness Age, geologic history — one or more genetic events in history of unit Bedding character — pattern, style, thickness Physical properties — density, magnetic susceptibility, porosity, permeability Weathering character — degree, products, process, environment Related geologic units and structures – soft typed relationships petrographic

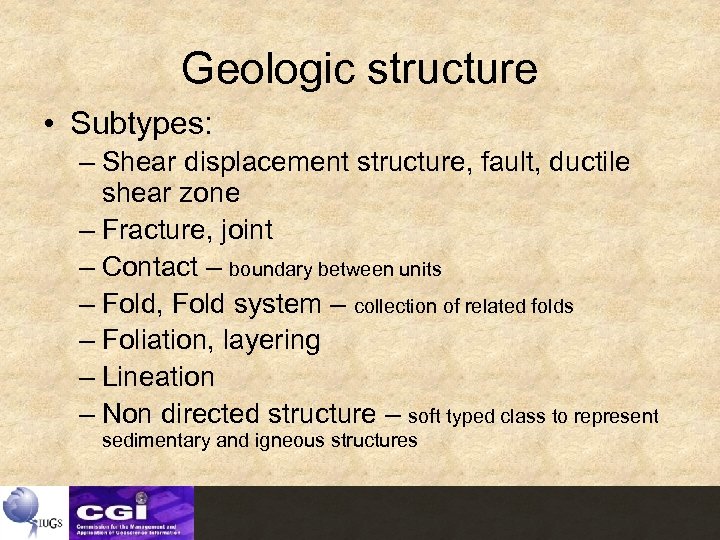

Geologic structure • Subtypes: – Shear displacement structure, fault, ductile shear zone – Fracture, Geologic structure • Subtypes: – Shear displacement structure, fault, ductile shear zone – Fracture, joint – Contact – boundary between units – Fold, Fold system – collection of related folds – Foliation, layering – Lineation – Non directed structure – soft typed class to represent sedimentary and igneous structures

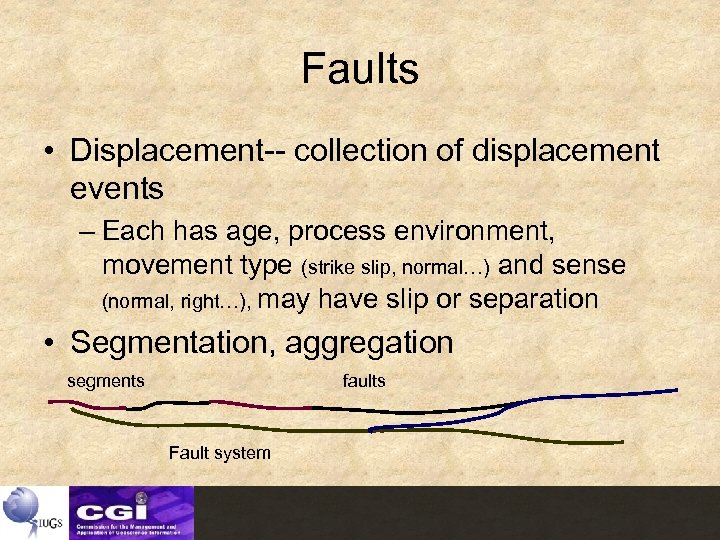

Faults • Displacement-- collection of displacement events – Each has age, process environment, movement Faults • Displacement-- collection of displacement events – Each has age, process environment, movement type (strike slip, normal…) and sense (normal, right…), may have slip or separation • Segmentation, aggregation segments faults Fault system

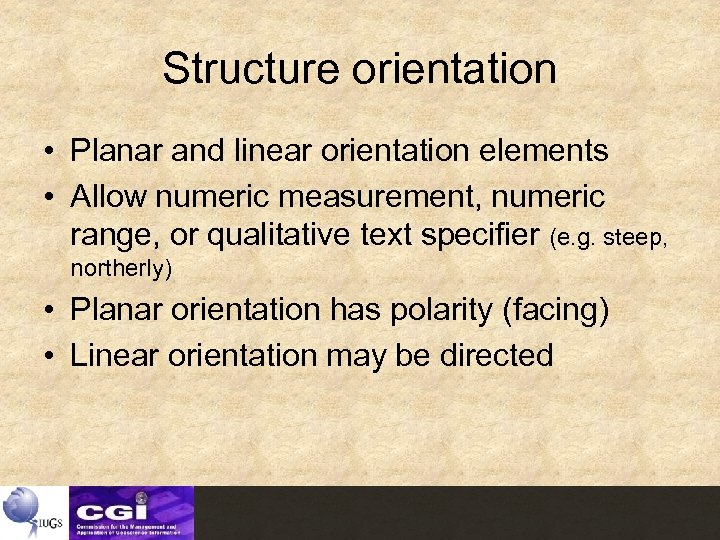

Structure orientation • Planar and linear orientation elements • Allow numeric measurement, numeric range, Structure orientation • Planar and linear orientation elements • Allow numeric measurement, numeric range, or qualitative text specifier (e. g. steep, northerly) • Planar orientation has polarity (facing) • Linear orientation may be directed

Earth Material • Mass noun, not a feature • Subtypes: – Mineral – Compound. Earth Material • Mass noun, not a feature • Subtypes: – Mineral – Compound. Material — material that – an aggregation of is. Inorganic fluid (water. . ) constituent – Organic. Material parts – Rock, – Unconsolidated. Material – Material. Fossil

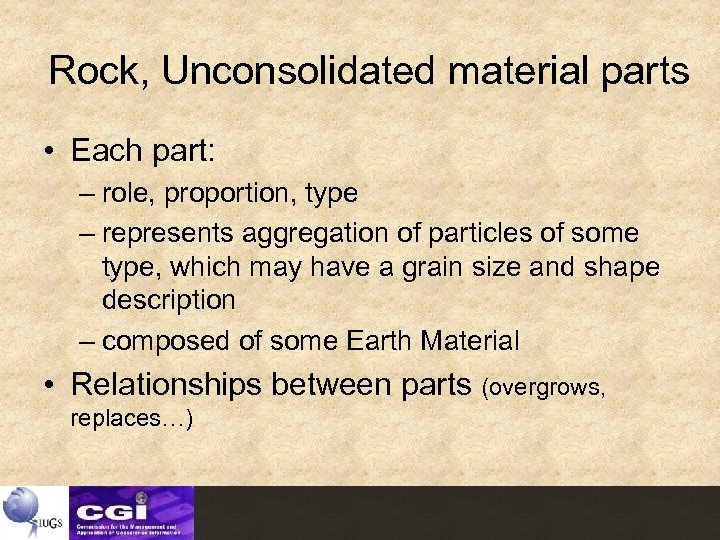

Rock, Unconsolidated material parts • Each part: – role, proportion, type – represents aggregation Rock, Unconsolidated material parts • Each part: – role, proportion, type – represents aggregation of particles of some type, which may have a grain size and shape description – composed of some Earth Material • Relationships between parts (overgrows, replaces…)

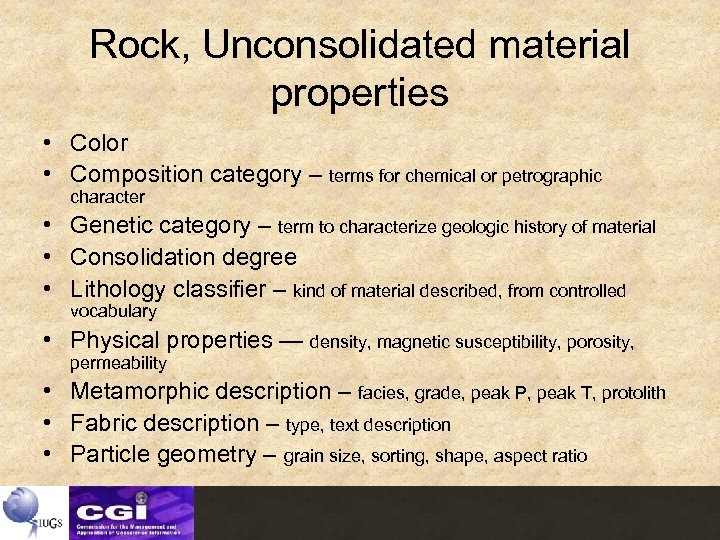

Rock, Unconsolidated material properties • Color • Composition category – terms for chemical or Rock, Unconsolidated material properties • Color • Composition category – terms for chemical or petrographic character • Genetic category – term to characterize geologic history of material • Consolidation degree • Lithology classifier – kind of material described, from controlled vocabulary • Physical properties — density, magnetic susceptibility, porosity, permeability • Metamorphic description – facies, grade, peak P, peak T, protolith • Fabric description – type, text description • Particle geometry – grain size, sorting, shape, aspect ratio

Metadata • Uses ISO 19115 • Feature Level or Dataset level • Extensive capability Metadata • Uses ISO 19115 • Feature Level or Dataset level • Extensive capability to record – – – Data processing steps Source citation Spatial reference Maintenance information Use constraints, availability, point of contact….

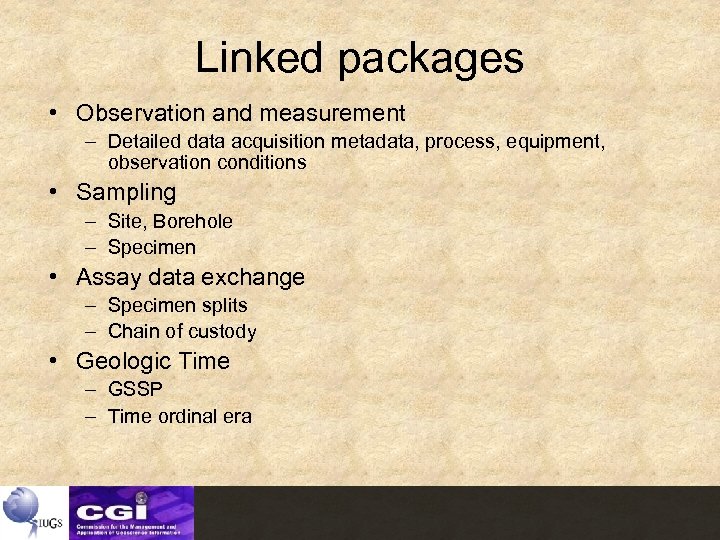

Linked packages • Observation and measurement – Detailed data acquisition metadata, process, equipment, observation Linked packages • Observation and measurement – Detailed data acquisition metadata, process, equipment, observation conditions • Sampling – Site, Borehole – Specimen • Assay data exchange – Specimen splits – Chain of custody • Geologic Time – GSSP – Time ordinal era

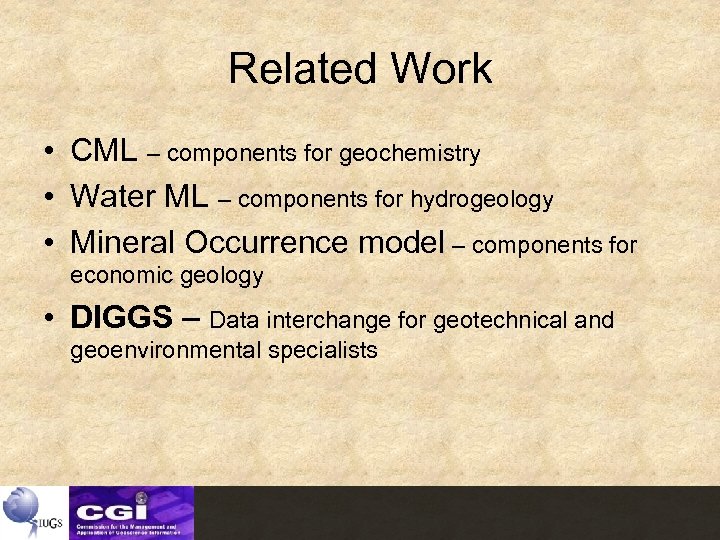

Related Work • CML – components for geochemistry • Water ML – components for Related Work • CML – components for geochemistry • Water ML – components for hydrogeology • Mineral Occurrence model – components for economic geology • DIGGS – Data interchange for geotechnical and geoenvironmental specialists

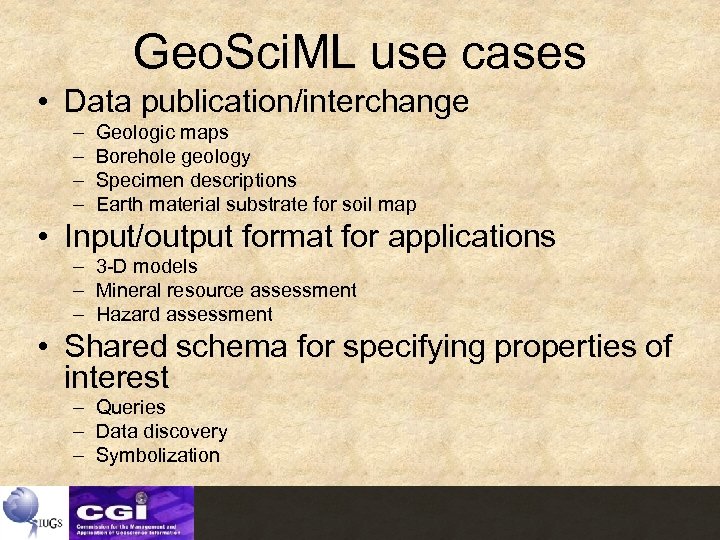

Geo. Sci. ML use cases • Data publication/interchange – – Geologic maps Borehole geology Geo. Sci. ML use cases • Data publication/interchange – – Geologic maps Borehole geology Specimen descriptions Earth material substrate for soil map • Input/output format for applications – 3 -D models – Mineral resource assessment – Hazard assessment • Shared schema for specifying properties of interest – Queries – Data discovery – Symbolization

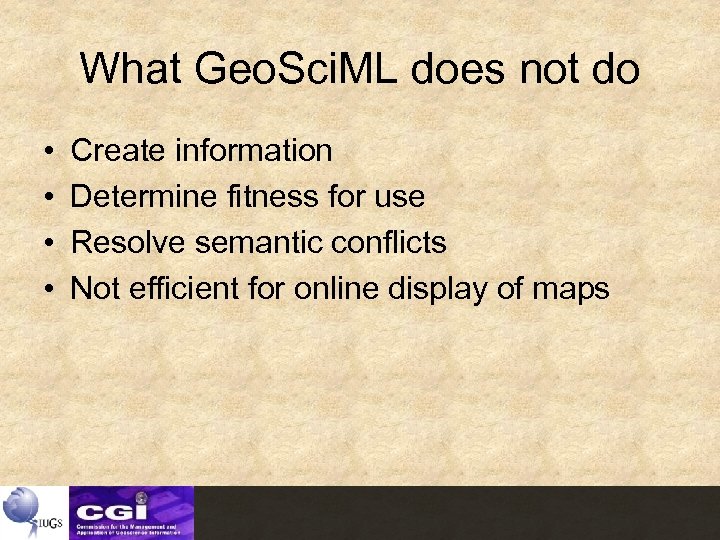

What Geo. Sci. ML does not do • • Create information Determine fitness for What Geo. Sci. ML does not do • • Create information Determine fitness for use Resolve semantic conflicts Not efficient for online display of maps

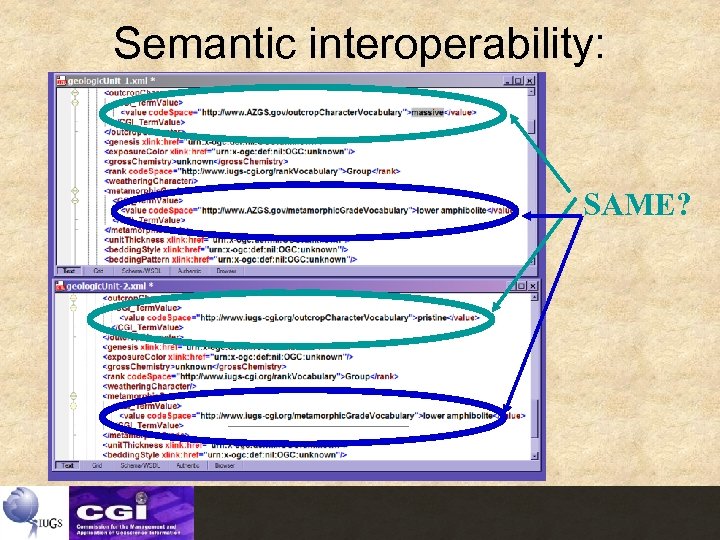

Semantic interoperability: SAME? Semantic interoperability: SAME?

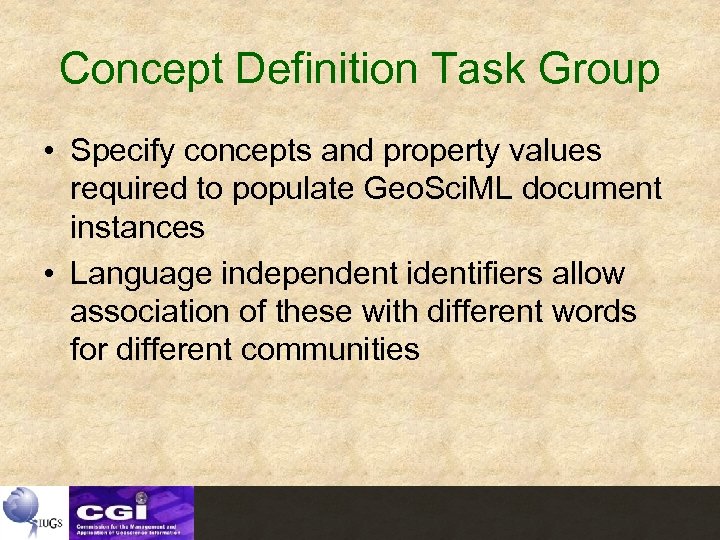

Concept Definition Task Group • Specify concepts and property values required to populate Geo. Concept Definition Task Group • Specify concepts and property values required to populate Geo. Sci. ML document instances • Language independent identifiers allow association of these with different words for different communities

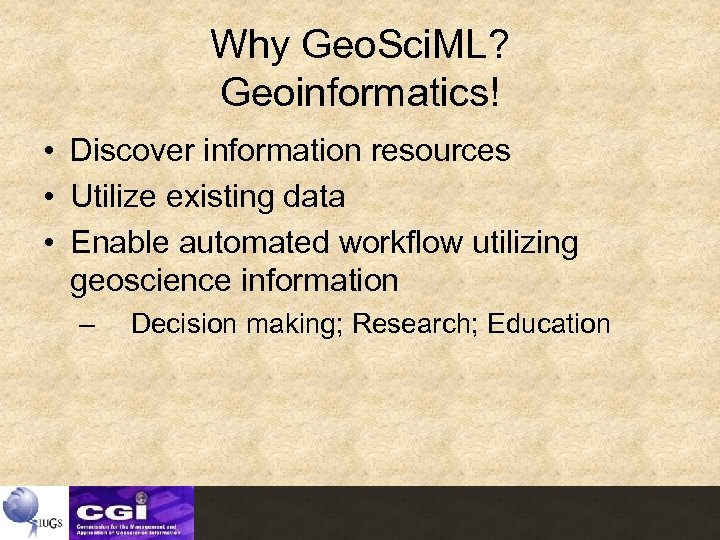

Why Geo. Sci. ML? Geoinformatics! • Discover information resources • Utilize existing data • Why Geo. Sci. ML? Geoinformatics! • Discover information resources • Utilize existing data • Enable automated workflow utilizing geoscience information – Decision making; Research; Education

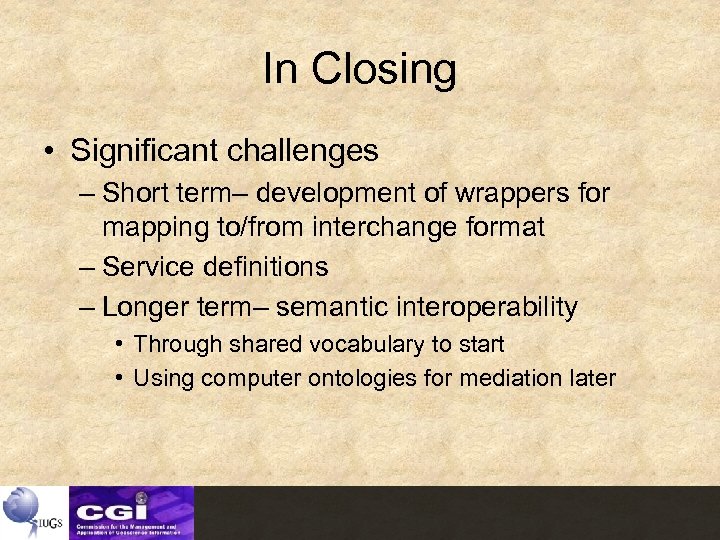

In Closing • Significant challenges – Short term– development of wrappers for mapping to/from In Closing • Significant challenges – Short term– development of wrappers for mapping to/from interchange format – Service definitions – Longer term– semantic interoperability • Through shared vocabulary to start • Using computer ontologies for mediation later
