GE Security Unshielded Twisted Pair (UTP) Training 1 Richard Hobson May 2004 GE Security Presenter Name Date

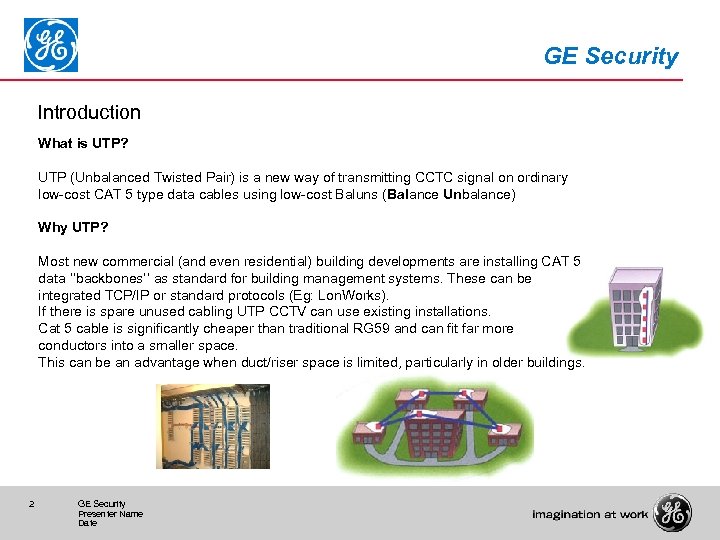

GE Security Introduction What is UTP? UTP (Unbalanced Twisted Pair) is a new way of transmitting CCTC signal on ordinary low-cost CAT 5 type data cables using low-cost Baluns (Balance Unbalance) Why UTP? Most new commercial (and even residential) building developments are installing CAT 5 data ‘’backbones’’ as standard for building management systems. These can be integrated TCP/IP or standard protocols (Eg: Lon. Works). If there is spare unused cabling UTP CCTV can use existing installations. Cat 5 cable is significantly cheaper than traditional RG 59 and can fit far more conductors into a smaller space. This can be an advantage when duct/riser space is limited, particularly in older buildings. 2 GE Security Presenter Name Date

GE Security Benefits of UTP Immunity to noise Long distances (Over 1 km) Easy wire installation Multiple video signals in the same bundle RS-422/RS-485 in the same bundle 12 VDC/24 VAC in the same bundle Lower cabling costs Space saving 3 GE Security Presenter Name Date

GE Security Noise Immunity Benefits Better interference immunity from: Neighboring cables/pairs Fluorescent lights Industrial Transformers and Motors Radio Transmitters 4 GE Security Presenter Name Date

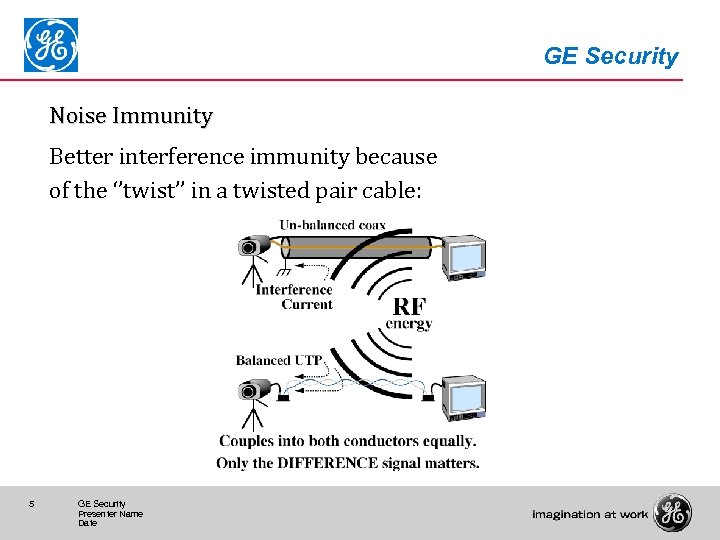

GE Security Noise Immunity Better interference immunity because of the ‘’twist’’ in a twisted pair cable: 5 GE Security Presenter Name Date

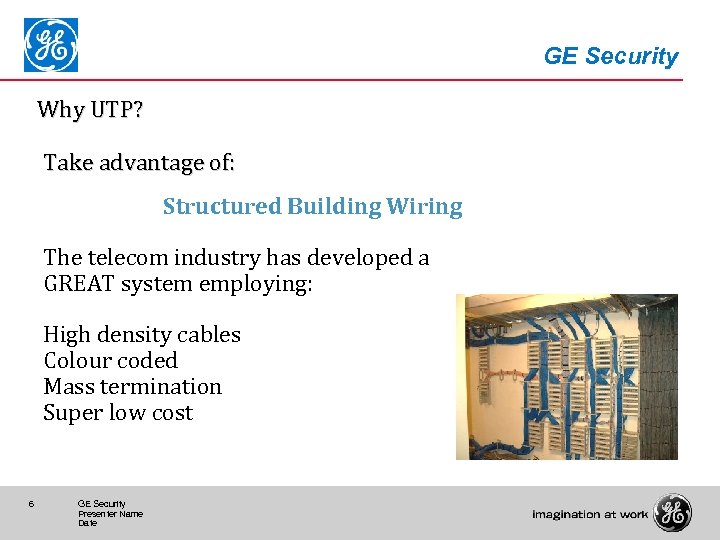

GE Security Why UTP? Take advantage of: Structured Building Wiring The telecom industry has developed a GREAT system employing: High density cables Colour coded Mass termination Super low cost 6 GE Security Presenter Name Date

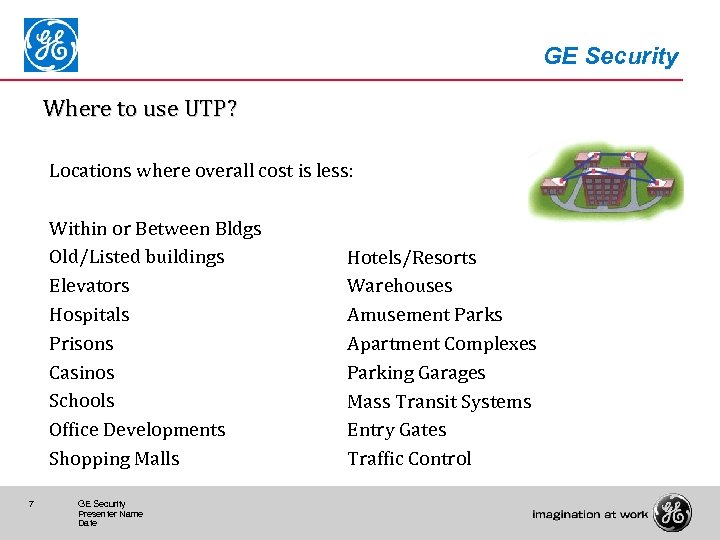

GE Security Where to use UTP? Locations where overall cost is less: Within or Between Bldgs Old/Listed buildings Elevators Hospitals Prisons Casinos Schools Office Developments Shopping Malls 7 GE Security Presenter Name Date Hotels/Resorts Warehouses Amusement Parks Apartment Complexes Parking Garages Mass Transit Systems Entry Gates Traffic Control

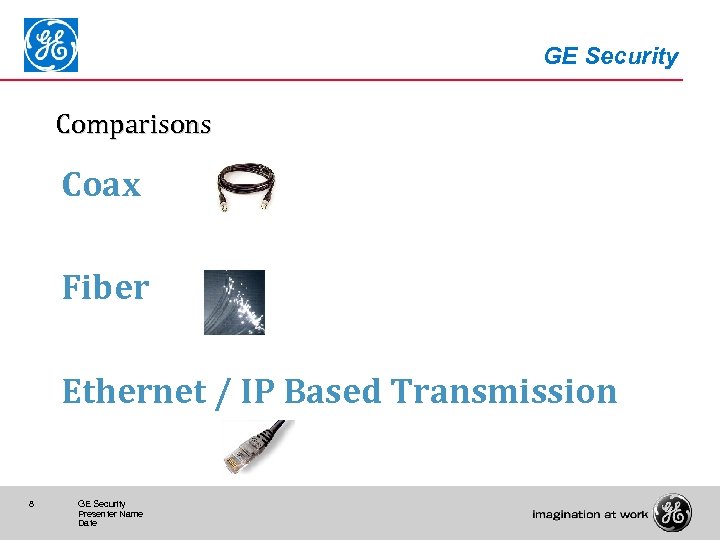

GE Security Comparisons Coax Fiber Ethernet / IP Based Transmission 8 GE Security Presenter Name Date

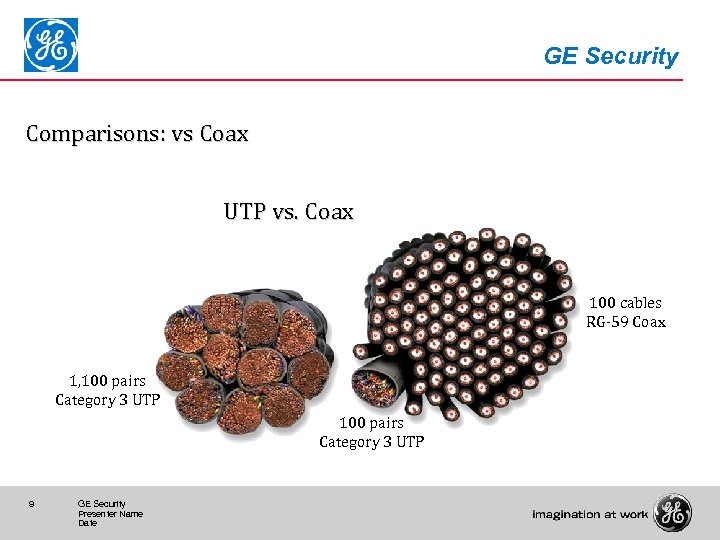

GE Security Comparisons: vs Coax UTP vs. Coax 100 cables RG-59 Coax 1, 100 pairs Category 3 UTP 9 GE Security Presenter Name Date

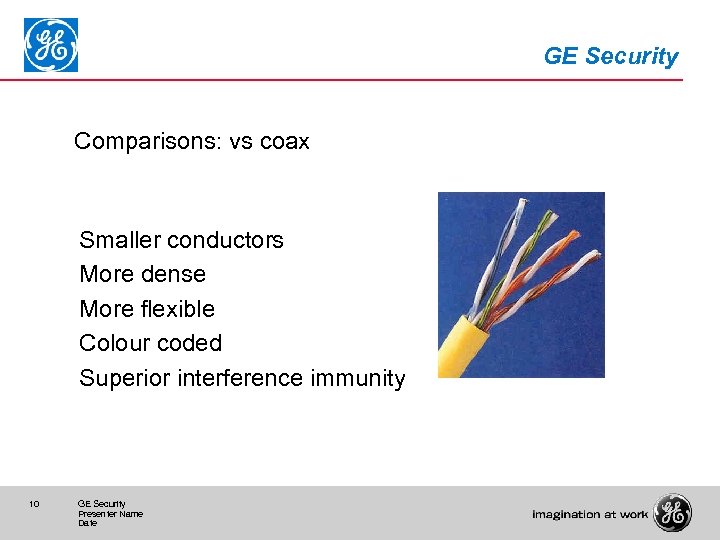

GE Security Comparisons: vs coax Smaller conductors More dense More flexible Colour coded Superior interference immunity 10 GE Security Presenter Name Date

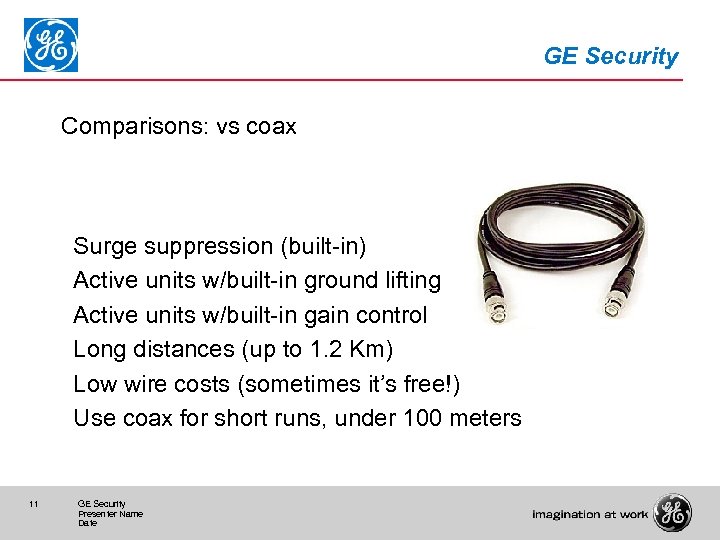

GE Security Comparisons: vs coax Surge suppression (built-in) Active units w/built-in ground lifting Active units w/built-in gain control Long distances (up to 1. 2 Km) Low wire costs (sometimes it’s free!) Use coax for short runs, under 100 meters 11 GE Security Presenter Name Date

GE Security Comparisons: vs Fiber Less complexity and special skills needed for installation Lower cable cost Similar features with lower Tx/Rx cost No power required (many cases) No minimum bend radius issues Lower cost termination tools & test equipment No d. B loss calculations 12 GE Security Presenter Name Date

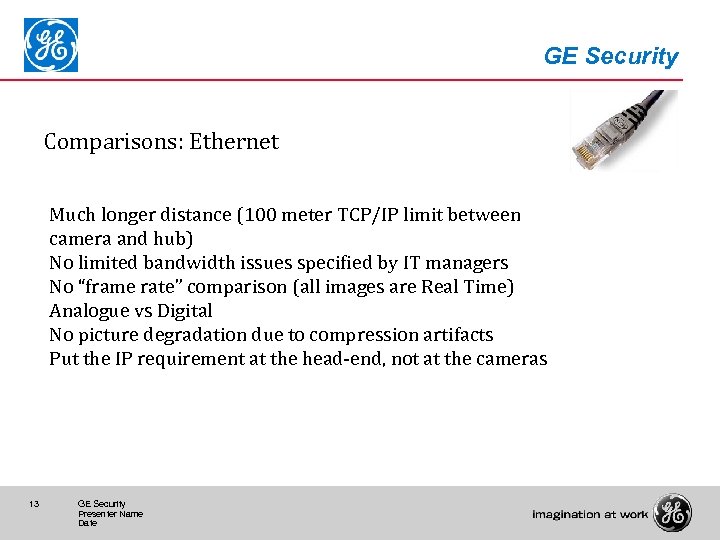

GE Security Comparisons: Ethernet Much longer distance (100 meter TCP/IP limit between camera and hub) No limited bandwidth issues specified by IT managers No “frame rate” comparison (all images are Real Time) Analogue vs Digital No picture degradation due to compression artifacts Put the IP requirement at the head-end, not at the cameras 13 GE Security Presenter Name Date

GE Security UTP Limitations Base-band only (not for CATV) Active units do not support“ up-the-coax” P/T/Z controls Not “broadcast” quality (>800 lines) Distance limited to 1200 meters, point-to-point Remember! Do NOT use SHIELDED wire Do NOT use UN-TWISTED wire 14 GE Security Presenter Name Date

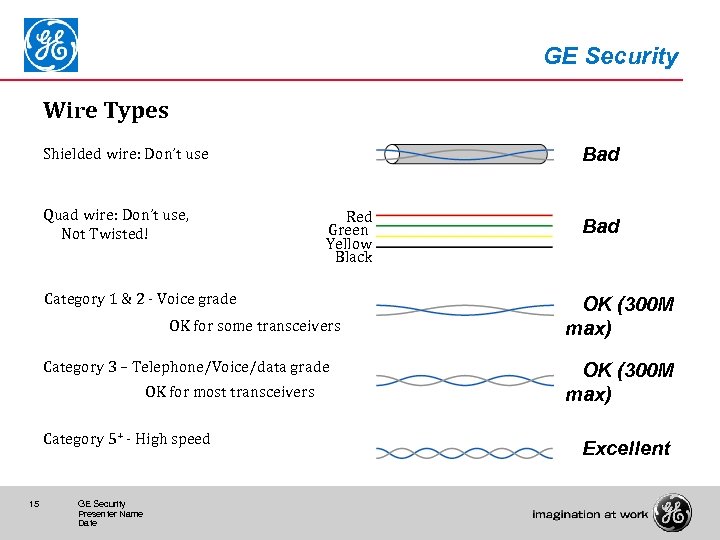

GE Security Wire Types Bad Shielded wire: Don’t use Quad wire: Don’t use, Not Twisted! Red Green Yellow Black Category 1 & 2 - Voice grade OK for some transceivers Category 3 – Telephone/Voice/data grade OK for most transceivers Category 5+ - High speed 15 GE Security Presenter Name Date Bad OK (300 M max) Excellent

GE Security Passive Equipment: Passive up to 400 meters Supports “up-the-coax” P/T/Z controls Built-in surge suppression All units are transceivers so can be deployed at either end Multi Standard NTSC, PAL, SECAM 16 GE Security Presenter Name Date

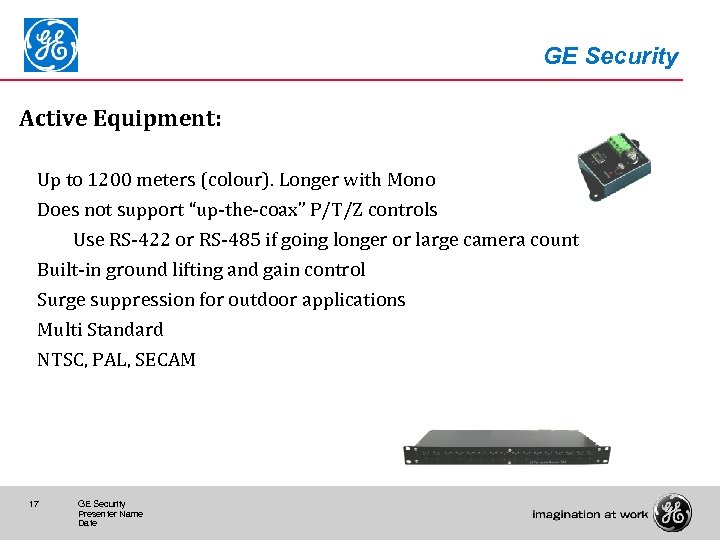

GE Security Active Equipment: Up to 1200 meters (colour). Longer with Mono Does not support “up-the-coax” P/T/Z controls Use RS-422 or RS-485 if going longer or large camera count Built-in ground lifting and gain control Surge suppression for outdoor applications Multi Standard NTSC, PAL, SECAM 17 GE Security Presenter Name Date

GE Security Basic product type: There are two basic types of UTP transceivers : Passive and Active These can be used in one of the following three ways depending on distance and type of cable used Passive 18 GE Security Presenter Name Date Active

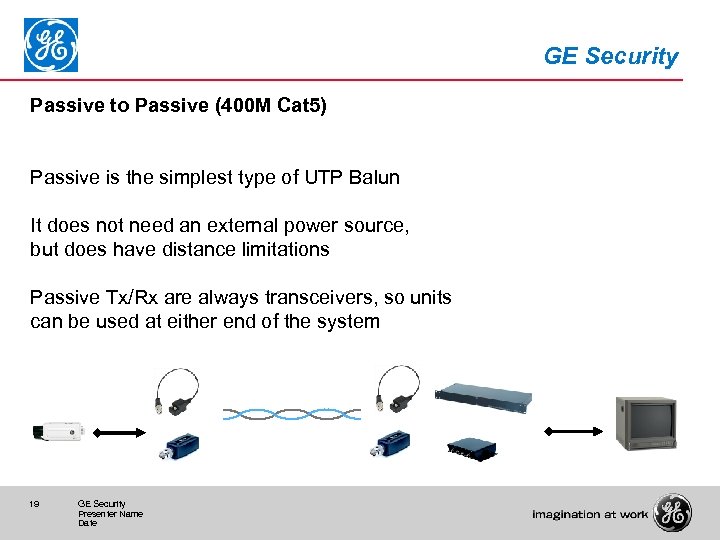

GE Security Passive to Passive (400 M Cat 5) Passive is the simplest type of UTP Balun It does not need an external power source, but does have distance limitations Passive Tx/Rx are always transceivers, so units can be used at either end of the system 19 GE Security Presenter Name Date

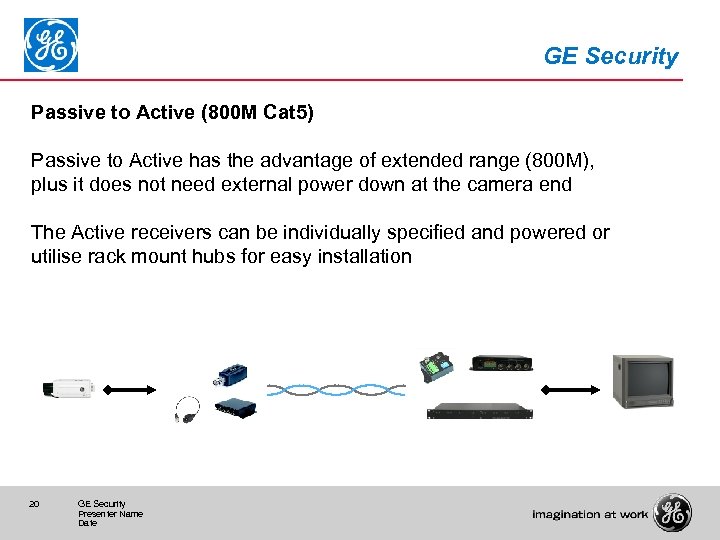

GE Security Passive to Active (800 M Cat 5) Passive to Active has the advantage of extended range (800 M), plus it does not need external power down at the camera end The Active receivers can be individually specified and powered or utilise rack mount hubs for easy installation 20 GE Security Presenter Name Date

GE Security Active to Active (1. 2 km Cat 5) Active to Active has the advantage of of super extended range (1200 M), Active receivers offer extra noise immunity and surge protection Active transmitters and receivers need 12 Vdc at camera and receiver ends to operate Active transmitters have 3 position gain switch (L, M, H) and active receivers have a 5 position gain switch depending on cable length used. First set the 5 position DIP switch on the receiver depending on cable length deployed Position 1 Position 2 Position 3 Position 4 Position 5 = = = Meters (Cat 5) 0 -200 200 -500 500 -800 800 -1100 -1500 Then, if necessary set the Transmitter gain to Low, Medium or High to achieve a 1 volt Pk to Pk video signal 21 GE Security Presenter Name Date

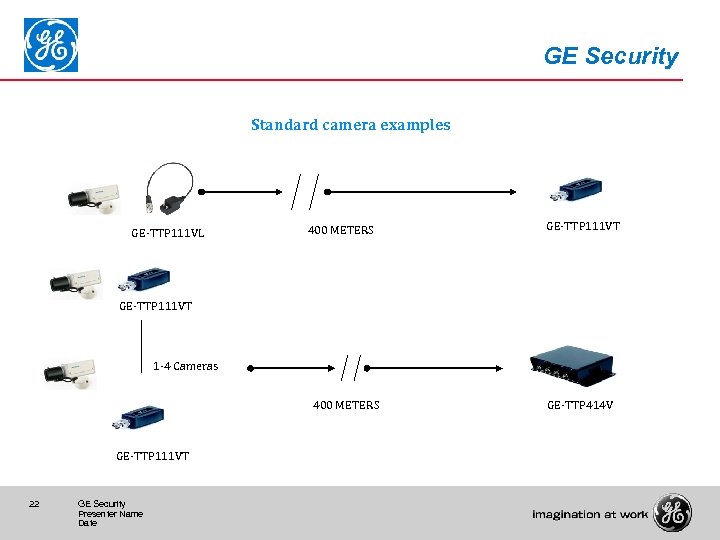

GE Security Standard camera examples GE-TTP 111 VL 400 METERS GE-TTP 111 VT 1 -4 Cameras 400 METERS GE-TTP 111 VT 22 GE Security Presenter Name Date GE-TTP 414 V

GE Security Standard camera examples (cont) GE-TTP 111 VT 1 -16 Cameras GE-TTP 111 VT GE-TTP 111 VL GE-TTA 111 VT 23 GE Security Presenter Name Date GE-TPP 016 400 METERS GE-TTA 111 V Kit 1200 METERS 800 METERS GE-TTA 111 VR

GE Security Passive Plus Pack (KTCB-UTP) To 400 METERS GE-TTP 111 VT Passive receivers KTCB-UTP 400 METERS GE-TTP 111 VL 400 METERS 1 -16 cameras 400 METERS 24 GE Security Presenter Name Date GE-TPP 016 GE-TTP 414 V

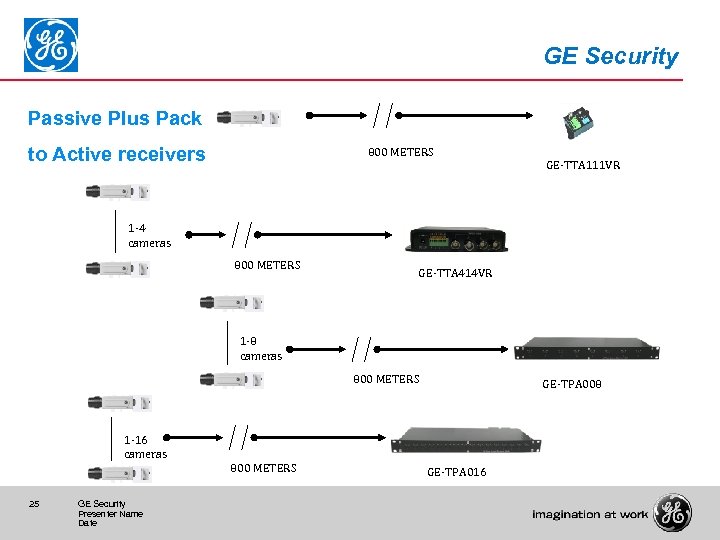

GE Security Passive Plus Pack to Active receivers 800 METERS GE-TTA 111 VR 1 -4 cameras 800 METERS GE-TTA 414 VR 1 -8 cameras 800 METERS 1 -16 cameras 25 GE Security Presenter Name Date 800 METERS GE-TPA 008 GE-TPA 016

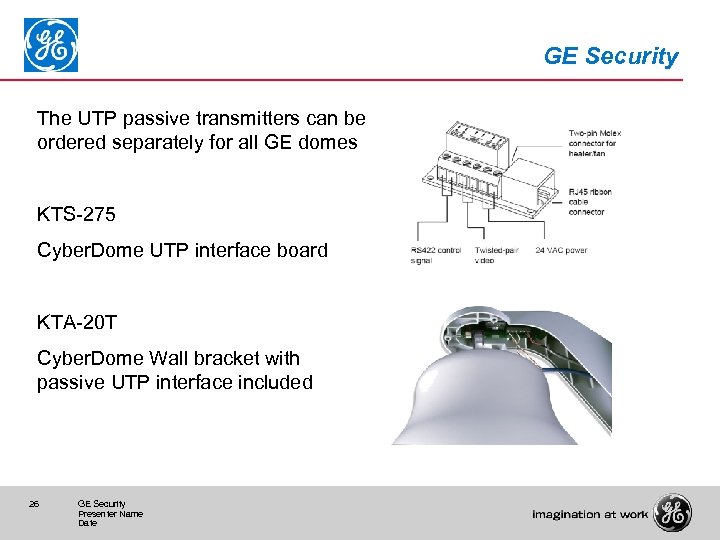

GE Security The UTP passive transmitters can be ordered separately for all GE domes KTS-275 Cyber. Dome UTP interface board KTA-20 T Cyber. Dome Wall bracket with passive UTP interface included 26 GE Security Presenter Name Date

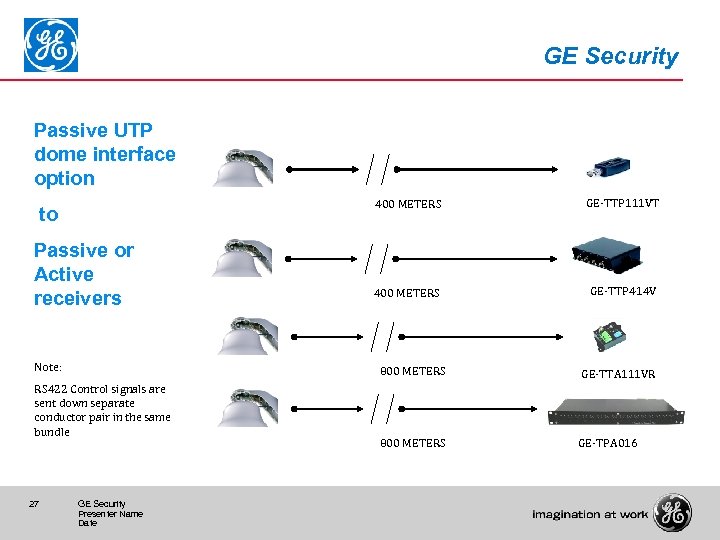

GE Security Passive UTP dome interface option 400 METERS to Passive or Active receivers Note: 400 METERS GE-TTP 414 V 800 METERS RS 422 Control signals are sent down separate conductor pair in the same bundle 27 GE-TTP 111 VT GE Security Presenter Name Date GE-TTA 111 VR 800 METERS GE-TPA 016

GE Security TPN 009 2 U Rack Mounting Panel · Standard 19 -inch (482 mm) wide, 3. 5 -inch (90 mm) 2 U high. · Supports up to 9 pieces GE-TTA 111 VR or GE-TTA 111 VT · This heavy-gauge panel is designed to withstand the mechanical Application: 28 GE Security Presenter Name Date load of multiple cables.

GE Security Passive Products line up Item Number KTCB-UTP Plus. Pack Unshielded twisted pair camera module GE-TTP 111 VS GE exclusive Video Transceiver BNC Male To Terminal Block. New Slim design for use with multiplexers GE-TTP 111 VT Video Transceiver BNC Male To Terminal Block GE-TTP 111 VL Video Transceiver 25 cm mini coax GE-TTP 414 V 4 Channel Video Transceiver 4 x BNC GE-TPP 016 29 Description 16 Port Passive Transceiver Hub In 1 U Rack Mounting Panel GE Security Presenter Name Date

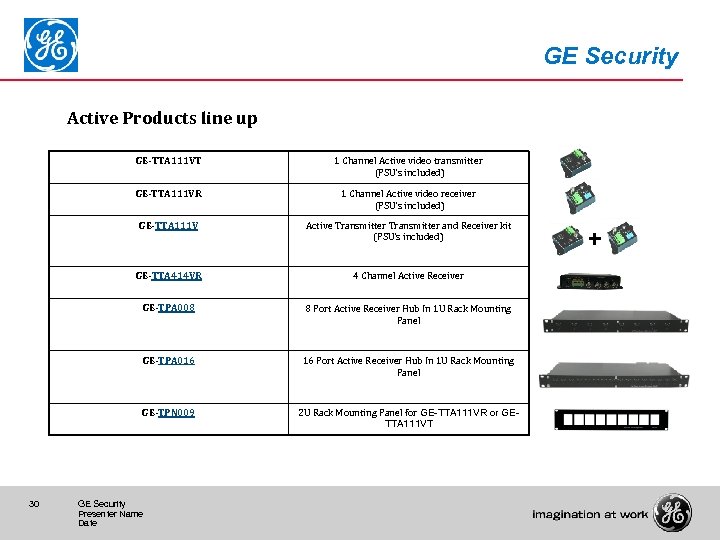

GE Security Active Products line up GE-TTA 111 VT GE-TTA 111 VR 1 Channel Active video receiver (PSU’s included) GE-TTA 111 V Active Transmitter and Receiver kit (PSU’s included) GE-TTA 414 VR 4 Channel Active Receiver GE-TPA 008 8 Port Active Receiver Hub In 1 U Rack Mounting Panel GE-TPA 016 16 Port Active Receiver Hub In 1 U Rack Mounting Panel GE-TPN 009 30 1 Channel Active video transmitter (PSU’s included) 2 U Rack Mounting Panel for GE-TTA 111 VR or GETTA 111 VT GE Security Presenter Name Date +
