Gamcel’s network evolution by Alcatel-Lucent
Agenda 1. Gamcel’s challenges 2. ALU's end to end vision of Gamcel’s Mobile Network Evolution over 2010 3. Radio solution 4. Power equipments 5. Transmission solution 6. Core network solution 7. Services 8. Conclusion 2 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
1 3 Gamcel’s challenges All Rights Reserved © Alcatel-Lucent 2008, XXXXX
GAMCEL Challenges Increase of SERVICE DEMAND Increase of TRAFFIC Fierce COMPETITION Challenging CONTEXT Need to Increase COVERAGE in remote areas Rising TENSIONS Need to Densify in Urban areas (climate, infra. ) (Energy Market, Site Constraints) Need to Differentiate For the LOWEST TCO Protecting your Initial INVESTMENT NEED TO MANAGE TCO-EFFICIENT & DIFFERENTIATED COVERAGE AND CAPACITY GROWTH 4 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
2 5 ALU's end to end vision of Gamcel’s Mobile Network Evolution over 2010 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
Total Cost of Ownership Focus Improve the Operator’s Business Model 1 (Network OPEX + CAPEX amortization) Telecom Equipment cost contribution to RAN TCO is less than 20%… 20% 100% Civil works Site rental Power supply Transmission Etc. Telecom Equipment 3 Savings enabled by Alcatel-Lucent solutions Multi-Standard Low Power Consumption Full IP … but Telecom Equipment features and performances directly influence all TCO contributors High Capacity High Coverage 2 TCO is the KEY DESIGN CRITERION of our GSM solutions 6 All Rights Reserved © Alcatel-Lucent 2008, XXXXX Environmental Friendly Design TCO
End to end solution Mobile core circuit switching 7 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
End to end solution BSS: BTSs, BSCs extension, BSC G 2 swap, TC, Antennas, Power supply, NPO, SW MW PDH: PDH MW Links, antennas, installation material NGN: 5060 WCS, 7549 MGW, Software release 4. 49, Optional packages: Enhanced Core (including CUG) and Everything IN XMC GPRS: SGSN, GGSN SDM RNO&RMS FP On site technical support: only for new technologies to introduce in the network Power equipments: Solar panels, Generators I&C 8 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
3 9 Radio solution All Rights Reserved © Alcatel-Lucent 2008, XXXXX

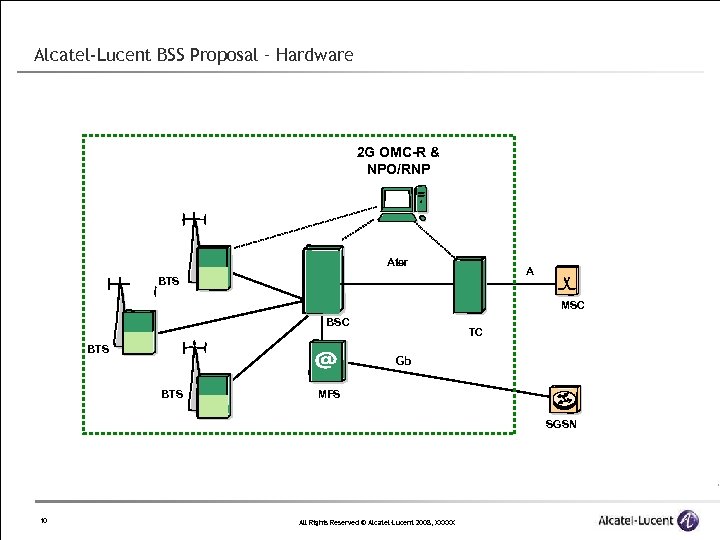

Alcatel-Lucent BSS Proposal – Hardware 2 G OMC-R & NPO/RNP Ater A BTS MSC BTS TC Gb BTS MFS SGSN 10 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
Alcatel-Lucent Global Offer TX 1 1 - Hardware integration and dynamic software for the Lowest power consumption Multi-Carrier Power Amplifier (MCPA) Dynamic Power Save (DPS) Twin TRX TX 2 2 - Best in class Outdoor: • Low consumption • High Temperature (55°C) • High coverage MBO 1/2 CBO 3 - Alternative Power Supply and innovative site engineering Solar Panels Wind Lowest Number of Sites X 4 - HW ready for EDGE Evolution and Multi-Standard Twin TRX Coverage Site design Lowest Unit Site Cost TWIN TRX HW ready for EDGE Evolution SW upgrade for EDGE Evolution and smooth upgrade to W-CDMA 11 All Rights Reserved © Alcatel-Lucent 2008, XXXXX Lowest TCO MCPA 2 G/3 G/LTE RRH MCPA 2 G/3 G/LTE Investment protection
Gamcel’s request/Assumptions - 5 sites in 1800 Mhz (outdoor) and 28 Sites in 900 Mhz (5 outdoor and 23 indoor) - Traffic assumptions: - Activation of GPRS/EDGE using the default user profil ( 15 K GPRS SUBSCRIBERS) - Target: 300 K subscribers 12 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
Radio network evolution proposed by ALU The following evolutions are proposed by ALCATEL-LUCENT: An upgrade of BSS software release from B 9 to B 10 is considered; Coverage and capacity extension to 300 000 voice subscribers, by the addition of new sites in both urban/suburban and rural areas; GPRS and Edge activation The following state of the art products are proposed: o Twin TRX to minimize the BTS footprint and save cabinets (up to 24 logical TRX per cabinet); o BSC A 9130 Evolution, combining a large capacity in a reduced footprint; o MFS A 9130 Evolution, to handle GPRS traffic. o In the specific case, BSC/MFS rack sharing configuration is proposed. 13 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
Dimensioning results Entire Network Summary - Cumulative BSS release Maximum Subscribers CS Active Subscribers CS Maximum Subscribers GPRS Active Subscribers GPRS Sites Cells BTS TRXeq SUMABoards BSC-G 2 BSC-9130 -Evo racks BSCMFS-9130 -Evo racks (without GP boards) MFS-9130 -Evo-GP boards Total BSC Evolution (in terms of Network Elements) Total Evolution racks TC-9125 racks (without MT 120 boards) MT 120 boards TDM or IPo. E 1: Abis (number of E 1 links) TDM: Ater PS (number of E 1 links) TDM: Ater CS (number of E 1 links) A (number of E 1 links) 14 All Rights Reserved © Alcatel-Lucent 2008, XXXXX Existing B 9 187616 160469 81 233 81 725 820 81 2 1 1 1 33 81 33 127 EXT B 10 MR 2 300951 262511 16430 14683 114 332 114 1121 1183 114 0 2 3 1 3 4 2 51 114 4 51 198
BOM-Phase 1 15 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
BOM-Phase 2 16 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
Radio solution: BTS § MBI 53 and MBO 2 cabinets can contain 3 G D 2 U § DC mode § Twin TRX (in capacity mode) § Antennas , feeders 17 All Rights Reserved © Alcatel-Lucent 2008, XXXXX

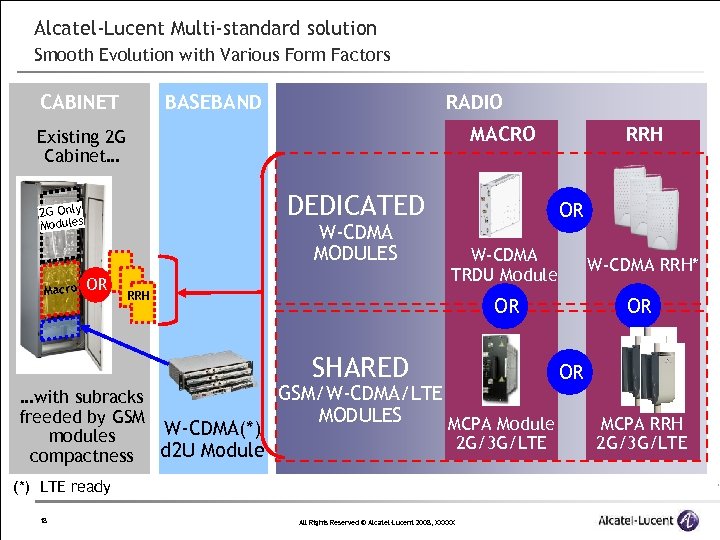

Alcatel-Lucent Multi-standard solution Smooth Evolution with Various Form Factors CABINET BASEBAND RADIO MACRO Existing 2 G Cabinet… DEDICATED 2 G Only Modules Macro W-CDMA MODULES OR OR W-CDMA TRDU Module W-CDMA RRH* OR OR RRH SHARED GSM/W-CDMA/LTE …with subracks MODULES freeded by GSM MCPA Module W-CDMA(*) modules 2 G/3 G/LTE compactness d 2 U Module (*) LTE ready 18 RRH All Rights Reserved © Alcatel-Lucent 2008, XXXXX OR MCPA RRH 2 G/3 G/LTE
Alcatel-Lucent Multi-standard solution From GSM to GSM/W-CDMA including HSDPA/HSUPA Description Combine GSM & W-CDMA with: § 9326 d 2 U / 9341 RRH solution § In existing GSM cabinet MBI 5 GSM RF modules § In existing GSM cabinet MBO 2 Capacity Up to 12 TRX with twin TRX in MBI 5 Up to 24 TRX with twin TRX in MBO 2 Up to 3 sectors Up to 768 CEs W-CDMA d 2 U module High GSM capacity thanks to Twin TRX: up to 24 TRX 19 All Rights Reserved © Alcatel-Lucent 2008, XXXXX W-CDMA RRH
Alcatel-Lucent Multi-standard solution From GSM to GSM/W-CDMA with TRDU modules Description Combine GSM & W-CDMA with: § 9326 d 2 U + TRDU § In existing GSM cabinet MBI 5 GSM RF modules § In existing GSM cabinet MBO 2 Capacity Up to 12 TRX with twin TRX in MBI 5 Up to 12 TRX with twin TRX in MBO 2 W-CDMA d 2 U module Up to 3 sectors Up to 768 CEs High GSM capacity thanks to Twin TRX: up to 12 TRX 20 All Rights Reserved © Alcatel-Lucent 2008, XXXXX W-CDMA TRDU
Alcatel-Lucent Multi-standard solution From GSM to GSM/W-CDMA/LTE with MCPA Hardware modules Description Combine GSM & W-CDMA or LTE with: § W-CDMA d 2 U integrated in existing GSM indoor/outdoor BTS § MCPA RF modules shared between GSM & W-CDMA in 900 MHz MCPA RF modules Capacity Multiple combinations are possible (module level): § 1 GSM + 1 W-CDMA = 2 x 45 W 2 GSM + 1 W-CDMA = 3 x 27 W § 1 GSM 45 W + 1 LTE 27 W 2 GSM 20 W + 1 LTE 19 W W-CDMA or LTE d 2 U module True Multi-Standard Access point: module plug-in (no RRH) 21 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
A 9100 BTS outdoor – multiband & multistandard Size Optimization 12 TRXs Cabinet ! XXL Capacity 24 TRXs Cabinet for best multi-standard UMTS/GSM applications MBO 2 -Evo 24 TRXs capacity - S 8, 8, 8 MBO 1 -Evo 12 TRXs capacity - S 4, 4, 4 850/E 900/1800/1900 MHz GSM/EDGE/UMTS/WIMAX Cabinet ready from MCPA technology … 22 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
New indoor cabinet MBI 53 DC Introduction of MBI 53 DC cabinet with 3 subracks only Option: Upgrade KIT to extend MBI 53 to MBI 5 (hardware extension without telecom outage) 3 BK 30203 AJ - BTS 9100 MBI 53 TO MBI 5 CABINET KIT Extension kit content: 2 additional subracks 1 Fan stage 1 Top Fan Back Panel Additional fan stage 23 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
MBI 53 extend 2 G radio configuration Double traffic capacity Without changing cabinet (capex/opex gain) MBI 53 DC 4/4/4 24 MBI 5 DC 8/8/8 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
MBI 53 multistandard BTS 2 G/3 G RRH 3 G/LTE only • 3 G intégration • keep 2 G radio configuration Without changing cabinet (Capex/opex gain) MBI 53 DC 4/4/4 25 MBI 53 DC 4/4/4 + UMTS All Rights Reserved © Alcatel-Lucent 2008, XXXXX
MBI 53 multistandard BTS 2 G/3 G TRDU • 3 G intégration • keep 2 G radio configuration Without changing cabinet (Capex/opex gain) MBI 53 DC 4/4/4 26 MBI 53 DC 4/4/4 + UMTS All Rights Reserved © Alcatel-Lucent 2008, XXXXX
MBI 53 benefits • Allow progressive investment for 2 G radio extension • Easy 3 G/LTE integration without changing cabinet and keeping 2 G radio configuration • 2 G radio extension without changing cabinet • Integration of extension kit MBI 53 without telecom outage • Simplify warehouse management( 1 unique model of cabinet, 1 unique power cable section, …) 27 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
Radio solution: BSC/MFS § extension of the BSC evo : § BSC G 2 Swap: 28 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
High scalability & flexibility Many configurations to fit your traffic requirements MF MFS BSC E 1 Shelf 29 BSC MFS BSC E 1 Shelf All Rights Reserved © Alcatel-Lucent 2008, XXXXX M FS BSC E 1 Shelf
Radio solution: TC § 20 additional MT 120 cards are needed. § TC existing in Gamcel’s network isfully equipped by 48 MT 120 cards but only 33 are used. Only 5 MT 120 cards are still needed. 30 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
TC Hardware description (1/2) A Very Simple Architecture: ü TC based on one main module only: the MT 120 board üOne MT 120 board per Atermux encompassing all functions in one board (including sub-multiplexing 1: 4) ü Same board processing all codecs (FR, EFR, HR, AMR-FR, AMRHR, TFO) handled transparently – no pool definition needed üNew NB-AMR board for narrowband codecs, replacing the existing MT 120 ones , better MTBF (RJ 45 Ethernet replaces RS 232 front-panel connectors) ü New board ready for WB-AMR plus all legacy codecs üA mix of new WB&NB and old MT 120 boards is supported High capacity for voice processing ü Up to 48 MT 120 boards- 192 A-interfaces per cabinet 31 All Rights Reserved © Alcatel-Lucent 2008, XXXXX Standard 19" rack (200 cmx 60 cm),
TC Hardware description (2/2) High flexibility: ü Rack sharing multi-BSC / multi-MSC ü Ater multiplexed interface (1: 4) for optimized transport with full flexibility for co-located or remote TC ü Design based on DSP for full flexibility to support all codecs by software activation ü Transmissions with E 1 / STM-1 / IP TC G 2. 5 benefits compare to TC G 2 Radio solution: TC ü Reduced footprint 1 rack = 8 TC G 2 racks (iso fonctionnality = 17 sqm saving) ümulti-BSC üEnabled remote O&M and IP transport with TC-STM 1 üPower consumption savings (8 TCG 2 rack = 9600 w / TCG 2. 5 = 2400 w) üSpare lot reduction (68% of gain on spare lot investment) üObsolescence TC G 2 boards Standard 19" rack (200 cmx 60 cm), 32 All Rights Reserved © Alcatel-Lucent 2008, XXXXX

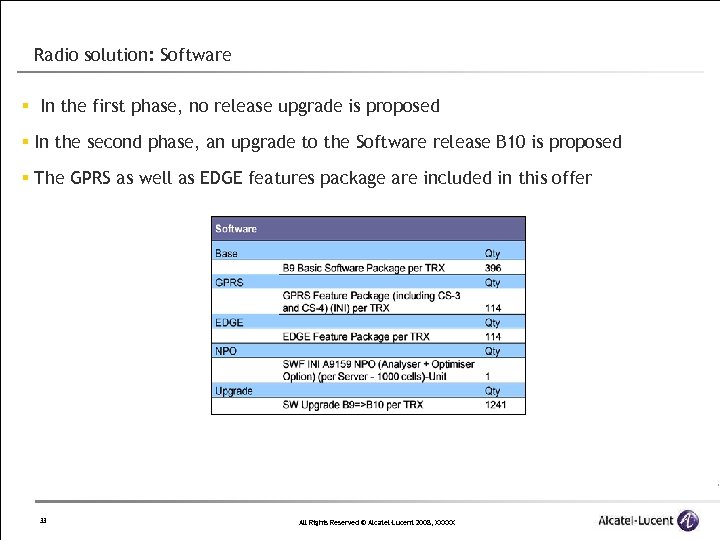

Radio solution: Software § In the first phase, no release upgrade is proposed § In the second phase, an upgrade to the Software release B 10 is proposed § The GPRS as well as EDGE features package are included in this offer 33 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
Alcatel-Lucent BSS Solution – B 10 Release Benefits B 10 BENEFITS Brings voice quality equivallent to 3 G for mobile to mobile calls WB-AMR NPO Enables « See what I see » or « surf and speak » applications, Enables sending FTP, MMS, small video clips twice more rapidly DTM EDA Brings up to 35% savings in radio network optimization manpower Differentiate on Voice Differentiate on Data Twin TRX Brings increased coverage in the 1800 MHz band, (45 W at TRX output, compared to 35 W in regular 1800 MHz Twin) Increase Coverage at Lowest TCO BSC Evo 2000 TRXs, STM-1 in TC Gb over IP CAPEX/OPEX savings vs BSC G 2 or BSC Evo 1200 TRXs (telecom equipment / site rental, power consumption) CAPEX/OPEX savings vs E 1 and TDM (no ADM, simplified cabling / LL rental, O&M) Increase Capacity at Lowest TCO 1800 MHz 45 W ANSWERING OPERATOR’S DIFFERENTIATION AND TCO CHALLENGES 34 All Rights Reserved © Alcatel-Lucent 2008
Radio solution: OMC/ NPO § To replace E 450 by the new M 4000 server § one external U 24 SUN workstation installed as a console is connected to the M 4000 serial and Ethernet port § The B 9 2 G tool chain (composed of 9156 RNO / NPA / 9157 Laser) is merged in B 10 into the unique 9159 NPO product 35 All Rights Reserved © Alcatel-Lucent 2008

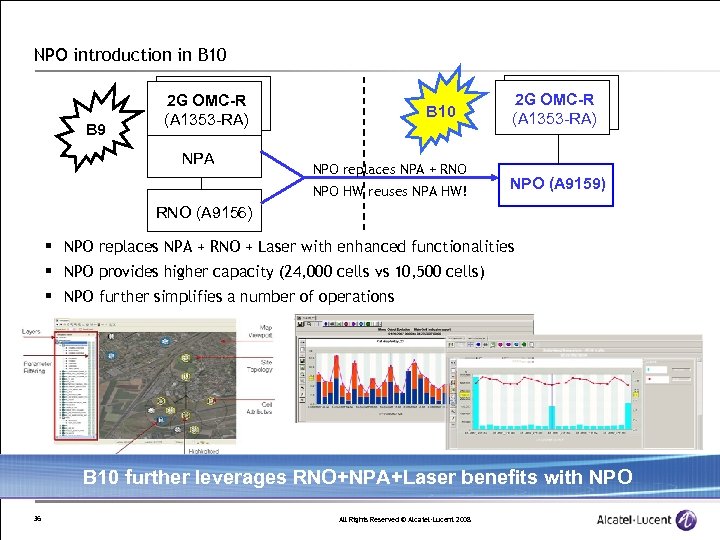

NPO introduction in B 10 B 9 2 G OMC-R (A 1353 -RA) NPA B 10 NPO replaces NPA + RNO NPO HW reuses NPA HW! 2 G OMC-R (A 1353 -RA) NPO (A 9159) RNO (A 9156) § NPO replaces NPA + RNO + Laser with enhanced functionalities § NPO provides higher capacity (24, 000 cells vs 10, 500 cells) § NPO further simplifies a number of operations B 10 further leverages RNO+NPA+Laser benefits with NPO 36 All Rights Reserved © Alcatel-Lucent 2008
NPO brings the following benefits… 3 tools in 1 Iintegrates NPA, RNO and LASER Multi-standard Across technologies: GSM, W-CDMA, LTE, Wi. MAX Fully customizable customers indicators, reports, views, user preferences, favorites, . . . Higher capacity More than doubled compared to NPA/RNO 70 customers use Alcatel Up to 37 45% RNO/NPA workload reduction All Rights Reserved © Alcatel-Lucent 2008
Network Performance Optimiser (NPO) Unique expert tool on the market Description § Radio Optimization and Qo. S monitoring § Full integration of network design and performance analysis tools Functionalities § Qo. S Monitoring § Configuration check § Configuration tuning § Diagnose § Real-time access to Qo. S data/traffic § NPO indicators (2000+) Improve and speed up network optimization 38 All Rights Reserved © Alcatel-Lucent 2008
Network Performance Optimiser (NPO) “Jobs” overview Everything from the same MMI ! Check Qo. S Diagnose Tune Operational vs. reference Indicators Drop rate Parameters Operational vs. planned Raw counters Setup succ rate Frequencies Rules Reports Etc. . . Neighborhood Evolution Customize Multi-object comp. Warnings Ensure the best Qo. S for end customer satisfaction 39 All Rights Reserved © Alcatel-Lucent 2008
4 40 Power equipments All Rights Reserved © Alcatel-Lucent 2008
Radio solution: Power equipments Recapitulation of Gamcel’s Request 41 All Rights Reserved © Alcatel-Lucent 2008
Radio solution: Power equipments Diesel Generator Alcatel-Lucent offer SDMO Diesel generator J 44 K; The Generator Capacity is 44 KVA. Solar Panel Generator Alcatel-Lucent proposes Tenesol Solution for the Solar Generator and Wet Cells. 42 All Rights Reserved © Alcatel-Lucent 2008
Radio solution: Power equipments The principle of Alcatel-Lucent solution is: § Feeding Telecom Equipment with Solar Generator when possible § When no sun, equipments are fed by batteries for 24 hours § Diesel Generator is used when no sun and battery system is empty. 43 All Rights Reserved © Alcatel-Lucent 2008
Innovative Alternative Energy Solutions 200 th Alcatel-Lucent solar-powered BTS site! Affordable solar panel surface… … thanks to very low power consumption Hybrid [Solar + Wind] Trial & Lab under development Field experience & Innovation to make alternative Energies a Wider Reality 44 All Rights Reserved © Alcatel-Lucent 2008
5 45 Transmission solution All Rights Reserved © Alcatel-Lucent 2008
Transmission solution PDH MW links Antennas Installation materials: Racks 46 All the MW equipment will be hosted on the BTS All Rights Reserved © Alcatel-Lucent 2008
6 47 Core network solution All Rights Reserved © Alcatel-Lucent 2008
Core network solution: NGN for 600 KMS (including swap of Legacy MSC) q 1 WCS 5060 conf DL 2 and 1 MGW 7549 (including spares) q. RTU WCS and MGW for 600 KMS, Optional packages : Enhanced Core (feature CUG) + Everything IN q. Buyback of MSC Legacy based on RTU of 350 existing subscribers q. Services : I&C, PM, Swap services, Training 48 All Rights Reserved © Alcatel-Lucent 2008
5060 WCS + 7549 WMG = the enhanced evolution m. NGN Call Server Media Gateway 5060 WCS 7549 WMG § State-of-the-art ATCA § Fully compliant with 3 GPP R 4, R 5, R 6 § Carrier grade platform with 5 9 s reliability § Highly scalable open IT platform: 5. 1 million BHCA VMSC, 8. 8 million BHCA GMSC Multi-protocol: GSM and UMTS Superior scalability and density Any-to-Any switching for TDM, IP, ATM Evolves from 2/2. 5 G to 3 G to All-IP with only software upgrades Built for High Reliability & Stability: fault tolerant, overload control, self recovery IMS and SIP Inside A very high capacity ‘one cabinet ‘ solution 49 All Rights Reserved © Alcatel-Lucent 2008
Mobile NGN References 63 Commercial Customers and Growing! Over 386 Call Servers and 878 MGWs in service around the world… T-Mobile, U. S. A. Vimpelcom, Russia China Mobile 2 G/3 G VMSC & GMSC 2 G VMSC 2 G/3 G VMSC & GMSC Commercial AT&T Mobility, U. S. A. Mobicom, Mongolia China Unicom at&t 2 G/3 G VMSC Commercial XIT, U. S. A. 2 G VMSC & GMSC Commercial Globacom, Nigeria True Move, Thailand 2 G VMSC 50 2 G VMSC & GMSC Commercial Over 135 Million Subscribers covered 2 G/3 G VMSC & GMSC Commercial TNZ, New Zealand BSNL, India MTNL, India 2 G/3 G & VMSC/GMSC 2 G/3 G VMSC & GMSC 2 G VMSC /GMSC Commercial All Rights Reserved © Alcatel-Lucent 2008 Aruba Belgium Benin Brunei Burundi China Congo Georgia Ghana Haiti India Isle of Man Kazakhstan Kosovo Laos Malawi Maldives Mexico Mongolia Netherlands New Zealand Nigeria Qatar Reunion Is. Russia Spain Sri Lanka Thailand Togo Venezuela U. K. U. S. A.
Core network solution: GPRS for 20 KMS q. SGSN 7500 ALU, GGSN 7604 Cisco q. Software for 20 KMS q. Services : I&C, PM, Training 51 All Rights Reserved © Alcatel-Lucent 2008
Core network solution: SDM for 600 KMS (including Migration of Legacy HLR ) q 8650 SDM Compact medium in mated pair mode (1 active, 1 standby) + Spares q. RTU SDM for 600 KMS + Optional feature CUG q. Buyback of HLR Legacy based on RTU of 350 existing subscribers q. Services : I&C, PM, Migration services, Training Most innovative HLR 8650 SDM One Unified Database LI OM C C D R Transport BBone Investment Protection 52 Feature Parity with 1422 HLR Easy Network Integration with 1422 IOT Additional Feature Enhancement • Index Server • Data Protection • Field proven technology All Rights Reserved © Alcatel-Lucent 2008

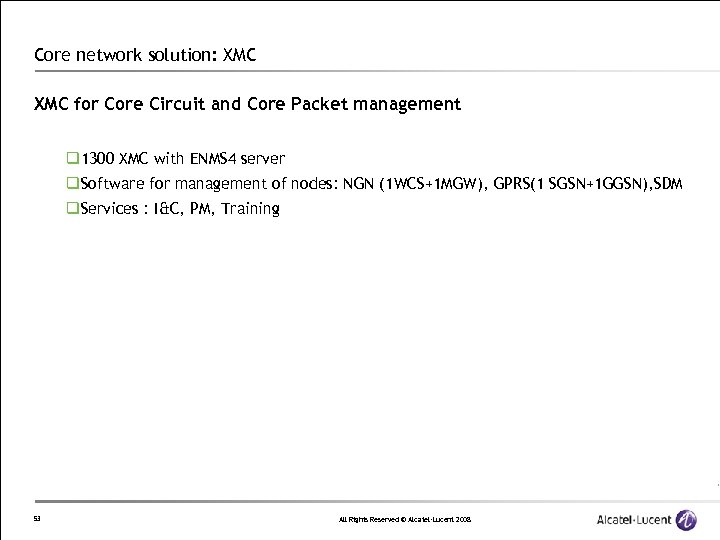

Core network solution: XMC for Core Circuit and Core Packet management q 1300 XMC with ENMS 4 server q. Software for management of nodes: NGN (1 WCS+1 MGW), GPRS(1 SGSN+1 GGSN), SDM q. Services : I&C, PM, Training 53 All Rights Reserved © Alcatel-Lucent 2008
5 54 Services All Rights Reserved © Alcatel-Lucent 2008

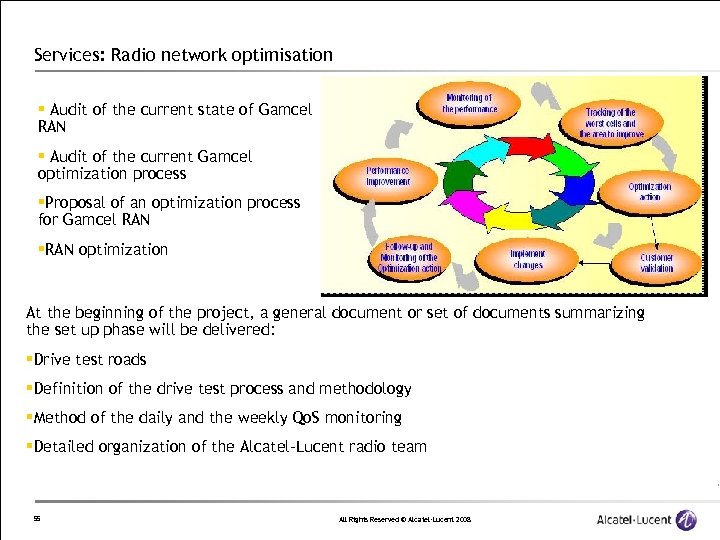

Services: Radio network optimisation § Audit of the current state of Gamcel RAN § Audit of the current Gamcel optimization process §Proposal of an optimization process for Gamcel RAN §RAN optimization At the beginning of the project, a general document or set of documents summarizing the set up phase will be delivered: §Drive test roads §Definition of the drive test process and methodology §Method of the daily and the weekly Qo. S monitoring §Detailed organization of the Alcatel-Lucent radio team 55 All Rights Reserved © Alcatel-Lucent 2008
Services: Radio network optimisation These activities are reported daily with the following documents: § Daily alerters, containing the worst cell list filled with the optimizer analysis and recommendations § Track sheet or database updated with the optimization actions and their follow-up These activities are reported weekly with the following documents: § Weekly dashboard, containing the worst cell list per region filled with the optimizer analysis and recommendations § Track sheet or database updated with the optimization actions and their follow-up These activities are reported at the end of the campaign, with the following documents: § Drive Test campaign log files after each campaign. Drive test reports at the end of each campaign with analysis and optimization recommendations § Track sheet or database updated with the optimization actions and their follow-up A detailed list of activities will be discussed and agreed between Alcatel-Lucent and Gamcel at the start of the project: § Detailed Audit report on organisation, processes, skills. . § Proposed organization and processes, responding to Gamcel’s needs. Training of Gamcel Engineers on the new processes 56 All Rights Reserved © Alcatel-Lucent 2008
Services: Radio frequency planning The service consists of 3 modules as follow: § Neighbours planning § Design audit § Frequency planning 57 All Rights Reserved © Alcatel-Lucent 2008
Services: On site technical support The service is proposed for new products and technologies included in this offer. It will concern: § One NGN Maintenance Expert § One GPRS Core Maintenance Expert § One GPRS Access Maintenance Expert § One SDM Maintenance Expert This service is proposed for one month duration 58 All Rights Reserved © Alcatel-Lucent 2008
6 59 Conclusion All Rights Reserved © Alcatel-Lucent 2008
Benefits of an e 2 e solution Simplicity § A single co-ordinated interface to reduce complexity Responsibility § Full turnkey End to end accountability Expertise and execution § Synchronized development, test and execution Simplicity Single interface Here and now Time to market Responsibility Ownership 60 Quality & Improved Time-to. Market Total Ownership Execution Quality All Rights Reserved © Alcatel-Lucent 2008
www. alcatel-lucent. com 61 All Rights Reserved © Alcatel-Lucent 2008
(*) POI : Plan of Intent Alcatel-Lucent GSM/EDGE Roadmap Features/Hardware 2007 Q 4 Q 1 2008 Q 2 Q 3 Q 4 FOA: First-Off Supported on BSC G 2 No impact on BSC 2009 Q 1 Q 2 B 10 Q 3 Q 4 2010 Q 1 Q 2 Q 3 Q 4 Q 1 2011 Q 2 Q 3 B 12(*) B 11 • GERAN Evolution Q 4 B 13(*) • EGPRS 2 B MR 1: MR 2: • Dual Transfer Mode • A Signalling over IP • IP Trans in BSS - Ethernet • DL Dual Carrier • PS Handover • Optimized HR Connectivity • A 5/3 ciphering • Gb-flex • EGPRS 2 A • MUROS / VAMOS • TD-SCDMA inter working • A-flex • Synchronized Network (GPS) • Abis IP over E 1 • TRX Dynamic Power Save • 2 G to LTE FDD Cell reselection • A (UP) over IP MR 2: • TFO on NB AMR • Synchronized network 1588/PTP • Extended Dynamic Allocation • STM 1 in BSC • 2 G to LTE TDD cell reselection • Gb Over IP • Repeated FACCH/SACCH • WB-AMR 8 -PSK MR 2: • Multi-techno MCPA • WB-AMR • STM 1 in TC BTS CBO-E MC-TRX GSM (3 G / LTE ready) (*) • TWIN TRX 1800, 850 & 1900 45 W • Up to 12 TRX • GSM 900 & 1800 MHz w/ 6 TRX • GSM 850 & 1900 MHz w/ 6 TRX • Abis Compression MBI 2 (*) MC-RRH GSM (3 G / LTE ready) (*) • BTS Local Switching (*) • Up to 18 TRX • GSM 900 & 1800 MHz w/ 6 TRX BSC Evolution: BSC Evolution / TC: BSC Evolution: • BSC 2000 TRX/cab • TC STM 1 -IP board • TP STM 1 -IP board • BSC 12000 Erl/cabinet • BSC 2800 TRX/cabinet (*) 62 All Rights Reserved © Alcatel-Lucent 2008, XXXXX
