Future Ideas Prediction capabilities automated for each spot Closer integration with Club. Log statistics utilized more Use Club. Log as your log, which enables needed listings (country/band/mode) Further develop data exchange APIs to publish and use real time spot data in external applications Nokia Internal Use Only

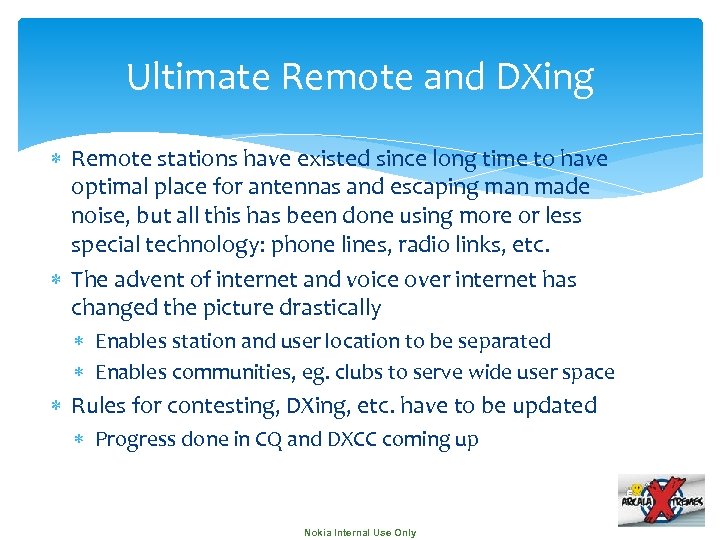

Ultimate Remote and DXing Remote stations have existed since long time to have optimal place for antennas and escaping man made noise, but all this has been done using more or less special technology: phone lines, radio links, etc. The advent of internet and voice over internet has changed the picture drastically Enables station and user location to be separated Enables communities, eg. clubs to serve wide user space Rules for contesting, DXing, etc. have to be updated Progress done in CQ and DXCC coming up Nokia Internal Use Only

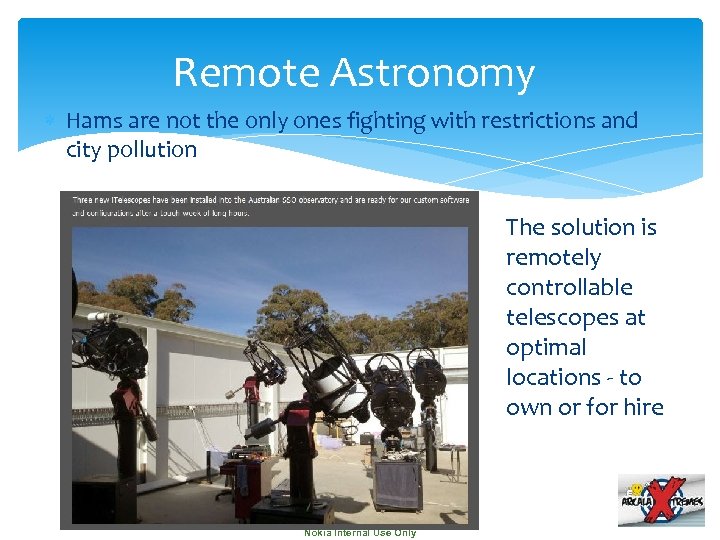

Remote Astronomy Hams are not the only ones fighting with restrictions and city pollution The solution is remotely controllable telescopes at optimal locations - to own or for hire Nokia Internal Use Only

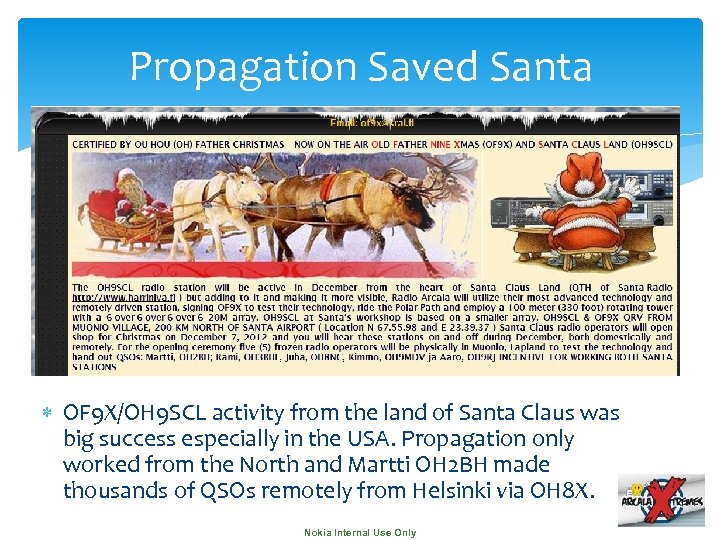

Propagation Saved Santa OF 9 X/OH 9 SCL activity from the land of Santa Claus was big success especially in the USA. Propagation only worked from the North and Martti OH 2 BH made thousands of QSOs remotely from Helsinki via OH 8 X. Nokia Internal Use Only

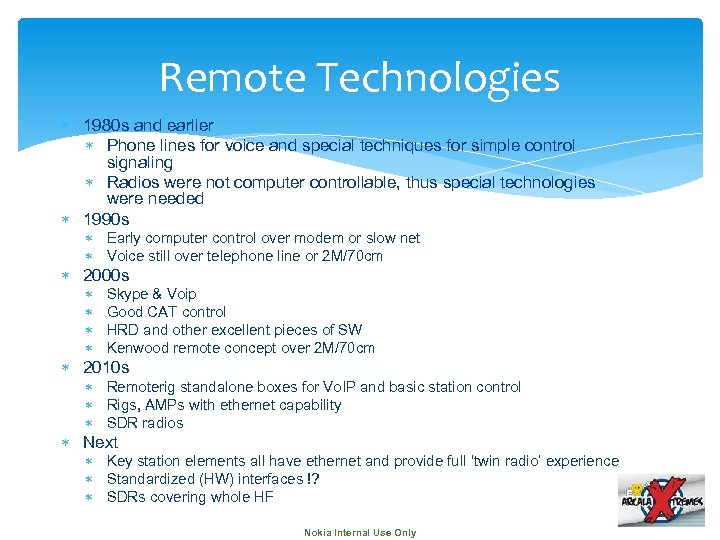

Remote Technologies 1980 s and earlier Phone lines for voice and special techniques for simple control signaling Radios were not computer controllable, thus special technologies were needed 1990 s Early computer control over modem or slow net Voice still over telephone line or 2 M/70 cm 2000 s Skype & Voip Good CAT control HRD and other excellent pieces of SW Kenwood remote concept over 2 M/70 cm 2010 s Remoterig standalone boxes for Vo. IP and basic station control Rigs, AMPs with ethernet capability SDR radios Next Key station elements all have ethernet and provide full ‘twin radio’ experience Standardized (HW) interfaces !? SDRs covering whole HF Nokia Internal Use Only

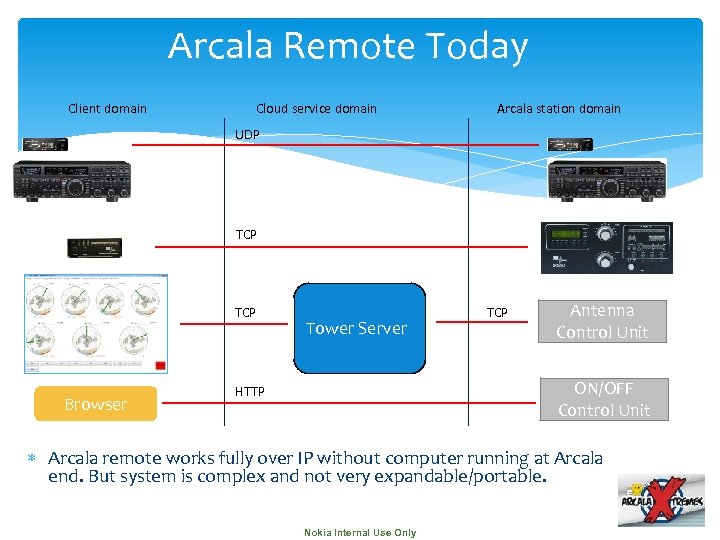

Arcala Remote Today Client domain Cloud service domain Arcala station domain UDP TCP Browser Tower Server TCP Antenna Control Unit ON/OFF Control Unit HTTP Arcala remote works fully over IP without computer running at Arcala end. But system is complex and not very expandable/portable. Nokia Internal Use Only

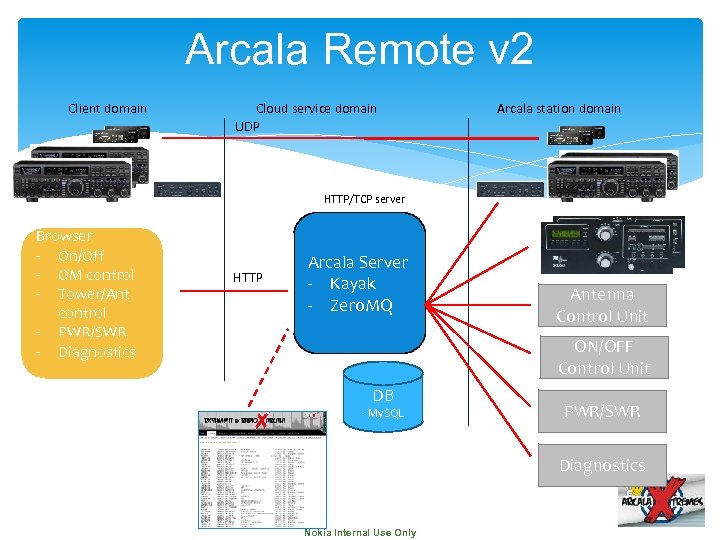

Arcala Remote v 2 Client domain Cloud service domain UDP Arcala station domain HTTP/TCP server Browser - On/Off - OM control - Tower/Ant control - PWR/SWR - Diagnostics HTTP Arcala Server - Kayak - Zero. MQ Antenna Control Unit ON/OFF Control Unit DB - My. SQL PWR/SWR Diagnostics Nokia Internal Use Only

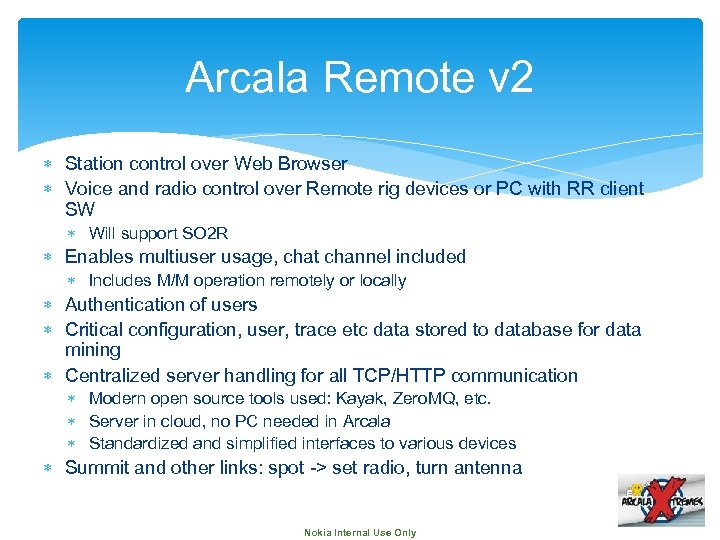

Arcala Remote v 2 Station control over Web Browser Voice and radio control over Remote rig devices or PC with RR client SW Will support SO 2 R Enables multiuser usage, chat channel included Includes M/M operation remotely or locally Authentication of users Critical configuration, user, trace etc data stored to database for data mining Centralized server handling for all TCP/HTTP communication Modern open source tools used: Kayak, Zero. MQ, etc. Server in cloud, no PC needed in Arcala Standardized and simplified interfaces to various devices Summit and other links: spot -> set radio, turn antenna Nokia Internal Use Only

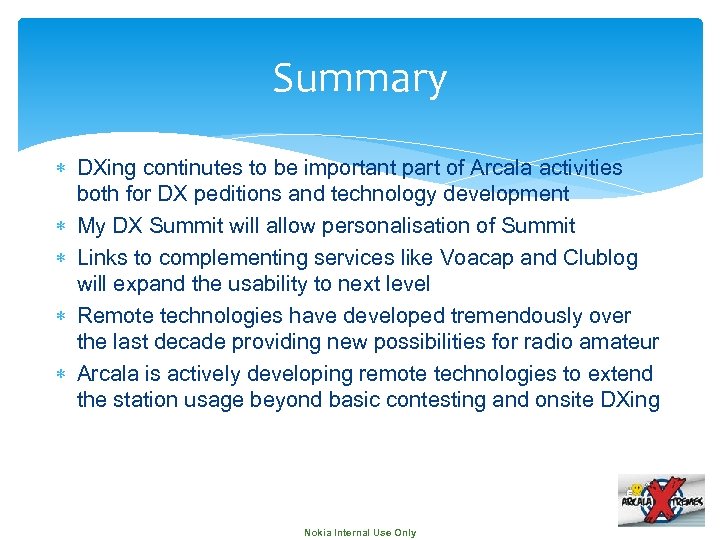

Summary DXing continutes to be important part of Arcala activities both for DX peditions and technology development My DX Summit will allow personalisation of Summit Links to complementing services like Voacap and Clublog will expand the usability to next level Remote technologies have developed tremendously over the last decade providing new possibilities for radio amateur Arcala is actively developing remote technologies to extend the station usage beyond basic contesting and onsite DXing Nokia Internal Use Only
Thank You Vielen Danken
© Radio Arcala, OH 8 X, 2013 Veijto Kontas, OH 6 KN und Juho Juopperi, OH 8 GLV © Presentation Management Dokumentationsarchiv Funk www. dokufunk. org office@dokufunk. org Tonaufzeichnung: Sonja Vrisk, OE 8 YSQ Post production: Paulina Misztal
