FUNDAMENTALS OF HARDWARE AND SOFTWARE Desmond Wilson September

FUNDAMENTALS OF HARDWARE AND SOFTWARE Desmond Wilson September 2011

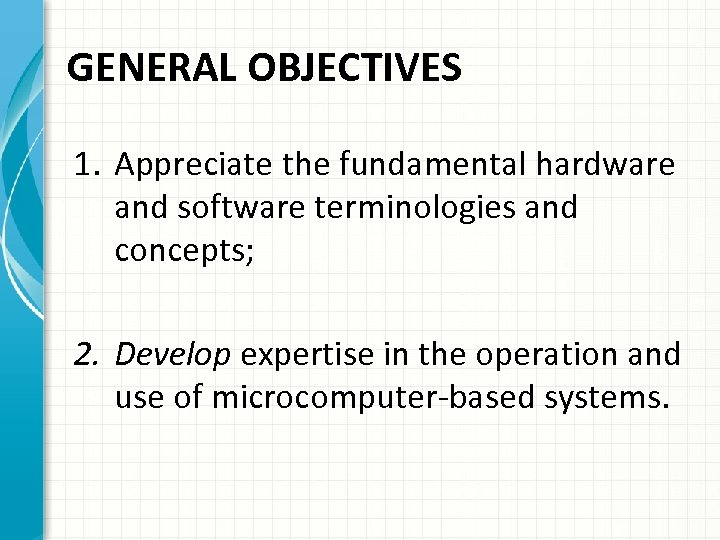

GENERAL OBJECTIVES 1. Appreciate the fundamental hardware and software terminologies and concepts; 2. Develop expertise in the operation and use of microcomputer-based systems.

SPECIFIC LEARNING OBJECTIVES 1 • Define the term Computer 2 • Describe a general-purpose computer system 3 • Explain the functions of the major hardware components of a computer system

WHAT IS A COMPUTER?

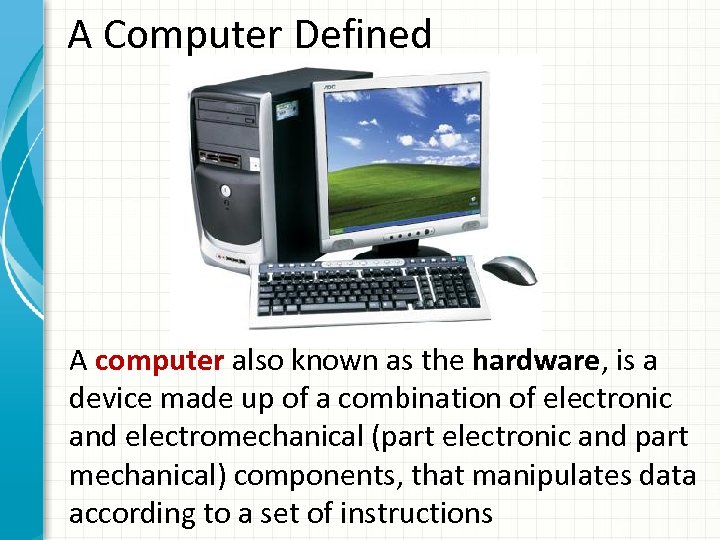

A Computer Defined A computer also known as the hardware, is a device made up of a combination of electronic and electromechanical (part electronic and part mechanical) components, that manipulates data according to a set of instructions

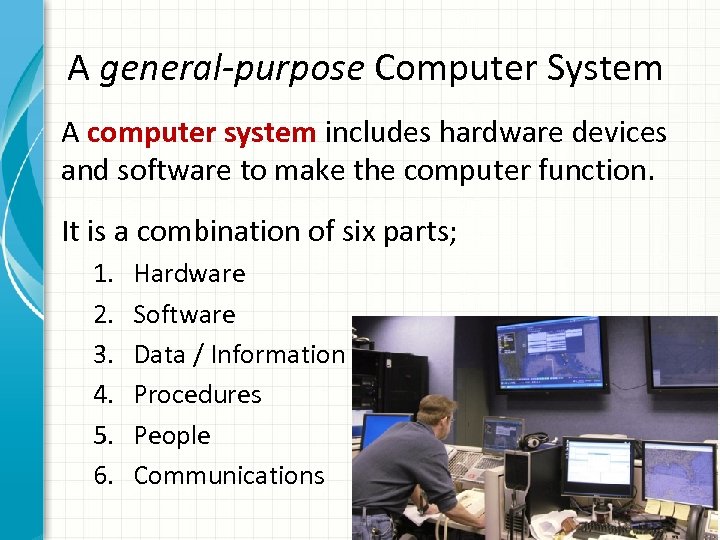

A general-purpose Computer System A computer system includes hardware devices and software to make the computer function. It is a combination of six parts; 1. 2. 3. 4. 5. 6. Hardware Software Data / Information Procedures People Communications

Software Electronic instructions that tell hardware how to perform a task. Software consists of a group of related programs. Each program in turn is made up of related instructions that perform very specific processing tasks. Software that runs the hardware and allows the computer to manage its resources is systems software; Software that is acquired to perform general business functions is referred to as application software or a software package.

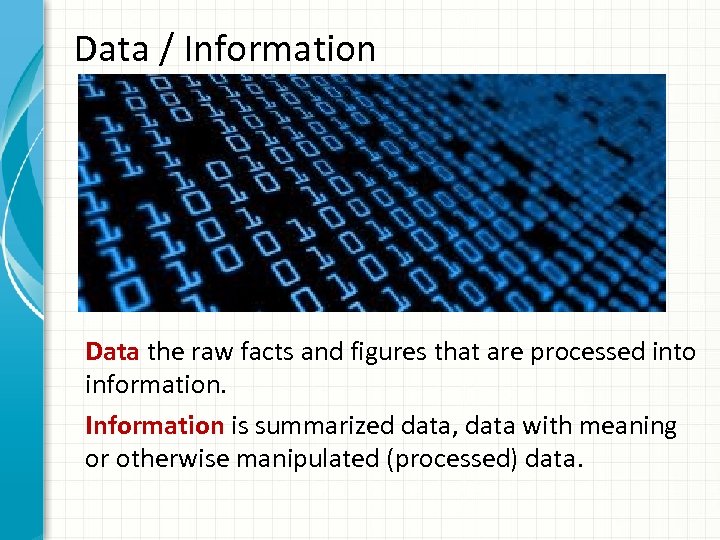

Data / Information Data the raw facts and figures that are processed into information. Information is summarized data, data with meaning or otherwise manipulated (processed) data.

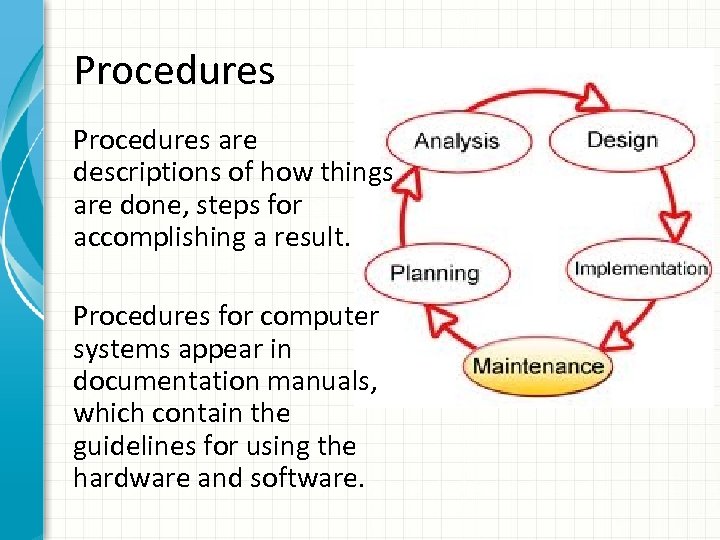

Procedures are descriptions of how things are done, steps for accomplishing a result. Procedures for computer systems appear in documentation manuals, which contain the guidelines for using the hardware and software.

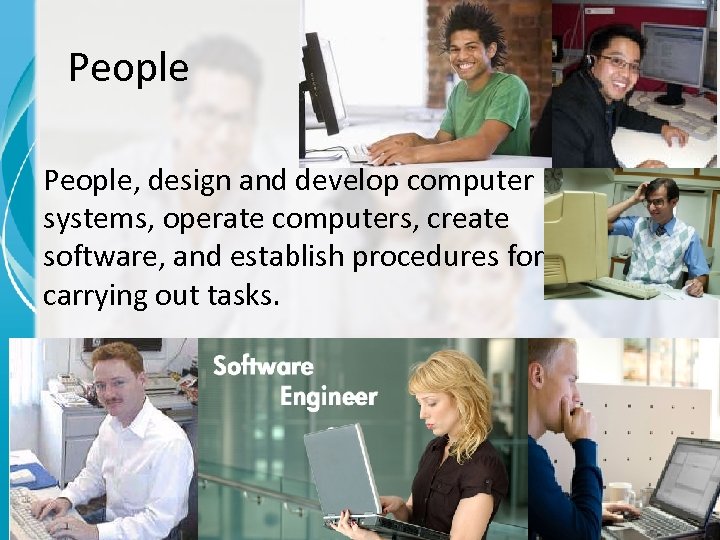

People, design and develop computer systems, operate computers, create software, and establish procedures for carrying out tasks.

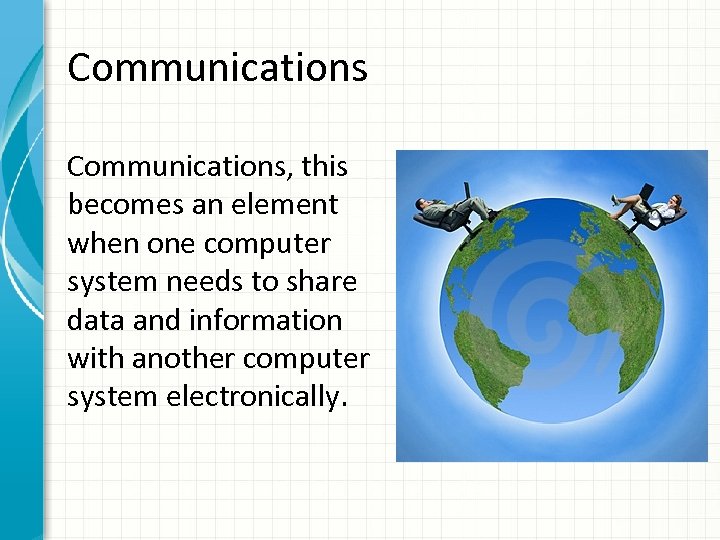

Communications, this becomes an element when one computer system needs to share data and information with another computer system electronically.

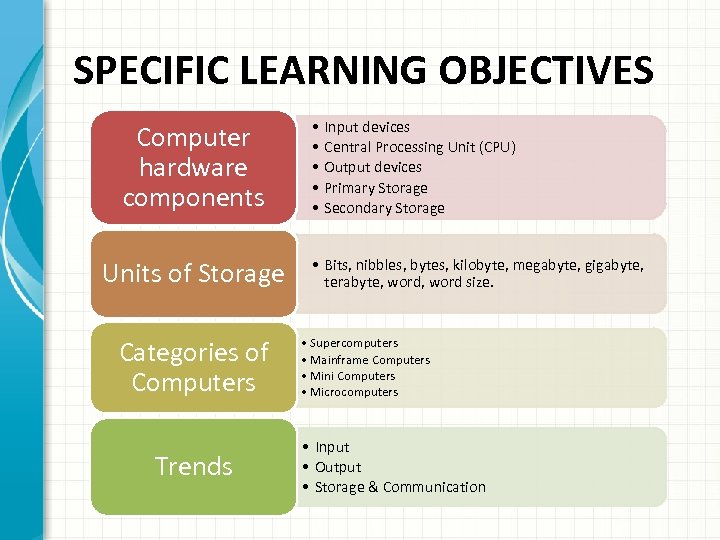

SPECIFIC LEARNING OBJECTIVES Computer hardware components Units of Storage Categories of Computers Trends • • • Input devices Central Processing Unit (CPU) Output devices Primary Storage Secondary Storage • Bits, nibbles, bytes, kilobyte, megabyte, gigabyte, terabyte, word size. • Supercomputers • Mainframe Computers • Mini Computers • Microcomputers • Input • Output • Storage & Communication

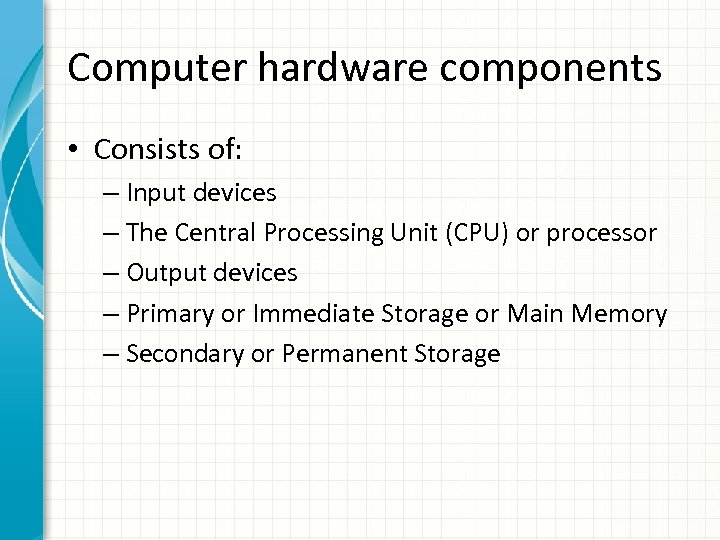

Computer hardware components • Consists of: – Input devices – The Central Processing Unit (CPU) or processor – Output devices – Primary or Immediate Storage or Main Memory – Secondary or Permanent Storage

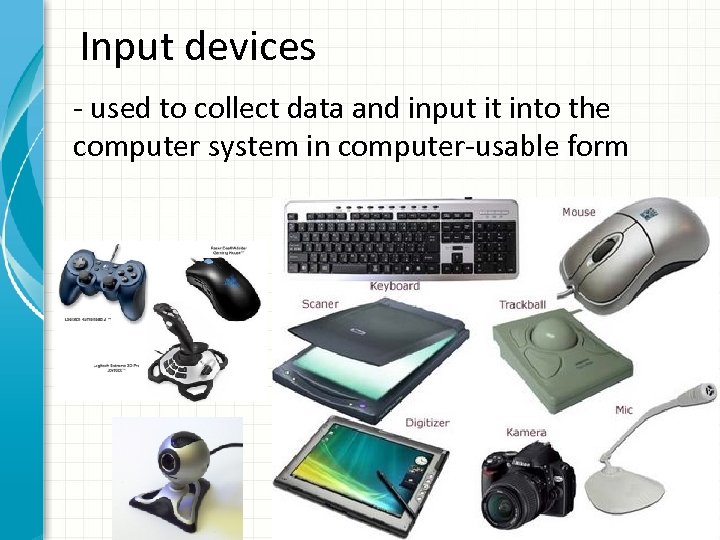

Input devices - used to collect data and input it into the computer system in computer-usable form

The Central Processing Unit • Has two main parts: – Arithmetic and Logic Unit (ALU) • Performs all the arithmetic and logic operations – Control Unit (CU) • Controls the flow and execution of data and instructions

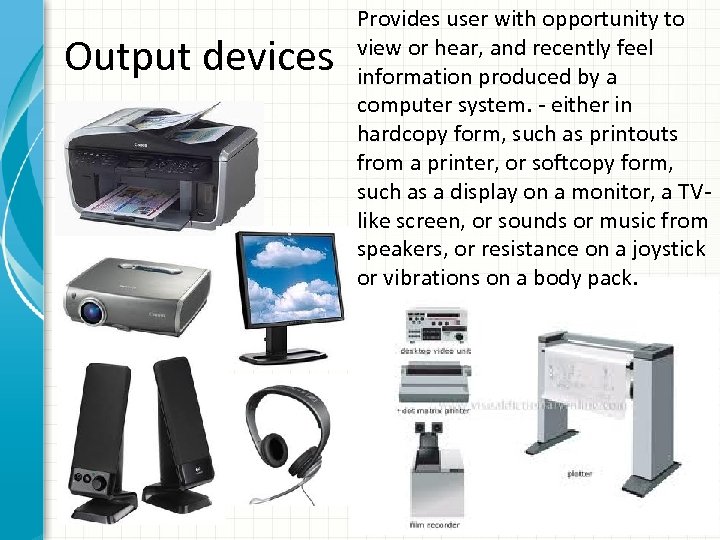

Output devices Provides user with opportunity to view or hear, and recently feel information produced by a computer system. - either in hardcopy form, such as printouts from a printer, or softcopy form, such as a display on a monitor, a TVlike screen, or sounds or music from speakers, or resistance on a joystick or vibrations on a body pack.

Primary Storage , Immediate Storage or Main Memory Primary Storage also known as immediate storage, main storage or memory is the area in the computer which data is stored for quick access by the computer’s processor

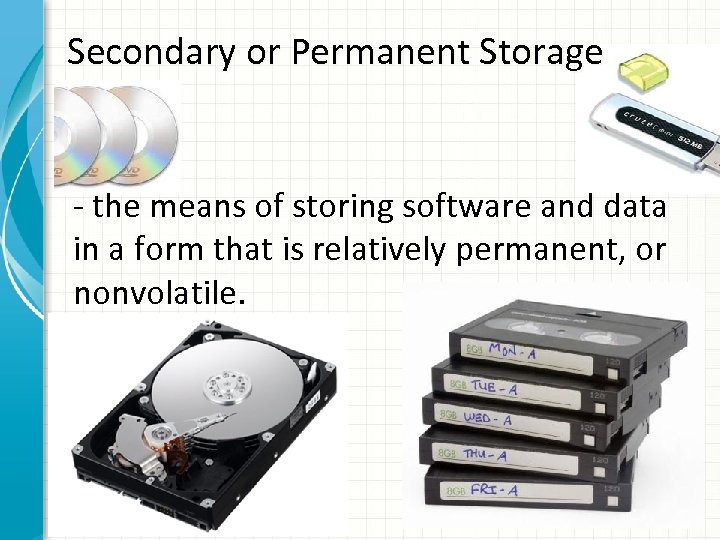

Secondary or Permanent Storage - the means of storing software and data in a form that is relatively permanent, or nonvolatile.

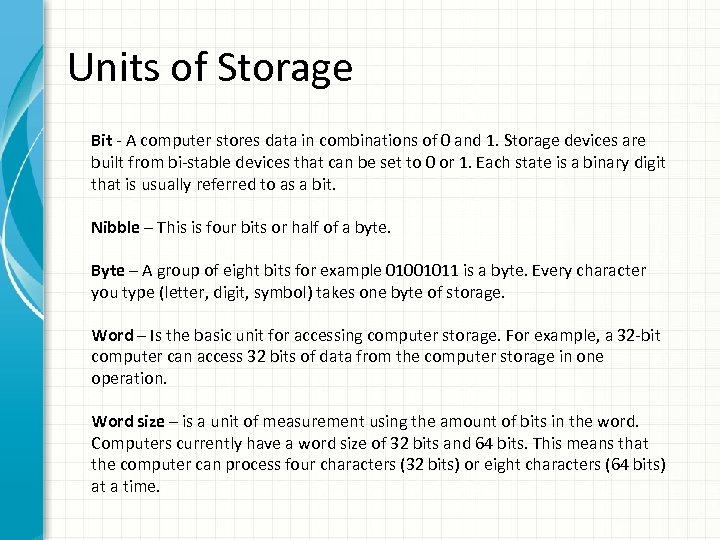

Units of Storage Bit - A computer stores data in combinations of 0 and 1. Storage devices are built from bi-stable devices that can be set to 0 or 1. Each state is a binary digit that is usually referred to as a bit. Nibble – This is four bits or half of a byte. Byte – A group of eight bits for example 01001011 is a byte. Every character you type (letter, digit, symbol) takes one byte of storage. Word – Is the basic unit for accessing computer storage. For example, a 32 -bit computer can access 32 bits of data from the computer storage in one operation. Word size – is a unit of measurement using the amount of bits in the word. Computers currently have a word size of 32 bits and 64 bits. This means that the computer can process four characters (32 bits) or eight characters (64 bits) at a time.

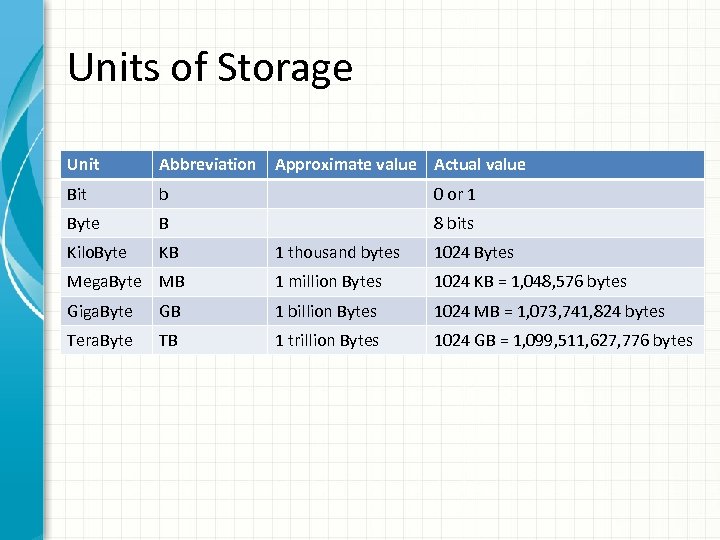

Units of Storage Unit Abbreviation Approximate value Actual value Bit b 0 or 1 Byte B 8 bits Kilo. Byte KB 1 thousand bytes 1024 Bytes Mega. Byte MB 1 million Bytes 1024 KB = 1, 048, 576 bytes Giga. Byte GB 1 billion Bytes 1024 MB = 1, 073, 741, 824 bytes Tera. Byte TB 1 trillion Bytes 1024 GB = 1, 099, 511, 627, 776 bytes

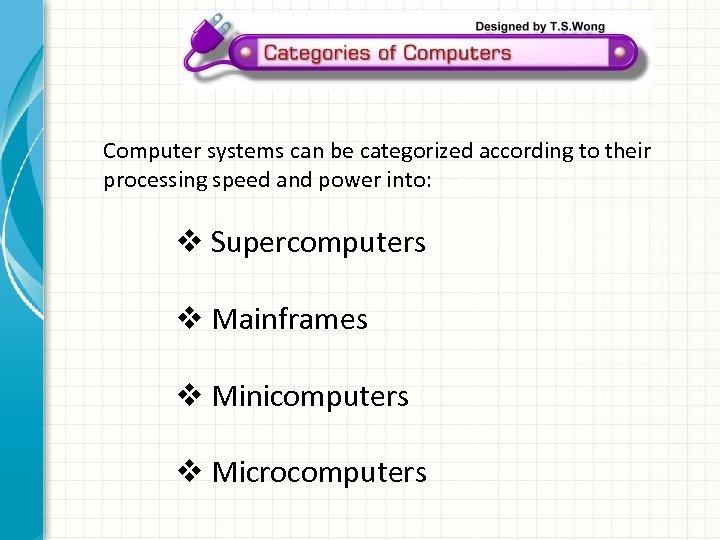

Computer systems can be categorized according to their processing speed and power into: v Supercomputers v Mainframes v Minicomputers v Microcomputers

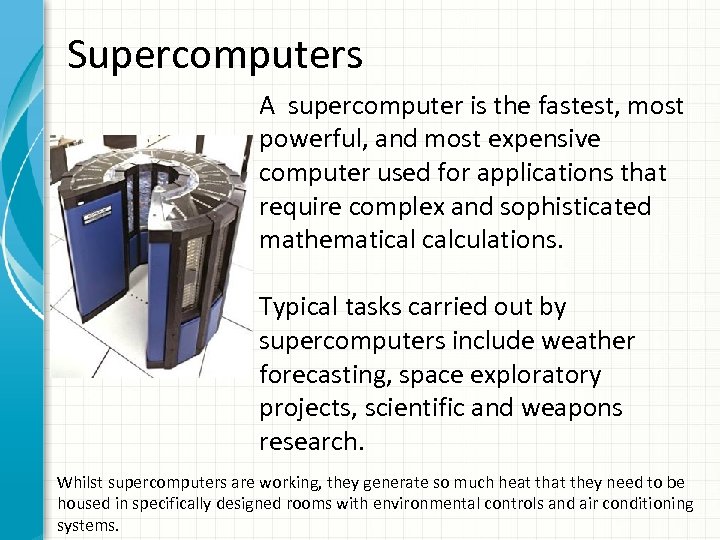

Supercomputers A supercomputer is the fastest, most powerful, and most expensive computer used for applications that require complex and sophisticated mathematical calculations. Typical tasks carried out by supercomputers include weather forecasting, space exploratory projects, scientific and weapons research. Whilst supercomputers are working, they generate so much heat they need to be housed in specifically designed rooms with environmental controls and air conditioning systems.

Mainframe Computers A mainframe is a large, expensive, but powerful computer that can handle thousands of connected users at the same time. Users typically access a mainframe via a personal computer or a terminal. Typical users of mainframes include banks, police insurance companies, and airlines with sophisticated reservation systems. Mainframe computers need to be operated by specialist, trained staff. They are usually kept in an air-conditioned rooms away from the office or factory floor.

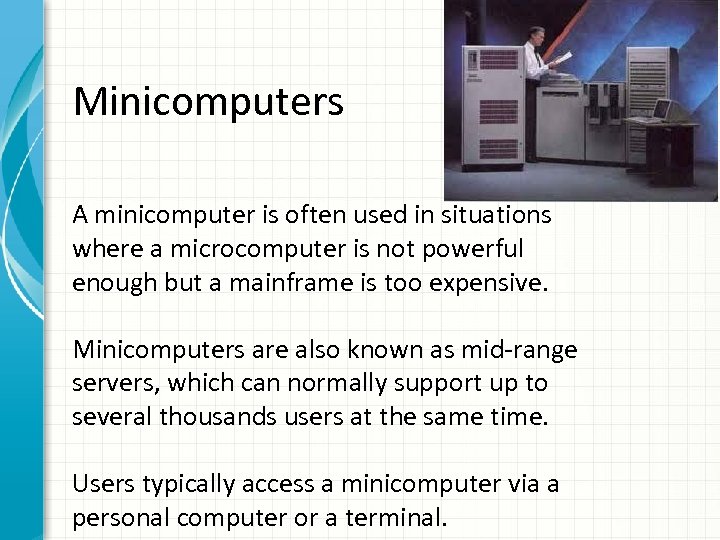

Minicomputers A minicomputer is often used in situations where a microcomputer is not powerful enough but a mainframe is too expensive. Minicomputers are also known as mid-range servers, which can normally support up to several thousands users at the same time. Users typically access a minicomputer via a personal computer or a terminal.

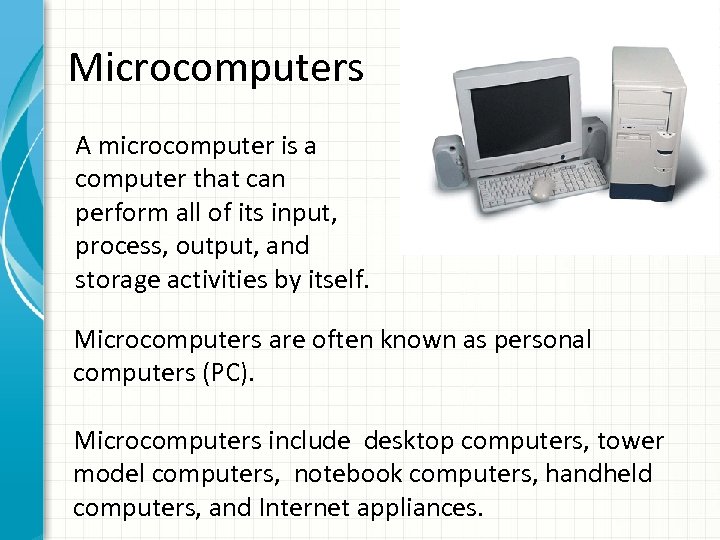

Microcomputers A microcomputer is a computer that can perform all of its input, process, output, and storage activities by itself. Microcomputers are often known as personal computers (PC). Microcomputers include desktop computers, tower model computers, notebook computers, handheld computers, and Internet appliances.

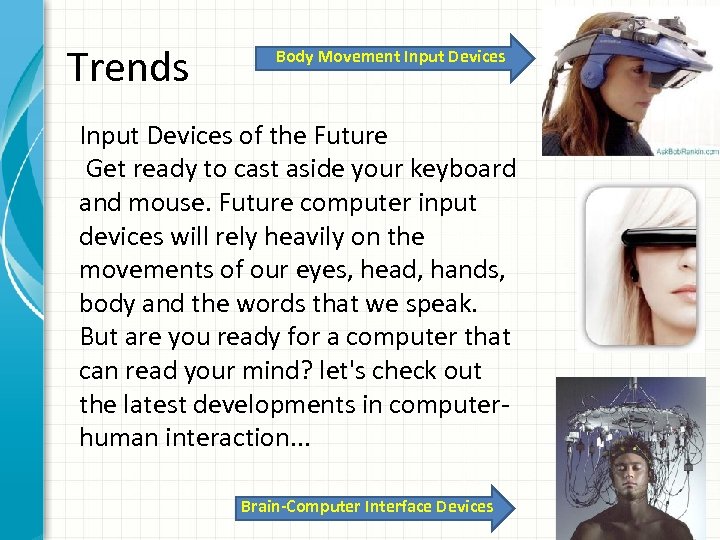

Trends Body Movement Input Devices of the Future Get ready to cast aside your keyboard and mouse. Future computer input devices will rely heavily on the movements of our eyes, head, hands, body and the words that we speak. But are you ready for a computer that can read your mind? let's check out the latest developments in computerhuman interaction. . . Brain-Computer Interface Devices

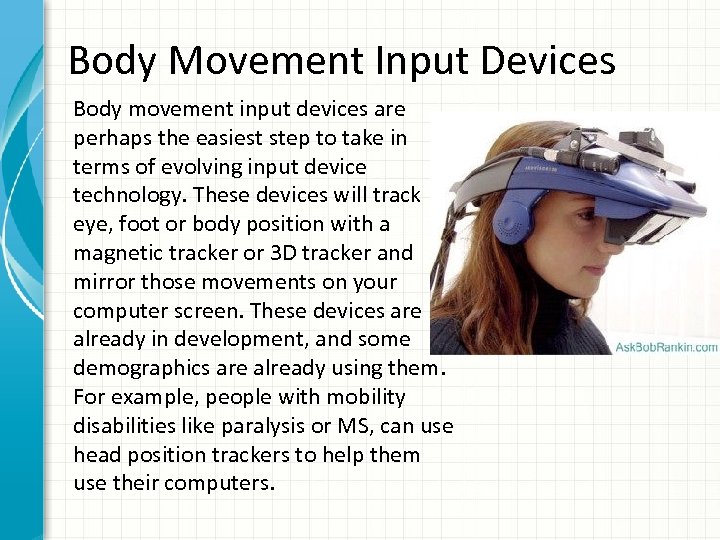

Body Movement Input Devices Body movement input devices are perhaps the easiest step to take in terms of evolving input device technology. These devices will track eye, foot or body position with a magnetic tracker or 3 D tracker and mirror those movements on your computer screen. These devices are already in development, and some demographics are already using them. For example, people with mobility disabilities like paralysis or MS, can use head position trackers to help them use their computers.

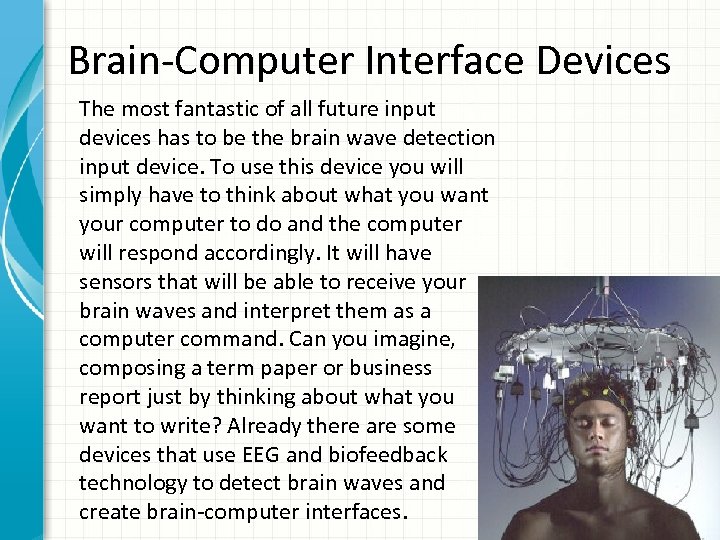

Brain-Computer Interface Devices The most fantastic of all future input devices has to be the brain wave detection input device. To use this device you will simply have to think about what you want your computer to do and the computer will respond accordingly. It will have sensors that will be able to receive your brain waves and interpret them as a computer command. Can you imagine, composing a term paper or business report just by thinking about what you want to write? Already there are some devices that use EEG and biofeedback technology to detect brain waves and create brain-computer interfaces.

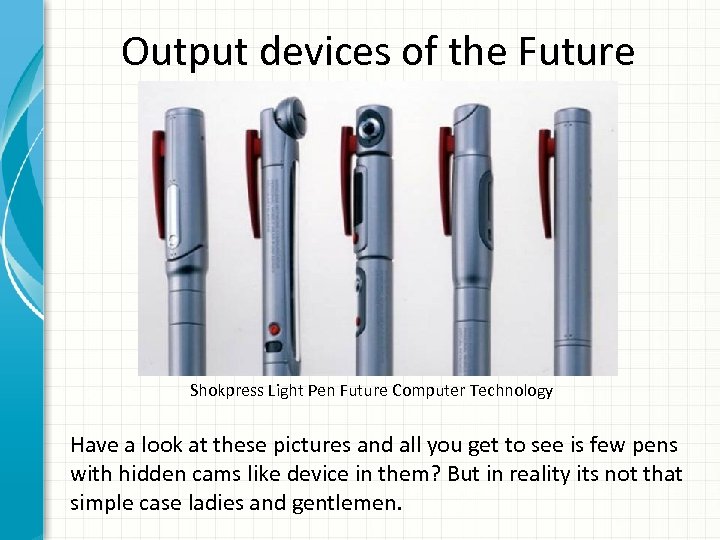

Output devices of the Future Shokpress Light Pen Future Computer Technology Have a look at these pictures and all you get to see is few pens with hidden cams like device in them? But in reality its not that simple case ladies and gentlemen.

You are getting a chance of sneaking into a potential technology that could one day be very important for the future of computing. The light signaling and sensing technology could be a complete replacement of current computer input and output devices like monitor and keywords.

This pen sort of instrument produces both the monitor as well as the keyboard on flat surfaces from where you can just carry out the normal operations you do on your conventional desktop and laptop PCs.

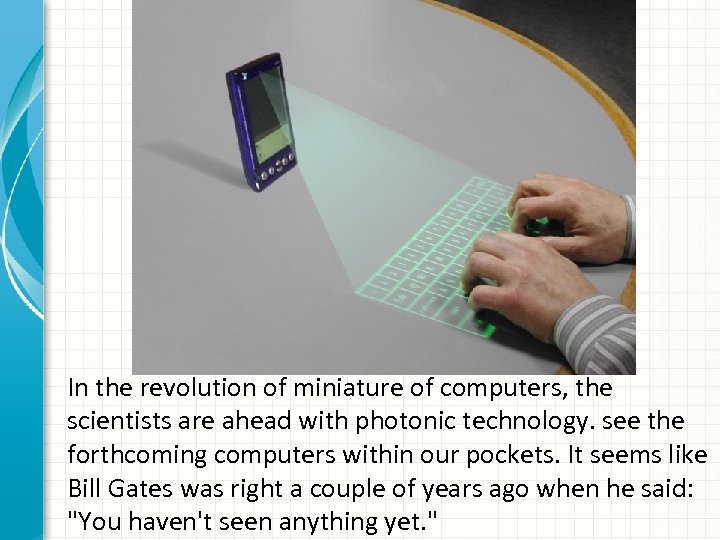

In the revolution of miniature of computers, the scientists are ahead with photonic technology. see the forthcoming computers within our pockets. It seems like Bill Gates was right a couple of years ago when he said: "You haven't seen anything yet. "

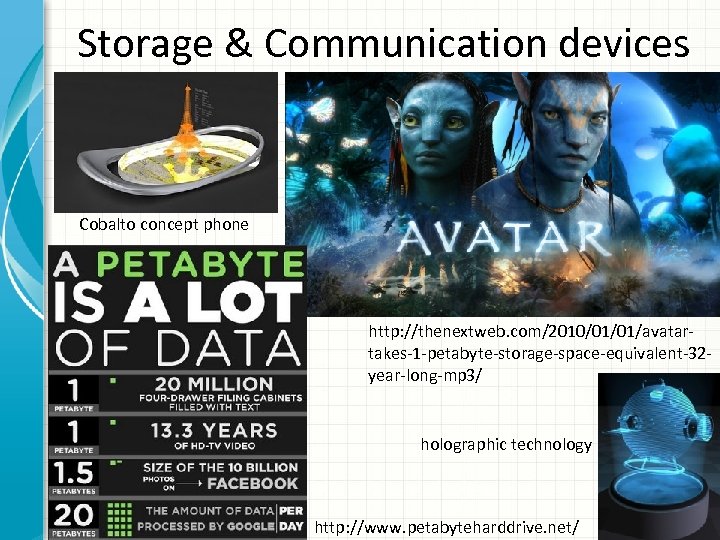

Storage & Communication devices Cobalto concept phone http: //thenextweb. com/2010/01/01/avatartakes-1 -petabyte-storage-space-equivalent-32 year-long-mp 3/ holographic technology http: //www. petabyteharddrive. net/

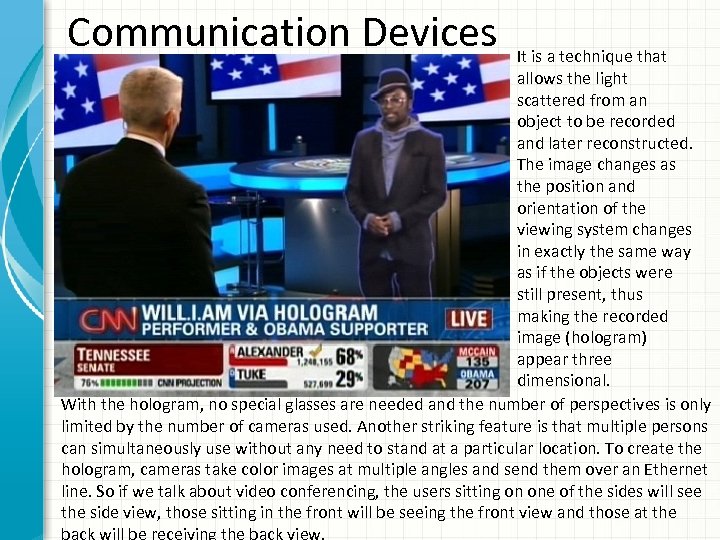

Communication Devices It is a technique that allows the light scattered from an object to be recorded and later reconstructed. The image changes as the position and orientation of the viewing system changes in exactly the same way as if the objects were still present, thus making the recorded image (hologram) appear three dimensional. With the hologram, no special glasses are needed and the number of perspectives is only limited by the number of cameras used. Another striking feature is that multiple persons can simultaneously use without any need to stand at a particular location. To create the hologram, cameras take color images at multiple angles and send them over an Ethernet line. So if we talk about video conferencing, the users sitting on one of the sides will see the side view, those sitting in the front will be seeing the front view and those at the

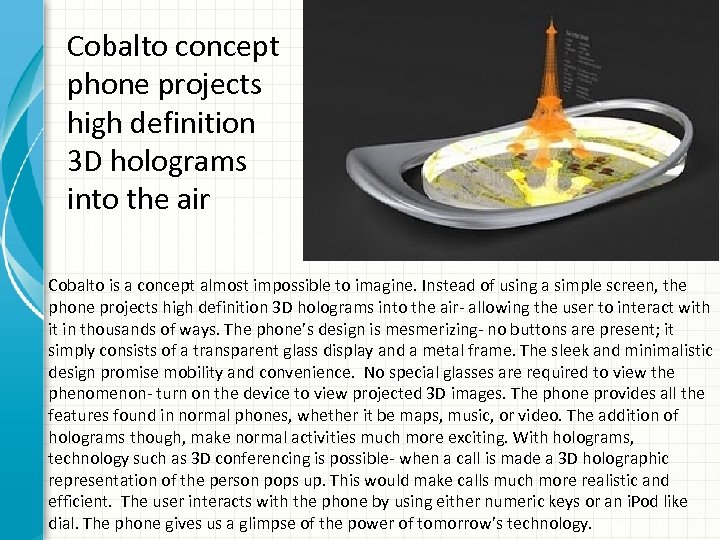

Cobalto concept phone projects high definition 3 D holograms into the air Cobalto is a concept almost impossible to imagine. Instead of using a simple screen, the phone projects high definition 3 D holograms into the air- allowing the user to interact with it in thousands of ways. The phone’s design is mesmerizing- no buttons are present; it simply consists of a transparent glass display and a metal frame. The sleek and minimalistic design promise mobility and convenience. No special glasses are required to view the phenomenon- turn on the device to view projected 3 D images. The phone provides all the features found in normal phones, whether it be maps, music, or video. The addition of holograms though, make normal activities much more exciting. With holograms, technology such as 3 D conferencing is possible- when a call is made a 3 D holographic representation of the person pops up. This would make calls much more realistic and efficient. The user interacts with the phone by using either numeric keys or an i. Pod like dial. The phone gives us a glimpse of the power of tomorrow’s technology.

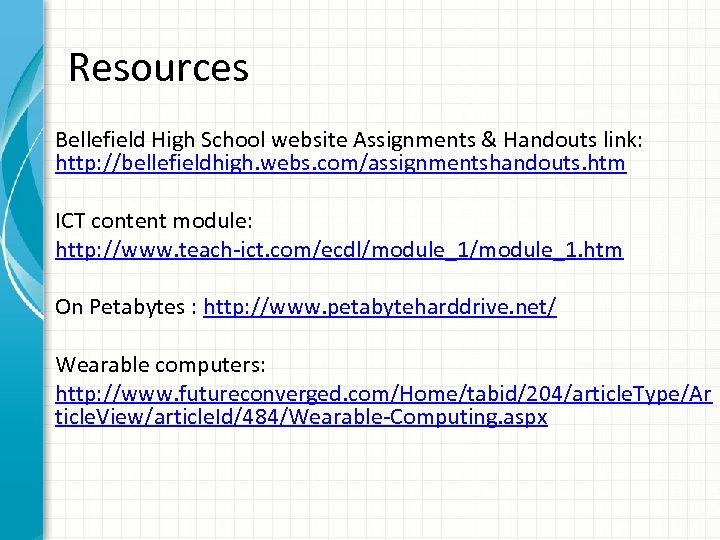

Resources Bellefield High School website Assignments & Handouts link: http: //bellefieldhigh. webs. com/assignmentshandouts. htm ICT content module: http: //www. teach-ict. com/ecdl/module_1. htm On Petabytes : http: //www. petabyteharddrive. net/ Wearable computers: http: //www. futureconverged. com/Home/tabid/204/article. Type/Ar ticle. View/article. Id/484/Wearable-Computing. aspx
