Functions Additional Topics Copyright © 2006 -2015 - Curt Hill Functions Additional Topics Copyright © 2006 -2015 - Curt Hill

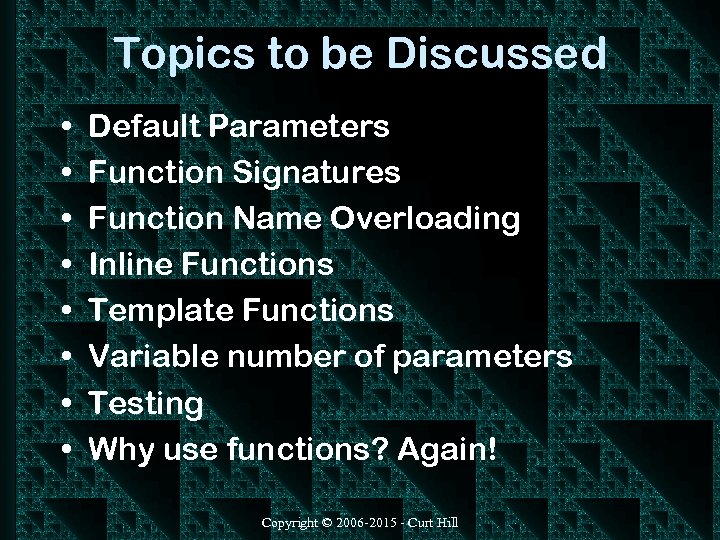

Topics to be Discussed • • Default Parameters Function Signatures Function Name Overloading Inline Topics to be Discussed • • Default Parameters Function Signatures Function Name Overloading Inline Functions Template Functions Variable number of parameters Testing Why use functions? Again! Copyright © 2006 -2015 - Curt Hill

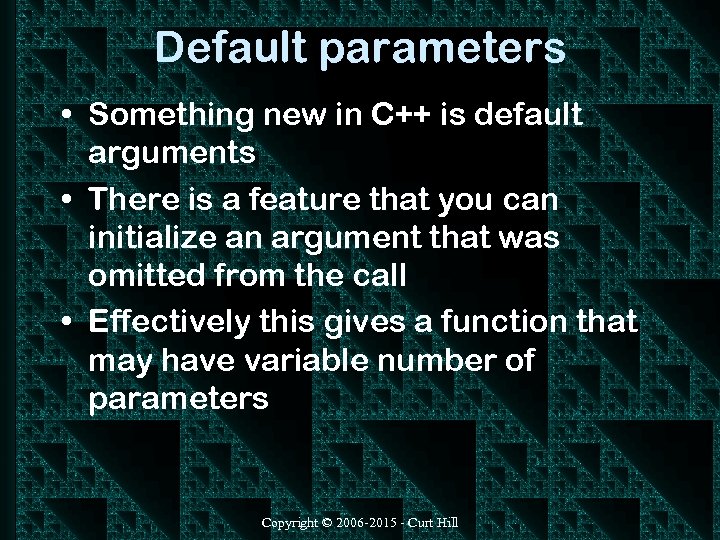

Default parameters • Something new in C++ is default arguments • There is a Default parameters • Something new in C++ is default arguments • There is a feature that you can initialize an argument that was omitted from the call • Effectively this gives a function that may have variable number of parameters Copyright © 2006 -2015 - Curt Hill

Example: • Declaration: – int fn(int a = 5). . . • Call – Example: • Declaration: – int fn(int a = 5). . . • Call – fn(5) and fn() are exactly the same • Call – fn(2) would be different • A parameter list must be supplied – Sometimes it can be empty Copyright © 2006 -2015 - Curt Hill

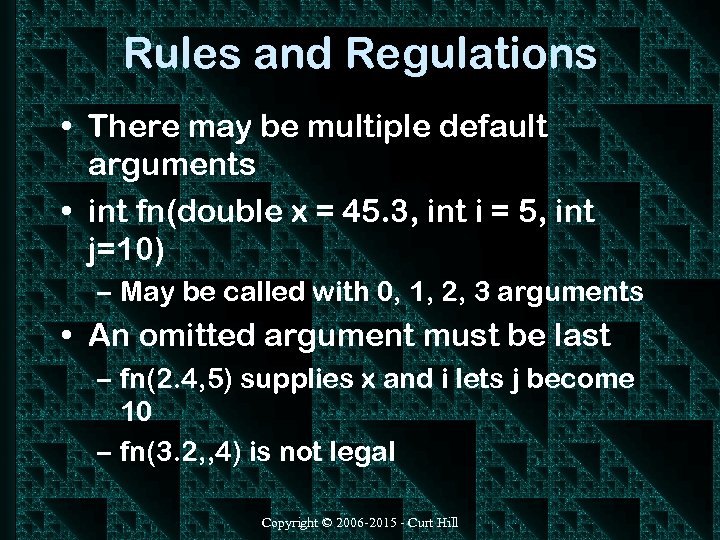

Rules and Regulations • There may be multiple default arguments • int fn(double x Rules and Regulations • There may be multiple default arguments • int fn(double x = 45. 3, int i = 5, int j=10) – May be called with 0, 1, 2, 3 arguments • An omitted argument must be last – fn(2. 4, 5) supplies x and i lets j become 10 – fn(3. 2, , 4) is not legal Copyright © 2006 -2015 - Curt Hill

More • You may mix defaulted and nondefaulted parameters, but all the defaults must More • You may mix defaulted and nondefaulted parameters, but all the defaults must be to right of all the others – int fn(float a, int b, int c = 5, char d = 'a') • The allowable types of default parameters includes anything suitable for assignment • If you use a prototype, it must appear there and not in header Copyright © 2006 -2015 - Curt Hill

Prototypes and headers • The rules of C++ indicate that we must declare something Prototypes and headers • The rules of C++ indicate that we must declare something before we use it • For functions this can be accomplished in two ways: – Put the entire function definition in the code before the call – Code a function prototype first and the function later • Former means that we have upside down programs – The first thing to be executed is the last thing to be seen and the first thing seen call nothing • The latter mechanism is useful for organizing our programs in top down ways • Requires a prototype and a header Copyright © 2006 -2015 - Curt Hill

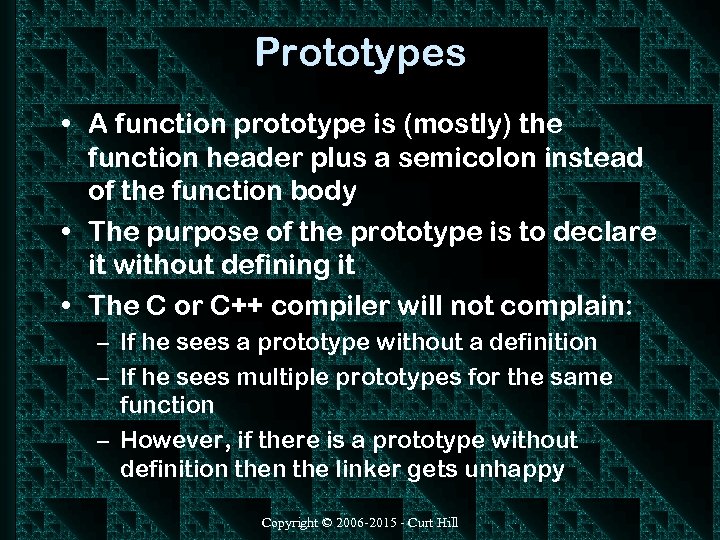

Prototypes • A function prototype is (mostly) the function header plus a semicolon instead Prototypes • A function prototype is (mostly) the function header plus a semicolon instead of the function body • The purpose of the prototype is to declare it without defining it • The C or C++ compiler will not complain: – If he sees a prototype without a definition – If he sees multiple prototypes for the same function – However, if there is a prototype without definition the linker gets unhappy Copyright © 2006 -2015 - Curt Hill

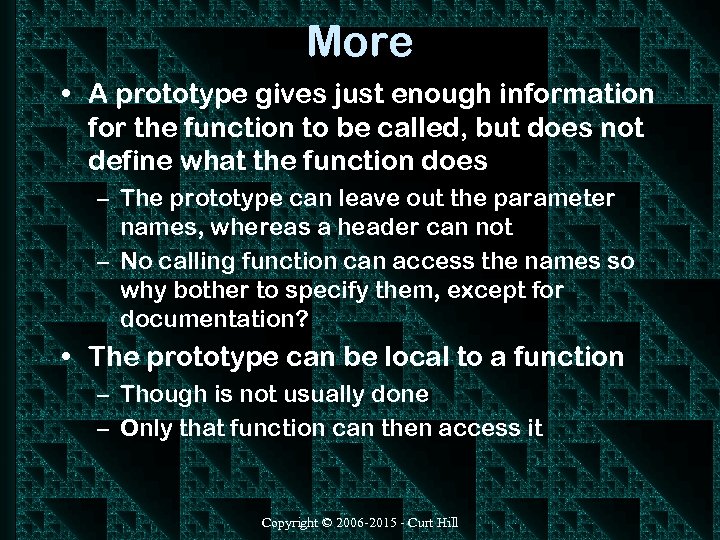

More • A prototype gives just enough information for the function to be called, More • A prototype gives just enough information for the function to be called, but does not define what the function does – The prototype can leave out the parameter names, whereas a header can not – No calling function can access the names so why bother to specify them, except for documentation? • The prototype can be local to a function – Though is not usually done – Only that function can then access it Copyright © 2006 -2015 - Curt Hill

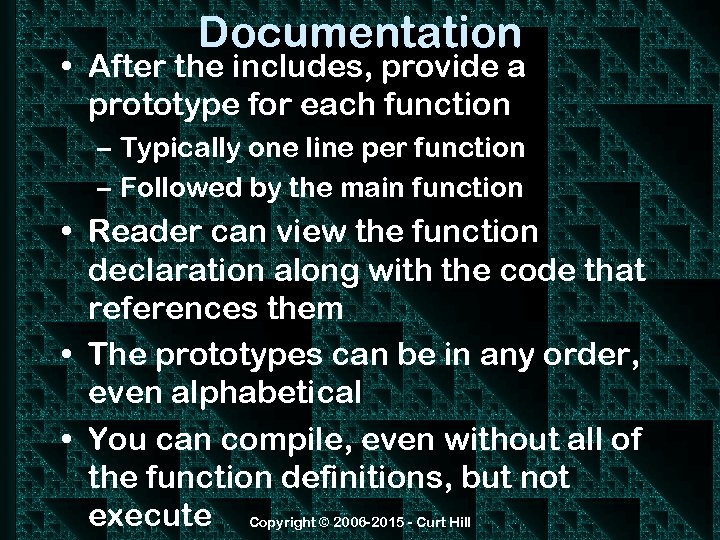

Documentation • After the includes, provide a prototype for each function – Typically one Documentation • After the includes, provide a prototype for each function – Typically one line per function – Followed by the main function • Reader can view the function declaration along with the code that references them • The prototypes can be in any order, even alphabetical • You can compile, even without all of the function definitions, but not execute Copyright © 2006 -2015 - Curt Hill

Headers and libraries • A header file, usually includes only the prototypes • This Headers and libraries • A header file, usually includes only the prototypes • This way we can call it without having to recompile the function itself • The linker finds the object (machine language) for the function • Hence the function can be used by someone, yet still maintain the privacy and efficiency of separately compiled and hidden source code Copyright © 2006 -2015 - Curt Hill

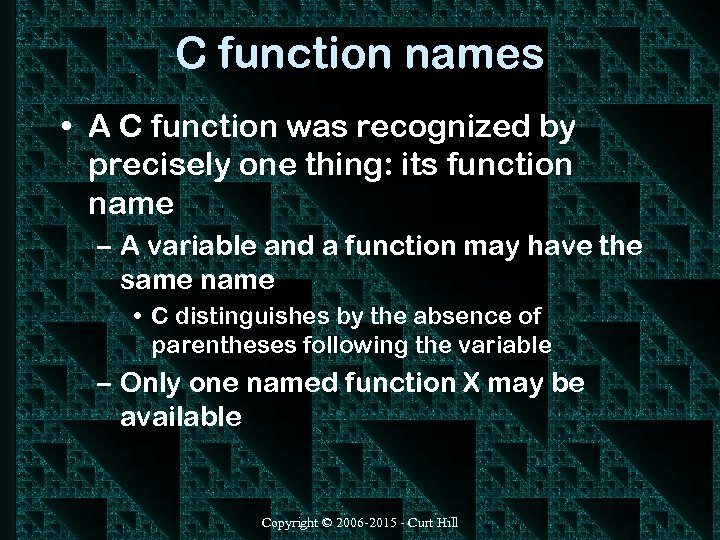

C function names • A C function was recognized by precisely one thing: its C function names • A C function was recognized by precisely one thing: its function name – A variable and a function may have the same name • C distinguishes by the absence of parentheses following the variable – Only one named function X may be available Copyright © 2006 -2015 - Curt Hill

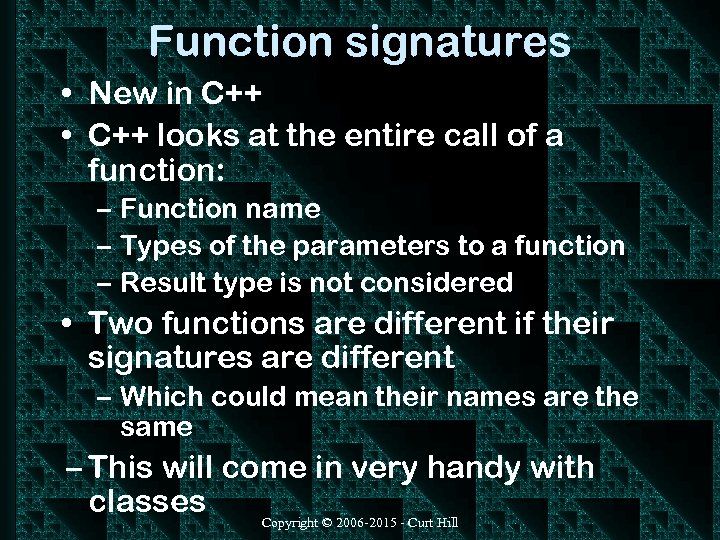

Function signatures • New in C++ • C++ looks at the entire call of Function signatures • New in C++ • C++ looks at the entire call of a function: – Function name – Types of the parameters to a function – Result type is not considered • Two functions are different if their signatures are different – Which could mean their names are the same – This will come in very handy with classes Copyright © 2006 -2015 - Curt Hill

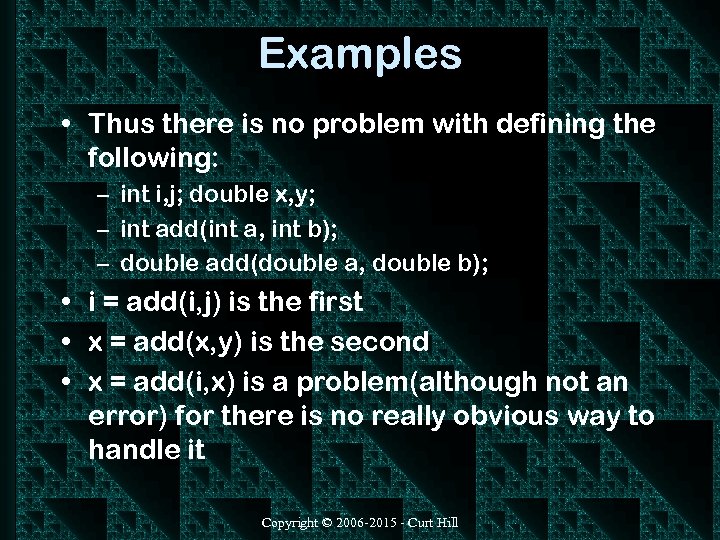

Examples • Thus there is no problem with defining the following: – int i, Examples • Thus there is no problem with defining the following: – int i, j; double x, y; – int add(int a, int b); – double add(double a, double b); • i = add(i, j) is the first • x = add(x, y) is the second • x = add(i, x) is a problem(although not an error) for there is no really obvious way to handle it Copyright © 2006 -2015 - Curt Hill

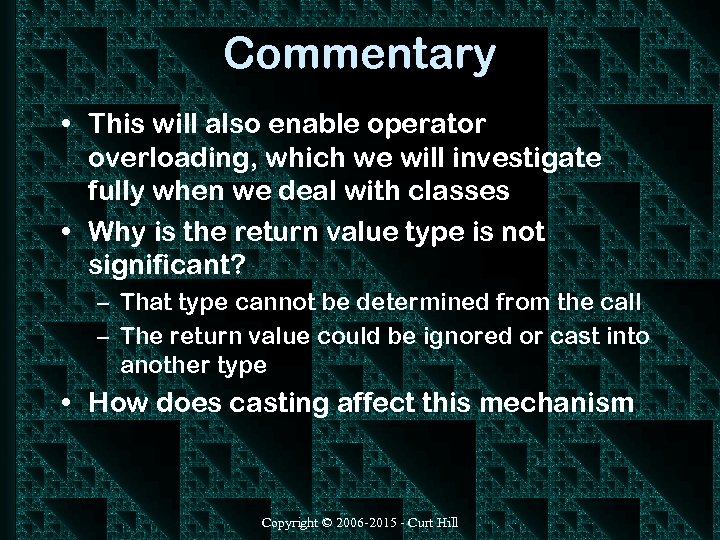

Commentary • This will also enable operator overloading, which we will investigate fully when Commentary • This will also enable operator overloading, which we will investigate fully when we deal with classes • Why is the return value type is not significant? – That type cannot be determined from the call – The return value could be ignored or cast into another type • How does casting affect this mechanism Copyright © 2006 -2015 - Curt Hill

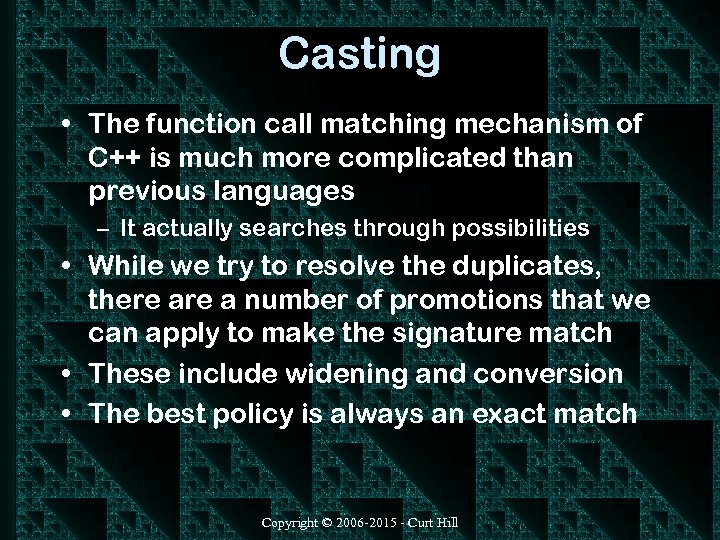

Casting • The function call matching mechanism of C++ is much more complicated than Casting • The function call matching mechanism of C++ is much more complicated than previous languages – It actually searches through possibilities • While we try to resolve the duplicates, there a number of promotions that we can apply to make the signature match • These include widening and conversion • The best policy is always an exact match Copyright © 2006 -2015 - Curt Hill

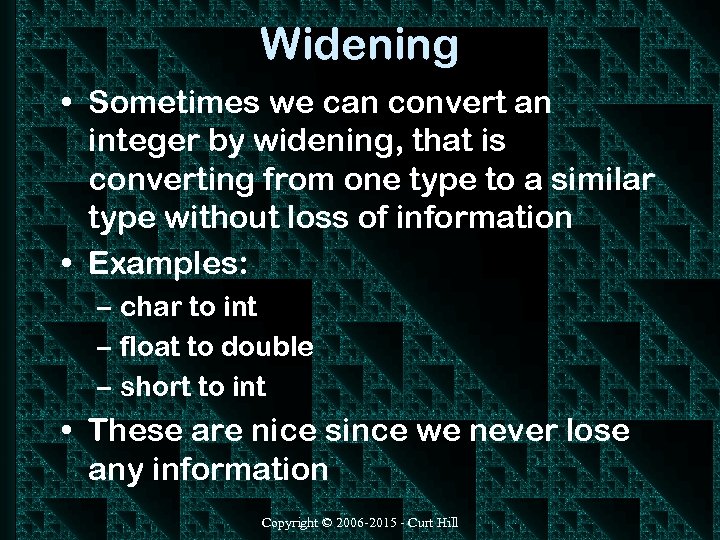

Widening • Sometimes we can convert an integer by widening, that is converting from Widening • Sometimes we can convert an integer by widening, that is converting from one type to a similar type without loss of information • Examples: – char to int – float to double – short to int • These are nice since we never lose any information Copyright © 2006 -2015 - Curt Hill

Conversions: • We can change from one type to another type if the target Conversions: • We can change from one type to another type if the target type is stronger • The hierarchy of types is from weakest to strongest: – – – – char int unsigned long float double long double Copyright © 2006 -2015 - Curt Hill

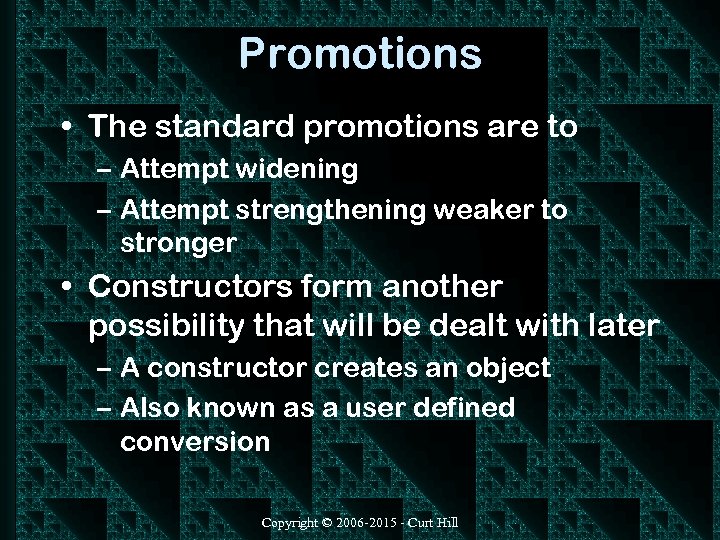

Promotions • The standard promotions are to – Attempt widening – Attempt strengthening weaker Promotions • The standard promotions are to – Attempt widening – Attempt strengthening weaker to stronger • Constructors form another possibility that will be dealt with later – A constructor creates an object – Also known as a user defined conversion Copyright © 2006 -2015 - Curt Hill

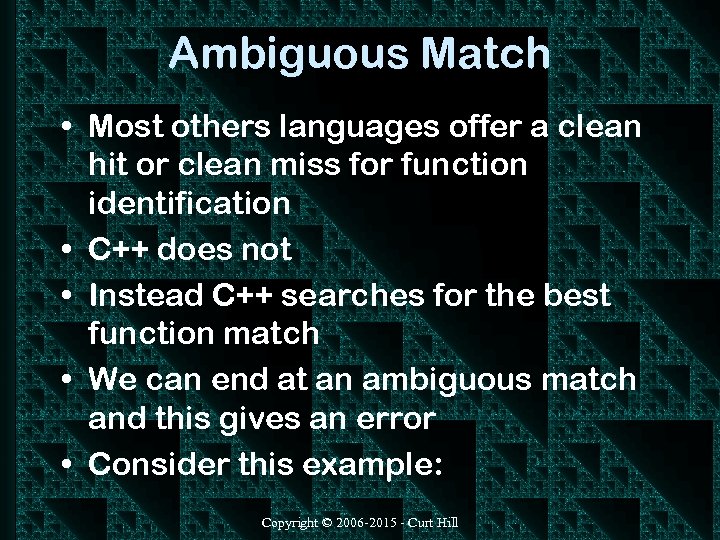

Ambiguous Match • Most others languages offer a clean hit or clean miss for Ambiguous Match • Most others languages offer a clean hit or clean miss for function identification • C++ does not • Instead C++ searches for the best function match • We can end at an ambiguous match and this gives an error • Consider this example: Copyright © 2006 -2015 - Curt Hill

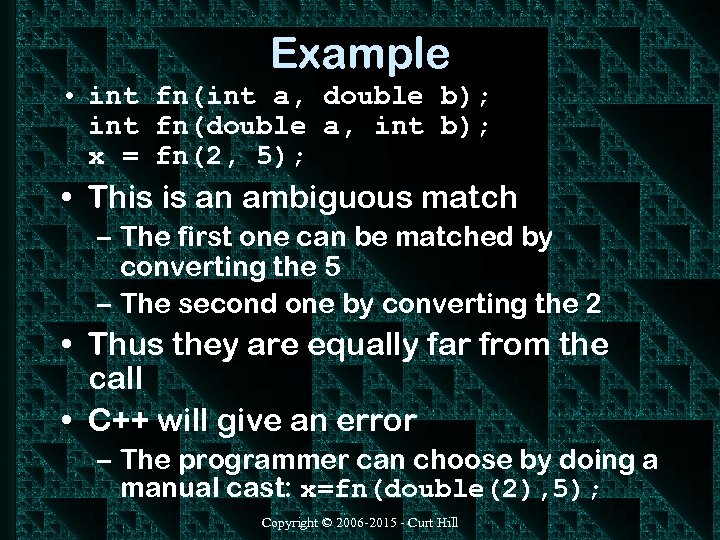

Example • int fn(int a, double b); int fn(double a, int b); x = Example • int fn(int a, double b); int fn(double a, int b); x = fn(2, 5); • This is an ambiguous match – The first one can be matched by converting the 5 – The second one by converting the 2 • Thus they are equally far from the call • C++ will give an error – The programmer can choose by doing a manual cast: x=fn(double(2), 5); Copyright © 2006 -2015 - Curt Hill

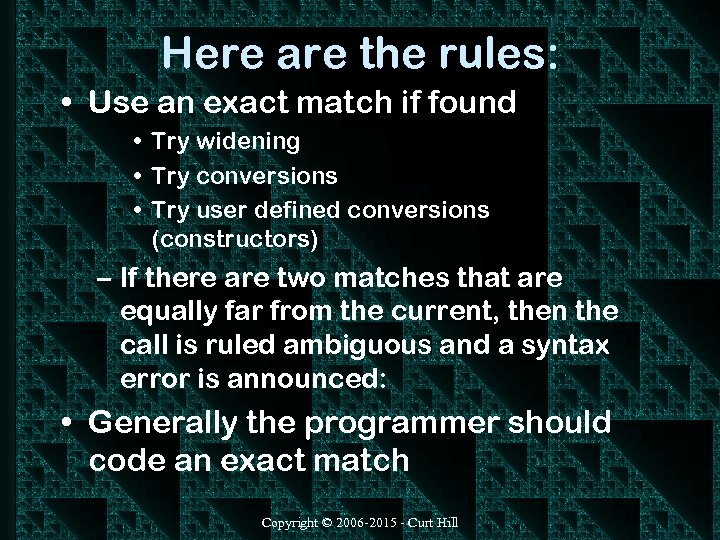

Here are the rules: • Use an exact match if found • Try widening Here are the rules: • Use an exact match if found • Try widening • Try conversions • Try user defined conversions (constructors) – If there are two matches that are equally far from the current, then the call is ruled ambiguous and a syntax error is announced: • Generally the programmer should code an exact match Copyright © 2006 -2015 - Curt Hill

Variable numbers of parameters • The C stream input/output system had a couple of Variable numbers of parameters • The C stream input/output system had a couple of functions that look really strange: printf(“Answers: %d, %lfn”, i, x); • The funny part is that this always required an initial string • After that it could have as many parameters as needed • Each parameter replaced a format descriptor Copyright © 2006 -2015 - Curt Hill

Types • The problem with this approach was that there was no way to Types • The problem with this approach was that there was no way to verify type • The %d stated that an integer was expected – There was no way to verify this • It is a type-insecure system • This system will be covered later but what is of interest is how to declare an unknown number of parameters Copyright © 2006 -2015 - Curt Hill

The Ellipsis • The function header contains three dots to signify that we do The Ellipsis • The function header contains three dots to signify that we do not know how many parameter follow • Thus the printf header looks like this: int printf(char * f, …); • The comma before the ellipsis is optional Copyright © 2006 -2015 - Curt Hill

Problems • Just because we have variable number of parameters does mean that we Problems • Just because we have variable number of parameters does mean that we can use them • How are they referenced in the code? – There are no names – There are no types – There is not even a count of how many there are Copyright © 2006 -2015 - Curt Hill

Macros • There are several macros that allow us to handle these • A Macros • There are several macros that allow us to handle these • A macro is something done by the preprocessor – We will consider preprocessor macros later • In order to enable these we need the include of stdarg. h • All of the items start with va_ – Variable Args Copyright © 2006 -2015 - Curt Hill

va_ Items • va_list – a type to hold the progress • va_start – va_ Items • va_list – a type to hold the progress • va_start – function to initialize the va_list item – Parms: the va_list item and named parameter • va_args – function to obtain the next argument – Parms: the va_list item and type to be returned • va_end – stop the iteration through the arguments Copyright © 2006 -2015 - Curt Hill

Example 1 int sum 1(int count, . . . ){ int res = 0; Example 1 int sum 1(int count, . . . ){ int res = 0; va_list arg_ptr; int args = 0; va_start(arg_ptr, count); while(args++ < count){ res += va_arg(arg_ptr, int); } va_end(arg_ptr); return res; } int i = sum 1(4, 2, 3, 4, 5); Copyright © 2006 -2015 - Curt Hill

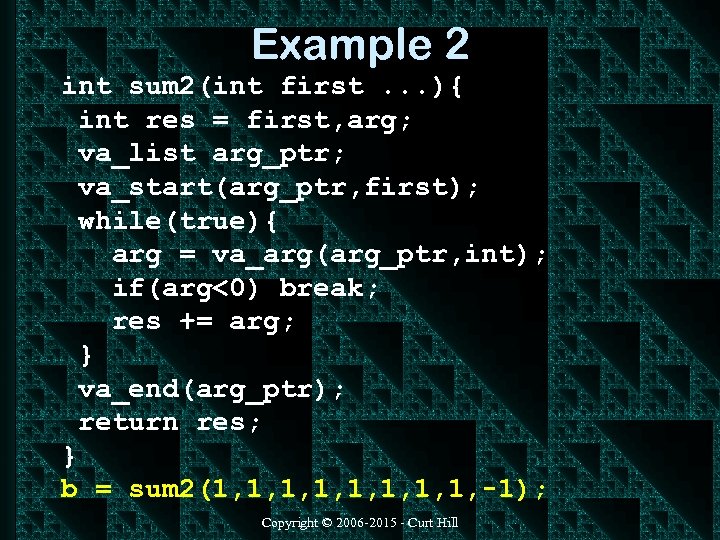

Example 2 int sum 2(int first. . . ){ int res = first, arg; Example 2 int sum 2(int first. . . ){ int res = first, arg; va_list arg_ptr; va_start(arg_ptr, first); while(true){ arg = va_arg(arg_ptr, int); if(arg<0) break; res += arg; } va_end(arg_ptr); return res; } b = sum 2(1, 1, -1); Copyright © 2006 -2015 - Curt Hill

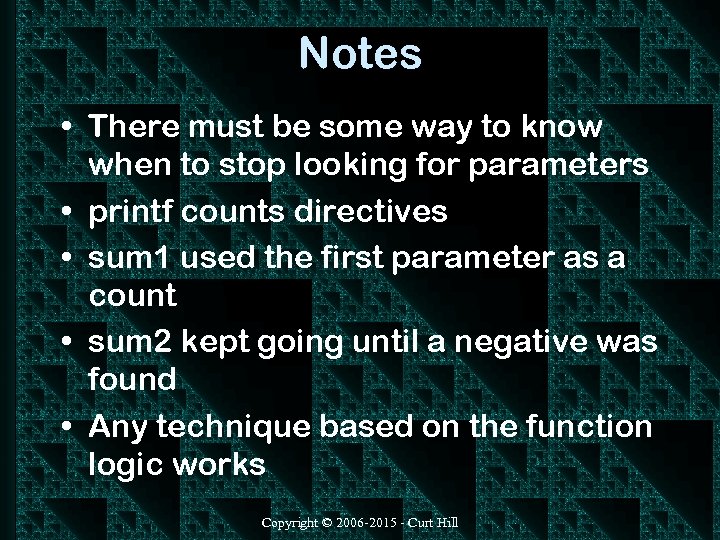

Notes • There must be some way to know when to stop looking for Notes • There must be some way to know when to stop looking for parameters • printf counts directives • sum 1 used the first parameter as a count • sum 2 kept going until a negative was found • Any technique based on the function logic works Copyright © 2006 -2015 - Curt Hill

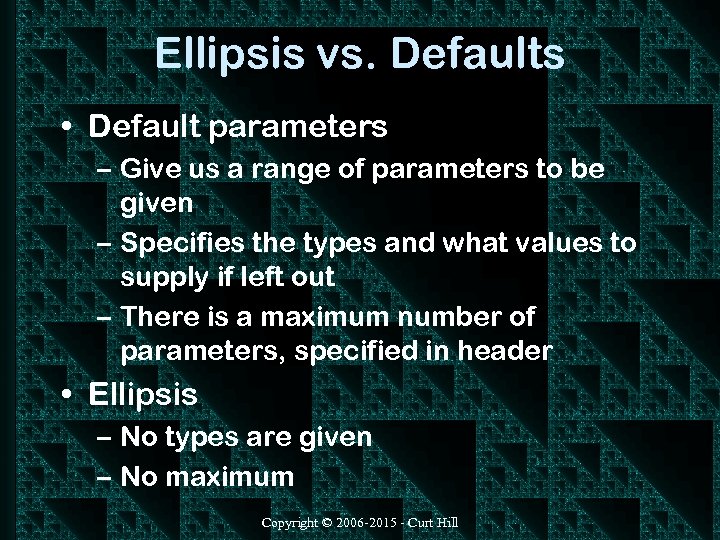

Ellipsis vs. Defaults • Default parameters – Give us a range of parameters to Ellipsis vs. Defaults • Default parameters – Give us a range of parameters to be given – Specifies the types and what values to supply if left out – There is a maximum number of parameters, specified in header • Ellipsis – No types are given – No maximum Copyright © 2006 -2015 - Curt Hill

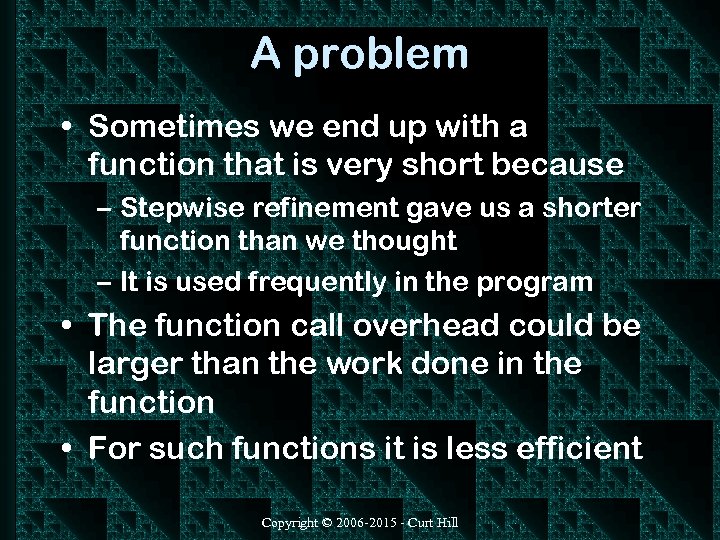

A problem • Sometimes we end up with a function that is very short A problem • Sometimes we end up with a function that is very short because – Stepwise refinement gave us a shorter function than we thought – It is used frequently in the program • The function call overhead could be larger than the work done in the function • For such functions it is less efficient Copyright © 2006 -2015 - Curt Hill

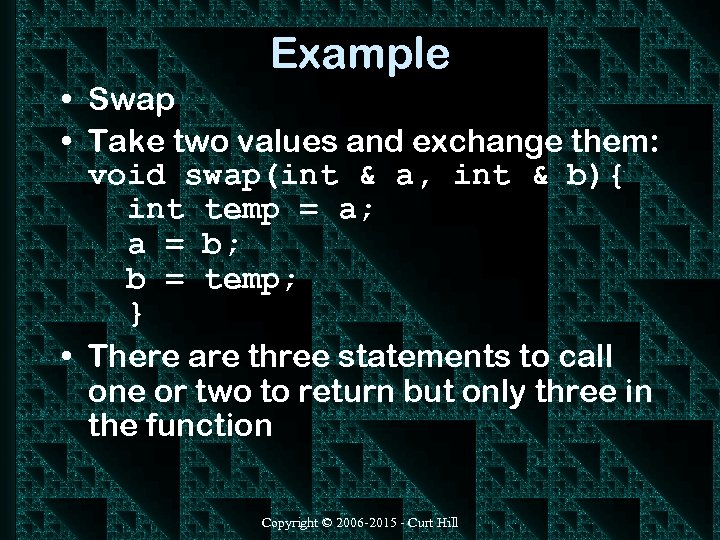

Example • Swap • Take two values and exchange them: void swap(int & a, Example • Swap • Take two values and exchange them: void swap(int & a, int & b){ int temp = a; a = b; b = temp; } • There are three statements to call one or two to return but only three in the function Copyright © 2006 -2015 - Curt Hill

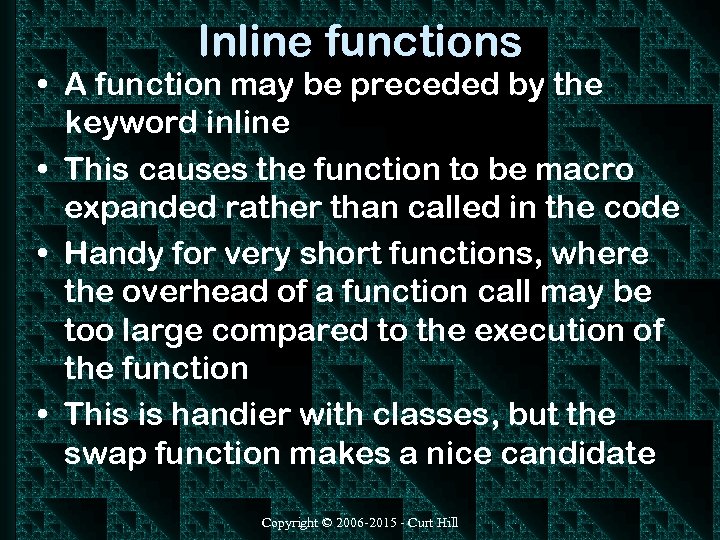

Inline functions • A function may be preceded by the keyword inline • This Inline functions • A function may be preceded by the keyword inline • This causes the function to be macro expanded rather than called in the code • Handy for very short functions, where the overhead of a function call may be too large compared to the execution of the function • This is handier with classes, but the swap function makes a nice candidate Copyright © 2006 -2015 - Curt Hill

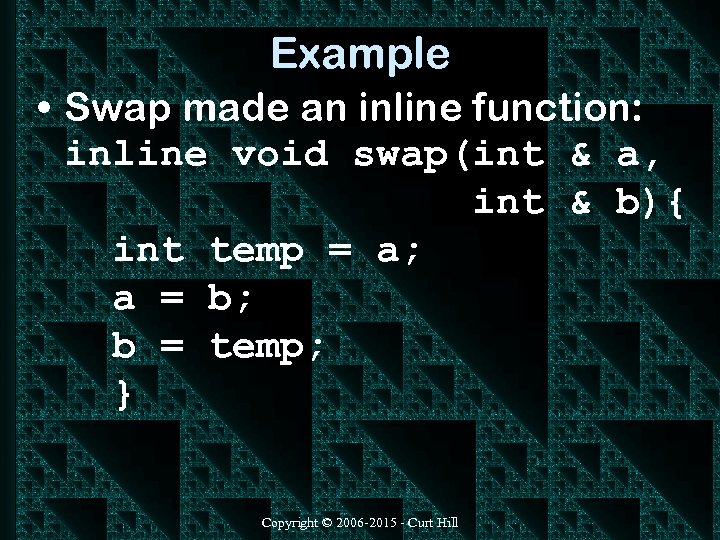

Example • Swap made an inline function: inline void swap(int & a, int & Example • Swap made an inline function: inline void swap(int & a, int & b){ int temp = a; a = b; b = temp; } Copyright © 2006 -2015 - Curt Hill

Tradeoffs • In computer science we have a common space speed tradeoff • We Tradeoffs • In computer science we have a common space speed tradeoff • We can usually make something smaller but at the cost of making it slower or faster but at the cost of making it larger • This happens with inline as well • An inline function that is called several times will be faster but larger than the non-inline version Copyright © 2006 -2015 - Curt Hill

Another Problem • C++ and Java allow function name overloading but our tools predate Another Problem • C++ and Java allow function name overloading but our tools predate their use • In particular the linker agrees with C that a function name alone determines the function to use • Thus C++ uses a process called name mangling to make the names unique Copyright © 2006 -2015 - Curt Hill

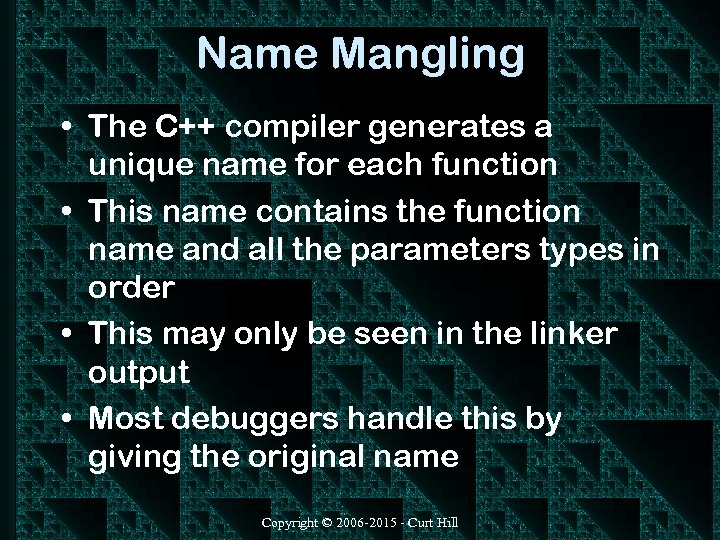

Name Mangling • The C++ compiler generates a unique name for each function • Name Mangling • The C++ compiler generates a unique name for each function • This name contains the function name and all the parameters types in order • This may only be seen in the linker output • Most debuggers handle this by giving the original name Copyright © 2006 -2015 - Curt Hill

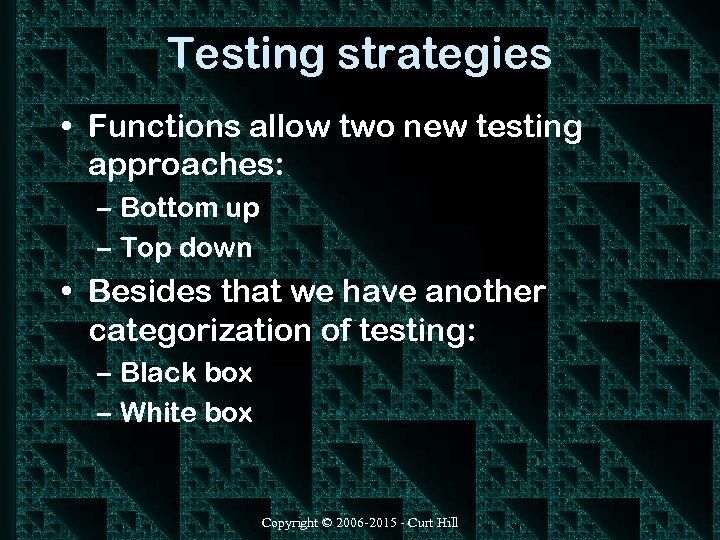

Testing strategies • Functions allow two new testing approaches: – Bottom up – Top Testing strategies • Functions allow two new testing approaches: – Bottom up – Top down • Besides that we have another categorization of testing: – Black box – White box Copyright © 2006 -2015 - Curt Hill

Bottom Up Testing • Each function has its own specifications • These can be Bottom Up Testing • Each function has its own specifications • These can be tested independently of the rest of the program • Write a driver program that calls the function – Multiple calls – Each result is checked for correctness – Still use statement / path testing Copyright © 2006 -2015 - Curt Hill

Moving up • When the bottom functions are tested then move up a level Moving up • When the bottom functions are tested then move up a level to those functions that call them • When the main program is tested then you are done • It is also a smart thing to retain the driver programs for tests on the functions when they change • This is important in XP Copyright © 2006 -2015 - Curt Hill

XP • Not Windows XP but e. Xtreme Programming • One of the precepts XP • Not Windows XP but e. Xtreme Programming • One of the precepts of XP is individualized testing • Each object type has its own automated driver that tests the class in all reasonable ways • These drivers are maintained so that when any change is made in the class the test is performed • This is a variation of Bottom Up testing Copyright © 2006 -2015 - Curt Hill

Top Down Testing • You may test the main function before the lower functions Top Down Testing • You may test the main function before the lower functions are coded • This allows a program to be coded by different programmers • Create stub functions • The stub function emulates the real function, which may not yet be done • Allows the main to be tested whenever it its ready Copyright © 2006 -2015 - Curt Hill

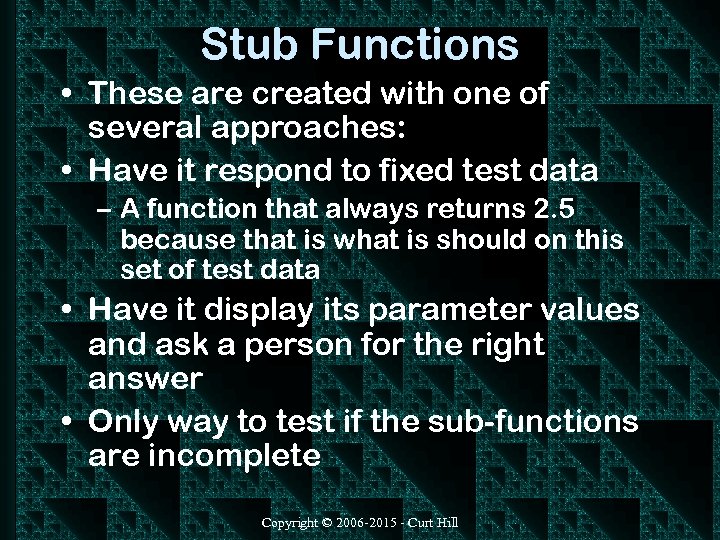

Stub Functions • These are created with one of several approaches: • Have it Stub Functions • These are created with one of several approaches: • Have it respond to fixed test data – A function that always returns 2. 5 because that is what is should on this set of test data • Have it display its parameter values and ask a person for the right answer • Only way to test if the sub-functions are incomplete Copyright © 2006 -2015 - Curt Hill

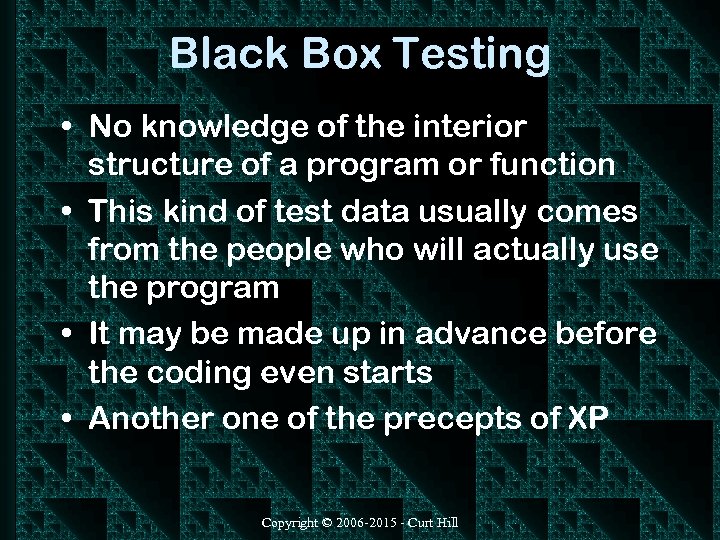

Black Box Testing • No knowledge of the interior structure of a program or Black Box Testing • No knowledge of the interior structure of a program or function • This kind of test data usually comes from the people who will actually use the program • It may be made up in advance before the coding even starts • Another one of the precepts of XP Copyright © 2006 -2015 - Curt Hill

White Box Testing • Test data provided by someone with knowledge of the code White Box Testing • Test data provided by someone with knowledge of the code • Every statement and every path testing are examples • The programmer has a good idea what kind of data may cause the function to abort or return wrong results Copyright © 2006 -2015 - Curt Hill

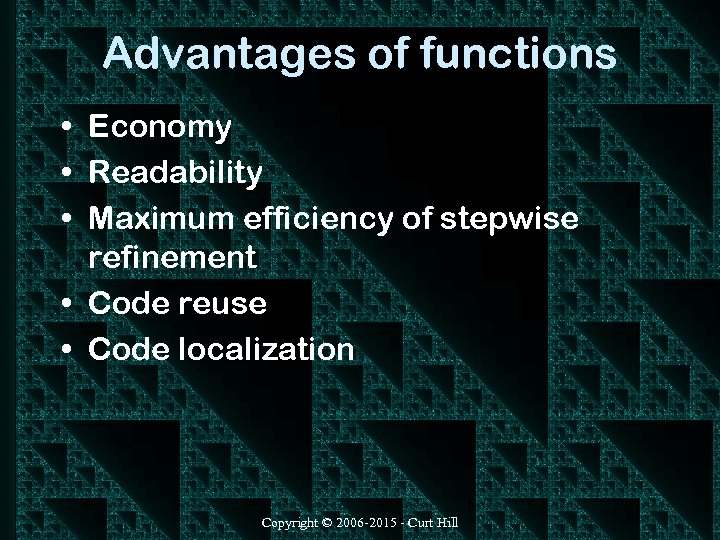

Advantages of functions • Economy • Readability • Maximum efficiency of stepwise refinement • Advantages of functions • Economy • Readability • Maximum efficiency of stepwise refinement • Code reuse • Code localization Copyright © 2006 -2015 - Curt Hill

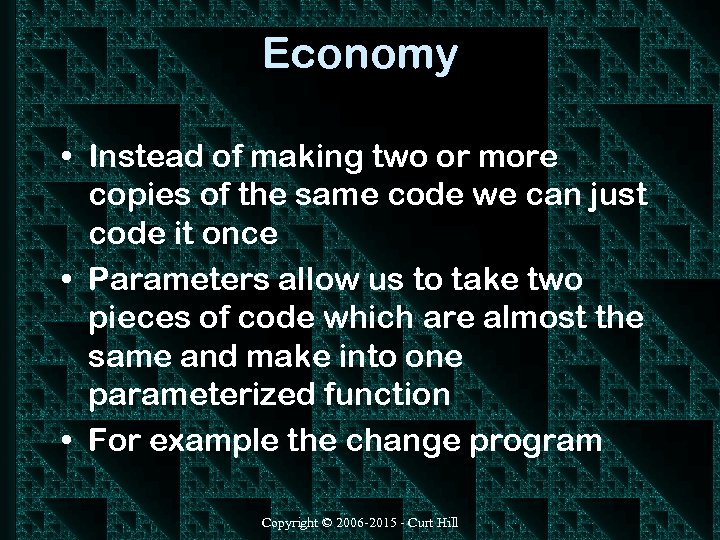

Economy • Instead of making two or more copies of the same code we Economy • Instead of making two or more copies of the same code we can just code it once • Parameters allow us to take two pieces of code which are almost the same and make into one parameterized function • For example the change program Copyright © 2006 -2015 - Curt Hill

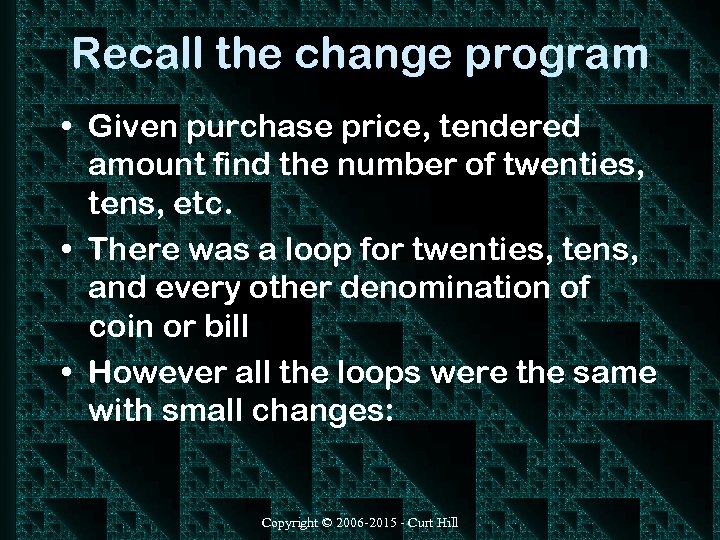

Recall the change program • Given purchase price, tendered amount find the number of Recall the change program • Given purchase price, tendered amount find the number of twenties, tens, etc. • There was a loop for twenties, tens, and every other denomination of coin or bill • However all the loops were the same with small changes: Copyright © 2006 -2015 - Curt Hill

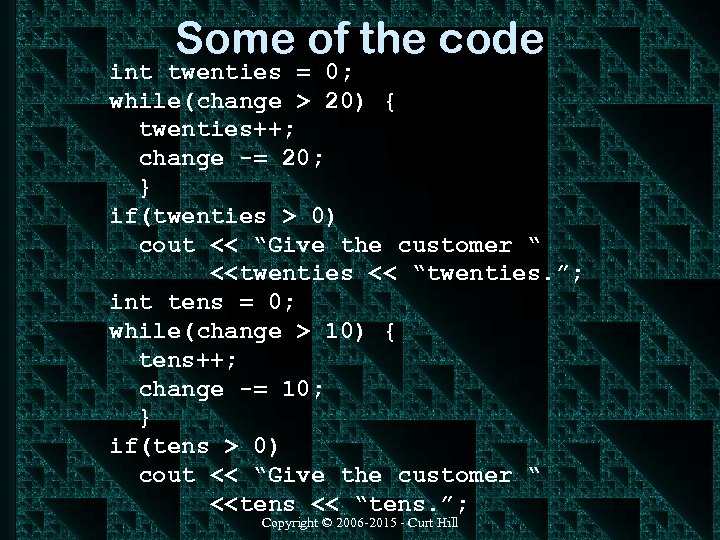

Some of the code int twenties = 0; while(change > 20) { twenties++; change Some of the code int twenties = 0; while(change > 20) { twenties++; change -= 20; } if(twenties > 0) cout << “Give the customer “ < 10) { tens++; change -= 10; } if(tens > 0) cout << “Give the customer “ <

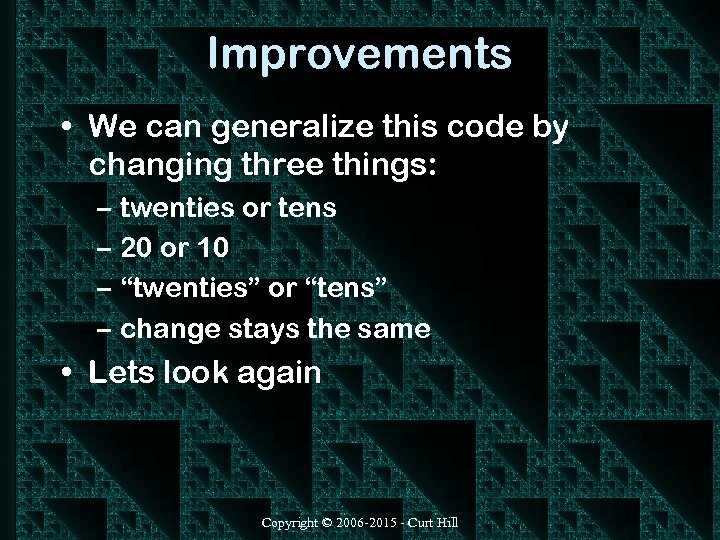

Improvements • We can generalize this code by changing three things: – twenties or Improvements • We can generalize this code by changing three things: – twenties or tens – 20 or 10 – “twenties” or “tens” – change stays the same • Lets look again Copyright © 2006 -2015 - Curt Hill

Color Coded Similarities int twenties = 0; while(change > 20) { twenties++; change -= Color Coded Similarities int twenties = 0; while(change > 20) { twenties++; change -= 20; } if(twenties > 0) cout << “Give the customer “ << twenties << “twenties. ”; int tens = 0; while(change > 10) { tens++; change -= 10; } if(tens > 0) cout << “Give the customer “ << tens << “tens. ”; Copyright © 2006 -2015 - Curt Hill

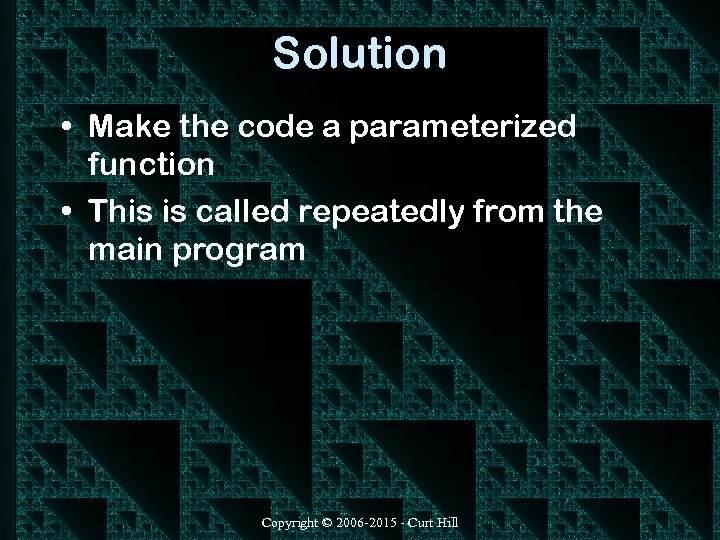

Solution • Make the code a parameterized function • This is called repeatedly from Solution • Make the code a parameterized function • This is called repeatedly from the main program Copyright © 2006 -2015 - Curt Hill

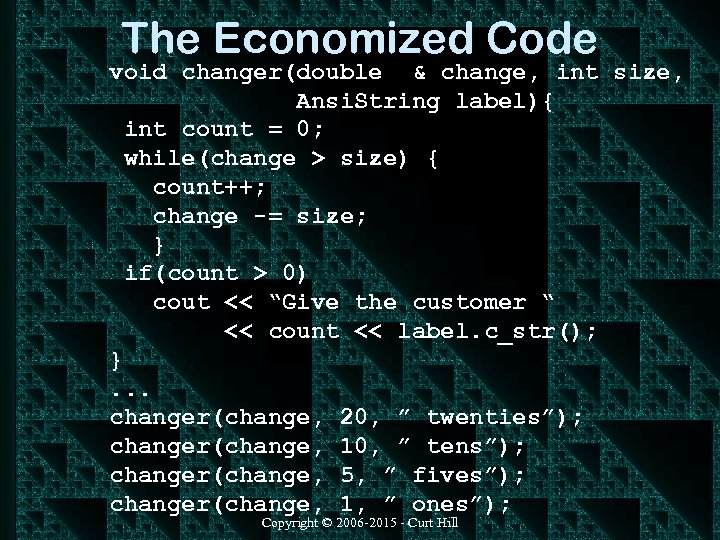

The Economized Code void changer(double & change, int size, Ansi. String label){ int count The Economized Code void changer(double & change, int size, Ansi. String label){ int count = 0; while(change > size) { count++; change -= size; } if(count > 0) cout << “Give the customer “ << count << label. c_str(); }. . . changer(change, 20, ” twenties”); changer(change, 10, ” tens”); changer(change, 5, ” fives”); changer(change, 1, ” ones”); Copyright © 2006 -2015 - Curt Hill

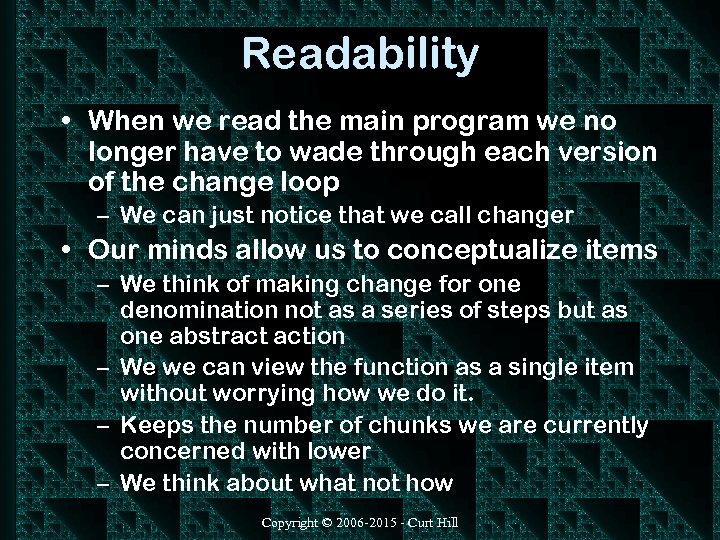

Readability • When we read the main program we no longer have to wade Readability • When we read the main program we no longer have to wade through each version of the change loop – We can just notice that we call changer • Our minds allow us to conceptualize items – We think of making change for one denomination not as a series of steps but as one abstract action – We we can view the function as a single item without worrying how we do it. – Keeps the number of chunks we are currently concerned with lower – We think about what not how Copyright © 2006 -2015 - Curt Hill

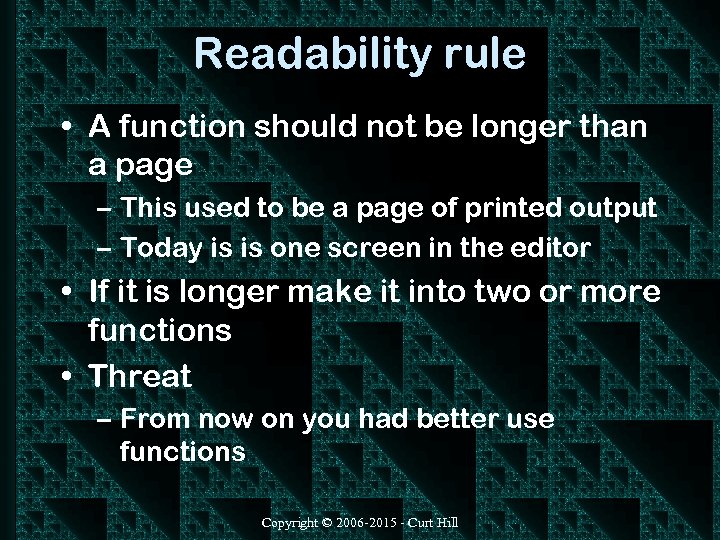

Readability rule • A function should not be longer than a page – This Readability rule • A function should not be longer than a page – This used to be a page of printed output – Today is is one screen in the editor • If it is longer make it into two or more functions • Threat – From now on you had better use functions Copyright © 2006 -2015 - Curt Hill

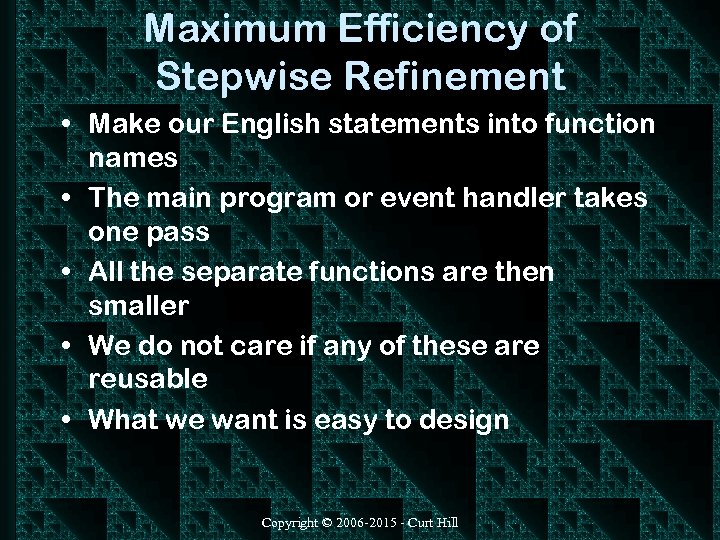

Maximum Efficiency of Stepwise Refinement • Make our English statements into function names • Maximum Efficiency of Stepwise Refinement • Make our English statements into function names • The main program or event handler takes one pass • All the separate functions are then smaller • We do not care if any of these are reusable • What we want is easy to design Copyright © 2006 -2015 - Curt Hill

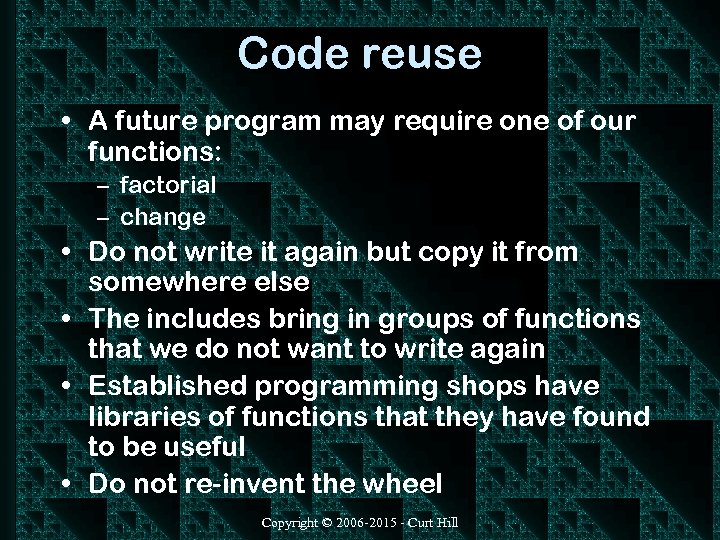

Code reuse • A future program may require one of our functions: – factorial Code reuse • A future program may require one of our functions: – factorial – change • Do not write it again but copy it from somewhere else • The includes bring in groups of functions that we do not want to write again • Established programming shops have libraries of functions that they have found to be useful • Do not re-invent the wheel Copyright © 2006 -2015 - Curt Hill

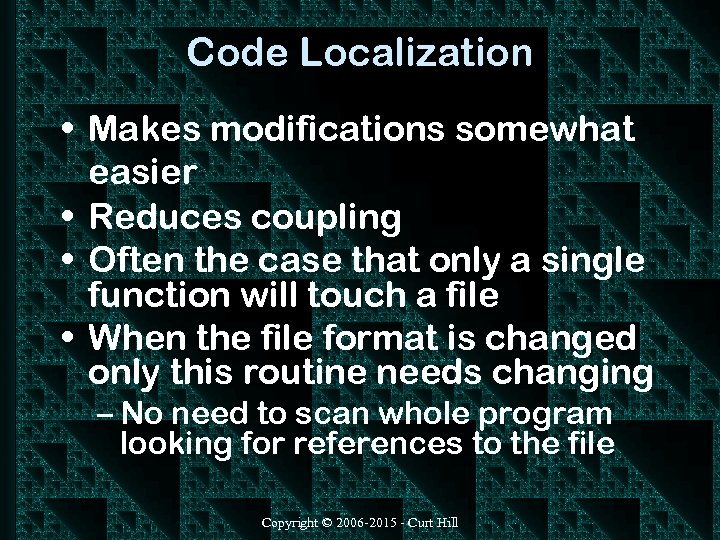

Code Localization • Makes modifications somewhat easier • Reduces coupling • Often the case Code Localization • Makes modifications somewhat easier • Reduces coupling • Often the case that only a single function will touch a file • When the file format is changed only this routine needs changing – No need to scan whole program looking for references to the file Copyright © 2006 -2015 - Curt Hill
