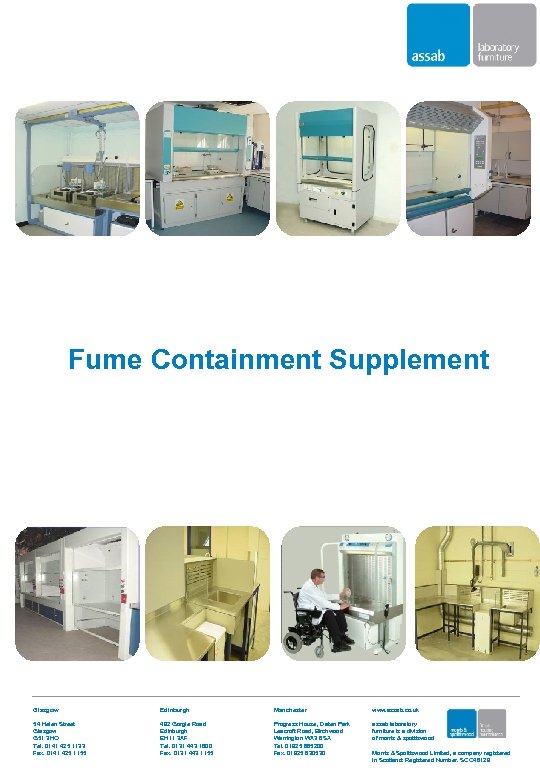

Fume Containment Supplement Glasgow Edinburgh Manchester www. assab. co. uk 54 Helen Street Glasgow G 51 3 HQ Tel. 0141 425 1133 Fax. 0141 425 1155 492 Gorgie Road Edinburgh EH 11 3 AF Tel. 0131 443 1800 Fax. 0131 443 1155 Progress House, Daten Park Leacroft Road, Birchwood Warrington WA 3 6 SX Tel. 01925 885200 Fax. 01925 830530 assab laboratory furniture is a division of morris & spottiswood Morris & Spottiswood Limited, a company registered in Scotland: Registered Number. SCO 46129

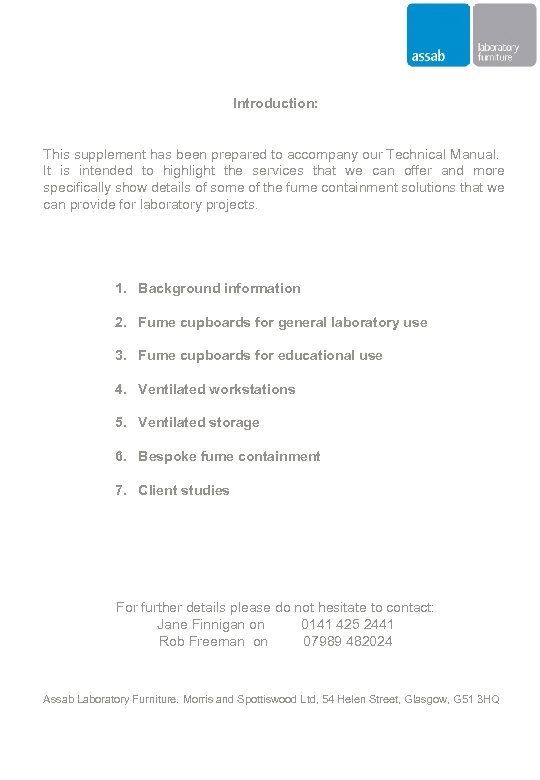

Introduction: This supplement has been prepared to accompany our Technical Manual. It is intended to highlight the services that we can offer and more specifically show details of some of the fume containment solutions that we can provide for laboratory projects. 1. Background information 2. Fume cupboards for general laboratory use 3. Fume cupboards for educational use 4. Ventilated workstations 5. Ventilated storage 6. Bespoke fume containment 7. Client studies For further details please do not hesitate to contact: Jane Finnigan on 0141 425 2441 Rob Freeman on 07989 482024 Assab Laboratory Furniture. Morris and Spottiswood Ltd, 54 Helen Street, Glasgow, G 51 3 HQ

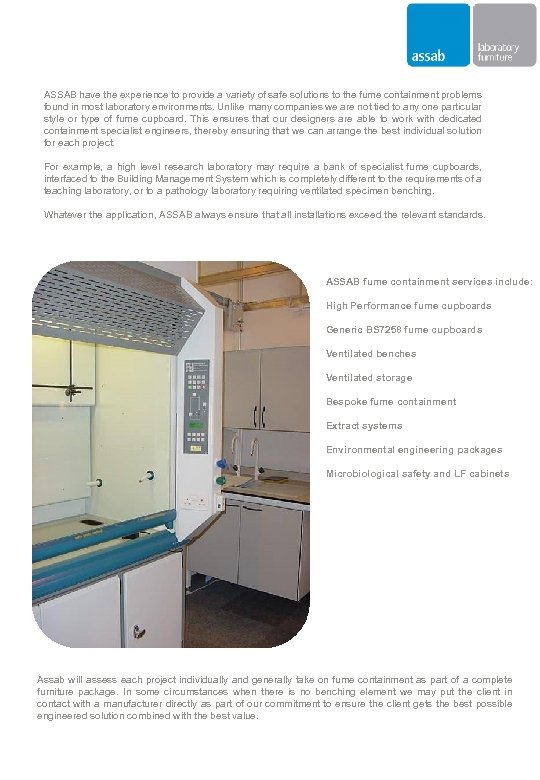

ASSAB have the experience to provide a variety of safe solutions to the fume containment problems found in most laboratory environments. Unlike many companies we are not tied to any one particular style or type of fume cupboard. This ensures that our designers are able to work with dedicated containment specialist engineers, thereby ensuring that we can arrange the best individual solution for each project. For example, a high level research laboratory may require a bank of specialist fume cupboards, interfaced to the Building Management System which is completely different to the requirements of a teaching laboratory, or to a pathology laboratory requiring ventilated specimen benching. Whatever the application, ASSAB always ensure that all installations exceed the relevant standards. ASSAB fume containment services include: High Performance fume cupboards Generic BS 7258 fume cupboards Ventilated benches Ventilated storage Bespoke fume containment Extract systems Environmental engineering packages Microbiological safety and LF cabinets Assab will assess each project individually and generally take on fume containment as part of a complete furniture package. In some circumstances when there is no benching element we may put the client in contact with a manufacturer directly as part of our commitment to ensure the client gets the best possible engineered solution combined with the best value.

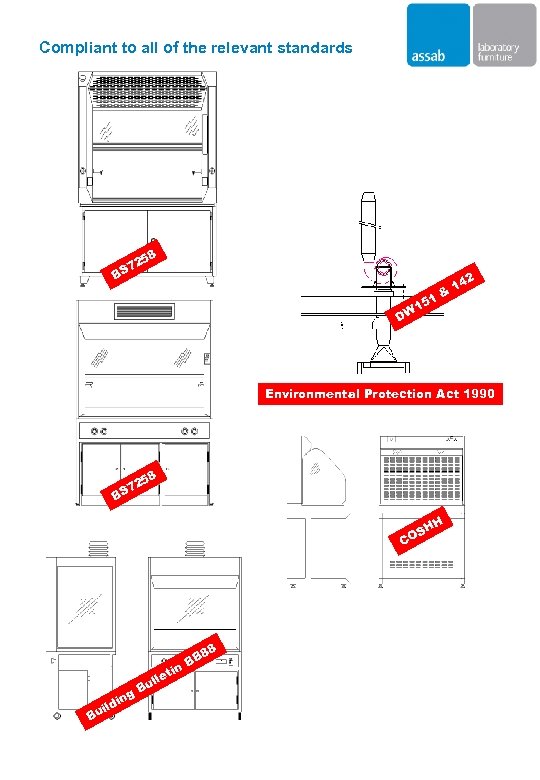

Compliant to all of the relevant standards 58 2 S 7 B D 5 W 1 1& 14 2 Environmental Protection Act 1990 58 2 S 7 B H SH CO 88 B n. B Bu ng ldi i B ti lle u

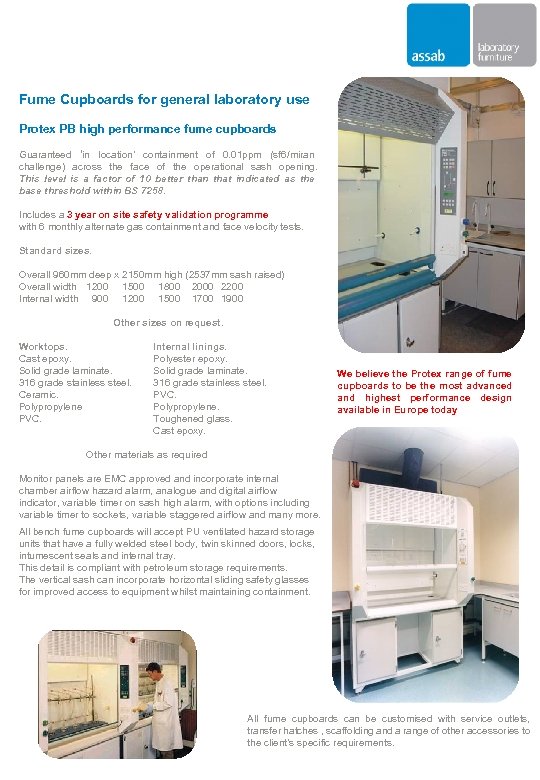

Fume Cupboards for general laboratory use Protex PB high performance fume cupboards Guaranteed ‘in location’ containment of 0. 01 ppm (sf 6/miran challenge) across the face of the operational sash opening. This level is a factor of 10 better than that indicated as the base threshold within BS 7258. Includes a 3 year on site safety validation programme with 6 monthly alternate gas containment and face velocity tests. Standard sizes. Overall 960 mm deep x 2150 mm high (2537 mm sash raised) Overall width 1200 1500 1800 2000 2200 Internal width 900 1200 1500 1700 1900 Other sizes on request. Worktops. Cast epoxy. Solid grade laminate. 316 grade stainless steel. Ceramic. Polypropylene PVC. Internal linings. Polyester epoxy. Solid grade laminate. 316 grade stainless steel. PVC. Polypropylene. Toughened glass. Cast epoxy. We believe the Protex range of fume cupboards to be the most advanced and highest performance design available in Europe today Other materials as required Monitor panels are EMC approved and incorporate internal chamber airflow hazard alarm, analogue and digital airflow indicator, variable timer on sash high alarm, with options including variable timer to sockets, variable staggered airflow and many more. All bench fume cupboards will accept PU ventilated hazard storage units that have a fully welded steel body, twin skinned doors, locks, intumescent seals and internal tray. This detail is compliant with petroleum storage requirements. The vertical sash can incorporate horizontal sliding safety glasses for improved access to equipment whilst maintaining containment. All fume cupboards can be customised with service outlets, transfer hatches , scaffolding and a range of other accessories to the client’s specific requirements.

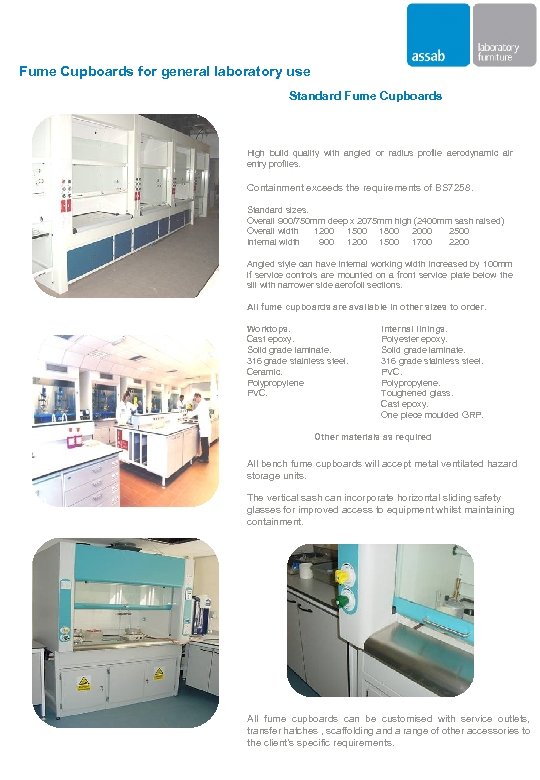

Fume Cupboards for general laboratory use Standard Fume Cupboards High build quality with angled or radius profile aerodynamic air entry profiles. Containment exceeds the requirements of BS 7258. Standard sizes. Overall 900/750 mm deep x 2075 mm high (2400 mm sash raised) Overall width 1200 1500 1800 2000 2500 Internal width 900 1200 1500 1700 2200 Angled style can have internal working width increased by 100 mm if service controls are mounted on a front service plate below the sill with narrower side aerofoil sections. All fume cupboards are available in other sizes to order. Worktops. Cast epoxy. Solid grade laminate. 316 grade stainless steel. Ceramic. Polypropylene PVC. Internal linings. Polyester epoxy. Solid grade laminate. 316 grade stainless steel. PVC. Polypropylene. Toughened glass. Cast epoxy. One piece moulded GRP. Other materials as required All bench fume cupboards will accept metal ventilated hazard storage units. The vertical sash can incorporate horizontal sliding safety glasses for improved access to equipment whilst maintaining containment. All fume cupboards can be customised with service outlets, transfer hatches , scaffolding and a range of other accessories to the client’s specific requirements.

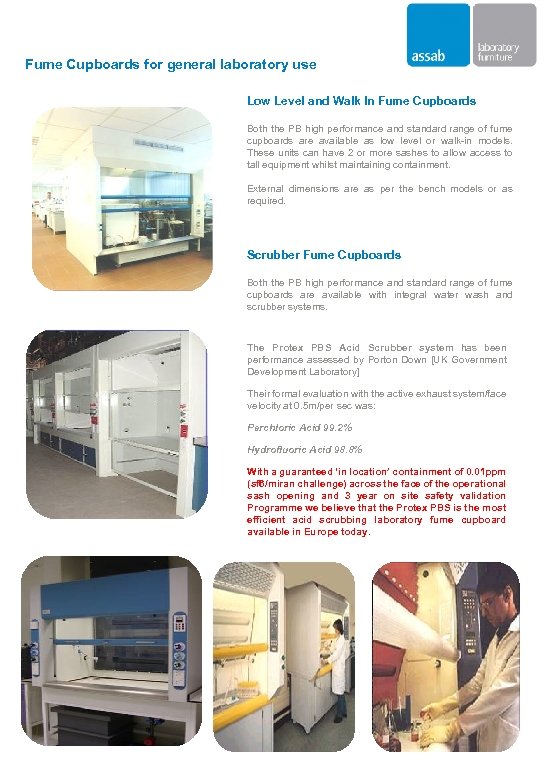

Fume Cupboards for general laboratory use Low Level and Walk In Fume Cupboards Both the PB high performance and standard range of fume cupboards are available as low level or walk-in models. These units can have 2 or more sashes to allow access to tall equipment whilst maintaining containment. External dimensions are as per the bench models or as required. Scrubber Fume Cupboards Both the PB high performance and standard range of fume cupboards are available with integral water wash and scrubber systems. The Protex PBS Acid Scrubber system has been performance assessed by Porton Down [UK Government Development Laboratory] Their formal evaluation with the active exhaust system/face velocity at 0. 5 m/per sec was: Perchloric Acid 99. 2% Hydrofluoric Acid 98. 8% With a guaranteed ‘in location’ containment of 0. 01 ppm (sf 6/miran challenge) across the face of the operational sash opening and 3 year on site safety validation Programme we believe that the Protex PBS is the most efficient acid scrubbing laboratory fume cupboard available in Europe today.

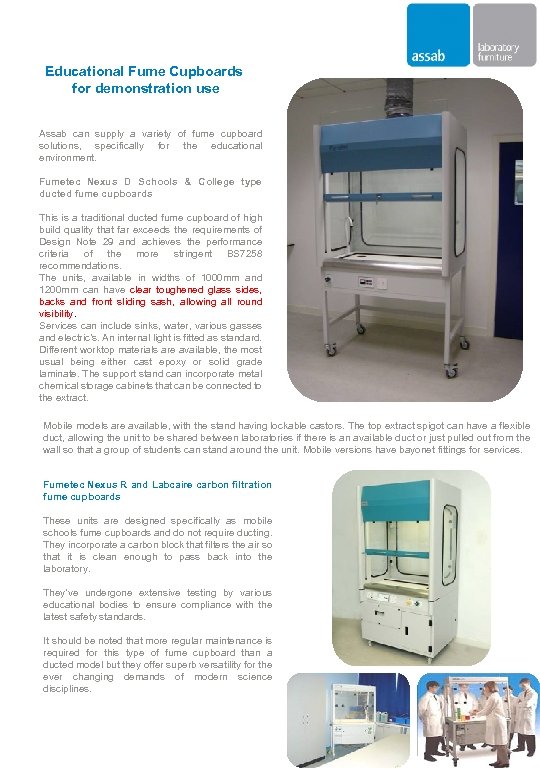

Educational Fume Cupboards for demonstration use Assab can supply a variety of fume cupboard solutions, specifically for the educational environment. Fumetec Nexus D Schools & College type ducted fume cupboards This is a traditional ducted fume cupboard of high build quality that far exceeds the requirements of Design Note 29 and achieves the performance criteria of the more stringent BS 7258 recommendations. The units, available in widths of 1000 mm and 1200 mm can have clear toughened glass sides, backs and front sliding sash, allowing all round visibility. Services can include sinks, water, various gasses and electric’s. An internal light is fitted as standard. Different worktop materials are available, the most usual being either cast epoxy or solid grade laminate. The support stand can incorporate metal chemical storage cabinets that can be connected to the extract. Mobile models are available, with the stand having lockable castors. The top extract spigot can have a flexible duct, allowing the unit to be shared between laboratories if there is an available duct or just pulled out from the wall so that a group of students can stand around the unit. Mobile versions have bayonet fittings for services. Fumetec Nexus R and Labcaire carbon filtration fume cupboards These units are designed specifically as mobile schools fume cupboards and do not require ducting. They incorporate a carbon block that filters the air so that it is clean enough to pass back into the laboratory. They’ve undergone extensive testing by various educational bodies to ensure compliance with the latest safety standards. It should be noted that more regular maintenance is required for this type of fume cupboard than a ducted model but they offer superb versatility for the ever changing demands of modern science disciplines.

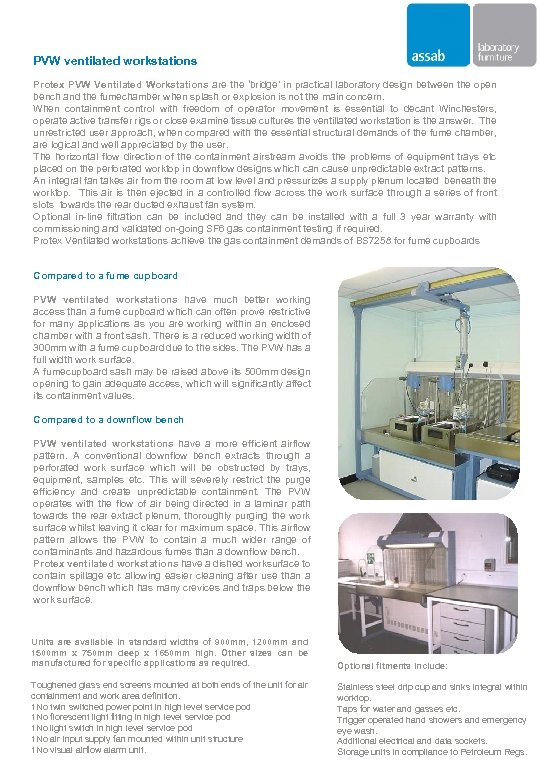

PVW ventilated workstations Protex PVW Ventilated Workstations are the ‘bridge’ in practical laboratory design between the open bench and the fumechamber when splash or explosion is not the main concern. When containment control with freedom of operator movement is essential to decant Winchesters, operate active transfer rigs or close examine tissue cultures the ventillated workstation is the answer. The unrestricted user approach, when compared with the essential structural demands of the fume chamber, are logical and well appreciated by the user. The horizontal flow direction of the containment airstream avoids the problems of equipment trays etc placed on the perforated worktop in downflow designs which can cause unpredictable extract patterns. An integral fan takes air from the room at low level and pressurizes a supply plenum located beneath the worktop. This air is then ejected in a controlled flow across the work surface through a series of front slots towards the rear ducted exhaust fan system. Optional in-line filtration can be included and they can be installed with a full 3 year warranty with commissioning and validated on-going SF 6 gas containment testing if required. Protex Ventilated workstations achieve the gas containment demands of BS 7258 for fume cupboards Compared to a fume cupboard PVW ventilated workstations have much better working access than a fume cupboard which can often prove restrictive for many applications as you are working within an enclosed chamber with a front sash. There is a reduced working width of 300 mm with a fume cupboard due to the sides. The PVW has a full width work surface. A fumecupboard sash may be raised above its 500 mm design opening to gain adequate access, which will significantly affect its containment values. Compared to a downflow bench PVW ventilated workstations have a more efficient airflow pattern. A conventional downflow bench extracts through a perforated work surface which will be obstructed by trays, equipment, samples etc. This will severely restrict the purge efficiency and create unpredictable containment. The PVW operates with the flow of air being directed in a laminar path towards the rear extract plenum, thoroughly purging the work surface whilst leaving it clear for maximum space. This airflow pattern allows the PVW to contain a much wider range of contaminants and hazardous fumes than a downflow bench. Protex ventilated workstations have a dished worksurface to contain spillage etc allowing easier cleaning after use than a downflow bench which has many crevices and traps below the work surface. Units are available in standard widths of 900 mm, 1200 mm and 1500 mm x 750 mm deep x 1650 mm high. Other sizes can be manufactured for specific applications as required. Optional fitments include: Toughened glass end screens mounted at both ends of the unit for air containment and work area definition. 1 No twin switched power point in high level service pod 1 No florescent light fitting in high level service pod 1 No light switch in high level service pod 1 No air input supply fan mounted within unit structure 1 No visual airflow alarm unit. Stainless steel drip cup and sinks integral within worktop. Taps for water and gasses etc. Trigger operated hand showers and emergency eye wash. Additional electrical and data sockets. Storage units in compliance to Petroleum Regs.

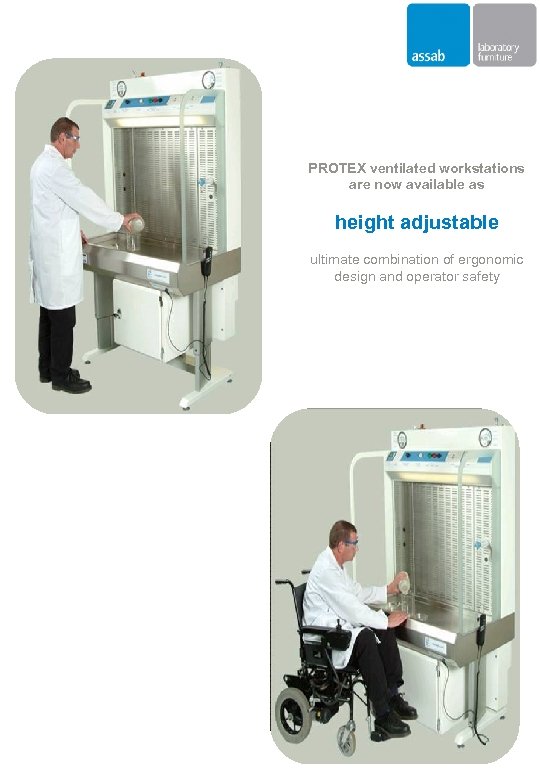

PROTEX ventilated workstations are now available as height adjustable ultimate combination of ergonomic design and operator safety

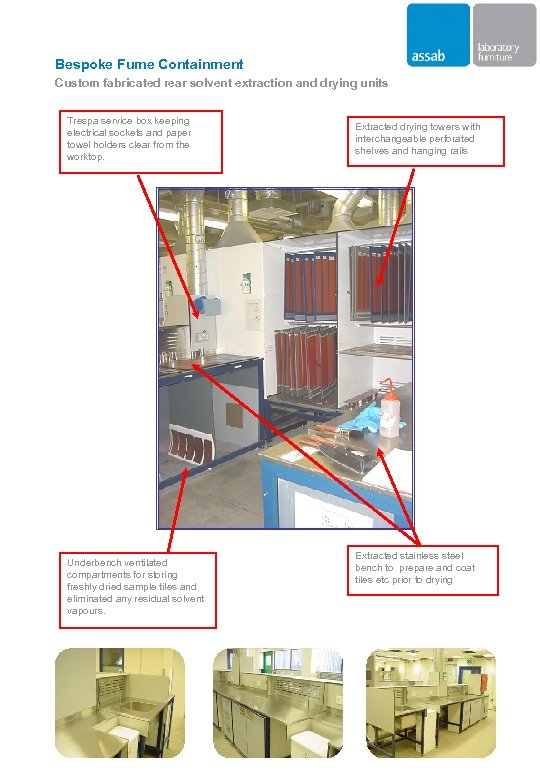

Bespoke Fume Containment Custom fabricated rear solvent extraction and drying units Trespa service box keeping electrical sockets and paper towel holders clear from the worktop. Underbench ventilated compartments for storing freshly dried sample tiles and eliminated any residual solvent vapours. Extracted drying towers with interchangeable perforated shelves and hanging rails Extracted stainless steel bench to prepare and coat tiles etc prior to drying

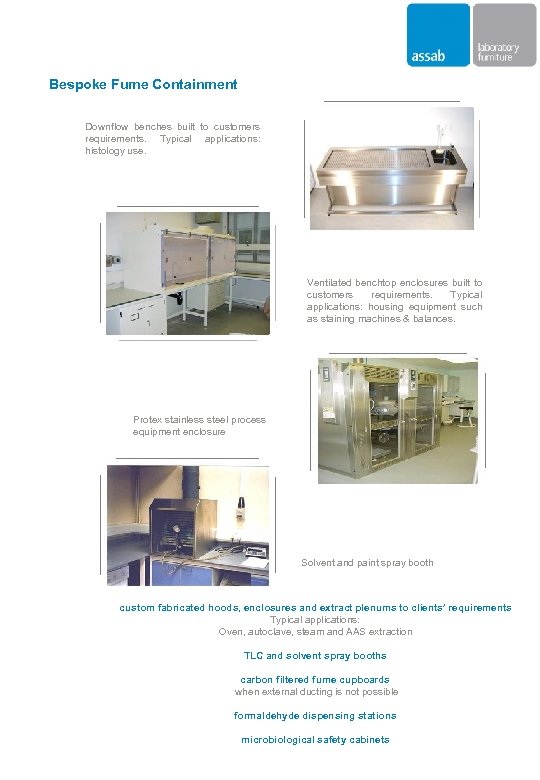

Bespoke Fume Containment Downflow benches built to customers requirements. Typical applications: histology use. Ventilated benchtop enclosures built to customers requirements. Typical applications: housing equipment such as staining machines & balances. Protex stainless steel process equipment enclosure Solvent and paint spray booth custom fabricated hoods, enclosures and extract plenums to clients’ requirements Typical applications: Oven, autoclave, steam and AAS extraction TLC and solvent spray booths carbon filtered fume cupboards when external ducting is not possible formaldehyde dispensing stations microbiological safety cabinets

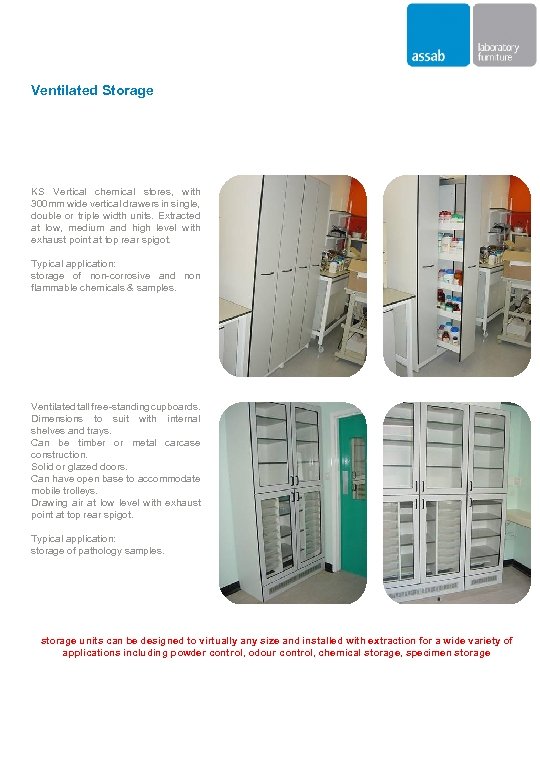

Ventilated Storage KS Vertical chemical stores, with 300 mm wide vertical drawers in single, double or triple width units. Extracted at low, medium and high level with exhaust point at top rear spigot. Typical application: storage of non-corrosive and non flammable chemicals & samples. Ventilated tall free-standing cupboards. Dimensions to suit with internal shelves and trays. Can be timber or metal carcase construction. Solid or glazed doors. Can have open base to accommodate mobile trolleys. Drawing air at low level with exhaust point at top rear spigot. Typical application: storage of pathology samples. storage units can be designed to virtually any size and installed with extraction for a wide variety of applications including powder control, odour control, chemical storage, specimen storage

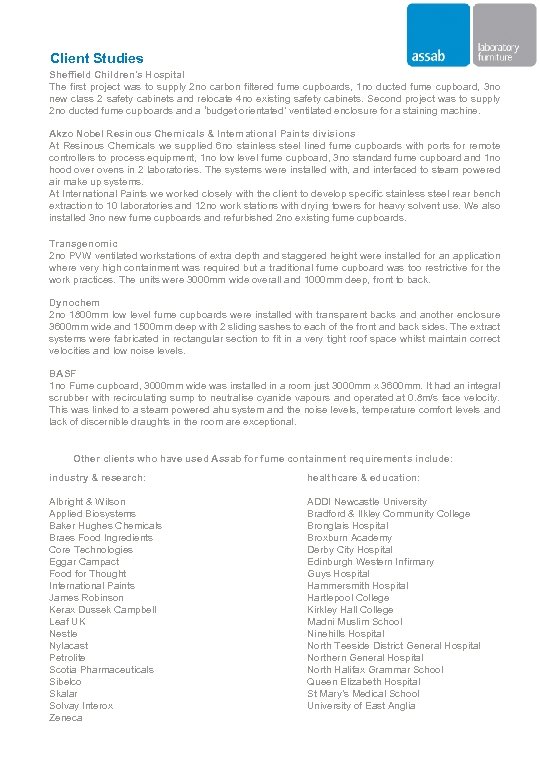

Client Studies Sheffield Children's Hospital The first project was to supply 2 no carbon filtered fume cupboards, 1 no ducted fume cupboard, 3 no new class 2 safety cabinets and relocate 4 no existing safety cabinets. Second project was to supply 2 no ducted fume cupboards and a ‘budget orientated’ ventilated enclosure for a staining machine. Akzo Nobel Resinous Chemicals & International Paints divisions At Resinous Chemicals we supplied 6 no stainless steel lined fume cupboards with ports for remote controllers to process equipment, 1 no low level fume cupboard, 3 no standard fume cupboard and 1 no hood over ovens in 2 laboratories. The systems were installed with, and interfaced to steam powered air make up systems. At International Paints we worked closely with the client to develop specific stainless steel rear bench extraction to 10 laboratories and 12 no work stations with drying towers for heavy solvent use. We also installed 3 no new fume cupboards and refurbished 2 no existing fume cupboards. Transgenomic 2 no PVW ventilated workstations of extra depth and staggered height were installed for an application where very high containment was required but a traditional fume cupboard was too restrictive for the work practices. The units were 3000 mm wide overall and 1000 mm deep, front to back. Dynochem 2 no 1800 mm low level fume cupboards were installed with transparent backs and another enclosure 3600 mm wide and 1500 mm deep with 2 sliding sashes to each of the front and back sides. The extract systems were fabricated in rectangular section to fit in a very tight roof space whilst maintain correct velocities and low noise levels. BASF 1 no Fume cupboard, 3000 mm wide was installed in a room just 3000 mm x 3600 mm. It had an integral scrubber with recirculating sump to neutralise cyanide vapours and operated at 0. 8 m/s face velocity. This was linked to a steam powered ahu system and the noise levels, temperature comfort levels and lack of discernible draughts in the room are exceptional. Other clients who have used Assab for fume containment requirements include: industry & research: healthcare & education: Albright & Wilson Applied Biosystems Baker Hughes Chemicals Braes Food Ingredients Core Technologies Eggar Campact Food for Thought International Paints James Robinson Kerax Dussek Campbell Leaf UK Nestle Nylacast Petrolite Scotia Pharmaceuticals Sibelco Skalar Solvay Interox Zeneca ADDI Newcastle University Bradford & Ilkley Community College Bronglais Hospital Broxburn Academy Derby City Hospital Edinburgh Western Infirmary Guys Hospital Hammersmith Hospital Hartlepool College Kirkley Hall College Madni Muslim School Ninehills Hospital North Teeside District General Hospital Northern General Hospital North Halifax Grammar School Queen Elizabeth Hospital St Mary’s Medical School University of East Anglia
