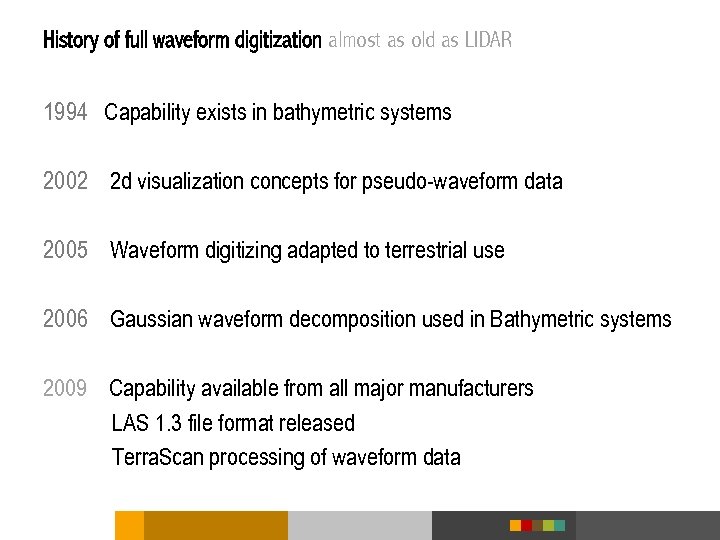

History of full waveform digitization almost as old as LIDAR 1994 Capability exists in bathymetric systems 2002 2 d visualization concepts for pseudo-waveform data 2005 Waveform digitizing adapted to terrestrial use 2006 Gaussian waveform decomposition used in Bathymetric systems 2009 Capability available from all major manufacturers LAS 1. 3 file format released Terra. Scan processing of waveform data

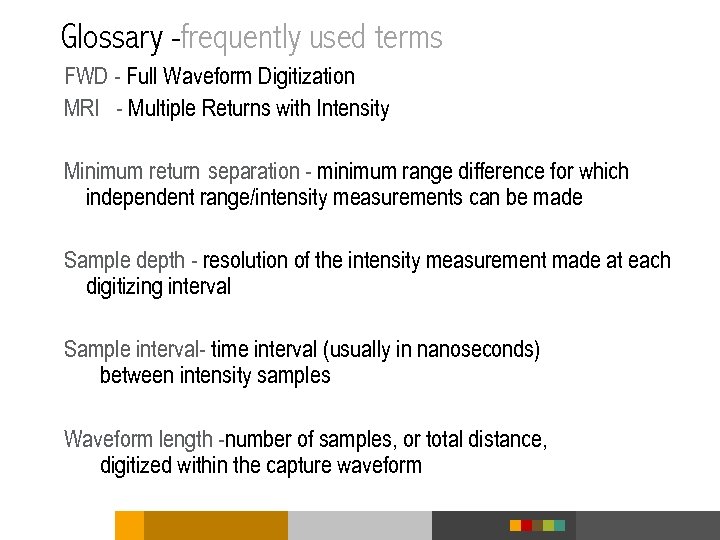

Glossary -frequently used terms FWD - Full Waveform Digitization MRI - Multiple Returns with Intensity Minimum return separation - minimum range difference for which independent range/intensity measurements can be made Sample depth - resolution of the intensity measurement made at each digitizing interval Sample interval- time interval (usually in nanoseconds) between intensity samples Waveform length -number of samples, or total distance, digitized within the capture waveform

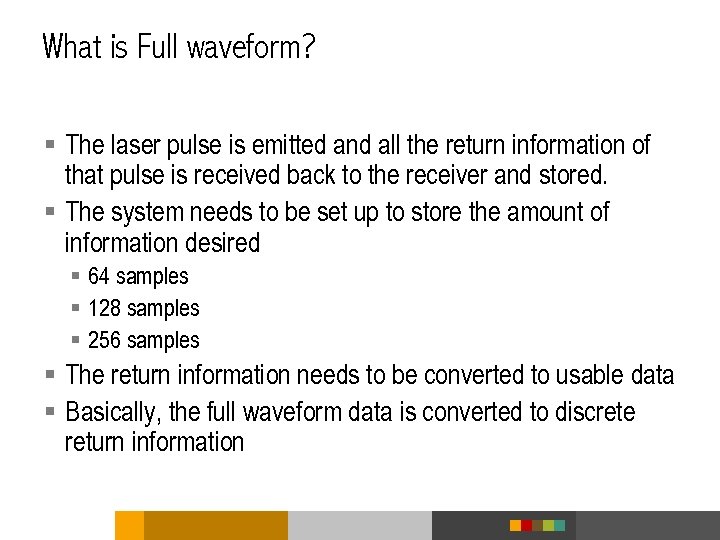

What is Full waveform? § The laser pulse is emitted and all the return information of that pulse is received back to the receiver and stored. § The system needs to be set up to store the amount of information desired § 64 samples § 128 samples § 256 samples § The return information needs to be converted to usable data § Basically, the full waveform data is converted to discrete return information

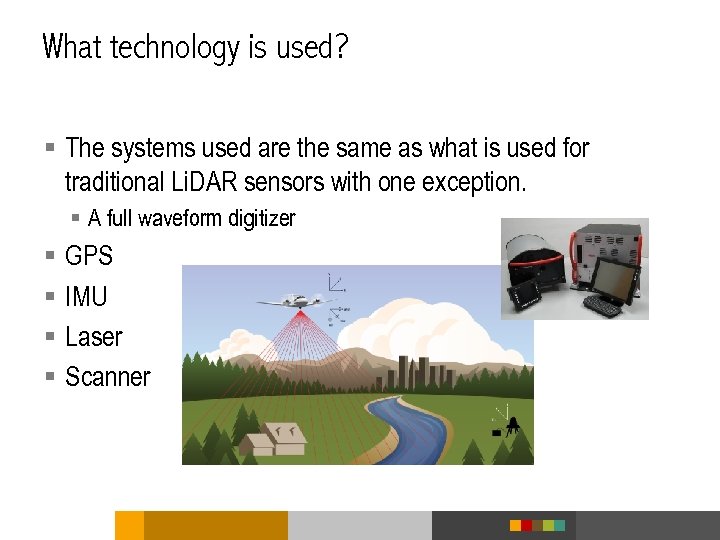

What technology is used? § The systems used are the same as what is used for traditional Li. DAR sensors with one exception. § A full waveform digitizer § § GPS IMU Laser Scanner

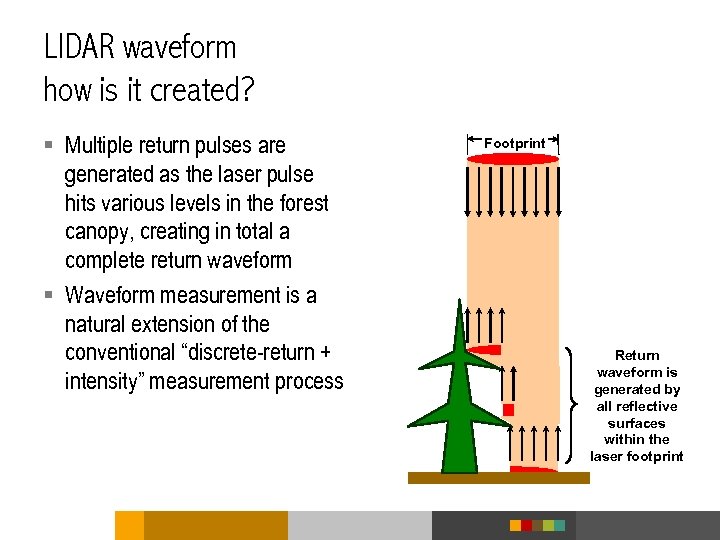

LIDAR waveform how is it created? § Multiple return pulses are generated as the laser pulse hits various levels in the forest canopy, creating in total a complete return waveform § Waveform measurement is a natural extension of the conventional “discrete-return + intensity” measurement process Footprint Return waveform is generated by all reflective surfaces within the laser footprint

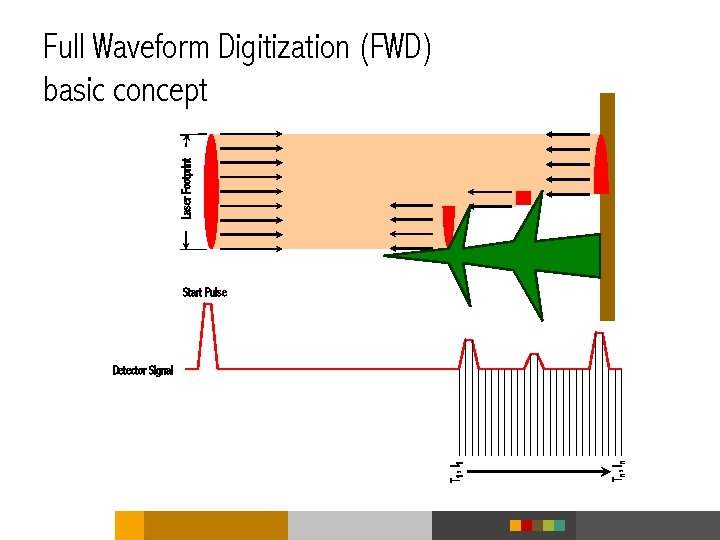

Laser Footprint Full Waveform Digitization (FWD) basic concept Start Pulse Tn , I n T 1 , I 1 Detector Signal

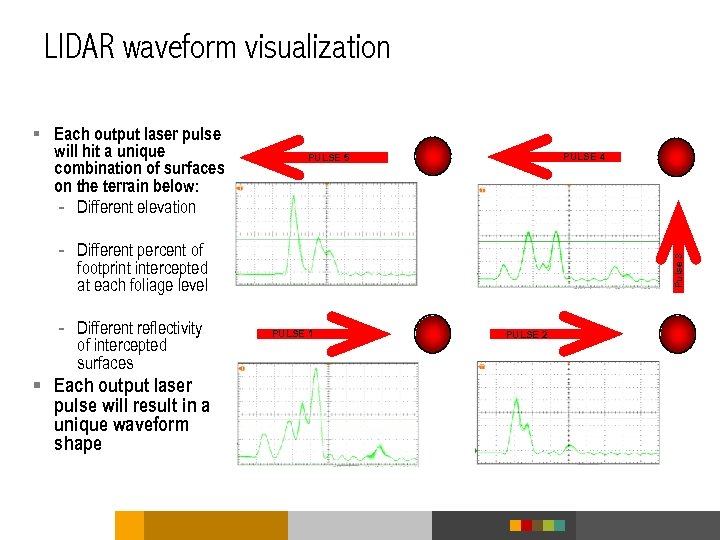

LIDAR waveform visualization § Each output laser pulse will hit a unique combination of surfaces on the terrain below: - Different elevation PULSE 4 PULSE 5 - Different reflectivity of intercepted surfaces § Each output laser pulse will result in a unique waveform shape Pulse 3 - Different percent of footprint intercepted at each foliage level PULSE 1 PULSE 2

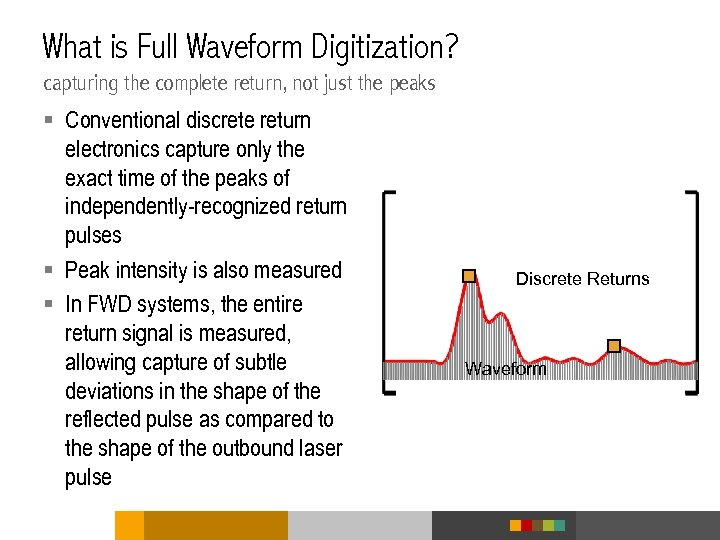

What is Full Waveform Digitization? capturing the complete return, not just the peaks § Conventional discrete return electronics capture only the exact time of the peaks of independently-recognized return pulses § Peak intensity is also measured § In FWD systems, the entire return signal is measured, allowing capture of subtle deviations in the shape of the reflected pulse as compared to the shape of the outbound laser pulse Discrete Returns Waveform

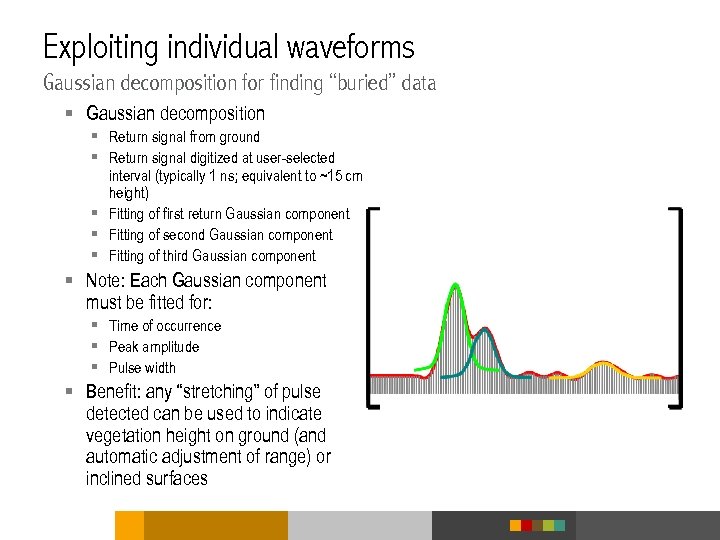

Exploiting individual waveforms Gaussian decomposition for finding “buried” data § Gaussian decomposition § Return signal from ground § Return signal digitized at user-selected interval (typically 1 ns; equivalent to ~15 cm height) § Fitting of first return Gaussian component § Fitting of second Gaussian component § Fitting of third Gaussian component § Note: Each Gaussian component must be fitted for: § Time of occurrence § Peak amplitude § Pulse width § Benefit: any “stretching” of pulse detected can be used to indicate vegetation height on ground (and automatic adjustment of range) or inclined surfaces

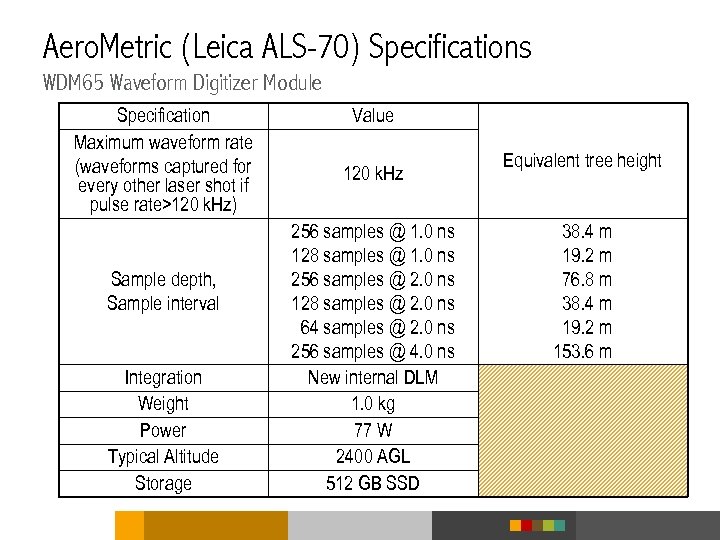

Aero. Metric (Leica ALS-70) Specifications WDM 65 Waveform Digitizer Module Specification Maximum waveform rate (waveforms captured for every other laser shot if pulse rate>120 k. Hz) Sample depth, Sample interval Integration Weight Power Typical Altitude Storage Value 120 k. Hz 256 samples @ 1. 0 ns 128 samples @ 1. 0 ns 256 samples @ 2. 0 ns 128 samples @ 2. 0 ns 64 samples @ 2. 0 ns 256 samples @ 4. 0 ns New internal DLM 1. 0 kg 77 W 2400 AGL 512 GB SSD Equivalent tree height 38. 4 m 19. 2 m 76. 8 m 38. 4 m 19. 2 m 153. 6 m

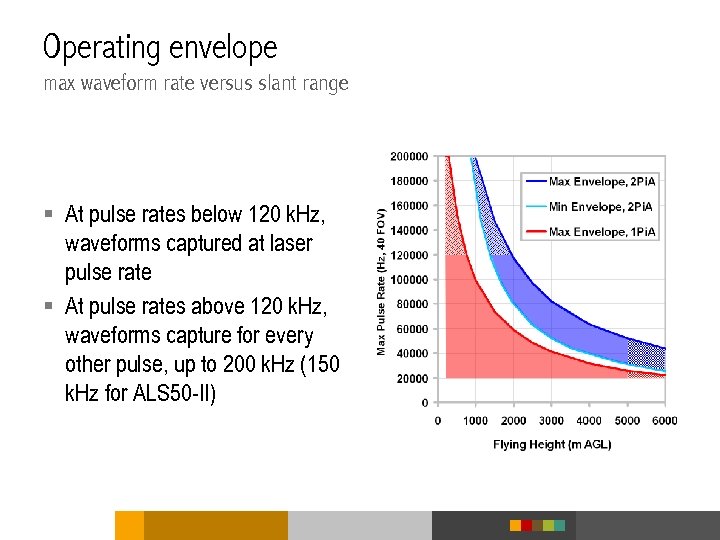

Operating envelope max waveform rate versus slant range § At pulse rates below 120 k. Hz, waveforms captured at laser pulse rate § At pulse rates above 120 k. Hz, waveforms capture for every other pulse, up to 200 k. Hz (150 k. Hz for ALS 50 -II)

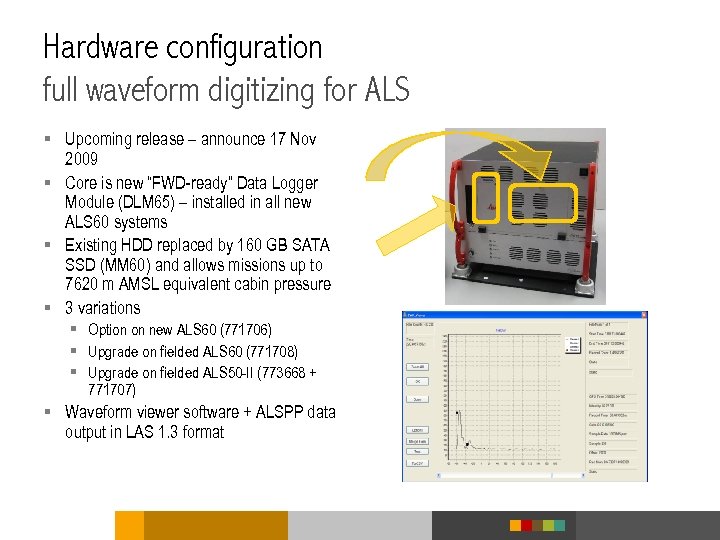

Hardware configuration full waveform digitizing for ALS § Upcoming release – announce 17 Nov 2009 § Core is new “FWD-ready” Data Logger Module (DLM 65) – installed in all new ALS 60 systems § Existing HDD replaced by 160 GB SATA SSD (MM 60) and allows missions up to 7620 m AMSL equivalent cabin pressure § 3 variations § Option on new ALS 60 (771706) § Upgrade on fielded ALS 60 (771708) § Upgrade on fielded ALS 50 -II (773668 + 771707) § Waveform viewer software + ALSPP data output in LAS 1. 3 format

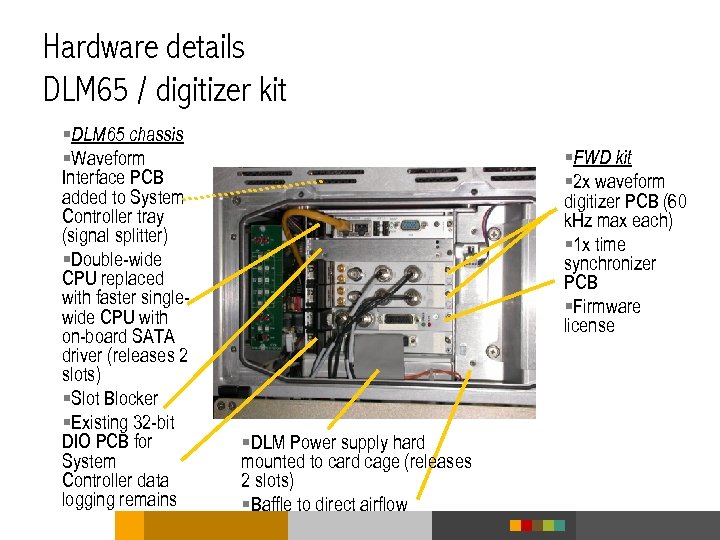

Hardware details DLM 65 / digitizer kit §DLM 65 chassis §Waveform Interface PCB added to System Controller tray (signal splitter) §Double-wide CPU replaced with faster singlewide CPU with on-board SATA driver (releases 2 slots) §Slot Blocker §Existing 32 -bit DIO PCB for System Controller data logging remains §FWD kit § 2 x waveform digitizer PCB (60 k. Hz max each) § 1 x time synchronizer PCB §Firmware license §DLM Power supply hard mounted to card cage (releases 2 slots) §Baffle to direct airflow

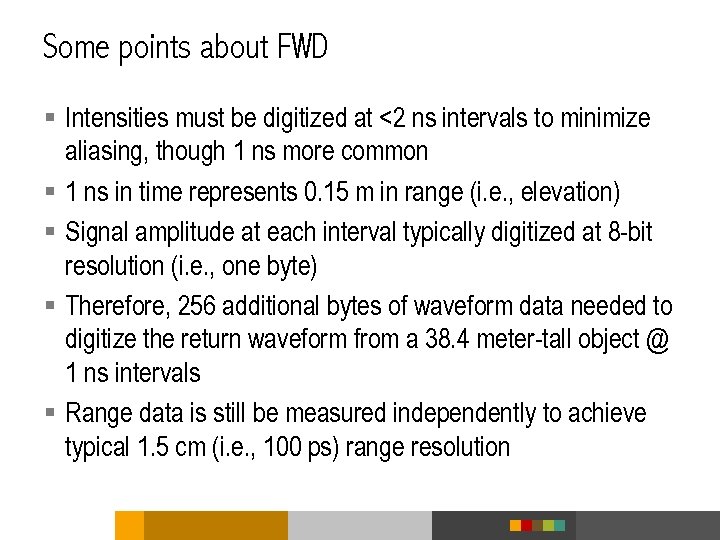

Some points about FWD § Intensities must be digitized at <2 ns intervals to minimize aliasing, though 1 ns more common § 1 ns in time represents 0. 15 m in range (i. e. , elevation) § Signal amplitude at each interval typically digitized at 8 -bit resolution (i. e. , one byte) § Therefore, 256 additional bytes of waveform data needed to digitize the return waveform from a 38. 4 meter-tall object @ 1 ns intervals § Range data is still be measured independently to achieve typical 1. 5 cm (i. e. , 100 ps) range resolution

Using waveform data for classification concept § Assumes that waveform shape/content, as opposed to mere extraction of equivalent discrete returns, is used to classify object which reflected laser pulse § Assumes that waveform is compared to a “catalog” of “typical” waveforms for different target classes

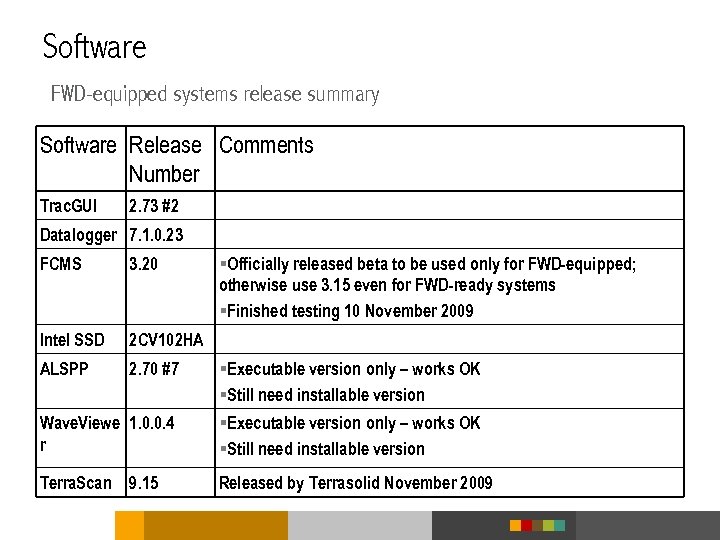

Software FWD-equipped systems release summary Software Release Comments Number Trac. GUI 2. 73 #2 Datalogger 7. 1. 0. 23 FCMS 3. 20 §Officially released beta to be used only for FWD-equipped; otherwise use 3. 15 even for FWD-ready systems §Finished testing 10 November 2009 Intel SSD 2 CV 102 HA ALSPP 2. 70 #7 §Executable version only – works OK §Still need installable version Wave. Viewe 1. 0. 0. 4 r §Executable version only – works OK §Still need installable version Terra. Scan 9. 15 Released by Terrasolid November 2009

FWD post processing Overview § ALS Post Processor § Support is available. v 2. 73 #2 (or greater) § Outputs LAS 1. 3 type 4 files § Wave Viewer Utility. v 1. 0. 0. 4 (or greater) § Simple LAS 1. 3 Waveform file viewer § Terra. Scan (See other CSS workflow documentation for details) § Support for LAS 1. 3 released Oct ’ 09. v 9. 14 (on www. terrasolid. fi) § The following features are included: § View waveform data for a selected point in the point cloud § Scan the waveform for returns that were too close together for the discreteranging electronics to detect or because the returns were below the threshold discriminator (i. e. , creates a new “discrete” return) § No other calibration needed

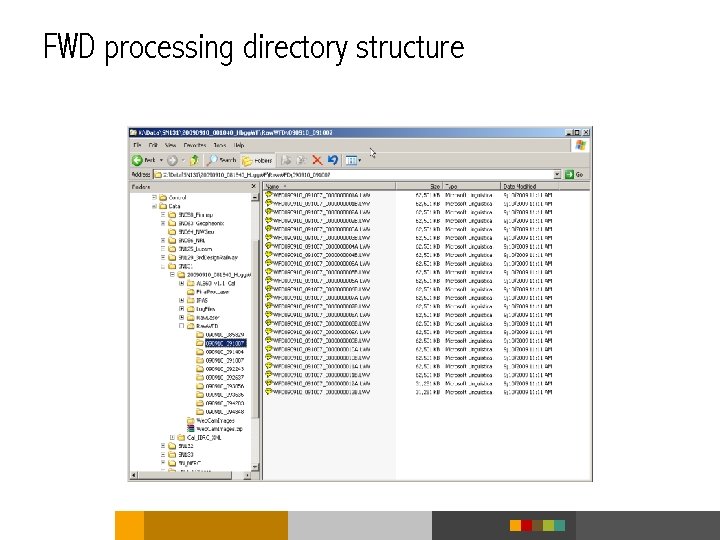

FWD processing directory structure

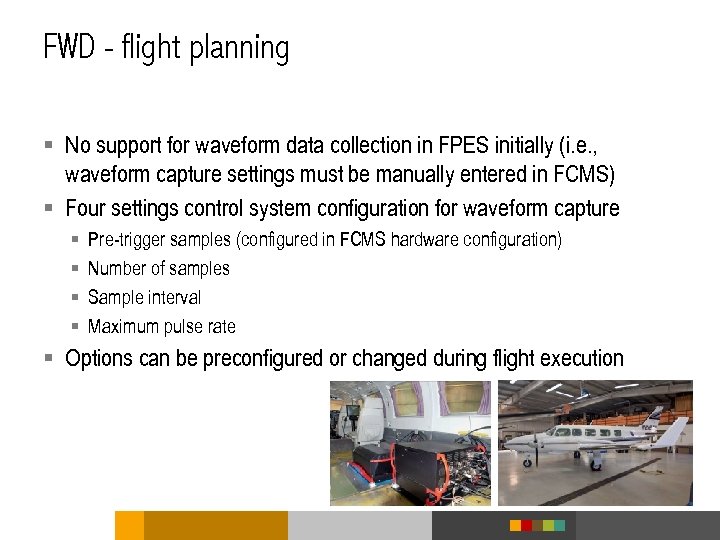

FWD - flight planning § No support for waveform data collection in FPES initially (i. e. , waveform capture settings must be manually entered in FCMS) § Four settings control system configuration for waveform capture § § Pre-trigger samples (configured in FCMS hardware configuration) Number of samples Sample interval Maximum pulse rate § Options can be preconfigured or changed during flight execution

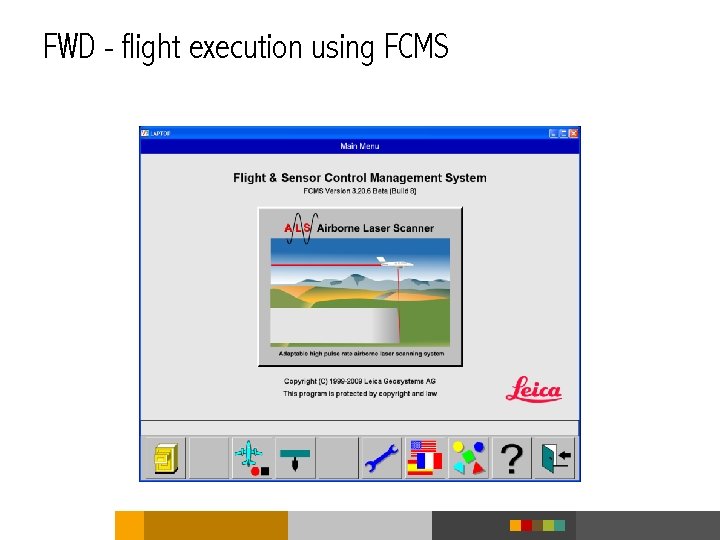

FWD - flight execution using FCMS

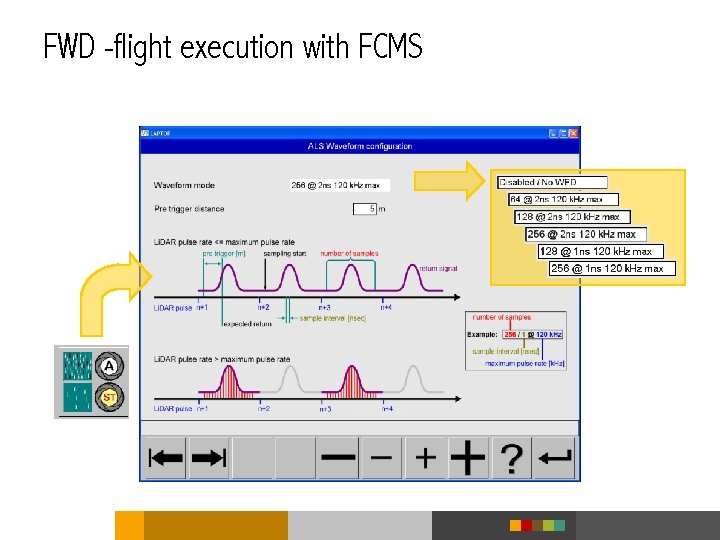

FWD -flight execution with FCMS

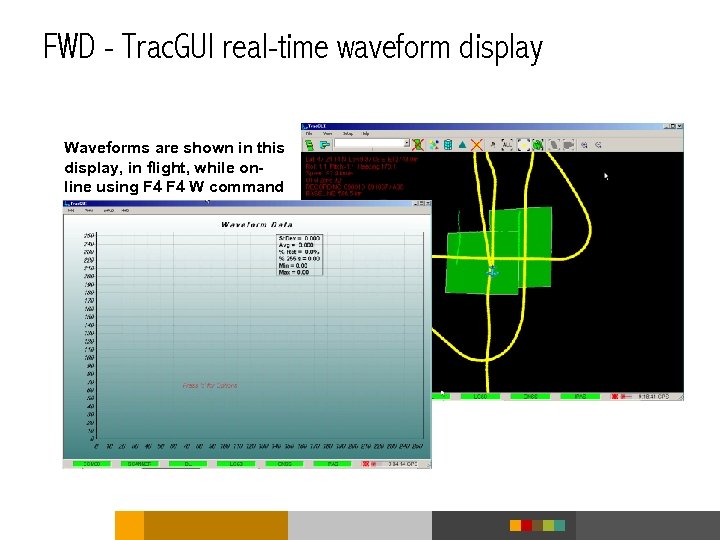

FWD - Trac. GUI real-time waveform display Waveforms are shown in this display, in flight, while online using F 4 W command

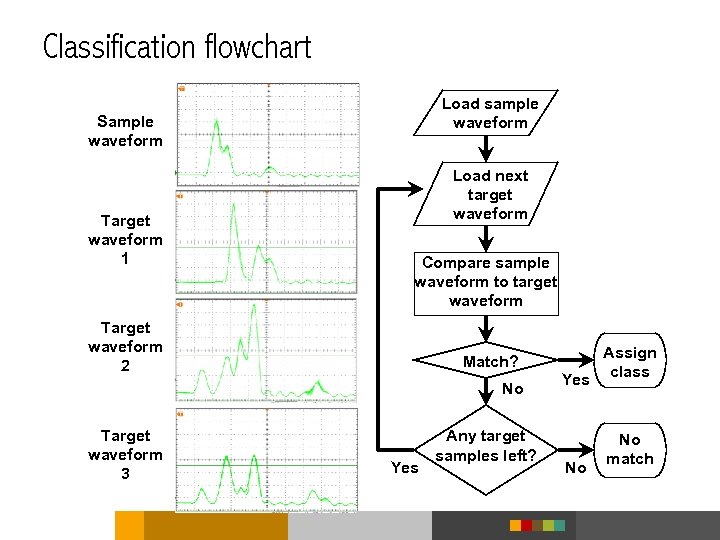

Classification flowchart Load sample waveform Sample waveform Target waveform 1 Load next target waveform Compare sample waveform to target waveform Target waveform 2 Match? No Target waveform 3 Yes Any target samples left? Assign Yes class No No match

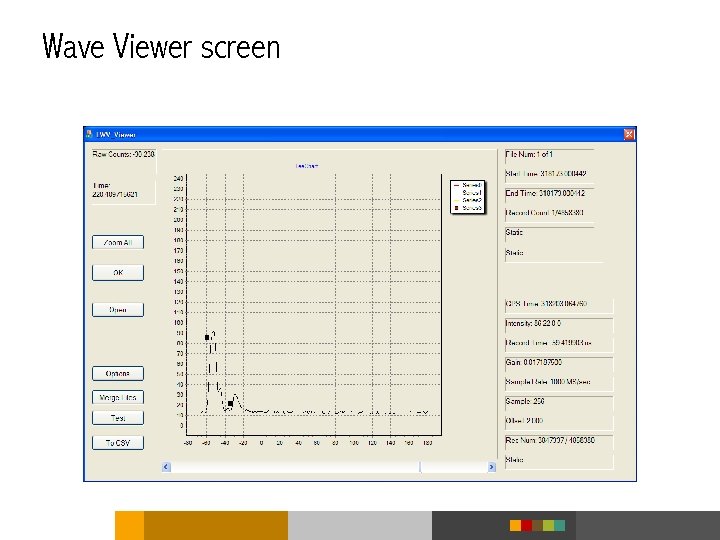

Wave Viewer screen

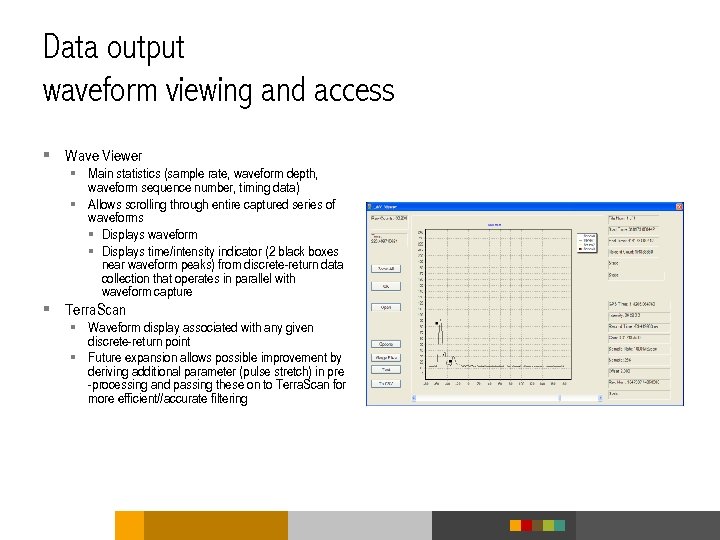

Data output waveform viewing and access § Wave Viewer § Main statistics (sample rate, waveform depth, waveform sequence number, timing data) § Allows scrolling through entire captured series of waveforms § Displays waveform § Displays time/intensity indicator (2 black boxes near waveform peaks) from discrete-return data collection that operates in parallel with waveform capture § Terra. Scan § Waveform display associated with any given discrete-return point § Future expansion allows possible improvement by deriving additional parameter (pulse stretch) in pre -processing and passing these on to Terra. Scan for more efficient//accurate filtering

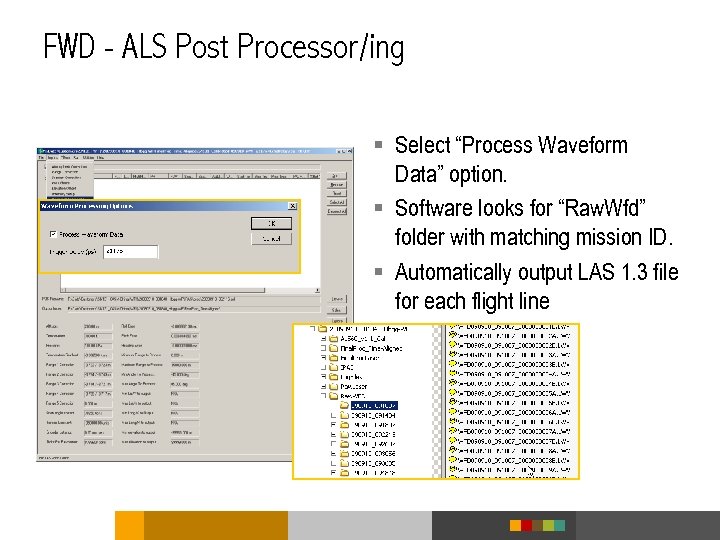

FWD - ALS Post Processor/ing § Select “Process Waveform Data” option. § Software looks for “Raw. Wfd” folder with matching mission ID. § Automatically output LAS 1. 3 file for each flight line

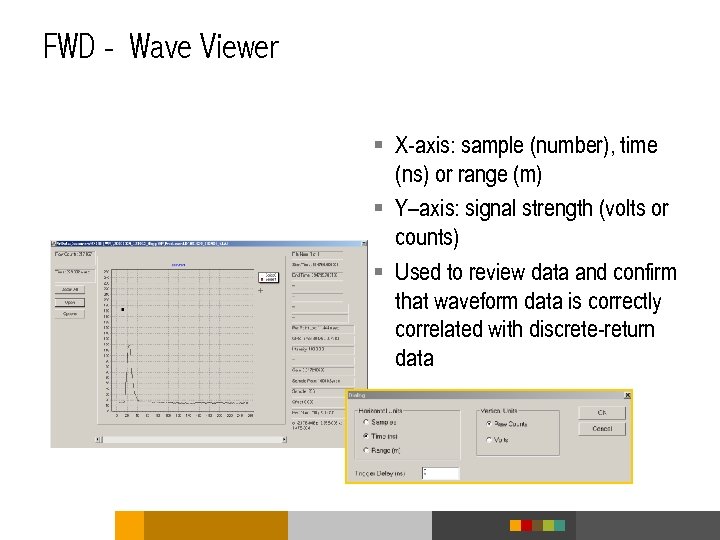

FWD - Wave Viewer § X-axis: sample (number), time (ns) or range (m) § Y–axis: signal strength (volts or counts) § Used to review data and confirm that waveform data is correctly correlated with discrete-return data

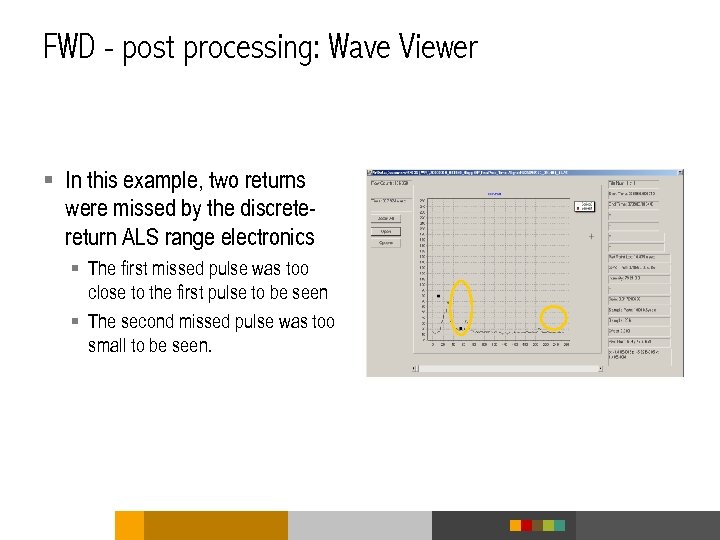

FWD - post processing: Wave Viewer § In this example, two returns were missed by the discretereturn ALS range electronics § The first missed pulse was too close to the first pulse to be seen § The second missed pulse was too small to be seen.

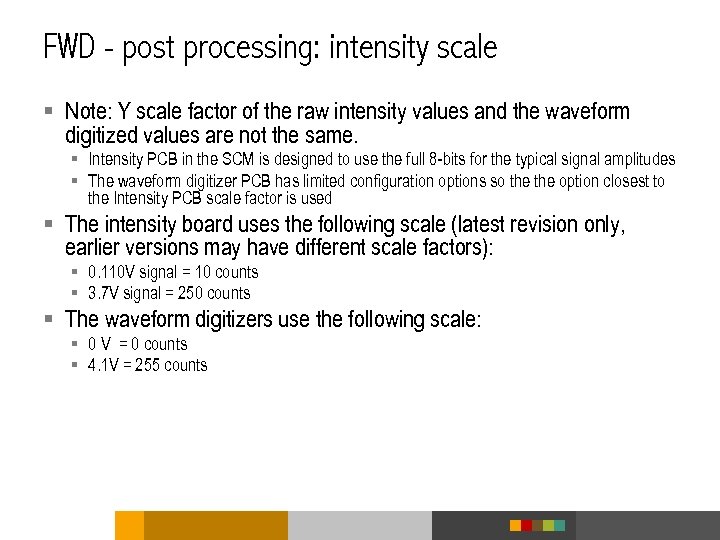

FWD - post processing: intensity scale § Note: Y scale factor of the raw intensity values and the waveform digitized values are not the same. § Intensity PCB in the SCM is designed to use the full 8 -bits for the typical signal amplitudes § The waveform digitizer PCB has limited configuration options so the option closest to the Intensity PCB scale factor is used § The intensity board uses the following scale (latest revision only, earlier versions may have different scale factors): § 0. 110 V signal = 10 counts § 3. 7 V signal = 250 counts § The waveform digitizers use the following scale: § 0 V = 0 counts § 4. 1 V = 255 counts

FWD - post processing: sample files § Sample LAS 1. 3 files will be located on FTP site § Contents § Wave Viewer § LAS 1. 3 file format specification (can be released to public) § Data set § Note: Contact PM for FTP information

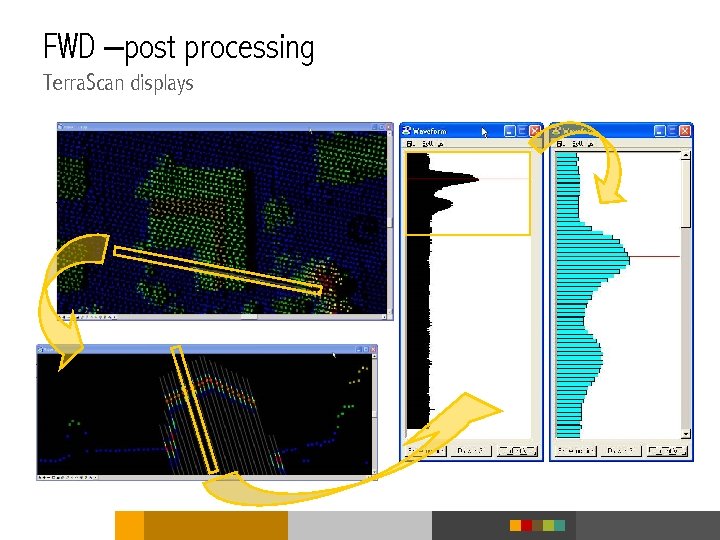

FWD –post processing Terra. Scan displays

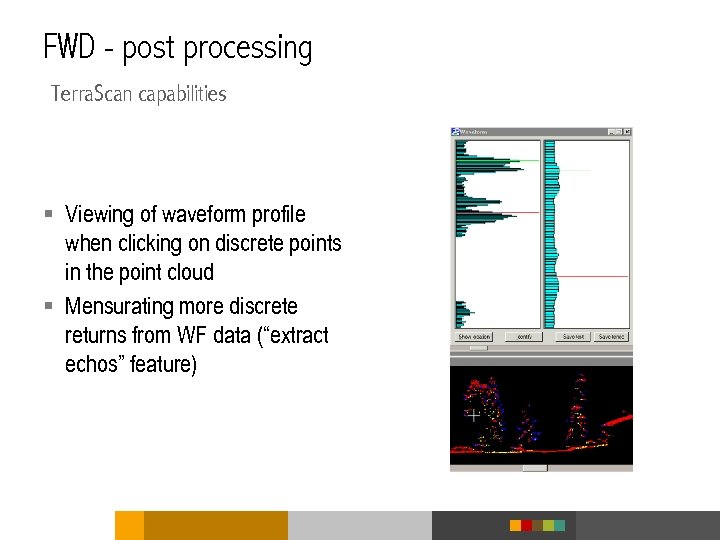

FWD - post processing Terra. Scan capabilities § Viewing of waveform profile when clicking on discrete points in the point cloud § Mensurating more discrete returns from WF data (“extract echos” feature)

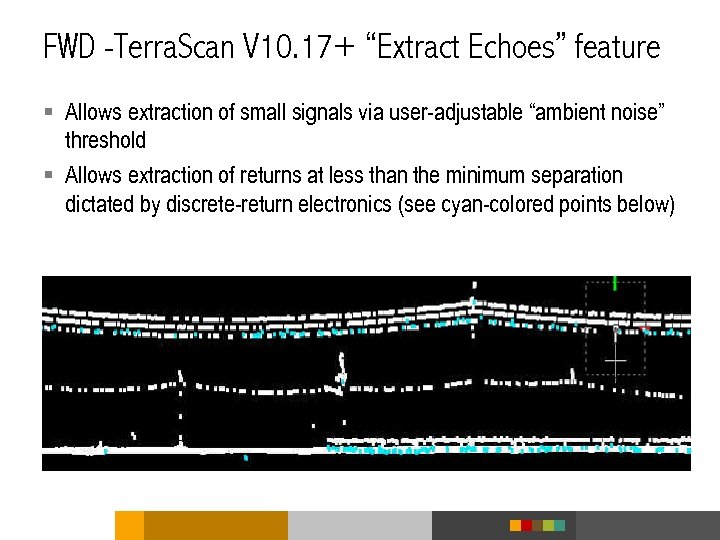

FWD -Terra. Scan V 10. 17+ “Extract Echoes” feature § Allows extraction of small signals via user-adjustable “ambient noise” threshold § Allows extraction of returns at less than the minimum separation dictated by discrete-return electronics (see cyan-colored points below)

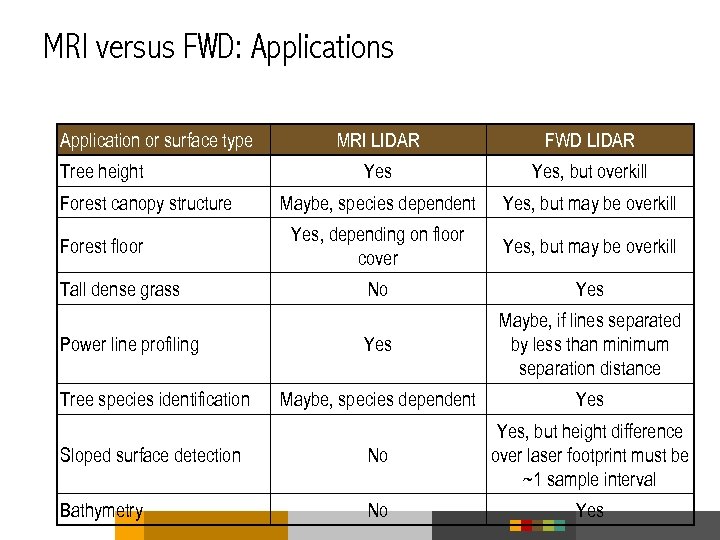

MRI versus FWD: Applications Application or surface type MRI LIDAR FWD LIDAR Yes, but overkill Maybe, species dependent Yes, but may be overkill Yes, depending on floor cover Yes, but may be overkill No Yes Maybe, if lines separated by less than minimum separation distance Maybe, species dependent Yes Sloped surface detection No Yes, but height difference over laser footprint must be ~1 sample interval Bathymetry No Yes Tree height Forest canopy structure Forest floor Tall dense grass Power line profiling Tree species identification

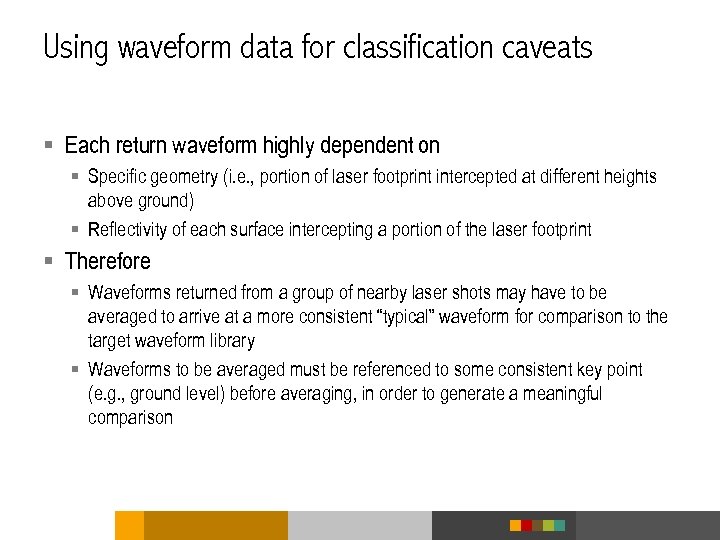

Using waveform data for classification caveats § Each return waveform highly dependent on § Specific geometry (i. e. , portion of laser footprint intercepted at different heights above ground) § Reflectivity of each surface intercepting a portion of the laser footprint § Therefore § Waveforms returned from a group of nearby laser shots may have to be averaged to arrive at a more consistent “typical” waveform for comparison to the target waveform library § Waveforms to be averaged must be referenced to some consistent key point (e. g. , ground level) before averaging, in order to generate a meaningful comparison

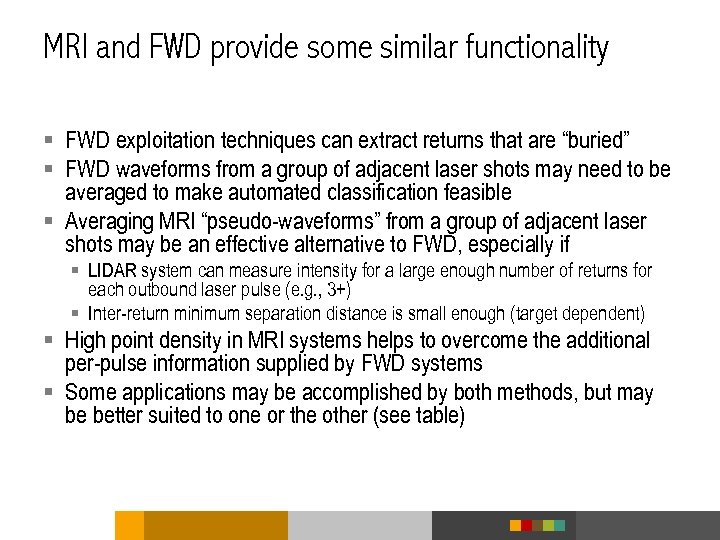

MRI and FWD provide some similar functionality § FWD exploitation techniques can extract returns that are “buried” § FWD waveforms from a group of adjacent laser shots may need to be averaged to make automated classification feasible § Averaging MRI “pseudo-waveforms” from a group of adjacent laser shots may be an effective alternative to FWD, especially if § LIDAR system can measure intensity for a large enough number of returns for each outbound laser pulse (e. g. , 3+) § Inter-return minimum separation distance is small enough (target dependent) § High point density in MRI systems helps to overcome the additional per-pulse information supplied by FWD systems § Some applications may be accomplished by both methods, but may be better suited to one or the other (see table)

Benefits of FWD getting more from a single flight § Present § Extraction of points below the discrimination threshold of discrete-return electronics (weak returns) § Extraction of points with smaller vertical separation than detectable by discrete-return electronics (close, but not overlapping pulses) § Future § Detection of pulse stretching (return pulse wider than laser pulse) indicating § Potentially sloped surfaces § Low vegetation on ground, indicating need to adjust point elevation downward § Improved classification by using combination of return pulse width and spatial context § Indication of biomass by evaluating area contained under the pulse shape

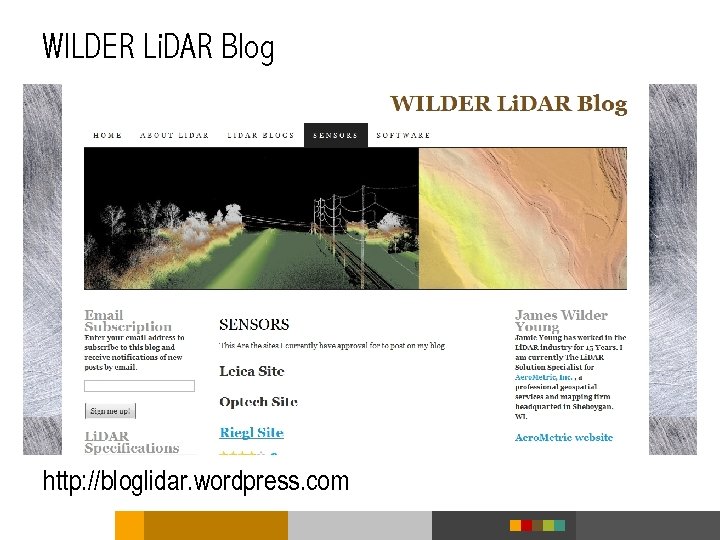

WILDER Li. DAR Blog http: //bloglidar. wordpress. com
