Full HD 20 M IR Vari-Focal Dome IP

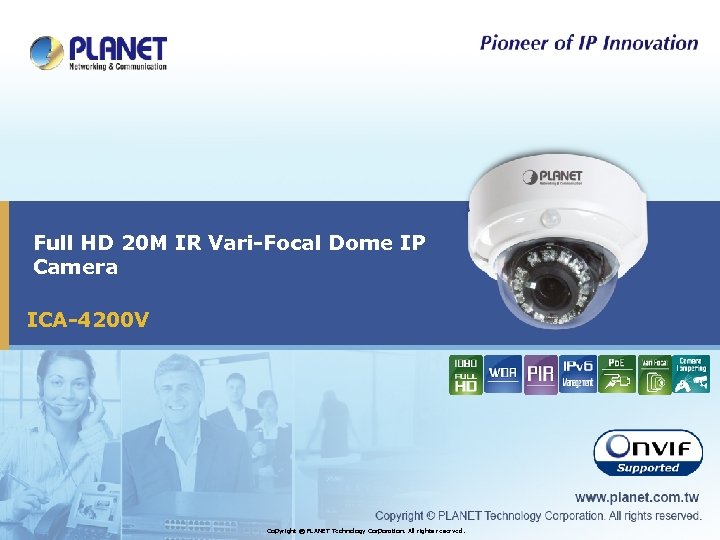

Full HD 20 M IR Vari-Focal Dome IP Camera ICA-4200 V Copyright © PLANET Technology Corporation. All rights reserved.

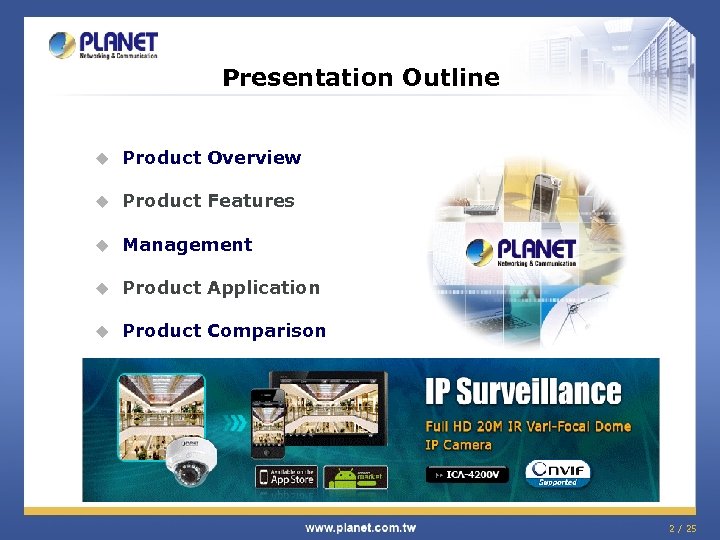

Presentation Outline u Product Overview u Product Features u Management u Product Application u Product Comparison 2 / 25

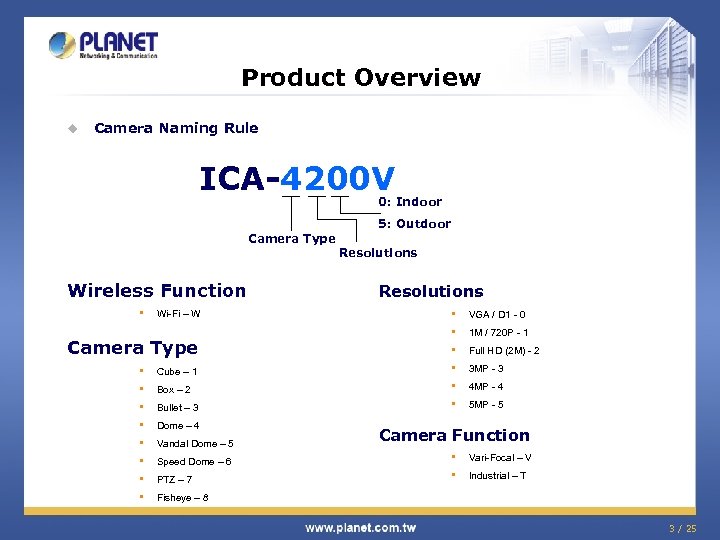

Product Overview u Camera Naming Rule ICA-4200 V 0: Indoor 5: Outdoor Camera Type Wireless Function • Wi-Fi – W Camera Type • • Cube – 1 Box – 2 Bullet – 3 Dome – 4 Vandal Dome – 5 Speed Dome – 6 PTZ – 7 Resolutions • • • VGA / D 1 - 0 1 M / 720 P - 1 Full HD (2 M) - 2 3 MP - 3 4 MP - 4 5 MP - 5 Camera Function • • Vari-Focal – V Industrial – T Fisheye – 8 3 / 25

Product Overview u PLANET IP Surveillance – Dome type Product Classification ICA-HM 131 Indoor Type ICA-HM 132 Outdoor Type ICA-HM 136 2 Mega-Pixel ICA-4200 V ICA-5250 V* Indoor Type *Available Soon 3 Mega-Pixel Outdoor Type ICA-5350 V Indoor Type ICA-4500 V 5 Mega-Pixel *Available Soon Outdoor Type ICA-5550 V* *Available Soon 4 / 25

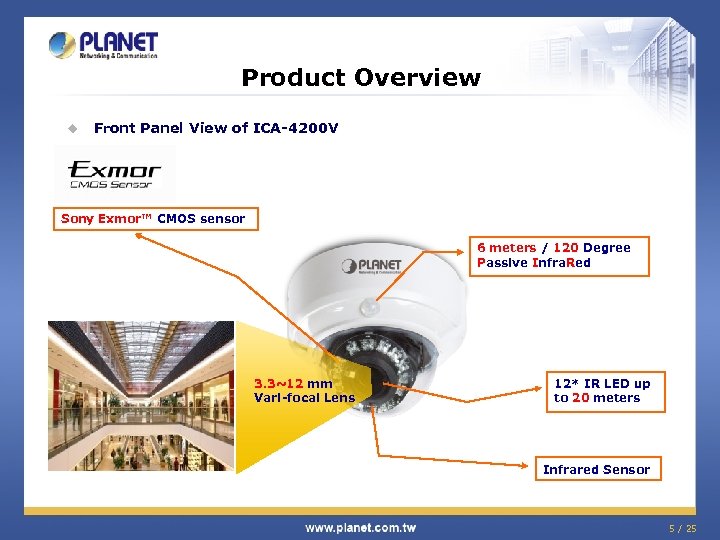

Product Overview u Front Panel View of ICA-4200 V Sony Exmor™ CMOS sensor 6 meters / 120 Degree Passive Infra. Red 3. 3~12 mm Vari-focal Lens 12* IR LED up to 20 meters Infrared Sensor 5 / 25

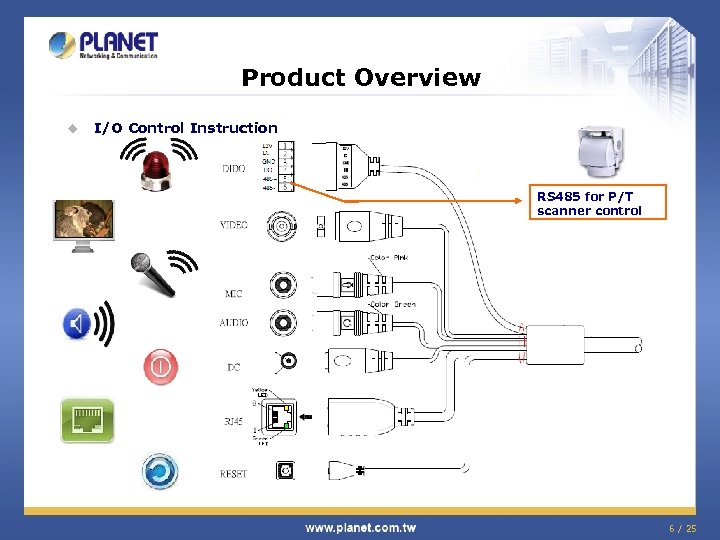

Product Overview u I/O Control Instruction RS 485 for P/T scanner control 6 / 25

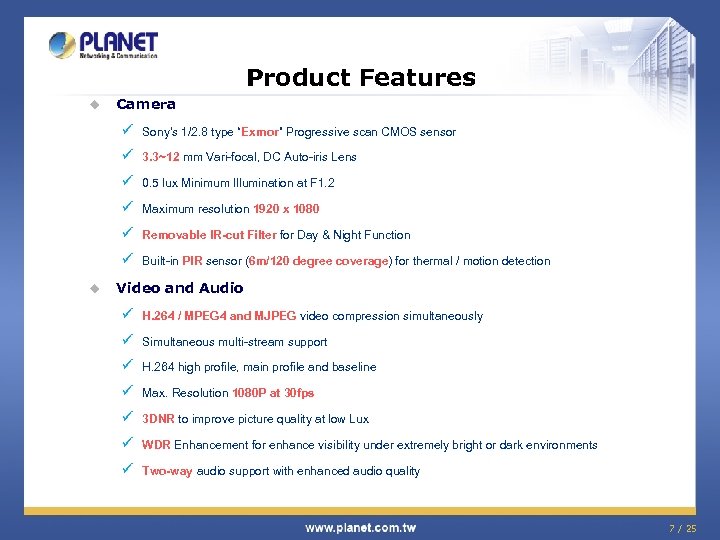

Product Features u Camera ü ü 3. 3~12 mm Vari-focal, DC Auto-iris Lens ü 0. 5 lux Minimum Illumination at F 1. 2 ü Maximum resolution 1920 x 1080 ü Removable IR-cut Filter for Day & Night Function ü u Sony's 1/2. 8 type “Exmor” Progressive scan CMOS sensor Built-in PIR sensor (6 m/120 degree coverage) for thermal / motion detection Video and Audio ü H. 264 / MPEG 4 and MJPEG video compression simultaneously ü Simultaneous multi-stream support ü H. 264 high profile, main profile and baseline ü Max. Resolution 1080 P at 30 fps ü 3 DNR to improve picture quality at low Lux ü WDR Enhancement for enhance visibility under extremely bright or dark environments ü Two-way audio support with enhanced audio quality 7 / 25

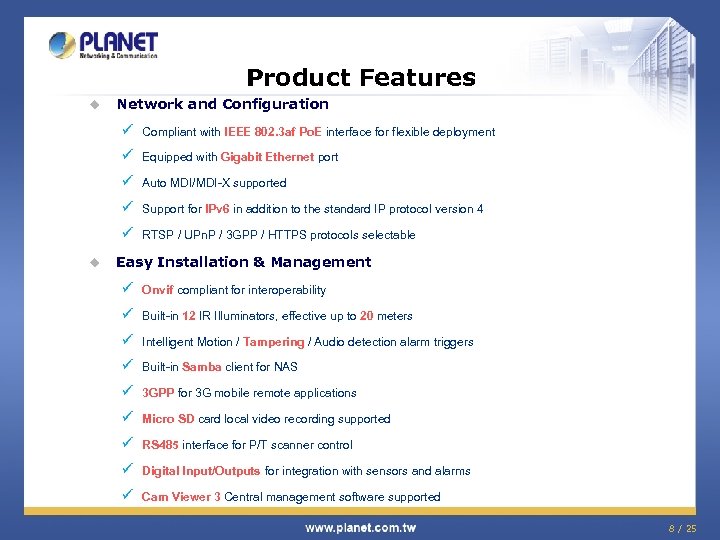

Product Features u Network and Configuration ü ü Equipped with Gigabit Ethernet port ü Auto MDI/MDI-X supported ü Support for IPv 6 in addition to the standard IP protocol version 4 ü u Compliant with IEEE 802. 3 af Po. E interface for flexible deployment RTSP / UPn. P / 3 GPP / HTTPS protocols selectable Easy Installation & Management ü Onvif compliant for interoperability ü Built-in 12 IR Illuminators, effective up to 20 meters ü Intelligent Motion / Tampering / Audio detection alarm triggers ü Built-in Samba client for NAS ü 3 GPP for 3 G mobile remote applications ü Micro SD card local video recording supported ü RS 485 interface for P/T scanner control ü Digital Input/Outputs for integration with sensors and alarms ü Cam Viewer 3 Central management software supported 8 / 25

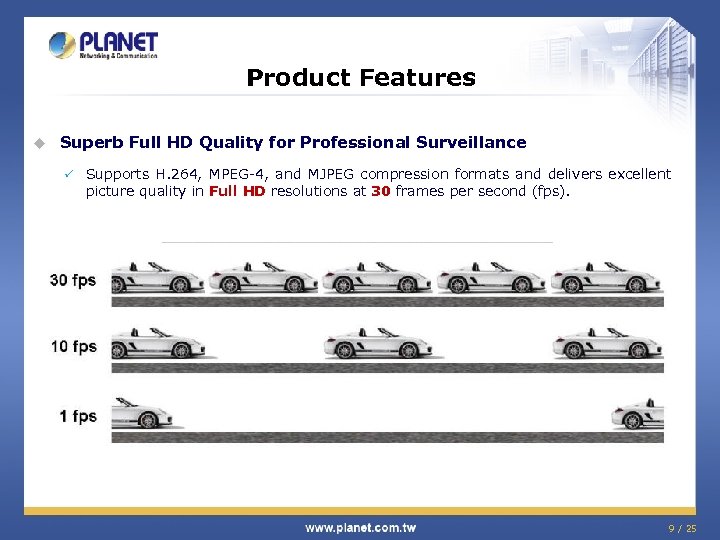

Product Features u Superb Full HD Quality for Professional Surveillance ü Supports H. 264, MPEG-4, and MJPEG compression formats and delivers excellent picture quality in Full HD resolutions at 30 frames per second (fps). 9 / 25

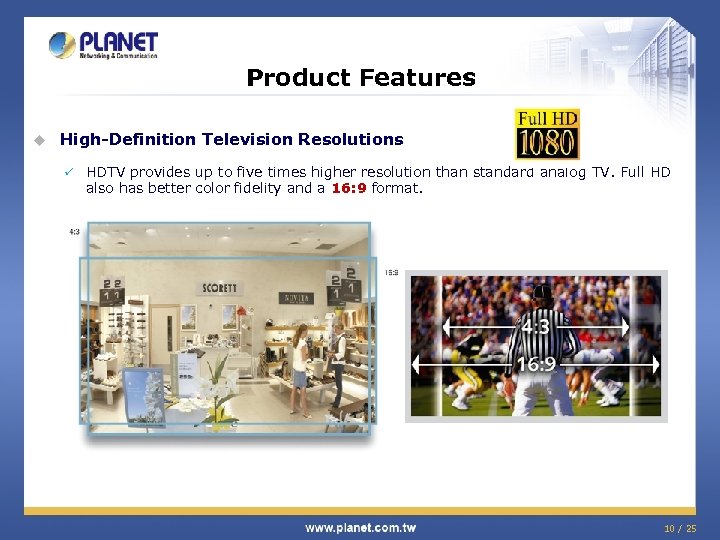

Product Features u High-Definition Television Resolutions ü HDTV provides up to five times higher resolution than standard analog TV. Full HD also has better color fidelity and a 16: 9 format. 10 / 25

Product Features u Day & Night functionality ü With Removable IR-cut filter and built-in IR illuminators, which enables the camera to provide color video when there is sufficient light, and black/white video in dark conditions. 11 / 25

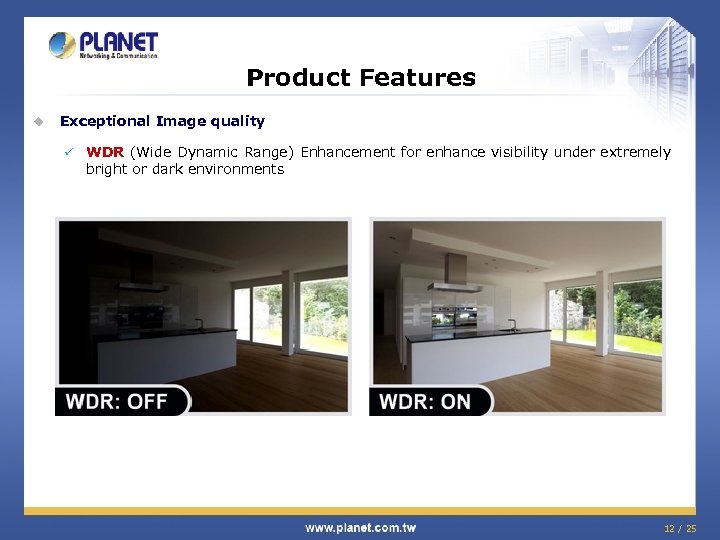

Product Features u Exceptional Image quality ü WDR (Wide Dynamic Range) Enhancement for enhance visibility under extremely bright or dark environments 12 / 25

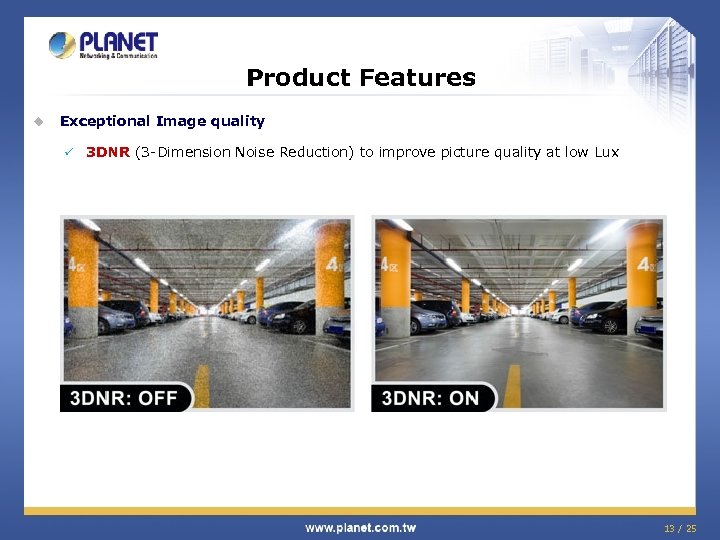

Product Features u Exceptional Image quality ü 3 DNR (3 -Dimension Noise Reduction) to improve picture quality at low Lux 13 / 25

Product Features u Passive Infra. Red (PIR) Sensor ü The built-in PIR motion detection sensor in the ICA-4200 V will “detect” and start recording automatically. It is able to detect movement far from 6 meters away. 14 / 25

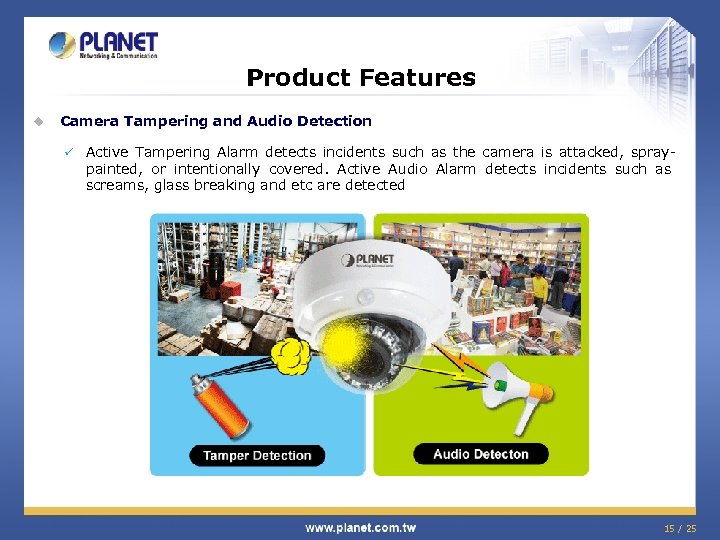

Product Features u Camera Tampering and Audio Detection ü Active Tampering Alarm detects incidents such as the camera is attacked, spraypainted, or intentionally covered. Active Audio Alarm detects incidents such as screams, glass breaking and etc are detected 15 / 25

Product Features u Support 2 -way Audio • With 2 -Way audio function, IP camera becomes a bridge that helps users to talk to other people. • Via two IP cameras, users can easily communicate to each other no mater for a international meeting or a personal chat. Internet 16 / 25

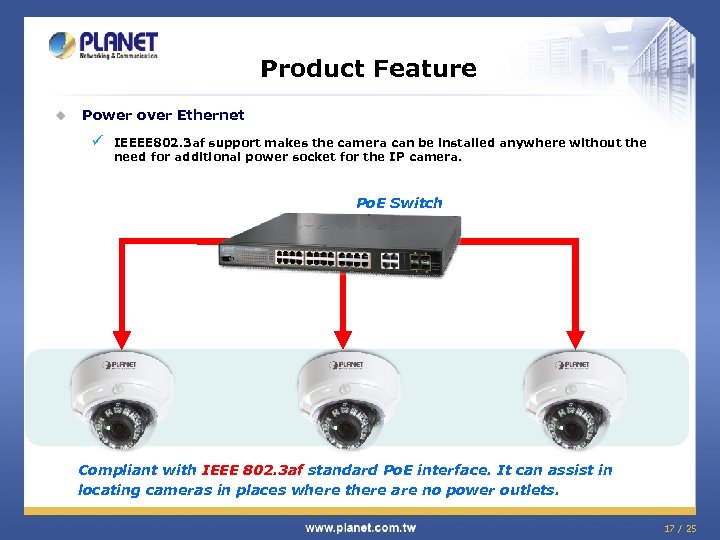

Product Feature u Power over Ethernet ü IEEEE 802. 3 af support makes the camera can be installed anywhere without the need for additional power socket for the IP camera. Po. E Switch Compliant with IEEE 802. 3 af standard Po. E interface. It can assist in locating cameras in places where there are no power outlets. 17 / 25

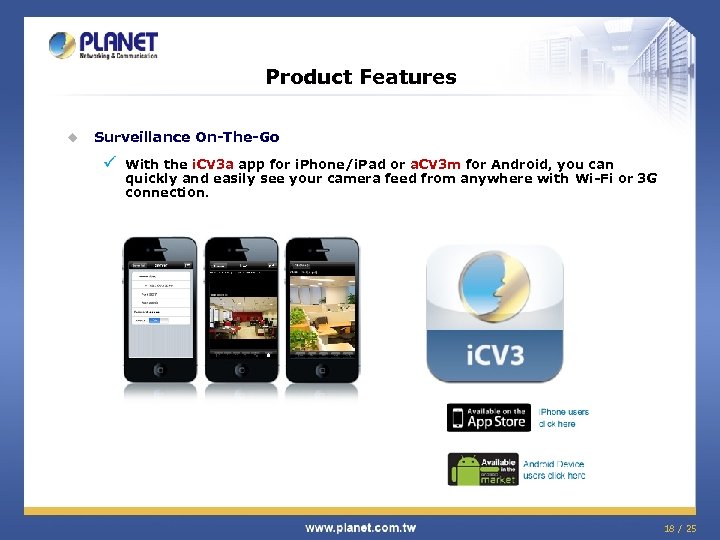

Product Features u Surveillance On-The-Go ü With the i. CV 3 a app for i. Phone/i. Pad or a. CV 3 m for Android, you can quickly and easily see your camera feed from anywhere with Wi-Fi or 3 G connection. 18 / 25

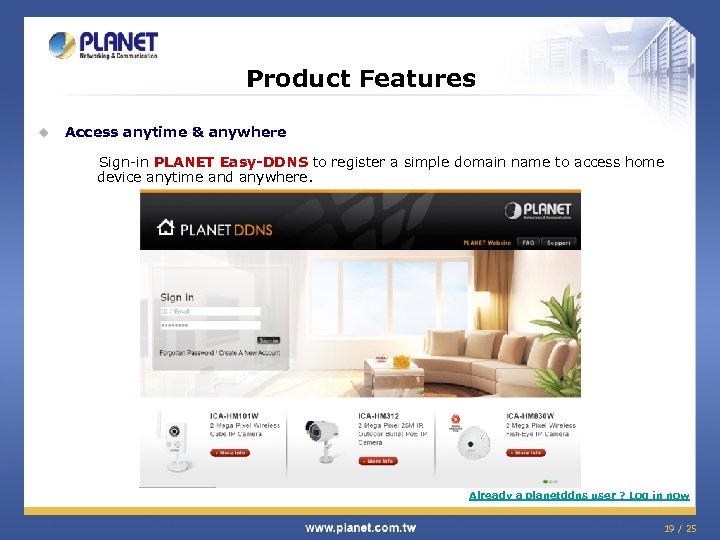

Product Features u Access anytime & anywhere Sign-in PLANET Easy-DDNS to register a simple domain name to access home device anytime and anywhere. Already a planetddns user ? Log in now 19 / 25

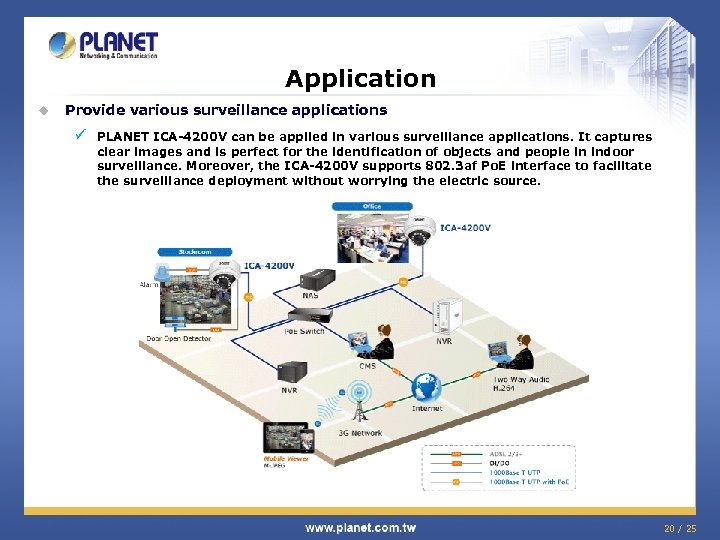

Application u Provide various surveillance applications ü PLANET ICA-4200 V can be applied in various surveillance applications. It captures clear images and is perfect for the identification of objects and people in indoor surveillance. Moreover, the ICA-4200 V supports 802. 3 af Po. E interface to facilitate the surveillance deployment without worrying the electric source. 20 / 25

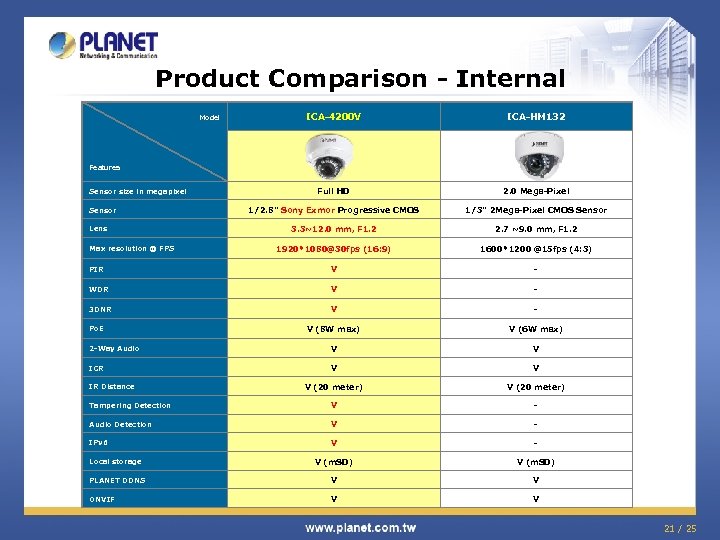

Product Comparison - Internal ICA-4200 V ICA-HM 132 Full HD 2. 0 Mega-Pixel 1/2. 8” Sony Exmor Progressive CMOS 1/3” 2 Mega-Pixel CMOS Sensor 3. 3~12. 0 mm, F 1. 2 2. 7 ~9. 0 mm, F 1. 2 1920*1080@30 fps (16: 9) 1600*1200 @15 fps (4: 3) PIR V - WDR V - 3 DNR V - V (8 W max) V (6 W max) 2 -Way Audio V V ICR V V V (20 meter) Tampering Detection V - Audio Detection V - IPv 6 V - Local storage V (m. SD) PLANET DDNS V V ONVIF V V Model Features Sensor size in megapixel Sensor Lens Max resolution @ FPS Po. E IR Distance 21 / 25

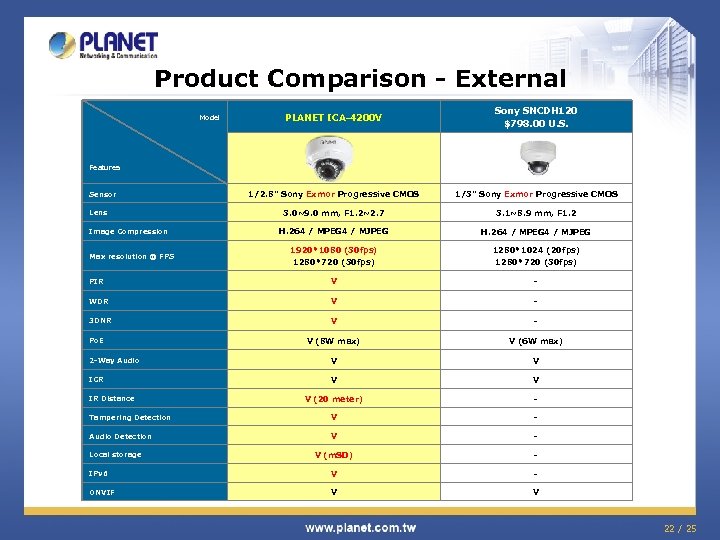

Product Comparison - External PLANET ICA-4200 V Sony SNCDH 120 $798. 00 U. S. 1/2. 8” Sony Exmor Progressive CMOS 1/3” Sony Exmor Progressive CMOS 3. 0~9. 0 mm, F 1. 2~2. 7 3. 1~8. 9 mm, F 1. 2 H. 264 / MPEG 4 / MJPEG 1920*1080 (30 fps) 1280*720 (30 fps) 1280*1024 (20 fps) 1280*720 (30 fps) PIR V - WDR V - 3 DNR V - V (8 W max) V (6 W max) 2 -Way Audio V V ICR V V V (20 meter) - Tampering Detection V - Audio Detection V - V (m. SD) - IPv 6 V - ONVIF V V Model Features Sensor Lens Image Compression Max resolution @ FPS Po. E IR Distance Local storage 22 / 25

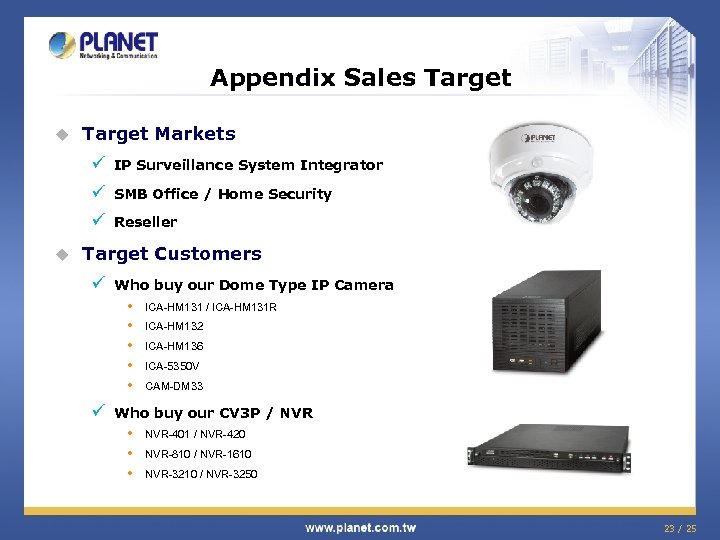

Appendix Sales Target u Target Markets ü ü SMB Office / Home Security ü u IP Surveillance System Integrator Reseller Target Customers ü Who buy our Dome Type IP Camera • • • ü ICA-HM 131 / ICA-HM 131 R ICA-HM 132 ICA-HM 136 ICA-5350 V CAM-DM 33 Who buy our CV 3 P / NVR • • • NVR-401 / NVR-420 NVR-810 / NVR-1610 NVR-3210 / NVR-3250 23 / 25

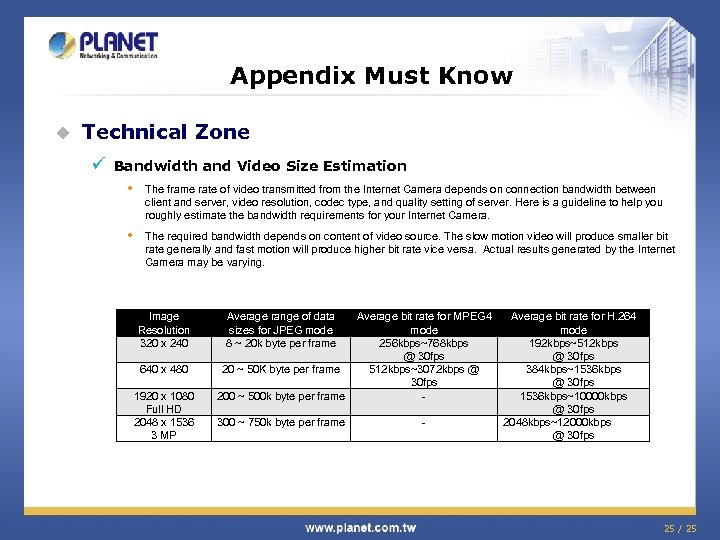

Appendix Must Know u Technical Zone ü Bandwidth and Video Size Estimation • The frame rate of video transmitted from the Internet Camera depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements for your Internet Camera. • The required bandwidth depends on content of video source. The slow motion video will produce smaller bit rate generally and fast motion will produce higher bit rate vice versa. Actual results generated by the Internet Camera may be varying. Image Resolution 320 x 240 Average range of data sizes for JPEG mode 8 ~ 20 k byte per frame 640 x 480 20 ~ 50 K byte per frame 1920 x 1080 Full HD 2048 x 1536 3 MP 200 ~ 500 k byte per frame Average bit rate for MPEG 4 mode 256 kbps~768 kbps @ 30 fps 512 kbps~3072 kbps @ 30 fps - 300 ~ 750 k byte per frame - Average bit rate for H. 264 mode 192 kbps~512 kbps @ 30 fps 384 kbps~1536 kbps @ 30 fps 1536 kbps~10000 kbps @ 30 fps 2048 kbps~12000 kbps @ 30 fps 25 / 25
