Fu. He International Co. , Ltd. 福鶴國際有限公司 Integrate all possibility

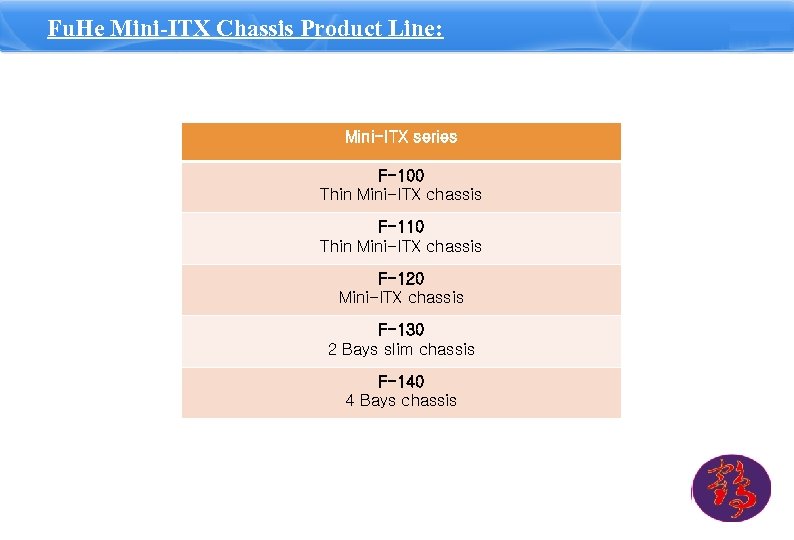

Fu. He Mini-ITX Chassis Product Line: Mini-ITX series F-100 Thin Mini-ITX chassis F-110 Thin Mini-ITX chassis F-120 Mini-ITX chassis F-130 2 Bays slim chassis F-140 4 Bays chassis

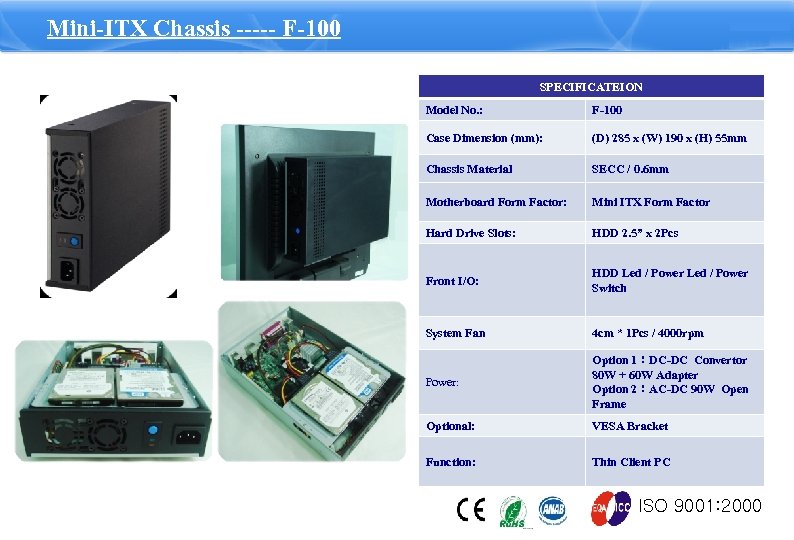

Mini-ITX Chassis ----- F-100 SPECIFICATEION Model No. : F-100 Case Dimension (mm): (D) 285 x (W) 190 x (H) 55 mm Chassis Material SECC / 0. 6 mm Motherboard Form Factor: Mini ITX Form Factor Hard Drive Slots: HDD 2. 5” x 2 Pcs Front I/O: HDD Led / Power Switch System Fan 4 cm * 1 Pcs / 4000 rpm Power: Option 1：DC-DC Convertor 80 W + 60 W Adapter Option 2：AC-DC 90 W Open Frame Optional: VESA Bracket Function: Thin Client PC ISO 9001: 2000

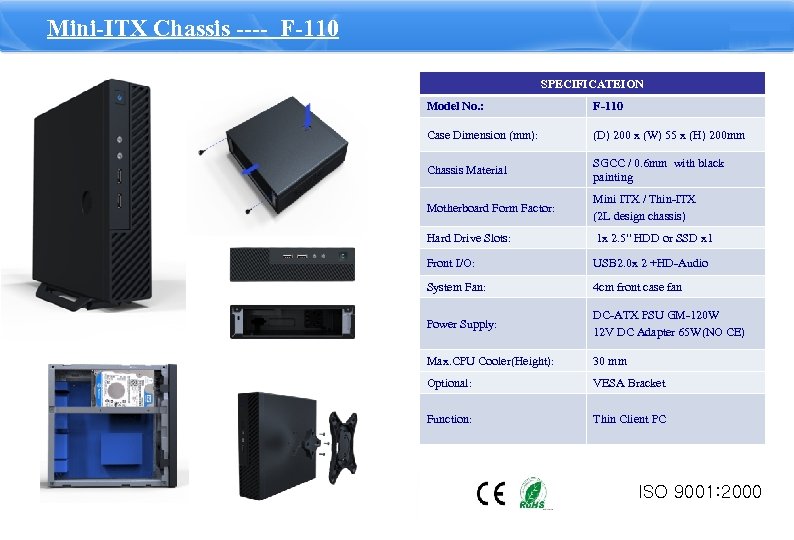

Mini-ITX Chassis ---- F-110 SPECIFICATEION Model No. : F-110 Case Dimension (mm): (D) 200 x (W) 55 x (H) 200 mm Chassis Material SGCC / 0. 6 mm with black painting Motherboard Form Factor: Mini ITX / Thin-ITX (2 L design chassis) Hard Drive Slots: 1 x 2. 5'' HDD or SSD x 1 Front I/O: USB 2. 0 x 2 +HD-Audio System Fan: 4 cm front case fan Power Supply: DC-ATX PSU GM-120 W 12 V DC Adapter 65 W(NO CE) Max. CPU Cooler(Height): 30 mm Optional: VESA Bracket Function: Thin Client PC ISO 9001: 2000
Mini-ITX Chassis ---- F-120 SPECIFICATEION Model No. : F-120 Case Dimension (mm): (D) 197 x (W) 80 x (H) 235 mm Chassis Material SECC / 0. 5 mm Motherboard Form Factor: Mini ITX Slim ODD*1 Drive Bays 2. 5"HDD*1 1 x USB 3. 0+1 x USB 2. 0 Front I/O: HD Audio In/Out Card Reader Without LCD Display Side Panel: Mesh side panel/support I 3/5/7&haswell solution Security: Kensington Lock Power Supply: Internal 130 W power supply, AC input 230 V internal PSU solution, 20+4 PIN; 1*4 pin ; 1* Adapter cable (4 pin to SATA) Max. CPU Cooler(Height): Mesh side panel/support I 3/5/7&haswell solution Fix on monitor rear/Wall VESA Bracket (Including) Function: Multimedia PC/Thin ISO 9001: 2000 Client/POS/Any Number of Applications

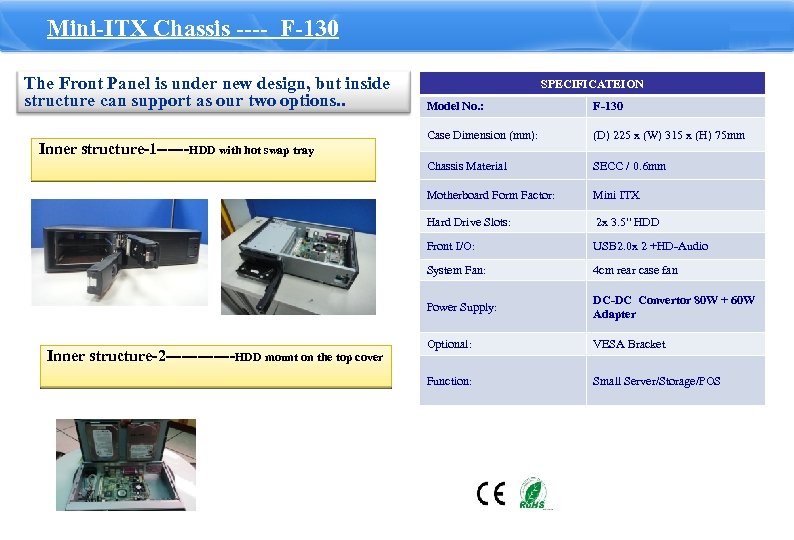

Mini-ITX Chassis ---- F-130 The Front Panel is under new design, but inside structure can support as our two options. . SPECIFICATEION Case Dimension (mm): (D) 225 x (W) 315 x (H) 75 mm SECC / 0. 6 mm Motherboard Form Factor: Mini ITX Hard Drive Slots: 2 x 3. 5'' HDD Front I/O: USB 2. 0 x 2 +HD-Audio System Fan: 4 cm rear case fan Power Supply: Inner structure-2 -------HDD mount on the top cover F-130 Chassis Material Inner structure-1 ------HDD with hot swap tray Model No. : DC-DC Convertor 80 W + 60 W Adapter Optional: VESA Bracket Function: Small Server/Storage/POS

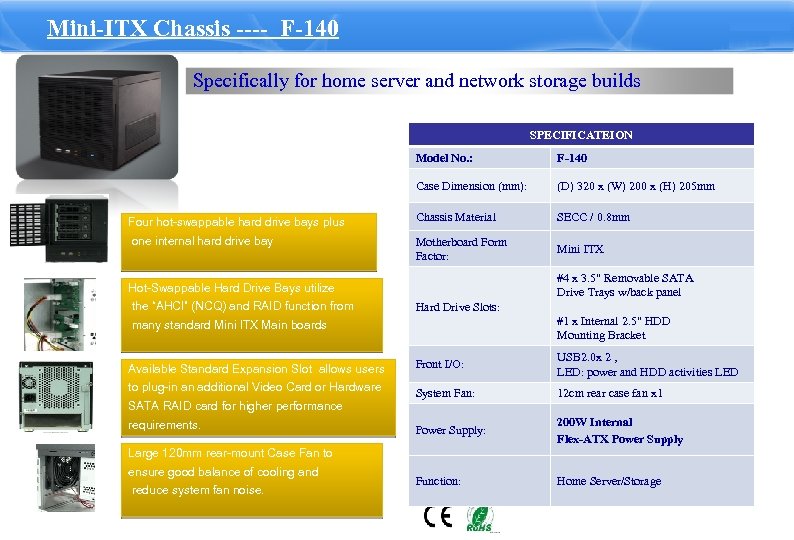

Mini-ITX Chassis ---- F-140 Specifically for home server and network storage builds SPECIFICATEION Model No. : F-140 Case Dimension (mm): (D) 320 x (W) 200 x (H) 205 mm Four hot-swappable hard drive bays plus Chassis Material SECC / 0. 8 mm one internal hard drive bay Motherboard Form Factor: Mini ITX #4 x 3. 5″ Removable SATA Drive Trays w/back panel Hot-Swappable Hard Drive Bays utilize the “AHCI” (NCQ) and RAID function from Hard Drive Slots: #1 x Internal 2. 5″ HDD Mounting Bracket many standard Mini ITX Main boards Available Standard Expansion Slot allows users Front I/O: USB 2. 0 x 2 , LED: power and HDD activities LED to plug-in an additional Video Card or Hardware System Fan: 12 cm rear case fan x 1 Power Supply: 200 W Internal Flex-ATX Power Supply Function: Home Server/Storage SATA RAID card for higher performance requirements. Large 120 mm rear-mount Case Fan to ensure good balance of cooling and reduce system fan noise.
Thank you Amy. fuhe@gmail. com Fu. He International Trade Co. , Ltd.
