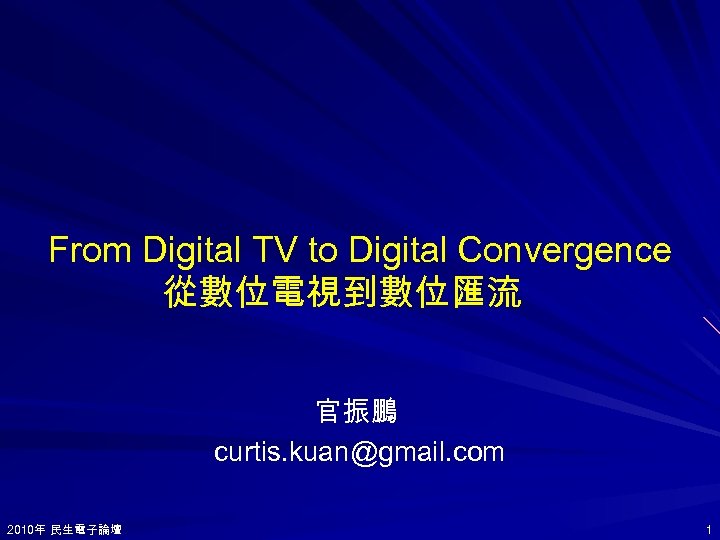

From Digital TV to Digital Convergence 從數位電視到數位匯流官振鵬

From Digital TV to Digital Convergence 從數位電視到數位匯流官振鵬 curtis. kuan@gmail. com 2010年民生電子論壇 2010年 1

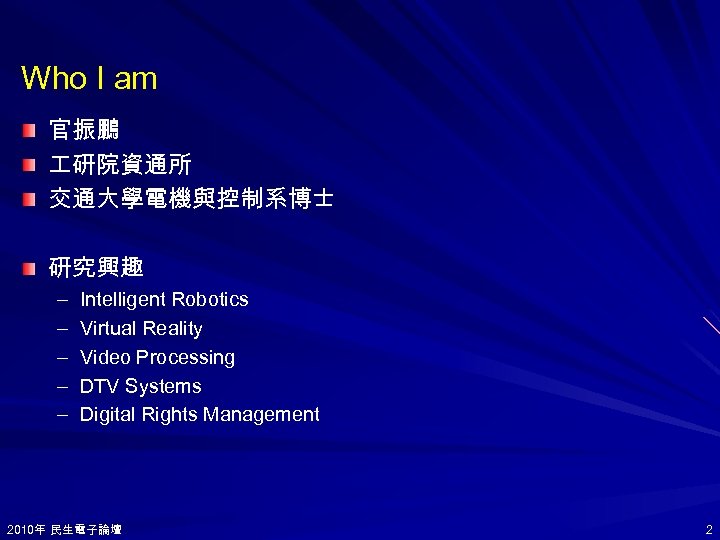

Who I am 官振鵬研院資通所交通大學電機與控制系博士研究興趣 – – – Intelligent Robotics Virtual Reality Video Processing DTV Systems Digital Rights Management 2010年民生電子論壇 2010年 2

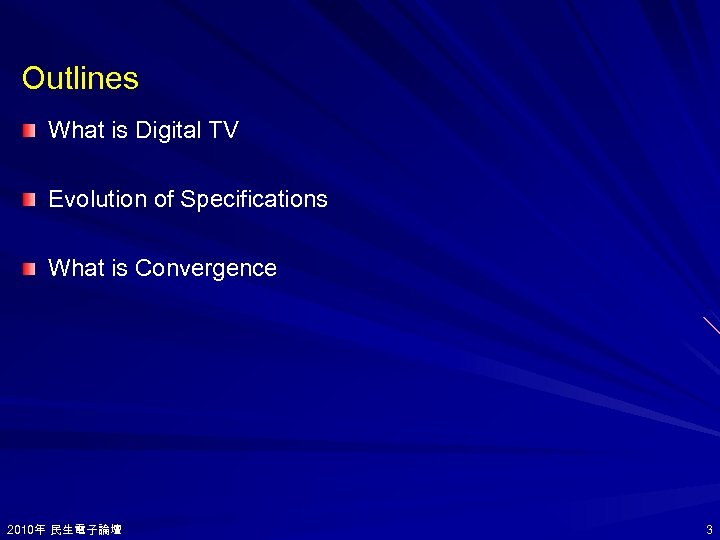

Outlines What is Digital TV Evolution of Specifications What is Convergence 2010年民生電子論壇 2010年 3

Digital TV 2010年民生電子論壇 2010年 4

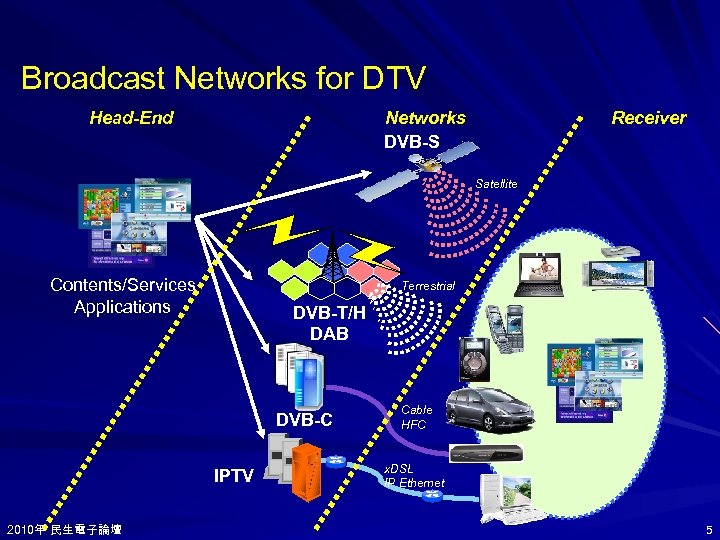

Broadcast Networks for DTV Head-End Networks DVB-S Receiver Satellite Contents/Services Applications Terrestrial DVB-T/H DAB DVB-C IPTV 2010年民生電子論壇 2010年 Cable HFC x. DSL IP Ethernet 5

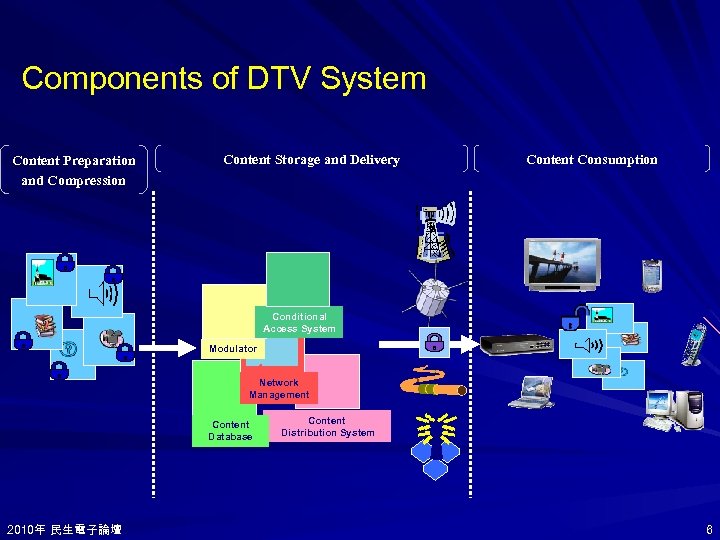

Components of DTV System Content Preparation and Compression Content Storage and Delivery Content Consumption Conditional Access System Modulator Network Management Content Database 2010年民生電子論壇 2010年 Content Distribution System 6

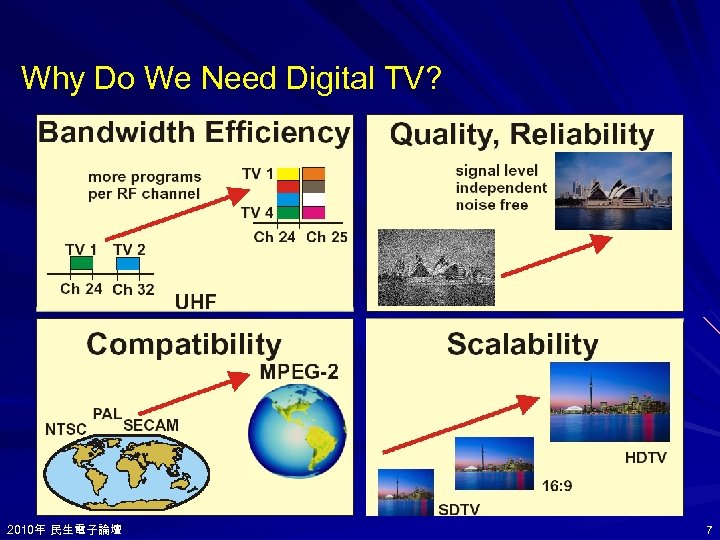

Why Do We Need Digital TV? 2010年民生電子論壇 2010年 7

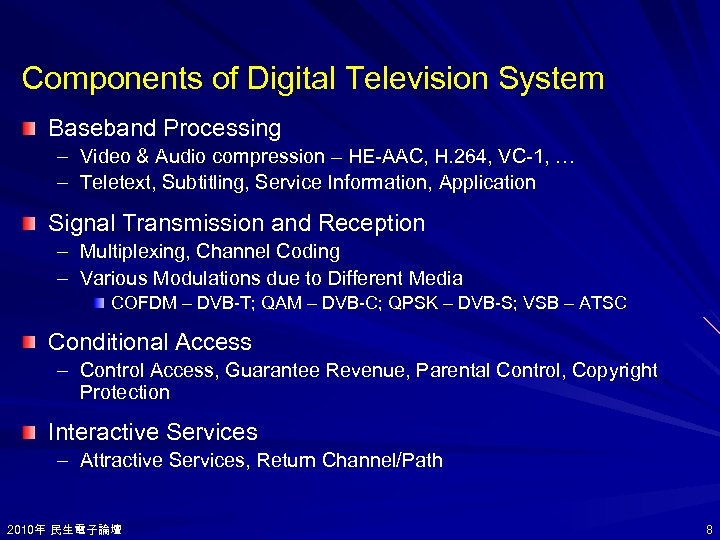

Components of Digital Television System Baseband Processing – Video & Audio compression – HE-AAC, H. 264, VC-1, … – Teletext, Subtitling, Service Information, Application Signal Transmission and Reception – Multiplexing, Channel Coding – Various Modulations due to Different Media COFDM – DVB-T; QAM – DVB-C; QPSK – DVB-S; VSB – ATSC Conditional Access – Control Access, Guarantee Revenue, Parental Control, Copyright Protection Interactive Services – Attractive Services, Return Channel/Path 2010年民生電子論壇 2010年 8

Worldwide DTV Standards 2010年民生電子論壇 2010年 9

Terrestrial 2010年民生電子論壇 2010年 10

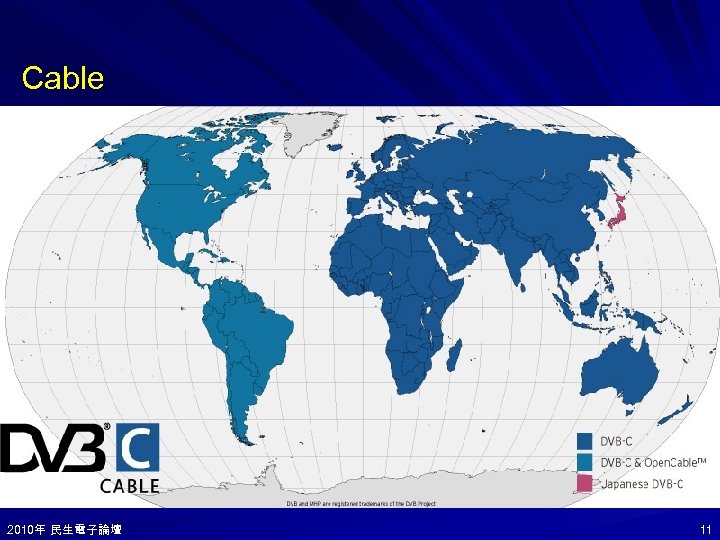

Cable 2010年民生電子論壇 2010年 11

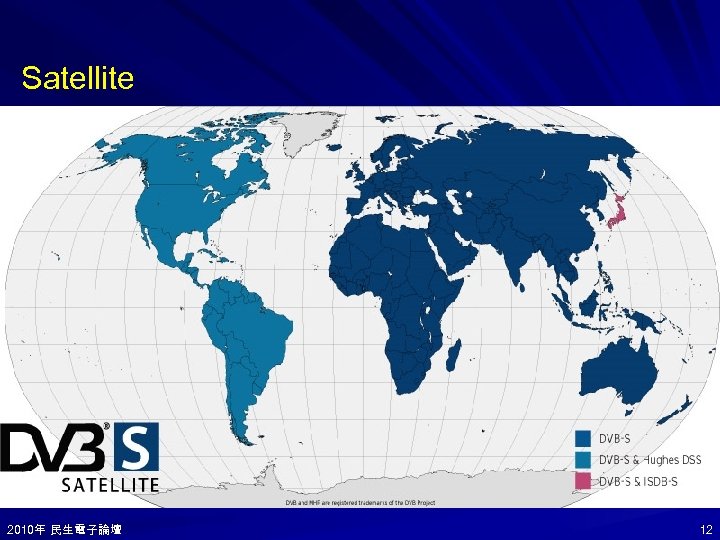

Satellite 2010年民生電子論壇 2010年 12

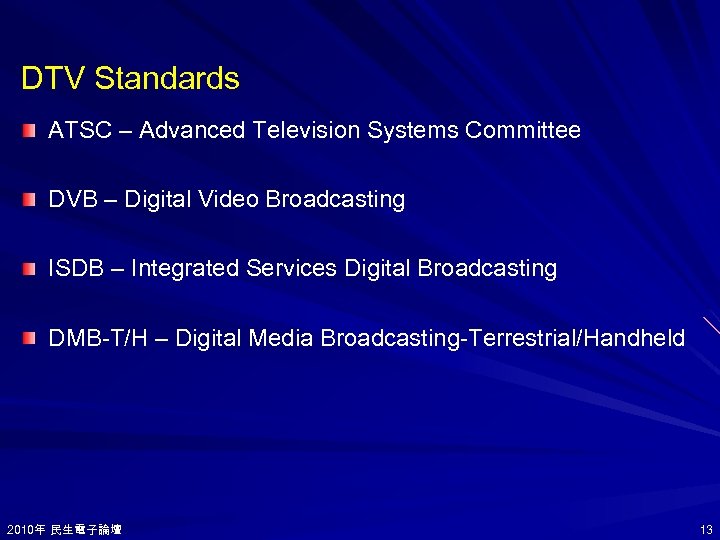

DTV Standards ATSC – Advanced Television Systems Committee DVB – Digital Video Broadcasting ISDB – Integrated Services Digital Broadcasting DMB-T/H – Digital Media Broadcasting-Terrestrial/Handheld 2010年民生電子論壇 2010年 13

ATSC 2010年民生電子論壇 2010年 14

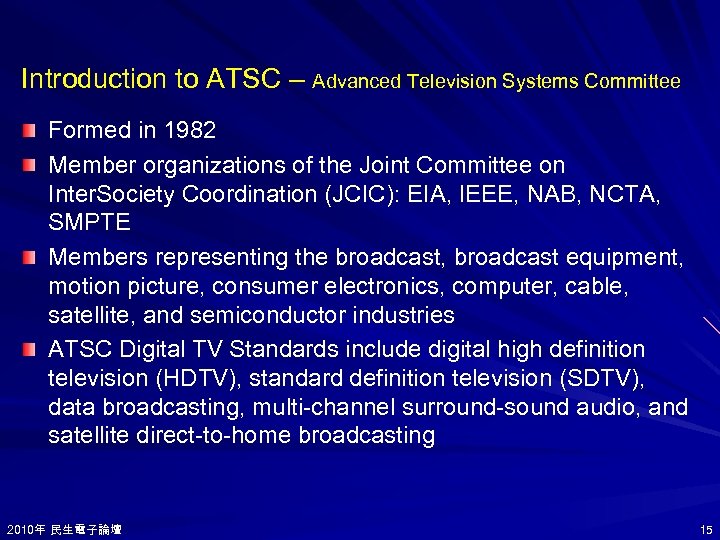

Introduction to ATSC – Advanced Television Systems Committee Formed in 1982 Member organizations of the Joint Committee on Inter. Society Coordination (JCIC): EIA, IEEE, NAB, NCTA, SMPTE Members representing the broadcast, broadcast equipment, motion picture, consumer electronics, computer, cable, satellite, and semiconductor industries ATSC Digital TV Standards include digital high definition television (HDTV), standard definition television (SDTV), data broadcasting, multi-channel surround-sound audio, and satellite direct-to-home broadcasting 2010年民生電子論壇 2010年 15

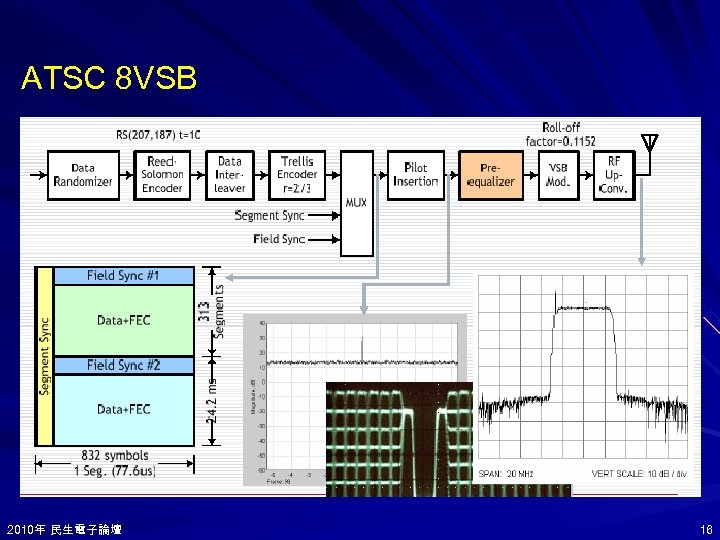

ATSC 8 VSB 2010年民生電子論壇 2010年 16

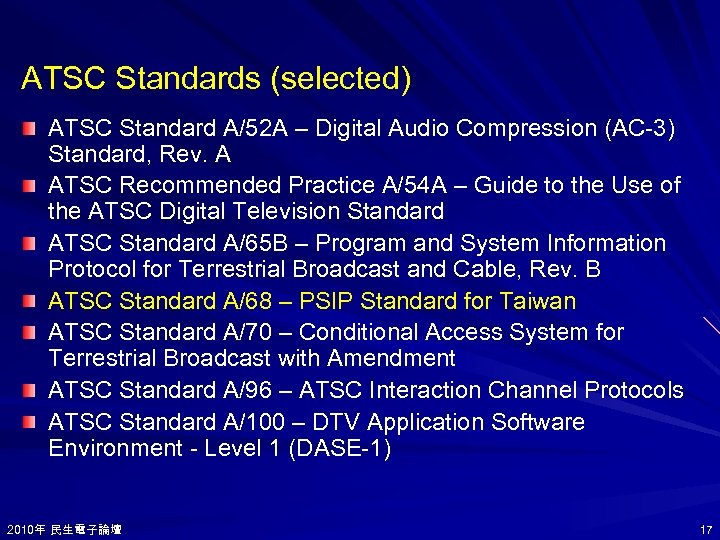

ATSC Standards (selected) ATSC Standard A/52 A – Digital Audio Compression (AC-3) Standard, Rev. A ATSC Recommended Practice A/54 A – Guide to the Use of the ATSC Digital Television Standard ATSC Standard A/65 B – Program and System Information Protocol for Terrestrial Broadcast and Cable, Rev. B ATSC Standard A/68 – PSIP Standard for Taiwan ATSC Standard A/70 – Conditional Access System for Terrestrial Broadcast with Amendment ATSC Standard A/96 – ATSC Interaction Channel Protocols ATSC Standard A/100 – DTV Application Software Environment - Level 1 (DASE-1) 2010年民生電子論壇 2010年 17

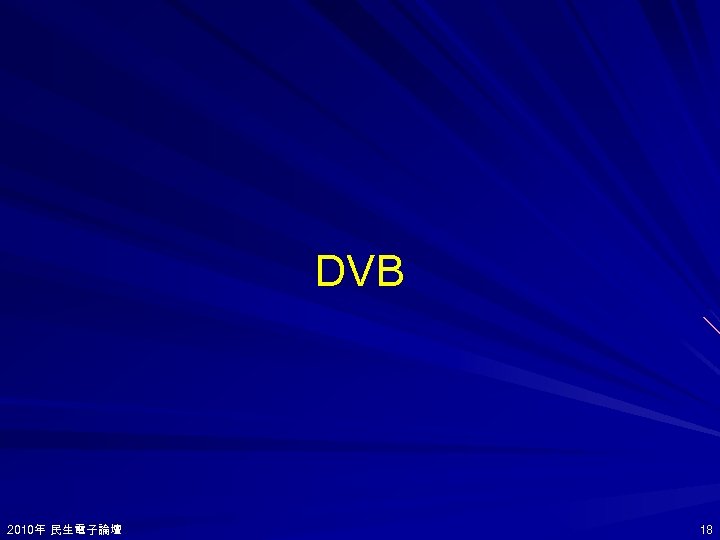

DVB 2010年民生電子論壇 2010年 18

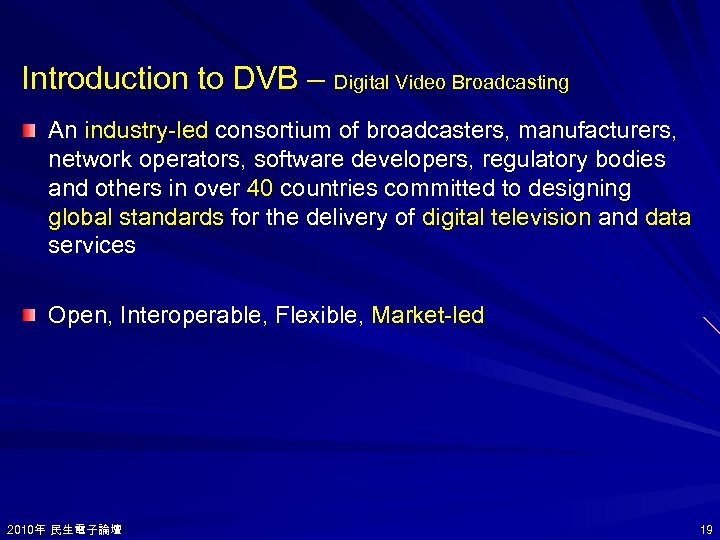

Introduction to DVB – Digital Video Broadcasting An industry-led consortium of broadcasters, manufacturers, network operators, software developers, regulatory bodies and others in over 40 countries committed to designing global standards for the delivery of digital television and data services Open, Interoperable, Flexible, Market-led 2010年民生電子論壇 2010年 19

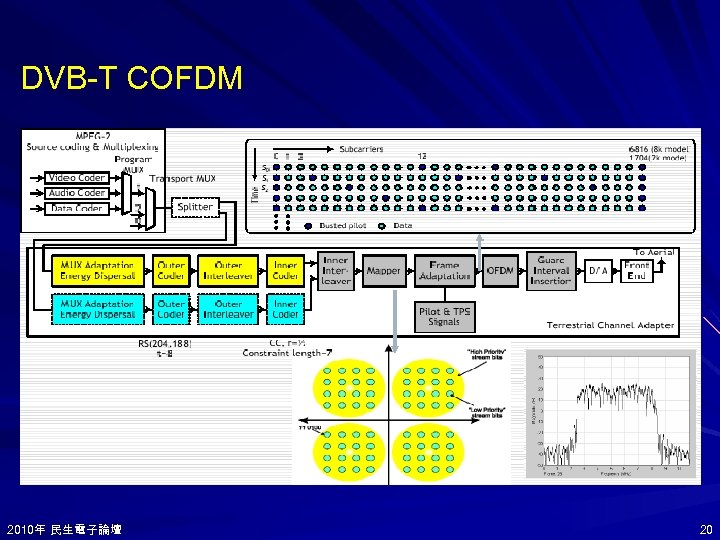

DVB-T COFDM 2010年民生電子論壇 2010年 20

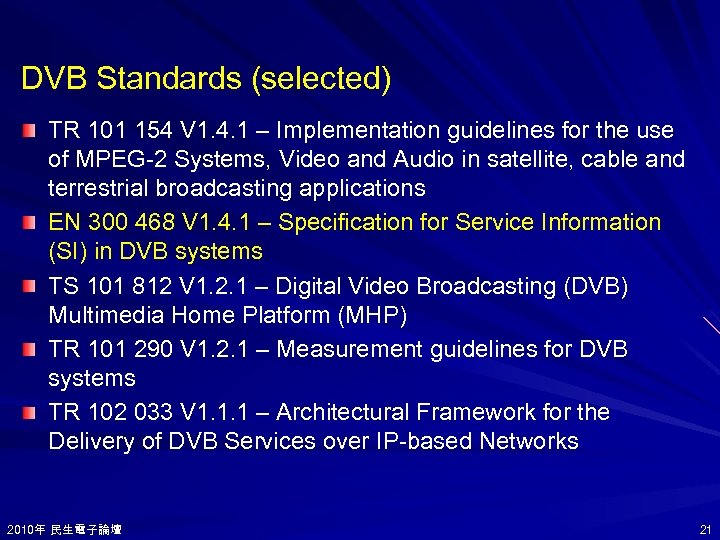

DVB Standards (selected) TR 101 154 V 1. 4. 1 – Implementation guidelines for the use of MPEG-2 Systems, Video and Audio in satellite, cable and terrestrial broadcasting applications EN 300 468 V 1. 4. 1 – Specification for Service Information (SI) in DVB systems TS 101 812 V 1. 2. 1 – Digital Video Broadcasting (DVB) Multimedia Home Platform (MHP) TR 101 290 V 1. 2. 1 – Measurement guidelines for DVB systems TR 102 033 V 1. 1. 1 – Architectural Framework for the Delivery of DVB Services over IP-based Networks 2010年民生電子論壇 2010年 21

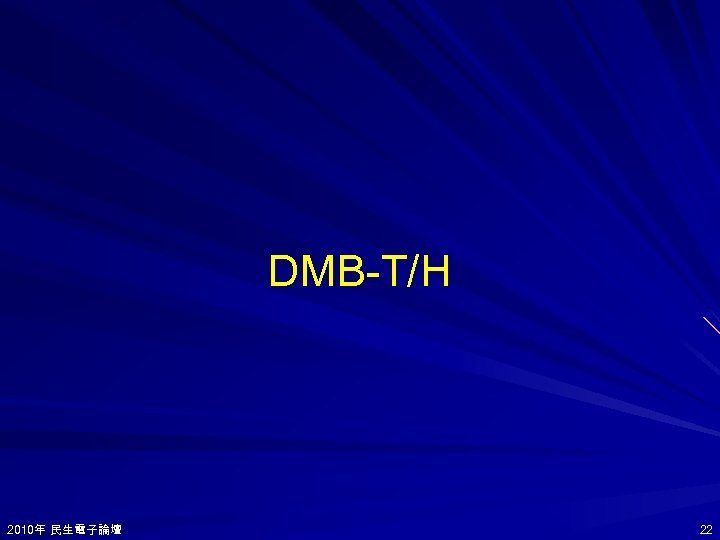

DMB-T/H 2010年民生電子論壇 2010年 22

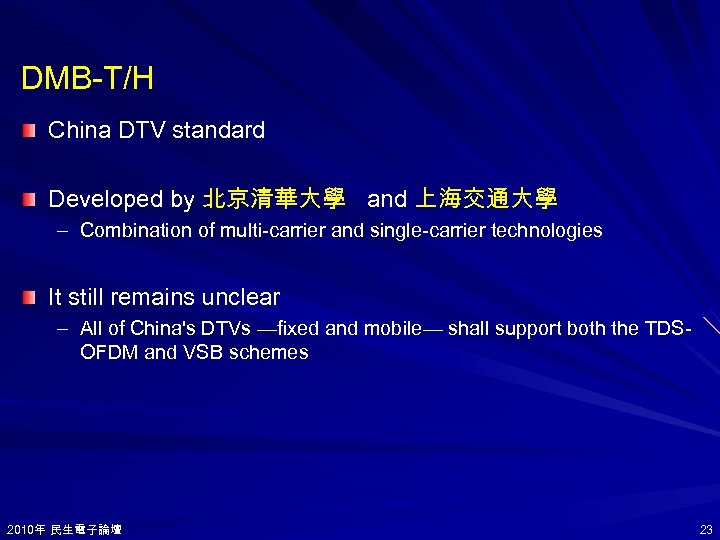

DMB-T/H China DTV standard Developed by 北京清華大學 and 上海交通大學 – Combination of multi-carrier and single-carrier technologies It still remains unclear – All of China's DTVs —fixed and mobile— shall support both the TDSOFDM and VSB schemes 2010年民生電子論壇 2010年 23

Evolution of Specifications 2010年民生電子論壇 2010年 24

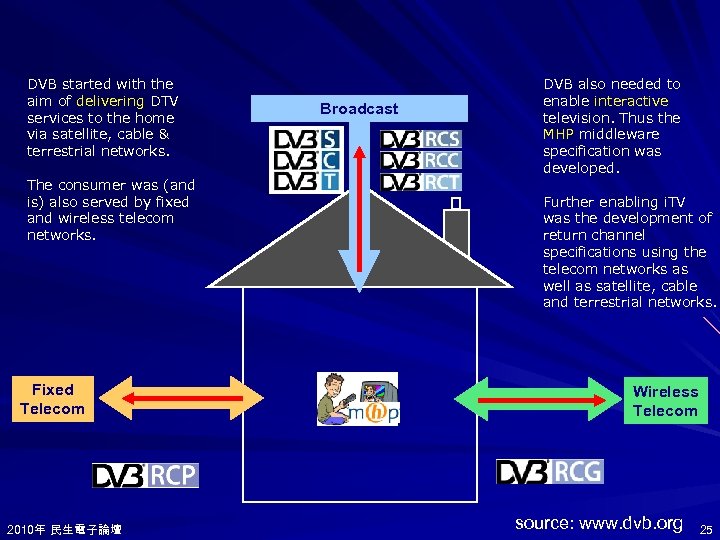

DVB started with the aim of delivering DTV services to the home via satellite, cable & terrestrial networks. The consumer was (and is) also served by fixed and wireless telecom networks. Fixed Telecom 2010年民生電子論壇 2010年 Broadcast DVB also needed to enable interactive television. Thus the MHP middleware specification was developed. Further enabling i. TV was the development of return channel specifications using the telecom networks as well as satellite, cable and terrestrial networks. Wireless Telecom source: www. dvb. org 25

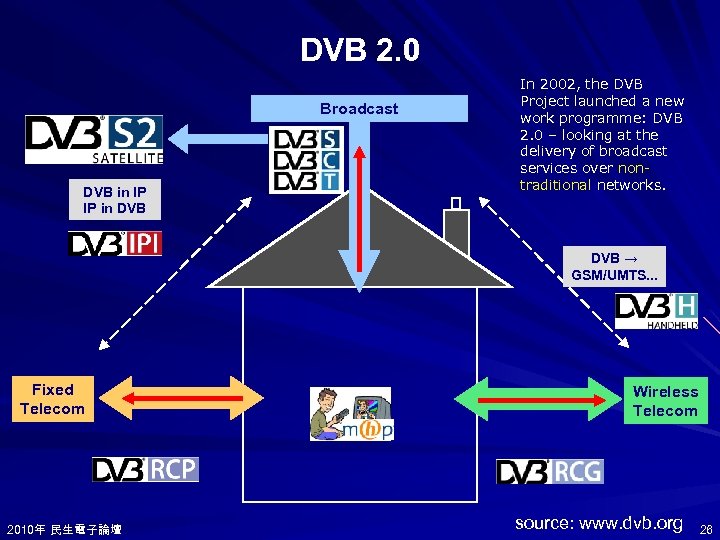

DVB 2. 0 Broadcast DVB in IP IP in DVB In 2002, the DVB Project launched a new work programme: DVB 2. 0 – looking at the delivery of broadcast services over nontraditional networks. DVB → GSM/UMTS. . . Fixed Telecom 2010年民生電子論壇 2010年 Wireless Telecom source: www. dvb. org 26

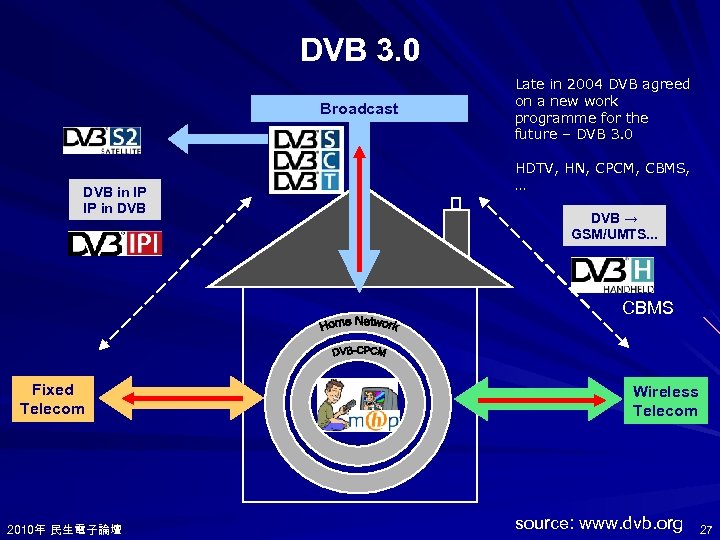

DVB 3. 0 Broadcast DVB in IP IP in DVB Late in 2004 DVB agreed on a new work programme for the future – DVB 3. 0 HDTV, HN, CPCM, CBMS, … DVB → GSM/UMTS. . . CBMS Fixed Telecom 2010年民生電子論壇 2010年 Wireless Telecom source: www. dvb. org 27

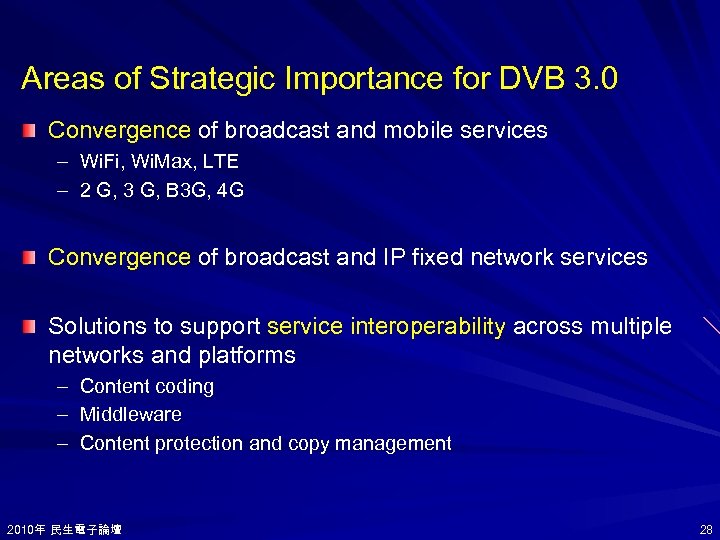

Areas of Strategic Importance for DVB 3. 0 Convergence of broadcast and mobile services – Wi. Fi, Wi. Max, LTE – 2 G, 3 G, B 3 G, 4 G Convergence of broadcast and IP fixed network services Solutions to support service interoperability across multiple networks and platforms – Content coding – Middleware – Content protection and copy management 2010年民生電子論壇 2010年 28

In DTV world, no more Programs but Services! 2010年民生電子論壇 2010年 29

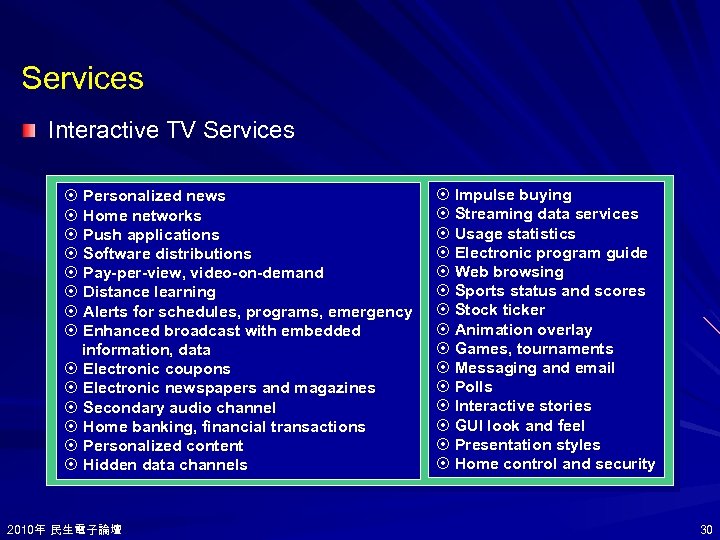

Services Interactive TV Services ¤ Personalized news ¤ Home networks ¤ Push applications ¤ Software distributions ¤ Pay-per-view, video-on-demand ¤ Distance learning ¤ Alerts for schedules, programs, emergency ¤ Enhanced broadcast with embedded information, data ¤ Electronic coupons ¤ Electronic newspapers and magazines ¤ Secondary audio channel ¤ Home banking, financial transactions ¤ Personalized content ¤ Hidden data channels 2010年民生電子論壇 2010年 ¤ Impulse buying ¤ Streaming data services ¤ Usage statistics ¤ Electronic program guide ¤ Web browsing ¤ Sports status and scores ¤ Stock ticker ¤ Animation overlay ¤ Games, tournaments ¤ Messaging and email ¤ Polls ¤ Interactive stories ¤ GUI look and feel ¤ Presentation styles ¤ Home control and security 30

Application Synchronized to TV content 2010年民生電子論壇 2010年 31

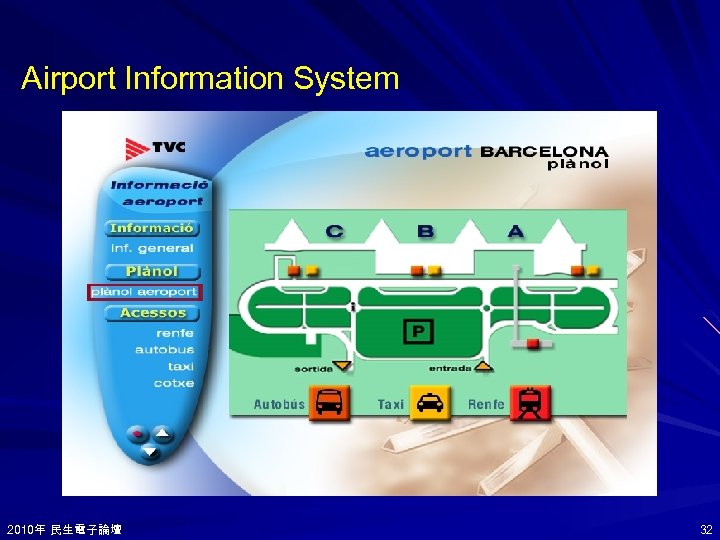

Airport Information System 2010年民生電子論壇 2010年 32

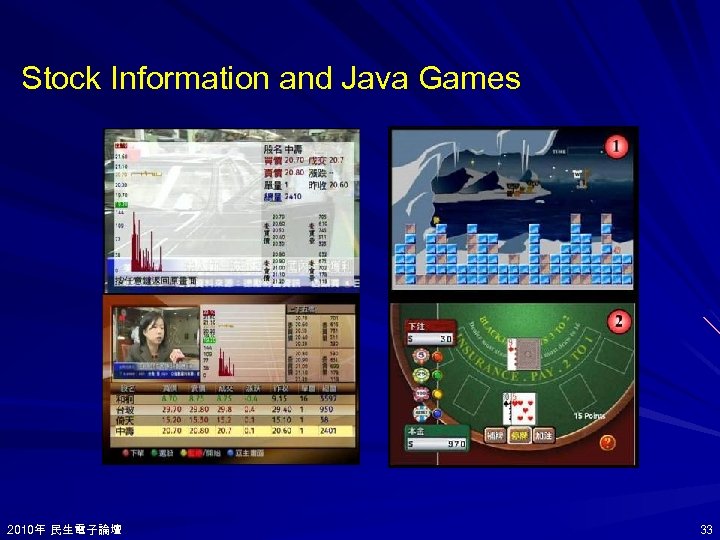

Stock Information and Java Games 2010年民生電子論壇 2010年 33

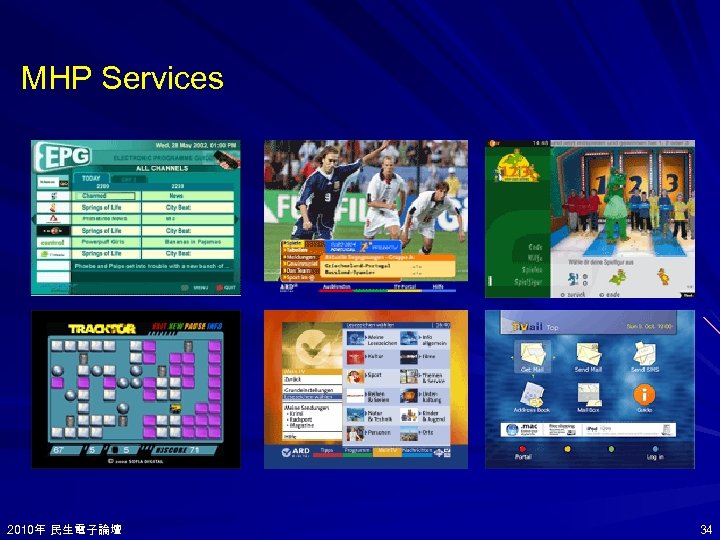

MHP Services 2010年民生電子論壇 2010年 34

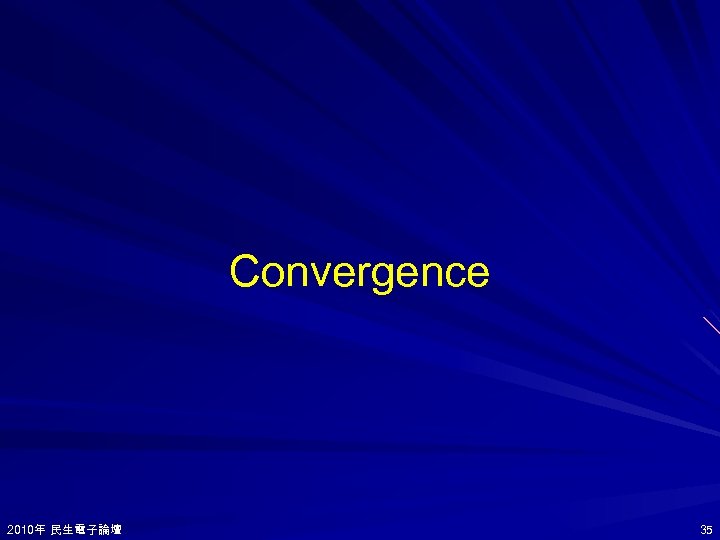

Convergence 2010年民生電子論壇 2010年 35

Convergence? 2010年民生電子論壇 2010年 36

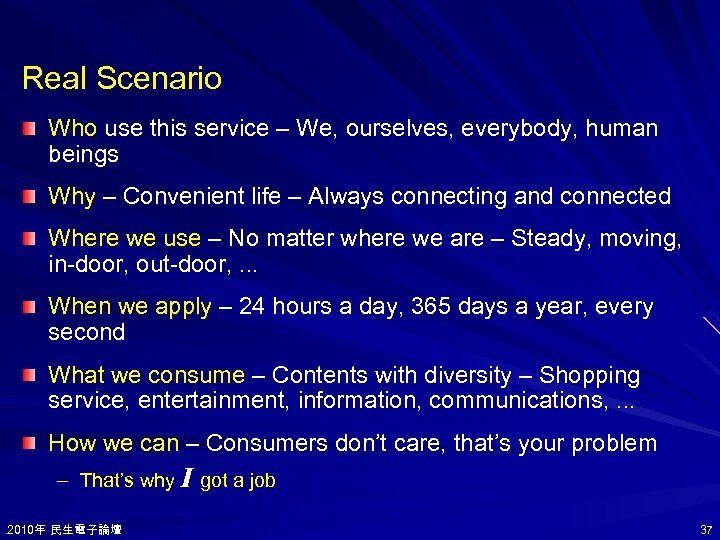

Real Scenario Who use this service – We, ourselves, everybody, human beings Why – Convenient life – Always connecting and connected Where we use – No matter where we are – Steady, moving, in-door, out-door, . . . When we apply – 24 hours a day, 365 days a year, every second What we consume – Contents with diversity – Shopping service, entertainment, information, communications, . . . How we can – Consumers don’t care, that’s your problem – That’s why I got a job 2010年民生電子論壇 2010年 37

2010年民生電子論壇 2010年 38

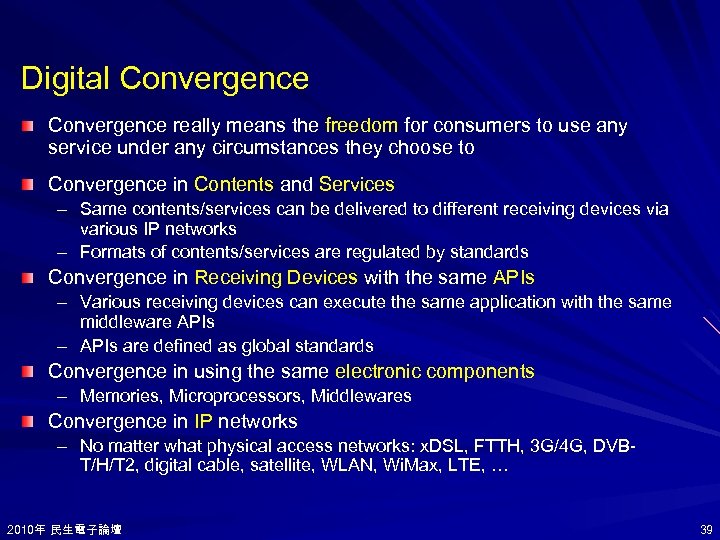

Digital Convergence really means the freedom for consumers to use any service under any circumstances they choose to Convergence in Contents and Services – Same contents/services can be delivered to different receiving devices via various IP networks – Formats of contents/services are regulated by standards Convergence in Receiving Devices with the same APIs – Various receiving devices can execute the same application with the same middleware APIs – APIs are defined as global standards Convergence in using the same electronic components – Memories, Microprocessors, Middlewares Convergence in IP networks – No matter what physical access networks: x. DSL, FTTH, 3 G/4 G, DVBT/H/T 2, digital cable, satellite, WLAN, Wi. Max, LTE, … 2010年民生電子論壇 2010年 39

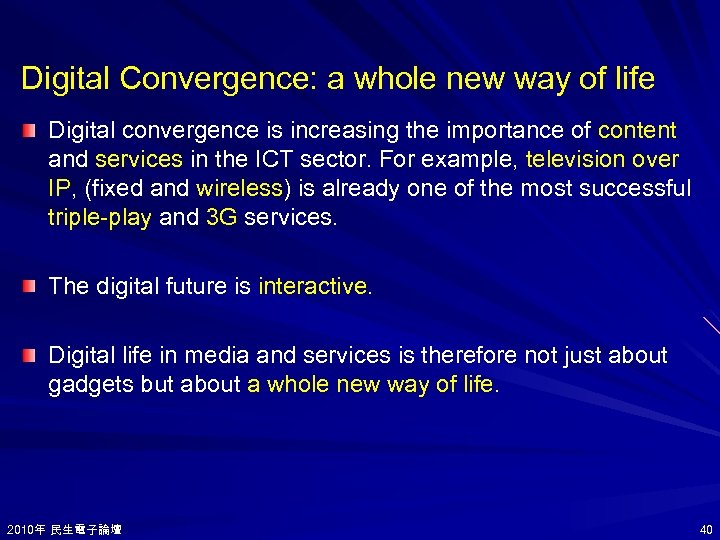

Digital Convergence: a whole new way of life Digital convergence is increasing the importance of content and services in the ICT sector. For example, television over IP, (fixed and wireless) is already one of the most successful triple-play and 3 G services. The digital future is interactive. Digital life in media and services is therefore not just about gadgets but about a whole new way of life. 2010年民生電子論壇 2010年 40

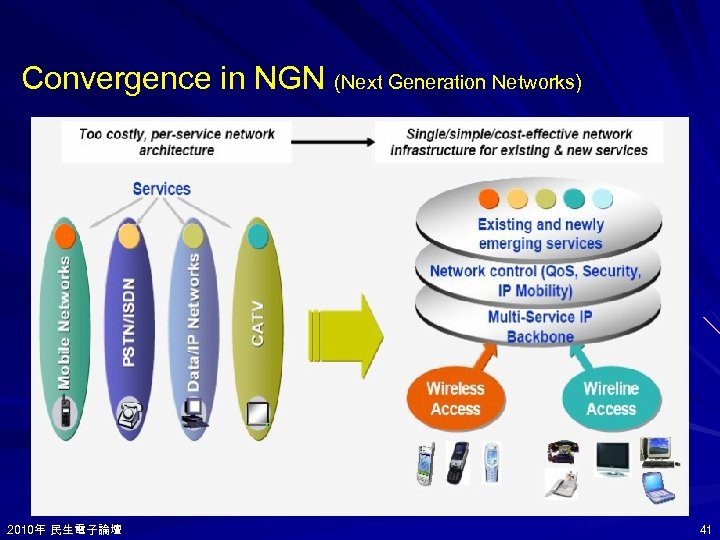

Convergence in NGN (Next Generation Networks) 2010年民生電子論壇 2010年 41

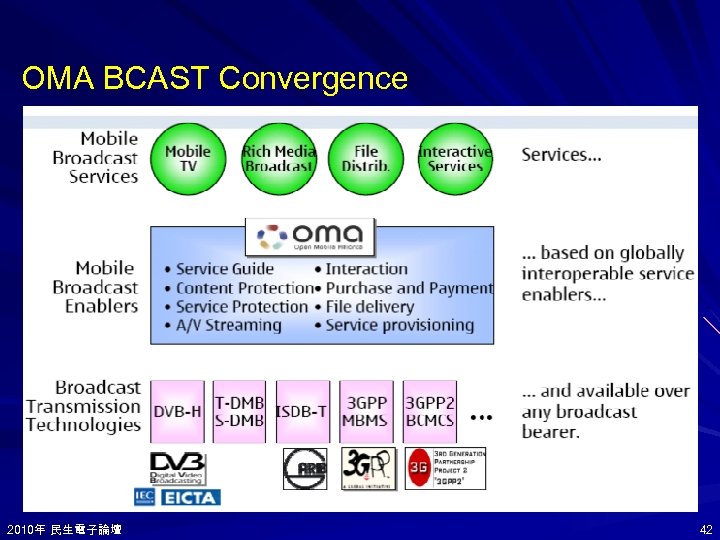

OMA BCAST Convergence 2010年民生電子論壇 2010年 42

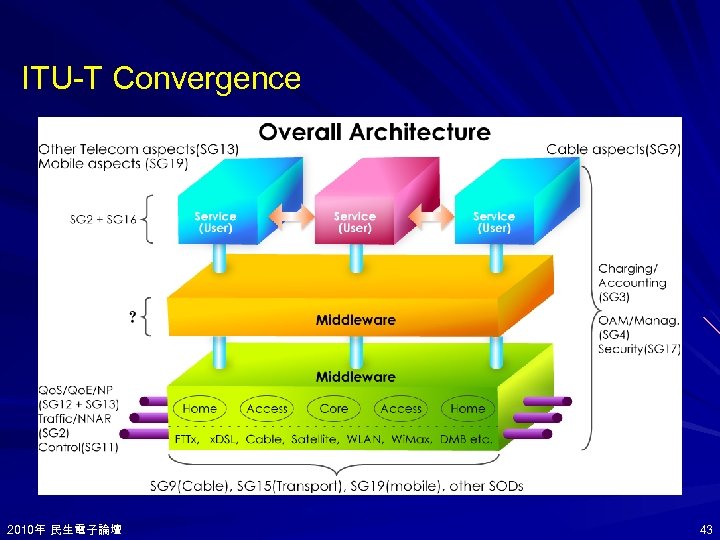

ITU-T Convergence 2010年民生電子論壇 2010年 43

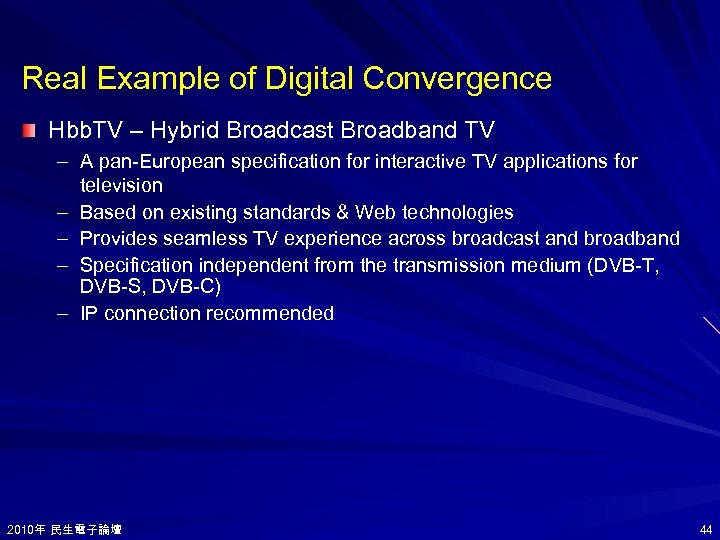

Real Example of Digital Convergence Hbb. TV – Hybrid Broadcast Broadband TV – A pan-European specification for interactive TV applications for television – Based on existing standards & Web technologies – Provides seamless TV experience across broadcast and broadband – Specification independent from the transmission medium (DVB-T, DVB-S, DVB-C) – IP connection recommended 2010年民生電子論壇 2010年 44

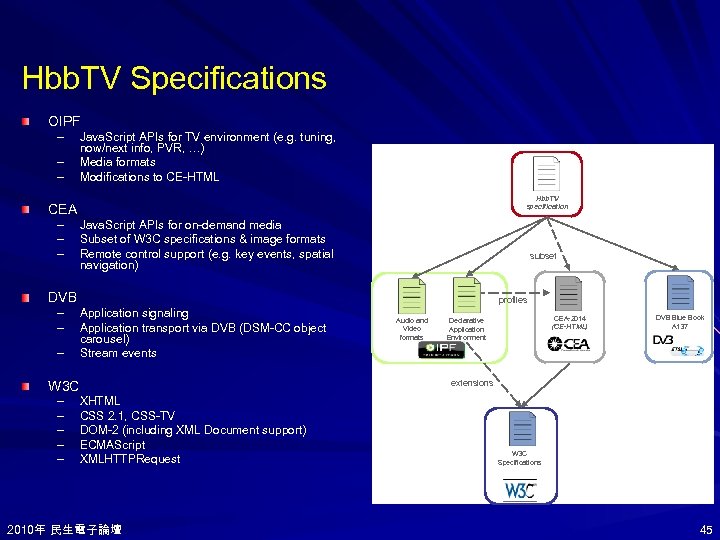

Hbb. TV Specifications OIPF – – – Java. Script APIs for TV environment (e. g. tuning, now/next info, PVR, …) Media formats Modifications to CE-HTML Hbb. TV specification CEA – – – Java. Script APIs for on-demand media Subset of W 3 C specifications & image formats Remote control support (e. g. key events, spatial navigation) subset DVB – – – profiles Application signaling Application transport via DVB (DSM-CC object carousel) Stream events W 3 C – – – XHTML CSS 2. 1, CSS-TV DOM-2 (including XML Document support) ECMAScript XMLHTTPRequest 2010年民生電子論壇 2010年 Audio and Video formats CEA-2014 (CE-HTML) Declarative Application Environment DVB Blue Book A 137 extensions W 3 C Specifications 45

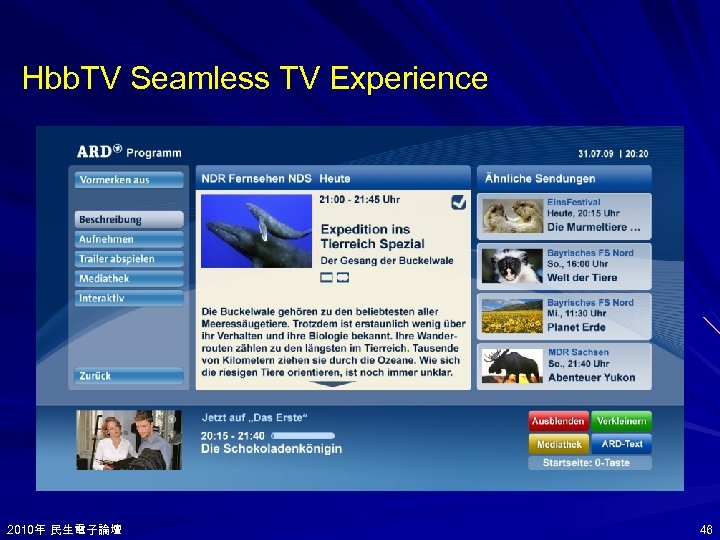

Hbb. TV Seamless TV Experience 2010年民生電子論壇 2010年 46

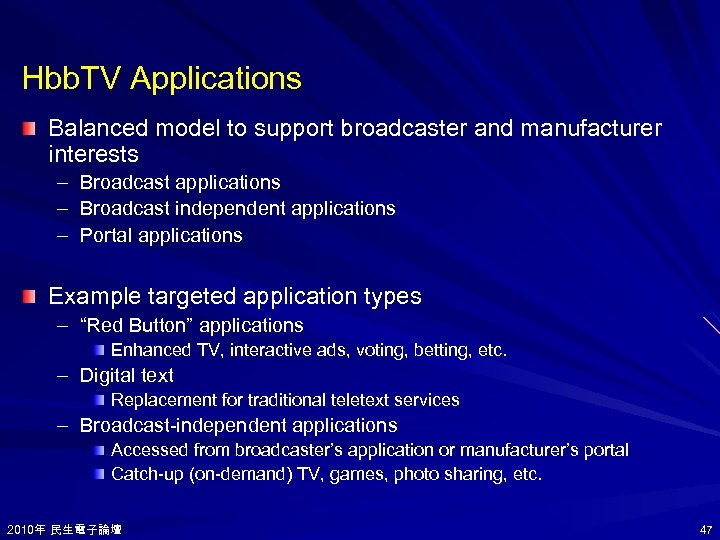

Hbb. TV Applications Balanced model to support broadcaster and manufacturer interests – – – Broadcast applications Broadcast independent applications Portal applications Example targeted application types – “Red Button” applications Enhanced TV, interactive ads, voting, betting, etc. – Digital text Replacement for traditional teletext services – Broadcast-independent applications Accessed from broadcaster’s application or manufacturer’s portal Catch-up (on-demand) TV, games, photo sharing, etc. 2010年民生電子論壇 2010年 47

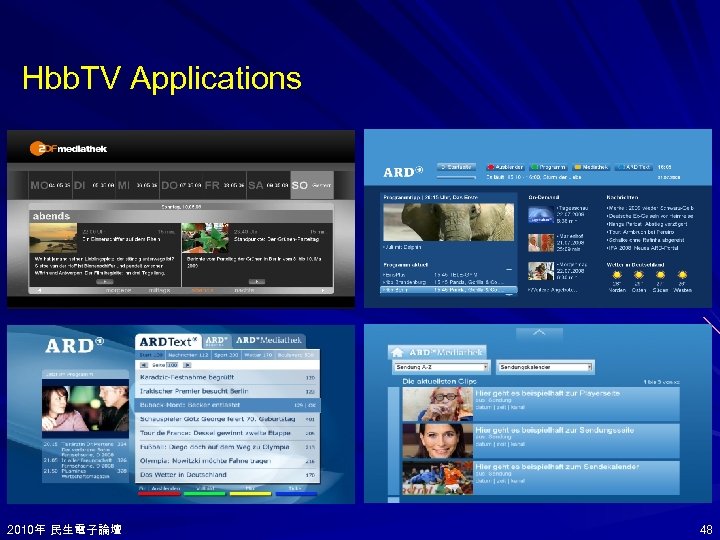

Hbb. TV Applications 2010年民生電子論壇 2010年 48

Thank You~ 2010年民生電子論壇 2010年 49

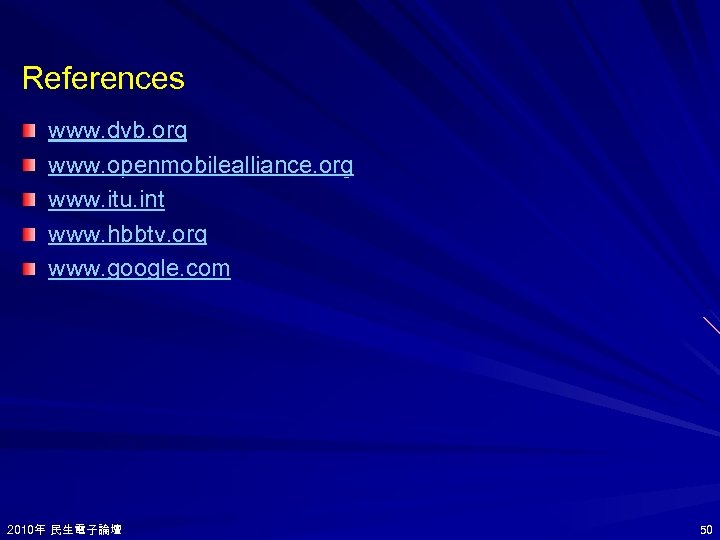

References www. dvb. org www. openmobilealliance. org www. itu. int www. hbbtv. org www. google. com 2010年民生電子論壇 2010年 50
