French Federation meeting Lyon 11 June 2004 www. eu-egee. org Network Activities Jean-Paul Gautier CNRS/UREC Some slides are from Bob Jones’ presentations EGEE is a project funded by the European Union under contract IST-2003 -508833

Contents • Context overview • Networking activities summary. • Main tasks in progress French Federation meeting - Lyon 11 June 2004 - 2

EGEE Applications • EGEE Scope : ALL-Inclusive for academic applications (open to industrial and socio-economic world as well) • The major success criterion of EGEE: how many satisfied users from how many different domains ? • 5000 users (3000 after year 2) from at least 5 disciplines • Two pilot applications selected to guide the implementation and certify the performance and functionality of the evolving infrastructure: Physics & Bioinformatics Application domains are for illustration only French Federation meeting - Lyon 11 June 2004 - 3

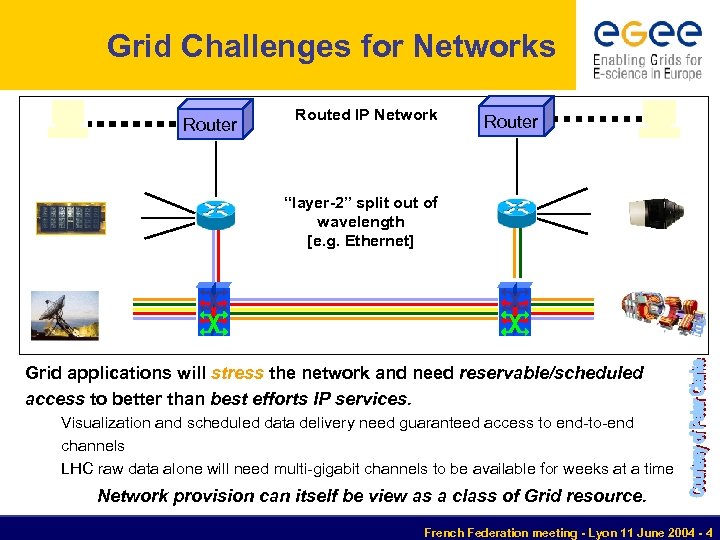

Grid Challenges for Networks Router Routed IP Network Router “layer-2” split out of wavelength [e. g. Ethernet] Grid applications will stress the network and need reservable/scheduled access to better than best efforts IP services. Visualization and scheduled data delivery need guaranteed access to end-to-end channels LHC raw data alone will need multi-gigabit channels to be available for weeks at a time Network provision can itself be view as a class of Grid resource. French Federation meeting - Lyon 11 June 2004 - 4

Network services in Europoe • EGEE : 70 partners. • 33 NRENS involved • GEANT as the European backbone § GN 1 to day § GN 2 in 2005 § NRENs connectivity : 34 Mbs to 10 Gbs. • Summary of the operational services • not exhaustive, gathering under way § § IPv 4 : 34 IPv 6 : 17 IP Multicast : 11 Qo. S : 6 • Diff. Serv, MPLS, Managed Bandwidth French Federation meeting - Lyon 11 June 2004 - 5

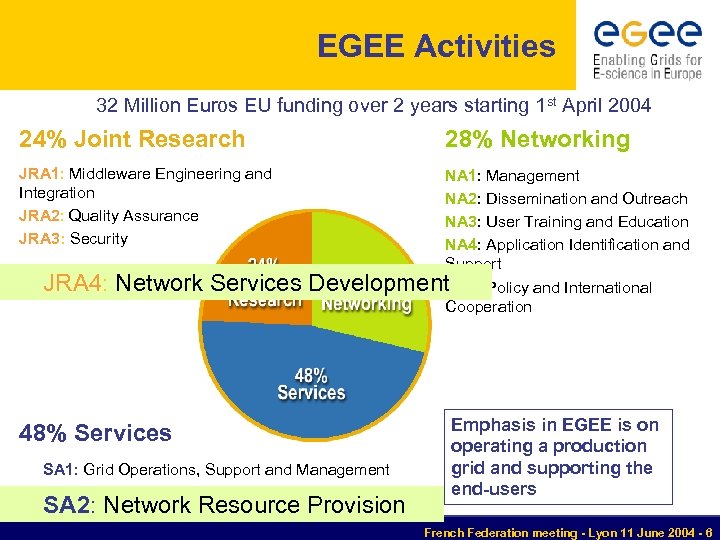

EGEE Activities 32 Million Euros EU funding over 2 years starting 1 st April 2004 24% Joint Research JRA 1: Middleware Engineering and Integration JRA 2: Quality Assurance JRA 3: Security JRA 4: Network Services JRA 4: Development Network Services 28% Networking NA 1: Management NA 2: Dissemination and Outreach NA 3: User Training and Education NA 4: Application Identification and Support Development. NA 5: Policy and International Cooperation 48% Services SA 1: Grid Operations, Support and Management SA 2: Network Resource provision SA 2: Network Resource Provision Emphasis in EGEE is on operating a production grid and supporting the end-users French Federation meeting - Lyon 11 June 2004 - 6

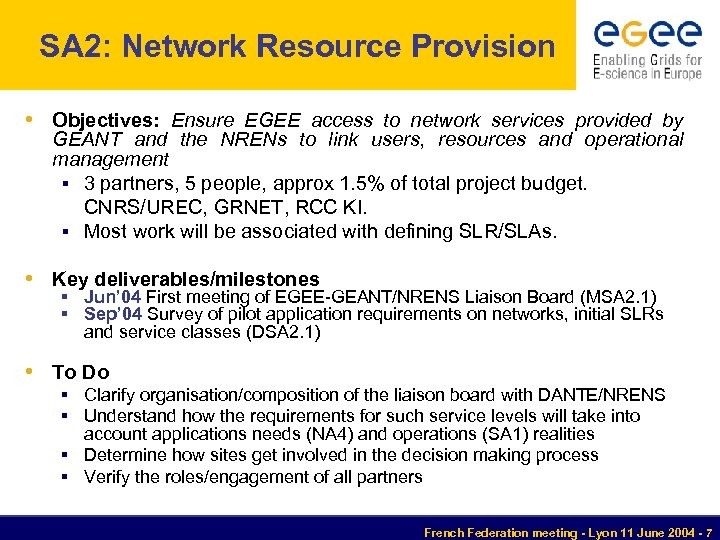

SA 2: Network Resource Provision • Objectives: Ensure EGEE access to network services provided by GEANT and the NRENs to link users, resources and operational management § 3 partners, 5 people, approx 1. 5% of total project budget. CNRS/UREC, GRNET, RCC KI. § Most work will be associated with defining SLR/SLAs. • Key deliverables/milestones § Jun’ 04 First meeting of EGEE-GEANT/NRENS Liaison Board (MSA 2. 1) § Sep’ 04 Survey of pilot application requirements on networks, initial SLRs and service classes (DSA 2. 1) • To Do § Clarify organisation/composition of the liaison board with DANTE/NRENS § Understand how the requirements for such service levels will take into account applications needs (NA 4) and operations (SA 1) realities § Determine how sites get involved in the decision making process § Verify the roles/engagement of all partners French Federation meeting - Lyon 11 June 2004 - 7

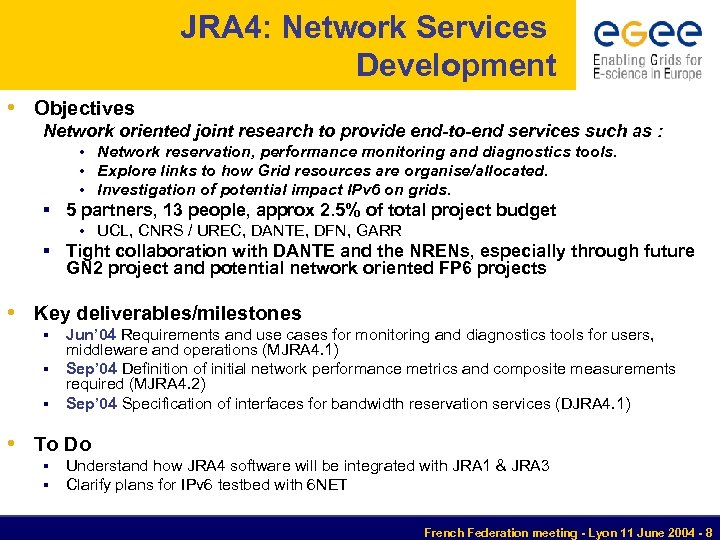

JRA 4: Network Services Development • Objectives Network oriented joint research to provide end-to-end services such as : • Network reservation, performance monitoring and diagnostics tools. • Explore links to how Grid resources are organise/allocated. • Investigation of potential impact IPv 6 on grids. § 5 partners, 13 people, approx 2. 5% of total project budget • UCL, CNRS / UREC, DANTE, DFN, GARR § Tight collaboration with DANTE and the NRENs, especially through future GN 2 project and potential network oriented FP 6 projects • Key deliverables/milestones Jun’ 04 Requirements and use cases for monitoring and diagnostics tools for users, middleware and operations (MJRA 4. 1) § Sep’ 04 Definition of initial network performance metrics and composite measurements required (MJRA 4. 2) § Sep’ 04 Specification of interfaces for bandwidth reservation services (DJRA 4. 1) § • To Do § § Understand how JRA 4 software will be integrated with JRA 1 & JRA 3 Clarify plans for IPv 6 testbed with 6 NET French Federation meeting - Lyon 11 June 2004 - 8

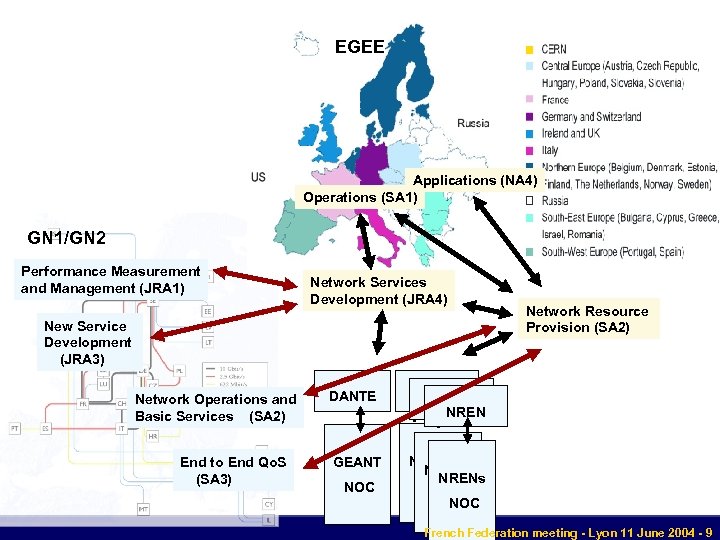

EGEE Applications (NA 4) Operations (SA 1) GN 1/GN 2 Performance Measurement and Management (JRA 1) Network Services Development (JRA 4) New Service Development (JRA 3) Network Operations and Basic Services (SA 2) End to End Qo. S (SA 3) DANTE GEANT NOC Network Resource Provision (SA 2) NRENs NRENs NOC NOC French Federation meeting - Lyon 11 June 2004 - 9

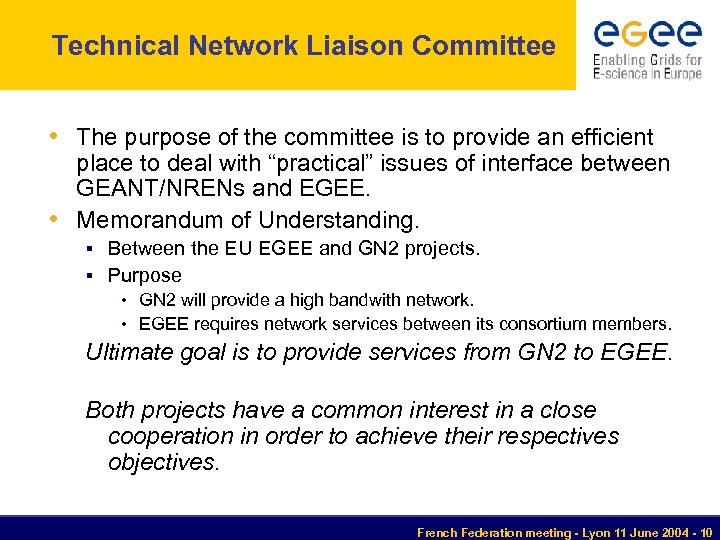

Technical Network Liaison Committee • The purpose of the committee is to provide an efficient place to deal with “practical” issues of interface between GEANT/NRENs and EGEE. • Memorandum of Understanding. § Between the EU EGEE and GN 2 projects. § Purpose • GN 2 will provide a high bandwith network. • EGEE requires network services between its consortium members. Ultimate goal is to provide services from GN 2 to EGEE. Both projects have a common interest in a close cooperation in order to achieve their respectives objectives. French Federation meeting - Lyon 11 June 2004 - 10

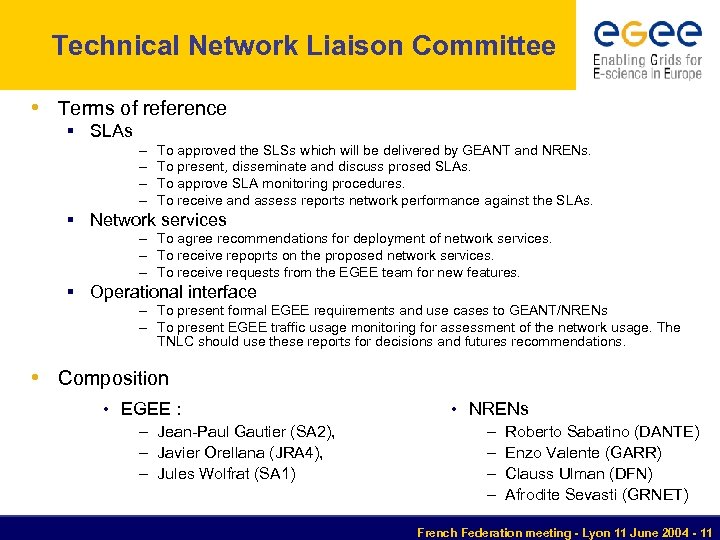

Technical Network Liaison Committee • Terms of reference § SLAs – – To approved the SLSs which will be delivered by GEANT and NRENs. To present, disseminate and discuss prosed SLAs. To approve SLA monitoring procedures. To receive and assess reports network performance against the SLAs. § Network services – To agree recommendations for deployment of network services. – To receive repoprts on the proposed network services. – To receive requests from the EGEE team for new features. § Operational interface – To present formal EGEE requirements and use cases to GEANT/NRENs – To present EGEE traffic usage monitoring for assessment of the network usage. The TNLC should use these reports for decisions and futures recommendations. • Composition • EGEE : – Jean-Paul Gautier (SA 2), – Javier Orellana (JRA 4), – Jules Wolfrat (SA 1) • NRENs – Roberto Sabatino (DANTE) – Enzo Valente (GARR) – Clauss Ulman (DFN) – Afrodite Sevasti (GRNET) French Federation meeting - Lyon 11 June 2004 - 11

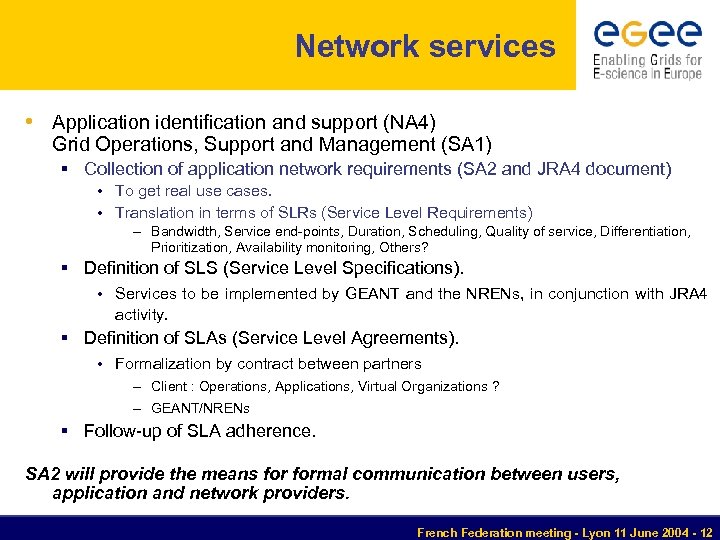

Network services • Application identification and support (NA 4) Grid Operations, Support and Management (SA 1) § Collection of application network requirements (SA 2 and JRA 4 document) • To get real use cases. • Translation in terms of SLRs (Service Level Requirements) – Bandwidth, Service end-points, Duration, Scheduling, Quality of service, Differentiation, Prioritization, Availability monitoring, Others? § Definition of SLS (Service Level Specifications). • Services to be implemented by GEANT and the NRENs, in conjunction with JRA 4 activity. § Definition of SLAs (Service Level Agreements). • Formalization by contract between partners – Client : Operations, Applications, Virtual Organizations ? – GEANT/NRENs § Follow-up of SLA adherence. SA 2 will provide the means formal communication between users, application and network providers. French Federation meeting - Lyon 11 June 2004 - 12

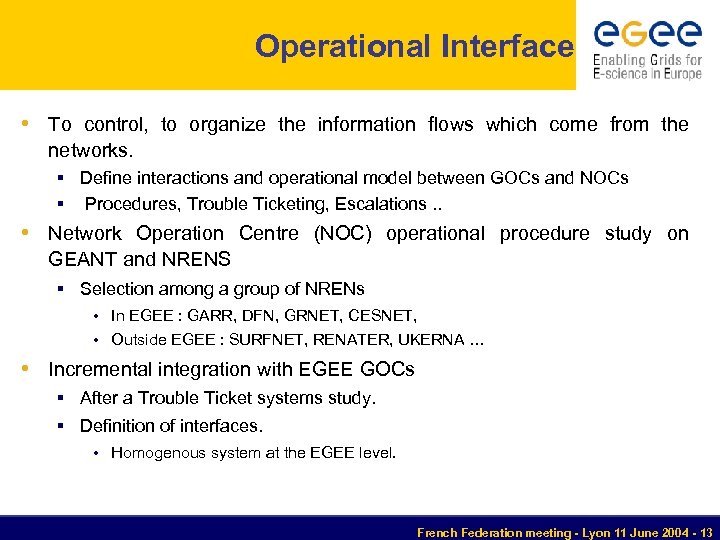

Operational Interface • To control, to organize the information flows which come from the networks. § Define interactions and operational model between GOCs and NOCs § Procedures, Trouble Ticketing, Escalations. . • Network Operation Centre (NOC) operational procedure study on GEANT and NRENS § Selection among a group of NRENs • In EGEE : GARR, DFN, GRNET, CESNET, • Outside EGEE : SURFNET, RENATER, UKERNA … • Incremental integration with EGEE GOCs § After a Trouble Ticket systems study. § Definition of interfaces. • Homogenous system at the EGEE level. French Federation meeting - Lyon 11 June 2004 - 13

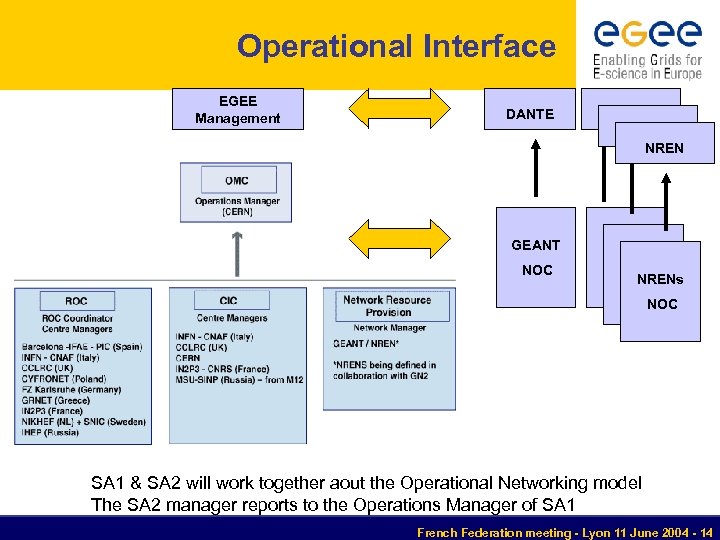

Operational Interface EGEE Management DANTE GEANT NOC NRENs NRENs NOC NOC SA 1 & SA 2 will work together aout the Operational Networking model The SA 2 manager reports to the Operations Manager of SA 1 French Federation meeting - Lyon 11 June 2004 - 14

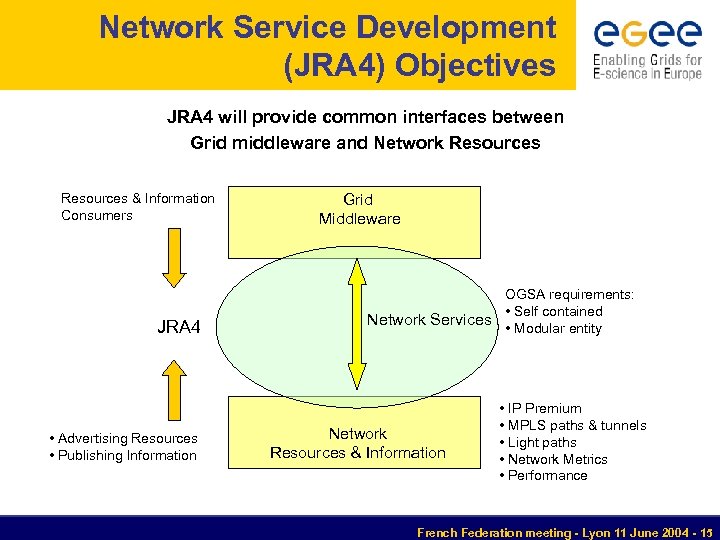

Network Service Development (JRA 4) Objectives JRA 4 will provide common interfaces between Grid middleware and Network Resources & Information Consumers JRA 4 • Advertising Resources • Publishing Information Grid Middleware OGSA requirements: • Self contained Network Services • Modular entity Network Resources & Information • IP Premium • MPLS paths & tunnels • Light paths • Network Metrics • Performance French Federation meeting - Lyon 11 June 2004 - 15

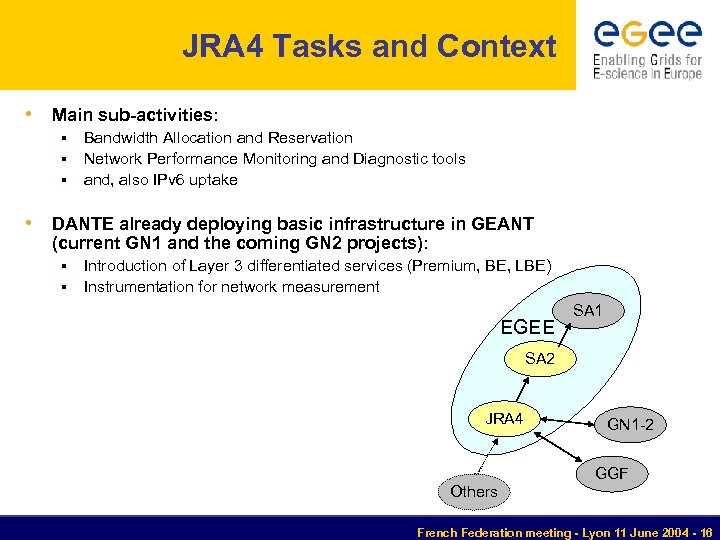

JRA 4 Tasks and Context • Main sub-activities: § § § Bandwidth Allocation and Reservation Network Performance Monitoring and Diagnostic tools and, also IPv 6 uptake • DANTE already deploying basic infrastructure in GEANT (current GN 1 and the coming GN 2 projects): § § Introduction of Layer 3 differentiated services (Premium, BE, LBE) Instrumentation for network measurement EGEE SA 1 SA 2 JRA 4 GN 1 -2 GGF Others French Federation meeting - Lyon 11 June 2004 - 16

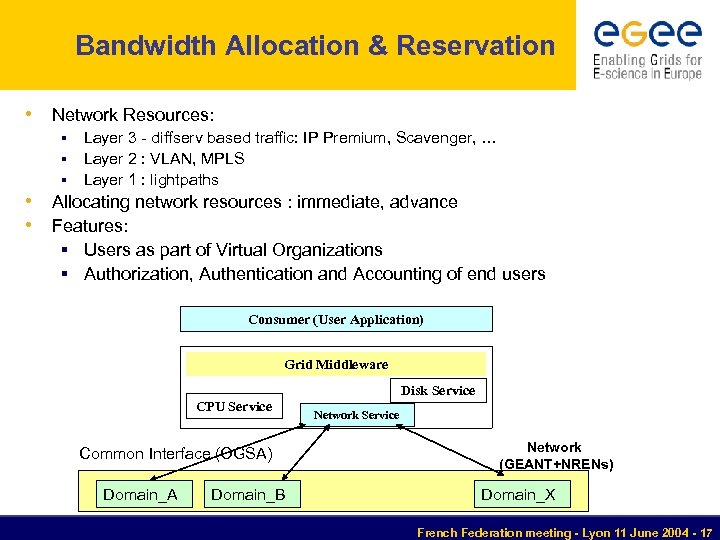

Bandwidth Allocation & Reservation • Network Resources: § § § Layer 3 - diffserv based traffic: IP Premium, Scavenger, … Layer 2 : VLAN, MPLS Layer 1 : lightpaths • Allocating network resources : immediate, advance • Features: § Users as part of Virtual Organizations § Authorization, Authentication and Accounting of end users Consumer (User Application) Grid Middleware CPU Service Common Interface (OGSA) Domain_A Domain_B Disk Service Network (GEANT+NRENs) Domain_X French Federation meeting - Lyon 11 June 2004 - 17

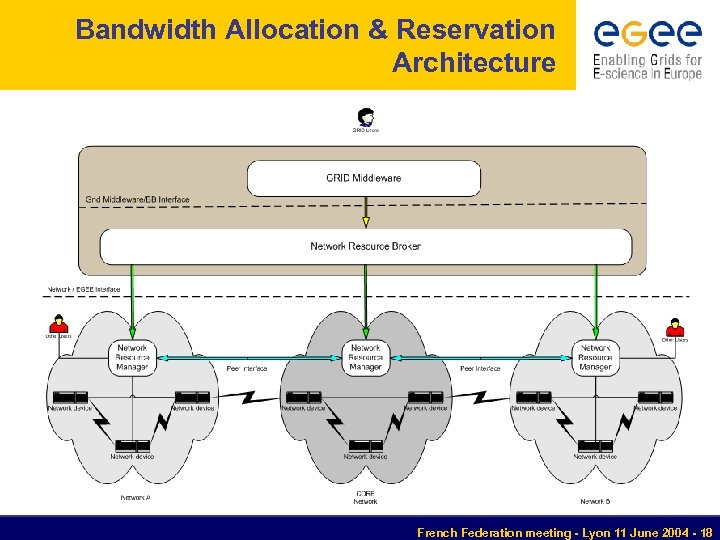

Bandwidth Allocation & Reservation Architecture French Federation meeting - Lyon 11 June 2004 - 18

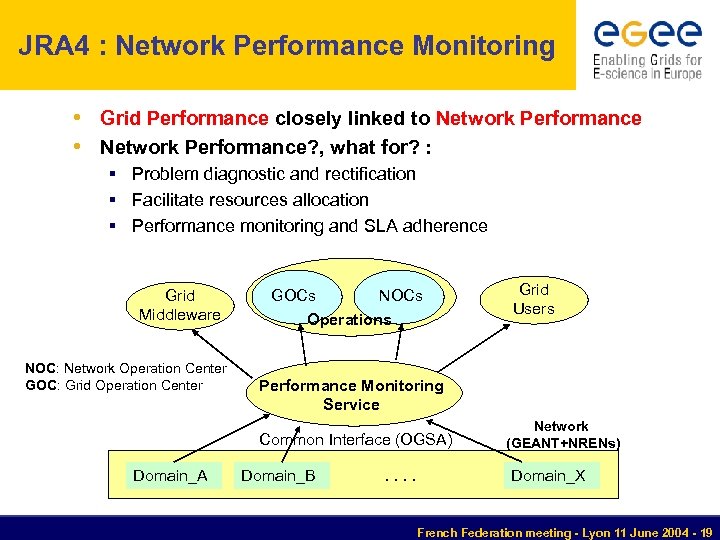

JRA 4 : Network Performance Monitoring • Grid Performance closely linked to Network Performance • Network Performance? , what for? : § Problem diagnostic and rectification § Facilitate resources allocation § Performance monitoring and SLA adherence Grid Middleware NOC: Network Operation Center GOC: Grid Operation Center GOCs NOCs Operations Performance Monitoring Service Common Interface (OGSA) Domain_A Grid Users Domain_B . . Network (GEANT+NRENs) Domain_X French Federation meeting - Lyon 11 June 2004 - 19

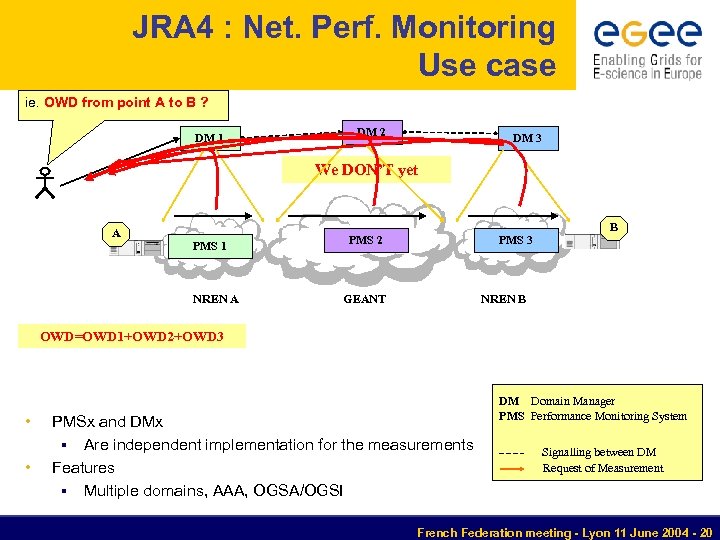

JRA 4 : Net. Perf. Monitoring Use case ie. OWD from point A to B ? DM 1 DM 2 DM 3 We got that already We DON’T yet A PMS 1 NREN A PMS 2 PMS 3 GEANT B NREN B OWD=OWD 1+OWD 2+OWD 3 • • PMSx and DMx § Are independent implementation for the measurements Features § Multiple domains, AAA, OGSA/OGSI DM Domain Manager PMS Performance Monitoring System Signalling between DM Request of Measurement French Federation meeting - Lyon 11 June 2004 - 20

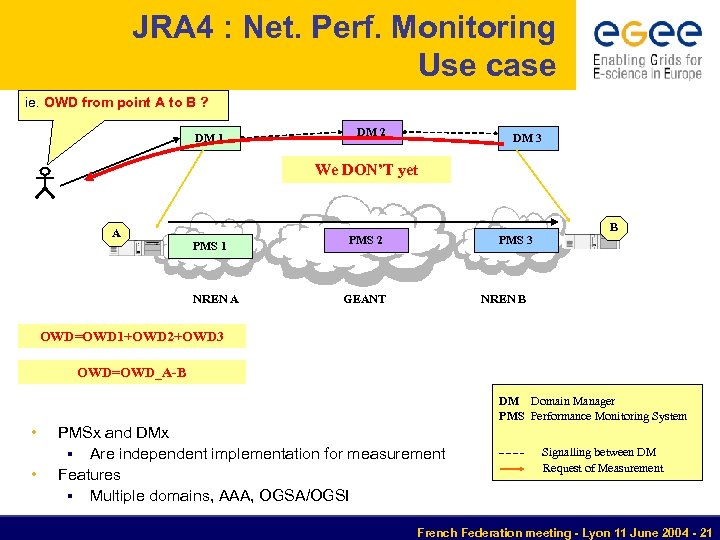

JRA 4 : Net. Perf. Monitoring Use case ie. OWD from point A to B ? DM 1 DM 2 DM 3 We DON’T yet A PMS 1 NREN A PMS 2 PMS 3 GEANT B NREN B OWD=OWD 1+OWD 2+OWD 3 OWD=OWD_A-B • • DM Domain Manager PMS Performance Monitoring System PMSx and DMx § Are independent implementation for measurement Features § Multiple domains, AAA, OGSA/OGSI Signalling between DM Request of Measurement French Federation meeting - Lyon 11 June 2004 - 21

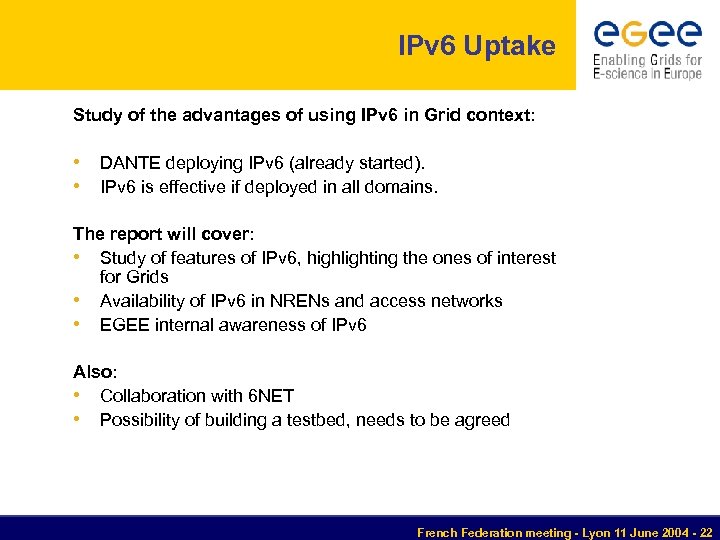

IPv 6 Uptake Study of the advantages of using IPv 6 in Grid context: • DANTE deploying IPv 6 (already started). • IPv 6 is effective if deployed in all domains. The report will cover: • Study of features of IPv 6, highlighting the ones of interest for Grids • Availability of IPv 6 in NRENs and access networks • EGEE internal awareness of IPv 6 Also: • Collaboration with 6 NET • Possibility of building a testbed, needs to be agreed French Federation meeting - Lyon 11 June 2004 - 22

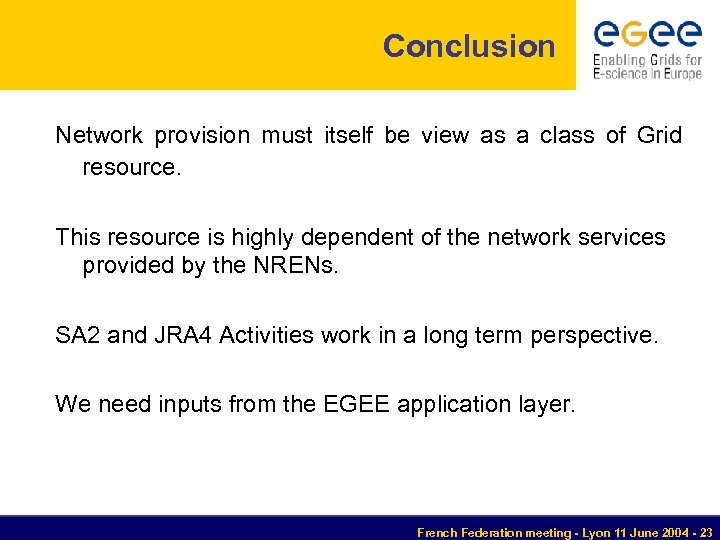

Conclusion Network provision must itself be view as a class of Grid resource. This resource is highly dependent of the network services provided by the NRENs. SA 2 and JRA 4 Activities work in a long term perspective. We need inputs from the EGEE application layer. French Federation meeting - Lyon 11 June 2004 - 23
