Freeport Regional Water Project Freeport Pipeline Project FREEPORT REGIONAL WATER AUTHORITY Freeport Regional Water Project Freeport Pipeline Project FREEPORT REGIONAL WATER AUTHORITY

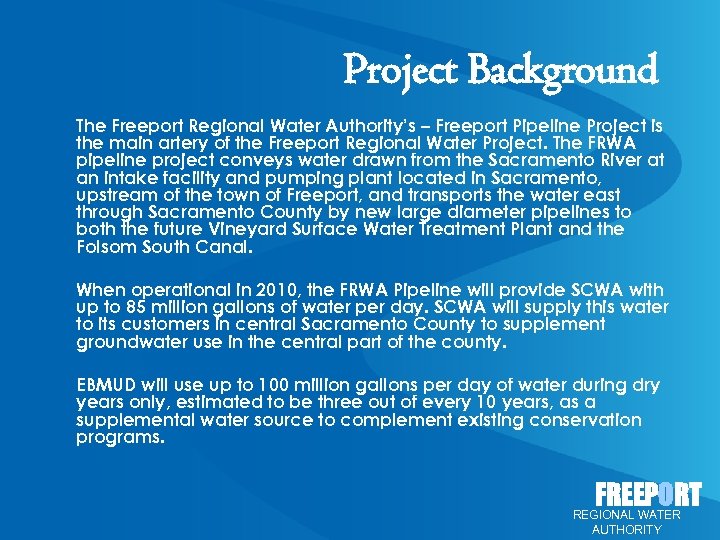

Project Background The Freeport Regional Water Authority’s – Freeport Pipeline Project is the main Project Background The Freeport Regional Water Authority’s – Freeport Pipeline Project is the main artery of the Freeport Regional Water Project. The FRWA pipeline project conveys water drawn from the Sacramento River at an intake facility and pumping plant located in Sacramento, upstream of the town of Freeport, and transports the water east through Sacramento County by new large diameter pipelines to both the future Vineyard Surface Water Treatment Plant and the Folsom South Canal. When operational in 2010, the FRWA Pipeline will provide SCWA with up to 85 million gallons of water per day. SCWA will supply this water to its customers in central Sacramento County to supplement groundwater use in the central part of the county. EBMUD will use up to 100 million gallons per day of water during dry years only, estimated to be three out of every 10 years, as a supplemental water source to complement existing conservation programs. FREEPORT REGIONAL WATER AUTHORITY

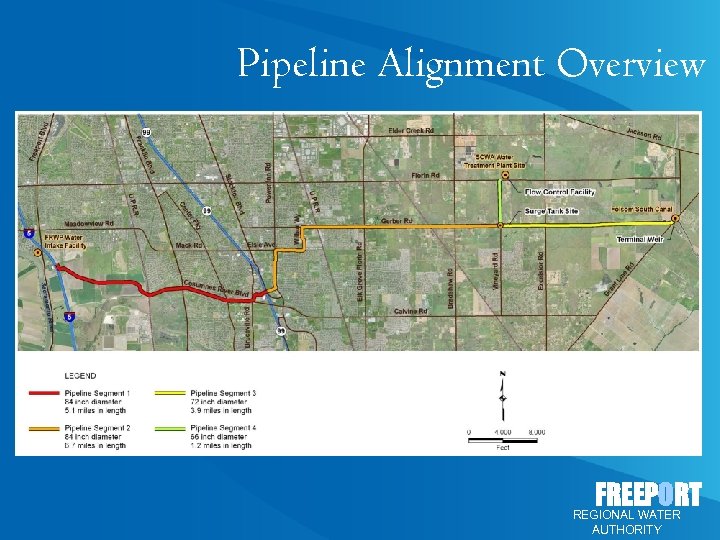

Pipeline Alignment Overview FREEPORT REGIONAL WATER AUTHORITY Pipeline Alignment Overview FREEPORT REGIONAL WATER AUTHORITY

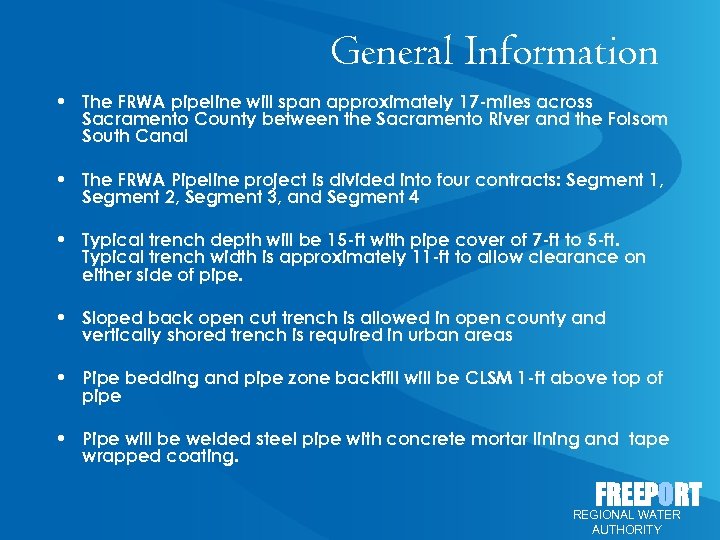

General Information • The FRWA pipeline will span approximately 17 -miles across Sacramento County General Information • The FRWA pipeline will span approximately 17 -miles across Sacramento County between the Sacramento River and the Folsom South Canal • The FRWA Pipeline project is divided into four contracts: Segment 1, Segment 2, Segment 3, and Segment 4 • Typical trench depth will be 15 -ft with pipe cover of 7 -ft to 5 -ft. Typical trench width is approximately 11 -ft to allow clearance on either side of pipe. • Sloped back open cut trench is allowed in open county and vertically shored trench is required in urban areas • Pipe bedding and pipe zone backfill will be CLSM 1 -ft above top of pipe • Pipe will be welded steel pipe with concrete mortar lining and tape wrapped coating. FREEPORT REGIONAL WATER AUTHORITY

Segment 1 is located between I-5 and Highway 99. The pipeline traverses through open Segment 1 is located between I-5 and Highway 99. The pipeline traverses through open country and urban areas FREEPORT REGIONAL WATER AUTHORITY

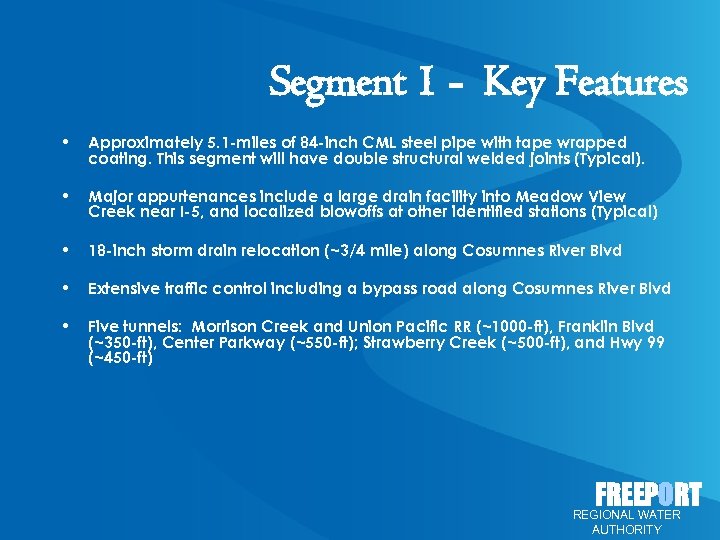

Segment 1 - Key Features • Approximately 5. 1 -miles of 84 -inch CML Segment 1 - Key Features • Approximately 5. 1 -miles of 84 -inch CML steel pipe with tape wrapped coating. This segment will have double structural welded joints (Typical). • Major appurtenances include a large drain facility into Meadow View Creek near I-5, and localized blowoffs at other identified stations (Typical) • 18 -inch storm drain relocation (~3/4 mile) along Cosumnes River Blvd • Extensive traffic control including a bypass road along Cosumnes River Blvd • Five tunnels: Morrison Creek and Union Pacific RR (~1000 -ft), Franklin Blvd (~350 -ft), Center Parkway (~550 -ft); Strawberry Creek (~500 -ft), and Hwy 99 (~450 -ft) FREEPORT REGIONAL WATER AUTHORITY

Segment 2 is located between Highway 99 and Vineyard Road. The pipeline traverses through Segment 2 is located between Highway 99 and Vineyard Road. The pipeline traverses through urban areas. FREEPORT REGIONAL WATER AUTHORITY

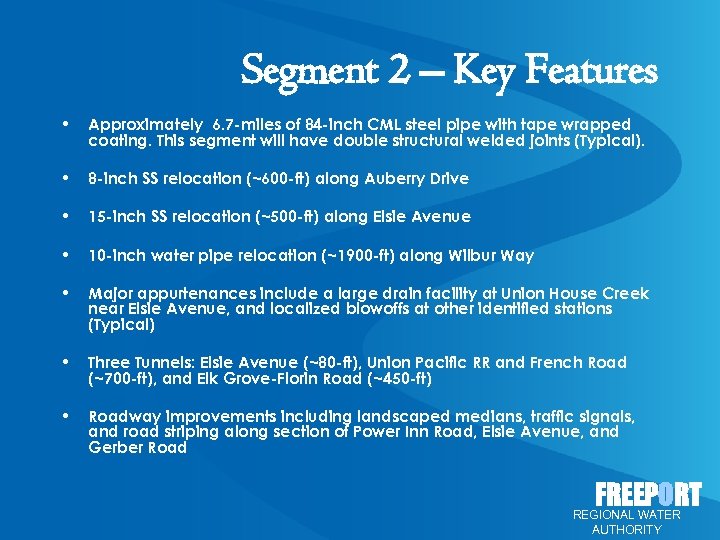

Segment 2 – Key Features • Approximately 6. 7 -miles of 84 -inch CML Segment 2 – Key Features • Approximately 6. 7 -miles of 84 -inch CML steel pipe with tape wrapped coating. This segment will have double structural welded joints (Typical). • 8 -inch SS relocation (~600 -ft) along Auberry Drive • 15 -inch SS relocation (~500 -ft) along Elsie Avenue • 10 -inch water pipe relocation (~1900 -ft) along Wilbur Way • Major appurtenances include a large drain facility at Union House Creek near Elsie Avenue, and localized blowoffs at other identified stations (Typical) • Three Tunnels: Elsie Avenue (~80 -ft), Union Pacific RR and French Road (~700 -ft), and Elk Grove-Florin Road (~450 -ft) • Roadway improvements including landscaped medians, traffic signals, and road striping along section of Power Inn Road, Elsie Avenue, and Gerber Road FREEPORT REGIONAL WATER AUTHORITY

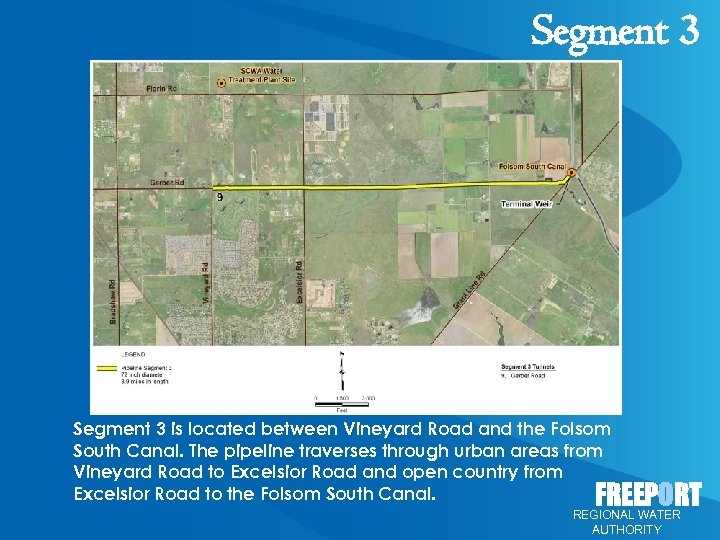

Segment 3 is located between Vineyard Road and the Folsom South Canal. The pipeline Segment 3 is located between Vineyard Road and the Folsom South Canal. The pipeline traverses through urban areas from Vineyard Road to Excelsior Road and open country from Excelsior Road to the Folsom South Canal. FREEPORT REGIONAL WATER AUTHORITY

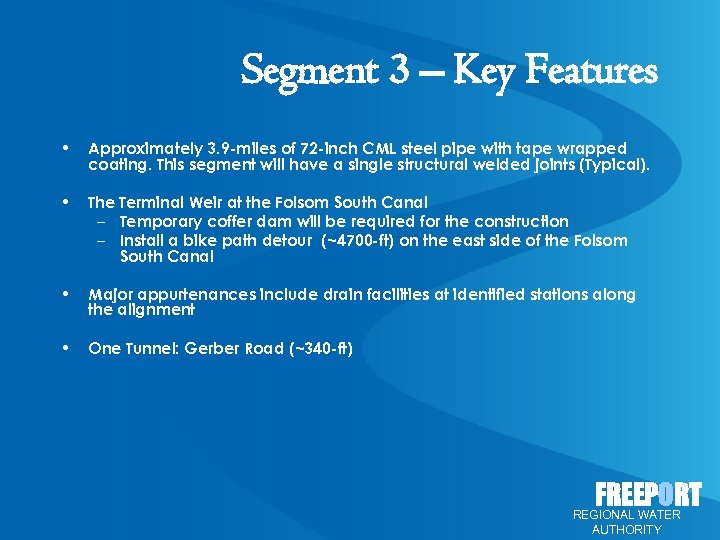

Segment 3 – Key Features • Approximately 3. 9 -miles of 72 -inch CML Segment 3 – Key Features • Approximately 3. 9 -miles of 72 -inch CML steel pipe with tape wrapped coating. This segment will have a single structural welded joints (Typical). • The Terminal Weir at the Folsom South Canal – Temporary coffer dam will be required for the construction – Install a bike path detour (~4700 -ft) on the east side of the Folsom South Canal • Major appurtenances include drain facilities at identified stations along the alignment • One Tunnel: Gerber Road (~340 -ft) FREEPORT REGIONAL WATER AUTHORITY

Segment 4 is located between the Vineyard Road and Gerber Road Intersection to just Segment 4 is located between the Vineyard Road and Gerber Road Intersection to just north of Florin Road. The pipeline traverses through open country FREEPORT REGIONAL WATER AUTHORITY

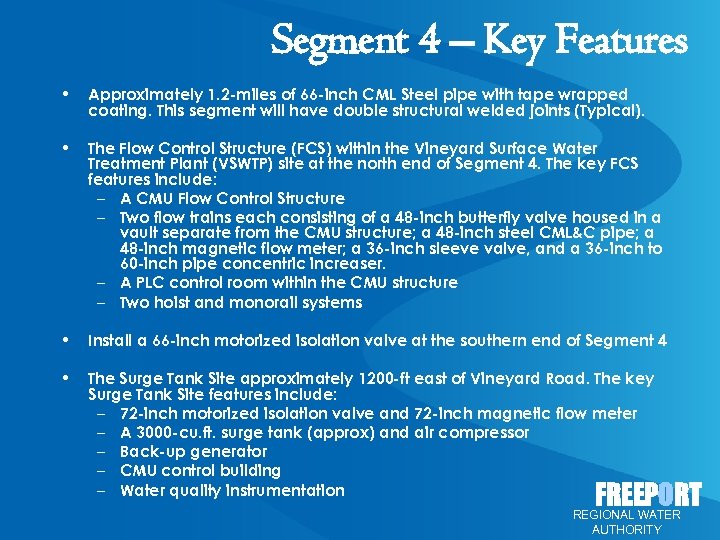

Segment 4 – Key Features • Approximately 1. 2 -miles of 66 -inch CML Segment 4 – Key Features • Approximately 1. 2 -miles of 66 -inch CML Steel pipe with tape wrapped coating. This segment will have double structural welded joints (Typical). • The Flow Control Structure (FCS) within the Vineyard Surface Water Treatment Plant (VSWTP) site at the north end of Segment 4. The key FCS features include: – A CMU Flow Control Structure – Two flow trains each consisting of a 48 -inch butterfly valve housed in a vault separate from the CMU structure; a 48 -inch steel CML&C pipe; a 48 -inch magnetic flow meter; a 36 -inch sleeve valve, and a 36 -inch to 60 -inch pipe concentric increaser. – A PLC control room within the CMU structure – Two hoist and monorail systems • Install a 66 -inch motorized isolation valve at the southern end of Segment 4 • The Surge Tank Site approximately 1200 -ft east of Vineyard Road. The key Surge Tank Site features include: – 72 -inch motorized isolation valve and 72 -inch magnetic flow meter – A 3000 -cu. ft. surge tank (approx) and air compressor – Back-up generator – CMU control building – Water quality instrumentation FREEPORT REGIONAL WATER AUTHORITY

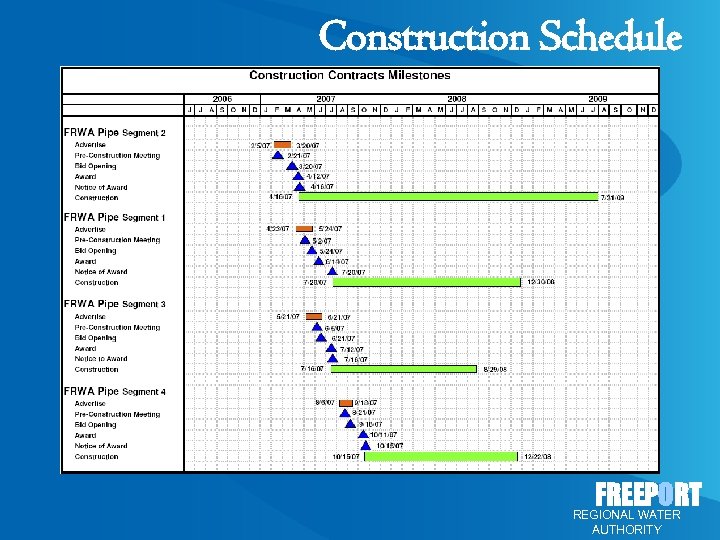

Construction Schedule FREEPORT REGIONAL WATER AUTHORITY Construction Schedule FREEPORT REGIONAL WATER AUTHORITY

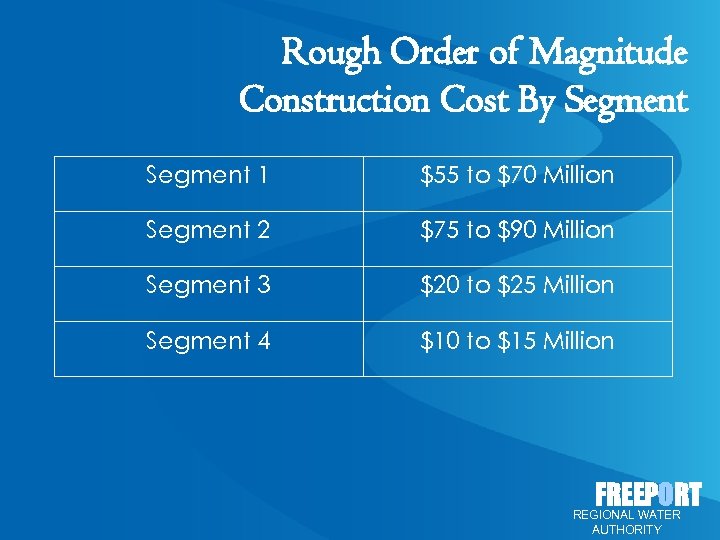

Rough Order of Magnitude Construction Cost By Segment 1 $55 to $70 Million Segment Rough Order of Magnitude Construction Cost By Segment 1 $55 to $70 Million Segment 2 $75 to $90 Million Segment 3 $20 to $25 Million Segment 4 $10 to $15 Million FREEPORT REGIONAL WATER AUTHORITY

Contact Information Brian Lee, Pipeline Project Manager (916) 643 -1738 Tom Dugan, Pipeline Project Contact Information Brian Lee, Pipeline Project Manager (916) 643 -1738 Tom Dugan, Pipeline Project Engineer (916) 643 -1745 Freeport Regional Water Authority 2710 Gateway Oaks Drive, Ste. 320 -South Sacramento, CA 95833 Phone: (916) 643 -1717 www. freeportproject. org FREEPORT REGIONAL WATER AUTHORITY

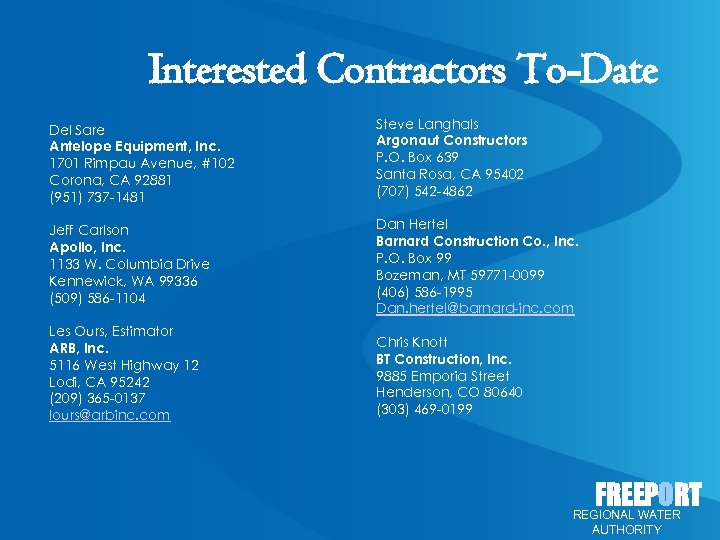

Interested Contractors To-Date Del Sare Antelope Equipment, Inc. 1701 Rimpau Avenue, #102 Corona, CA Interested Contractors To-Date Del Sare Antelope Equipment, Inc. 1701 Rimpau Avenue, #102 Corona, CA 92881 (951) 737 -1481 Steve Langhals Argonaut Constructors P. O. Box 639 Santa Rosa, CA 95402 (707) 542 -4862 Jeff Carlson Apollo, Inc. 1133 W. Columbia Drive Kennewick, WA 99336 (509) 586 -1104 Dan Hertel Barnard Construction Co. , Inc. P. O. Box 99 Bozeman, MT 59771 -0099 (406) 586 -1995 Dan. hertel@barnard-inc. com Les Ours, Estimator ARB, Inc. 5116 West Highway 12 Lodi, CA 95242 (209) 365 -0137 lours@arbinc. com Chris Knott BT Construction, Inc. 9885 Emporia Street Henderson, CO 80640 (303) 469 -0199 FREEPORT REGIONAL WATER AUTHORITY

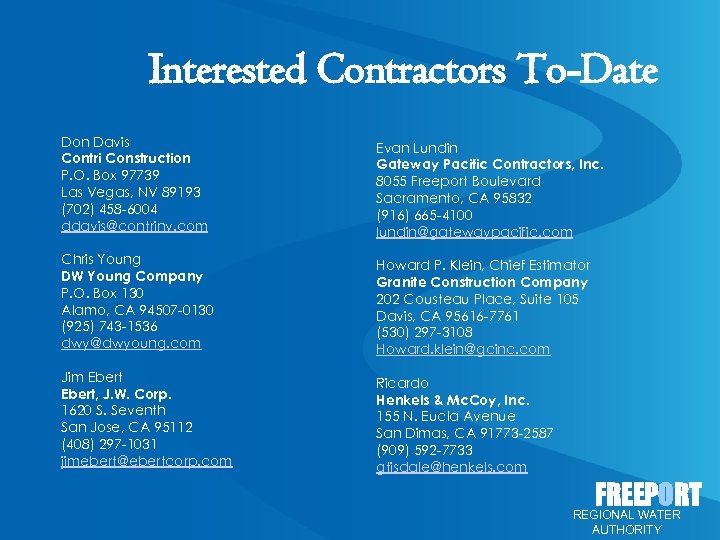

Interested Contractors To-Date Don Davis Contri Construction P. O. Box 97739 Las Vegas, NV Interested Contractors To-Date Don Davis Contri Construction P. O. Box 97739 Las Vegas, NV 89193 (702) 458 -6004 ddavis@contrinv. com Evan Lundin Gateway Pacific Contractors, Inc. 8055 Freeport Boulevard Sacramento, CA 95832 (916) 665 -4100 lundin@gatewaypacific. com Chris Young DW Young Company P. O. Box 130 Alamo, CA 94507 -0130 (925) 743 -1536 dwy@dwyoung. com Howard P. Klein, Chief Estimator Granite Construction Company 202 Cousteau Place, Suite 105 Davis, CA 95616 -7761 (530) 297 -3108 Howard. klein@gcinc. com Jim Ebert, J. W. Corp. 1620 S. Seventh San Jose, CA 95112 (408) 297 -1031 jimebert@ebertcorp. com Ricardo Henkels & Mc. Coy, Inc. 155 N. Eucla Avenue San Dimas, CA 91773 -2587 (909) 592 -7733 gtisdale@henkels. com FREEPORT REGIONAL WATER AUTHORITY

Interested Contractors To-Date Terrell Maroney J. Fletcher Creamer & Son, Inc. 12874 San Fernando Interested Contractors To-Date Terrell Maroney J. Fletcher Creamer & Son, Inc. 12874 San Fernando Road Sylmar, CA 91342 (818) 367 -9748 tmaroney@jfcfon. com Mark Jacobson JMB Construction, Inc. 132 South Maple Avenue South San Francisco, CA 94080 (650) 267 -5300 mark@jmbconstruction. com Mike Jardin Pipeline, Inc. P. O. Box 20817 Castro Valley, CA 94546 (510) 782 -5335 caltrenchless@aol. com Lance Regular Kiewit Pacific Co. 5000 Marsh Drive Concord, CA 94520 (925) 686 -3030 Lance. regular@norcal. kiewit. com Dennis Poulton JF Shea Construction 655 Brea Canyon Road Walnut, CA 91789 (909) 594 -9500 Dennis. poulton@jfshea. com Jim Briggs L. H. Woods & Son, Inc. 2115 La Mirada Drive Vista, CA 92081 (760) 599 -5500 jbriggs@lhwoods. com FREEPORT REGIONAL WATER AUTHORITY

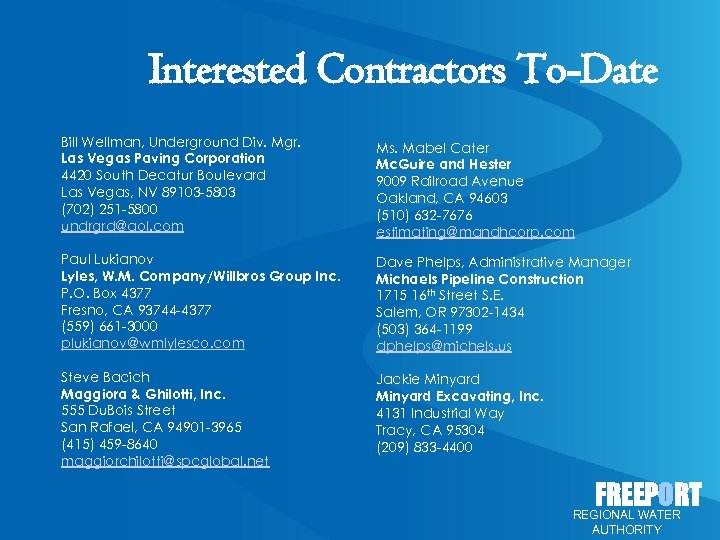

Interested Contractors To-Date Bill Wellman, Underground Div. Mgr. Las Vegas Paving Corporation 4420 South Interested Contractors To-Date Bill Wellman, Underground Div. Mgr. Las Vegas Paving Corporation 4420 South Decatur Boulevard Las Vegas, NV 89103 -5803 (702) 251 -5800 undrgrd@aol. com Ms. Mabel Cater Mc. Guire and Hester 9009 Railroad Avenue Oakland, CA 94603 (510) 632 -7676 estimating@mandhcorp. com Paul Lukianov Lyles, W. M. Company/Willbros Group Inc. P. O. Box 4377 Fresno, CA 93744 -4377 (559) 661 -3000 plukianov@wmlylesco. com Dave Phelps, Administrative Manager Michaels Pipeline Construction 1715 16 th Street S. E. Salem, OR 97302 -1434 (503) 364 -1199 dphelps@michels. us Steve Bacich Maggiora & Ghilotti, Inc. 555 Du. Bois Street San Rafael, CA 94901 -3965 (415) 459 -8640 maggiorchilotti@spcglobal. net Jackie Minyard Excavating, Inc. 4131 Industrial Way Tracy, CA 95304 (209) 833 -4400 FREEPORT REGIONAL WATER AUTHORITY

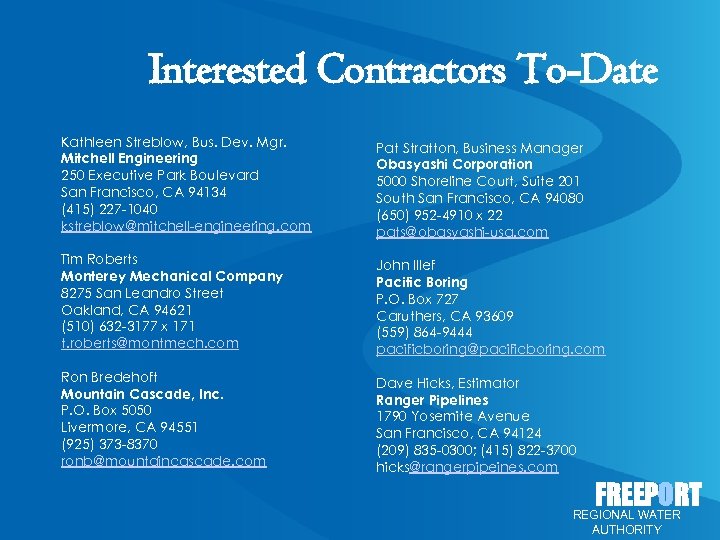

Interested Contractors To-Date Kathleen Streblow, Bus. Dev. Mgr. Mitchell Engineering 250 Executive Park Boulevard Interested Contractors To-Date Kathleen Streblow, Bus. Dev. Mgr. Mitchell Engineering 250 Executive Park Boulevard San Francisco, CA 94134 (415) 227 -1040 kstreblow@mitchell-engineering. com Pat Stratton, Business Manager Obasyashi Corporation 5000 Shoreline Court, Suite 201 South San Francisco, CA 94080 (650) 952 -4910 x 22 pats@obasyashi-usa. com Tim Roberts Monterey Mechanical Company 8275 San Leandro Street Oakland, CA 94621 (510) 632 -3177 x 171 t. roberts@montmech. com John Illef Pacific Boring P. O. Box 727 Caruthers, CA 93609 (559) 864 -9444 pacificboring@pacificboring. com Ron Bredehoft Mountain Cascade, Inc. P. O. Box 5050 Livermore, CA 94551 (925) 373 -8370 ronb@mountaincascade. com Dave Hicks, Estimator Ranger Pipelines 1790 Yosemite Avenue San Francisco, CA 94124 (209) 835 -0300; (415) 822 -3700 hicks@rangerpipeines. com FREEPORT REGIONAL WATER AUTHORITY

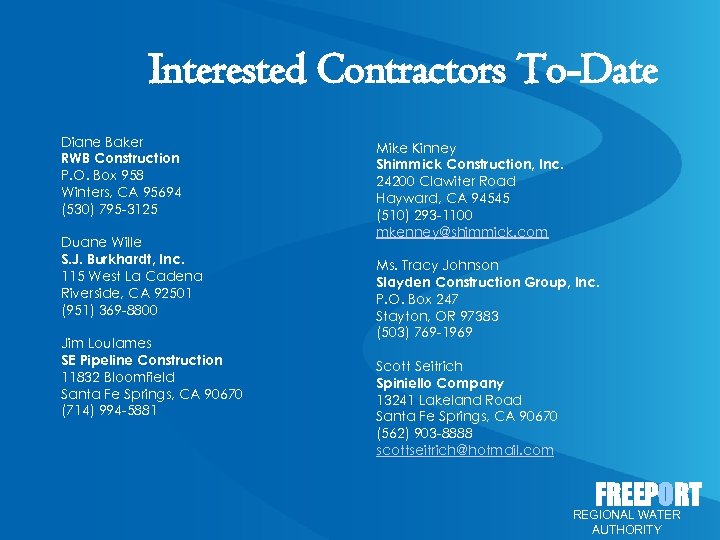

Interested Contractors To-Date Diane Baker RWB Construction P. O. Box 958 Winters, CA 95694 Interested Contractors To-Date Diane Baker RWB Construction P. O. Box 958 Winters, CA 95694 (530) 795 -3125 Duane Wille S. J. Burkhardt, Inc. 115 West La Cadena Riverside, CA 92501 (951) 369 -8800 Jim Loulames SE Pipeline Construction 11832 Bloomfield Santa Fe Springs, CA 90670 (714) 994 -5881 Mike Kinney Shimmick Construction, Inc. 24200 Clawiter Road Hayward, CA 94545 (510) 293 -1100 mkenney@shimmick. com Ms. Tracy Johnson Slayden Construction Group, Inc. P. O. Box 247 Stayton, OR 97383 (503) 769 -1969 Scott Seitrich Spiniello Company 13241 Lakeland Road Santa Fe Springs, CA 90670 (562) 903 -8888 scottseitrich@hotmail. com FREEPORT REGIONAL WATER AUTHORITY

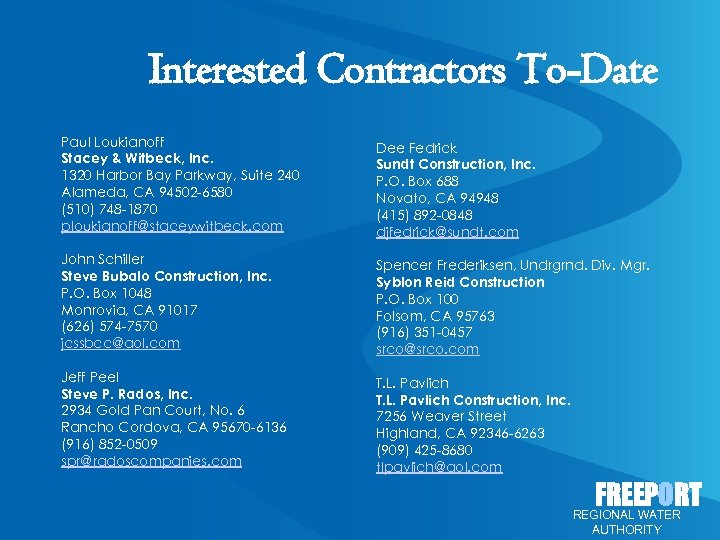

Interested Contractors To-Date Paul Loukianoff Stacey & Witbeck, Inc. 1320 Harbor Bay Parkway, Suite Interested Contractors To-Date Paul Loukianoff Stacey & Witbeck, Inc. 1320 Harbor Bay Parkway, Suite 240 Alameda, CA 94502 -6580 (510) 748 -1870 ploukianoff@staceywitbeck. com Dee Fedrick Sundt Construction, Inc. P. O. Box 688 Novato, CA 94948 (415) 892 -0848 djfedrick@sundt. com John Schiller Steve Bubalo Construction, Inc. P. O. Box 1048 Monrovia, CA 91017 (626) 574 -7570 jcssbcc@aol. com Spencer Frederiksen, Undrgrnd. Div. Mgr. Syblon Reid Construction P. O. Box 100 Folsom, CA 95763 (916) 351 -0457 srco@srco. com Jeff Peel Steve P. Rados, Inc. 2934 Gold Pan Court, No. 6 Rancho Cordova, CA 95670 -6136 (916) 852 -0509 spr@radoscompanies. com T. L. Pavlich Construction, Inc. 7256 Weaver Street Highland, CA 92346 -6263 (909) 425 -8680 tlpavlich@aol. com FREEPORT REGIONAL WATER AUTHORITY

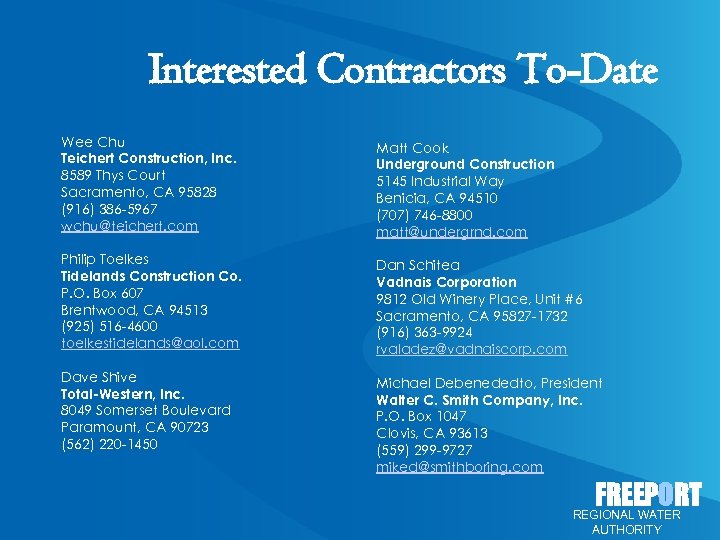

Interested Contractors To-Date Wee Chu Teichert Construction, Inc. 8589 Thys Court Sacramento, CA 95828 Interested Contractors To-Date Wee Chu Teichert Construction, Inc. 8589 Thys Court Sacramento, CA 95828 (916) 386 -5967 wchu@teichert. com Matt Cook Underground Construction 5145 Industrial Way Benicia, CA 94510 (707) 746 -8800 matt@undergrnd. com Philip Toelkes Tidelands Construction Co. P. O. Box 607 Brentwood, CA 94513 (925) 516 -4600 toelkestidelands@aol. com Dan Schitea Vadnais Corporation 9812 Old Winery Place, Unit #6 Sacramento, CA 95827 -1732 (916) 363 -9924 rvaladez@vadnaiscorp. com Dave Shive Total-Western, Inc. 8049 Somerset Boulevard Paramount, CA 90723 (562) 220 -1450 Michael Debenededto, President Walter C. Smith Company, Inc. P. O. Box 1047 Clovis, CA 93613 (559) 299 -9727 miked@smithboring. com FREEPORT REGIONAL WATER AUTHORITY

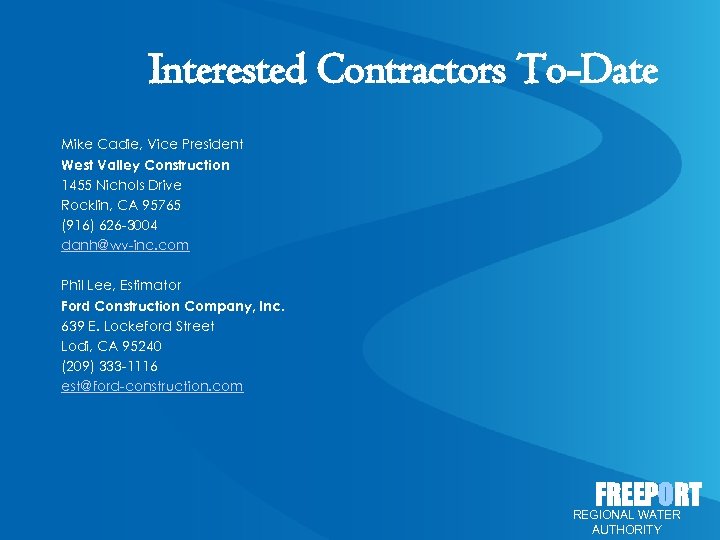

Interested Contractors To-Date Mike Cadie, Vice President West Valley Construction 1455 Nichols Drive Rocklin, Interested Contractors To-Date Mike Cadie, Vice President West Valley Construction 1455 Nichols Drive Rocklin, CA 95765 (916) 626 -3004 danh@wv-inc. com Phil Lee, Estimator Ford Construction Company, Inc. 639 E. Lockeford Street Lodi, CA 95240 (209) 333 -1116 est@ford-construction. com FREEPORT REGIONAL WATER AUTHORITY
