Foundations of Network and Computer Security John Black Lecture #33 Nov 30 th 2009 CSCI 6268/TLEN 5550, Fall 2009

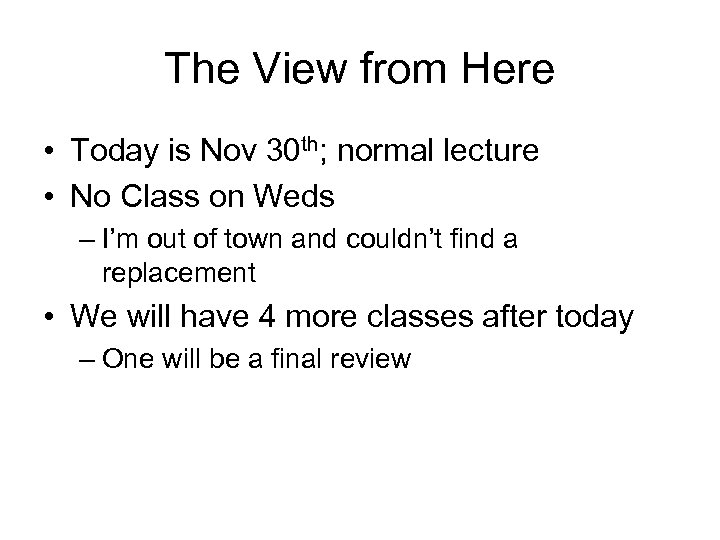

The View from Here • Today is Nov 30 th; normal lecture • No Class on Weds – I’m out of town and couldn’t find a replacement • We will have 4 more classes after today – One will be a final review
Project #2 • Postponing due date until Dec 11 th – There won’t be a 4 th project due to various factors • You should have received 2 test messages from me – One with a valid sig, one with an invalid sig – These are from jrblack@cs. colorado. edu in our cert table; do NOT use the CA as the sender

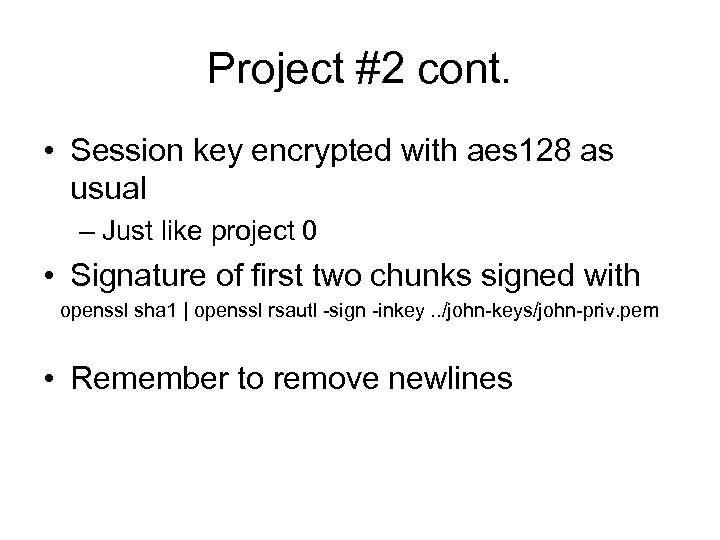

Project #2 cont. • Session key encrypted with aes 128 as usual – Just like project 0 • Signature of first two chunks signed with openssl sha 1 | openssl rsautl -sign -inkey. . /john-keys/john-priv. pem • Remember to remove newlines

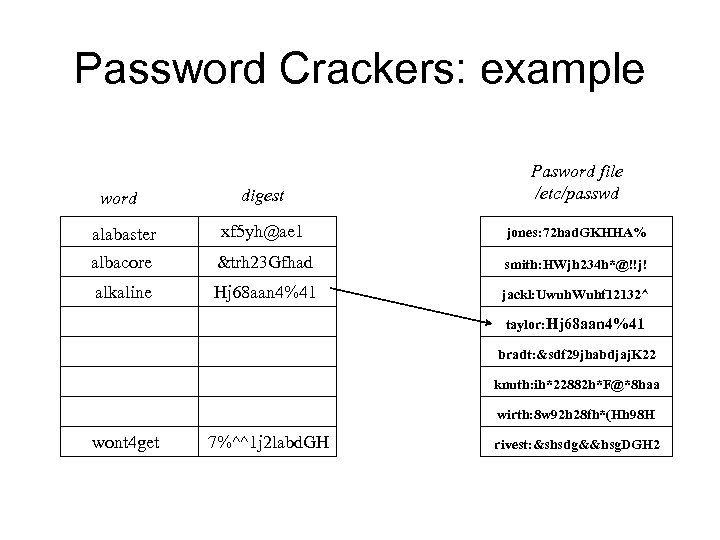

Password Crackers: example digest Pasword file /etc/passwd alabaster xf 5 yh@ae 1 jones: 72 had. GKHHA% albacore &trh 23 Gfhad smith: HWjh 234 h*@!!j! alkaline Hj 68 aan 4%41 jackl: Uwuh. Wuhf 12132^ word taylor: Hj 68 aan 4%41 bradt: &sdf 29 jhabdjaj. K 22 knuth: ih*22882 h*F@*8 haa wirth: 8 w 92 h 28 fh*(Hh 98 H wont 4 get 7%^^1 j 2 labd. GH rivest: &shsdg&&hsg. DGH 2

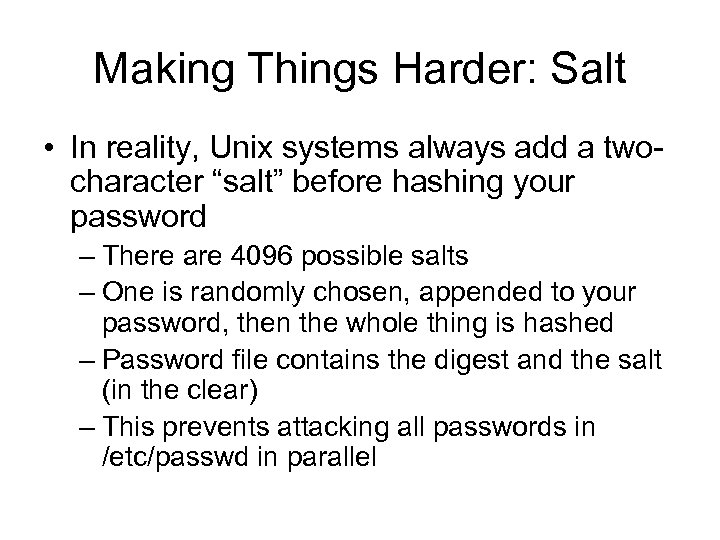

Making Things Harder: Salt • In reality, Unix systems always add a twocharacter “salt” before hashing your password – There are 4096 possible salts – One is randomly chosen, appended to your password, then the whole thing is hashed – Password file contains the digest and the salt (in the clear) – This prevents attacking all passwords in /etc/passwd in parallel

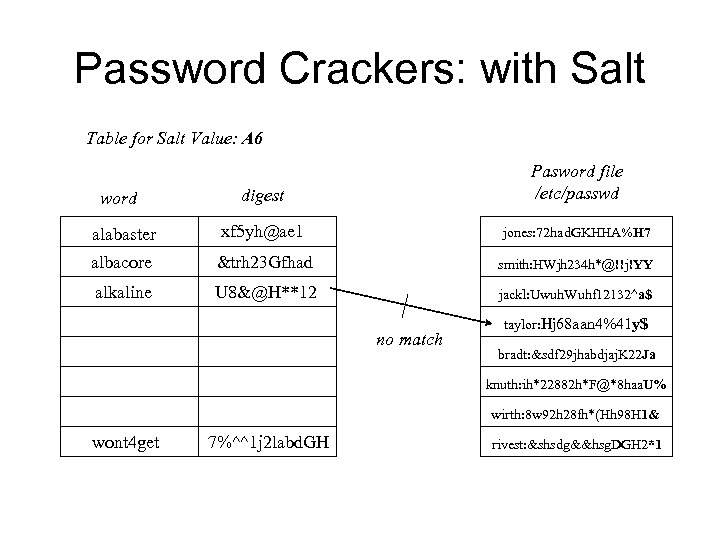

Password Crackers: with Salt Table for Salt Value: A 6 digest Pasword file /etc/passwd alabaster xf 5 yh@ae 1 jones: 72 had. GKHHA%H 7 albacore &trh 23 Gfhad smith: HWjh 234 h*@!!j!YY alkaline U 8&@H**12 jackl: Uwuh. Wuhf 12132^a$ word no match taylor: Hj 68 aan 4%41 y$ bradt: &sdf 29 jhabdjaj. K 22 Ja knuth: ih*22882 h*F@*8 haa. U% wirth: 8 w 92 h 28 fh*(Hh 98 H 1& wont 4 get 7%^^1 j 2 labd. GH rivest: &shsdg&&hsg. DGH 2*1
Fighting the Salt: 4096 Tables • Crackers build 4096 tables, one for each salt value – Build massive databases, on-line, for each salt • 100’s of GB was a lot of storage a few years ago, but not any longer! • Indexed for fast look-up • Most any common password is found quickly by such a program • Used by miscreants, but also by sysadmins to find weak passwords on their system

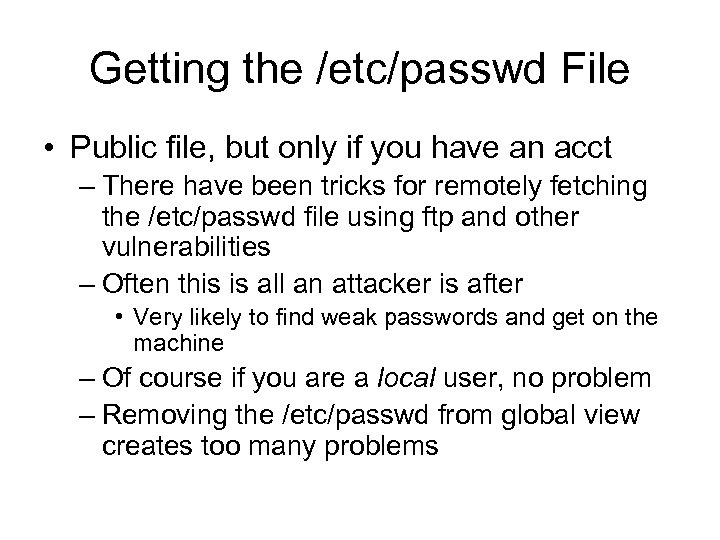

Getting the /etc/passwd File • Public file, but only if you have an acct – There have been tricks for remotely fetching the /etc/passwd file using ftp and other vulnerabilities – Often this is all an attacker is after • Very likely to find weak passwords and get on the machine – Of course if you are a local user, no problem – Removing the /etc/passwd from global view creates too many problems

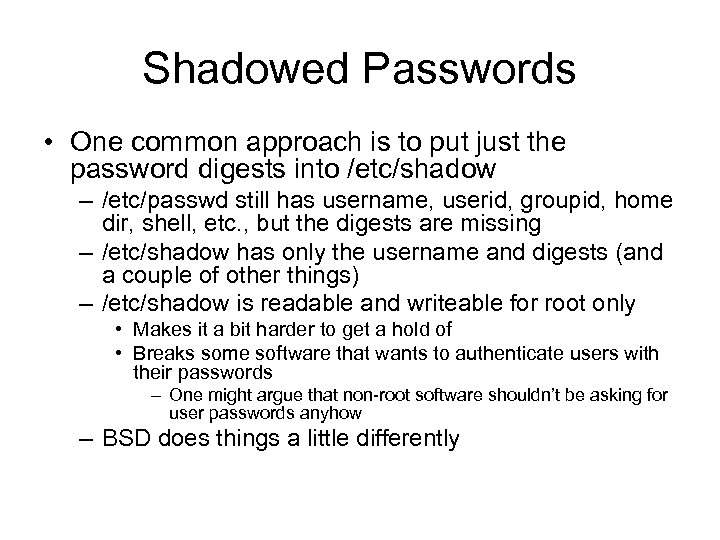

Shadowed Passwords • One common approach is to put just the password digests into /etc/shadow – /etc/passwd still has username, userid, groupid, home dir, shell, etc. , but the digests are missing – /etc/shadow has only the username and digests (and a couple of other things) – /etc/shadow is readable and writeable for root only • Makes it a bit harder to get a hold of • Breaks some software that wants to authenticate users with their passwords – One might argue that non-root software shouldn’t be asking for user passwords anyhow – BSD does things a little differently

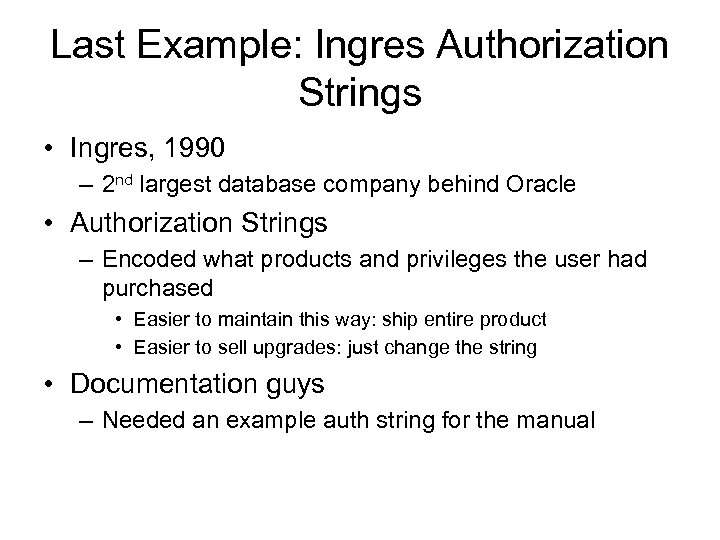

Last Example: Ingres Authorization Strings • Ingres, 1990 – 2 nd largest database company behind Oracle • Authorization Strings – Encoded what products and privileges the user had purchased • Easier to maintain this way: ship entire product • Easier to sell upgrades: just change the string • Documentation guys – Needed an example auth string for the manual

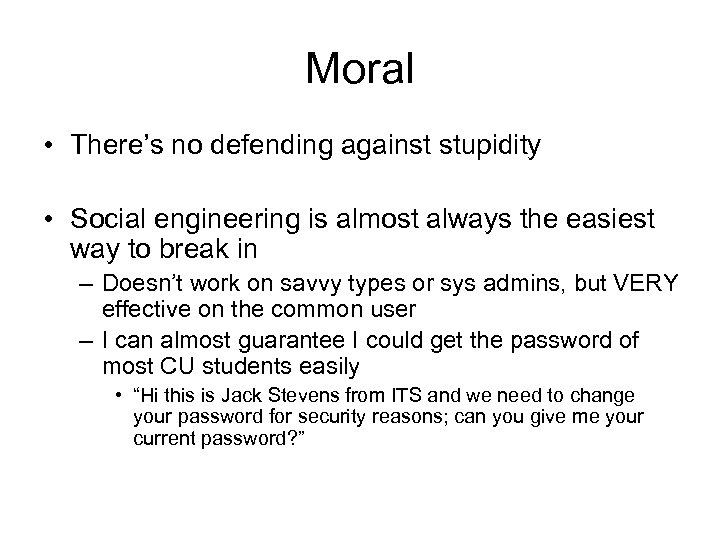

Moral • There’s no defending against stupidity • Social engineering is almost always the easiest way to break in – Doesn’t work on savvy types or sys admins, but VERY effective on the common user – I can almost guarantee I could get the password of most CU students easily • “Hi this is Jack Stevens from ITS and we need to change your password for security reasons; can you give me your current password? ”
Social Engineering: Phishing • Sending authentic looking email saying “need you to confirm your Pay. Pal account information” – Email looks authentic – URL is often disguised – Rolling over the link might even pop-up a valid URL in a yellow box! – Clicking takes you to attacker’s site, however • This site wants your login info

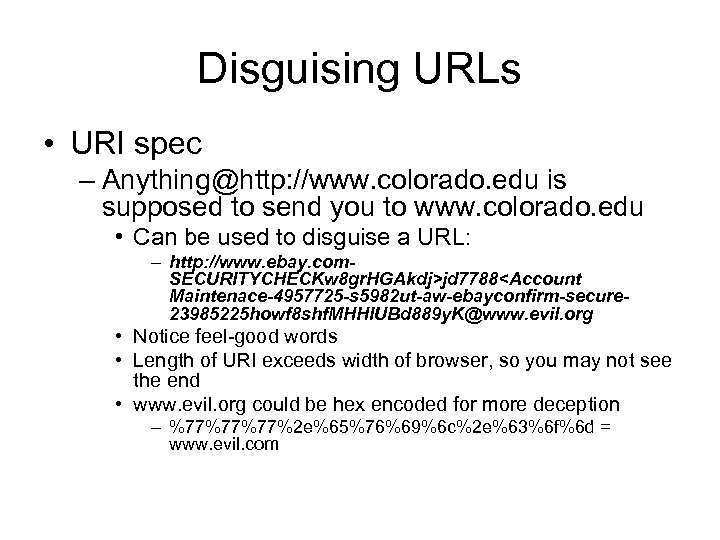

Disguising URLs • URI spec – Anything@http: //www. colorado. edu is supposed to send you to www. colorado. edu • Can be used to disguise a URL: – http: //www. ebay. com. SECURITYCHECKw 8 gr. HGAkdj>jd 7788<Account Maintenace-4957725 -s 5982 ut-aw-ebayconfirm-secure 23985225 howf 8 shf. MHHIUBd 889 y. K@www. evil. org • Notice feel-good words • Length of URI exceeds width of browser, so you may not see the end • www. evil. org could be hex encoded for more deception – %77%77%77%2 e%65%76%69%6 c%2 e%63%6 f%6 d = www. evil. com

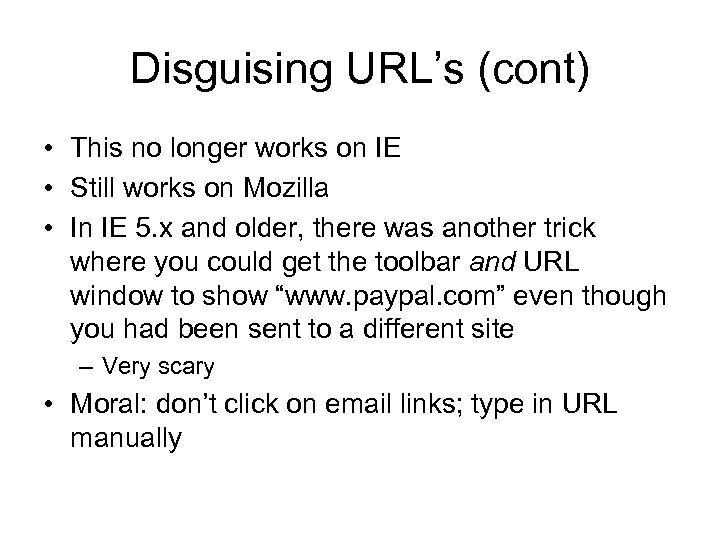

Disguising URL’s (cont) • This no longer works on IE • Still works on Mozilla • In IE 5. x and older, there was another trick where you could get the toolbar and URL window to show “www. paypal. com” even though you had been sent to a different site – Very scary • Moral: don’t click on email links; type in URL manually

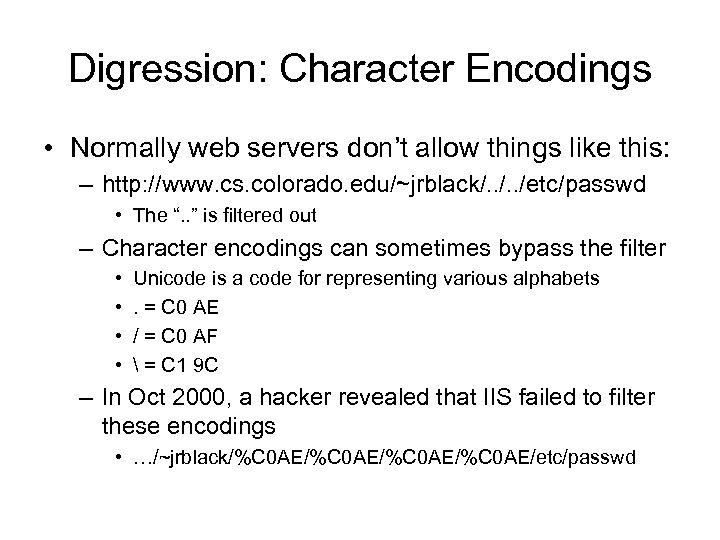

Digression: Character Encodings • Normally web servers don’t allow things like this: – http: //www. cs. colorado. edu/~jrblack/. . /etc/passwd • The “. . ” is filtered out – Character encodings can sometimes bypass the filter • • Unicode is a code for representing various alphabets. = C 0 AE / = C 0 AF = C 1 9 C – In Oct 2000, a hacker revealed that IIS failed to filter these encodings • …/~jrblack/%C 0 AE/%C 0 AE/etc/passwd

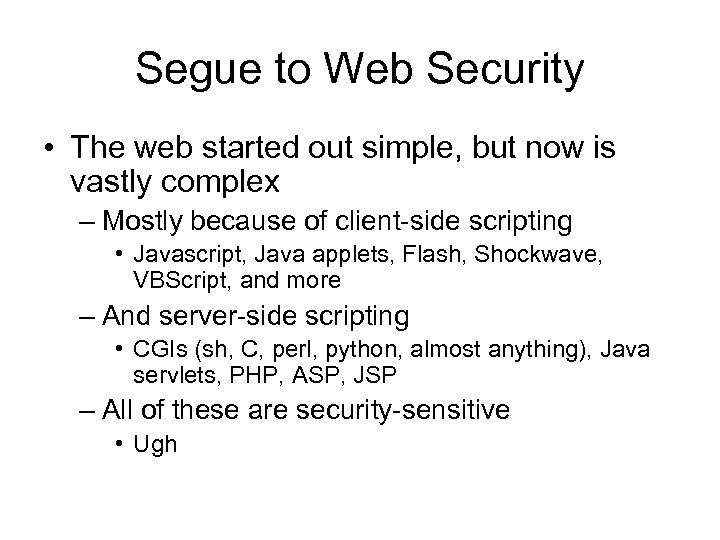

Segue to Web Security • The web started out simple, but now is vastly complex – Mostly because of client-side scripting • Javascript, Java applets, Flash, Shockwave, VBScript, and more – And server-side scripting • CGIs (sh, C, perl, python, almost anything), Java servlets, PHP, ASP, JSP – All of these are security-sensitive • Ugh

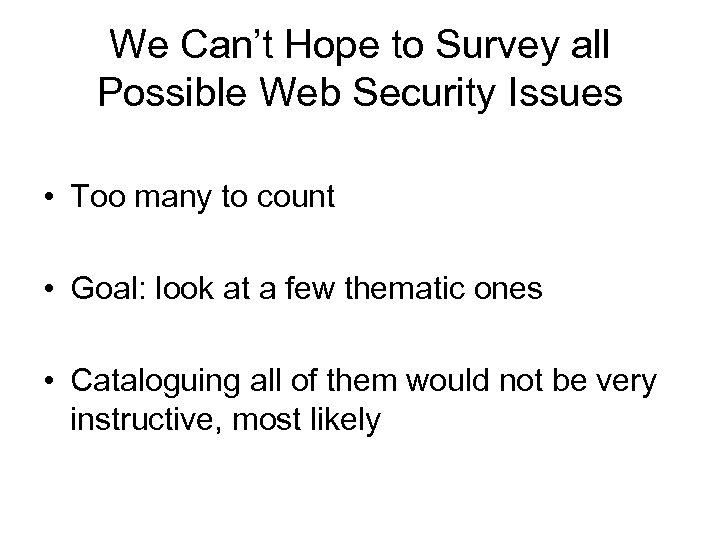

We Can’t Hope to Survey all Possible Web Security Issues • Too many to count • Goal: look at a few thematic ones • Cataloguing all of them would not be very instructive, most likely

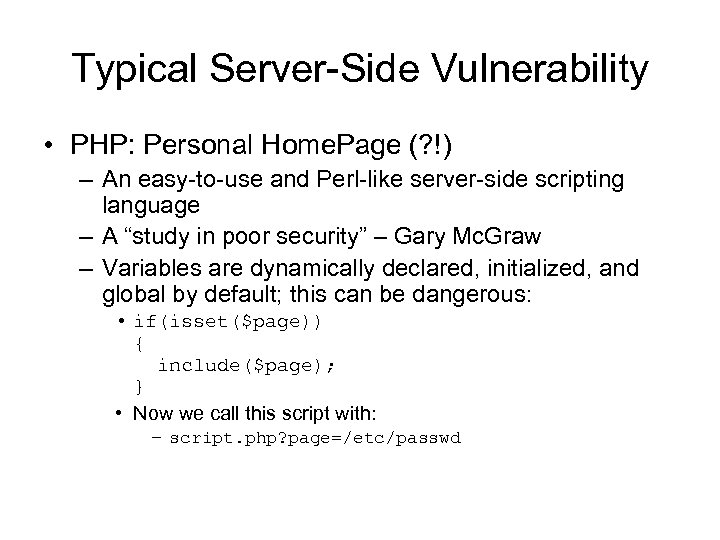

Typical Server-Side Vulnerability • PHP: Personal Home. Page (? !) – An easy-to-use and Perl-like server-side scripting language – A “study in poor security” – Gary Mc. Graw – Variables are dynamically declared, initialized, and global by default; this can be dangerous: • if(isset($page)) { include($page); } • Now we call this script with: – script. php? page=/etc/passwd

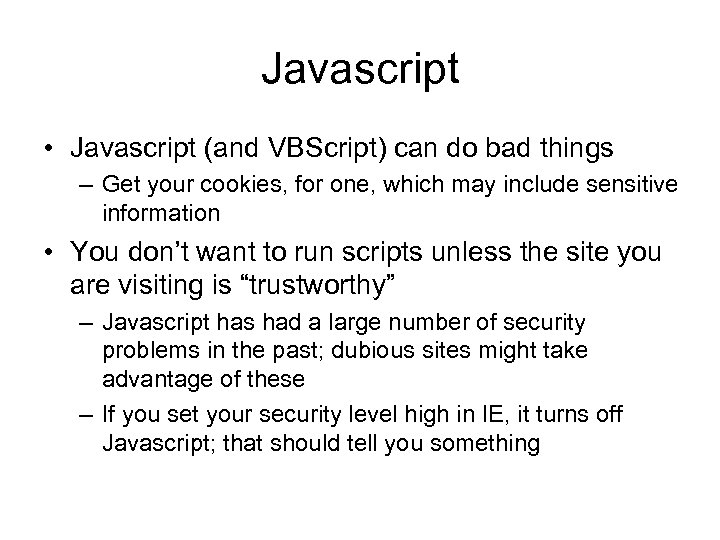

Javascript • Javascript (and VBScript) can do bad things – Get your cookies, for one, which may include sensitive information • You don’t want to run scripts unless the site you are visiting is “trustworthy” – Javascript has had a large number of security problems in the past; dubious sites might take advantage of these – If you set your security level high in IE, it turns off Javascript; that should tell you something

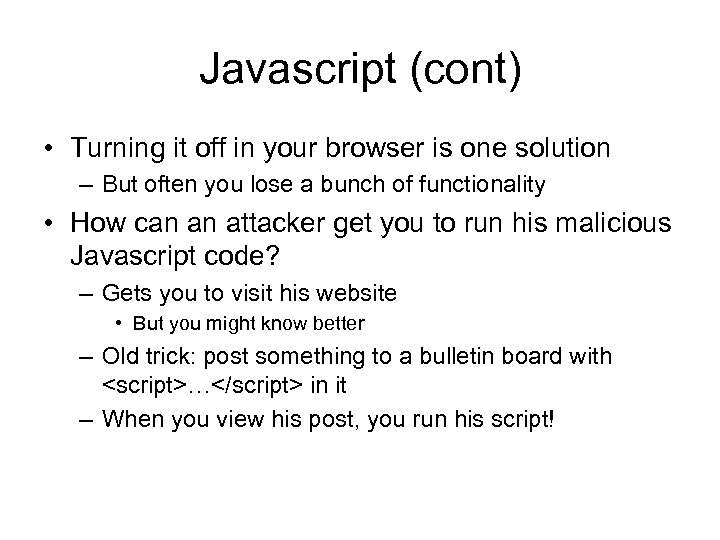

Javascript (cont) • Turning it off in your browser is one solution – But often you lose a bunch of functionality • How can an attacker get you to run his malicious Javascript code? – Gets you to visit his website • But you might know better – Old trick: post something to a bulletin board with <script>…</script> in it – When you view his post, you run his script!
Filtering • To prevent this, a correct bulletin board implementation always filters stuff that others have posted • You can post <b>YES!</b> but not <script> evil stuff… </script> • But until recently we didn’t worry about filtering stuff from you to yourself!

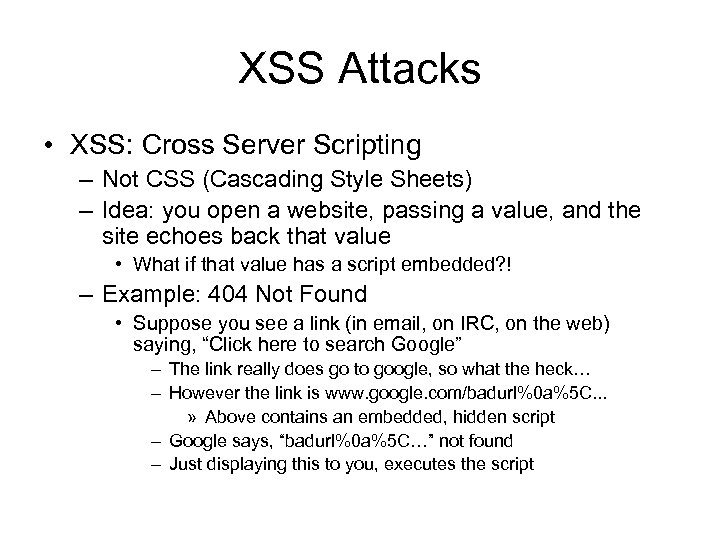

XSS Attacks • XSS: Cross Server Scripting – Not CSS (Cascading Style Sheets) – Idea: you open a website, passing a value, and the site echoes back that value • What if that value has a script embedded? ! – Example: 404 Not Found • Suppose you see a link (in email, on IRC, on the web) saying, “Click here to search Google” – The link really does go to google, so what the heck… – However the link is www. google. com/badurl%0 a%5 C. . . » Above contains an embedded, hidden script – Google says, “badurl%0 a%5 C…” not found – Just displaying this to you, executes the script

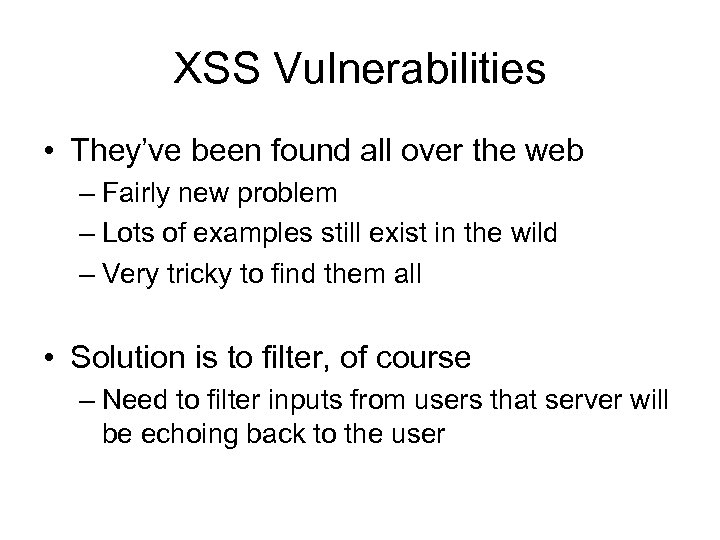

XSS Vulnerabilities • They’ve been found all over the web – Fairly new problem – Lots of examples still exist in the wild – Very tricky to find them all • Solution is to filter, of course – Need to filter inputs from users that server will be echoing back to the user

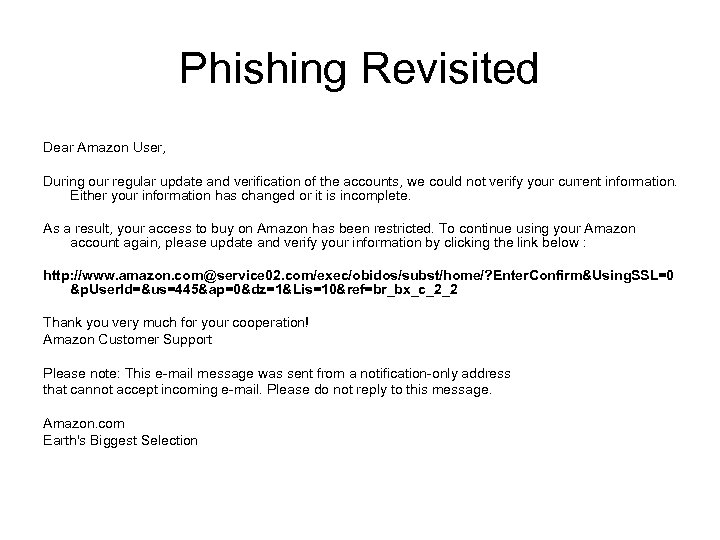

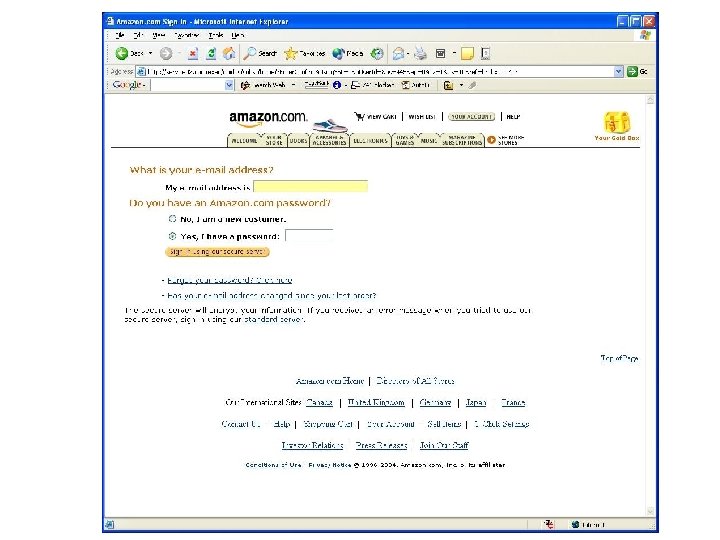

Phishing Revisited Dear Amazon User, During our regular update and verification of the accounts, we could not verify your current information. Either your information has changed or it is incomplete. As a result, your access to buy on Amazon has been restricted. To continue using your Amazon account again, please update and verify your information by clicking the link below : http: //www. amazon. com@service 02. com/exec/obidos/subst/home/? Enter. Confirm&Using. SSL=0 &p. User. Id=&us=445&ap=0&dz=1&Lis=10&ref=br_bx_c_2_2 Thank you very much for your cooperation! Amazon Customer Support Please note: This e-mail message was sent from a notification-only address that cannot accept incoming e-mail. Please do not reply to this message. Amazon. com Earth's Biggest Selection
Where does the info go? • service 02. com maps to IP 66. 218. 79. 155 % whois 66. 218. 79. 155 Org. Name: Yahoo! Org. ID: YAOO Address: 701 First Avenue City: Sunnyvale State. Prov: CA Net. Range: 66. 218. 64. 0 - 66. 218. 95. 255
Defenses Against Phishing • Spoofguard – Product out of Stanford – Doesn’t work for me (ugh!) – Detects various suspicious behaviors and flags them • Red light, green light depending on threshold • There are others as well • Bottom line: – Don’t believe emails from “legitimate companies” – This is frustrating for companies!

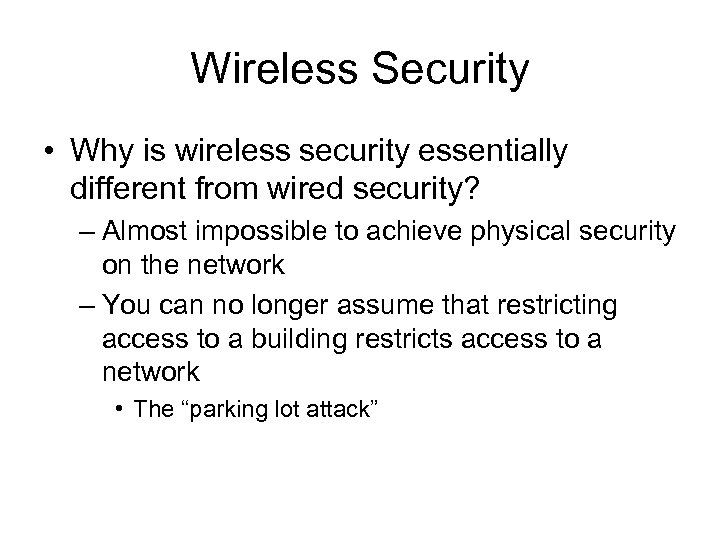

Wireless Security • Why is wireless security essentially different from wired security? – Almost impossible to achieve physical security on the network – You can no longer assume that restricting access to a building restricts access to a network • The “parking lot attack”

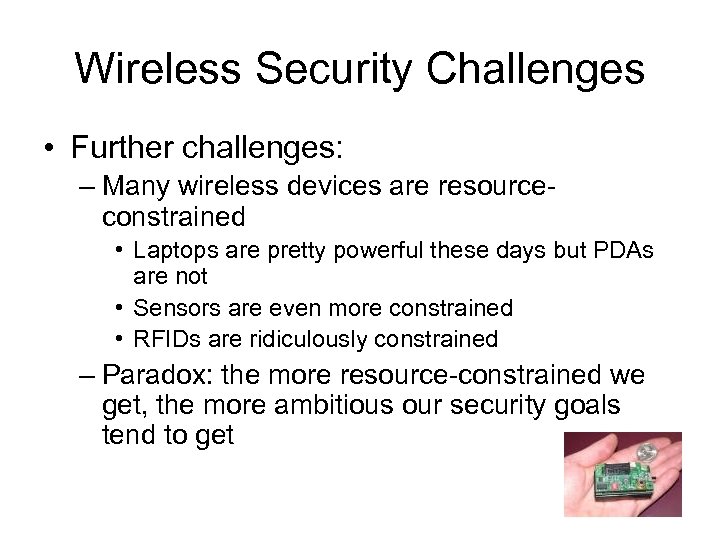

Wireless Security Challenges • Further challenges: – Many wireless devices are resourceconstrained • Laptops are pretty powerful these days but PDAs are not • Sensors are even more constrained • RFIDs are ridiculously constrained – Paradox: the more resource-constrained we get, the more ambitious our security goals tend to get

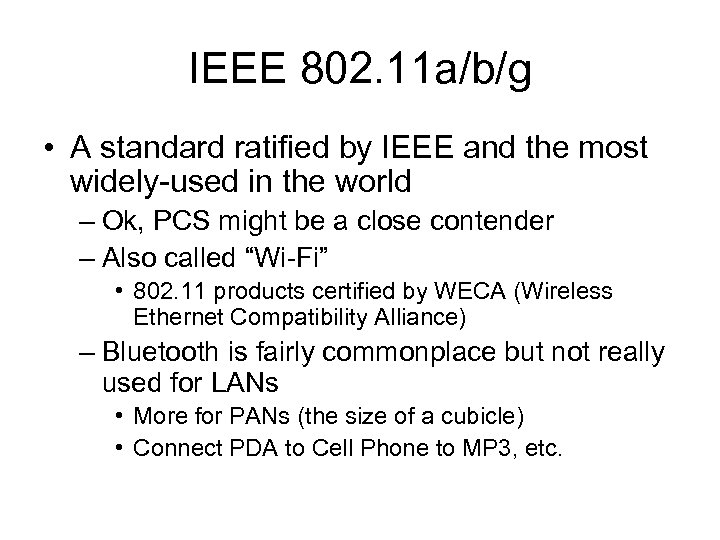

IEEE 802. 11 a/b/g • A standard ratified by IEEE and the most widely-used in the world – Ok, PCS might be a close contender – Also called “Wi-Fi” • 802. 11 products certified by WECA (Wireless Ethernet Compatibility Alliance) – Bluetooth is fairly commonplace but not really used for LANs • More for PANs (the size of a cubicle) • Connect PDA to Cell Phone to MP 3, etc.

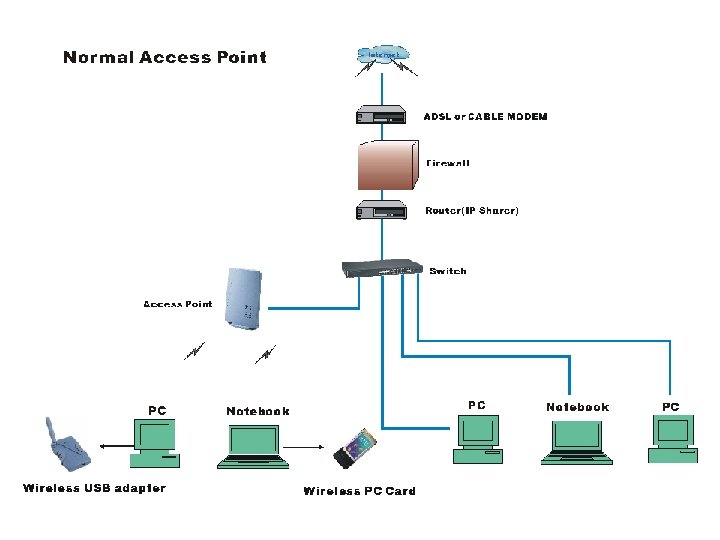

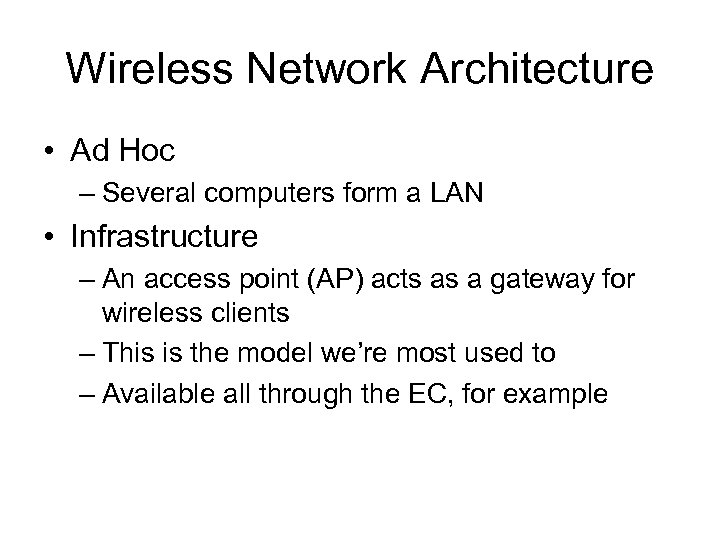

Wireless Network Architecture • Ad Hoc – Several computers form a LAN • Infrastructure – An access point (AP) acts as a gateway for wireless clients – This is the model we’re most used to – Available all through the EC, for example
My Access Point
War Driving • The inherent physical insecurity of wireless networks has led to the “sport” of wardriving – Get in your car, drive around, look for open access points with you laptop – Name comes from the movie “War Games” – Some people get obsessed with this stuff – You can buy “war driving kits” on line • Special antennas, GPS units to hook to you laptop, mapping software
More War Driving • People use special antennas on their cars – It used to be Pringles cans, but we’ve moved up in the world • People distribute AP maps • War driving contest at Black. Hat each year

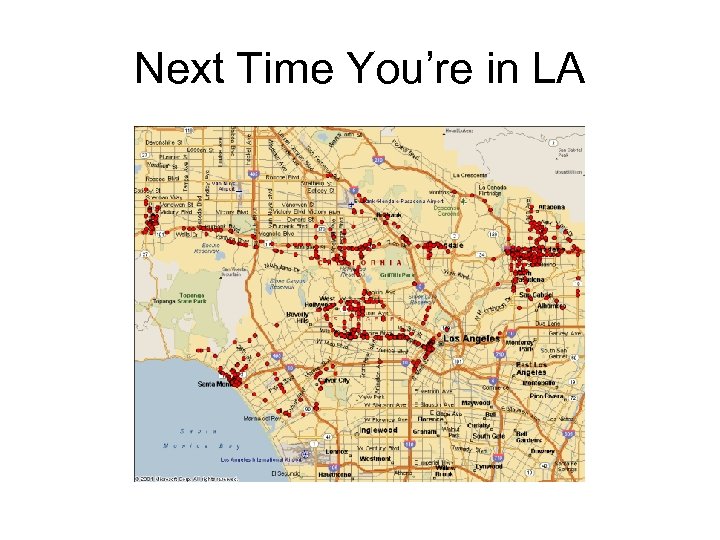

Next Time You’re in LA

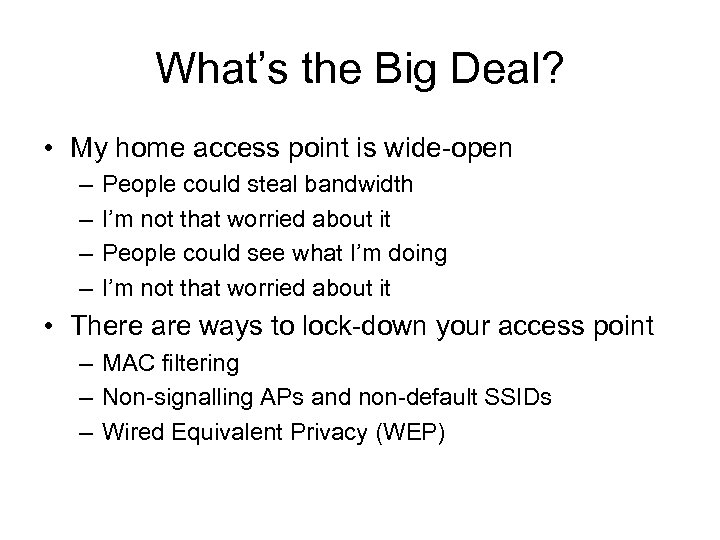

What’s the Big Deal? • My home access point is wide-open – – People could steal bandwidth I’m not that worried about it People could see what I’m doing I’m not that worried about it • There are ways to lock-down your access point – MAC filtering – Non-signalling APs and non-default SSIDs – Wired Equivalent Privacy (WEP)

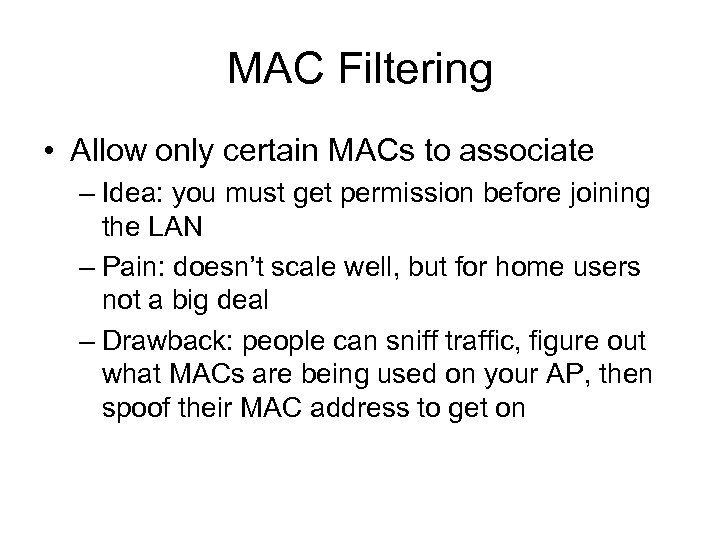

MAC Filtering • Allow only certain MACs to associate – Idea: you must get permission before joining the LAN – Pain: doesn’t scale well, but for home users not a big deal – Drawback: people can sniff traffic, figure out what MACs are being used on your AP, then spoof their MAC address to get on
Non-Signalling APs • 802. 11 APs typically send a “beacon” advertising their existence (and some other stuff) – Without this, you don’t know they’re there – Can be turned off – If SSID is default, war drivers might find you anyway • SSID is the “name” of the LAN • Defaults are “Link. SYS”, NETGEAR, D-Link, etc • Savvy people change the SSID and turn off beacons – SSID’s can still be sniffed when the LAN is active however, so once again doesn’t help much

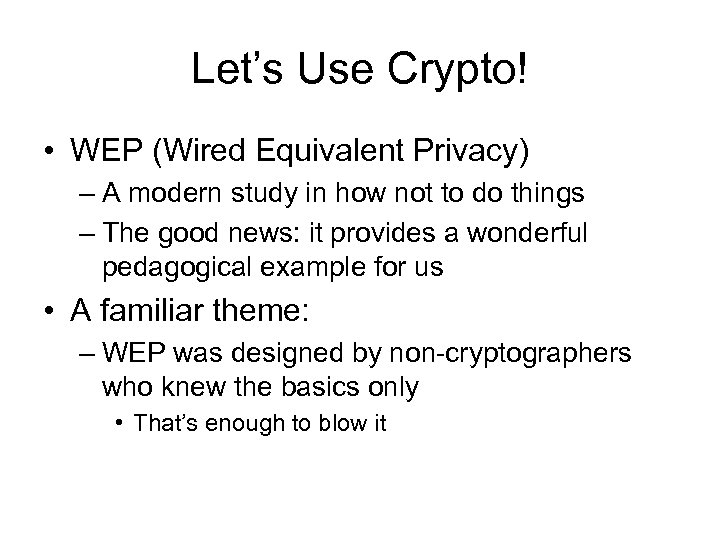

Let’s Use Crypto! • WEP (Wired Equivalent Privacy) – A modern study in how not to do things – The good news: it provides a wonderful pedagogical example for us • A familiar theme: – WEP was designed by non-cryptographers who knew the basics only • That’s enough to blow it

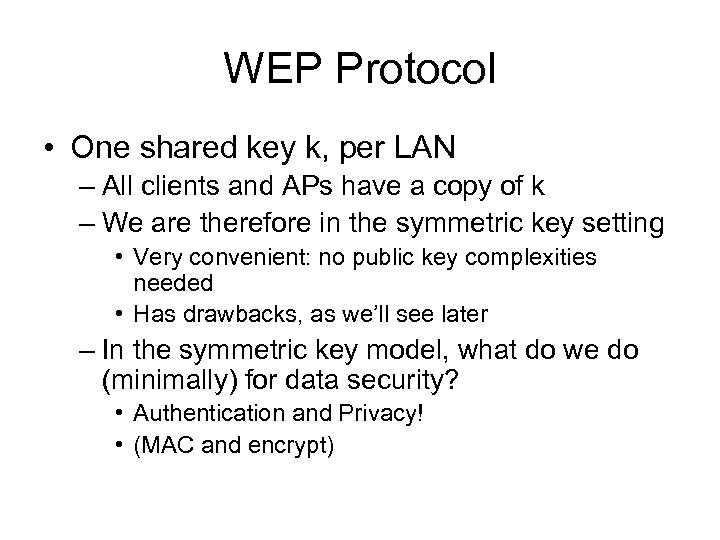

WEP Protocol • One shared key k, per LAN – All clients and APs have a copy of k – We are therefore in the symmetric key setting • Very convenient: no public key complexities needed • Has drawbacks, as we’ll see later – In the symmetric key model, what do we do (minimally) for data security? • Authentication and Privacy! • (MAC and encrypt)

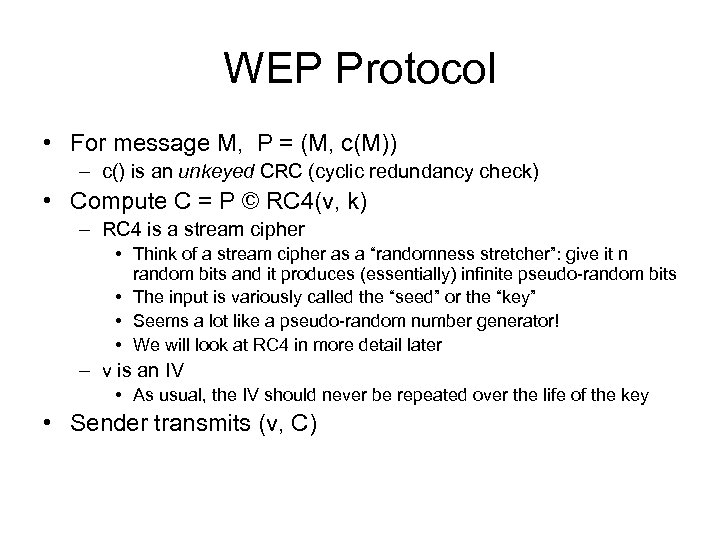

WEP Protocol • For message M, P = (M, c(M)) – c() is an unkeyed CRC (cyclic redundancy check) • Compute C = P © RC 4(v, k) – RC 4 is a stream cipher • Think of a stream cipher as a “randomness stretcher”: give it n random bits and it produces (essentially) infinite pseudo-random bits • The input is variously called the “seed” or the “key” • Seems a lot like a pseudo-random number generator! • We will look at RC 4 in more detail later – v is an IV • As usual, the IV should never be repeated over the life of the key • Sender transmits (v, C)

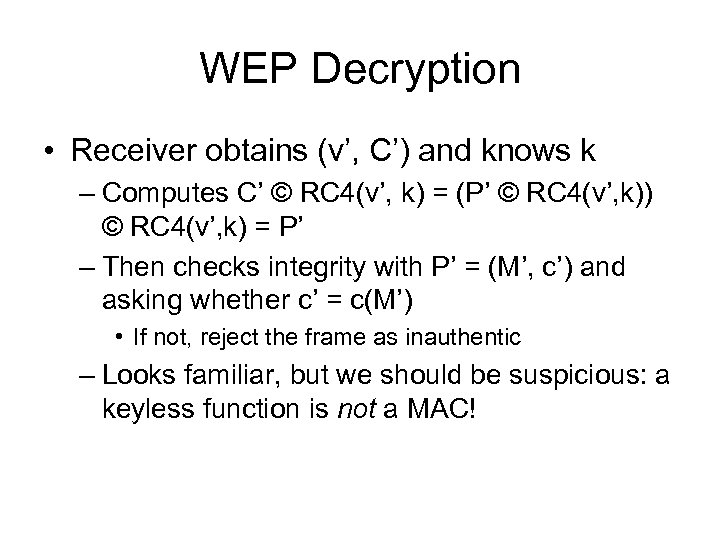

WEP Decryption • Receiver obtains (v’, C’) and knows k – Computes C’ © RC 4(v’, k) = (P’ © RC 4(v’, k)) © RC 4(v’, k) = P’ – Then checks integrity with P’ = (M’, c’) and asking whether c’ = c(M’) • If not, reject the frame as inauthentic – Looks familiar, but we should be suspicious: a keyless function is not a MAC!
Goals • Security Goals of WEP: – Privacy – Integrity • What we also have called “authenticity” • It should be “hard” to tamper with ciphertexts without being detected • It should be “hard” to forge packets – Access Control • Discard all packets not properly encrypted with WEP (optional part of the 802. 11 standard) • WEP Document: – Security “relies on the difficult of discovering the secret key through a brute-force attack”

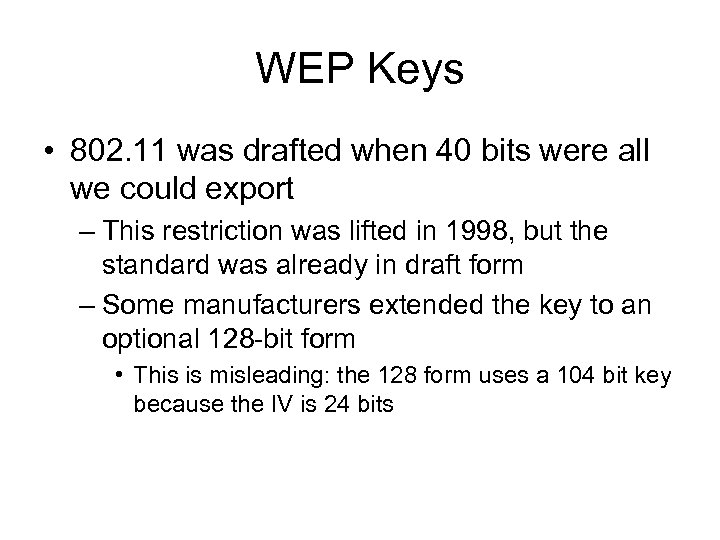

WEP Keys • 802. 11 was drafted when 40 bits were all we could export – This restriction was lifted in 1998, but the standard was already in draft form – Some manufacturers extended the key to an optional 128 -bit form • This is misleading: the 128 form uses a 104 bit key because the IV is 24 bits

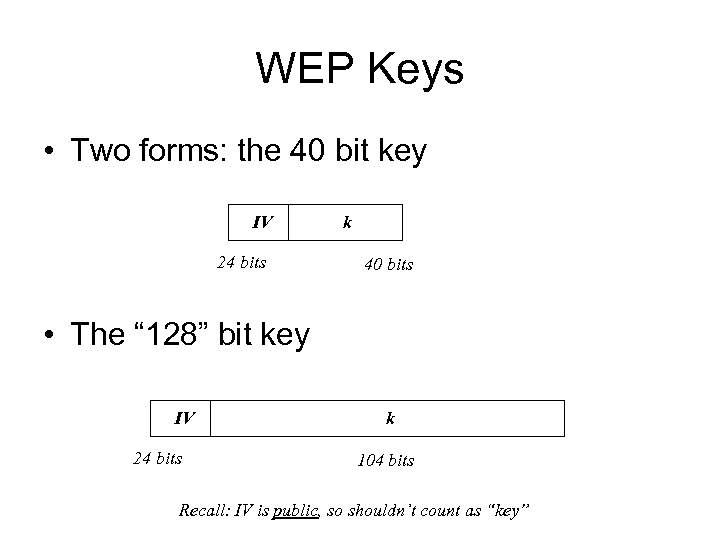

WEP Keys • Two forms: the 40 bit key IV 24 bits k 40 bits • The “ 128” bit key IV 24 bits k 104 bits Recall: IV is public, so shouldn’t count as “key”

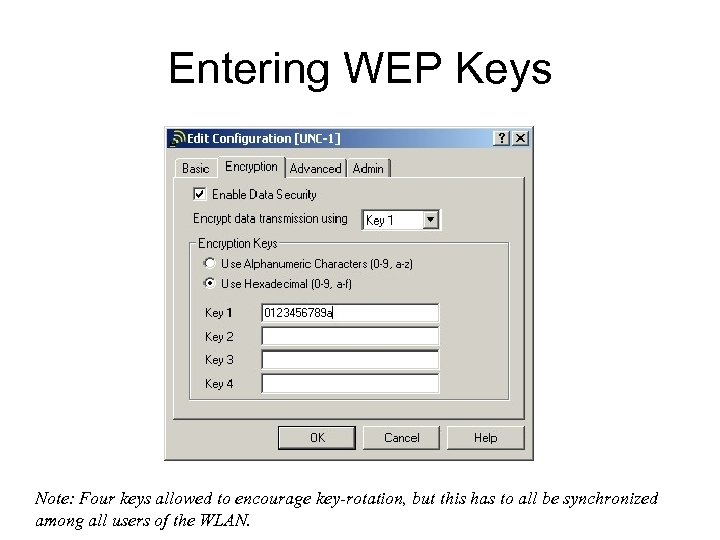

Entering WEP Keys Note: Four keys allowed to encourage key-rotation, but this has to all be synchronized among all users of the WLAN.

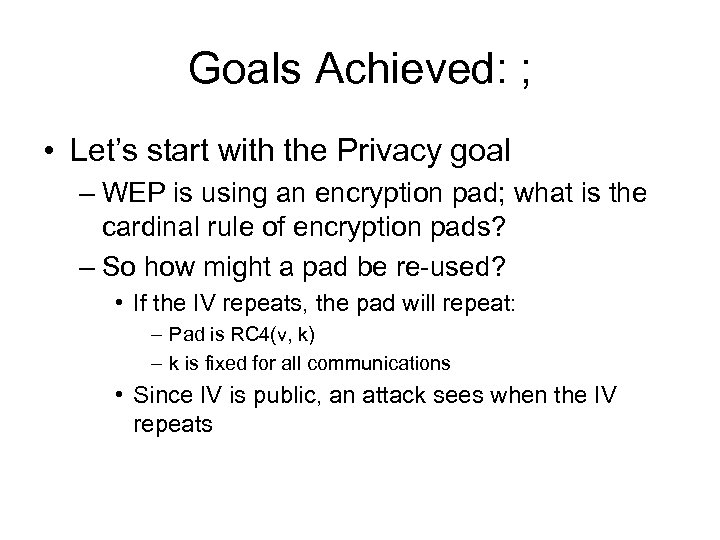

Goals Achieved: ; • Let’s start with the Privacy goal – WEP is using an encryption pad; what is the cardinal rule of encryption pads? – So how might a pad be re-used? • If the IV repeats, the pad will repeat: – Pad is RC 4(v, k) – k is fixed for all communications • Since IV is public, an attack sees when the IV repeats

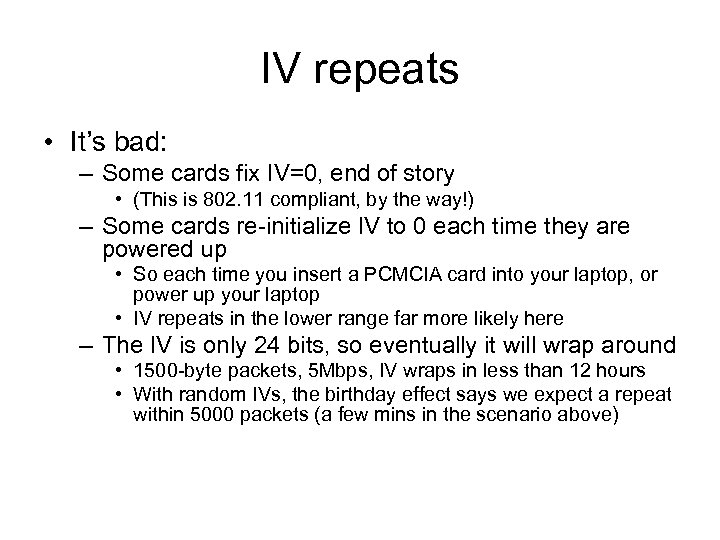

IV repeats • It’s bad: – Some cards fix IV=0, end of story • (This is 802. 11 compliant, by the way!) – Some cards re-initialize IV to 0 each time they are powered up • So each time you insert a PCMCIA card into your laptop, or power up your laptop • IV repeats in the lower range far more likely here – The IV is only 24 bits, so eventually it will wrap around • 1500 -byte packets, 5 Mbps, IV wraps in less than 12 hours • With random IVs, the birthday effect says we expect a repeat within 5000 packets (a few mins in the scenario above)

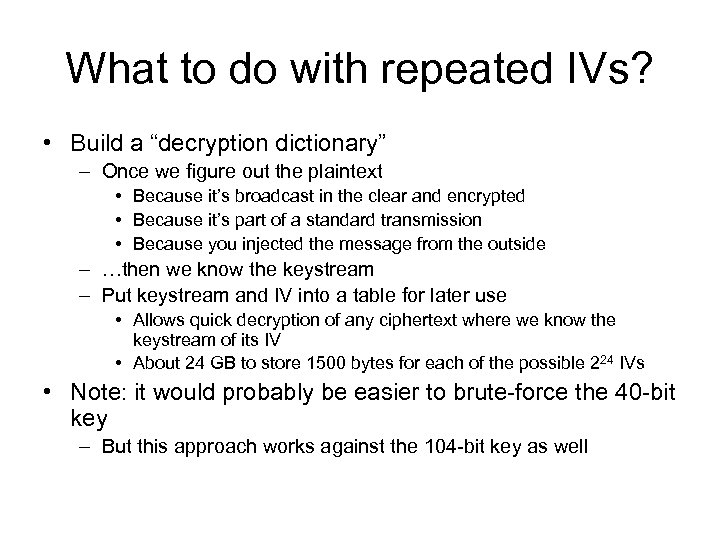

What to do with repeated IVs? • Build a “decryption dictionary” – Once we figure out the plaintext • Because it’s broadcast in the clear and encrypted • Because it’s part of a standard transmission • Because you injected the message from the outside – …then we know the keystream – Put keystream and IV into a table for later use • Allows quick decryption of any ciphertext where we know the keystream of its IV • About 24 GB to store 1500 bytes for each of the possible 224 IVs • Note: it would probably be easier to brute-force the 40 -bit key – But this approach works against the 104 -bit key as well

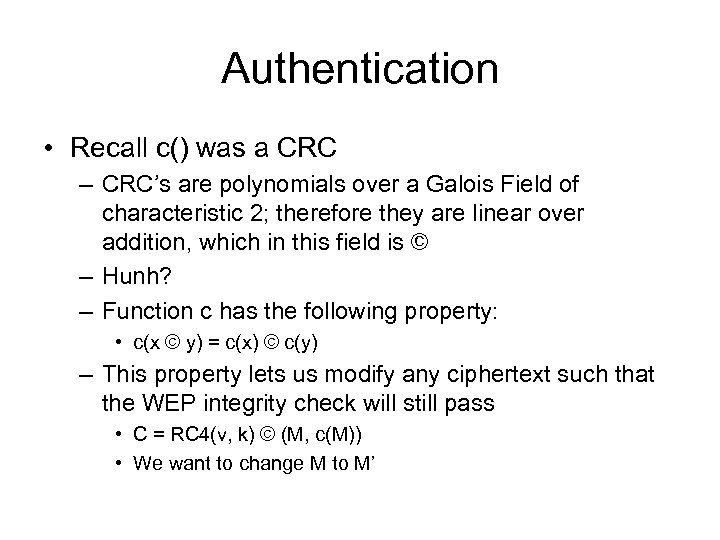

Authentication • Recall c() was a CRC – CRC’s are polynomials over a Galois Field of characteristic 2; therefore they are linear over addition, which in this field is © – Hunh? – Function c has the following property: • c(x © y) = c(x) © c(y) – This property lets us modify any ciphertext such that the WEP integrity check will still pass • C = RC 4(v, k) © (M, c(M)) • We want to change M to M’
Altering WEP Ciphertext • Suppose we want M’ = M © instead of M – Compute C’ = C © ( , c( )) – Let’s check: • C’ = C © ( , c( )) = RC 4(v, k) © (M, c(M)) © ( , c( )) = RC 4(v, k) © (M © , c(M) © c( )) = RC 4(v, k) © (M’, c(M © )) = RC 4(v, k) © (M’, c(M’)) – Note: we don’t need to know what M is to do this; we can blindly modify M as we desire

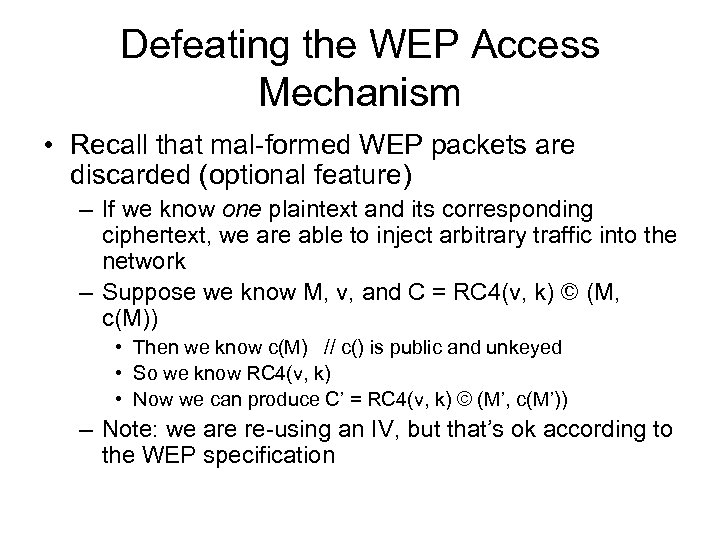

Defeating the WEP Access Mechanism • Recall that mal-formed WEP packets are discarded (optional feature) – If we know one plaintext and its corresponding ciphertext, we are able to inject arbitrary traffic into the network – Suppose we know M, v, and C = RC 4(v, k) © (M, c(M)) • Then we know c(M) // c() is public and unkeyed • So we know RC 4(v, k) • Now we can produce C’ = RC 4(v, k) © (M’, c(M’)) – Note: we are re-using an IV, but that’s ok according to the WEP specification

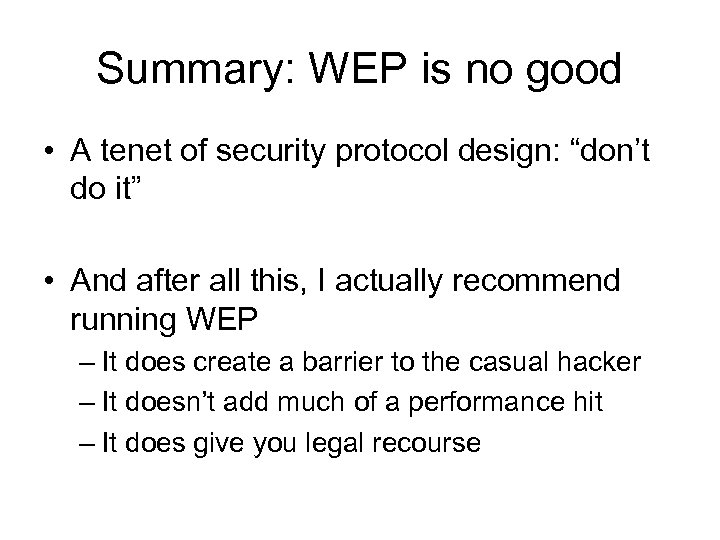

Summary: WEP is no good • A tenet of security protocol design: “don’t do it” • And after all this, I actually recommend running WEP – It does create a barrier to the casual hacker – It doesn’t add much of a performance hit – It does give you legal recourse
