Foundation for communication in the Construction Industry

Foundation for communication in the Construction Industry § May 15 2013 § Radboud Baayen Director Technical Services and development rbaayen@stabu. nl

5 minutes 8 minutes The Netherlands

Who is stab. U

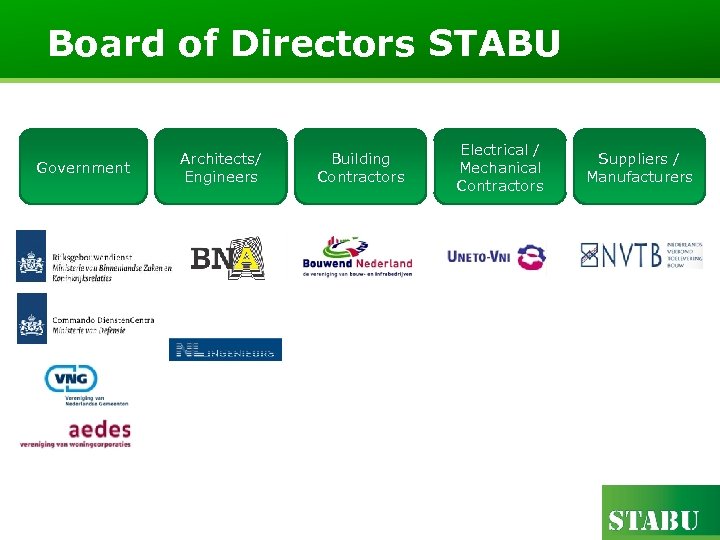

Board of Directors STABU Government Architects/ Engineers Building Contractors Electrical / Mechanical Contractors Suppliers / Manufacturers

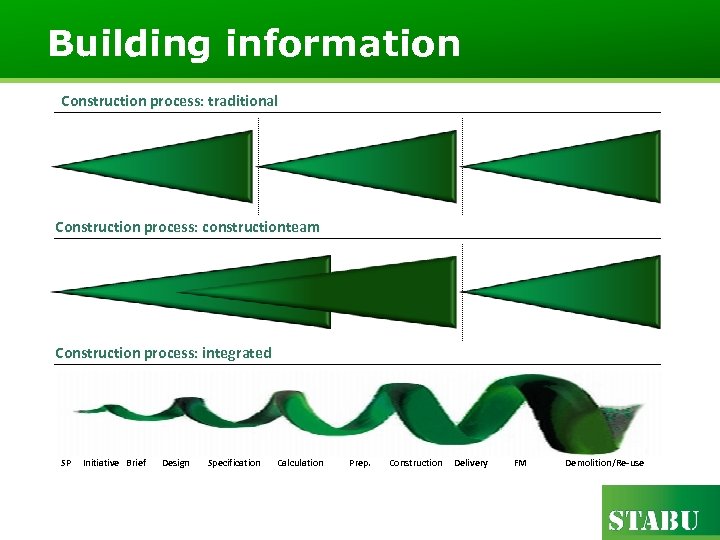

Building information Construction process: traditional Construction process: constructionteam Construction process: integrated SP Initiative Brief Design Specification Calculation Prep. Construction Delivery FM Demolition/Re-use

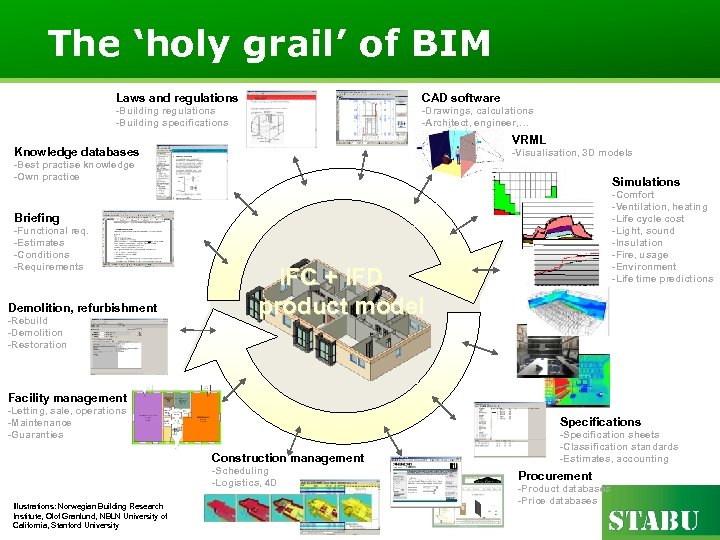

The ‘holy grail’ of BIM Laws and regulations CAD software -Building regulations -Building specifications -Drawings, calculations -Architect, engineer, … VRML Knowledge databases -Visualisation, 3 D models -Best practise knowledge -Own practice Simulations -Comfort -Ventilation, heating -Life cycle cost -Light, sound -Insulation -Fire, usage -Environment -Life time predictions Briefing -Functional req. -Estimates -Conditions -Requirements Demolition, refurbishment -Rebuild -Demolition -Restoration IFC + IFD product model Facility management -Letting, sale, operations -Maintenance -Guaranties Specifications Construction management -Scheduling -Logistics, 4 D Illustrations: Norwegian Building Research Institute, Olof Granlund, NBLN University of California, Stanford University -Specification sheets -Classification standards -Estimates, accounting Procurement -Product databases -Price databases

I BIM, you BIM, We all BIM bi. M is a verb!

Position

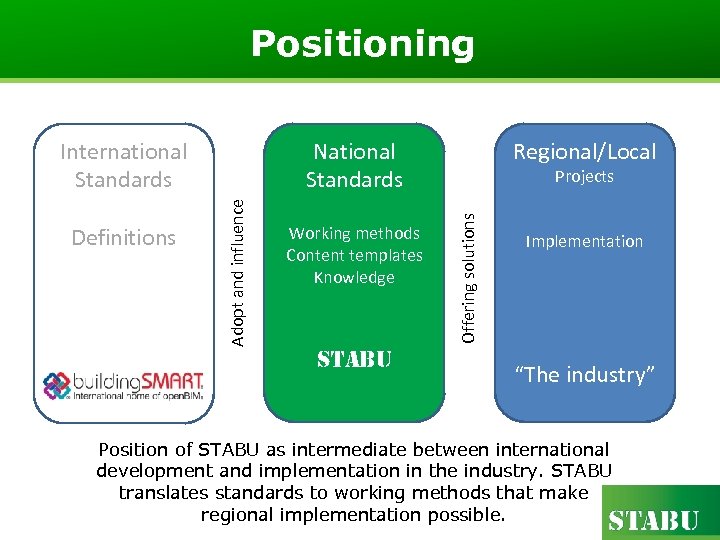

Positioning National Standards Working methods Content templates Knowledge stab. U Regional/Local Projects Offering solutions Definitions Adopt and influence International Standards Implementation “The industry” Position of STABU as intermediate between international development and implementation in the industry. STABU translates standards to working methods that make regional implementation possible.

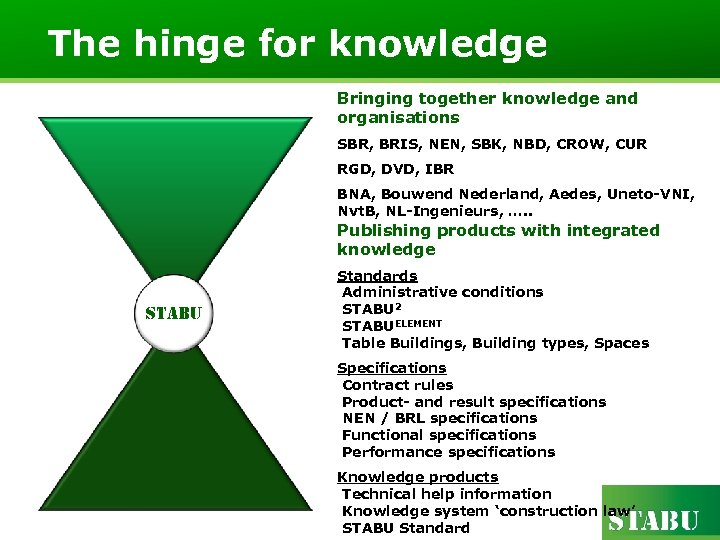

The hinge for knowledge Bringing together knowledge and organisations SBR, BRIS, NEN, SBK, NBD, CROW, CUR RGD, DVD, IBR BNA, Bouwend Nederland, Aedes, Uneto-VNI, Nvt. B, NL-Ingenieurs, …. . Publishing products with integrated knowledge stab. U Standards Administrative conditions STABU 2 STABUELEMENT Table Buildings, Building types, Spaces Specifications Contract rules Product- and result specifications NEN / BRL specifications Functional specifications Performance specifications Knowledge products Technical help information Knowledge system ‘construction law’ STABU Standard

STABUSPACES SP I Brief D S P C STABUSPACES STABUELEMENT STABUWORKSECTIONS STABUELEMENT Position in the construction process D FM R D

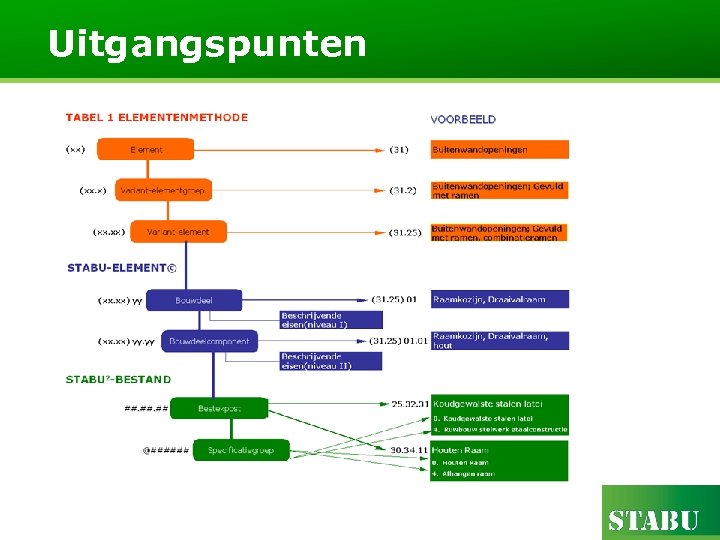

Uitgangspunten

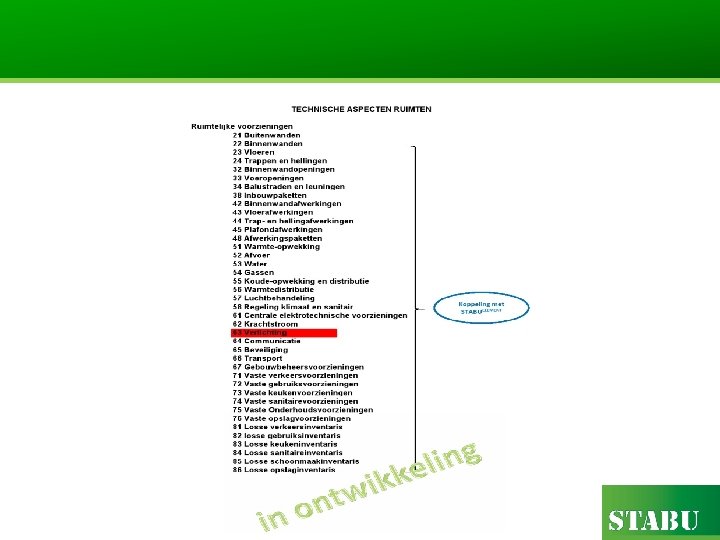

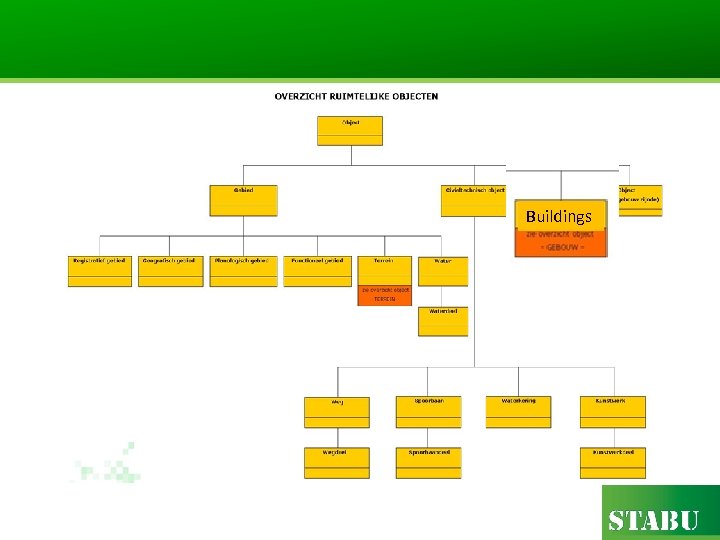

Buildings

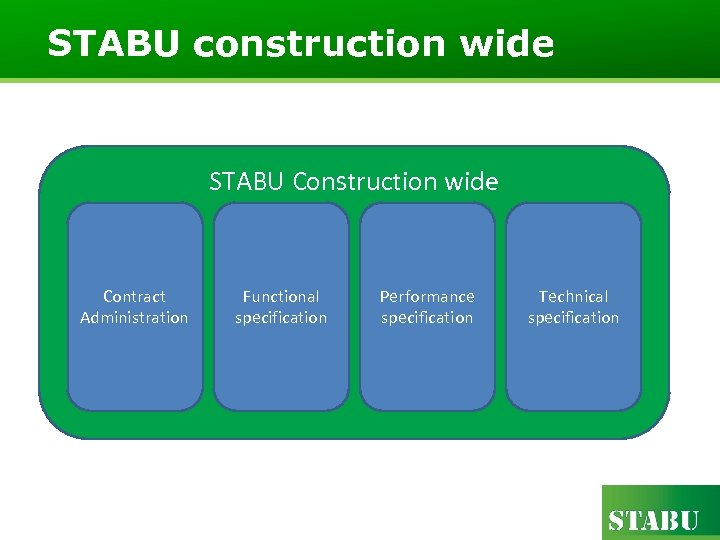

STABU construction wide STABU Construction wide Contract Administration Functional specification Performance specification Technical specification

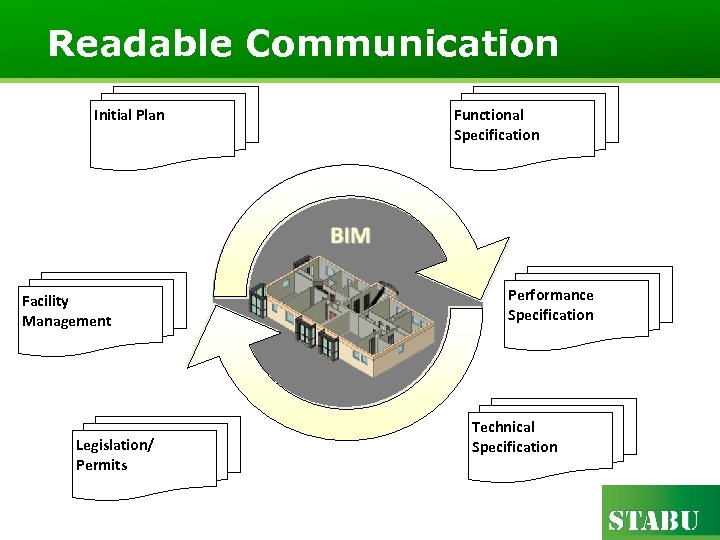

Readable Communication Initial Plan Facility Management Legislation/ Permits Functional Specification Performance Specification Technical Specification

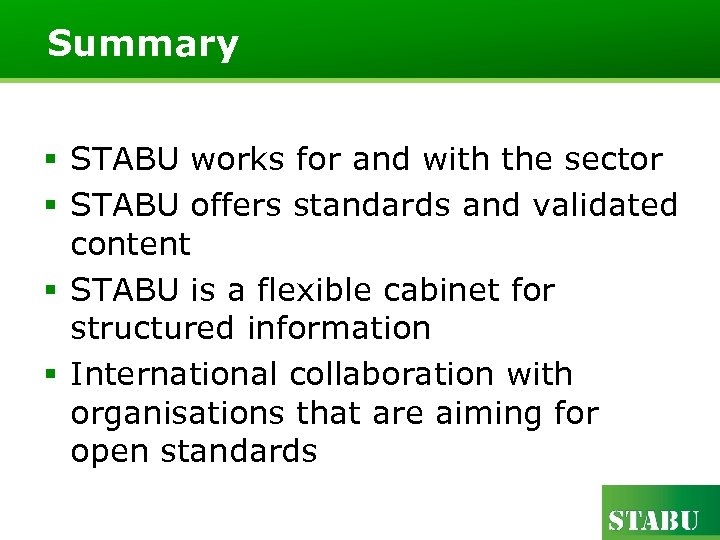

Summary § STABU works for and with the sector § STABU offers standards and validated content § STABU is a flexible cabinet for structured information § International collaboration with organisations that are aiming for open standards

Positioning National Standards Working methods Content templates Knowledge stab. U Regional/Local Projects Offering solutions Definitions Adopt and influence International Standards Implementation “The industry” Position of STABU as intermediate between international development and implementation in the industry. STABU translates standards to working methods that make regional implementation possible.

building. SMART International North America French Speaking China German Speaking Japan Iberian Alliance Korea Italia Singapore Nordic Australasia Norway Mideast Benelux UK

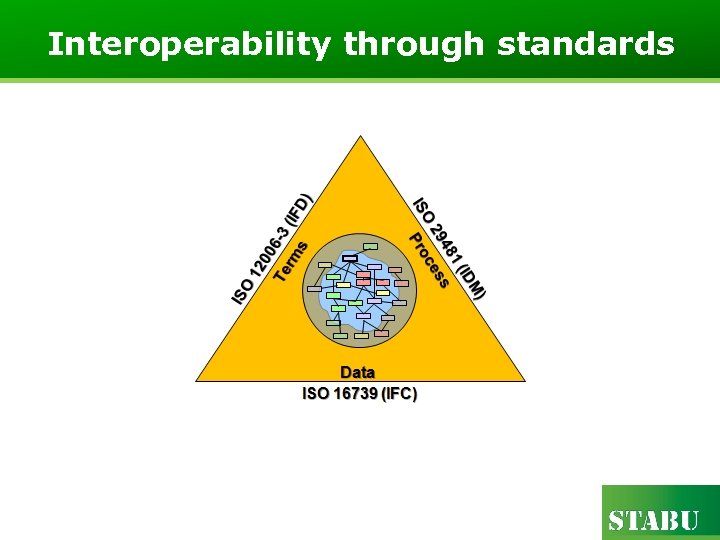

Interoperability through standards

building. SMART Data Dictionary

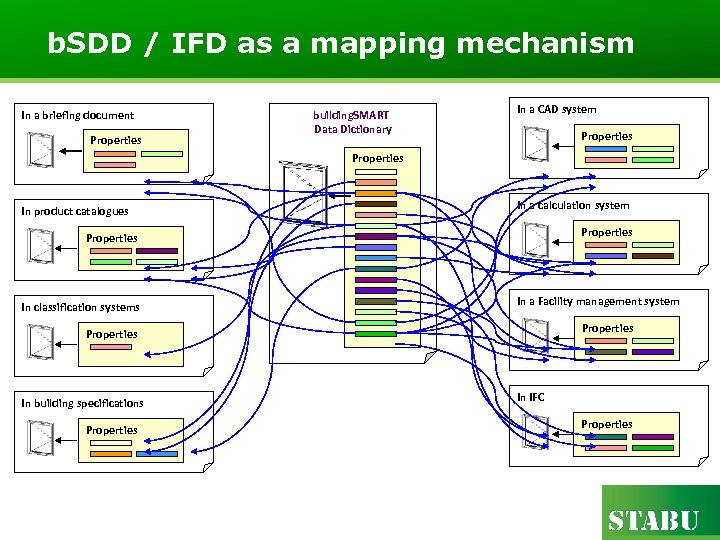

b. SDD / IFD as a mapping mechanism In a briefing document Properties building. SMART Data Dictionary In a CAD system Properties In product catalogues In a calculation system Properties In classification systems In a Facility management system Properties In building specifications Properties In IFC Properties

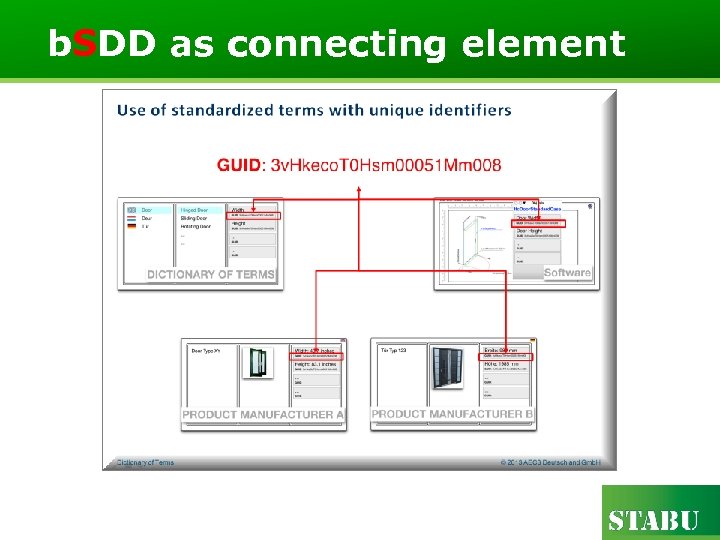

b. SDD as connecting element

The engine of BIM building. SMART Data Dictionary b. SDD

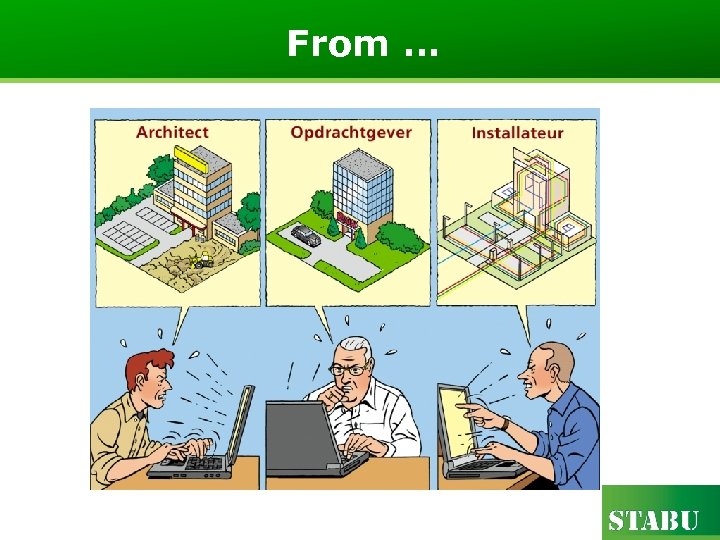

From …

… to

Thank you for your attention online
