Formulation of the Problem of Upscaling of Solute Transport in Highly Heterogeneous Formations A. FIORI 1 , I. JANKOVIC 2, G. DAGAN 3 1 2 3 Dept. of Civil Engineering, Università di Roma Tre, Rome, Italy Dept. of Civil, Structural and Environmental Engineering, SUNY, Buffalo, USA School of Mechanical Engineering, Tel Aviv University, Ramat Aviv, Israel Scaling Up and Modeling for Transport and Flow in Porous Media Dubrovnik, Croatia, 13 -16 October 2008

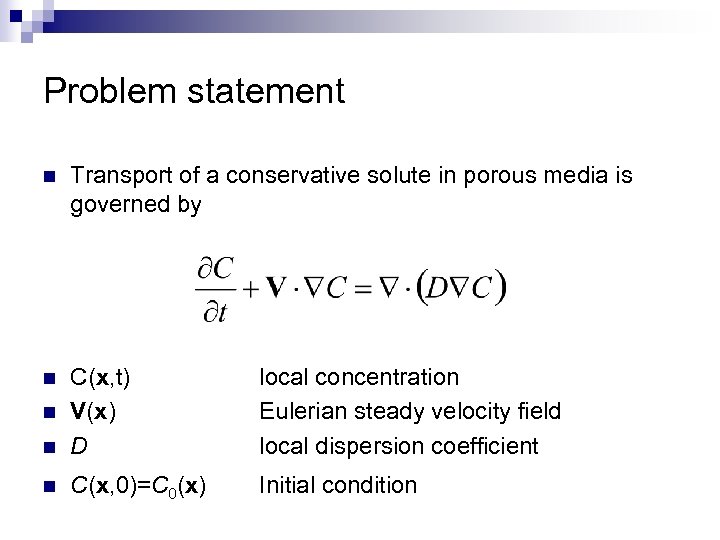

Problem statement n Transport of a conservative solute in porous media is governed by n n C(x, t) V(x) D local concentration Eulerian steady velocity field local dispersion coefficient n C(x, 0)=C 0(x) Initial condition n

The role of heterogeneity n Quantification of transport is usually carried out by the spatial or temporal moments of C, mainly the first two (sufficient for a Gaussian plume). n Flow and transport in natural aquifers are largely determined by the spatial distribution of the hydraulic conductivity K; It is convenient to describe Y=ln. K as a space random function, with assigned statistical properties (KG, σY 2, IY); n As a consequence, V(x) and C are also random.

Formulation of the upscaling problem n n n Transport is solved generally numerically by discretization of space by elements of scale L. “Fine scale” solution: Lfs<<IY (e. g. 1/10 or less); this is viewed as "exact". It requires considerable computational effort for 3 D problems. Upscaled solution: L> Lfs. For a selected upscaled medium permeability field Y (KG, σY 2, IY); the solutions are V(x), C(x, t). The upscaling problem: what is the relationship between Y and Y to render V, C "good" approximations of V, C?

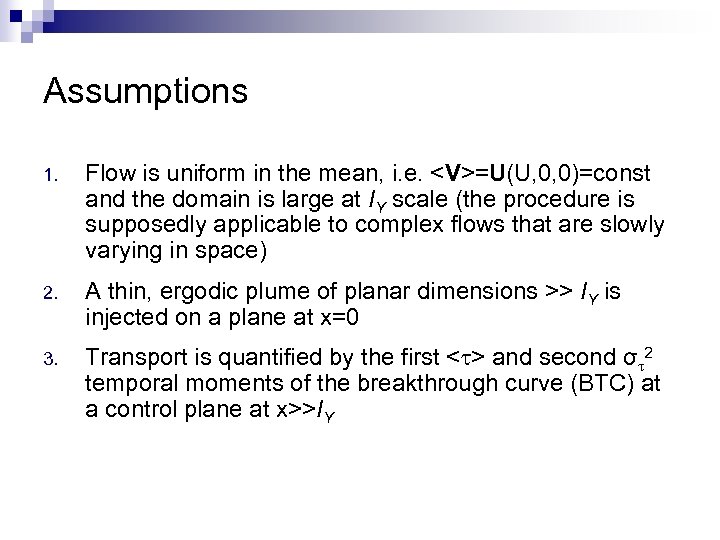

Assumptions 1. Flow is uniform in the mean, i. e. <V>=U(U, 0, 0)=const and the domain is large at IY scale (the procedure is supposedly applicable to complex flows that are slowly varying in space) 2. A thin, ergodic plume of planar dimensions >> IY is injected on a plane at x=0 3. Transport is quantified by the first < > and second σ 2 temporal moments of the breakthrough curve (BTC) at a control plane at x>>IY

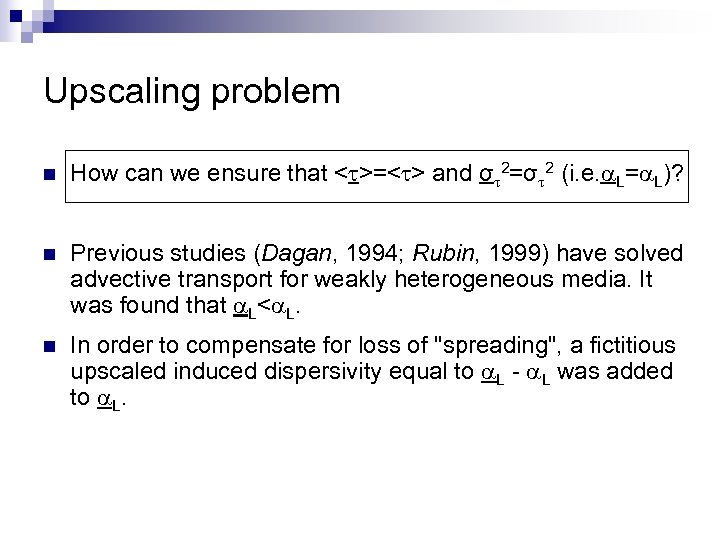

Upscaling problem n How can we ensure that < >=< > and σ 2=σ 2 (i. e. L= L)? n Previous studies (Dagan, 1994; Rubin, 1999) have solved advective transport for weakly heterogeneous media. It was found that L< L. n In order to compensate for loss of "spreading", a fictitious upscaled induced dispersivity equal to L - L was added to L.

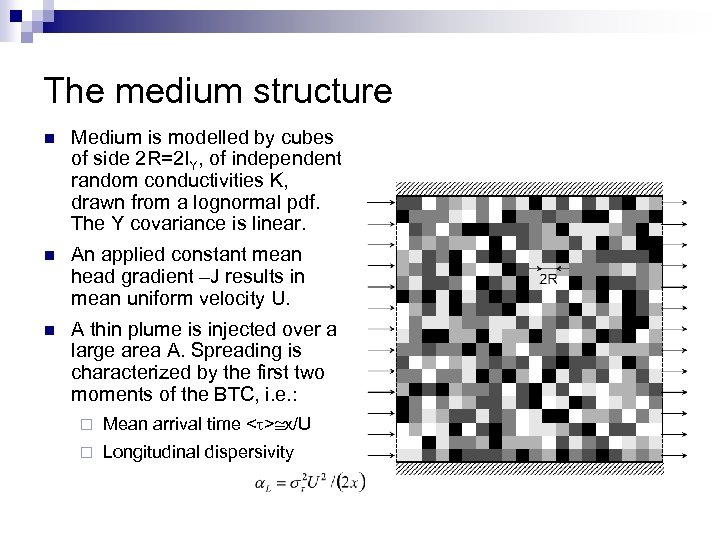

The medium structure n Medium is modelled by cubes of side 2 R=2 IY, of independent random conductivities K, drawn from a lognormal pdf. The Y covariance is linear. n An applied constant mean head gradient –J results in mean uniform velocity U. n A thin plume is injected over a large area A. Spreading is characterized by the first two moments of the BTC, i. e. : ¨ Mean arrival time < > x/U ¨ Longitudinal dispersivity

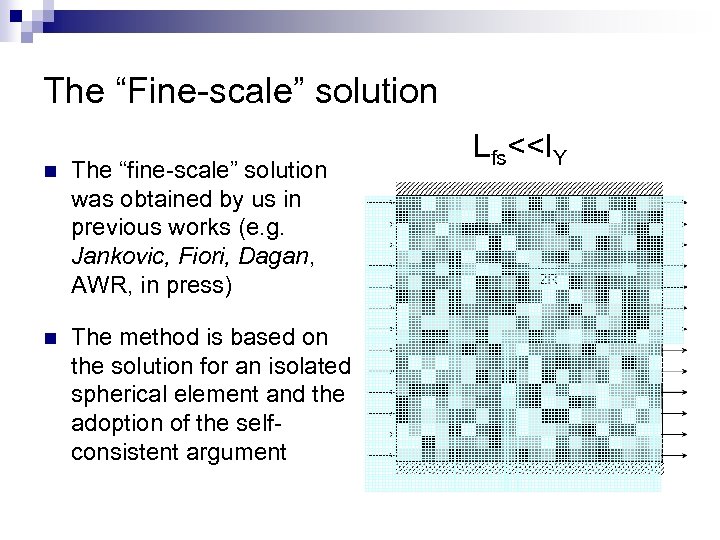

The “Fine-scale” solution n The “fine-scale” solution was obtained by us in previous works (e. g. Jankovic, Fiori, Dagan, AWR, in press) n The method is based on the solution for an isolated spherical element and the adoption of the selfconsistent argument Lfs<<IY

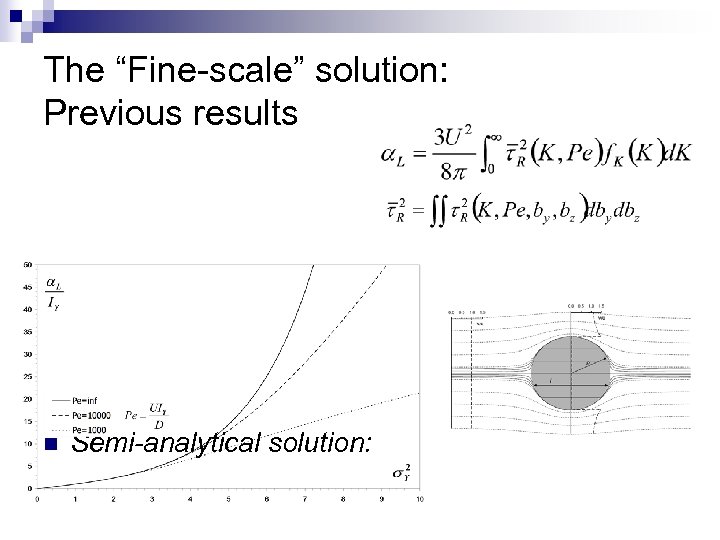

The “Fine-scale” solution: Previous results n Semi-analytical solution:

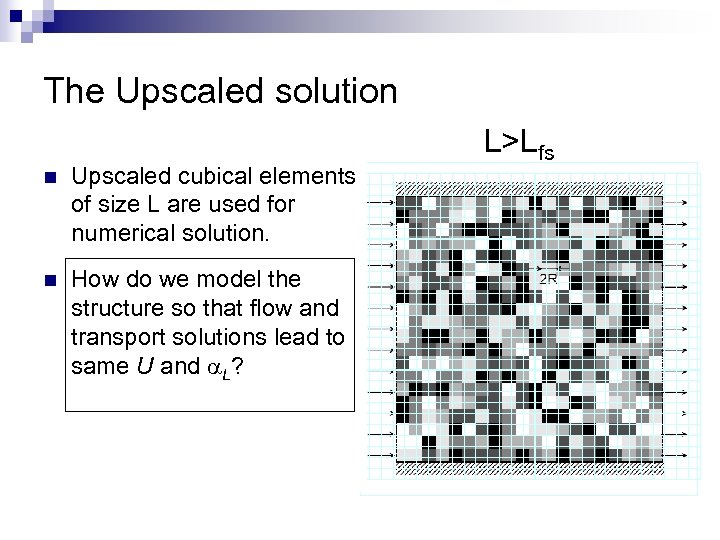

The Upscaled solution n Upscaled cubical elements of size L are used for numerical solution. n How do we model the structure so that flow and transport solutions lead to same U and L? L>Lfs

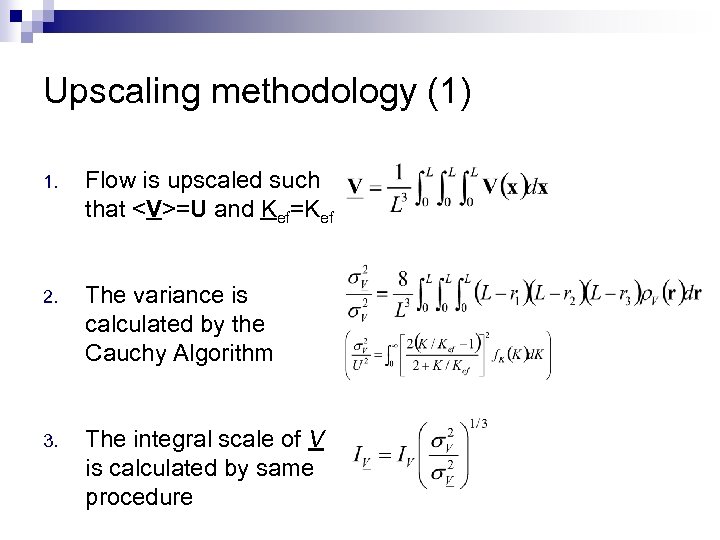

Upscaling methodology (1) 1. Flow is upscaled such that <V>=U and Kef=Kef 2. The variance is calculated by the Cauchy Algorithm 3. The integral scale of V is calculated by same procedure

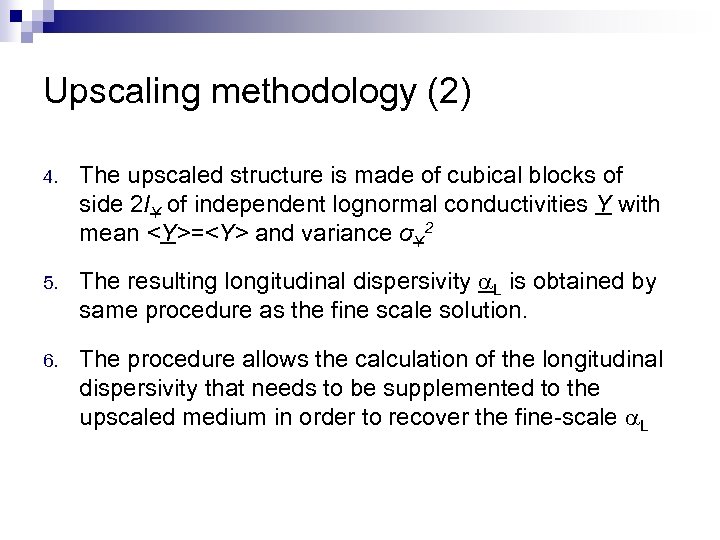

Upscaling methodology (2) 4. The upscaled structure is made of cubical blocks of side 2 IY of independent lognormal conductivities Y with mean <Y>=<Y> and variance σY 2 5. The resulting longitudinal dispersivity L is obtained by same procedure as the fine scale solution. 6. The procedure allows the calculation of the longitudinal dispersivity that needs to be supplemented to the upscaled medium in order to recover the fine-scale L

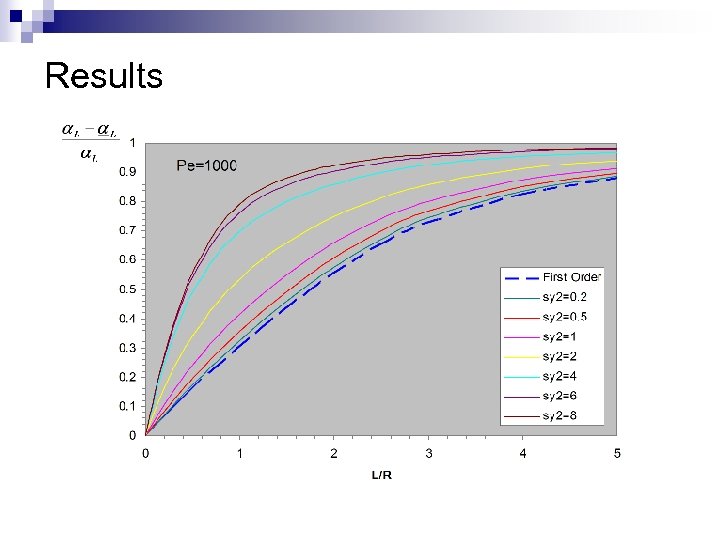

Results

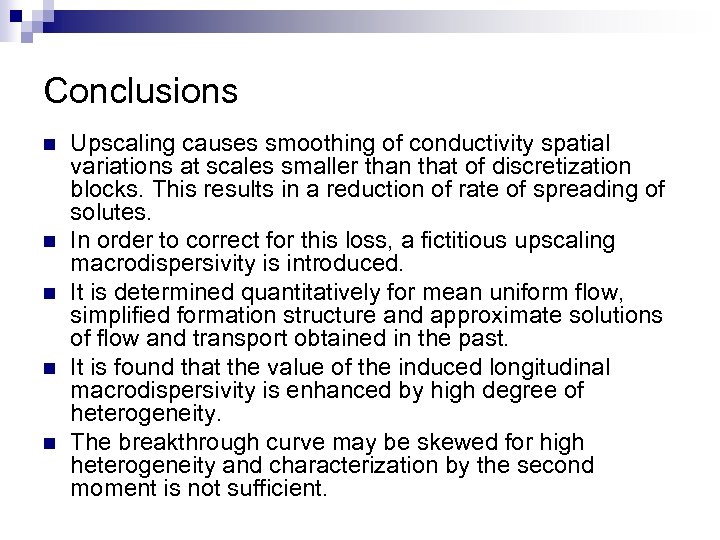

Conclusions n n n Upscaling causes smoothing of conductivity spatial variations at scales smaller than that of discretization blocks. This results in a reduction of rate of spreading of solutes. In order to correct for this loss, a fictitious upscaling macrodispersivity is introduced. It is determined quantitatively for mean uniform flow, simplified formation structure and approximate solutions of flow and transport obtained in the past. It is found that the value of the induced longitudinal macrodispersivity is enhanced by high degree of heterogeneity. The breakthrough curve may be skewed for high heterogeneity and characterization by the second moment is not sufficient.

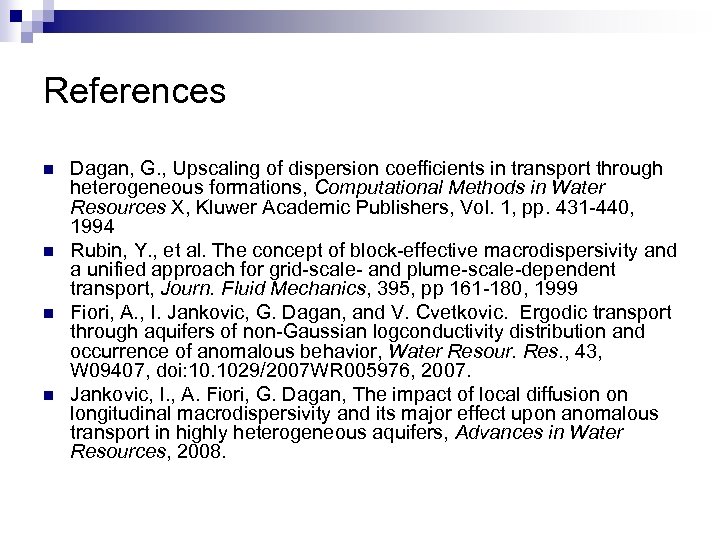

References n n Dagan, G. , Upscaling of dispersion coefficients in transport through heterogeneous formations, Computational Methods in Water Resources X, Kluwer Academic Publishers, Vol. 1, pp. 431 -440, 1994 Rubin, Y. , et al. The concept of block-effective macrodispersivity and a unified approach for grid-scale- and plume-scale-dependent transport, Journ. Fluid Mechanics, 395, pp 161 -180, 1999 Fiori, A. , I. Jankovic, G. Dagan, and V. Cvetkovic. Ergodic transport through aquifers of non-Gaussian logconductivity distribution and occurrence of anomalous behavior, Water Resour. Res. , 43, W 09407, doi: 10. 1029/2007 WR 005976, 2007. Jankovic, I. , A. Fiori, G. Dagan, The impact of local diffusion on longitudinal macrodispersivity and its major effect upon anomalous transport in highly heterogeneous aquifers, Advances in Water Resources, 2008.
