Fluids II Archimedes Example A cube of

Зарегистрируйтесь, чтобы просмотреть полный документ!

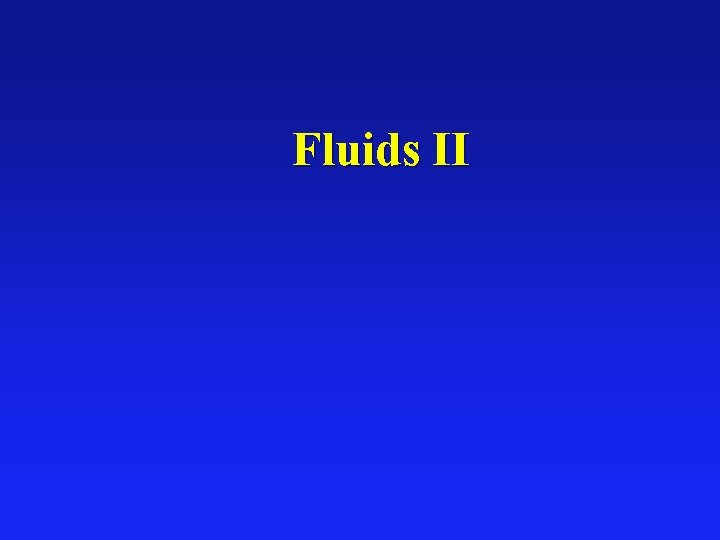

Fluids II

Archimedes Example A cube of plastic 4. 0 cm on a side with density = 0. 8 g/cm 3 is floating in the water. When a 9 gram coin is placed on the block, how much sinks below water surface? Fb h Mg mg 12

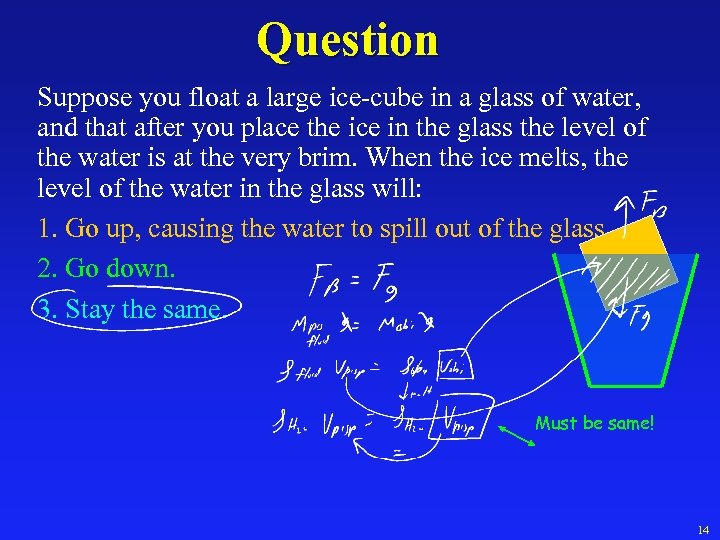

Question Suppose you float a large ice-cube in a glass of water, and that after you place the ice in the glass the level of the water is at the very brim. When the ice melts, the level of the water in the glass will: 1. Go up, causing the water to spill out of the glass. 2. Go down. 3. Stay the same. Must be same! 14

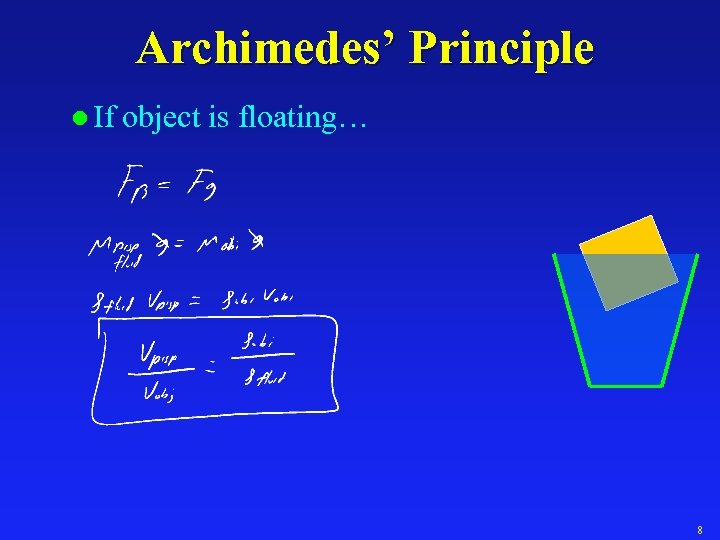

Archimedes’ Principle l If object is floating… 8

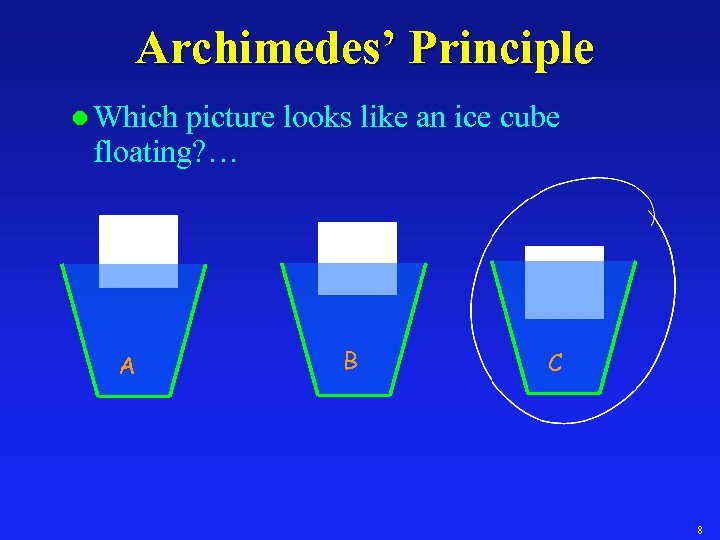

Archimedes’ Principle l Which picture looks like an ice cube floating? … A B C 8

How much of the Iceberg can you see?

Physics 101: Lecture 18, Pg 7

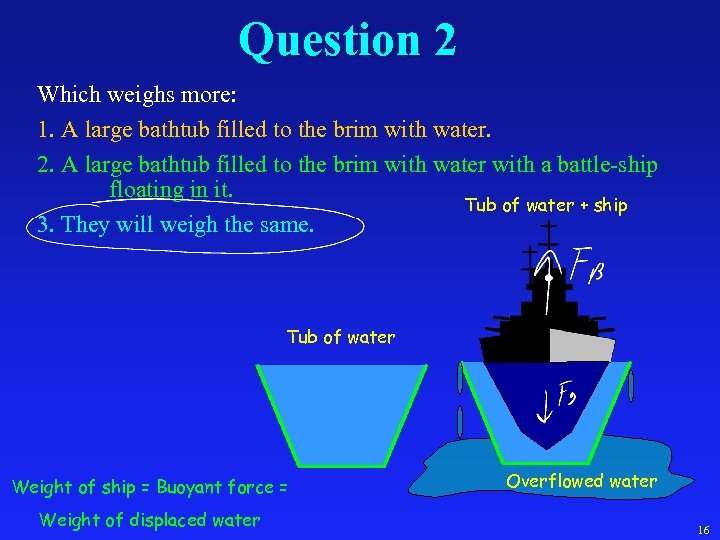

Question 2 Which weighs more: 1. A large bathtub filled to the brim with water. 2. A large bathtub filled to the brim with water with a battle-ship floating in it. Tub of water + ship 3. They will weigh the same. Tub of water Weight of ship = Buoyant force = Weight of displaced water Overflowed water 16

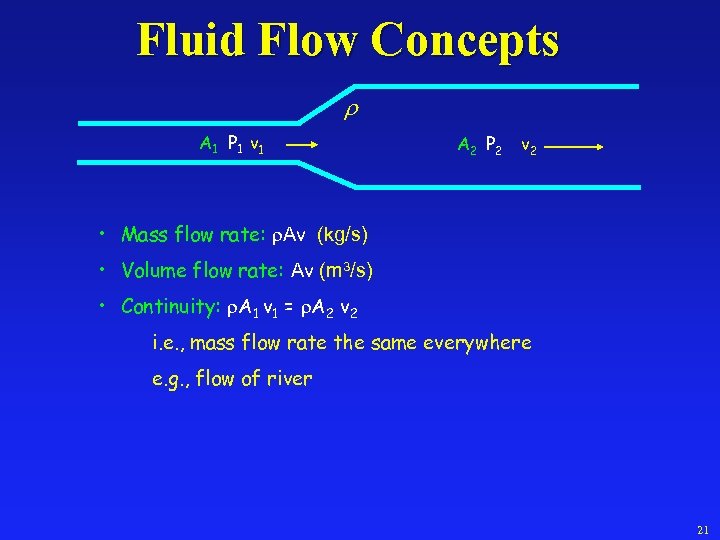

Fluid Flow Concepts r A 1 P 1 v 1 A 2 P 2 v 2 • Mass flow rate: Av (kg/s) • Volume flow rate: Av (m 3/s) • Continuity: A 1 v 1 = A 2 v 2 i. e. , mass flow rate the same everywhere e. g. , flow of river 21

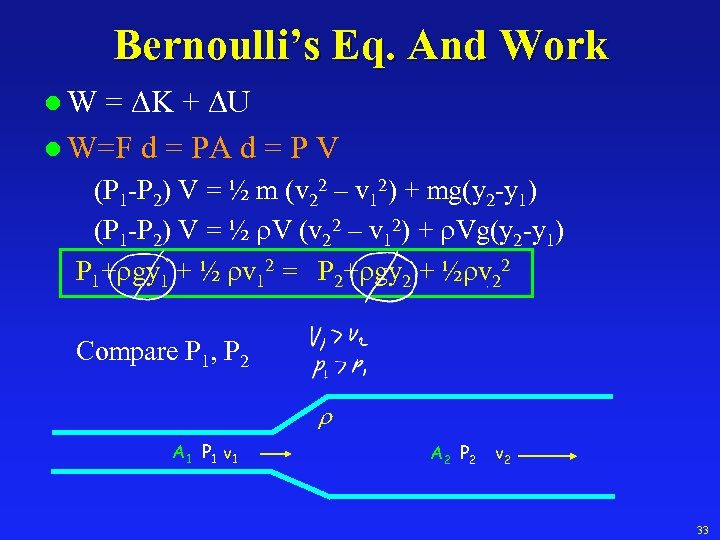

Bernoulli’s Eq. And Work = DK + DU l W=F d = PA d = P V l. W (P 1 -P 2) V = ½ m (v 22 – v 12) + mg(y 2 -y 1) (P 1 -P 2) V = ½ V (v 22 – v 12) + Vg(y 2 -y 1) P 1+ gy 1 + ½ v 12 = P 2+ gy 2 + ½ v 22 Compare P 1, P 2 r A 1 P 1 v 1 A 2 P 2 v 2 33

Example: hose A garden hose w/ inner diameter 2 cm, carries water at 2. 0 m/s. To spray your friend, you place your thumb over the nozzle giving an effective opening diameter of 0. 5 cm. What is the speed of the water exiting the hose? What is the pressure difference between inside the hose and outside? Continuity Equation Bernoulli Equation

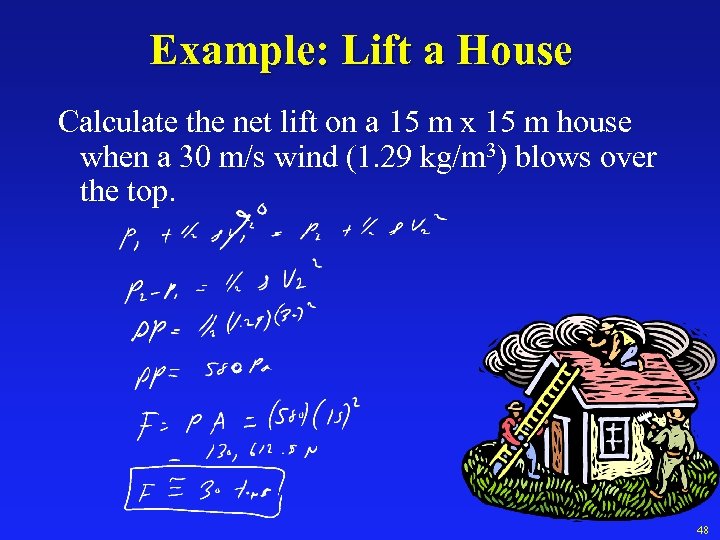

Example: Lift a House Calculate the net lift on a 15 m x 15 m house when a 30 m/s wind (1. 29 kg/m 3) blows over the top. 48

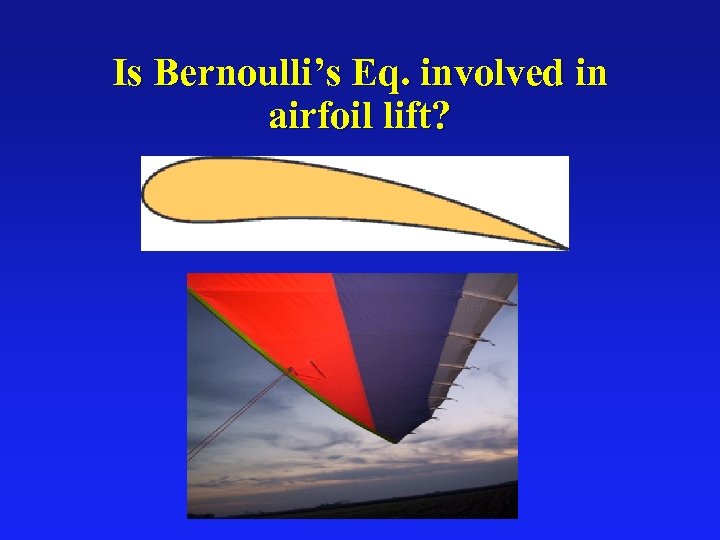

Is Bernoulli’s Eq. involved in airfoil lift?

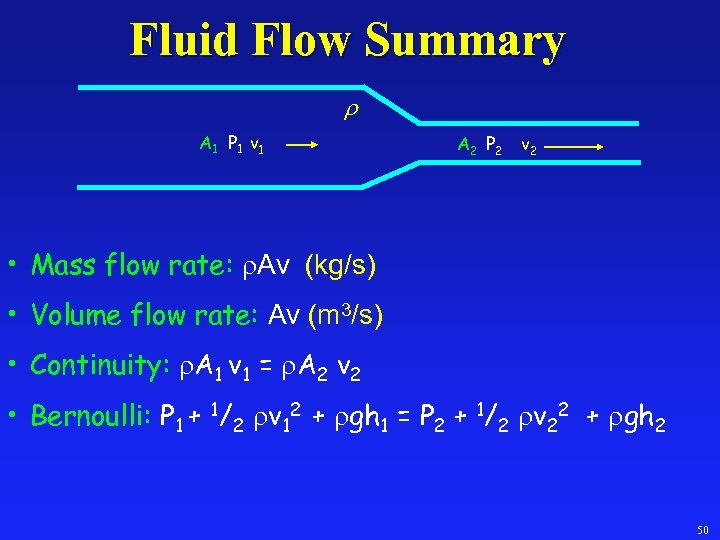

Fluid Flow Summary r A 1 P 1 v 1 A 2 P 2 v 2 • Mass flow rate: Av (kg/s) • Volume flow rate: Av (m 3/s) • Continuity: A 1 v 1 = A 2 v 2 • Bernoulli: P 1 + 1/2 v 12 + gh 1 = P 2 + 1/2 v 22 + gh 2 50
