Florida’s Energy Code 2007 Florida Building Code-Including 2007 Energy Glitch Amendments Effective March 1 st, 2009 Chapter 13 -415 Commercial Lighting Compliance Allen M. Weiss, PE, LC (aweiss@sescolighting. com) SESCO Lighting 1133 W. Morse Blvd. Winter Park Florida 32789 407 -629 -6100 www. sescolighting. com Florida Energy Code 1

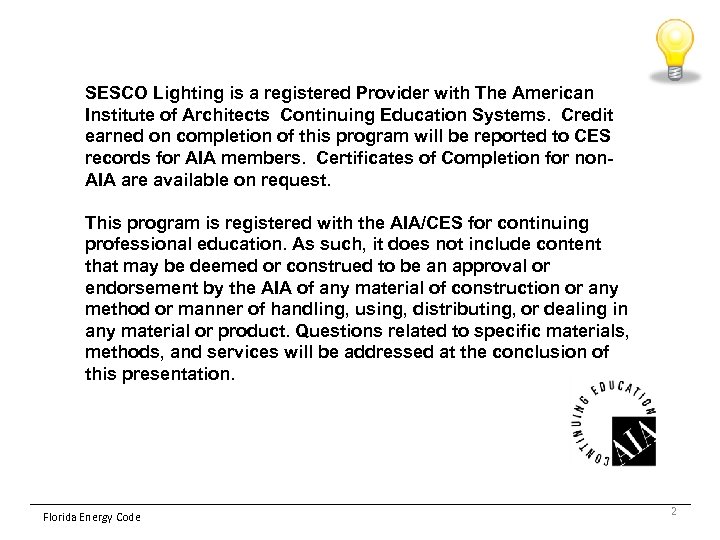

SESCO Lighting is a registered Provider with The American Institute of Architects Continuing Education Systems. Credit earned on completion of this program will be reported to CES records for AIA members. Certificates of Completion for non. AIA are available on request. This program is registered with the AIA/CES for continuing professional education. As such, it does not include content that may be deemed or construed to be an approval or endorsement by the AIA of any material of construction or any method or manner of handling, using, distributing, or dealing in any material or product. Questions related to specific materials, methods, and services will be addressed at the conclusion of this presentation. Florida Energy Code 2

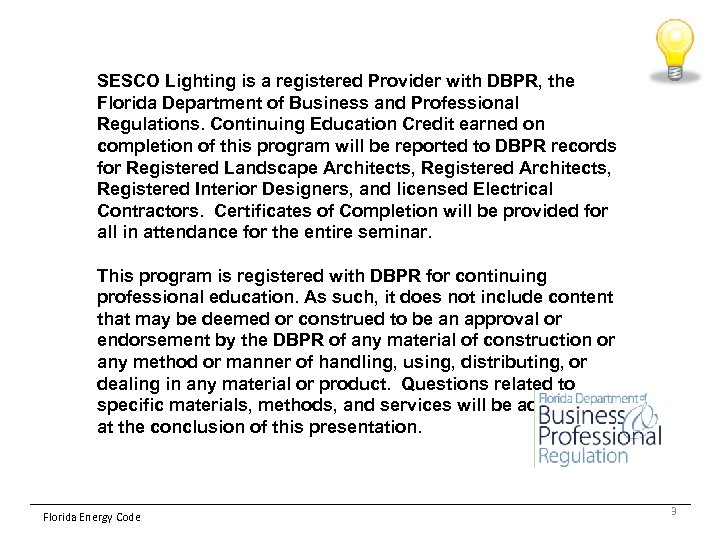

SESCO Lighting is a registered Provider with DBPR, the Florida Department of Business and Professional Regulations. Continuing Education Credit earned on completion of this program will be reported to DBPR records for Registered Landscape Architects, Registered Interior Designers, and licensed Electrical Contractors. Certificates of Completion will be provided for all in attendance for the entire seminar. This program is registered with DBPR for continuing professional education. As such, it does not include content that may be deemed or construed to be an approval or endorsement by the DBPR of any material of construction or any method or manner of handling, using, distributing, or dealing in any material or product. Questions related to specific materials, methods, and services will be addressed at the conclusion of this presentation. Florida Energy Code 3

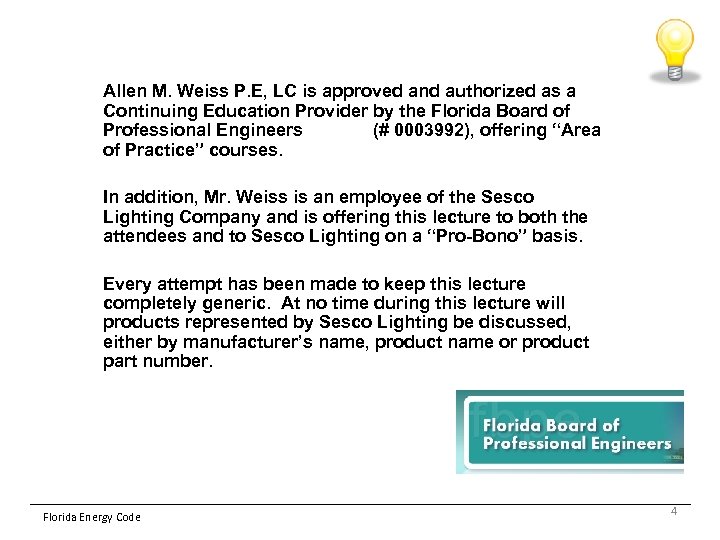

Allen M. Weiss P. E, LC is approved and authorized as a Continuing Education Provider by the Florida Board of Professional Engineers (# 0003992), offering “Area of Practice” courses. In addition, Mr. Weiss is an employee of the Sesco Lighting Company and is offering this lecture to both the attendees and to Sesco Lighting on a “Pro-Bono” basis. Every attempt has been made to keep this lecture completely generic. At no time during this lecture will products represented by Sesco Lighting be discussed, either by manufacturer’s name, product name or product part number. Florida Energy Code 4

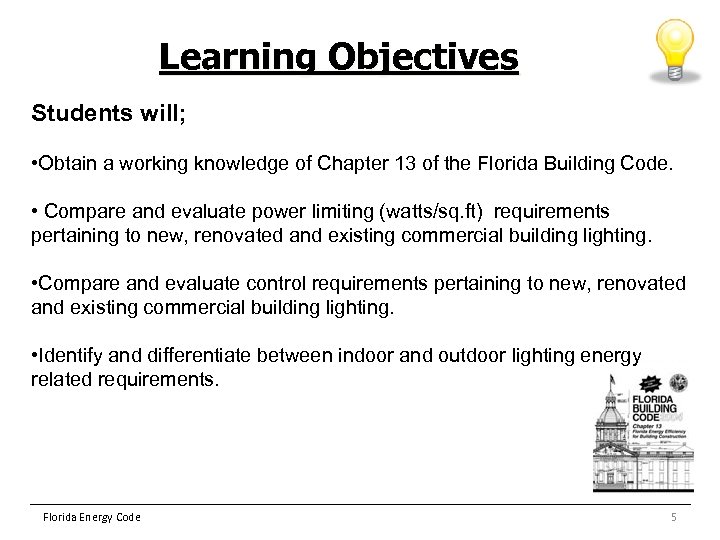

Learning Objectives Students will; • Obtain a working knowledge of Chapter 13 of the Florida Building Code. • Compare and evaluate power limiting (watts/sq. ft) requirements pertaining to new, renovated and existing commercial building lighting. • Compare and evaluate control requirements pertaining to new, renovated and existing commercial building lighting. • Identify and differentiate between indoor and outdoor lighting energy related requirements. Florida Energy Code 5
History of the Code In 2001 the Energy Conservation and Protection Act mandated that all states adopt a commercial energy code (ASHRAE 90. 1 -1999 or something more stringent for Energy standards) In 2001 Florida adopted only the Power Allowance portion of ASHRAE 90. 1 In 2004 Florida adopted their own code, calling it “The Florida Building Code, Chapter 13 -Florida Energy Efficiency for Building Construction 2004” (which remains very similar to ASHRAE 90. 1). This code was expanded to include both the Power Allowance and the Lighting Control sections In 2007 the code was revised and published but not yet adopted On March 1 st of 2009, the revised (2007) Florida Energy code was adopted complete with the 2009 Glitch amendments in their legislative format This is the Law !!! Florida Energy Code 6

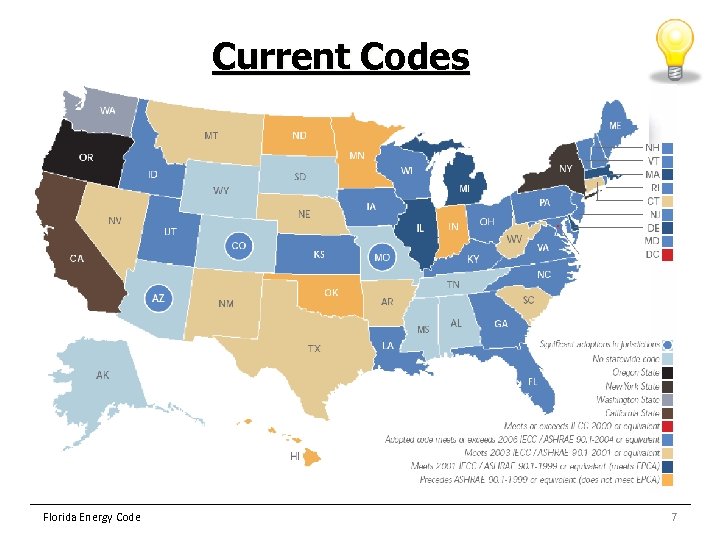

Current Codes Florida Energy Code 7
Intent & Scope of Energy Code • The provisions of The Florida Building Code - Chapter 13, Florida Energy Efficiency for Building Construction shall regulate: (1) Building Envelopes (2) Energy Systems: Mechanical, Electrical, & Illumination Systems for - New building construction - Additions - Alterations - Any change in building configuration Florida Energy Code 8
Florida Energy Code - Sections • This code is a statewide code and shall not be made more stringent or lenient by local government. Ch. 13 Sections: 1. Fenestrations (Glazing) 2. Walls 3. Doors 4. Roofs/Ceilings 5. Floors 6. Air Infiltration 7. Space Cooling Systems 8. Space Heating Systems Florida Energy Code 9. Ventilation 10. Air Distribution Systems 11. Pumps & Piping 12. Water Heating Systems 13. Electric Power 14. Motors 15. Lighting 9
New Construction & Additions • The provisions of this chapter apply to the Lighting Power Density and the Control requirements of: - All commercial occupancy buildings of any size - Additions to existing commercial occupancy buildings - Multiple-family residential buildings 4 stories or more above grade - Interior & Exterior Lighting Alterations & Renovations • Generally treated as New Construction • Replacement of lighting systems must comply • New or replacement control devices must comply Florida Energy Code 10

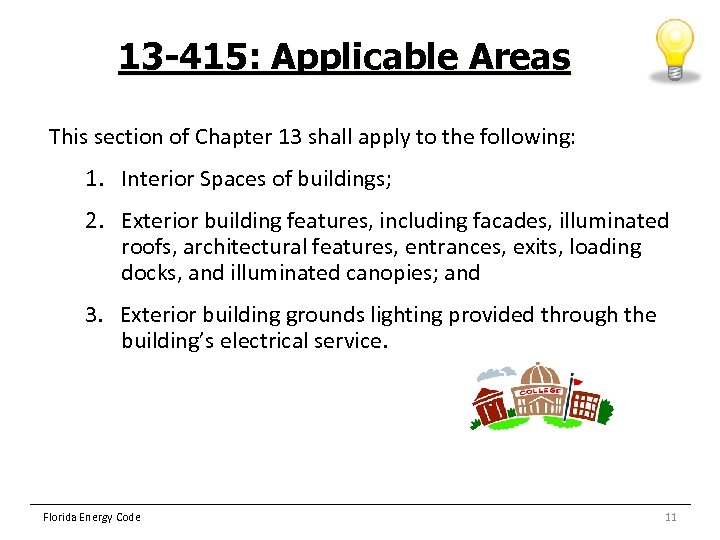

13 -415: Applicable Areas This section of Chapter 13 shall apply to the following: 1. Interior Spaces of buildings; 2. Exterior building features, including facades, illuminated roofs, architectural features, entrances, exits, loading docks, and illuminated canopies; and 3. Exterior building grounds lighting provided through the building’s electrical service. Florida Energy Code 11

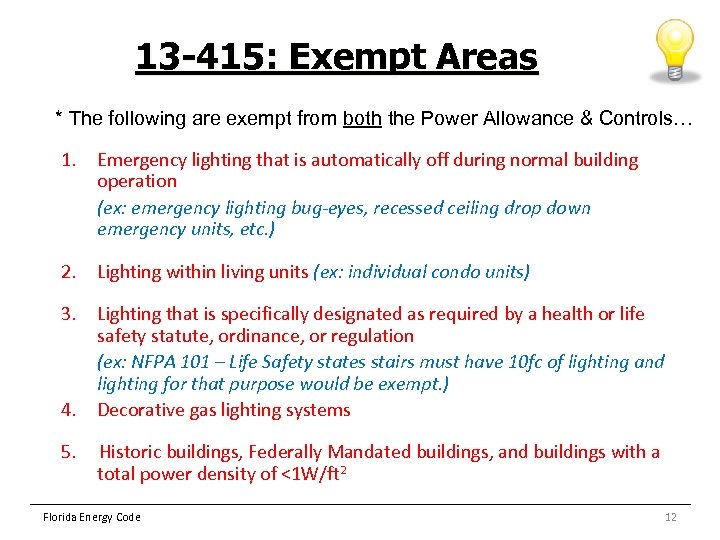

13 -415: Exempt Areas * The following are exempt from both the Power Allowance & Controls… 1. Emergency lighting that is automatically off during normal building operation (ex: emergency lighting bug-eyes, recessed ceiling drop down emergency units, etc. ) 2. Lighting within living units (ex: individual condo units) 3. Lighting that is specifically designated as required by a health or life safety statute, ordinance, or regulation (ex: NFPA 101 – Life Safety states stairs must have 10 fc of lighting and lighting for that purpose would be exempt. ) Decorative gas lighting systems 4. 5. Historic buildings, Federally Mandated buildings, and buildings with a total power density of <1 W/ft 2 Florida Energy Code 12

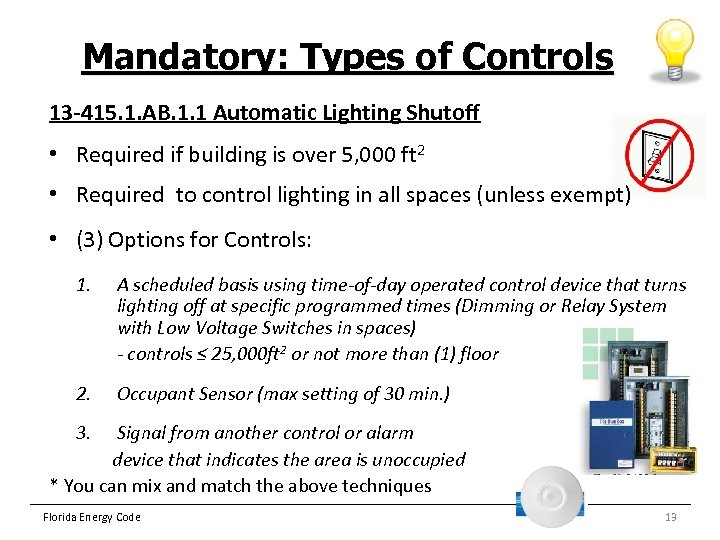

Mandatory: Types of Controls 13 -415. 1. AB. 1. 1 Automatic Lighting Shutoff • Required if building is over 5, 000 ft 2 • Required to control lighting in all spaces (unless exempt) • (3) Options for Controls: 1. A scheduled basis using time-of-day operated control device that turns lighting off at specific programmed times (Dimming or Relay System with Low Voltage Switches in spaces) - controls ≤ 25, 000 ft 2 or not more than (1) floor 2. Occupant Sensor (max setting of 30 min. ) 3. Signal from another control or alarm device that indicates the area is unoccupied * You can mix and match the above techniques Florida Energy Code 13

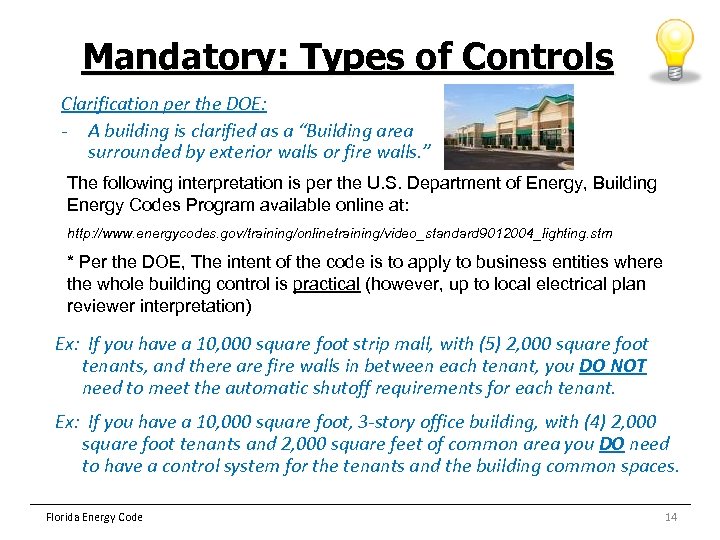

Mandatory: Types of Controls Clarification per the DOE: - A building is clarified as a “Building area surrounded by exterior walls or fire walls. ” The following interpretation is per the U. S. Department of Energy, Building Energy Codes Program available online at: http: //www. energycodes. gov/training/onlinetraining/video_standard 9012004_lighting. stm * Per the DOE, The intent of the code is to apply to business entities where the whole building control is practical (however, up to local electrical plan reviewer interpretation) Ex: If you have a 10, 000 square foot strip mall, with (5) 2, 000 square foot tenants, and there are fire walls in between each tenant, you DO NOT need to meet the automatic shutoff requirements for each tenant. Ex: If you have a 10, 000 square foot, 3 -story office building, with (4) 2, 000 square foot tenants and 2, 000 square feet of common area you DO need to have a control system for the tenants and the building common spaces. Florida Energy Code 14
Mandatory: Control Exceptions 13 -415. 1. AB. 1. 1 Automatic Lighting Controls: Exceptions: a. Lighting intended for 24 -hour operation. (ex: 24 -hour pharmacy, 24 -hour shift manufacturing facilities, etc. ) b. Lighting in spaces where patient care is rendered. (ex: hospital rooms, assisted living suites, etc. ) c. Spaces where an automatic shutoff would endanger the safety or security of the room or building occupant(s). (ex: mechanical and electrical equipment room, operating room, dental suites, workshops, etc. ) Florida Energy Code 15
Mandatory: Indiv. Space Controls 13 -415. 1. AB. 1. 2 Space Control: • Each space enclosed by ceiling-height partitions shall have at least one control device to independently control the general lighting within a space. • Each control shall be capable of overriding any time-of-day scheduled shut-off control for no more than 4 hours • In ≤ 10, 000 ft 2 spaces, each control can serve a max of 2, 500 ft 2 • In > 10, 000 ft 2 spaces, each control can serve a max of 10, 000 ft 2 Florida Energy Code 16

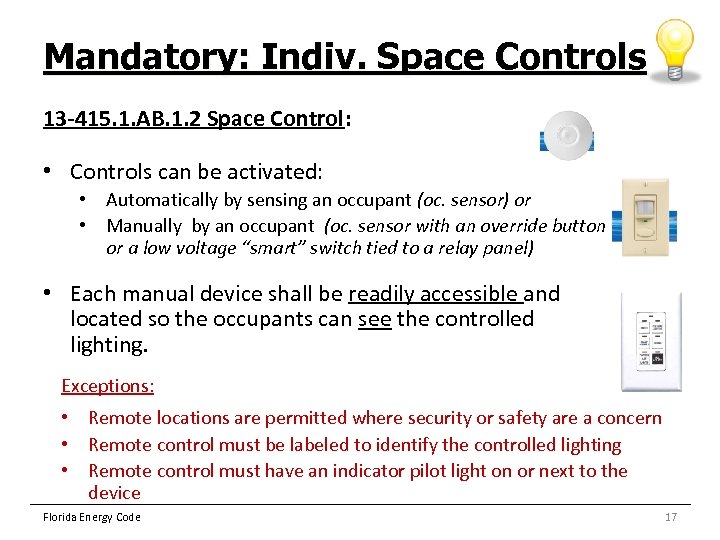

Mandatory: Indiv. Space Controls 13 -415. 1. AB. 1. 2 Space Control: • Controls can be activated: • Automatically by sensing an occupant (oc. sensor) or • Manually by an occupant (oc. sensor with an override button or a low voltage “smart” switch tied to a relay panel) • Each manual device shall be readily accessible and located so the occupants can see the controlled lighting. Exceptions: • Remote locations are permitted where security or safety are a concern • Remote control must be labeled to identify the controlled lighting • Remote control must have an indicator pilot light on or next to the device Florida Energy Code 17

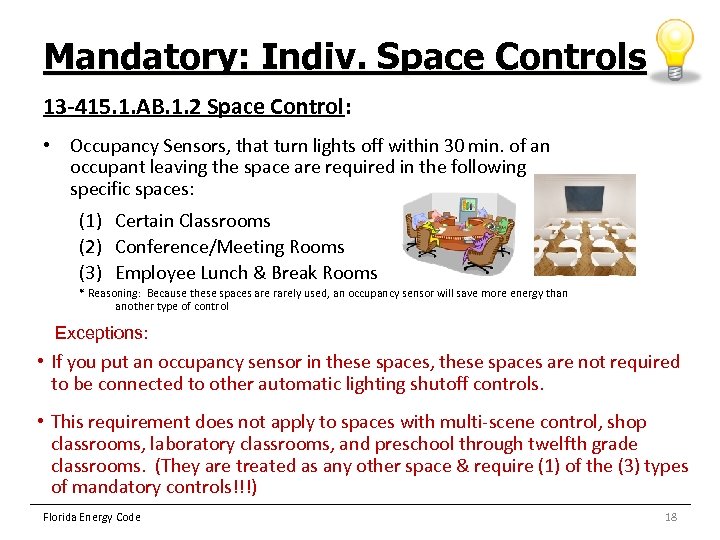

Mandatory: Indiv. Space Controls 13 -415. 1. AB. 1. 2 Space Control: • Occupancy Sensors, that turn lights off within 30 min. of an occupant leaving the space are required in the following specific spaces: (1) Certain Classrooms (2) Conference/Meeting Rooms (3) Employee Lunch & Break Rooms * Reasoning: Because these spaces are rarely used, an occupancy sensor will save more energy than another type of control Exceptions: • If you put an occupancy sensor in these spaces, these spaces are not required to be connected to other automatic lighting shutoff controls. • This requirement does not apply to spaces with multi-scene control, shop classrooms, laboratory classrooms, and preschool through twelfth grade classrooms. (They are treated as any other space & require (1) of the (3) types of mandatory controls!!!) Florida Energy Code 18

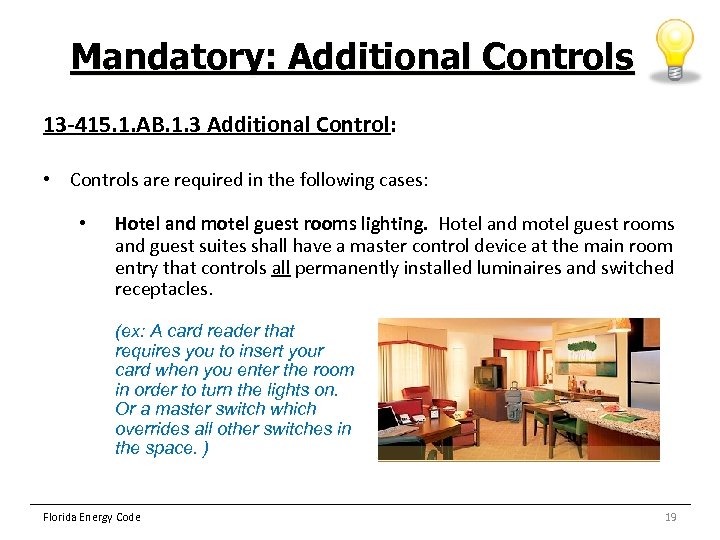

Mandatory: Additional Controls 13 -415. 1. AB. 1. 3 Additional Control: • Controls are required in the following cases: • Hotel and motel guest rooms lighting. Hotel and motel guest rooms and guest suites shall have a master control device at the main room entry that controls all permanently installed luminaires and switched receptacles. (ex: A card reader that requires you to insert your card when you enter the room in order to turn the lights on. Or a master switch which overrides all other switches in the space. ) Florida Energy Code 19

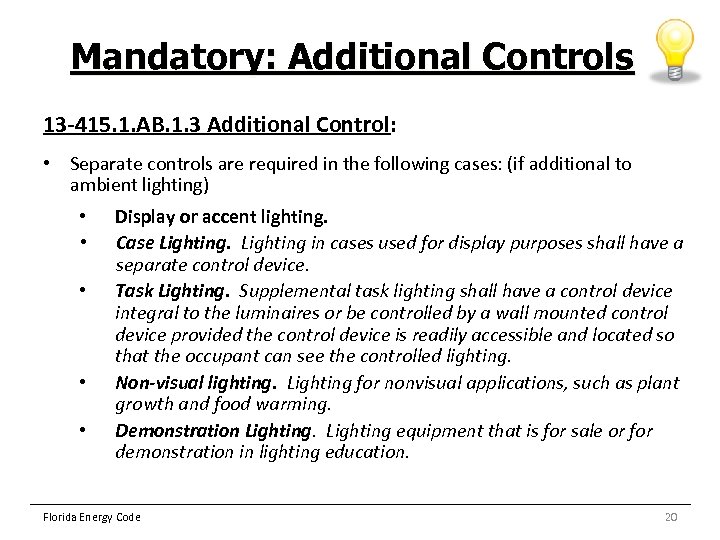

Mandatory: Additional Controls 13 -415. 1. AB. 1. 3 Additional Control: • Separate controls are required in the following cases: (if additional to ambient lighting) • • • Display or accent lighting. Case Lighting in cases used for display purposes shall have a separate control device. Task Lighting. Supplemental task lighting shall have a control device integral to the luminaires or be controlled by a wall mounted control device provided the control device is readily accessible and located so that the occupant can see the controlled lighting. Non-visual lighting. Lighting for nonvisual applications, such as plant growth and food warming. Demonstration Lighting equipment that is for sale or for demonstration in lighting education. Florida Energy Code 20

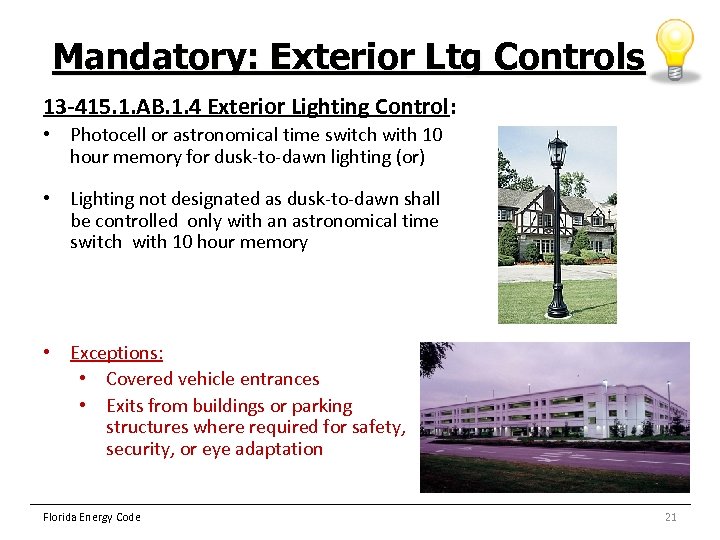

Mandatory: Exterior Ltg Controls 13 -415. 1. AB. 1. 4 Exterior Lighting Control: • Photocell or astronomical time switch with 10 hour memory for dusk-to-dawn lighting (or) • Lighting not designated as dusk-to-dawn shall be controlled only with an astronomical time switch with 10 hour memory • Exceptions: • Covered vehicle entrances • Exits from buildings or parking structures where required for safety, security, or eye adaptation Florida Energy Code 21

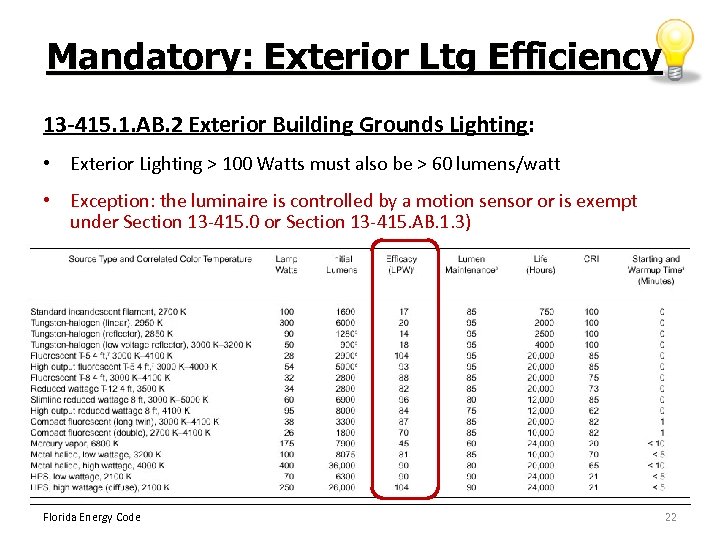

Mandatory: Exterior Ltg Efficiency 13 -415. 1. AB. 2 Exterior Building Grounds Lighting: • Exterior Lighting > 100 Watts must also be > 60 lumens/watt • Exception: the luminaire is controlled by a motion sensor or is exempt under Section 13 -415. 0 or Section 13 -415. AB. 1. 3) Florida Energy Code 22

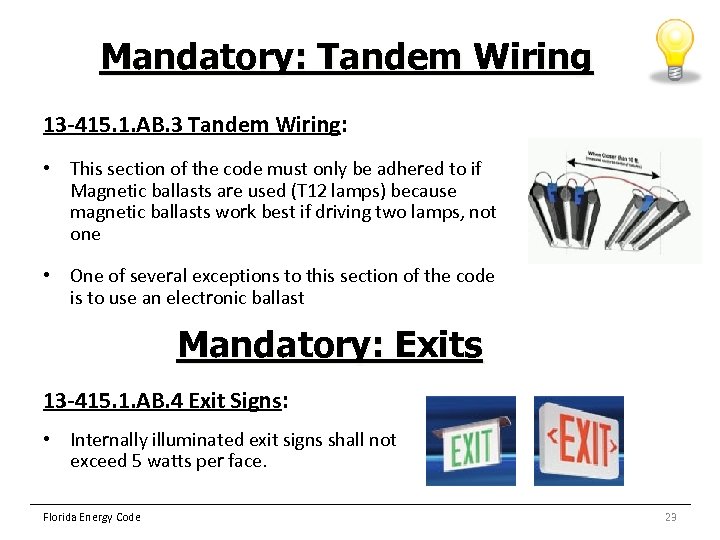

Mandatory: Tandem Wiring 13 -415. 1. AB. 3 Tandem Wiring: • This section of the code must only be adhered to if Magnetic ballasts are used (T 12 lamps) because magnetic ballasts work best if driving two lamps, not one • One of several exceptions to this section of the code is to use an electronic ballast Mandatory: Exits 13 -415. 1. AB. 4 Exit Signs: • Internally illuminated exit signs shall not exceed 5 watts per face. Florida Energy Code 23

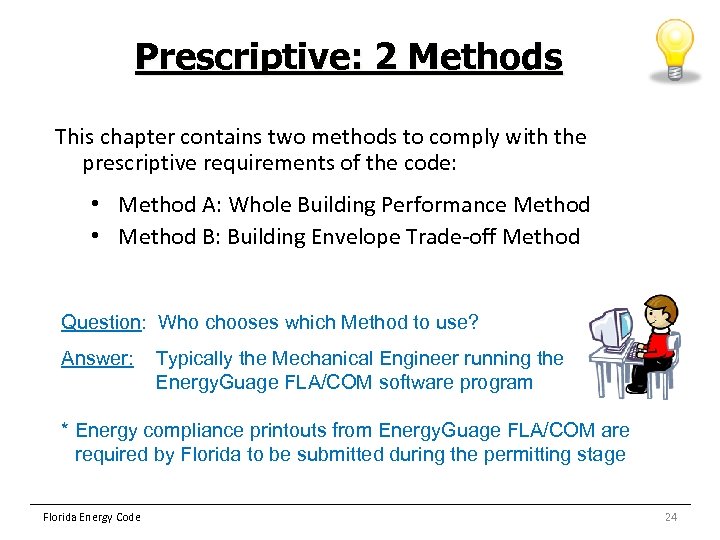

Prescriptive: 2 Methods This chapter contains two methods to comply with the prescriptive requirements of the code: • Method A: Whole Building Performance Method • Method B: Building Envelope Trade-off Method Question: Who chooses which Method to use? Answer: Typically the Mechanical Engineer running the Energy. Guage FLA/COM software program * Energy compliance printouts from Energy. Guage FLA/COM are required by Florida to be submitted during the permitting stage Florida Energy Code 24

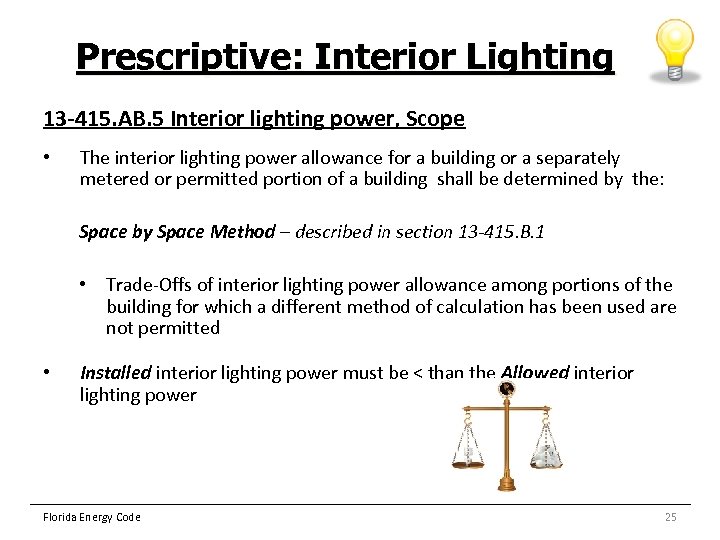

Prescriptive: Interior Lighting 13 -415. AB. 5 Interior lighting power, Scope • The interior lighting power allowance for a building or a separately metered or permitted portion of a building shall be determined by the: Space by Space Method – described in section 13 -415. B. 1 • Trade-Offs of interior lighting power allowance among portions of the building for which a different method of calculation has been used are not permitted • Installed interior lighting power must be < than the Allowed interior lighting power Florida Energy Code 25

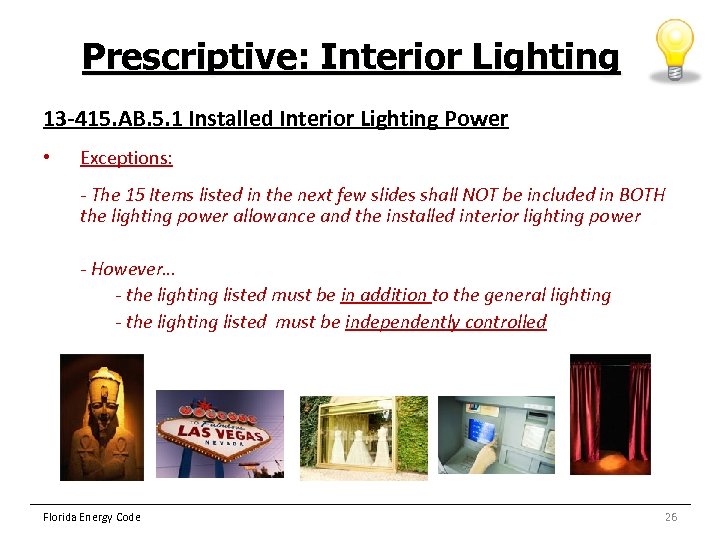

Prescriptive: Interior Lighting 13 -415. AB. 5. 1 Installed Interior Lighting Power • Exceptions: - The 15 Items listed in the next few slides shall NOT be included in BOTH the lighting power allowance and the installed interior lighting power - However… - the lighting listed must be in addition to the general lighting - the lighting listed must be independently controlled Florida Energy Code 26
Prescriptive: Exempt Interior Ltg. Exceptions: 1. Display or accent lighting that is an essential element for the function performed in galleries, museums, monuments. 2. Lighting that is integral to equipment or instrumentation and is installed by its manufacturer. 3. Lighting specifically designed for use only during medical or dental procedures and lighting integral to medical equipment. 4. Lighting integral to both open and glass enclosed refrigerator and freezer cases. 5. Lighting integral to food warming and food preparation equipment. 6. Lighting for plant growth or maintenance. 7. Lighting in spaces specifically designed for use by the visually impaired. Florida Energy Code 27
Prescriptive: Exempt Interior Ltg. 8. Lighting in retail display windows, provided the display area is enclosed by ceiling-height partitions. (ex: Macy’s store windows in NYC) 9. Lighting in interior spaces that have been specifically designated as a registered historic landmark. (ex: Inside Independence Hall in Philly) 10. Lighting that is an integral part of advertising or directional signage. (ex: lighting within a sign that is purchased for the building) 11. Exit signs. 12. Lighting that is for sale or lighting educational demonstration systems. 13. Lighting for theatrical purposes, including performance, stage, and film, and video production. 14. Lighting for television broadcasting in sporting activity areas. 15. Casino gaming areas. Florida Energy Code 28

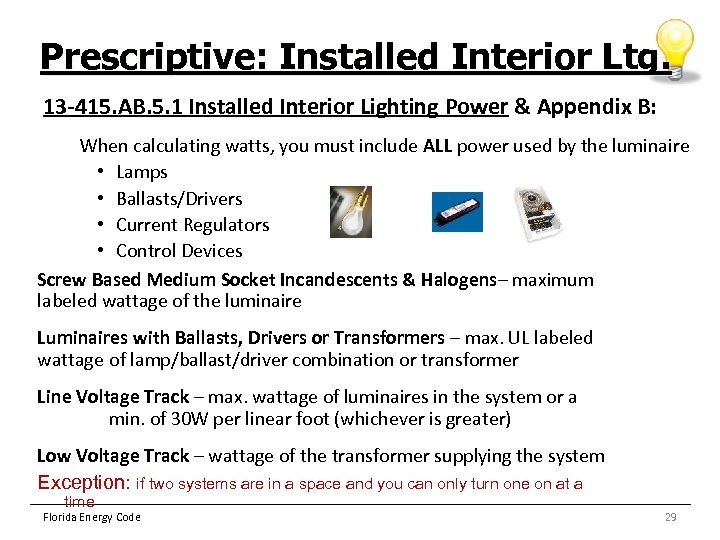

Prescriptive: Installed Interior Ltg. 13 -415. AB. 5. 1 Installed Interior Lighting Power & Appendix B: When calculating watts, you must include ALL power used by the luminaire • Lamps • Ballasts/Drivers • Current Regulators • Control Devices Screw Based Medium Socket Incandescents & Halogens– maximum labeled wattage of the luminaire Luminaires with Ballasts, Drivers or Transformers – max. UL labeled wattage of lamp/ballast/driver combination or transformer Line Voltage Track – max. wattage of luminaires in the system or a min. of 30 W per linear foot (whichever is greater) Low Voltage Track – wattage of the transformer supplying the system Exception: if two systems are in a space and you can only turn one on at a time Florida Energy Code 29

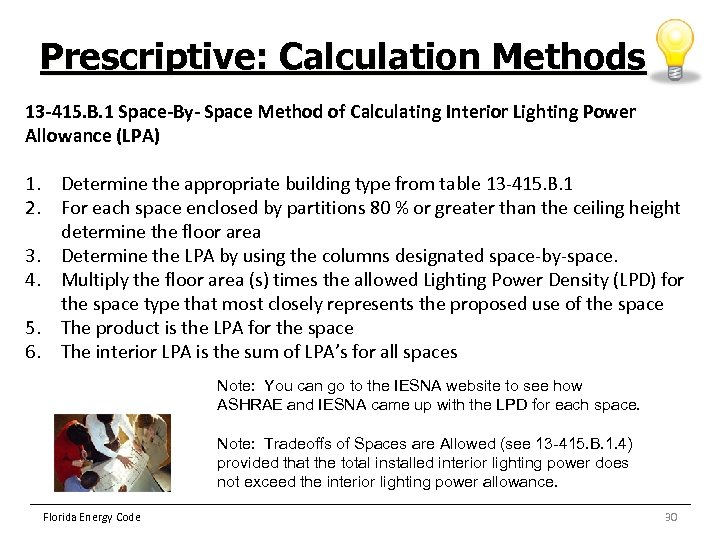

Prescriptive: Calculation Methods 13 -415. B. 1 Space-By- Space Method of Calculating Interior Lighting Power Allowance (LPA) 1. Determine the appropriate building type from table 13 -415. B. 1 2. For each space enclosed by partitions 80 % or greater than the ceiling height determine the floor area 3. Determine the LPA by using the columns designated space-by-space. 4. Multiply the floor area (s) times the allowed Lighting Power Density (LPD) for the space type that most closely represents the proposed use of the space 5. The product is the LPA for the space 6. The interior LPA is the sum of LPA’s for all spaces Note: You can go to the IESNA website to see how ASHRAE and IESNA came up with the LPD for each space. Note: Tradeoffs of Spaces are Allowed (see 13 -415. B. 1. 4) provided that the total installed interior lighting power does not exceed the interior lighting power allowance. Florida Energy Code 30

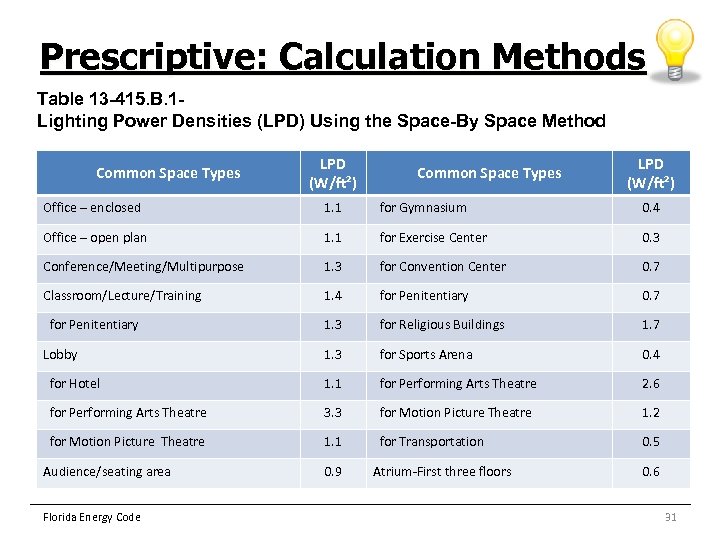

Prescriptive: Calculation Methods Table 13 -415. B. 1 Lighting Power Densities (LPD) Using the Space-By Space Method Common Space Types LPD (W/ft²) Office – enclosed 1. 1 for Gymnasium 0. 4 Office – open plan 1. 1 for Exercise Center 0. 3 Conference/Meeting/Multipurpose 1. 3 for Convention Center 0. 7 Classroom/Lecture/Training 1. 4 for Penitentiary 0. 7 1. 3 for Religious Buildings 1. 7 1. 3 for Sports Arena 0. 4 for Hotel 1. 1 for Performing Arts Theatre 2. 6 for Performing Arts Theatre 3. 3 for Motion Picture Theatre 1. 2 for Motion Picture Theatre 1. 1 for Transportation 0. 5 for Penitentiary Lobby Audience/seating area Florida Energy Code 0. 9 Atrium-First three floors 0. 6 31

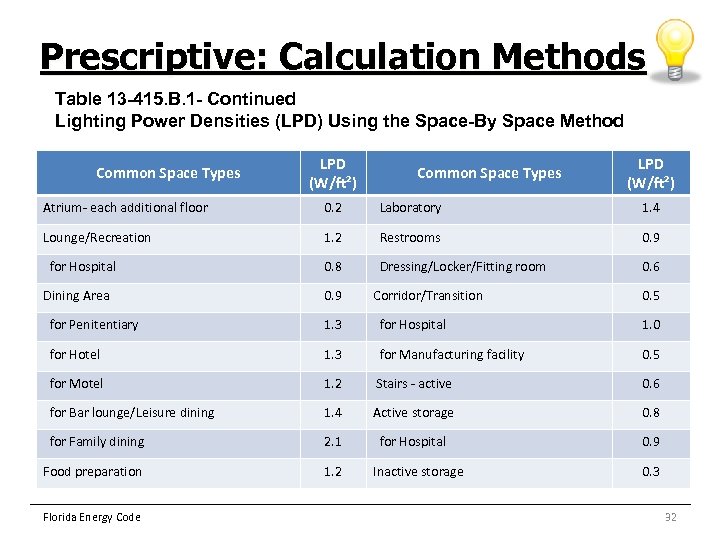

Prescriptive: Calculation Methods Table 13 -415. B. 1 - Continued Lighting Power Densities (LPD) Using the Space-By Space Method Common Space Types LPD (W/ft²) Atrium- each additional floor 0. 2 Laboratory 1. 4 Lounge/Recreation 1. 2 Restrooms 0. 9 0. 8 Dressing/Locker/Fitting room 0. 6 for Hospital Dining Area 0. 9 Corridor/Transition 0. 5 for Penitentiary 1. 3 for Hospital 1. 0 for Hotel 1. 3 for Manufacturing facility 0. 5 for Motel 1. 2 Stairs - active 0. 6 for Bar lounge/Leisure dining 1. 4 Active storage 0. 8 for Family dining 2. 1 for Hospital 0. 9 Food preparation 1. 2 Florida Energy Code Inactive storage 0. 3 32

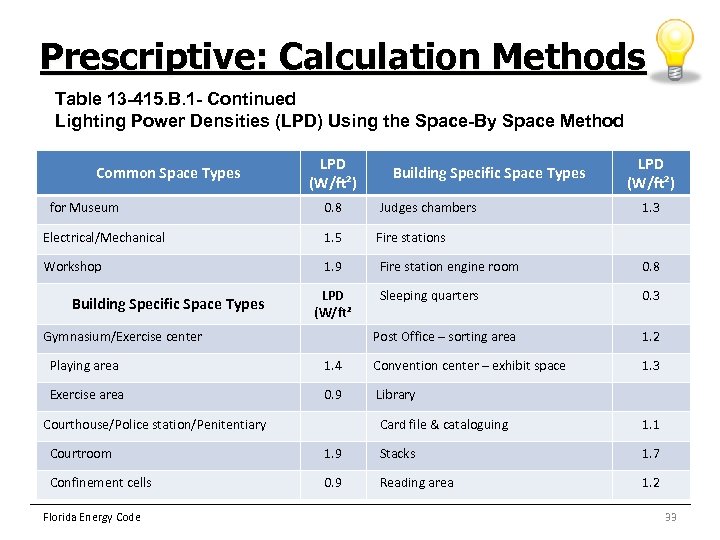

Prescriptive: Calculation Methods Table 13 -415. B. 1 - Continued Lighting Power Densities (LPD) Using the Space-By Space Method Common Space Types for Museum LPD (W/ft²) Building Specific Space Types LPD (W/ft²) 0. 8 Judges chambers Electrical/Mechanical 1. 5 Fire stations Workshop 1. 9 Fire station engine room 0. 8 Sleeping quarters 0. 3 Building Specific Space Types LPD (W/ft² Gymnasium/Exercise center 1. 3 Post Office – sorting area 1. 2 1. 3 Playing area 1. 4 Convention center – exhibit space Exercise area 0. 9 Library Courthouse/Police station/Penitentiary Card file & cataloguing 1. 1 Courtroom 1. 9 Stacks 1. 7 Confinement cells 0. 9 Reading area 1. 2 Florida Energy Code 33

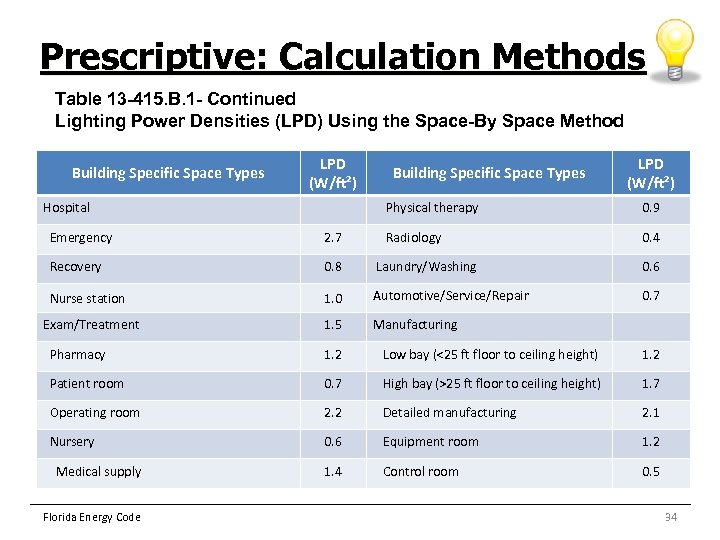

Prescriptive: Calculation Methods Table 13 -415. B. 1 - Continued Lighting Power Densities (LPD) Using the Space-By Space Method Building Specific Space Types LPD (W/ft²) Hospital Building Specific Space Types LPD (W/ft²) Physical therapy 0. 9 Radiology 0. 4 Emergency 2. 7 Recovery 0. 8 Laundry/Washing 0. 6 Nurse station 1. 0 Automotive/Service/Repair 0. 7 Exam/Treatment 1. 5 Manufacturing Pharmacy 1. 2 Low bay (<25 ft floor to ceiling height) 1. 2 Patient room 0. 7 High bay (>25 ft floor to ceiling height) 1. 7 Operating room 2. 2 Detailed manufacturing 2. 1 Nursery 0. 6 Equipment room 1. 2 1. 4 Control room 0. 5 Medical supply Florida Energy Code 34

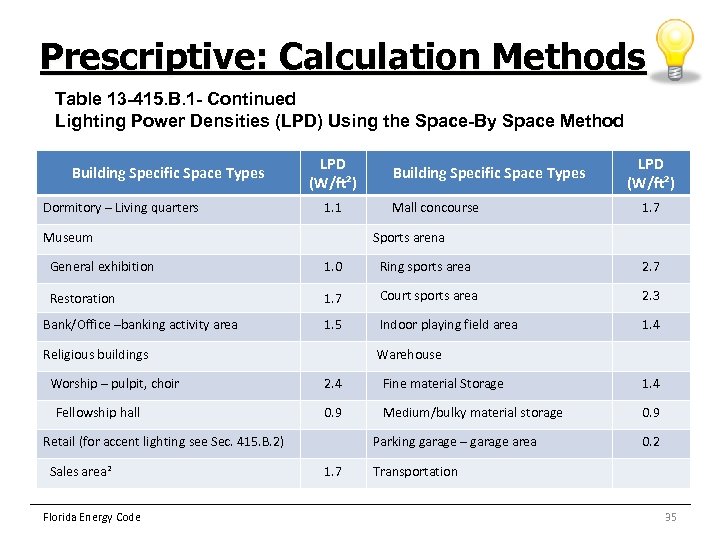

Prescriptive: Calculation Methods Table 13 -415. B. 1 - Continued Lighting Power Densities (LPD) Using the Space-By Space Method Building Specific Space Types Dormitory – Living quarters LPD (W/ft²) 1. 1 Museum Building Specific Space Types Mall concourse LPD (W/ft²) 1. 7 Sports arena General exhibition 1. 0 Ring sports area 2. 7 Restoration 1. 7 Court sports area 2. 3 1. 5 Indoor playing field area 1. 4 Bank/Office –banking activity area Religious buildings Worship – pulpit, choir Fellowship hall Warehouse 2. 4 Fine material Storage 1. 4 0. 9 Medium/bulky material storage 0. 9 Retail (for accent lighting see Sec. 415. B. 2) Sales area² Florida Energy Code Parking garage – garage area 1. 7 0. 2 Transportation 35

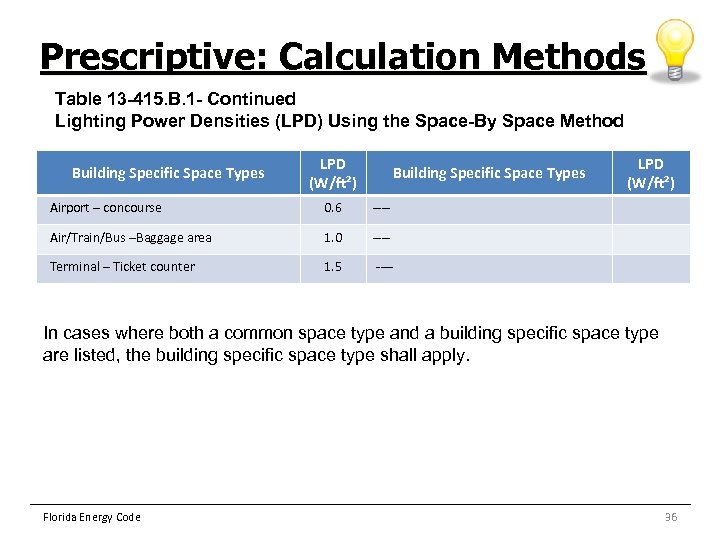

Prescriptive: Calculation Methods Table 13 -415. B. 1 - Continued Lighting Power Densities (LPD) Using the Space-By Space Method Building Specific Space Types LPD (W/ft²) Building Specific Space Types Airport – concourse 0. 6 ---- Air/Train/Bus –Baggage area 1. 0 ---- Terminal – Ticket counter 1. 5 LPD (W/ft²) ---- In cases where both a common space type and a building specific space type are listed, the building specific space type shall apply. Florida Energy Code 36

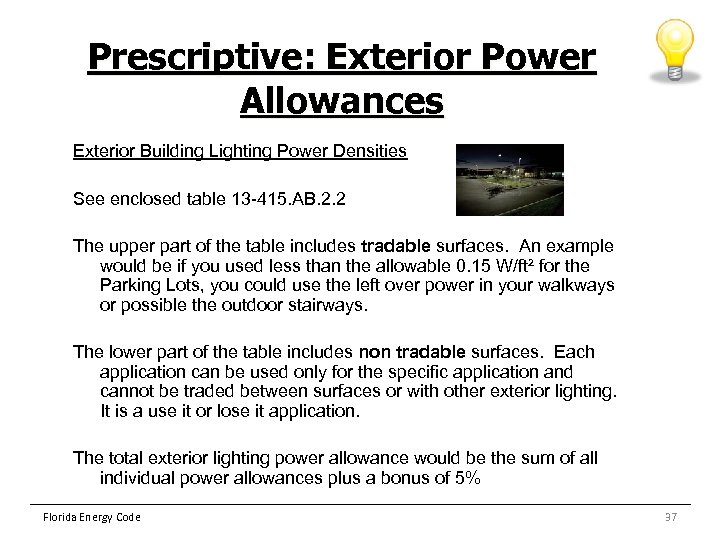

Prescriptive: Exterior Power Allowances Exterior Building Lighting Power Densities See enclosed table 13 -415. AB. 2. 2 The upper part of the table includes tradable surfaces. An example would be if you used less than the allowable 0. 15 W/ft² for the Parking Lots, you could use the left over power in your walkways or possible the outdoor stairways. The lower part of the table includes non tradable surfaces. Each application can be used only for the specific application and cannot be traded between surfaces or with other exterior lighting. It is a use it or lose it application. The total exterior lighting power allowance would be the sum of all individual power allowances plus a bonus of 5% Florida Energy Code 37

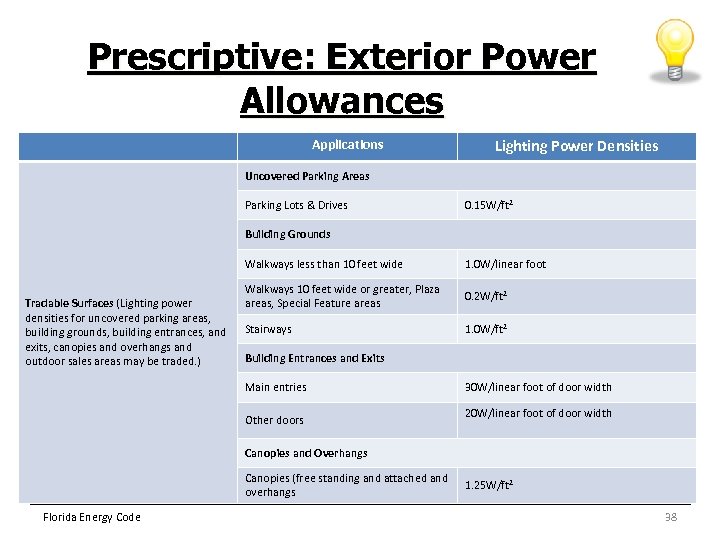

Prescriptive: Exterior Power Allowances Applications Lighting Power Densities Uncovered Parking Areas Parking Lots & Drives 0. 15 W/ft² Building Grounds Walkways less than 10 feet wide Tradable Surfaces (Lighting power densities for uncovered parking areas, building grounds, building entrances, and exits, canopies and overhangs and outdoor sales areas may be traded. ) 1. 0 W/linear foot Walkways 10 feet wide or greater, Plaza areas, Special Feature areas 0. 2 W/ft² Stairways 1. 0 W/ft² Building Entrances and Exits Main entries Other doors 30 W/linear foot of door width 20 W/linear foot of door width Canopies and Overhangs Canopies (free standing and attached and overhangs Florida Energy Code 1. 25 W/ft² 38

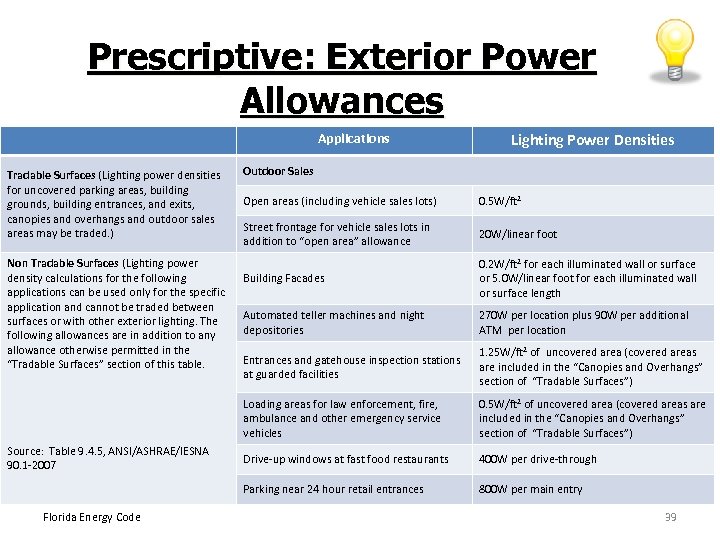

Prescriptive: Exterior Power Allowances Applications Tradable Surfaces (Lighting power densities for uncovered parking areas, building grounds, building entrances, and exits, canopies and overhangs and outdoor sales areas may be traded. ) Lighting Power Densities Outdoor Sales Florida Energy Code Street frontage for vehicle sales lots in addition to “open area” allowance 20 W/linear foot Building Facades 0. 2 W/ft² for each illuminated wall or surface or 5. 0 W/linear foot for each illuminated wall or surface length Automated teller machines and night depositories 270 W per location plus 90 W per additional ATM per location Entrances and gatehouse inspection stations at guarded facilities 1. 25 W/ft² of uncovered area (covered areas are included in the “Canopies and Overhangs” section of “Tradable Surfaces”) 0. 5 W/ft² of uncovered area (covered areas are included in the “Canopies and Overhangs” section of “Tradable Surfaces”) Drive-up windows at fast food restaurants 400 W per drive-through Parking near 24 hour retail entrances Source: Table 9. 4. 5, ANSI/ASHRAE/IESNA 90. 1 -2007 0. 5 W/ft² Loading areas for law enforcement, fire, ambulance and other emergency service vehicles Non Tradable Surfaces (Lighting power density calculations for the following applications can be used only for the specific application and cannot be traded between surfaces or with other exterior lighting. The following allowances are in addition to any allowance otherwise permitted in the “Tradable Surfaces” section of this table. Open areas (including vehicle sales lots) 800 W per main entry 39

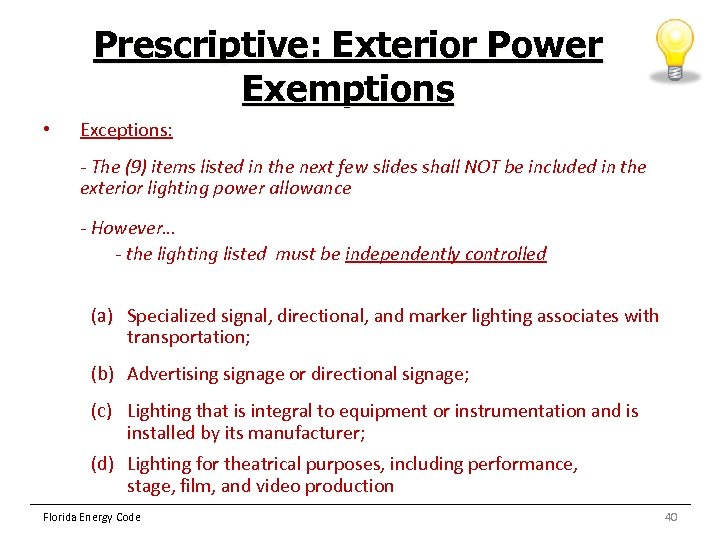

Prescriptive: Exterior Power Exemptions • Exceptions: - The (9) items listed in the next few slides shall NOT be included in the exterior lighting power allowance - However… - the lighting listed must be independently controlled (a) Specialized signal, directional, and marker lighting associates with transportation; (b) Advertising signage or directional signage; (c) Lighting that is integral to equipment or instrumentation and is installed by its manufacturer; (d) Lighting for theatrical purposes, including performance, stage, film, and video production Florida Energy Code 40

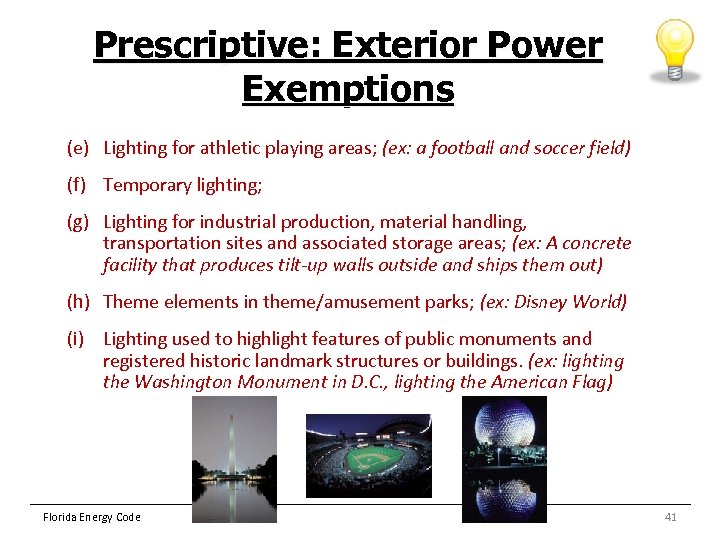

Prescriptive: Exterior Power Exemptions (e) Lighting for athletic playing areas; (ex: a football and soccer field) (f) Temporary lighting; (g) Lighting for industrial production, material handling, transportation sites and associated storage areas; (ex: A concrete facility that produces tilt-up walls outside and ships them out) (h) Theme elements in theme/amusement parks; (ex: Disney World) (i) Lighting used to highlight features of public monuments and registered historic landmark structures or buildings. (ex: lighting the Washington Monument in D. C. , lighting the American Flag) Florida Energy Code 41
OU KY N THA FOR UR YO E! TIM Any Questions? Course Title: The Florida Energy Code– SESCO Lecture #8 Provider: Allen Weiss / Shayna Bramley AIA/CES Provider # / Course #: L 140 / SES 8 FL DBPR-Arch Provider # / Course #: 8190 / AR. 12. 1371 FL DBPR-Land. Arch Provider # / Course #: N/A FL DBPR-Int. Des. Provider # / Course #: 8190 / 05. 11. 713 FL DBPR-Elec. Contr. Provider # / Course #: 0003283 / 0007607 IDCEC (ASID, IIDA) Course #: 7898 FBPE Provider #: 0003992 ASLA#: Coming soon SESCO Lighting 1133 W. Morse Blvd. Suite 100 Winter Park Florida 32789 407 -629 -6100 This concludes the American Institute of Architects and DBPR Continuing Education Systems Program www. sescolighting. com Florida Energy Code 42
