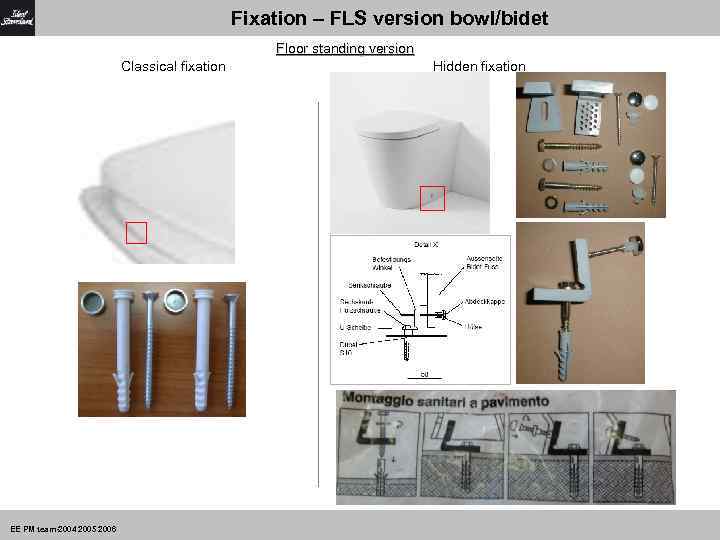

Fixation – FLS version bowl/bidet Floor standing version Classical fixation EE PM team-2004 2005 2006 Hidden fixation

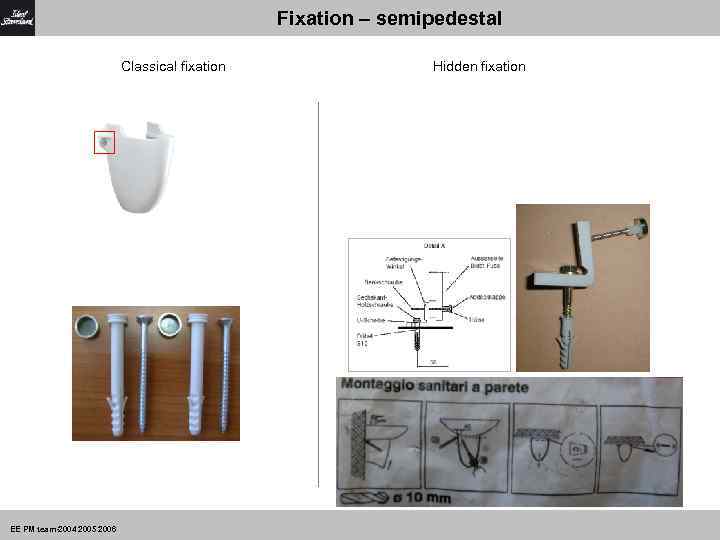

Fixation – semipedestal Classical fixation EE PM team-2004 2005 2006 Hidden fixation

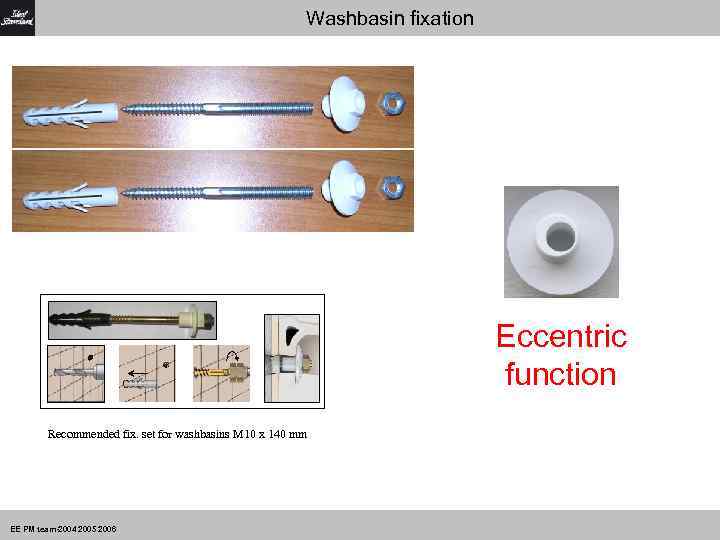

Washbasin fixation Eccentric function Recommended fix. set for washbasins M 10 x 140 mm EE PM team-2004 2005 2006

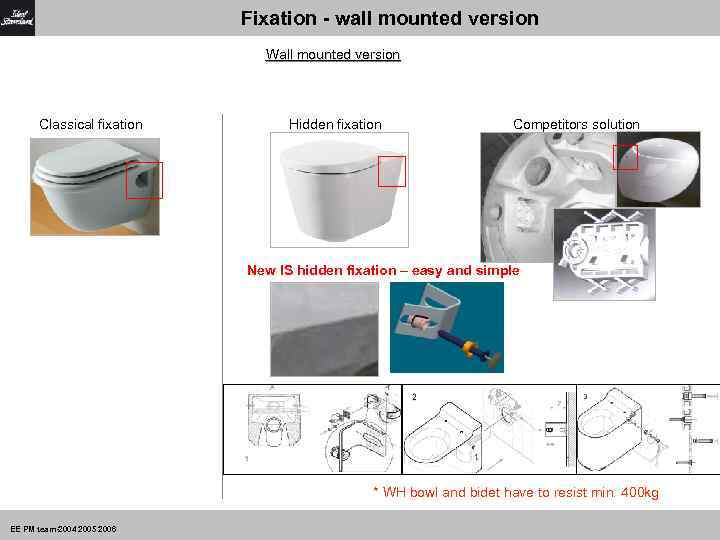

Fixation - wall mounted version Wall mounted version Classical fixation Hidden fixation Competitors solution New IS hidden fixation – easy and simple * WH bowl and bidet have to resist min. 400 kg EE PM team-2004 2005 2006

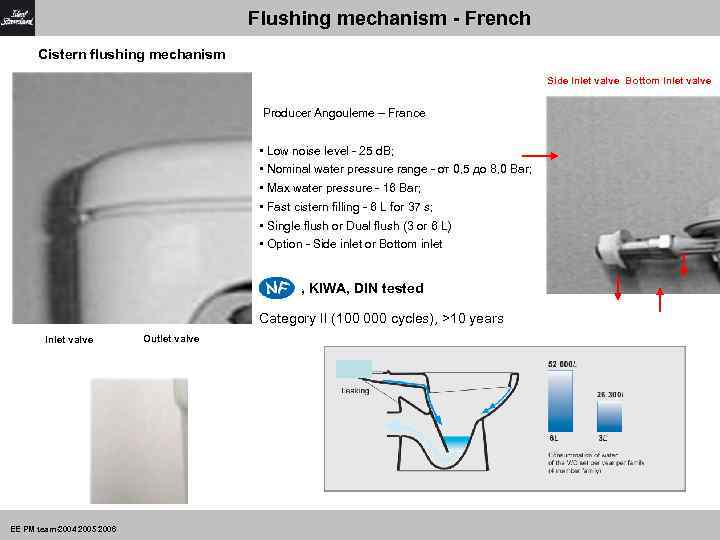

Flushing mechanism - French Cistern flushing mechanism Side Inlet valve Bottom Inlet valve Producer Angouleme – France • Low noise level - 25 d. B; • Nominal water pressure range - от 0, 5 до 8, 0 Bar; • Max water pressure - 16 Bar; • Fast cistern filling - 6 L for 37 s; • Single flush or Dual flush (3 or 6 L) • Option - Side inlet or Bottom inlet , KIWA, DIN tested Category II (100 000 cycles), >10 years Inlet valve EE PM team-2004 2005 2006 Outlet valve

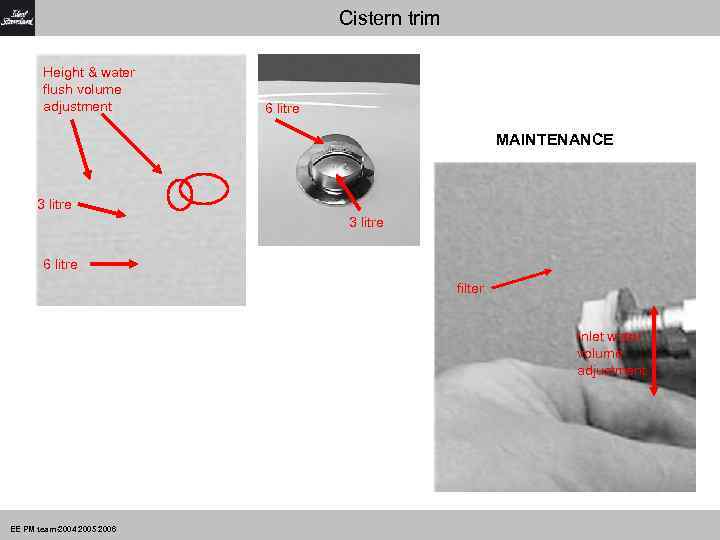

Cistern trim Height & water flush volume adjustment 6 litre MAINTENANCE 3 litre 6 litre filter Inlet water volume adjustment EE PM team-2004 2005 2006
Flushing mechanism - SIAMP Cistern flushing mechanism Producer SIAMP – Monaco • Fast cistern filling – 0, 13 l/s (46 s for 6 L); • Single flush or Dual flush (3 or 6 L) • Adjustable small flushing level from 3 to 4, 5 liters • Option - Side inlet or Bottom inlet – brass 3/8’ • Hydraulic closure (without hammering from 0. 5 to 16 bar) • Anti-backflow • Silent ( tested) , KIWA, DIN tested Outlet valve Inlet valve 6 liters 3 liters EE PM team-2004 2005 2006 Category II (100 000 cycles), >10 years Side Inlet valve Bottom Inlet valve Inlet water volume adjustment
Cistern trim - SIAMP Outlet valve Side Inlet valve Bottom Inlet valve 6 liters Height & water flush volume adjustment – 3/6 l 3 liters EE PM team-2004 2005 2006 Inlet water volume adjustment

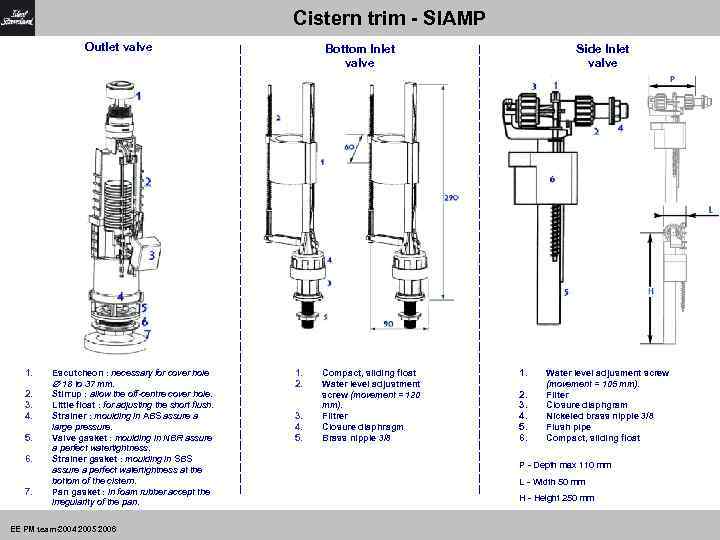

Cistern trim - SIAMP Outlet valve 1. 2. 3. 4. 5. 6. 7. Escutcheon : necessary for cover hole Æ 18 to 37 mm. Stirrup : allow the off-centre cover hole. Little float : for adjusting the short flush. Strainer : moulding in ABS assure a large pressure. Valve gasket : moulding in NBR assure a perfect watertightness. Strainer gasket : moulding in SBS assure a perfect watertightness at the bottom of the cistern. Pan gasket : in foam rubber accept the irregularity of the pan. EE PM team-2004 2005 2006 Bottom Inlet valve 1. 2. 3. 4. 5. Compact, sliding float Water level adjustment screw (movement = 120 mm). Filtrer Closure diaphragm Brass nipple 3/8 Side Inlet valve 1. 2. 3. 4. 5. 6. Water level adjusment screw (movement = 105 mm). Filter Closure diaphgram Nickeled brass nipple 3/8 Flush pipe Compact, sliding float P - Depth max 110 mm L - Width 50 mm H - Height 250 mm

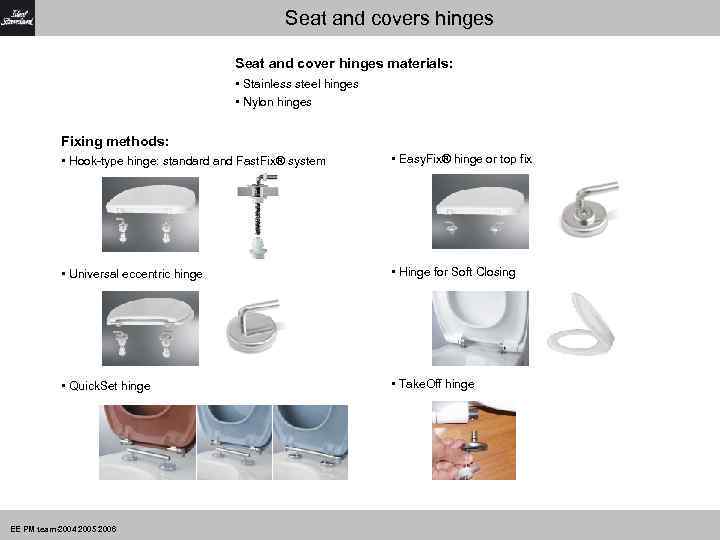

Seat and covers hinges Seat and cover hinges materials: • Stainless steel hinges • Nylon hinges Fixing methods: • Hook-type hinge: standard and Fast. Fix® system • Easy. Fix® hinge or top fix • Universal eccentric hinge • Hinge for Soft Closing • Quick. Set hinge • Take. Off hinge EE PM team-2004 2005 2006

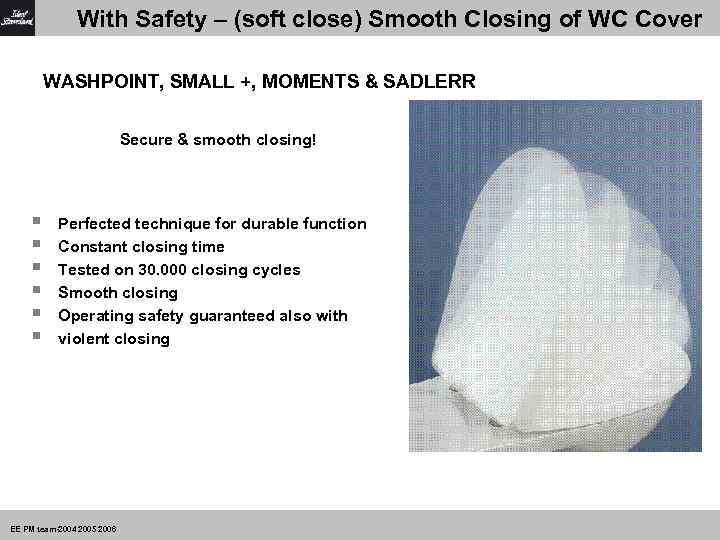

With Safety – (soft close) Smooth Closing of WC Cover WASHPOINT, SMALL +, MOMENTS & SADLERR Secure & smooth closing! § § § Perfected technique for durable function Constant closing time Tested on 30. 000 closing cycles Smooth closing Operating safety guaranteed also with violent closing EE PM team-2004 2005 2006

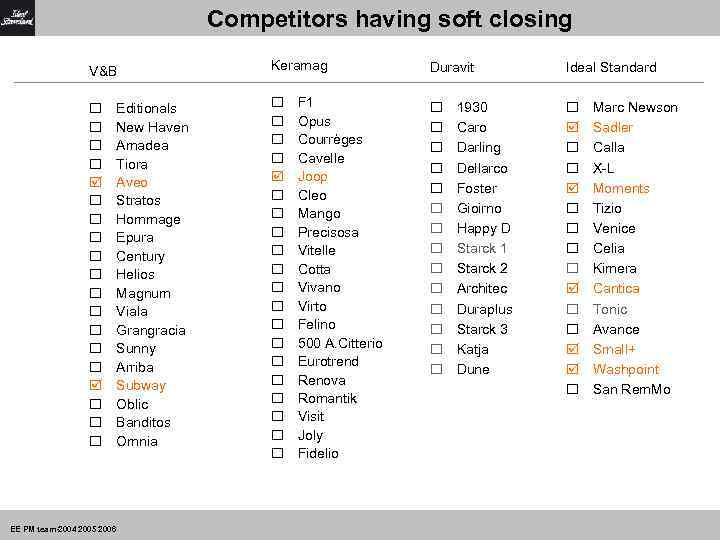

Competitors having soft closing V&B Keramag Duravit Ideal Standard ¨ ¨ ¨ ¨ þ ¨ ¨ ¨ ¨ ¨ ¨ ¨ ¨ ¨ þ ¨ ¨ ¨ ¨ þ þ ¨ EE PM team-2004 2005 2006 Editionals New Haven Amadea Tiora Aveo Stratos Hommage Epura Century Helios Magnum Viala Grangracia Sunny Arriba Subway Oblic Banditos Omnia F 1 Opus Courrèges Cavelle Joop Cleo Mango Precisosa Vitelle Cotta Vivano Virto Felino 500 A. Citterio Eurotrend Renova Romantik Visit Joly Fidelio 1930 Caro Darling Dellarco Foster Gioirno Happy D Starck 1 Starck 2 Architec Duraplus Starck 3 Katja Dune Marc Newson Sadler Calla X-L Moments Tizio Venice Celia Kimera Cantica Tonic Avance Small+ Washpoint San Rem. Mo

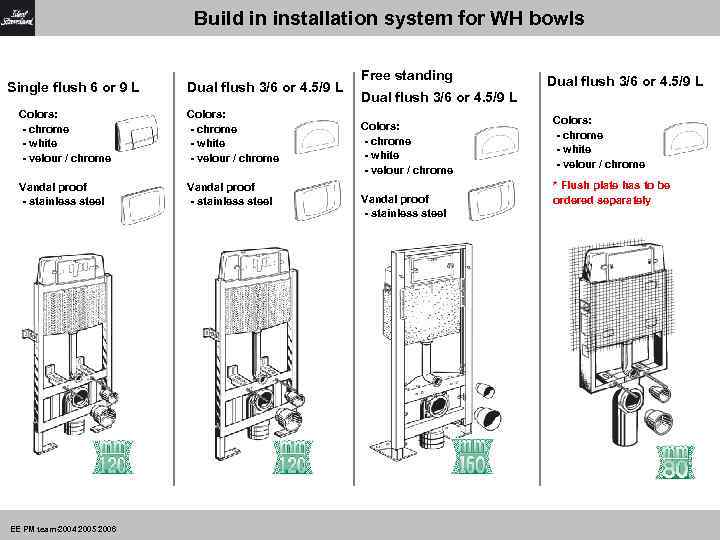

Build in installation system for WH bowls Single flush 6 or 9 L Dual flush 3/6 or 4. 5/9 L Colors: - chrome - white - velour / chrome Vandal proof - stainless steel EE PM team-2004 2005 2006 Free standing Dual flush 3/6 or 4. 5/9 L Colors: - chrome - white - velour / chrome Vandal proof - stainless steel Colors: - chrome - white - velour / chrome * Flush plate has to be ordered separately

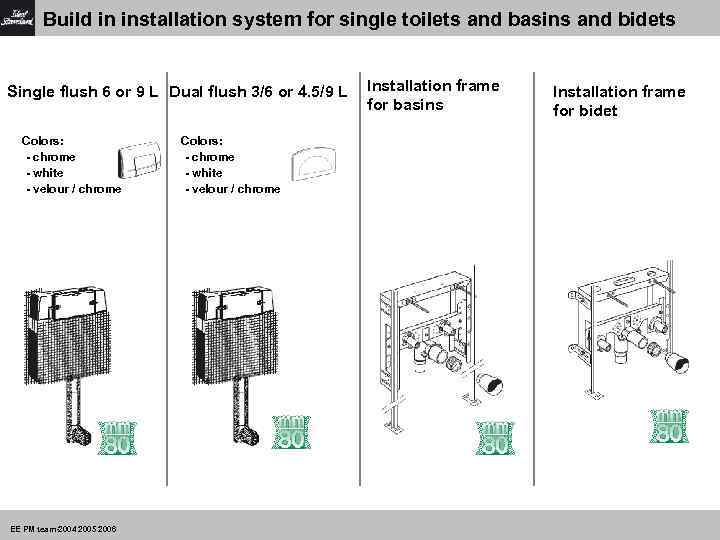

Build in installation system for single toilets and basins and bidets Single flush 6 or 9 L Dual flush 3/6 or 4. 5/9 L Colors: - chrome - white - velour / chrome EE PM team-2004 2005 2006 Colors: - chrome - white - velour / chrome Installation frame for basins Installation frame for bidet

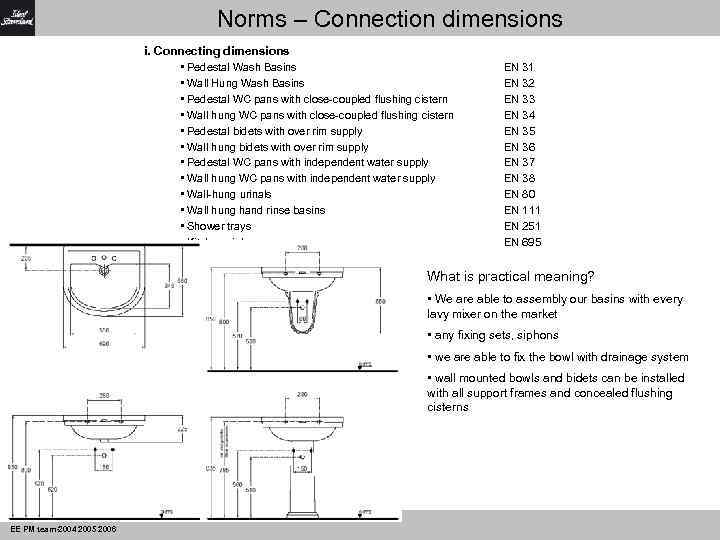

Norms – Connection dimensions i. Connecting dimensions • Pedestal Wash Basins • Wall Hung Wash Basins • Pedestal WC pans with close-coupled flushing cistern • Wall hung WC pans with close-coupled flushing cistern • Pedestal bidets with over rim supply • Wall hung bidets with over rim supply • Pedestal WC pans with independent water supply • Wall hung WC pans with independent water supply • Wall-hung urinals • Wall hung hand rinse basins • Shower trays • Kitchen sinks EN 31 EN 32 EN 33 EN 34 EN 35 EN 36 EN 37 EN 38 EN 80 EN 111 ЕN 251 EN 695 What is practical meaning? • We are able to assembly our basins with every lavy mixer on the market • any fixing sets, siphons • we are able to fix the bowl with drainage system • wall mounted bowls and bidets can be installed with all support frames and concealed flushing cisterns EE PM team-2004 2005 2006

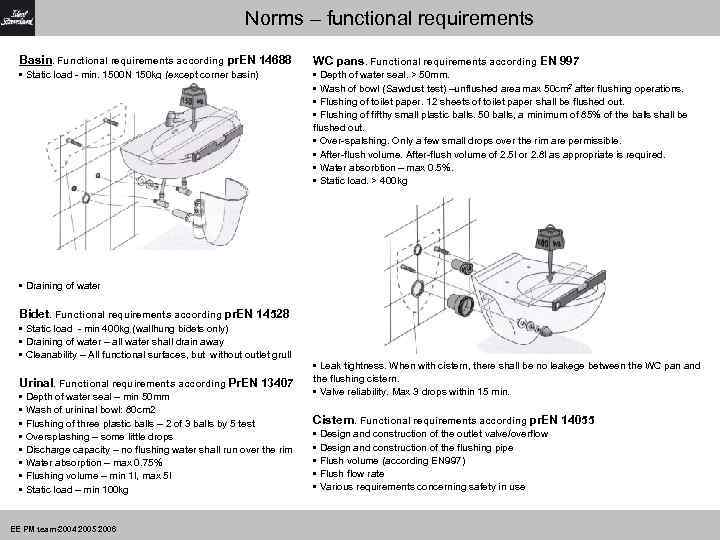

Norms – functional requirements Basin. Functional requirements according pr. EN 14688 WC pans. Functional requirements according EN 997 • Static load - min. 1500 N 150 kg (except corner basin) • Depth of water seal. > 50 mm. • Wash of bowl (Sawdust test) –unflushed area max 50 cm 2 after flushing operations. • Flushing of toilet paper. 12 sheets of toilet paper shall be flushed out. • Flushing of fifthy small plastic balls. 50 balls, a minimum of 85% of the balls shall be flushed out. • Over-spalshing. Only a few small drops over the rim are permissible. • After-flush volume of 2. 5 l or 2. 8 l as appropriate is required. • Water absorbtion – max 0. 5%. • Static load. > 400 kg • Draining of water Bidet. Functional requirements according pr. EN 14528 • Static load - min 400 kg (wallhung bidets only) • Draining of water – all water shall drain away • Cleanability – All functional surfaces, but without outlet grull Urinal. Functional requirements according Pr. EN 13407 • Depth of water seal – min 50 mm • Wash of urininal bowl: 80 cm 2 • Flushing of three plastic balls – 2 of 3 balls by 5 test • Oversplashing – some little drops • Discharge capacity – no flushing water shall run over the rim • Water absorption – max 0. 75% • Flushing volume – min 1 l, max 5 l • Static load – min 100 kg EE PM team-2004 2005 2006 • Leak tightness. When with cistern, there shall be no leakege between the WC pan and the flushing cistern. • Valve reliability. Max 3 drops within 15 min. Cistern. Functional requirements according pr. EN 14055 • Design and construction of the outlet valve/overflow • Design and construction of the flushing pipe • Flush volume (according EN 997) • Flush flow rate • Various requirements concerning safety in use

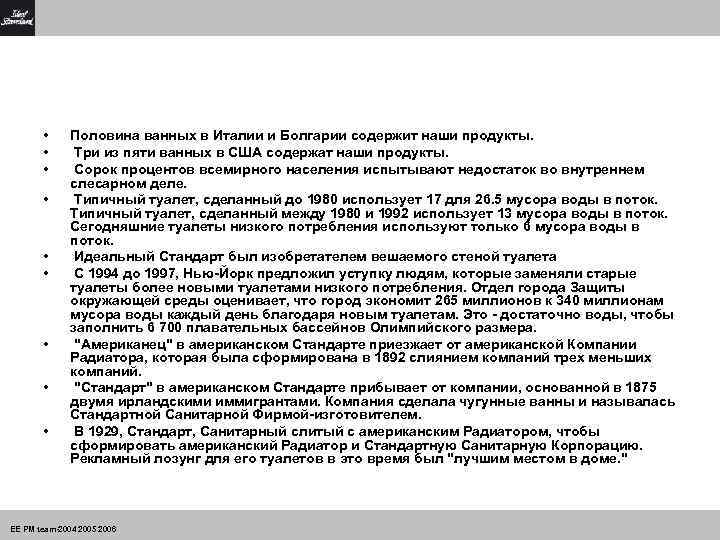

• • • Половина ванных в Италии и Болгарии содержит наши продукты. Три из пяти ванных в США содержат наши продукты. Сорок процентов всемирного населения испытывают недостаток во внутреннем слесарном деле. Типичный туалет, сделанный до 1980 использует 17 для 26. 5 мусора воды в поток. Типичный туалет, сделанный между 1980 и 1992 использует 13 мусора воды в поток. Сегодняшние туалеты низкого потребления используют только 6 мусора воды в поток. Идеальный Стандарт был изобретателем вешаемого стеной туалета С 1994 до 1997, Нью-Йорк предложил уступку людям, которые заменяли старые туалеты более новыми туалетами низкого потребления. Отдел города Защиты окружающей среды оценивает, что город экономит 265 миллионов к 340 миллионам мусора воды каждый день благодаря новым туалетам. Это - достаточно воды, чтобы заполнить 6 700 плавательных бассейнов Олимпийского размера. "Американец" в американском Стандарте приезжает от американской Компании Радиатора, которая была сформирована в 1892 слиянием компаний трех меньших компаний. "Стандарт" в американском Стандарте прибывает от компании, основанной в 1875 двумя ирландскими иммигрантами. Компания сделала чугунные ванны и называлась Стандартной Санитарной Фирмой-изготовителем. В 1929, Стандарт, Санитарный слитый с американским Радиатором, чтобы сформировать американский Радиатор и Стандартную Санитарную Корпорацию. Рекламный лозунг для его туалетов в это время был "лучшим местом в доме. " EE PM team-2004 2005 2006
