First Southern European Technology Conference solution partners An Integrated Solution for Advanced Composites Engineering First Southern European Technology Conference solution partners An Integrated Solution for Advanced Composites Engineering with MSC. Patran Dr. Olivier Guillermin Composite Design Technologies, Inc. Monte Carlo, Monaco June 7 -9, 2000 CDT 2000 Proprietary

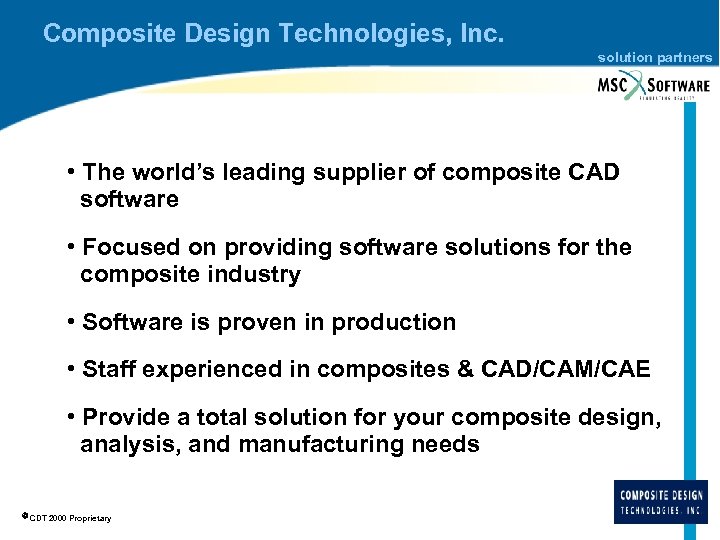

Composite Design Technologies, Inc. solution partners • The world’s leading supplier of composite CAD Composite Design Technologies, Inc. solution partners • The world’s leading supplier of composite CAD software • Focused on providing software solutions for the composite industry • Software is proven in production • Staff experienced in composites & CAD/CAM/CAE • Provide a total solution for your composite design, analysis, and manufacturing needs CDT 2000 Proprietary

Composite Engineering Environment solution partners Analysis Interface Laser Projection Composite Engineering Environment P 001 Composite Engineering Environment solution partners Analysis Interface Laser Projection Composite Engineering Environment P 001 Actual Ideal P 002 • Feature-based design • Laminate surface generation • Producibility simulation • Net flat patterns Flat Pattern Export Documentation Fiber Placement Interface CDT 2000 Proprietary

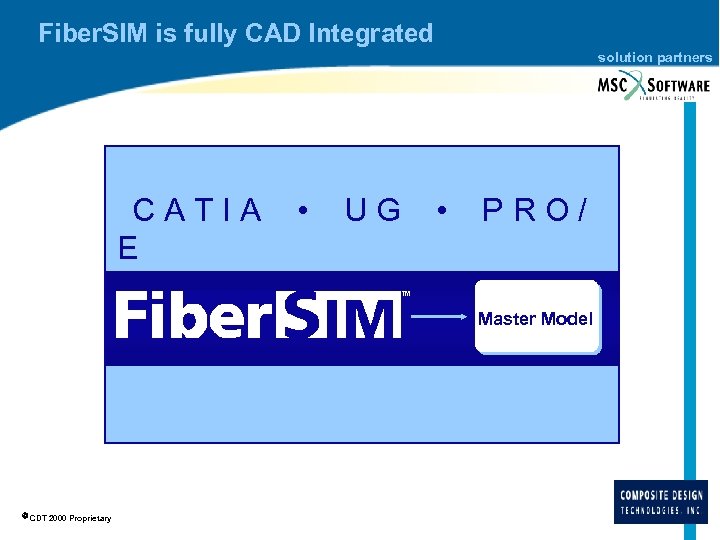

Fiber. SIM is fully CAD Integrated solution partners CATIA E • UG • PRO/ Fiber. SIM is fully CAD Integrated solution partners CATIA E • UG • PRO/ Master Model CDT 2000 Proprietary

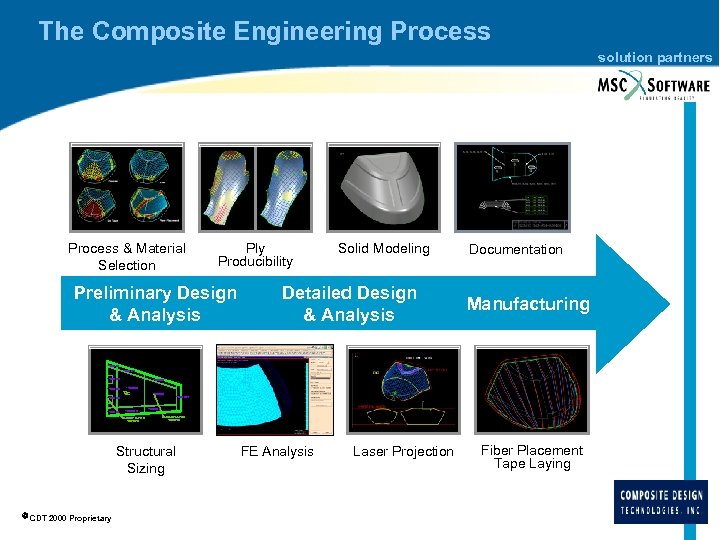

The Composite Engineering Process solution partners Process & Material Selection Ply Producibility Preliminary Design The Composite Engineering Process solution partners Process & Material Selection Ply Producibility Preliminary Design & Analysis Solid Modeling Detailed Design & & Analysis Documentation Manufacturing • ZONE 1 • ZONE 2 • ZONE 4 • ZONE 3 • ZONE 8 • ZONE 6 -45 90 +45 0 • ZONE 9 • ZONE 5 • ZONE 7 • ZONE 10 TARGET LAYUP 40/40/20 TARGET LAYUP 25/50/25 Structural Sizing CDT 2000 Proprietary • ZONE 12 • ZONE 11 FE Analysis Laser Projection Fiber Placement Tape Laying

A Complete Description of the Composite Part solution partners Materials & Processes • Prepreg/Dry A Complete Description of the Composite Part solution partners Materials & Processes • Prepreg/Dry • Uni/Woven • Preforms • Engineered Fabric • Hand Layup • RTM • Fiber Placement • Tape Laying Offset Surfaces CDT 2000 Proprietary Plies & Sequences 90 13545 0 True Fiber Orientations

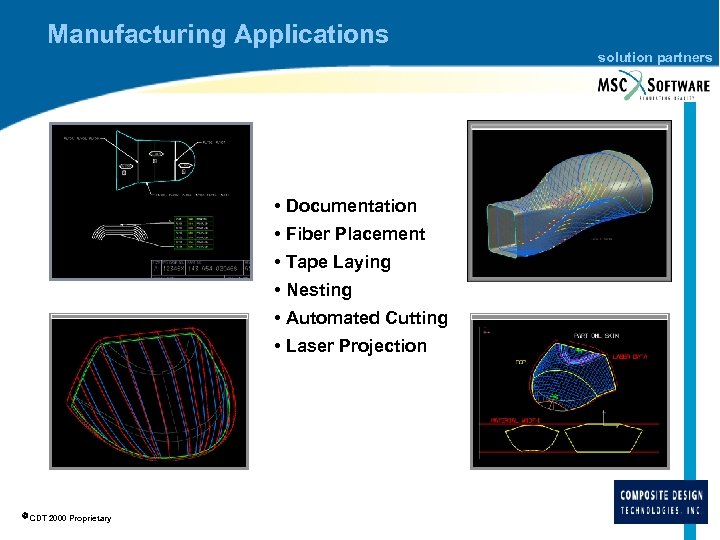

Manufacturing Applications solution partners • Documentation • Fiber Placement • Tape Laying • Nesting Manufacturing Applications solution partners • Documentation • Fiber Placement • Tape Laying • Nesting • Automated Cutting • Laser Projection CDT 2000 Proprietary

Closing the Loop Between Design & Analysis solution partners Decreases product development cycle Optimizes Closing the Loop Between Design & Analysis solution partners Decreases product development cycle Optimizes designs Analysis Design MSC Software Fiber. SIM Increases model accuracy & sensitivity CDT 2000 Proprietary Detects & quantifies conceptual errors Manufactured Part

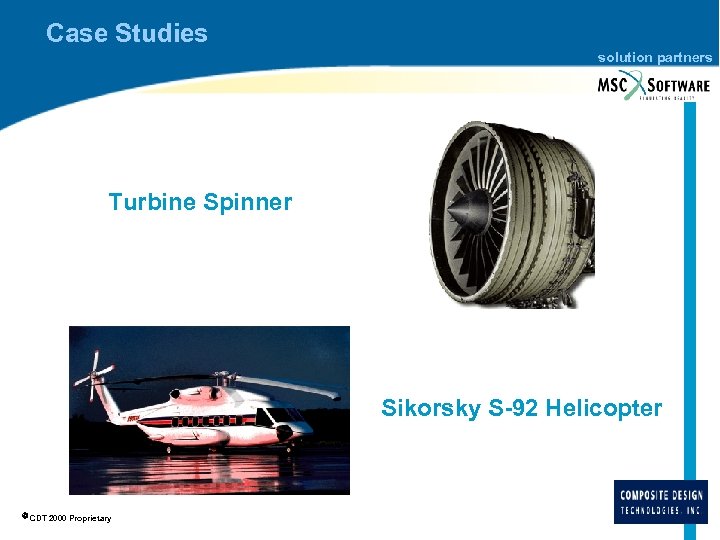

Case Studies solution partners Turbine Spinner Sikorsky S-92 Helicopter CDT 2000 Proprietary Case Studies solution partners Turbine Spinner Sikorsky S-92 Helicopter CDT 2000 Proprietary

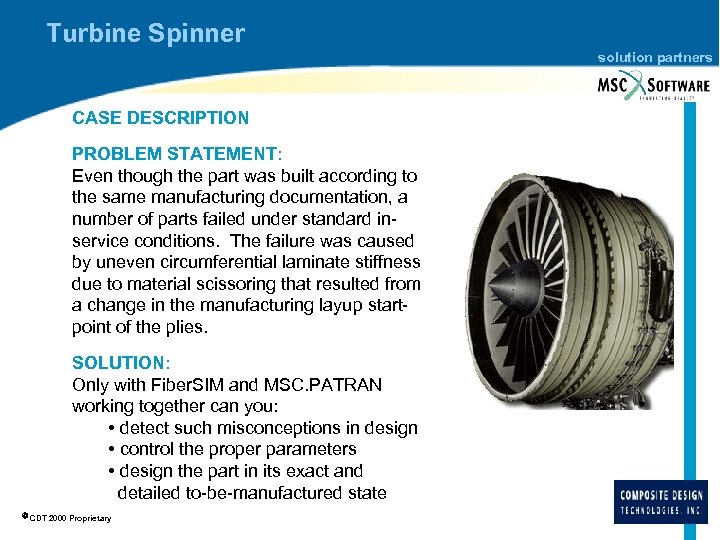

Turbine Spinner solution partners CASE DESCRIPTION PROBLEM STATEMENT: Even though the part was built Turbine Spinner solution partners CASE DESCRIPTION PROBLEM STATEMENT: Even though the part was built according to the same manufacturing documentation, a number of parts failed under standard inservice conditions. The failure was caused by uneven circumferential laminate stiffness due to material scissoring that resulted from a change in the manufacturing layup startpoint of the plies. SOLUTION: Only with Fiber. SIM and MSC. PATRAN working together can you: • detect such misconceptions in design • control the proper parameters • design the part in its exact and detailed to-be-manufactured state CDT 2000 Proprietary

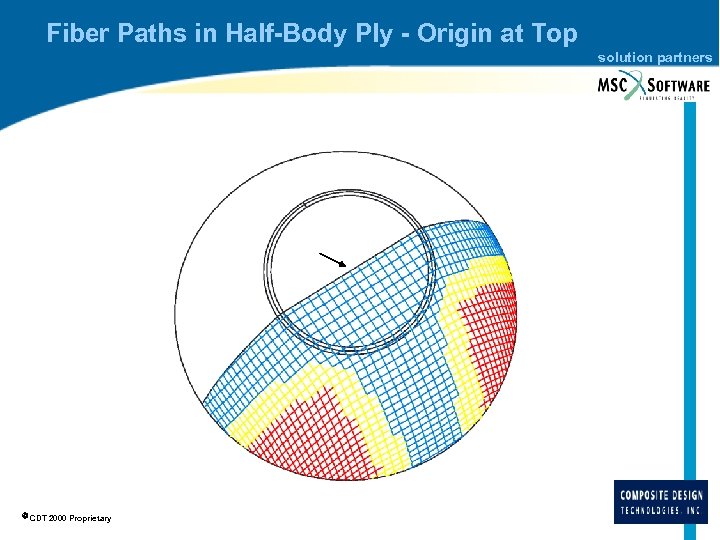

Fiber Paths in Half-Body Ply - Origin at Top solution partners CDT 2000 Proprietary Fiber Paths in Half-Body Ply - Origin at Top solution partners CDT 2000 Proprietary

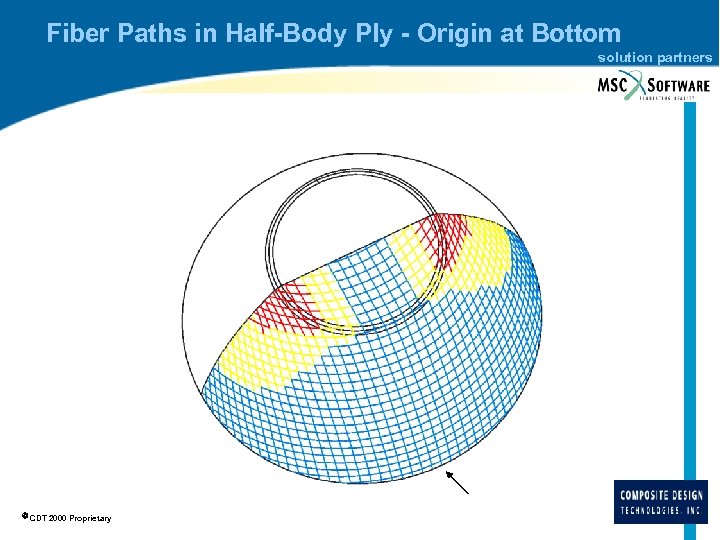

Fiber Paths in Half-Body Ply - Origin at Bottom solution partners CDT 2000 Proprietary Fiber Paths in Half-Body Ply - Origin at Bottom solution partners CDT 2000 Proprietary

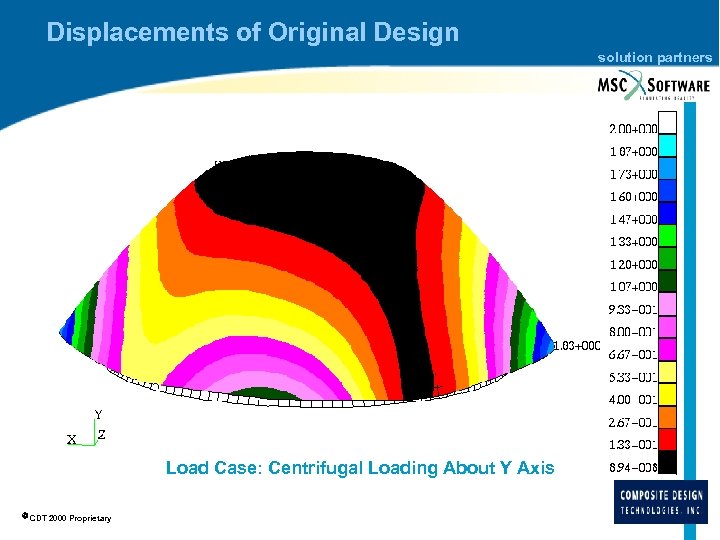

Displacements of Original Design solution partners Load Case: Centrifugal Loading About Y Axis CDT Displacements of Original Design solution partners Load Case: Centrifugal Loading About Y Axis CDT 2000 Proprietary

Displacements of Revised Design solution partners Load Case: Centrifugal Loading About Y Axis CDT Displacements of Revised Design solution partners Load Case: Centrifugal Loading About Y Axis CDT 2000 Proprietary

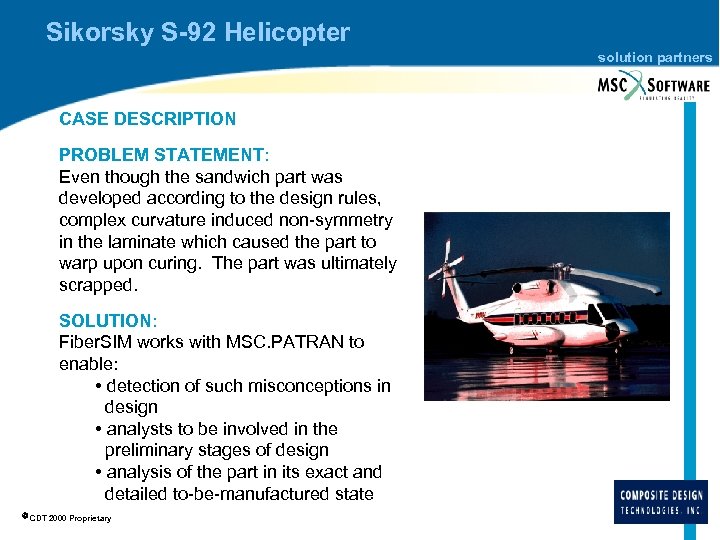

Sikorsky S-92 Helicopter solution partners CASE DESCRIPTION PROBLEM STATEMENT: Even though the sandwich part Sikorsky S-92 Helicopter solution partners CASE DESCRIPTION PROBLEM STATEMENT: Even though the sandwich part was developed according to the design rules, complex curvature induced non-symmetry in the laminate which caused the part to warp upon curing. The part was ultimately scrapped. SOLUTION: Fiber. SIM works with MSC. PATRAN to enable: • detection of such misconceptions in design • analysts to be involved in the preliminary stages of design • analysis of the part in its exact and detailed to-be-manufactured state CDT 2000 Proprietary

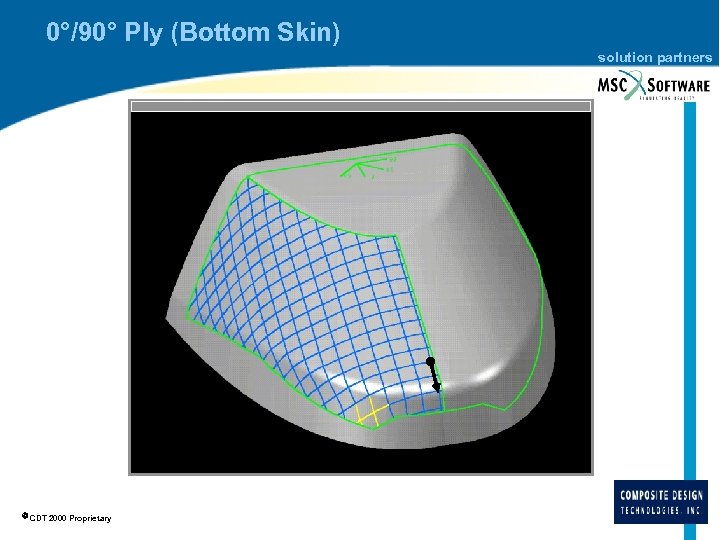

0°/90° Ply (Bottom Skin) solution partners CDT 2000 Proprietary 0°/90° Ply (Bottom Skin) solution partners CDT 2000 Proprietary

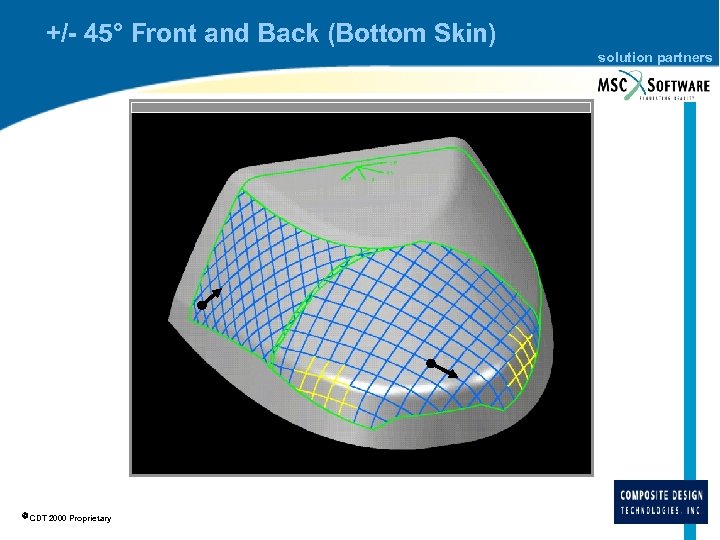

+/- 45° Front and Back (Bottom Skin) solution partners CDT 2000 Proprietary +/- 45° Front and Back (Bottom Skin) solution partners CDT 2000 Proprietary

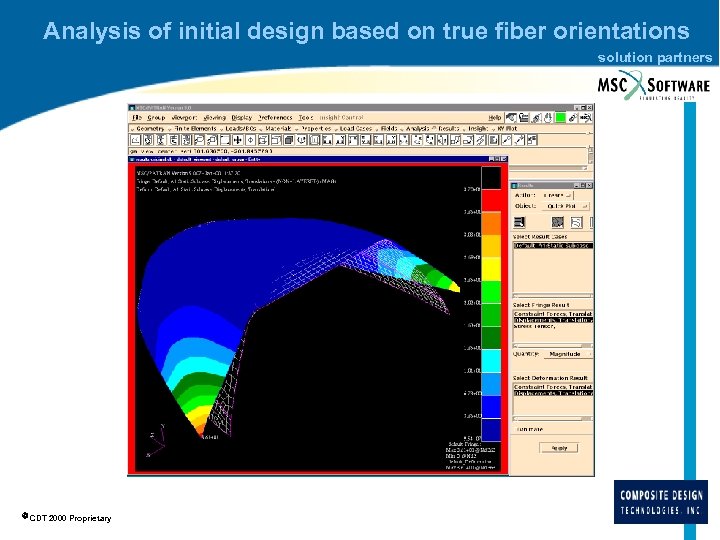

Analysis of initial design based on true fiber orientations solution partners CDT 2000 Proprietary Analysis of initial design based on true fiber orientations solution partners CDT 2000 Proprietary

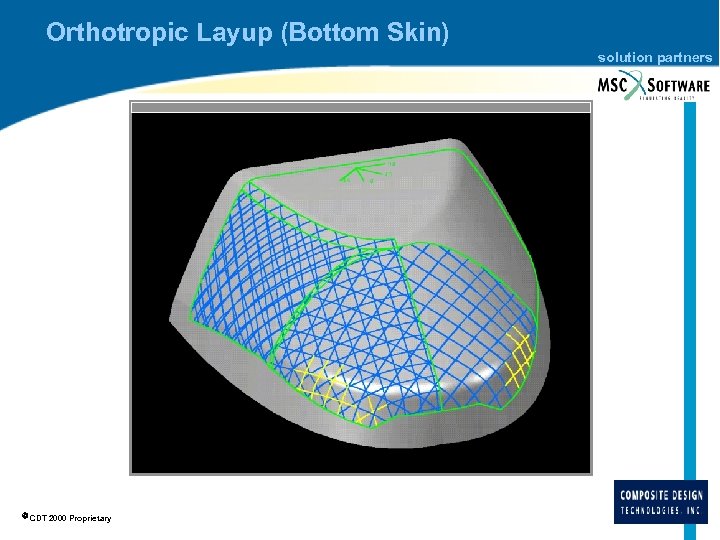

Orthotropic Layup (Bottom Skin) solution partners CDT 2000 Proprietary Orthotropic Layup (Bottom Skin) solution partners CDT 2000 Proprietary

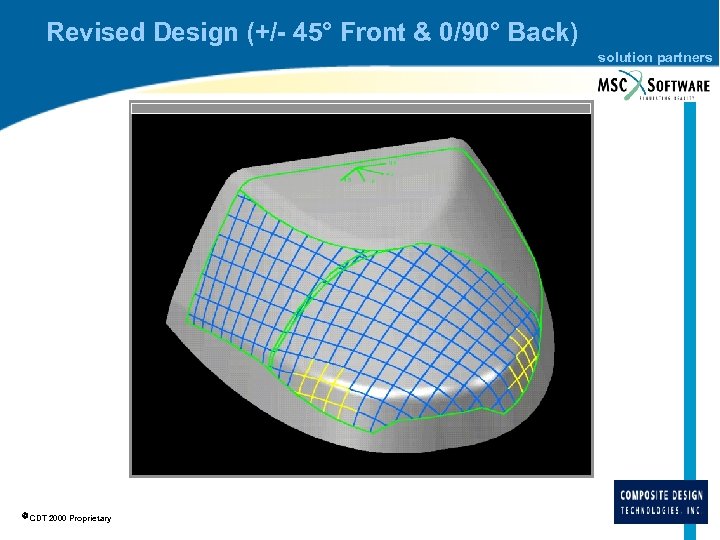

Revised Design (+/- 45° Front & 0/90° Back) solution partners CDT 2000 Proprietary Revised Design (+/- 45° Front & 0/90° Back) solution partners CDT 2000 Proprietary

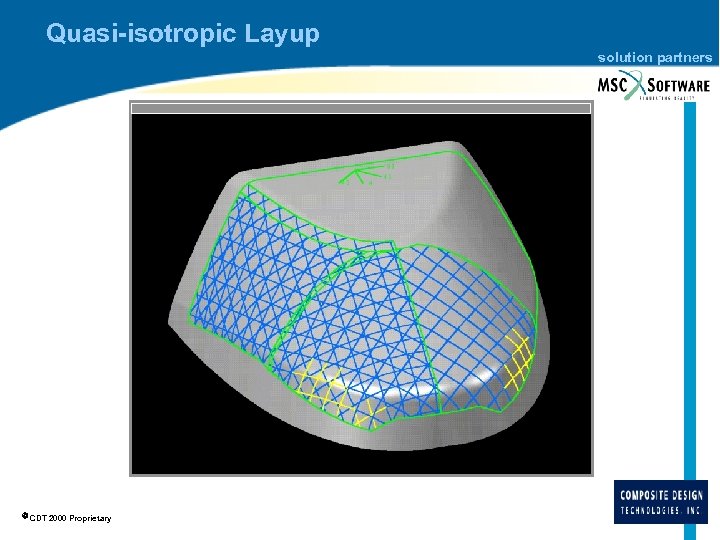

Quasi-isotropic Layup solution partners CDT 2000 Proprietary Quasi-isotropic Layup solution partners CDT 2000 Proprietary

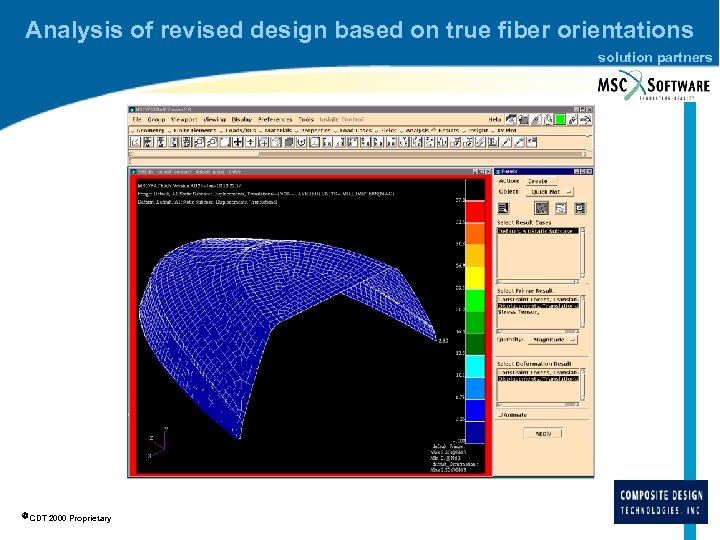

Analysis of revised design based on true fiber orientations solution partners CDT 2000 Proprietary Analysis of revised design based on true fiber orientations solution partners CDT 2000 Proprietary

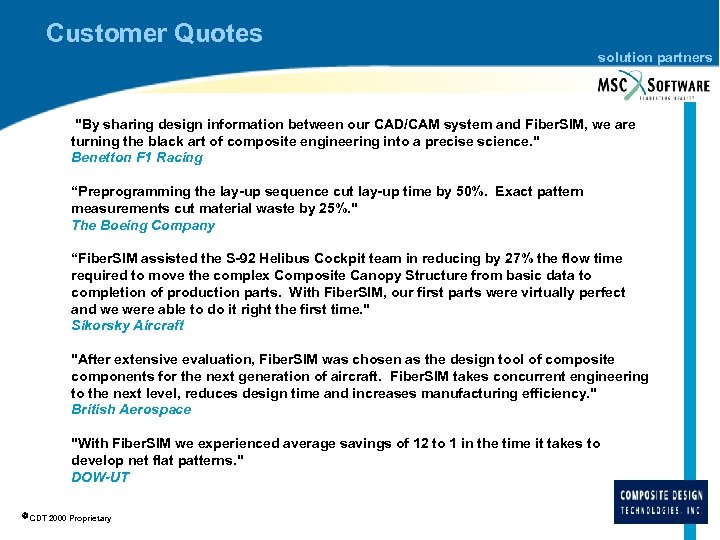

Customer Quotes solution partners Customer Quotes solution partners "By sharing design information between our CAD/CAM system and Fiber. SIM, we are turning the black art of composite engineering into a precise science. " Benetton F 1 Racing “Preprogramming the lay-up sequence cut lay-up time by 50%. Exact pattern measurements cut material waste by 25%. " The Boeing Company “Fiber. SIM assisted the S-92 Helibus Cockpit team in reducing by 27% the flow time required to move the complex Composite Canopy Structure from basic data to completion of production parts. With Fiber. SIM, our first parts were virtually perfect and we were able to do it right the first time. " Sikorsky Aircraft "After extensive evaluation, Fiber. SIM was chosen as the design tool of composite components for the next generation of aircraft. Fiber. SIM takes concurrent engineering to the next level, reduces design time and increases manufacturing efficiency. " British Aerospace "With Fiber. SIM we experienced average savings of 12 to 1 in the time it takes to develop net flat patterns. " DOW-UT CDT 2000 Proprietary

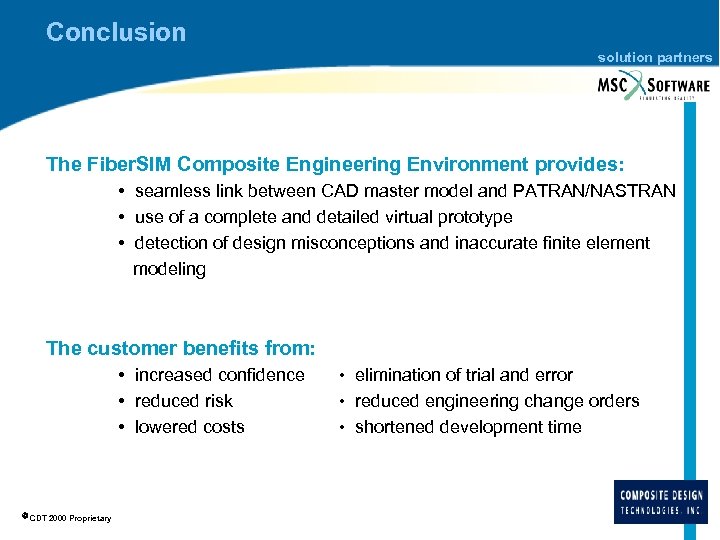

Conclusion solution partners The Fiber. SIM Composite Engineering Environment provides: • seamless link between Conclusion solution partners The Fiber. SIM Composite Engineering Environment provides: • seamless link between CAD master model and PATRAN/NASTRAN • use of a complete and detailed virtual prototype • detection of design misconceptions and inaccurate finite element modeling The customer benefits from: • increased confidence • reduced risk • lowered costs CDT 2000 Proprietary • elimination of trial and error • reduced engineering change orders • shortened development time
