Fire Products NASA ARSET-AQ Links Updated November 2013 ARSET Applied Remote SEnsing Training A project of NASA Applied Sciences

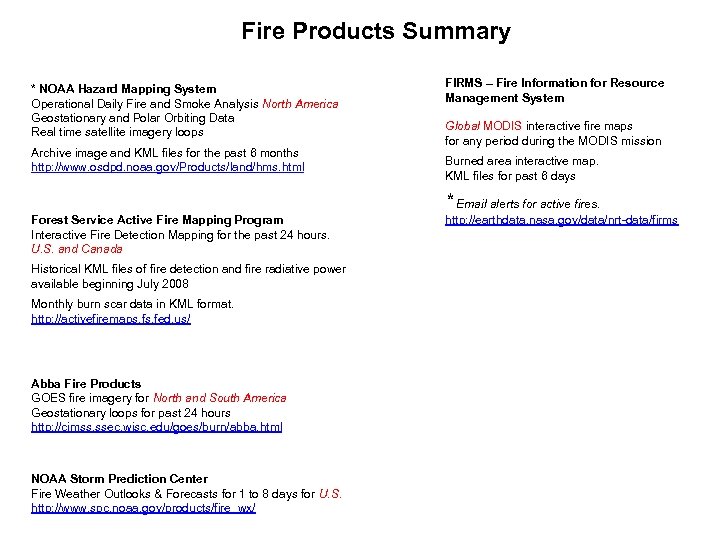

Fire Products Summary * NOAA Hazard Mapping System Operational Daily Fire and Smoke Analysis North America Geostationary and Polar Orbiting Data Real time satellite imagery loops Archive image and KML files for the past 6 months http: //www. osdpd. noaa. gov/Products/land/hms. html FIRMS – Fire Information for Resource Management System Global MODIS interactive fire maps for any period during the MODIS mission Burned area interactive map. KML files for past 6 days * Email alerts for active fires. Forest Service Active Fire Mapping Program Interactive Fire Detection Mapping for the past 24 hours. U. S. and Canada Historical KML files of fire detection and fire radiative power available beginning July 2008 Monthly burn scar data in KML format. http: //activefiremaps. fed. us/ Abba Fire Products GOES fire imagery for North and South America Geostationary loops for past 24 hours http: //cimss. ssec. wisc. edu/goes/burn/abba. html NOAA Storm Prediction Center Fire Weather Outlooks & Forecasts for 1 to 8 days for U. S. http: //www. spc. noaa. gov/products/fire_wx/ http: //earthdata. nasa. gov/data/nrt-data/firms

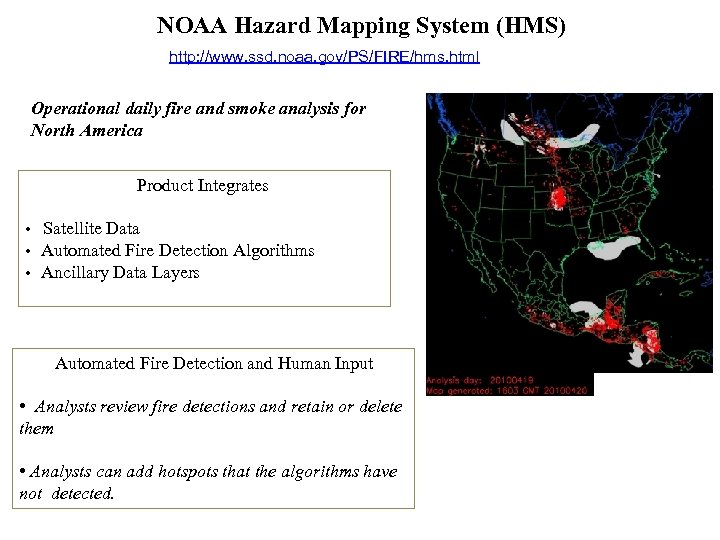

NOAA Hazard Mapping System (HMS) http: //www. ssd. noaa. gov/PS/FIRE/hms. html Operational daily fire and smoke analysis for North America Product Integrates • • • Satellite Data Automated Fire Detection Algorithms Ancillary Data Layers Automated Fire Detection and Human Input • Analysts review fire detections and retain or delete them • Analysts can add hotspots that the algorithms have not detected.

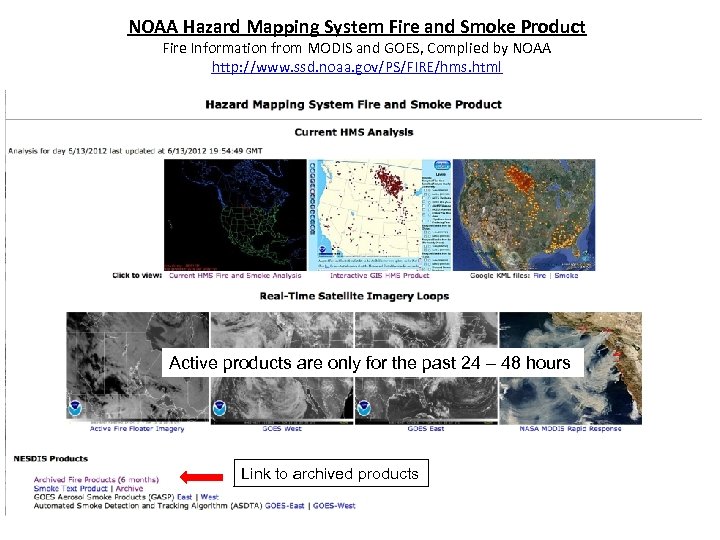

NOAA Hazard Mapping System Fire and Smoke Product Fire Information from MODIS and GOES, Complied by NOAA http: //www. ssd. noaa. gov/PS/FIRE/hms. html Active products are only for the past 24 – 48 hours Link to archived products

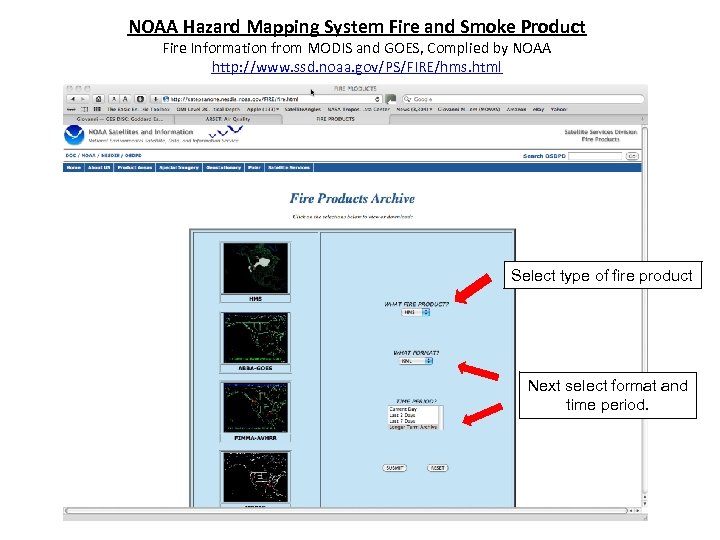

NOAA Hazard Mapping System Fire and Smoke Product Fire Information from MODIS and GOES, Complied by NOAA http: //www. ssd. noaa. gov/PS/FIRE/hms. html Select type of fire product Next select format and time period.

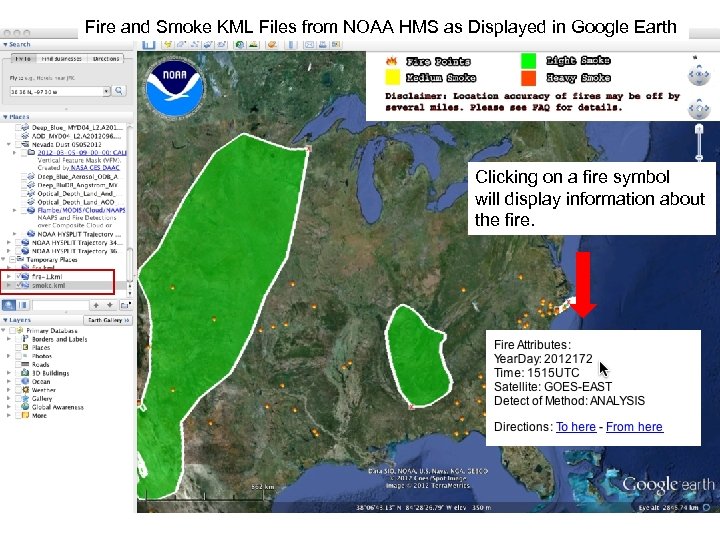

Fire and Smoke KML Files from NOAA HMS as Displayed in Google Earth Clicking on a fire symbol will display information about the fire.

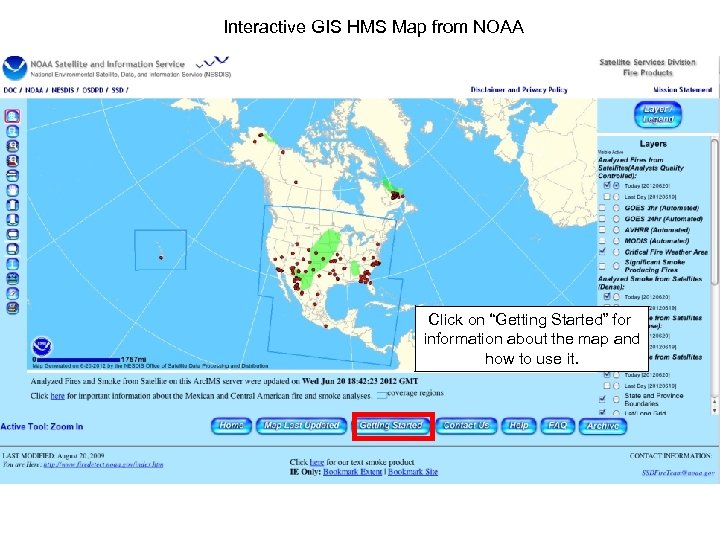

Interactive GIS HMS Map from NOAA Click on “Getting Started” for information about the map and how to use it.

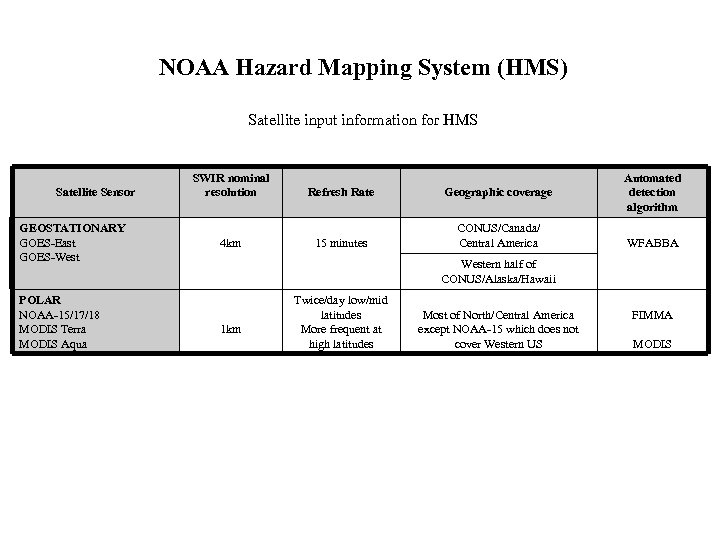

NOAA Hazard Mapping System (HMS) Satellite input information for HMS Satellite Sensor GEOSTATIONARY GOES-East GOES-West POLAR NOAA-15/17/18 MODIS Terra MODIS Aqua SWIR nominal resolution Refresh Rate Geographic coverage 4 km 15 minutes CONUS/Canada/ Central America Automated detection algorithm WFABBA Western half of CONUS/Alaska/Hawaii 1 km Twice/day low/mid latitudes More frequent at high latitudes Most of North/Central America except NOAA-15 which does not cover Western US FIMMA MODIS

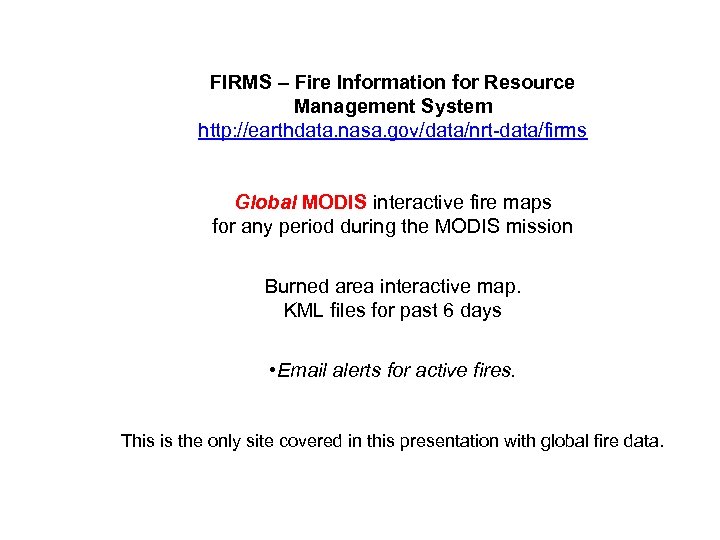

FIRMS – Fire Information for Resource Management System http: //earthdata. nasa. gov/data/nrt-data/firms Global MODIS interactive fire maps for any period during the MODIS mission Burned area interactive map. KML files for past 6 days • Email alerts for active fires. This is the only site covered in this presentation with global fire data.

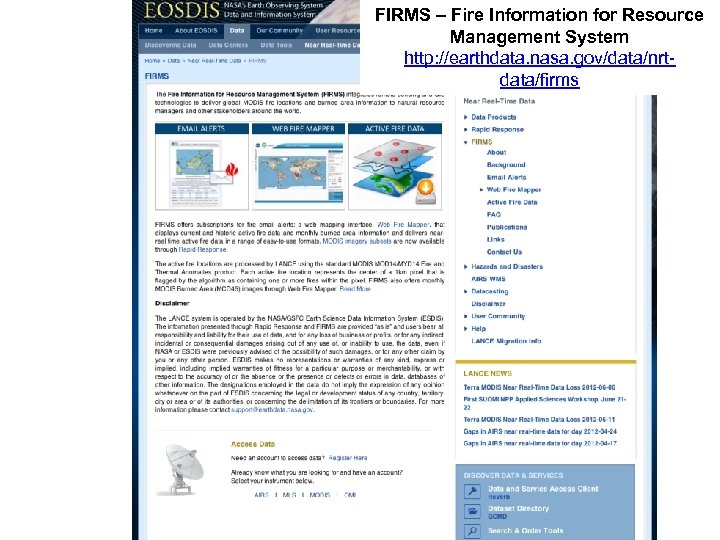

FIRMS – Fire Information for Resource Management System Fire Information from MODIS Complied by USDA http: //earthdata. nasa. gov/data/nrthttp: //activefiremaps. fed. us/ data/firms MODIS Active Fire Mapping Program The burn scar product can be accessed here.

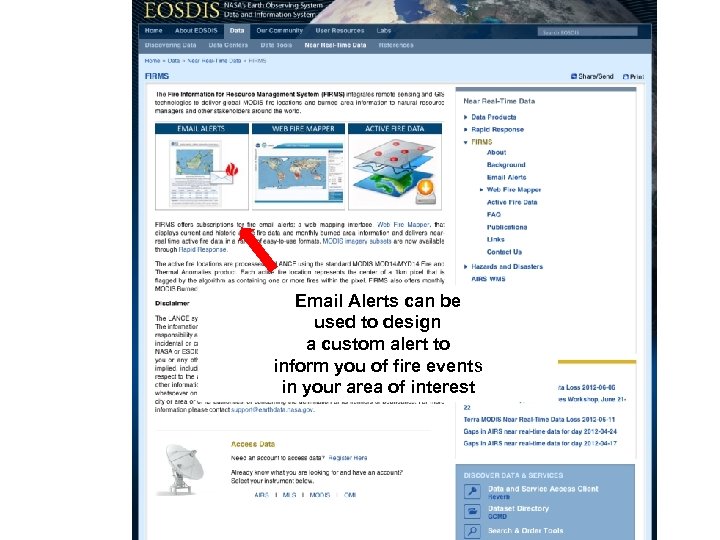

MODIS Active Fire Mapping Program Fire Information from MODIS Complied by USDA http: //activefiremaps. fed. us/ Email Alerts can be used to design The burn scar a custom alert to product can be inform you of fireaccessed here. events in your area of interest
Firms Web Fire Mapper Uses Only MODIS Detections https: //firms. modaps. eosdis. nasa. gov/firemap/ Default Display is past 48 hours Email Alerts can be used to design The burn scar a custom alert to These controls can be used product can historical dates to display a range fire events inform you of ofbe accessed here. in your area of interest Plus and Minus can be used to change the start and end dates Arrows can be used to shift the entire range of selected dates

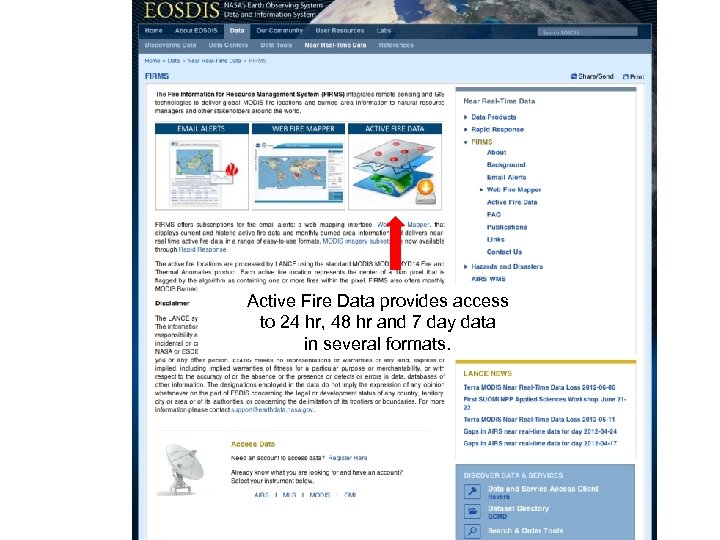

MODIS Active Fire Mapping Program Fire Information from MODIS Complied by USDA http: //activefiremaps. fed. us/ Active Fire Data provides access to 24 hr, 48 hr and 7 day data The burn scar in several formats. product can be accessed here.

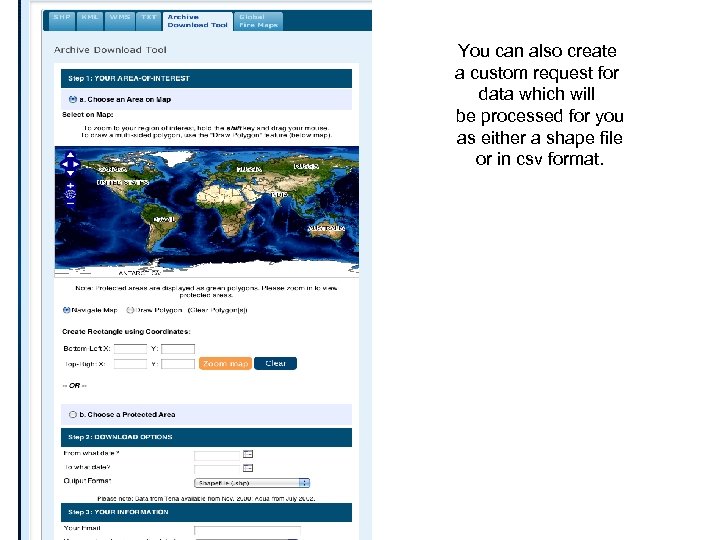

You can also create a custom request for data which will be processed for you as either a shape file or in csv format.
Forest Service Active Fire Mapping Program http: //activefiremaps. fed. us/ Interactive Fire Detection Mapping for the past 24 hours. U. S. and Canada Historical KML files of fire detection and fire radiative power available beginning July 2008 Monthly burn scar data in KML format.
MODIS Active Fire Mapping Program Fire Information from MODIS Complied by USDA http: //activefiremaps. fed. us/ The burn scar product can be accessed here. Select a fire from the drop down menu to get additional information.
USDA Active Fire Mapping Program MODIS Fire Detections Displayed in Google Earth Clicking on a fire symbol will display information about the fire.

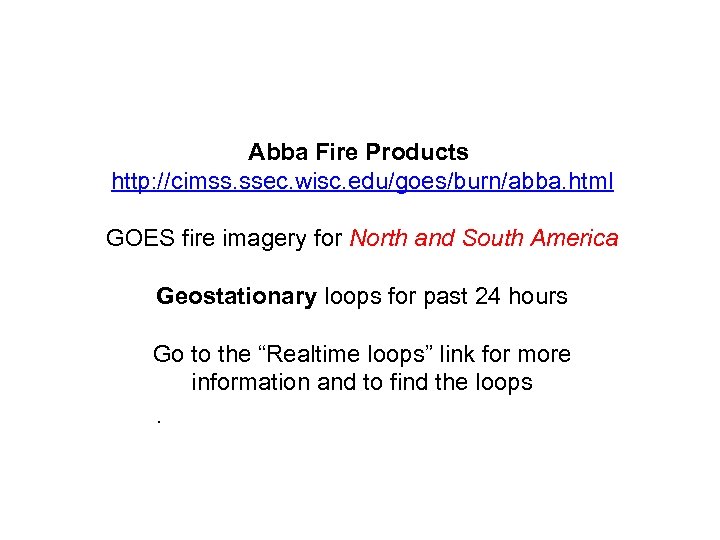

Abba Fire Products http: //cimss. ssec. wisc. edu/goes/burn/abba. html GOES fire imagery for North and South America Geostationary loops for past 24 hours Go to the “Realtime loops” link for more information and to find the loops.

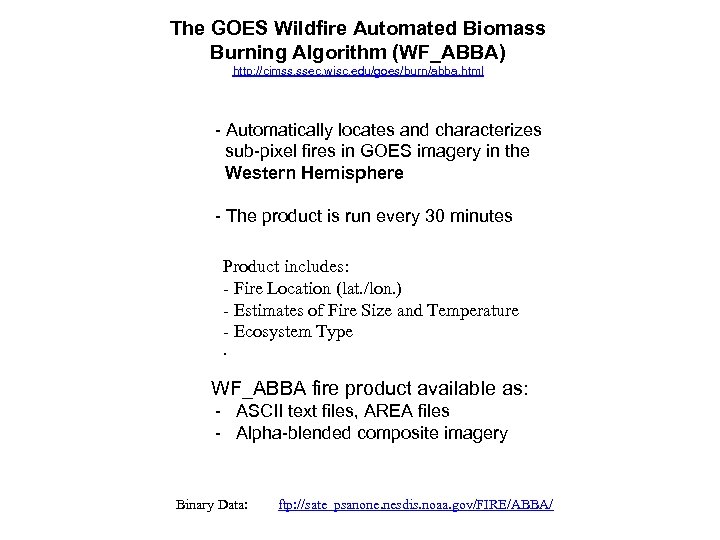

The GOES Wildfire Automated Biomass Burning Algorithm (WF_ABBA) http: //cimss. ssec. wisc. edu/goes/burn/abba. html - Automatically locates and characterizes sub-pixel fires in GOES imagery in the Western Hemisphere - The product is run every 30 minutes Product includes: - Fire Location (lat. /lon. ) - Estimates of Fire Size and Temperature - Ecosystem Type. WF_ABBA fire product available as: - ASCII text files, AREA files - Alpha-blended composite imagery Binary Data: ftp: //sate psanone. nesdis. noaa. gov/FIRE/ABBA/
University of Wisconsin-Madison CIMSS/ASPT GOES-10/-12 Half-hourly Wildfire ABBA Web Distribution http: //cimss. ssec. wisc. edu/goes/burn/wfabba. html Examples of Regional View Sectors Displays include three overviews and 35 regional views of the Western Hemisphere.

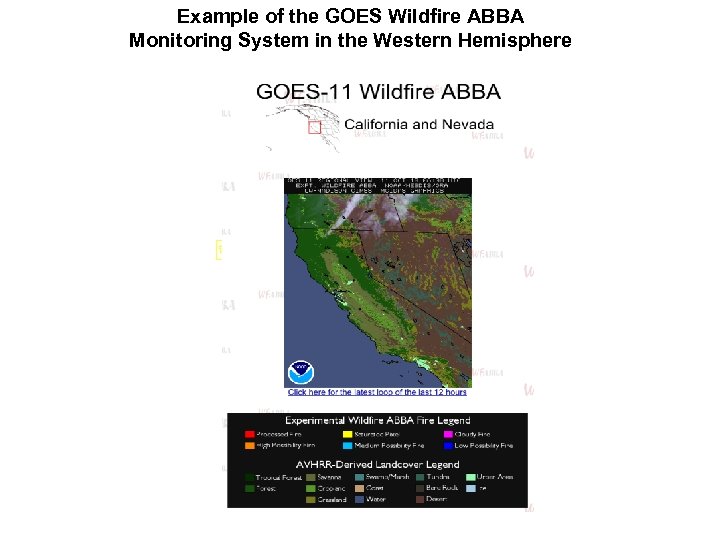

Example of the GOES Wildfire ABBA Monitoring System in the Western Hemisphere

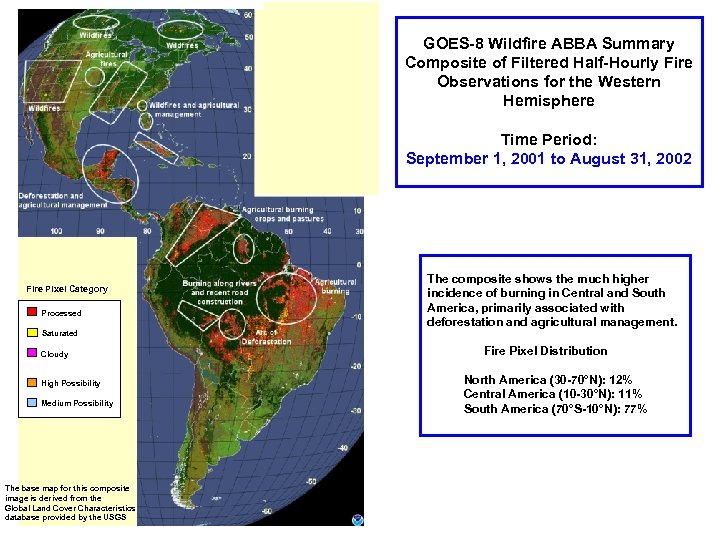

GOES-8 Wildfire ABBA Summary Composite of Filtered Half-Hourly Fire Observations for the Western Hemisphere Time Period: September 1, 2001 to August 31, 2002 Fire Pixel Category Processed The composite shows the much higher incidence of burning in Central and South America, primarily associated with deforestation and agricultural management. Saturated Cloudy High Possibility Medium Possibility The base map for this composite image is derived from the Global Land Cover Characteristics database provided by the USGS Fire Pixel Distribution North America (30 -70°N): 12% Central America (10 -30°N): 11% South America (70°S-10°N): 77%

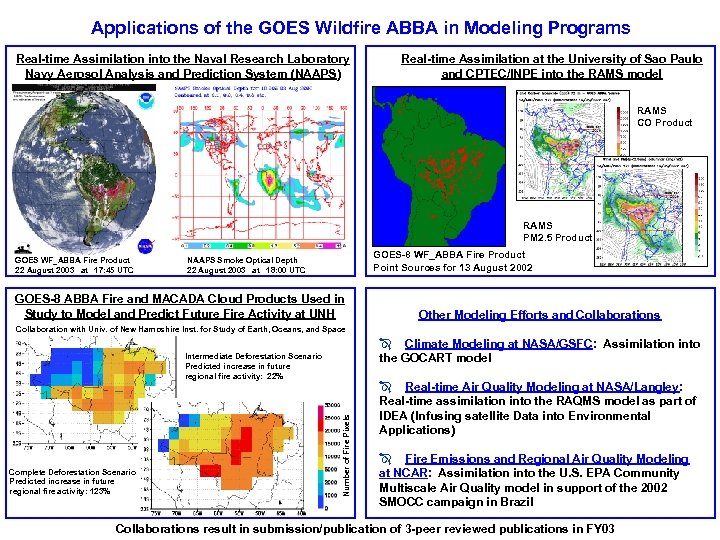

Applications of the GOES Wildfire ABBA in Modeling Programs Real-time Assimilation into the Naval Research Laboratory Navy Aerosol Analysis and Prediction System (NAAPS) Real-time Assimilation at the University of Sao Paulo and CPTEC/INPE into the RAMS model RAMS CO Product RAMS PM 2. 5 Product GOES WF_ABBA Fire Product 22 August 2003 at 17: 45 UTC GOES-8 WF_ABBA Fire Product Point Sources for 13 August 2002 NAAPS Smoke Optical Depth 22 August 2003 at 18: 00 UTC GOES-8 ABBA Fire and MACADA Cloud Products Used in Study to Model and Predict Future Fire Activity at UNH Other Modeling Efforts and Collaborations Collaboration with Univ. of New Hampshire Inst. for Study of Earth, Oceans, and Space Î Climate Modeling at NASA/GSFC: Assimilation into the GOCART model Complete Deforestation Scenario Predicted increase in future regional fire activity: 123% Number of Fire Pixels Intermediate Deforestation Scenario Predicted increase in future regional fire activity: 22% Î Real-time Air Quality Modeling at NASA/Langley: Real-time assimilation into the RAQMS model as part of IDEA (Infusing satellite Data into Environmental Applications) Î Fire Emissions and Regional Air Quality Modeling at NCAR: Assimilation into the U. S. EPA Community Multiscale Air Quality model in support of the 2002 SMOCC campaign in Brazil Collaborations result in submission/publication of 3 -peer reviewed publications in FY 03

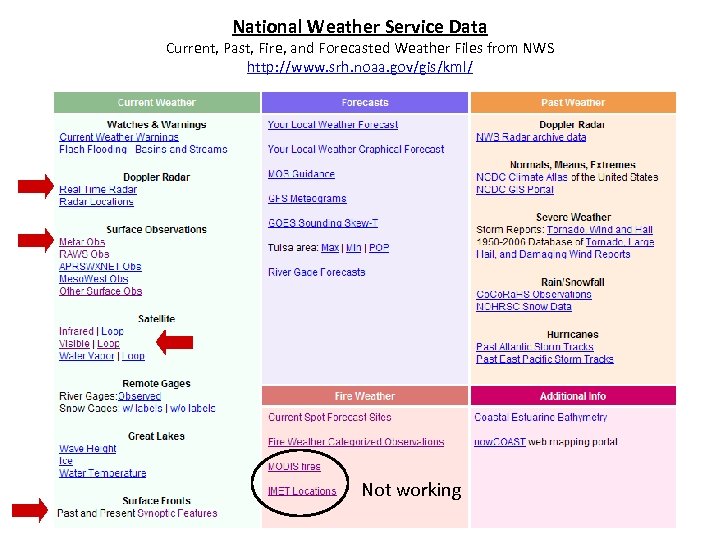

National Weather Service Data Current, Past, Fire, and Forecasted Weather Files from NWS http: //www. srh. noaa. gov/gis/kml/ Not working
