Financial Sector Overview Major Categories of institutions

Financial Sector Overview

Major Categories of institutions ► Retail Banks, Thrifts, and Credit Unions ► Commercial & Merchant banks ► Investment Banks ► Wealth & Asset Managers ► Securities trading and servicing ► Property & Causality insurers ► Life & Annuity insurers ► Financial Utilities, Processors, & Exchanges ► Government and industry regulators

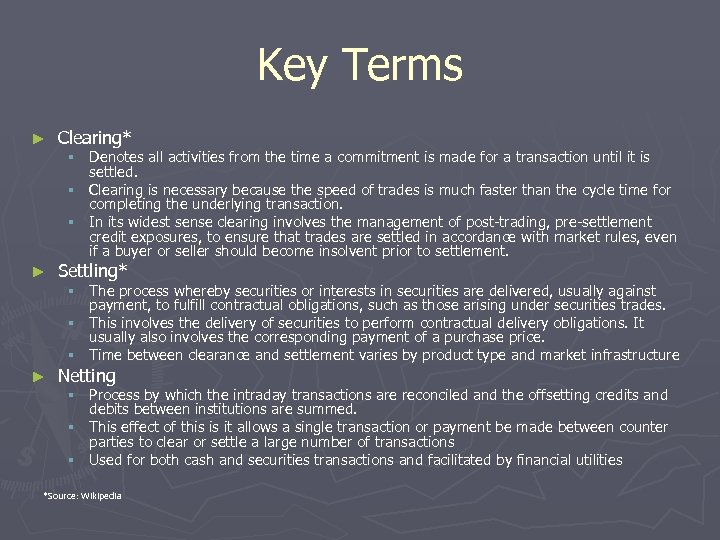

Key Terms ► Clearing* ► Settling* ► Netting § Denotes all activities from the time a commitment is made for a transaction until it is settled. § Clearing is necessary because the speed of trades is much faster than the cycle time for completing the underlying transaction. § In its widest sense clearing involves the management of post-trading, pre-settlement credit exposures, to ensure that trades are settled in accordance with market rules, even if a buyer or seller should become insolvent prior to settlement. § The process whereby securities or interests in securities are delivered, usually against payment, to fulfill contractual obligations, such as those arising under securities trades. § This involves the delivery of securities to perform contractual delivery obligations. It usually also involves the corresponding payment of a purchase price. § Time between clearance and settlement varies by product type and market infrastructure § Process by which the intraday transactions are reconciled and the offsetting credits and debits between institutions are summed. § This effect of this is it allows a single transaction or payment be made between counter parties to clear or settle a large number of transactions § Used for both cash and securities transactions and facilitated by financial utilities *Source: Wikipedia

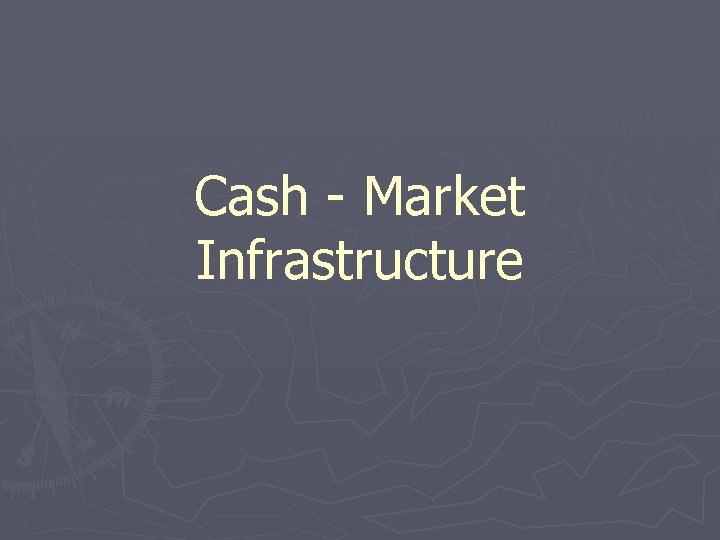

Cash - Market Infrastructure

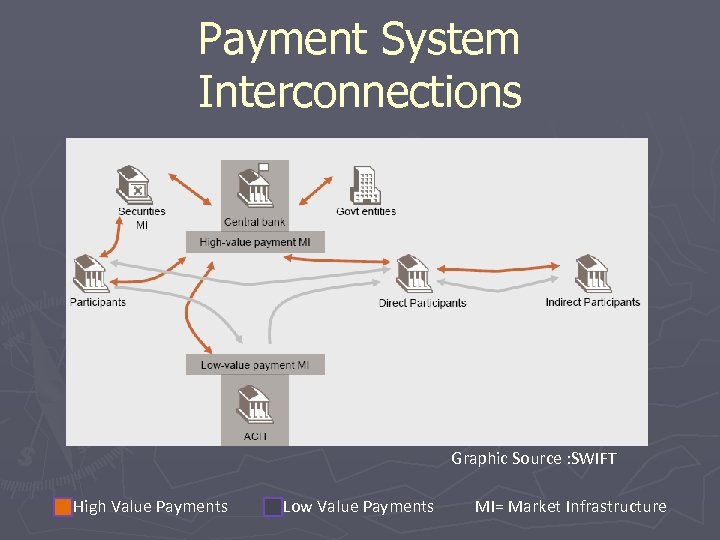

Payment System Interconnections Graphic Source : SWIFT High Value Payments Low Value Payments MI= Market Infrastructure

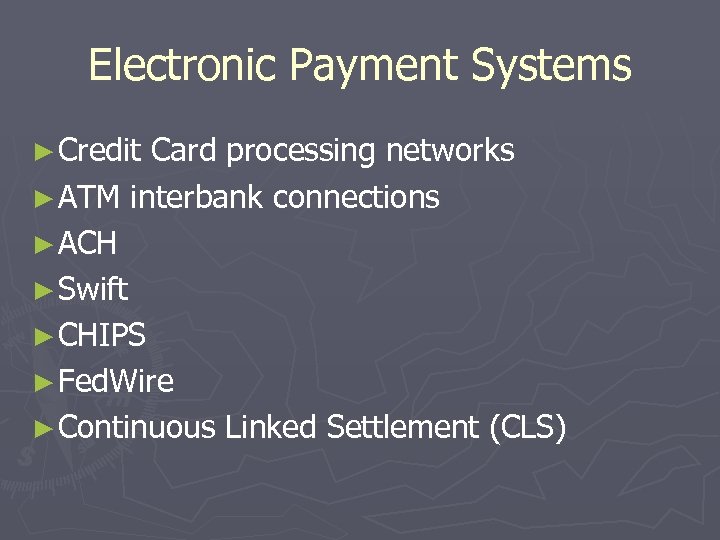

Electronic Payment Systems ► Credit Card processing networks ► ATM interbank connections ► ACH ► Swift ► CHIPS ► Fed. Wire ► Continuous Linked Settlement (CLS)

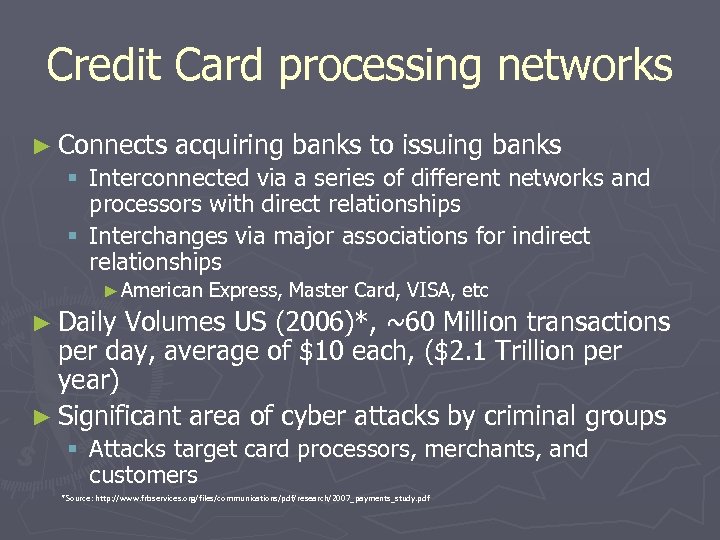

Credit Card processing networks ► Connects acquiring banks to issuing banks § Interconnected via a series of different networks and processors with direct relationships § Interchanges via major associations for indirect relationships ► American Express, Master Card, VISA, etc ► Daily Volumes US (2006)*, ~60 Million transactions per day, average of $10 each, ($2. 1 Trillion per year) ► Significant area of cyber attacks by criminal groups § Attacks target card processors, merchants, and customers *Source: http: //www. frbservices. org/files/communications/pdf/research/2007_payments_study. pdf

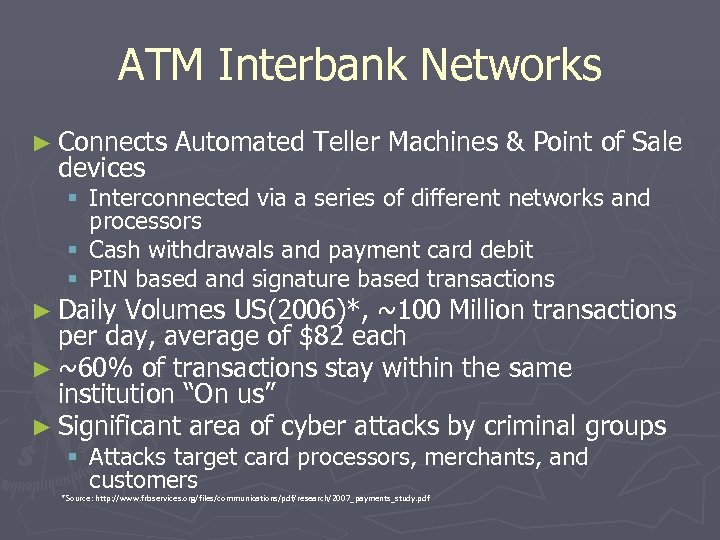

ATM Interbank Networks ► Connects devices Automated Teller Machines & Point of Sale § Interconnected via a series of different networks and processors § Cash withdrawals and payment card debit § PIN based and signature based transactions ► Daily Volumes US(2006)*, ~100 Million transactions per day, average of $82 each ► ~60% of transactions stay within the same institution “On us” ► Significant area of cyber attacks by criminal groups § Attacks target card processors, merchants, and customers *Source: http: //www. frbservices. org/files/communications/pdf/research/2007_payments_study. pdf

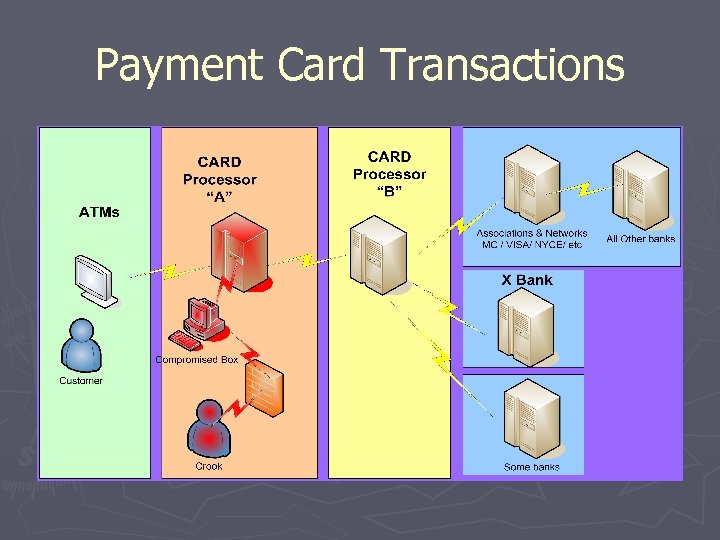

Payment Card Transactions

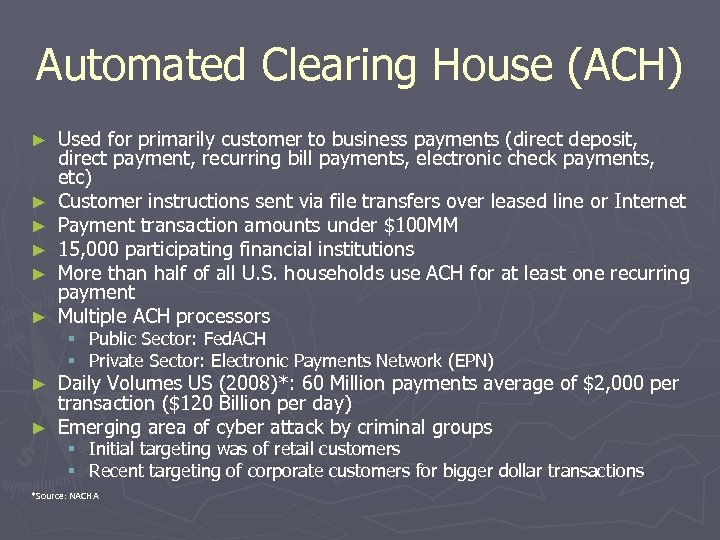

Automated Clearing House (ACH) ► ► ► Used for primarily customer to business payments (direct deposit, direct payment, recurring bill payments, electronic check payments, etc) Customer instructions sent via file transfers over leased line or Internet Payment transaction amounts under $100 MM 15, 000 participating financial institutions More than half of all U. S. households use ACH for at least one recurring payment Multiple ACH processors § Public Sector: Fed. ACH § Private Sector: Electronic Payments Network (EPN) Daily Volumes US (2008)*: 60 Million payments average of $2, 000 per transaction ($120 Billion per day) ► Emerging area of cyber attack by criminal groups ► § Initial targeting was of retail customers § Recent targeting of corporate customers for bigger dollar transactions *Source: NACHA

Society for Worldwide Interbank Financial Telecommunication (SWIFT) ► Financial message transfer network connecting 209 countries & ~8, 800 participants § Used for both cash and securities transactions § Proprietary network and store and forward message formats (FIN & ISO 20022) and batch file transfers § Multi-currency payments ► Daily Global Volume: 15 Million messages per day, ~50% cash payments & ~50% securities, Dollar volume? ► Modest attacks to date by criminal groups § Attacks against Prime Brokerage (hedge fund) clients

Clearing House Interbank Payment System (CHIPS) ► Supports Large Dollar payments (Greater than $100 MM USD) ► Slightly under 50 Participants ► Daily Volumes US(2008): 365, 000 payments of about $5 MM per transaction (~$2 Trillion per day total) ► Provides netting of payments intraday ► No history of direct cyber attacks from criminals (yet? )

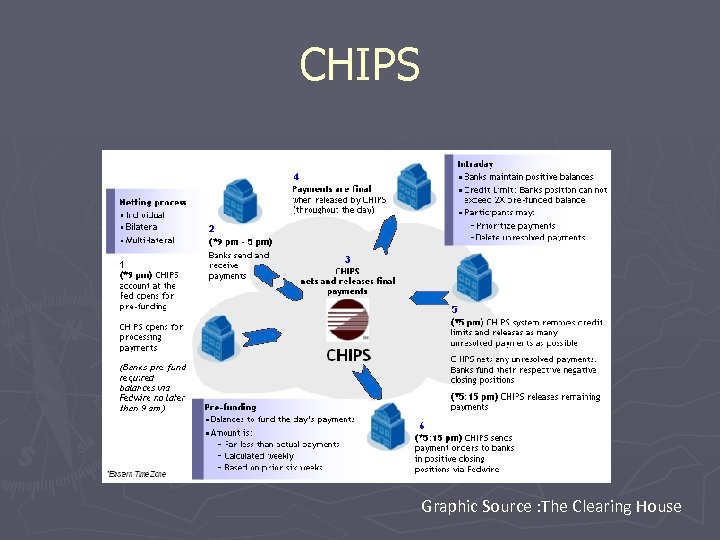

CHIPS Graphic Source : The Clearing House

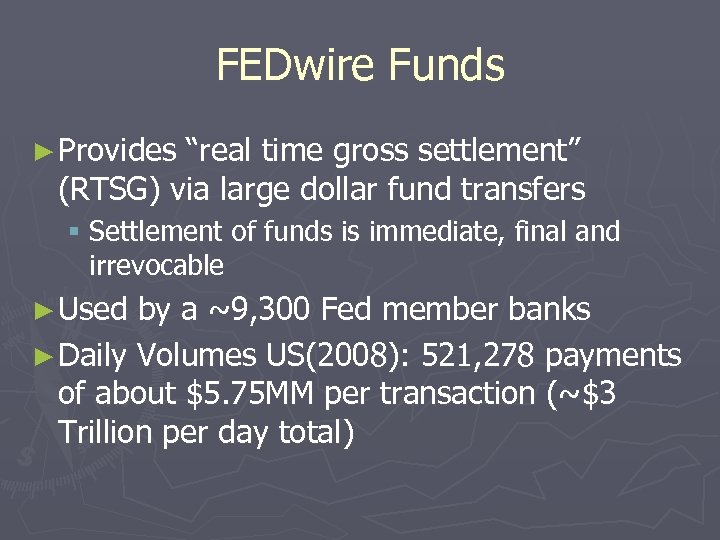

FEDwire Funds ► Provides “real time gross settlement” (RTSG) via large dollar fund transfers § Settlement of funds is immediate, final and irrevocable ► Used by a ~9, 300 Fed member banks ► Daily Volumes US(2008): 521, 278 payments of about $5. 75 MM per transaction (~$3 Trillion per day total)

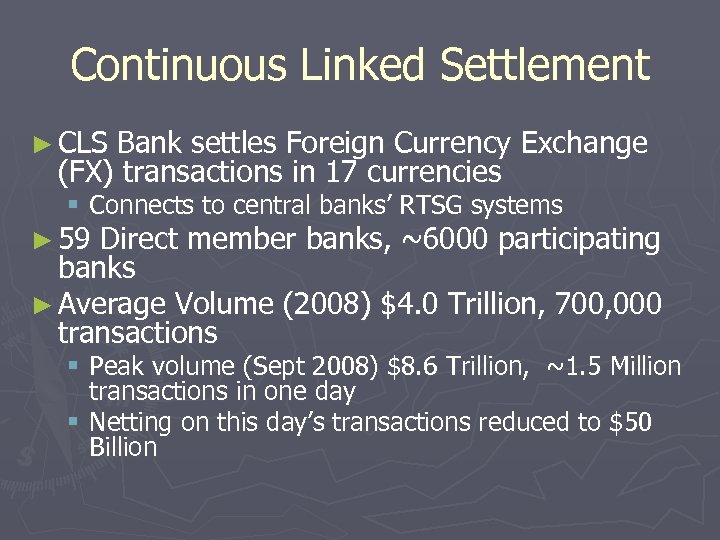

Continuous Linked Settlement ► CLS Bank settles Foreign Currency Exchange (FX) transactions in 17 currencies § Connects to central banks’ RTSG systems ► 59 Direct member banks, ~6000 participating banks ► Average Volume (2008) $4. 0 Trillion, 700, 000 transactions § Peak volume (Sept 2008) $8. 6 Trillion, ~1. 5 Million transactions in one day § Netting on this day’s transactions reduced to $50 Billion

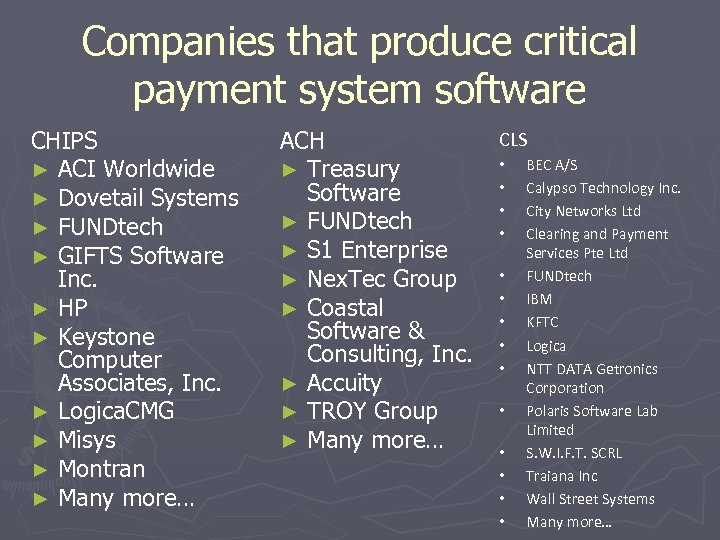

Companies that produce critical payment system software CHIPS ► ACI Worldwide ► Dovetail Systems ► FUNDtech ► GIFTS Software Inc. ► HP ► Keystone Computer Associates, Inc. ► Logica. CMG ► Misys ► Montran ► Many more… ACH ► Treasury Software ► FUNDtech ► S 1 Enterprise ► Nex. Tec Group ► Coastal Software & Consulting, Inc. ► Accuity ► TROY Group ► Many more… CLS • • • • BEC A/S Calypso Technology Inc. City Networks Ltd Clearing and Payment Services Pte Ltd FUNDtech IBM KFTC Logica NTT DATA Getronics Corporation Polaris Software Lab Limited S. W. I. F. T. SCRL Traiana Inc Wall Street Systems Many more…

Securities - Market Infrastructure

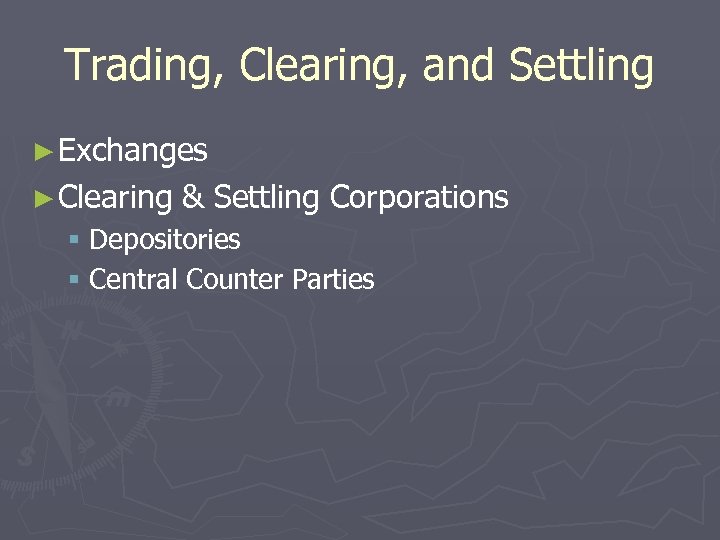

Trading, Clearing, and Settling ► Exchanges ► Clearing & Settling Corporations § Depositories § Central Counter Parties

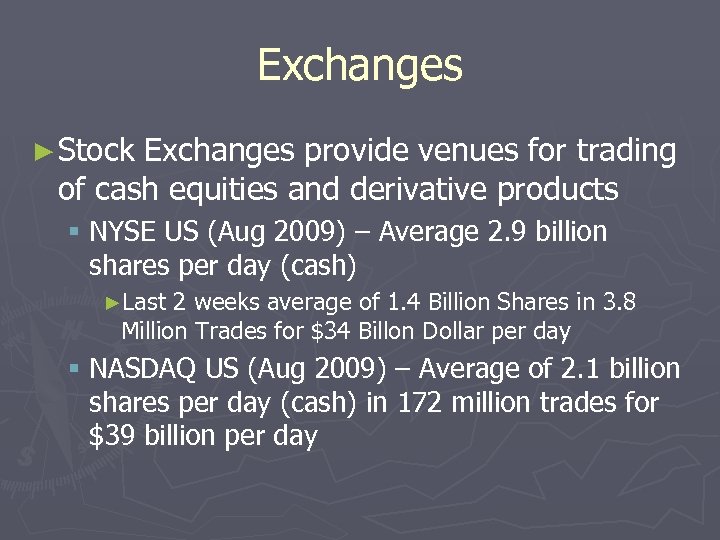

Exchanges ► Stock Exchanges provide venues for trading of cash equities and derivative products § NYSE US (Aug 2009) – Average 2. 9 billion shares per day (cash) ►Last 2 weeks average of 1. 4 Billion Shares in 3. 8 Million Trades for $34 Billon Dollar per day § NASDAQ US (Aug 2009) – Average of 2. 1 billion shares per day (cash) in 172 million trades for $39 billion per day

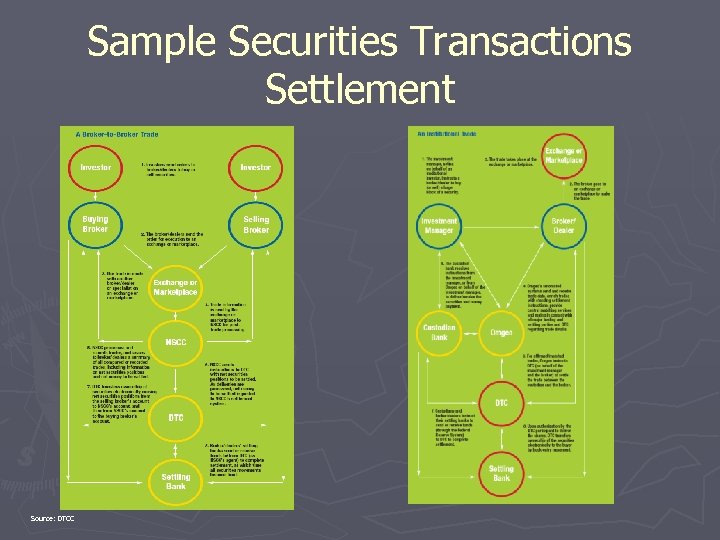

Sample Securities Transactions Settlement Source: DTCC

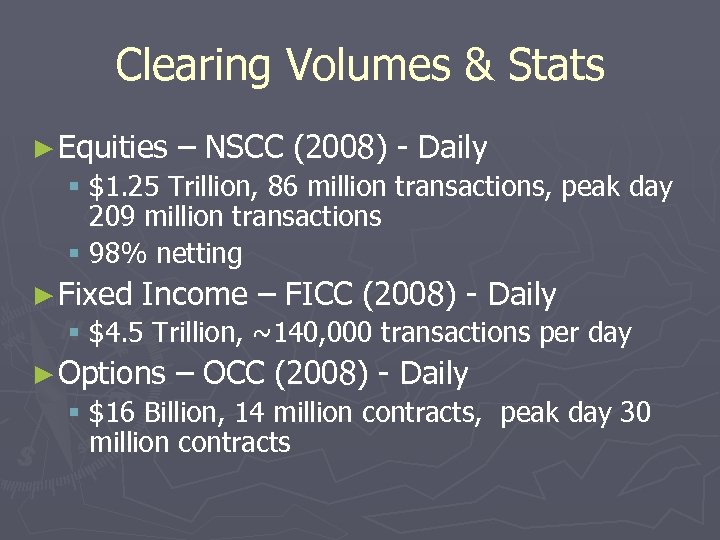

Clearing Volumes & Stats ► Equities – NSCC (2008) - Daily § $1. 25 Trillion, 86 million transactions, peak day 209 million transactions § 98% netting ► Fixed Income – FICC (2008) - Daily § $4. 5 Trillion, ~140, 000 transactions per day ► Options – OCC (2008) - Daily § $16 Billion, 14 million contracts, peak day 30 million contracts
