Filler Materials Medical Aspects Prof Dr med P

Filler Materials Medical Aspects Prof. Dr. med. P. Graf Munich

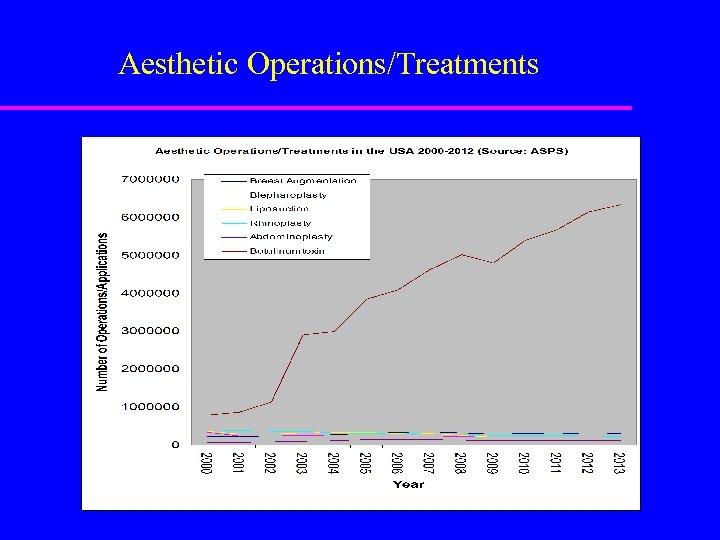

Aesthetic Operations/Treatments

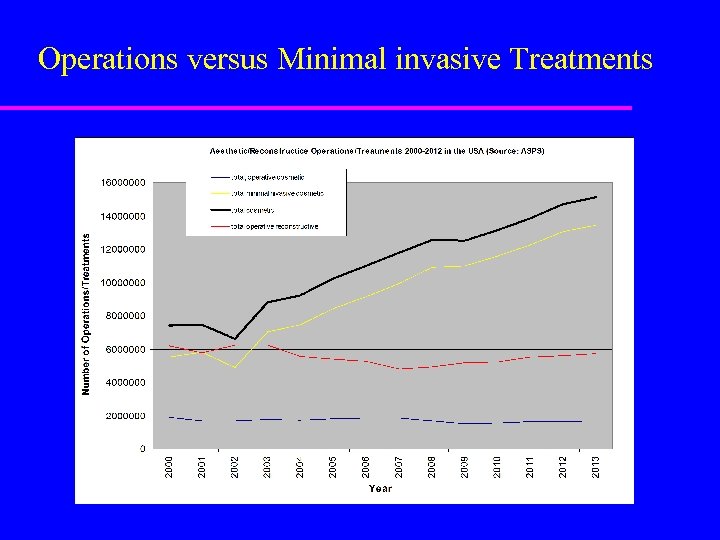

Operations versus Minimal invasive Treatments

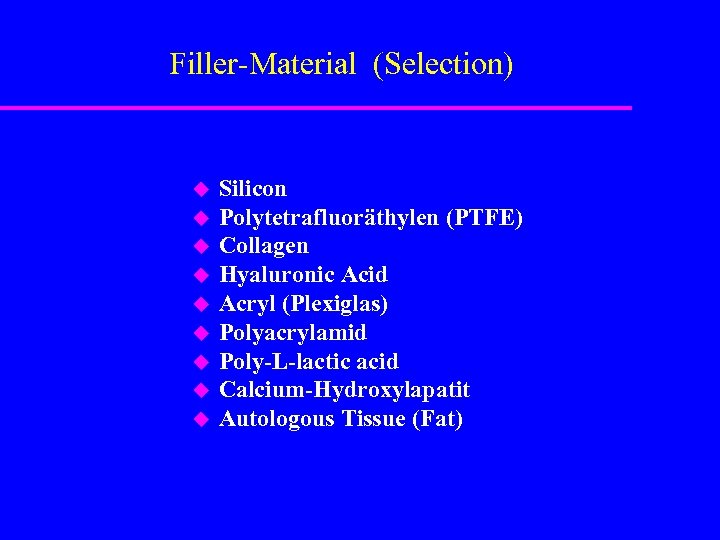

Filler-Material (Selection) u u u u u Silicon Polytetrafluoräthylen (PTFE) Collagen Hyaluronic Acid Acryl (Plexiglas) Polyacrylamid Poly-L-lactic acid Calcium-Hydroxylapatit Autologous Tissue (Fat)

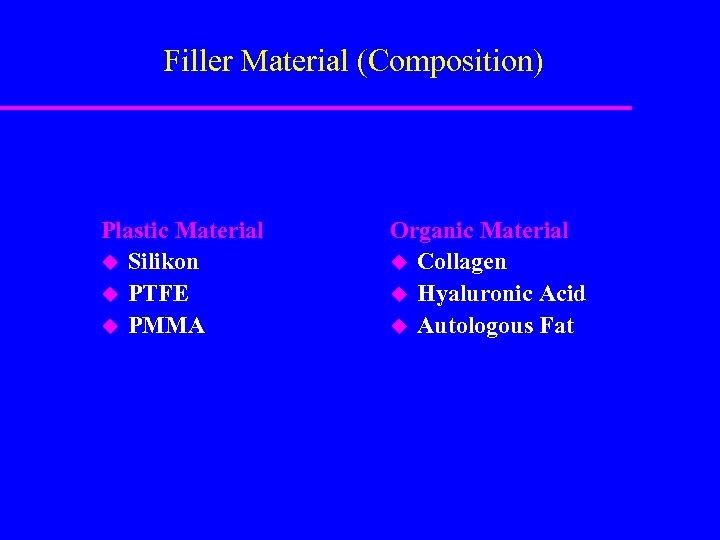

Filler Material (Composition) Plastic Material u Silikon u PTFE u PMMA Organic Material u Collagen u Hyaluronic Acid u Autologous Fat

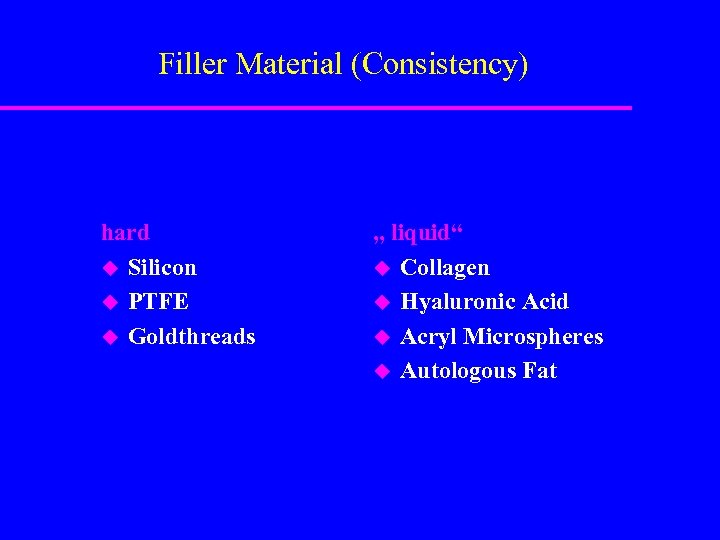

Filler Material (Consistency) hard u Silicon u PTFE u Goldthreads „ liquid“ u Collagen u Hyaluronic Acid u Acryl Microspheres u Autologous Fat

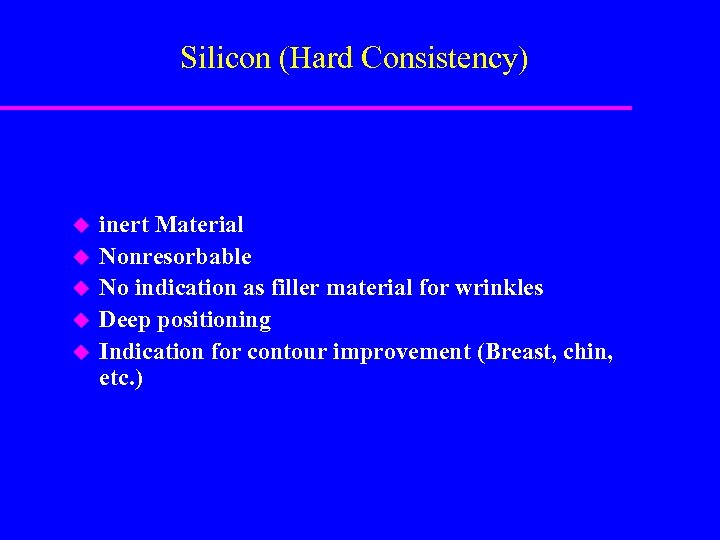

Silicon (Hard Consistency) u u u inert Material Nonresorbable No indication as filler material for wrinkles Deep positioning Indication for contour improvement (Breast, chin, etc. )

Silicon (Chinaugmentation) Die Darstellung präoperativer Fotos in ärztlichen Internetseiten ist in Deutschland leider nicht erlaubt

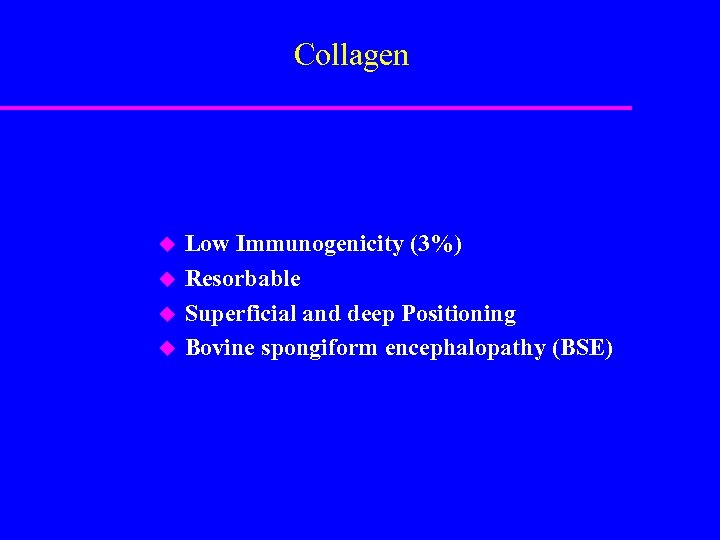

Collagen u u Low Immunogenicity (3%) Resorbable Superficial and deep Positioning Bovine spongiform encephalopathy (BSE)

Hyaluronic Acid I u u u No Immunogenicity Resorbable (6 Months) Superficial and deep positioning

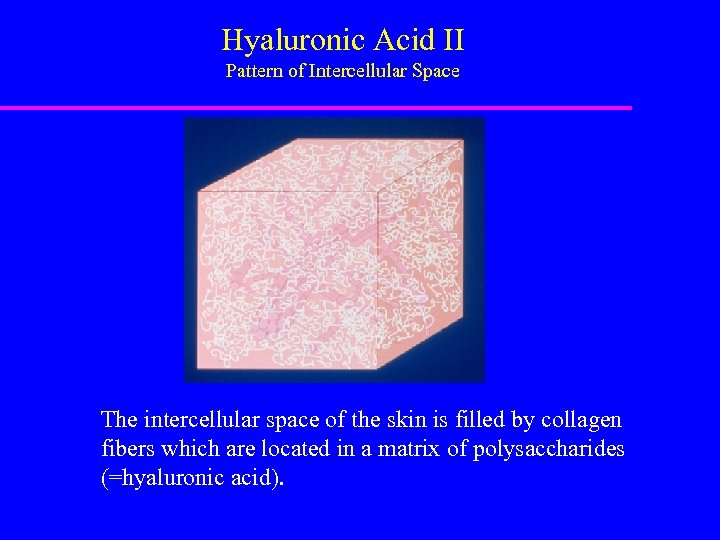

Hyaluronic Acid II Pattern of Intercellular Space The intercellular space of the skin is filled by collagen fibers which are located in a matrix of polysaccharides (=hyaluronic acid).

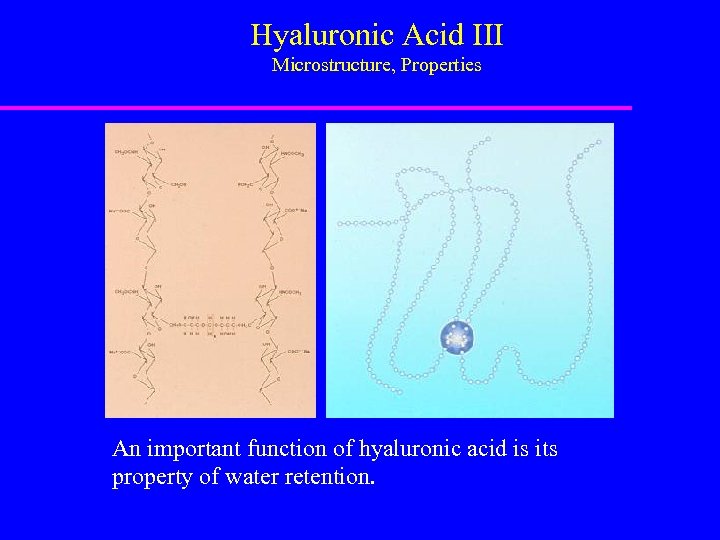

Hyaluronic Acid III Microstructure, Properties An important function of hyaluronic acid is its property of water retention.

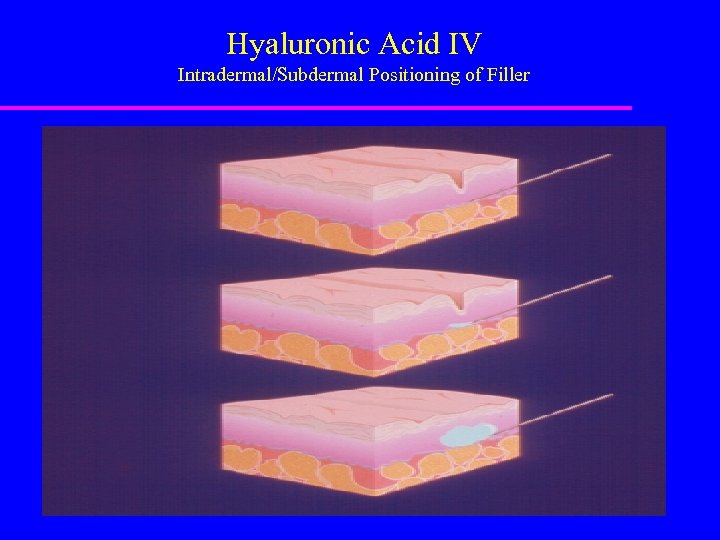

Hyaluronic Acid IV Intradermal/Subdermal Positioning of Filler

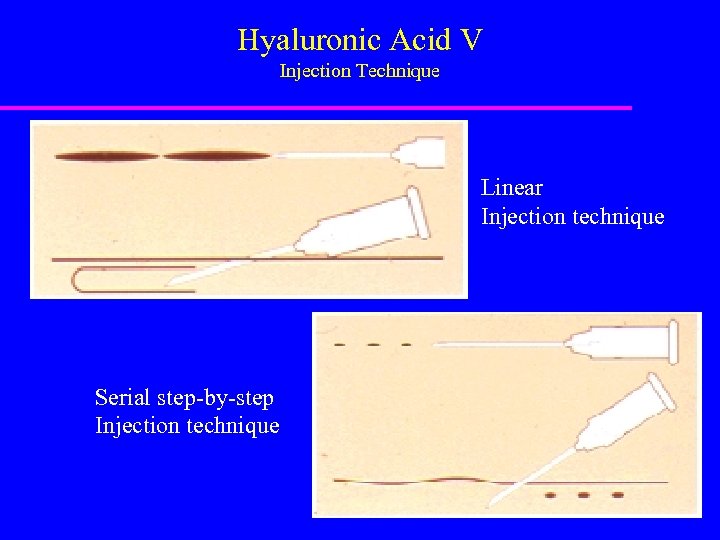

Hyaluronic Acid V Injection Technique Linear Injection technique Serial step-by-step Injection technique

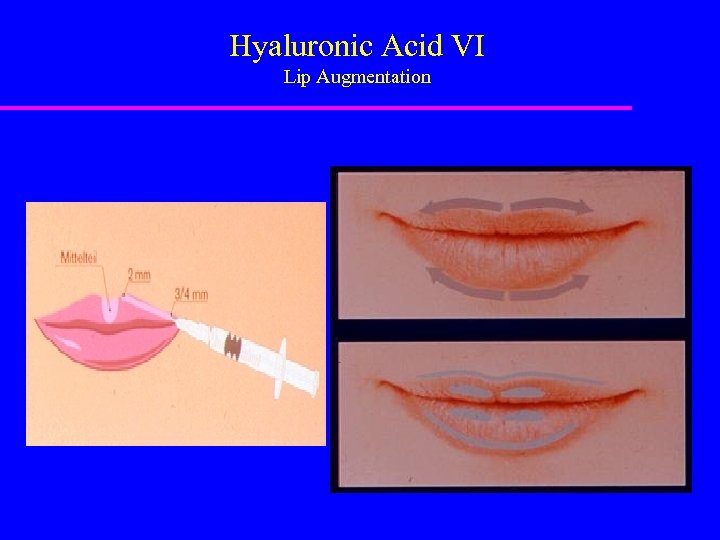

Hyaluronic Acid VI Lip Augmentation

Nonresorbable Filler Material Acryl-derivates, Calcium-Hydroxylapatit, Poly-L-Lactic Acid, etc. u u u Non- / Low-Resorbable Deep Positioning Immunogenicity ? -Foreign Body reaction -Inflammation -Infection -Fistula

Complications I Transdermal Migration of Acryl Microspheres (PMMA), (=Plexiglas)

Complications II intravascular Injection Skin necrosis after accidental intravascular injection of PMMA

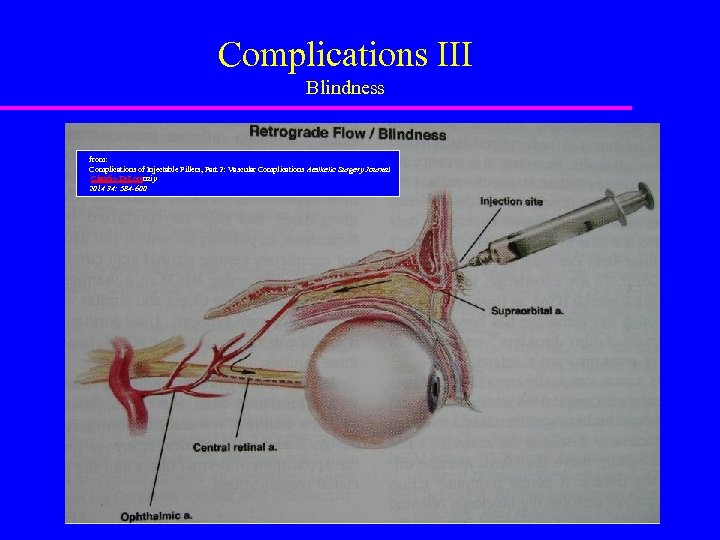

Complications III Blindness from: Complications of Injectable Fillers, Part 2: Vascular Complications Aesthetic Surgery Journal Claudio De. Lorenziy 2014 34: 584 -600

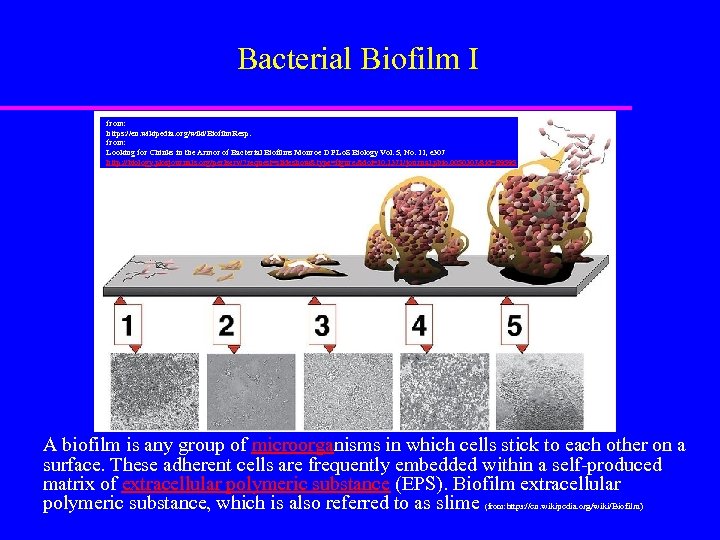

Bacterial Biofilm I from: https: //en. wikipedia. org/wiki/Biofilm. Resp. from: Looking for Chinks in the Armor of Bacterial Biofilms Monroe D PLo. S Biology Vol. 5, No. 11, e 307 http: //biology. plosjournals. org/perlserv/? request=slideshow&type=figure&doi=10. 1371/journal. pbio. 0050307&id=89595 A biofilm is any group of microorganisms in which cells stick to each other on a surface. These adherent cells are frequently embedded within a self-produced matrix of extracellular polymeric substance (EPS). Biofilm extracellular polymeric substance, which is also referred to as slime : //en. wikipedia. org/wiki/Biofilm) (from: https

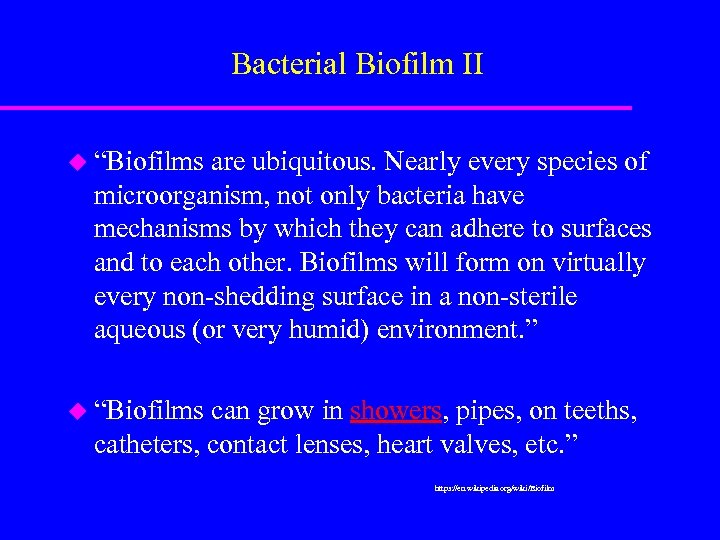

Bacterial Biofilm II u “Biofilms are ubiquitous. Nearly every species of microorganism, not only bacteria have mechanisms by which they can adhere to surfaces and to each other. Biofilms will form on virtually every non-shedding surface in a non-sterile aqueous (or very humid) environment. ” u “Biofilms can grow in showers, pipes, on teeths, catheters, contact lenses, heart valves, etc. ” https: //en. wikipedia. org/wiki/Biofilm

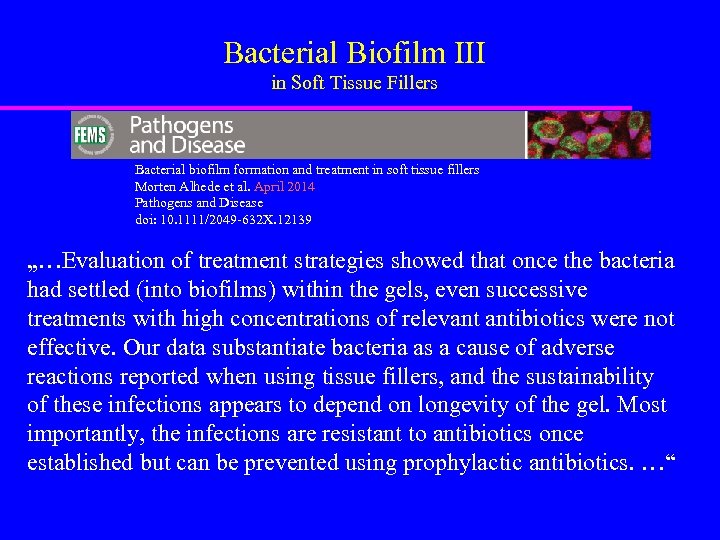

Bacterial Biofilm III in Soft Tissue Fillers Bacterial biofilm formation and treatment in soft tissue fillers Morten Alhede et al. April 2014 Pathogens and Disease doi: 10. 1111/2049 -632 X. 12139 „…Evaluation of treatment strategies showed that once the bacteria had settled (into biofilms) within the gels, even successive treatments with high concentrations of relevant antibiotics were not effective. Our data substantiate bacteria as a cause of adverse reactions reported when using tissue fillers, and the sustainability of these infections appears to depend on longevity of the gel. Most importantly, the infections are resistant to antibiotics once established but can be prevented using prophylactic antibiotics. …“

Complications Inflammation, Foreign Body Reaction, Fistulas

Consequences u Think! Would you like to have a permanent filler? u u u Do you inform your patients who ask for permanent fillers about foreign body reactions, inflammations, infections, fistulas? Do you inform about alternatives (hyaluronic acid, fat transfer)? Antibiotic prophylaxis?

Fat Transplantation by E. Lexer in Munich

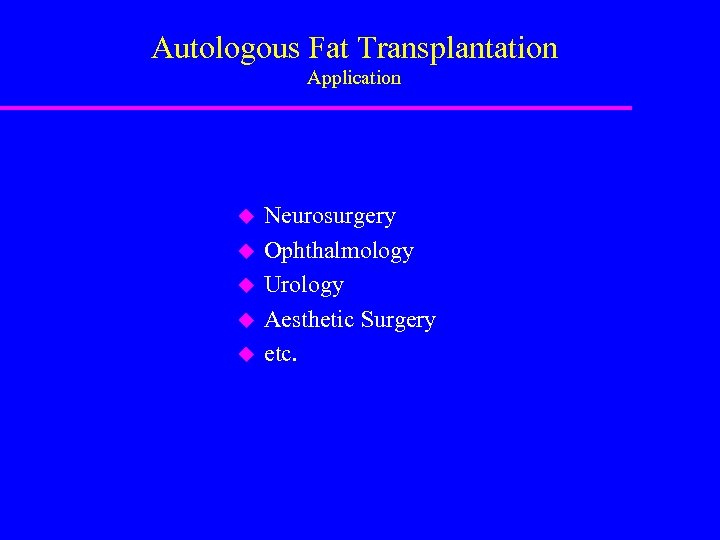

Autologous Fat Transplantation Application u u u Neurosurgery Ophthalmology Urology Aesthetic Surgery etc.

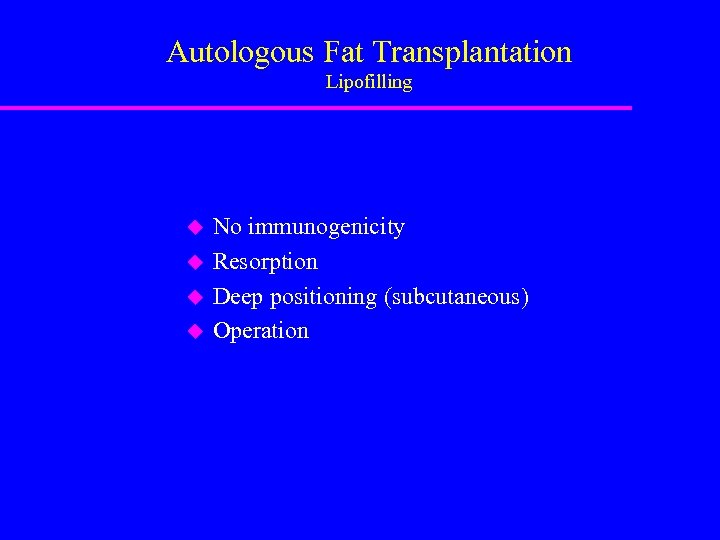

Autologous Fat Transplantation Lipofilling u u No immunogenicity Resorption Deep positioning (subcutaneous) Operation

Autologous Fat Transplantation Healing Process

Autologous Fat Transfer Resorption Rates of Resorption in Literatur 20 - 100% Own Investigations: 55, 6% (47 - 68%) Causes of trauma to transplanted fat grafts u By suction of fat (mechanical, high vacuum) u By preparation of graft (mechanical, drying) u By injection of fat graft (high pressure) u By late ischemia within the body (high tissue pressure)

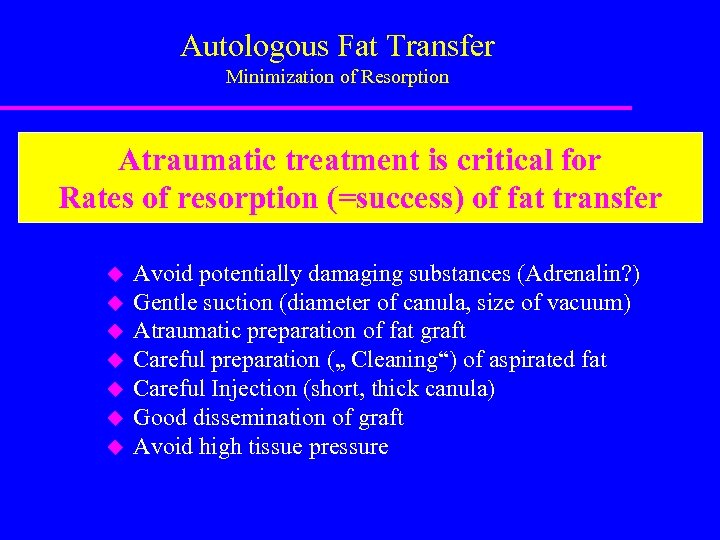

Autologous Fat Transfer Minimization of Resorption Atraumatic treatment is critical for Rates of resorption (=success) of fat transfer u u u u Avoid potentially damaging substances (Adrenalin? ) Gentle suction (diameter of canula, size of vacuum) Atraumatic preparation of fat graft Careful preparation („ Cleaning“) of aspirated fat Careful Injection (short, thick canula) Good dissemination of graft Avoid high tissue pressure

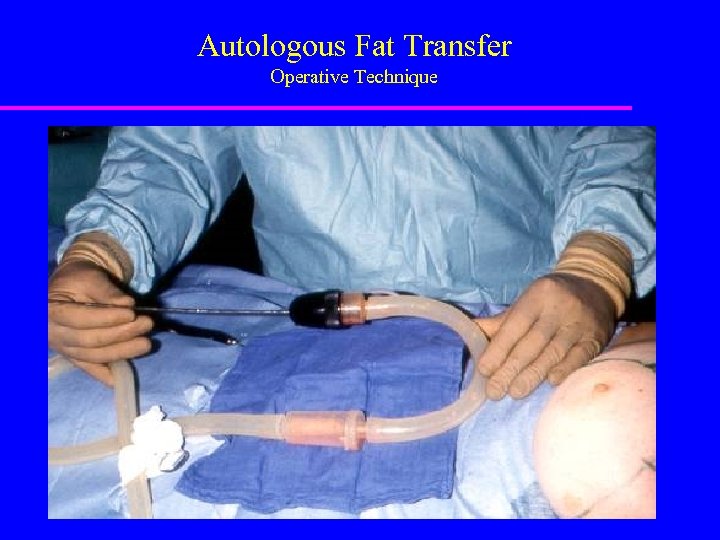

Autologous Fat Transfer Operative Technique

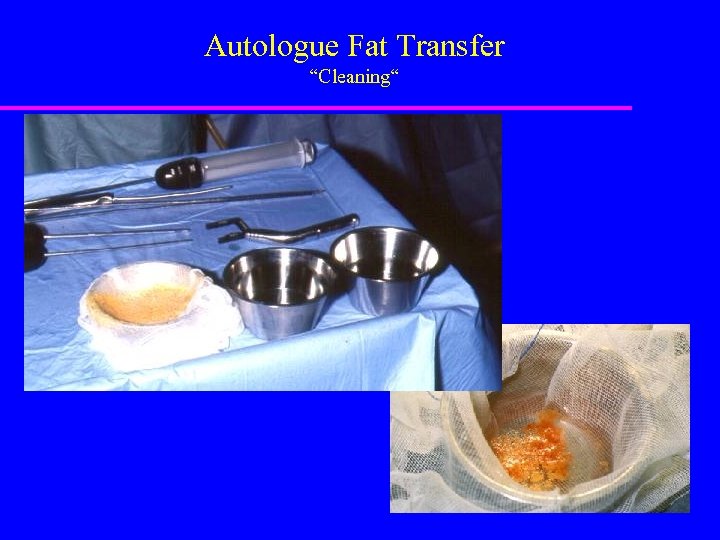

Autologue Fat Transfer “Cleaning“

Autologous Fat Transfer Injection

Autologous Fat Transfer nasolabial Die Darstellung präoperativer Fotos in ärztlichen Internetseiten ist in Deutschland leider nicht erlaubt
