Figure 7 1 The left ventricle ejects blood

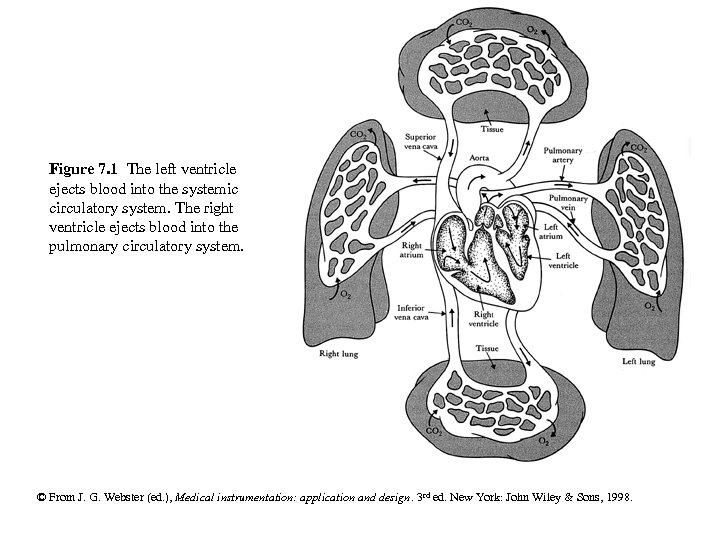

Figure 7. 1 The left ventricle ejects blood into the systemic circulatory system. The right ventricle ejects blood into the pulmonary circulatory system. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

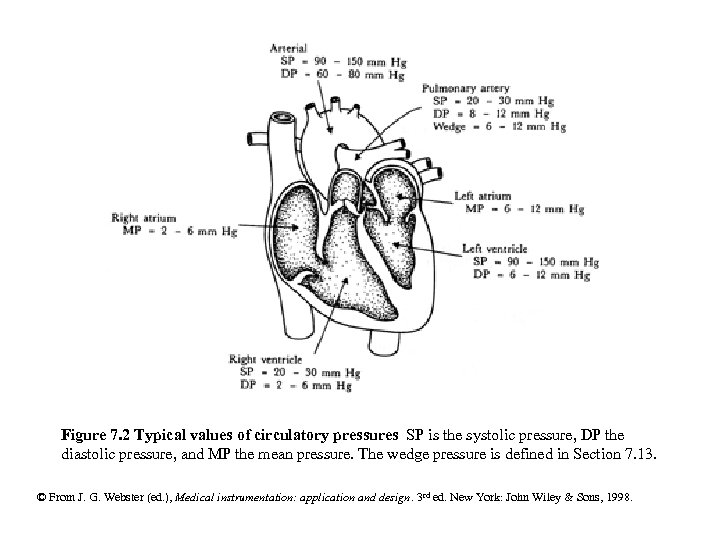

Figure 7. 2 Typical values of circulatory pressures SP is the systolic pressure, DP the diastolic pressure, and MP the mean pressure. The wedge pressure is defined in Section 7. 13. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

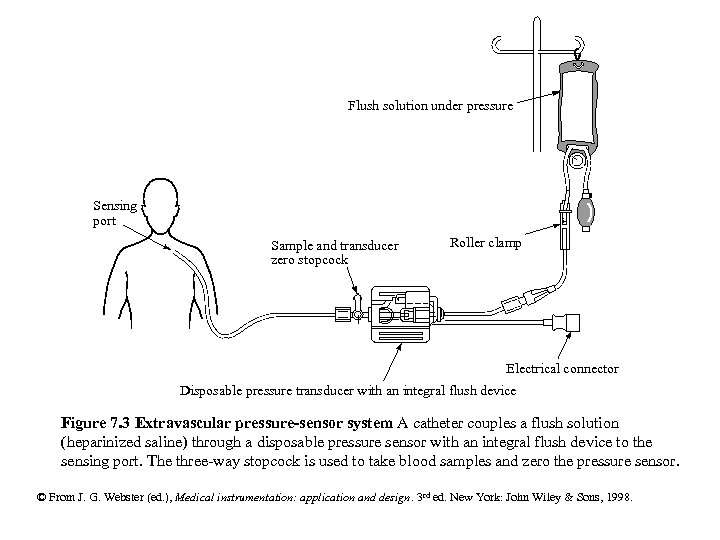

Flush solution under pressure Sensing port Sample and transducer zero stopcock Roller clamp Electrical connector Disposable pressure transducer with an integral flush device Figure 7. 3 Extravascular pressure-sensor system A catheter couples a flush solution (heparinized saline) through a disposable pressure sensor with an integral flush device to the sensing port. The three-way stopcock is used to take blood samples and zero the pressure sensor. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

Figure 7. 4 (a) Schematic diagram of an intravascular fiber-optic pressure sensor. Pressure causes deflection in a thin metal membrane that modulates the coupling between the source and detector fibers. (b) Characteristic curve for the fiberoptic pressure sensor. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

Figure 7. 5 Fiber-optic pressure sensor for intracranial pressure measurements in the newborn. The sensor membrane is placed in contact with the anterior fontanel of the newborn. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

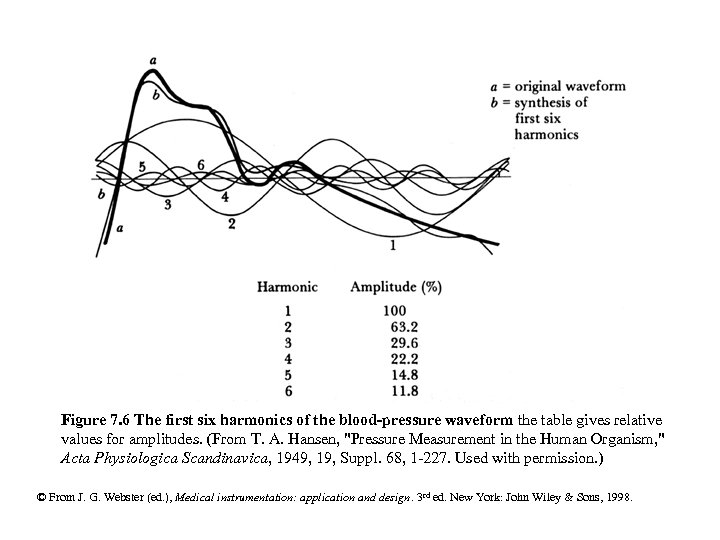

Figure 7. 6 The first six harmonics of the blood-pressure waveform the table gives relative values for amplitudes. (From T. A. Hansen, "Pressure Measurement in the Human Organism, " Acta Physiologica Scandinavica, 1949, 19, Suppl. 68, 1 -227. Used with permission. ) © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

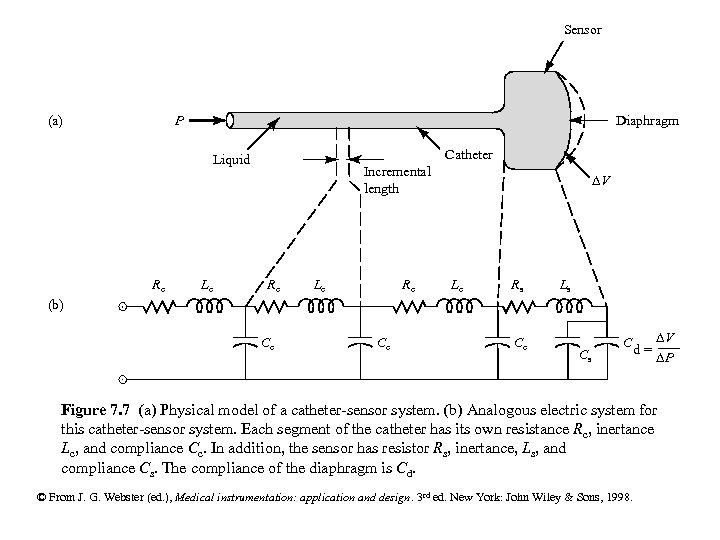

Sensor (a) P Diaphragm Catheter Liquid Rc Lc Incremental length Rc Lc Rc DV Lc Rs Ls (b) Cc Cc Cc Cs C d= DV DP Figure 7. 7 (a) Physical model of a catheter-sensor system. (b) Analogous electric system for this catheter-sensor system. Each segment of the catheter has its own resistance Rc, inertance Lc, and compliance Cc. In addition, the sensor has resistor Rs, inertance, Ls, and compliance Cs. The compliance of the diaphragm is Cd. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

Figure 7. 8 (a) Simplified analogous circuit. Compliance of the sensor diaphragm is larger than compliance of catheter or sensor cavity for a bubblefree, noncompliant catheter. The resistance and inertance of the catheter are larger than those of the sensor, (a) because the catheter has longer length and smaller diameter. (b) Analogous circuit for catheter-sensor system with a bubble in the catheter. Catheter ui (t) properties proximal to the bubble are inertance Lc and resistance Rc. Catheter properties distal to the bubble are Lcd (b) and Rcd. Compliance of the diaphragm is Cd; Compliance of the bubble is Cb. (c) Simplified analogous circuit for catheter-sensor system with a bubble in the catheter, assuming that Lcd and Rcd u (t) i are negligible with respect to Rc and Lc. Catheter liquid inertia Catheter liquid resistance Sensor diaphragm compliance Lc Rc Lcd Cb Lc Rcd Cd uo (t) Rc Cb Cd (c) © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998. uo (t)

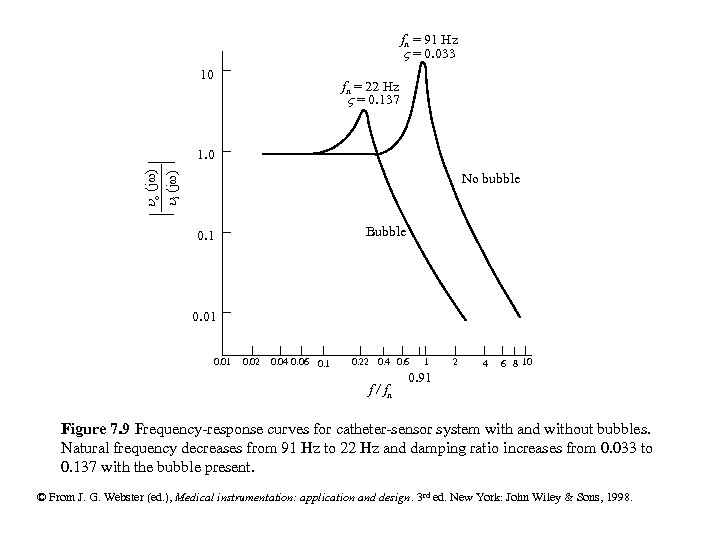

fn = 91 Hz = 0. 033 10 fn = 22 Hz = 0. 137 uo (jw) ui (jw) 1. 0 No bubble Bubble 0. 1 0. 01 0. 02 0. 04 0. 06 0. 1 0. 22 0. 4 0. 6 f / fn 1 0. 91 2 4 6 8 10 Figure 7. 9 Frequency-response curves for catheter-sensor system with and without bubbles. Natural frequency decreases from 91 Hz to 22 Hz and damping ratio increases from 0. 033 to 0. 137 with the bubble present. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

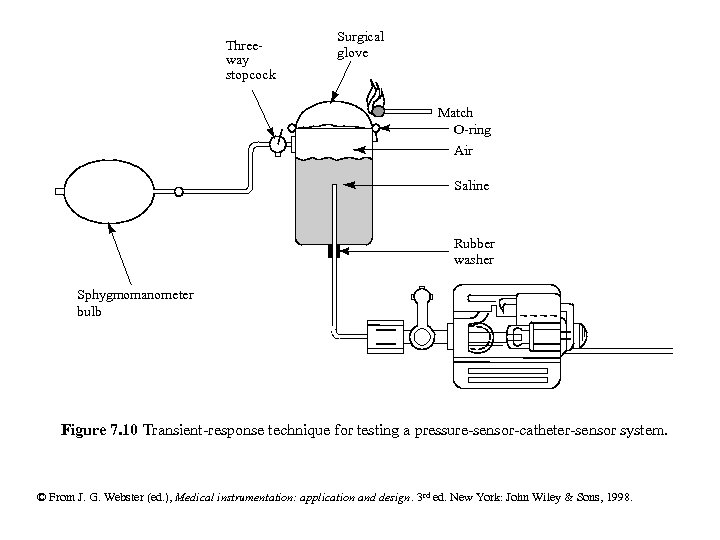

Threeway stopcock Surgical glove Match O-ring Air Saline Rubber washer Sphygmomanometer bulb Figure 7. 10 Transient-response technique for testing a pressure-sensor-catheter-sensor system. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

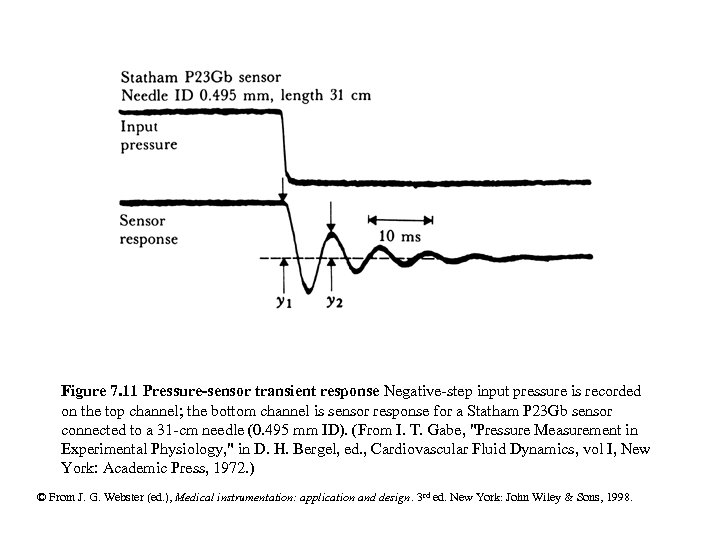

Figure 7. 11 Pressure-sensor transient response Negative-step input pressure is recorded on the top channel; the bottom channel is sensor response for a Statham P 23 Gb sensor connected to a 31 -cm needle (0. 495 mm ID). (From I. T. Gabe, "Pressure Measurement in Experimental Physiology, " in D. H. Bergel, ed. , Cardiovascular Fluid Dynamics, vol I, New York: Academic Press, 1972. ) © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

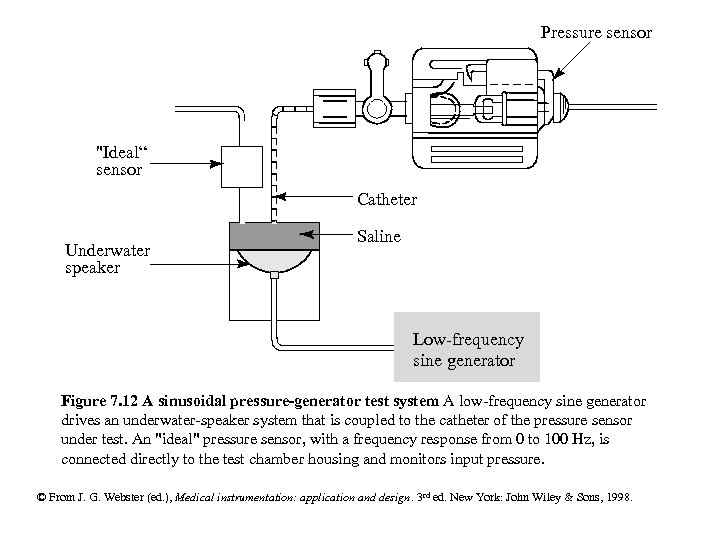

Pressure sensor "Ideal“ sensor Catheter Underwater speaker Saline Low-frequency sine generator Figure 7. 12 A sinusoidal pressure-generator test system A low-frequency sine generator drives an underwater-speaker system that is coupled to the catheter of the pressure sensor under test. An "ideal" pressure sensor, with a frequency response from 0 to 100 Hz, is connected directly to the test chamber housing and monitors input pressure. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

Figure 7. 13 Pressure-waveform distortion (a) Recording of an undistorted left-ventricular pressure waveform via a pressure sensor with bandwidth dc to 100 Hz. (b) Underdamped response, where peak value is increased. A time delay is also evident in this recording. (c) Overdamped response that shows a significant time delay and an attenuated amplitude response. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

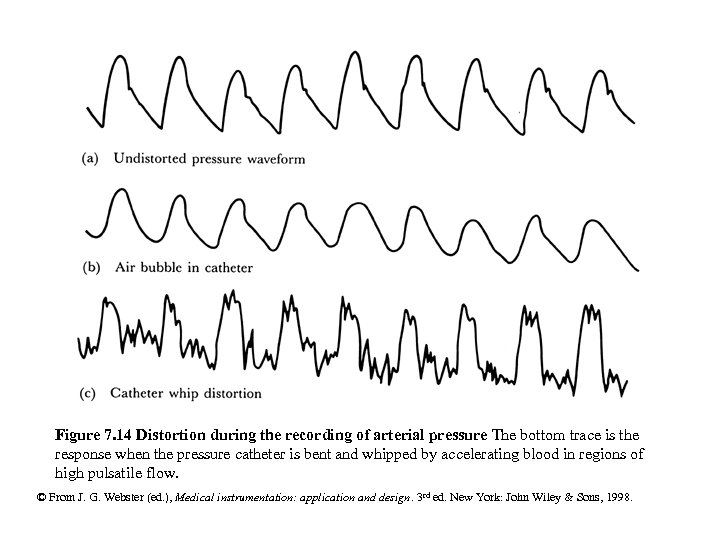

Figure 7. 14 Distortion during the recording of arterial pressure The bottom trace is the response when the pressure catheter is bent and whipped by accelerating blood in regions of high pulsatile flow. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

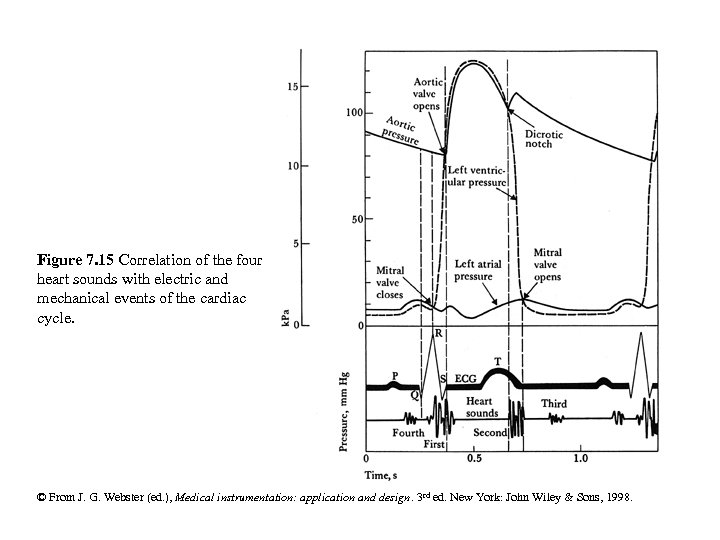

Figure 7. 15 Correlation of the four heart sounds with electric and mechanical events of the cardiac cycle. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

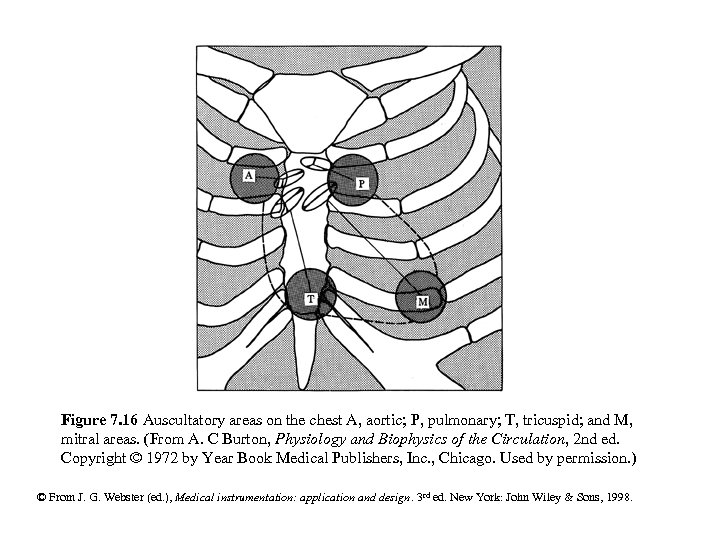

Figure 7. 16 Auscultatory areas on the chest A, aortic; P, pulmonary; T, tricuspid; and M, mitral areas. (From A. C Burton, Physiology and Biophysics of the Circulation, 2 nd ed. Copyright © 1972 by Year Book Medical Publishers, Inc. , Chicago. Used by permission. ) © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

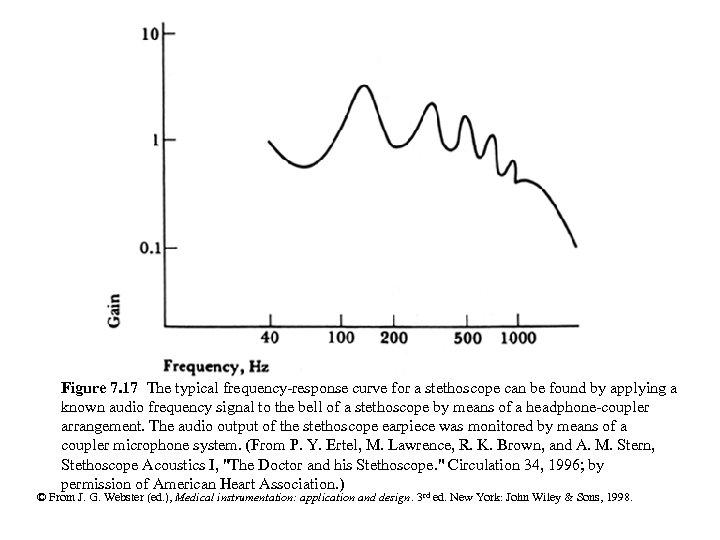

Figure 7. 17 The typical frequency-response curve for a stethoscope can be found by applying a known audio frequency signal to the bell of a stethoscope by means of a headphone-coupler arrangement. The audio output of the stethoscope earpiece was monitored by means of a coupler microphone system. (From P. Y. Ertel, M. Lawrence, R. K. Brown, and A. M. Stern, Stethoscope Acoustics I, "The Doctor and his Stethoscope. " Circulation 34, 1996; by permission of American Heart Association. ) © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

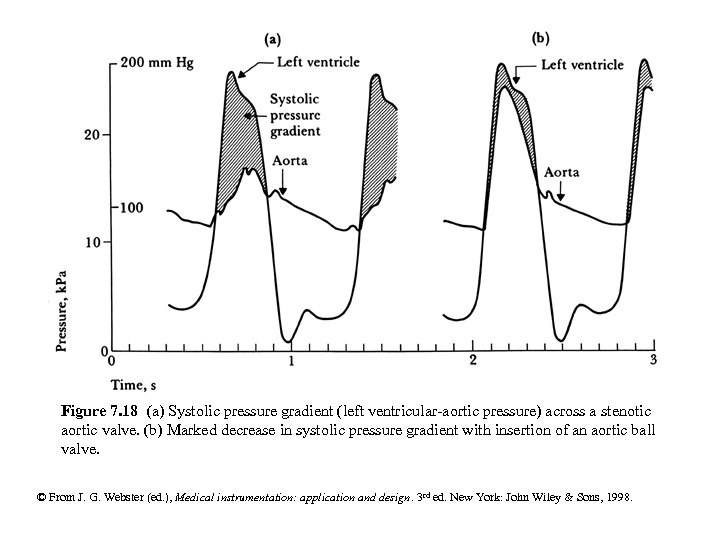

Figure 7. 18 (a) Systolic pressure gradient (left ventricular-aortic pressure) across a stenotic aortic valve. (b) Marked decrease in systolic pressure gradient with insertion of an aortic ball valve. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

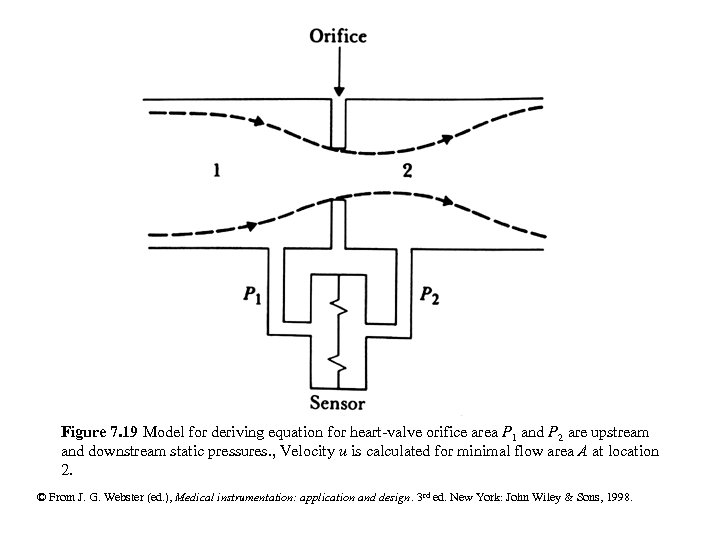

Figure 7. 19 Model for deriving equation for heart-valve orifice area P 1 and P 2 are upstream and downstream static pressures. , Velocity u is calculated for minimal flow area A at location 2. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

Figure 7. 20 Typical indirect blood-pressure measurement system The sphygmomanometer cuff is inflated by a hand bulb to pressures above the systolic level. Pressure is then slowly released, and blood flow under the cuff is monitored by a microphone or stethoscope placed over a downstream artery. The first Korotkoff sound detected indicates systolic pressure, whereas the transition from muffling to silence brackets diastolic pressure. (From R. F. Rushmer, Cardiovascular Dynamics, 3 rd ed. , 1970. Philadelphia: W. B. Saunders Co. Used with permission. ) © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

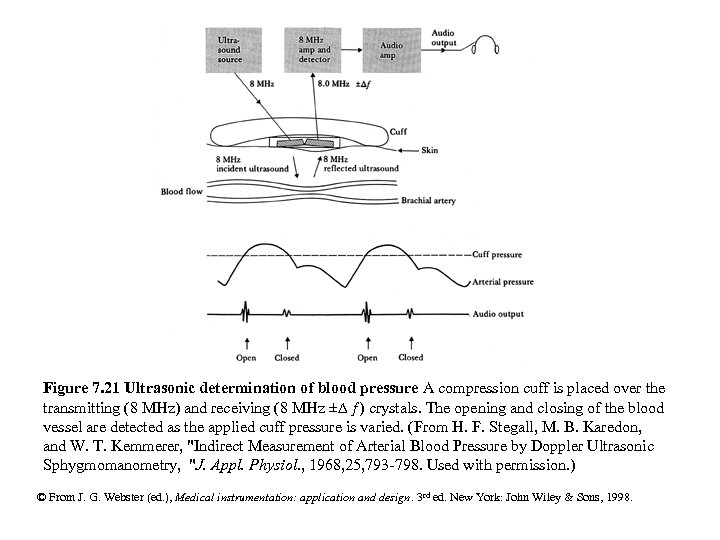

Figure 7. 21 Ultrasonic determination of blood pressure A compression cuff is placed over the transmitting (8 MHz) and receiving (8 MHz ±D ƒ) crystals. The opening and closing of the blood vessel are detected as the applied cuff pressure is varied. (From H. F. Stegall, M. B. Karedon, and W. T. Kemmerer, "Indirect Measurement of Arterial Blood Pressure by Doppler Ultrasonic Sphygmomanometry, "J. Appl. Physiol. , 1968, 25, 793 -798. Used with permission. ) © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

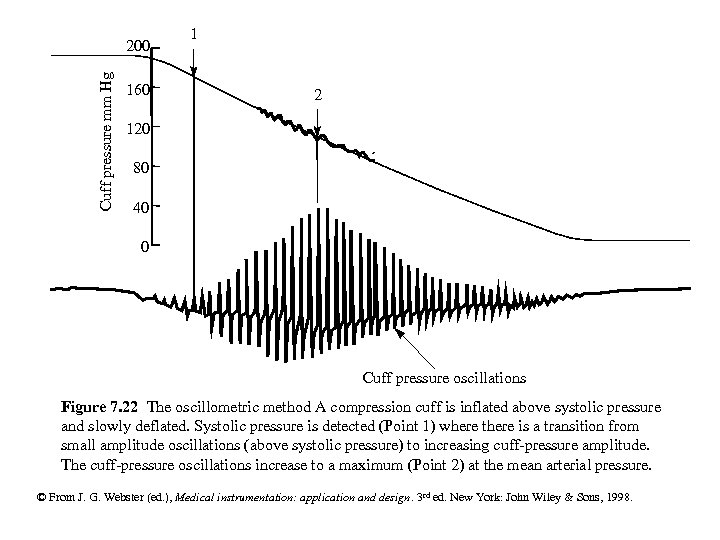

Cuff pressure mm Hg 200 160 1 2 120 80 40 0 Cuff pressure oscillations Figure 7. 22 The oscillometric method A compression cuff is inflated above systolic pressure and slowly deflated. Systolic pressure is detected (Point 1) where there is a transition from small amplitude oscillations (above systolic pressure) to increasing cuff-pressure amplitude. The cuff-pressure oscillations increase to a maximum (Point 2) at the mean arterial pressure. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

External Internal Auto-zero valve Cuff pressure Pressure sensor Multiplexer Cuff pressure and analog oscillations to digital converter BP cuff Inflation system Deflate valve Over. Pressure switch Microcomputer with memory and I/O Dump valve MAP SYS HR DYS Figure 7. 23 Block diagram of the major components and subsystems of an oscillometric blood-pressure monitoring device, based on the Dinamap unit, I/O = input/output; MAP = mean arterial pressure; HR = heart rate; SYS= systolic pressure; DYS = diastolic pressure. From Ramsey M III. Blood pressure monitoring: automated oscillometric devices, J. Clin. Monit. 1911, 7, 56 -67. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

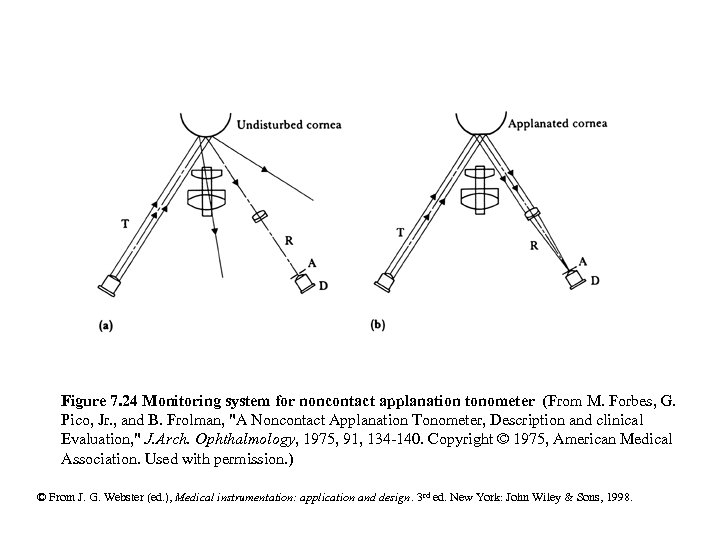

Figure 7. 24 Monitoring system for noncontact applanation tonometer (From M. Forbes, G. Pico, Jr. , and B. Frolman, "A Noncontact Applanation Tonometer, Description and clinical Evaluation, " J. Arch. Ophthalmology, 1975, 91, 134 -140. Copyright © 1975, American Medical Association. Used with permission. ) © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

Frictionless piston F Membrane P (a) F T F =PA T P (b) Figure 7. 25 Idealized model for an arterial tonometer. (a) A flattened portion of an arterial wall (membrane). P is the blood pressure in a superficial artery, and F is the force measured by a tonometer transducer. (b) a free-body diagram for the idealized model of (a) in which T is the membrane tensile force perpendicular to both F and P. From Eckerle, J. D. , "Tonometry, arterial, " in J. G. Webster (ed), Encyclopedia of Medical Devices and Instrumentation. New York: Wiley, 1988, pp. 2270 -2276. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.

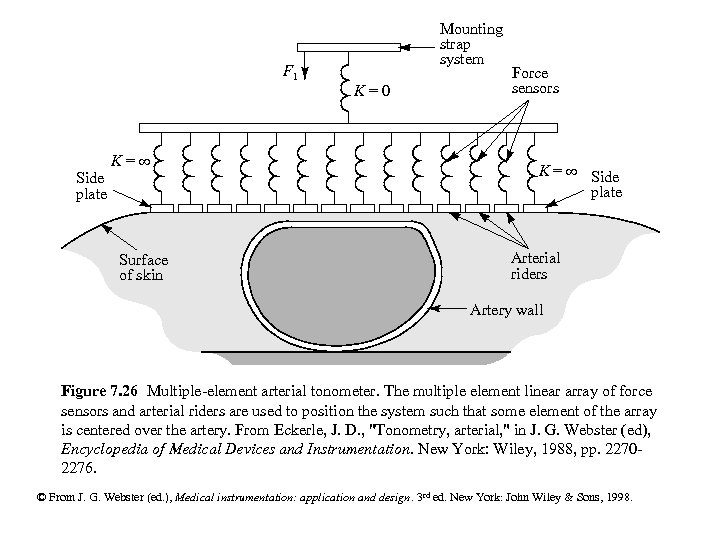

F 1 Side plate K= Surface of skin Mounting strap system K=0 Force sensors K = Side plate Arterial riders Artery wall Figure 7. 26 Multiple-element arterial tonometer. The multiple element linear array of force sensors and arterial riders are used to position the system such that some element of the array is centered over the artery. From Eckerle, J. D. , "Tonometry, arterial, " in J. G. Webster (ed), Encyclopedia of Medical Devices and Instrumentation. New York: Wiley, 1988, pp. 22702276. © From J. G. Webster (ed. ), Medical instrumentation: application and design. 3 rd ed. New York: John Wiley & Sons, 1998.
