Fighting the Spam Email: a Long and Tough War Fighting the Spam Email: a Long and Tough War

 • Some facts about spams • Techniques to fight against the junk emails • Some facts about spams • Techniques to fight against the junk emails

 • Spam: also called unsolicited bulk e-mail (UBE) or unsolicited commercial e-mail. • • Spam: also called unsolicited bulk e-mail (UBE) or unsolicited commercial e-mail. • Has increased steadily or even exponentially since early nineties • As of 2012, over 145 billion emails/day • About 65% of all emails are spam (94 billion. Most of them captured by filters. ) • About 80% of spam are sent by zombie now

 • About 80% of the spam are sent by fewer than 200 spammers • About 80% of the spam are sent by fewer than 200 spammers • In the year of 2007, spam cost the businesses on the order of $100 billion / year • Most of the spam contain some URL: the top five countries host 99. 68% of the global spammer websites • Pills, poker, and porn are the majority of the spam

 • Number of spam – 2005 - (June) 30 billion per day – • Number of spam – 2005 - (June) 30 billion per day – 2006 - (June) 55 billion per day – 2007 - (February) 70 billion per day – 2012: 90 – 120 billion per day

 • Different organizations estimate that 85% to 97% of emails this day are • Different organizations estimate that 85% to 97% of emails this day are unsolicited • Bill Gates received 4 million emails/year, most of them are spam

 • Legal issues in US – Spam is legally permissible according to the • Legal issues in US – Spam is legally permissible according to the CAN-SPAM Act of 2003 if: • a truthful subject line • no false information in the technical headers or sender address • other minor requirements – In 2004 less than 1% of spam complied with the CAN-SPAM Act of 2003

 • How Spam Emails have evolved in the past years • Spam presents • How Spam Emails have evolved in the past years • Spam presents a problem: it changes – Spammers are adversarial – They react (very fast: hours to days) to changes in spam filtering technology • Spammers innovate constantly – The products they sell – How they send the spam (fixed IPs, broken web forms, open proxies, zombie networks, …) – The content of their messages

Once upon a time… • It was fairly easy to filter spam – It Once upon a time… • It was fairly easy to filter spam – It came from fixed IP addresses: use a blacklist – The From address was not forged: easy to filter – The spam contained keywords that could be blacklisted • penis, viagra, etc. • Simplistic filtering on From and content is now useless (has been for a few years) • Only complex algorithms can filter on spam content – Hashing, weighted heuristics, ‘Bayes’, …

In 2003 • Because spammers were trying to avoid filters by all sorts of In 2003 • Because spammers were trying to avoid filters by all sorts of trickery • Some tricks you are familiar with… – VIAGRA has become V [email protected] – PENIS has become PE. NIS – ENLARGER is written ENARELGR • There are 10^21 ways to spell viagra • Most others are hidden from the reader

The Spammers’ Compendium • Hosted at Virus Bulletin now • Informal collection of spammer The Spammers’ Compendium • Hosted at Virus Bulletin now • Informal collection of spammer tricks – All about content of spam, not how it’s sent – Been collecting since 2003 – Now a total of 65 tricks – All have been seen in the wild

Fun facts • 80% of spam uses HTML – Colors, images, fonts… – … Fun facts • 80% of spam uses HTML – Colors, images, fonts… – … and tricks • 80% of spam uses at least one content trick – Invisible Ink, Camouflage, … • Spam and spam filters are in an arms race • Irony: Spammer tricks often make spam easier to filter – Who spells Viagra V [email protected]@?

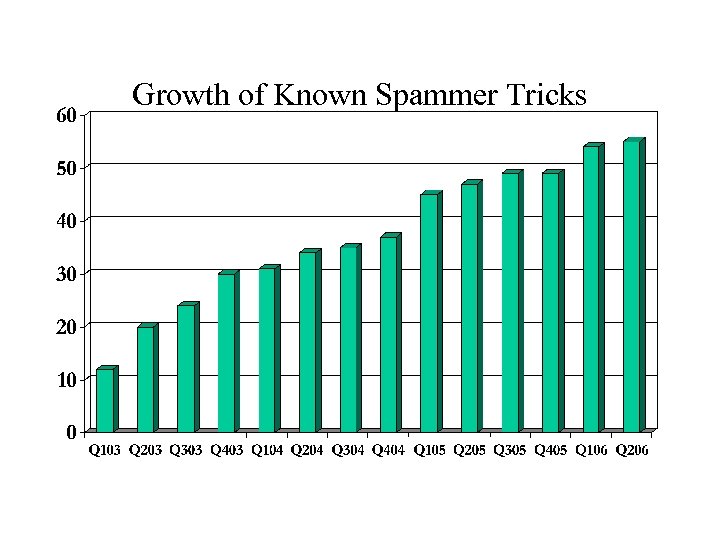

Growth of Known Spammer Tricks Growth of Known Spammer Tricks

The Spam Zeitgeist (1) • Spammers realize that spam filters spot their tricks, so The Spam Zeitgeist (1) • Spammers realize that spam filters spot their tricks, so they are trying… – Short plain text emails with a URL – Anti-spammer response: URL blacklist – Spammer response: use redirector – Anti-spammer response: follow redirector – Spammer response: use Geocities with complex page that reloads using encoded Javascript

The Spam Zeitgeist (2) • Spammers realize that spam filters read their mail… – The Spam Zeitgeist (2) • Spammers realize that spam filters read their mail… – Spammer response: send an image instead of text – Anti-spammer response: checksum the images – Spammer response: make random modification of image and number of images – Anti-spammer response: perform OCR on images – Spammer response: add random noise to images

Example: Hypertextus Interruptus • A once popular trick that has fallen out of favor Example: Hypertextus Interruptus • A once popular trick that has fallen out of favor – Use HTML's commenting mechanism to break up bad words – HTML comments are written and the entire sequence is ignored and not displayed. – Easy to break up a word like Viagra: Viagra

Example: Invisible Ink (1) • Hide lots of good words using white font on Example: Invisible Ink (1) • Hide lots of good words using white font on a white background • Before: Buy Viagra Now! Please see the attached spread sheet for our current sales forecast

Example: Invisible Ink (1) • Use HTML <font color=xyz> tag to make the good Example: Invisible Ink (1) • Use HTML tag to make the good words disappear • After: Buy Viagra Now! Please see the attached spread sheet for our current sales forecast

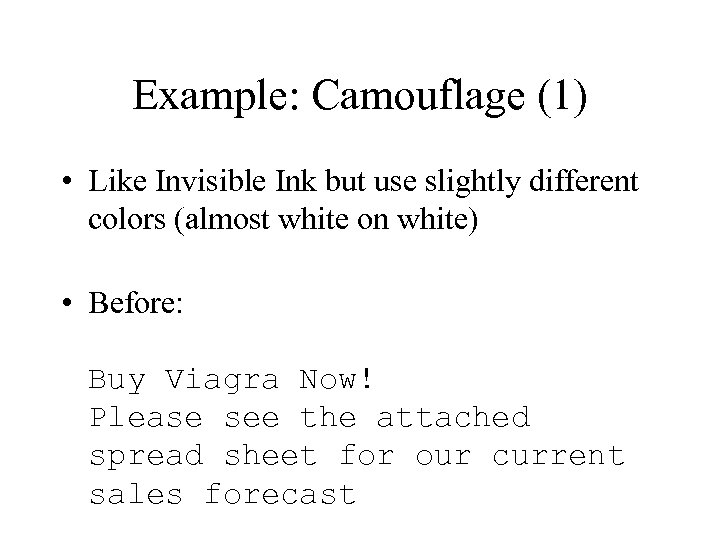

Example: Camouflage (1) • Like Invisible Ink but use slightly different colors (almost white Example: Camouflage (1) • Like Invisible Ink but use slightly different colors (almost white on white) • Before: Buy Viagra Now! Please see the attached spread sheet for our current sales forecast

Example: Camouflage (2) • Like Invisible Ink but use slightly different colors (almost white Example: Camouflage (2) • Like Invisible Ink but use slightly different colors (almost white on white) • Add a colored background: Buy Viagra Now! Please see the attached spread sheet for our current sales forecast …

Example: Camouflage (3) • Like Invisible Ink but use slightly different colors (almost white Example: Camouflage (3) • Like Invisible Ink but use slightly different colors (almost white on white) • Finally, color the text almost the same: Buy Viagra Now! Please see the attached spread sheet for our current sales forecast

Example: The Matrix • Prevent spam filter from reading the text in a spam Example: The Matrix • Prevent spam filter from reading the text in a spam by writing it vertically Buy Generic Viagra Cheap

Example: The Matrix • Prevent spam filter from reading the text in a spam Example: The Matrix • Prevent spam filter from reading the text in a spam by writing it vertically B G V C u e i h y n a e e g a r r p i a c

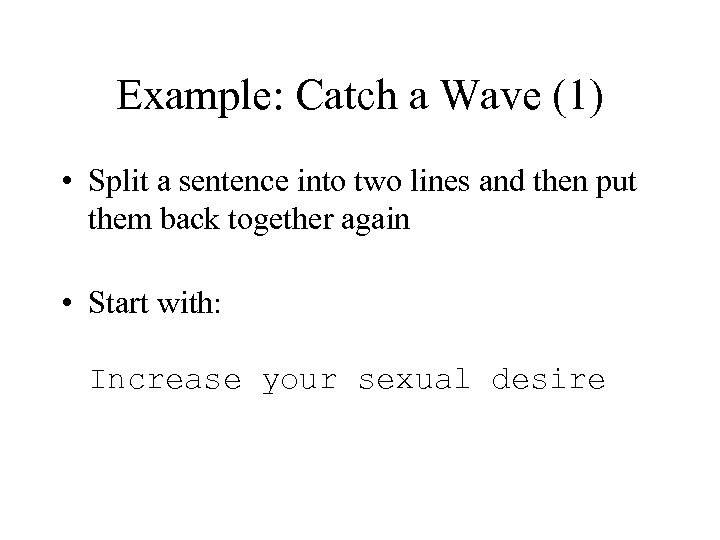

Example: Catch a Wave (1) • Split a sentence into two lines and then Example: Catch a Wave (1) • Split a sentence into two lines and then put them back together again • Start with: Increase your sexual desire

Example: Catch a Wave (2) • Split a sentence into two lines and then Example: Catch a Wave (2) • Split a sentence into two lines and then put them back together again • Make two lines Inc se yo rea se ur al des xu ire rea … ire

Example: Catch a Wave (3) • Split a sentence into two lines and then Example: Catch a Wave (3) • Split a sentence into two lines and then put them back together again • Back together again: Increase your sexual desire Inc …

Example: The Rake (1) • Break up a word with random letters, then move Example: The Rake (1) • Break up a word with random letters, then move the letters out of the way • Start with: Viagra

Example: The Rake (2) • Break up a word with random letters, then move Example: The Rake (2) • Break up a word with random letters, then move the letters out of the way • Sprinkle in some random letters: Vxifatgyrka

Example: The Rake (3) • Break up a word with random letters, then move Example: The Rake (3) • Break up a word with random letters, then move the letters out of the way • Mark each letter to be moved out of the way: Vxifatgyrka x

Example: The Rake (4) • Break up a word with random letters, then move Example: The Rake (4) • Break up a word with random letters, then move the letters out of the way • The end result: Viagra xftyk

Example: Whiter shade of pale (1) • Concatenate words using random greyed out letters Example: Whiter shade of pale (1) • Concatenate words using random greyed out letters • Start with: Offshore pharmacy online now

Example: Whiter shade of pale (2) • Concatenate words using random greyed out letters Example: Whiter shade of pale (2) • Concatenate words using random greyed out letters • Add random letters between words: Offshore. Gpharmacy. Uonline. Inow

Example: Whiter shade of pale (2) • Concatenate words using random greyed out letters Example: Whiter shade of pale (2) • Concatenate words using random greyed out letters • Grey or white out the letters: Offshore. Gpharmacy. Uonline. Inow G

Image Spam • Spammers currently like image spam because… – Text based filters are Image Spam • Spammers currently like image spam because… – Text based filters are getting really good • Hard to read the text in an image – URL blacklists are catching a lot of spam • Recipient is usually asked to type in a URL in the image • Hard to automatically extract that URL for blacklisting – An image is hard for a machine to interpret • Lots of latitude for obscuring the image

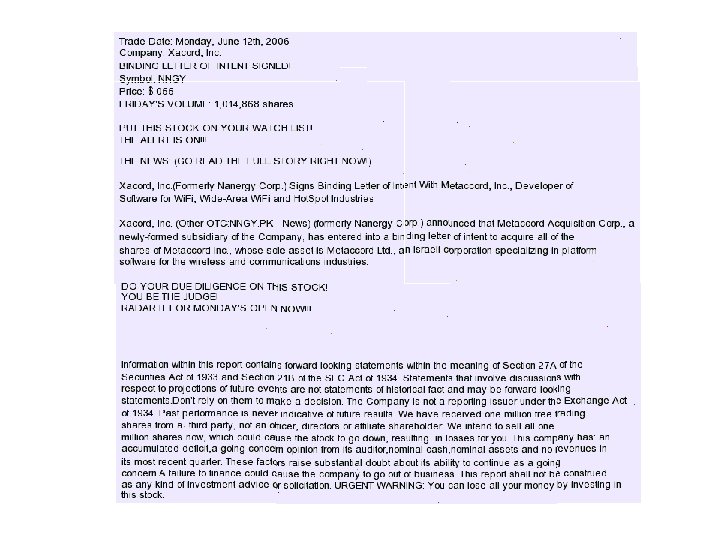

Example: Simple Image Spam Example: Simple Image Spam

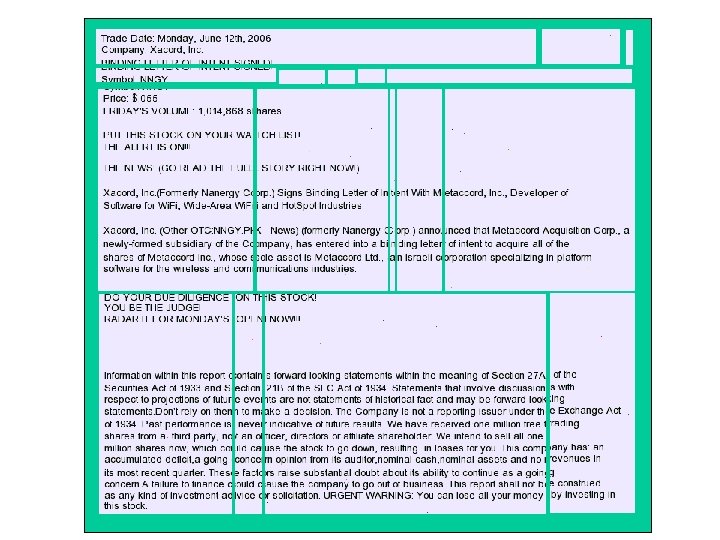

Example: OCR Resistant Image Spam Example: OCR Resistant Image Spam

Will it end? • No • People buy from spam – Pew Internet Trust Will it end? • No • People buy from spam – Pew Internet Trust 2003 Survey: 7% – My 2004 Survey: 1% – But a 0. 001% response rate is break even • End users are seeing less and less spam – Spam has moved from an end-user problem to a sysadmin problem
