FGDC Facilities Working Group Update Nancy Blyler USACE

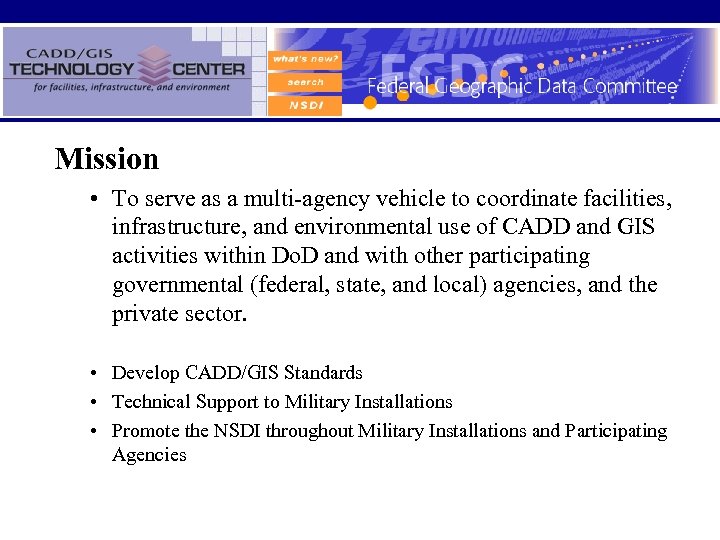

Mission • To serve as a multi-agency vehicle to coordinate facilities, infrastructure, and environmental use of CADD and GIS activities within Do. D and with other participating governmental (federal, state, and local) agencies, and the private sector. • Develop CADD/GIS Standards • Technical Support to Military Installations • Promote the NSDI throughout Military Installations and Participating Agencies

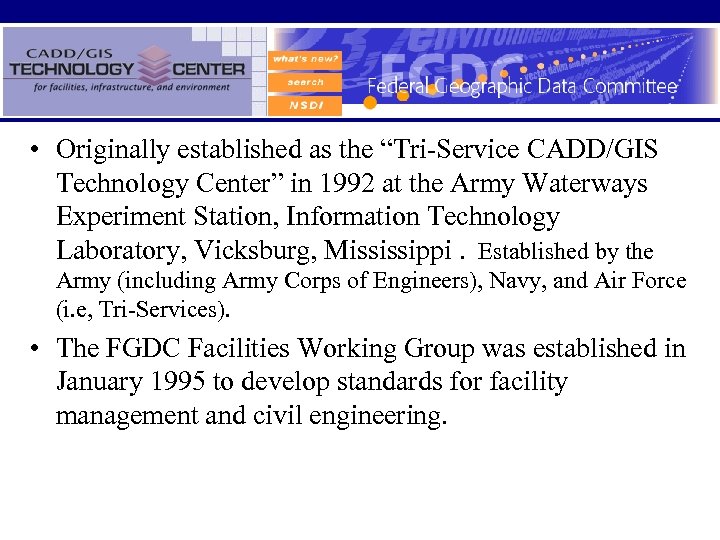

• Originally established as the “Tri-Service CADD/GIS Technology Center” in 1992 at the Army Waterways Experiment Station, Information Technology Laboratory, Vicksburg, Mississippi. Established by the Army (including Army Corps of Engineers), Navy, and Air Force (i. e, Tri-Services). • The FGDC Facilities Working Group was established in January 1995 to develop standards for facility management and civil engineering.

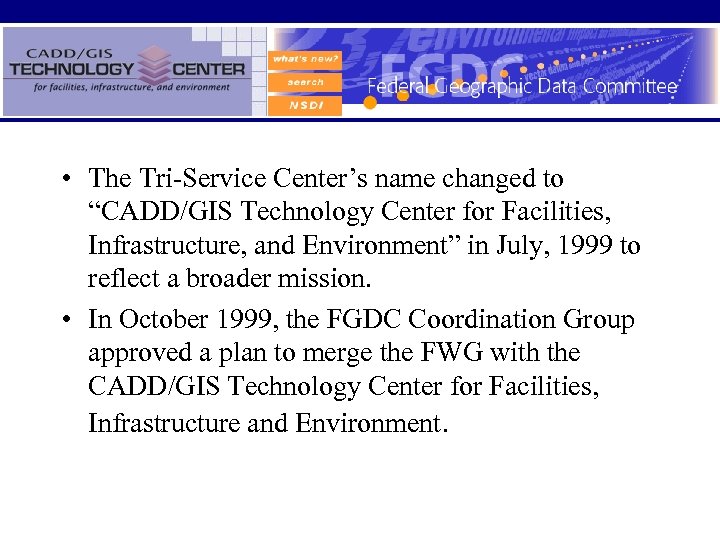

• The Tri-Service Center’s name changed to “CADD/GIS Technology Center for Facilities, Infrastructure, and Environment” in July, 1999 to reflect a broader mission. • In October 1999, the FGDC Coordination Group approved a plan to merge the FWG with the CADD/GIS Technology Center for Facilities, Infrastructure and Environment.

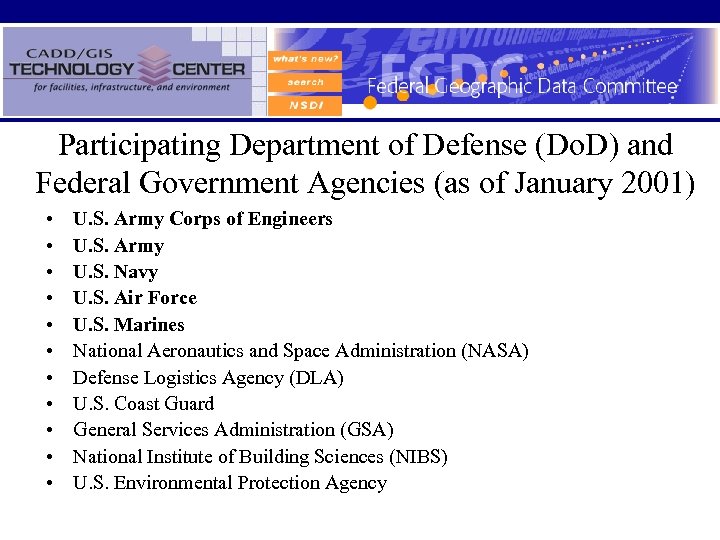

Participating Department of Defense (Do. D) and Federal Government Agencies (as of January 2001) • • • U. S. Army Corps of Engineers U. S. Army U. S. Navy U. S. Air Force U. S. Marines National Aeronautics and Space Administration (NASA) Defense Logistics Agency (DLA) U. S. Coast Guard General Services Administration (GSA) National Institute of Building Sciences (NIBS) U. S. Environmental Protection Agency

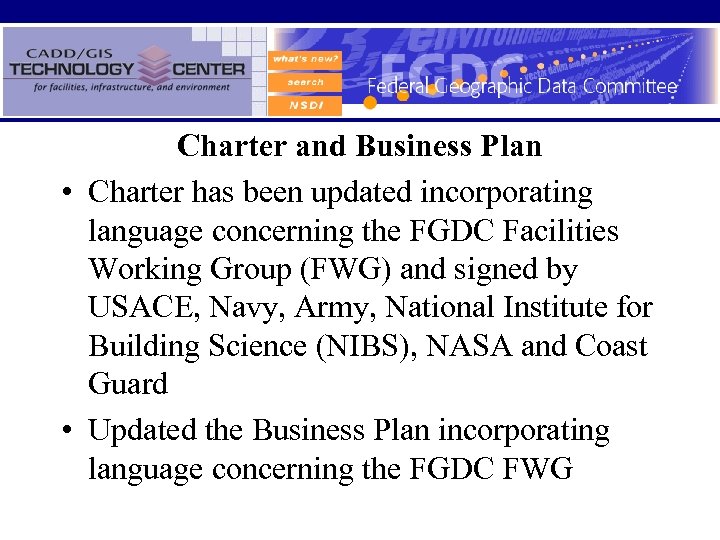

Charter and Business Plan • Charter has been updated incorporating language concerning the FGDC Facilities Working Group (FWG) and signed by USACE, Navy, Army, National Institute for Building Science (NIBS), NASA and Coast Guard • Updated the Business Plan incorporating language concerning the FGDC FWG

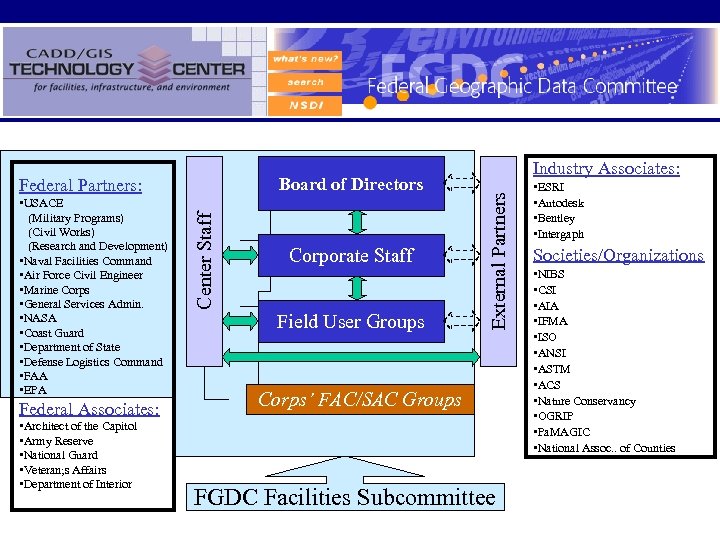

Federal Associates: • Architect of the Capitol • Army Reserve • National Guard • Veteran; s Affairs • Department of Interior Center Staff • USACE (Military Programs) (Civil Works) (Research and Development) • Naval Facilities Command • Air Force Civil Engineer • Marine Corps • General Services Admin. • NASA • Coast Guard • Department of State • Defense Logistics Command • FAA • EPA Corporate Staff Field User Groups External Partners Board of Directors Federal Partners: Industry Associates: Corps’ FAC/SAC Groups FGDC Facilities Subcommittee • ESRI • Autodesk • Bentley • Intergaph Societies/Organizations • NIBS • CSI • AIA • IFMA • ISO • ANSI • ASTM • ACS • Nature Conservancy • OGRIP • Pa. MAGIC • National Assoc. . of Counties

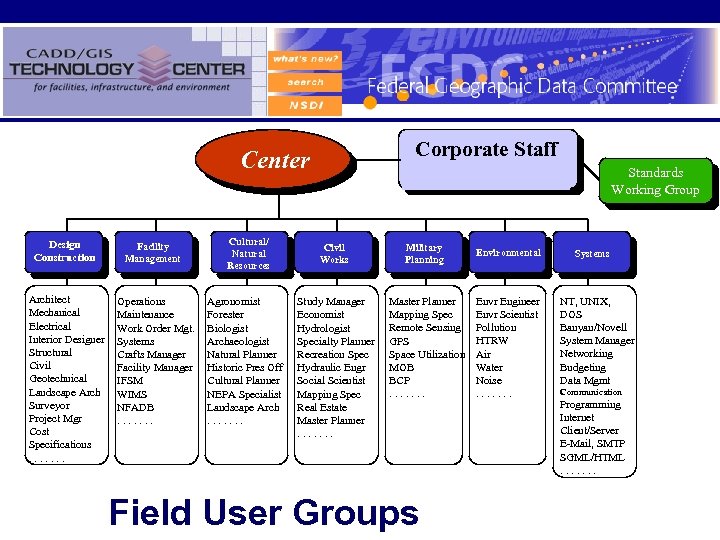

Corporate Staff Center Design Construction Architect Mechanical Electrical Interior Designer Structural Civil Geotechnical Landscape Arch Surveyor Project Mgr Cost Specifications. . . . Facility Management Operations Maintenance Work Order Mgt. Systems Crafts Manager Facility Manager IFSM WIMS NFADB. . . . Cultural/ Natural Resources Agronomist Forester Biologist Archaeologist Natural Planner Historic Pres Off Cultural Planner NEPA Specialist Landscape Arch. . . . Standards Working Group Civil Works Military Planning Environmental Study Manager Economist Hydrologist Specialty Planner Recreation Spec Hydraulic Engr Social Scientist Mapping Spec Real Estate Master Planner. . . . Master Planner Mapping Spec Remote Sensing GPS Space Utilization MOB BCP. . . . Envr Engineer Envr Scientist Pollution HTRW Air Water Noise. . . . Field User Groups Systems NT, UNIX, DOS Banyan/Novell System Manager Networking Budgeting Data Mgmt Communication Programming Internet Client/Server E-Mail, SMTP SGML/HTML. . . .

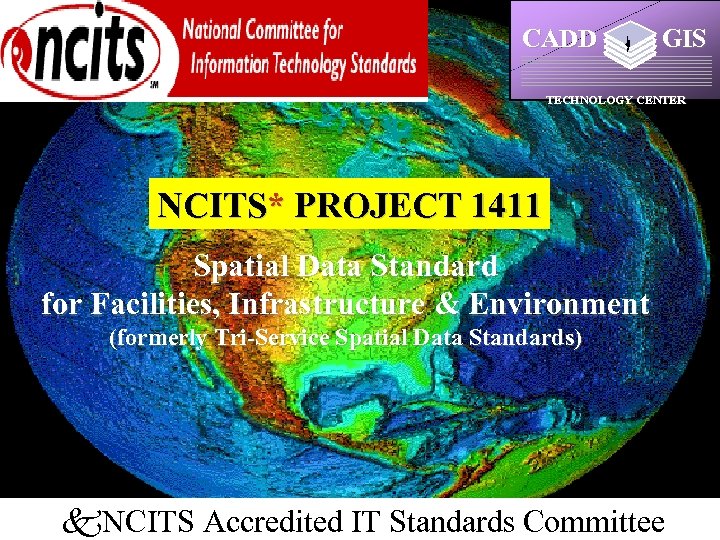

CADD GIS TECHNOLOGY CENTER NCITS* PROJECT 1411 Spatial Data Standard for Facilities, Infrastructure & Environment (formerly Tri-Service Spatial Data Standards) k. NCITS Accredited IT Standards Committee

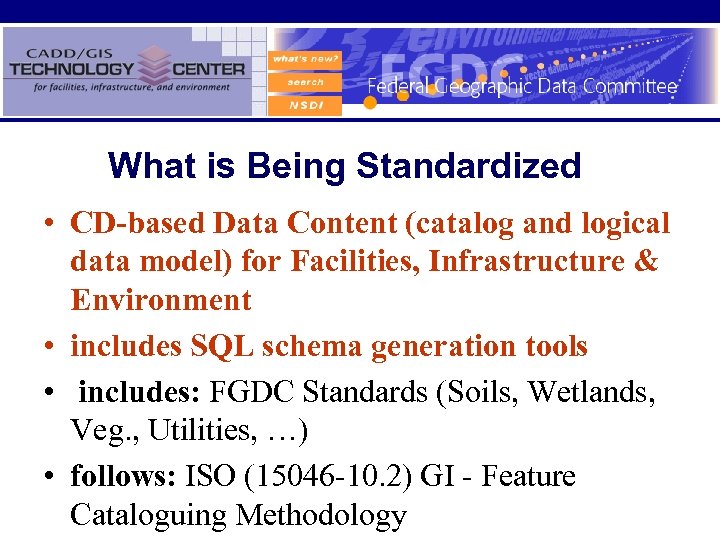

What is Being Standardized • CD-based Data Content (catalog and logical data model) for Facilities, Infrastructure & Environment • includes SQL schema generation tools • includes: FGDC Standards (Soils, Wetlands, Veg. , Utilities, …) • follows: ISO (15046 -10. 2) GI - Feature Cataloguing Methodology

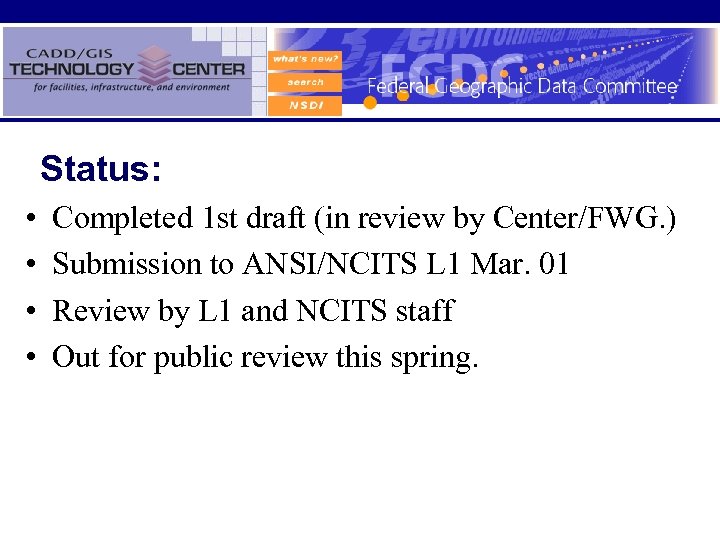

Status: • • Completed 1 st draft (in review by Center/FWG. ) Submission to ANSI/NCITS L 1 Mar. 01 Review by L 1 and NCITS staff Out for public review this spring.
Kern County, California

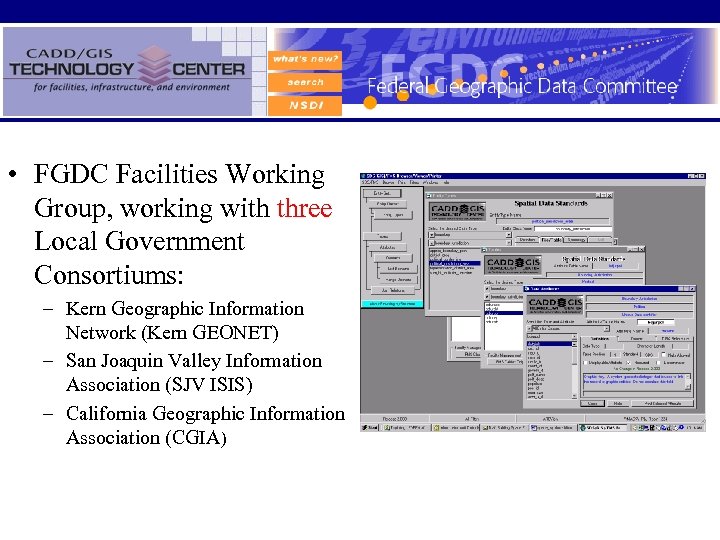

• FGDC Facilities Working Group, working with three Local Government Consortiums: – Kern Geographic Information Network (Kern GEONET) – San Joaquin Valley Information Association (SJV ISIS) – California Geographic Information Association (CGIA)
and two military installations Edwards AFB China Lake NWC

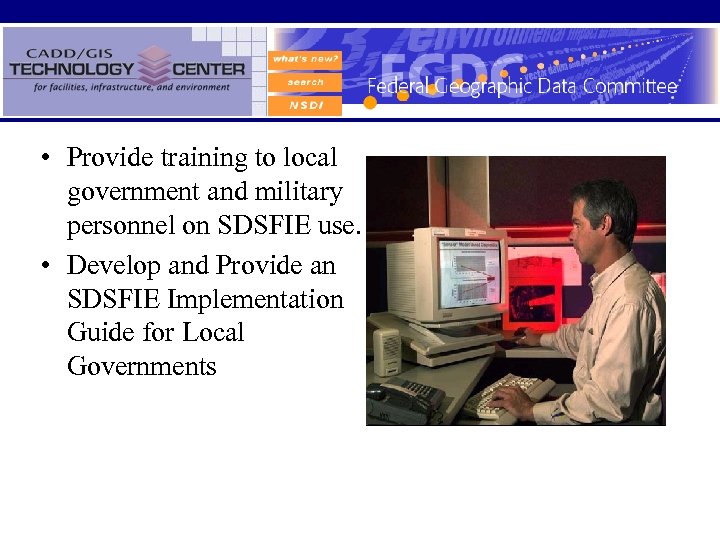

• Provide training to local government and military personnel on SDSFIE use. • Develop and Provide an SDSFIE Implementation Guide for Local Governments

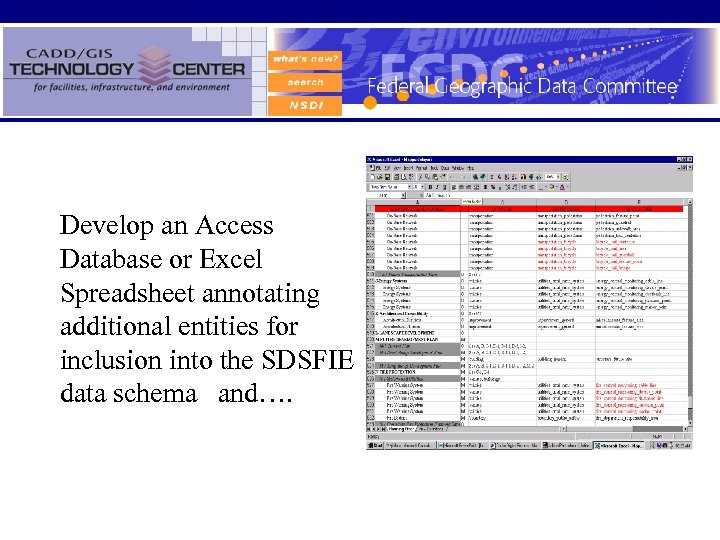

Develop an Access Database or Excel Spreadsheet annotating additional entities for inclusion into the SDSFIE data schema and….

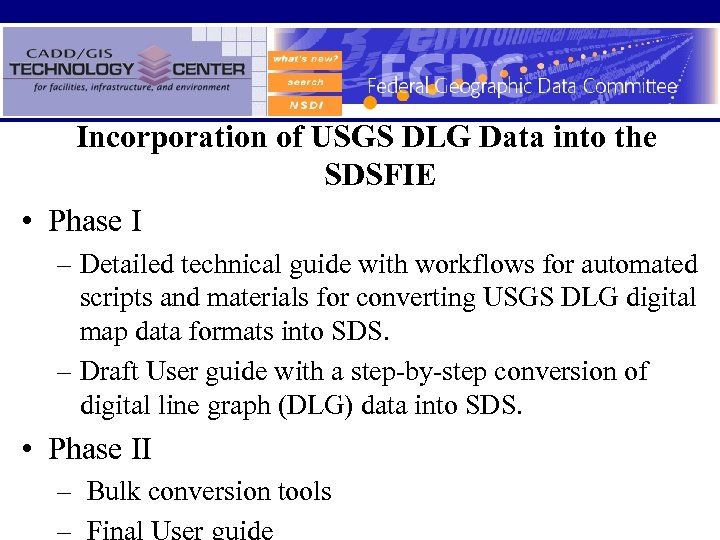

Incorporation of USGS DLG Data into the SDSFIE • Phase I – Detailed technical guide with workflows for automated scripts and materials for converting USGS DLG digital map data formats into SDS. – Draft User guide with a step-by-step conversion of digital line graph (DLG) data into SDS. • Phase II – Bulk conversion tools

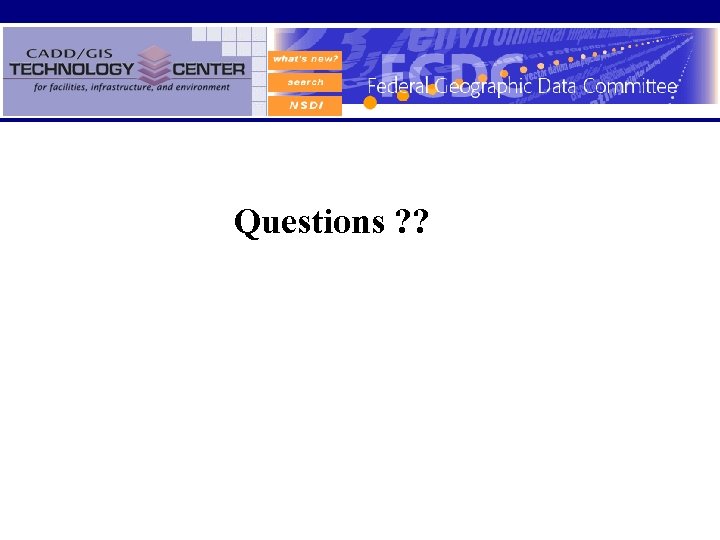

Questions ? ?
