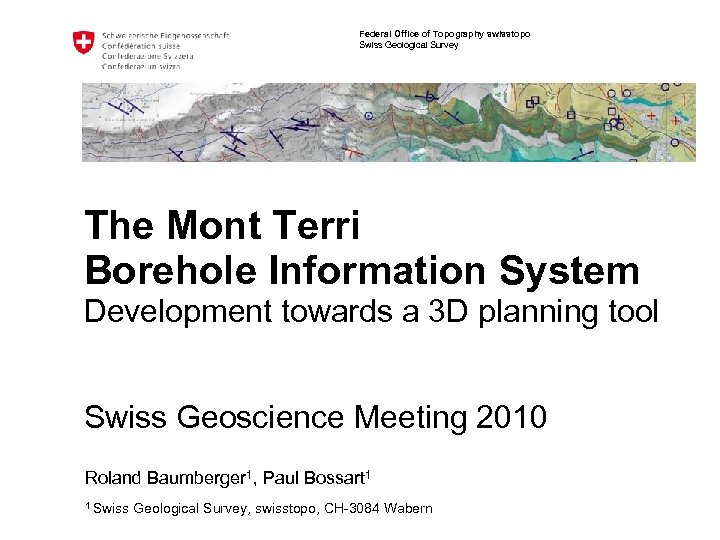

Federal Office of Topography swisstopo Swiss Geological Survey The Mont Terri Borehole Information System Development towards a 3 D planning tool Swiss Geoscience Meeting 2010 Roland Baumberger 1, Paul Bossart 1 1 Swiss Geological Survey, swisstopo, CH-3084 Wabern

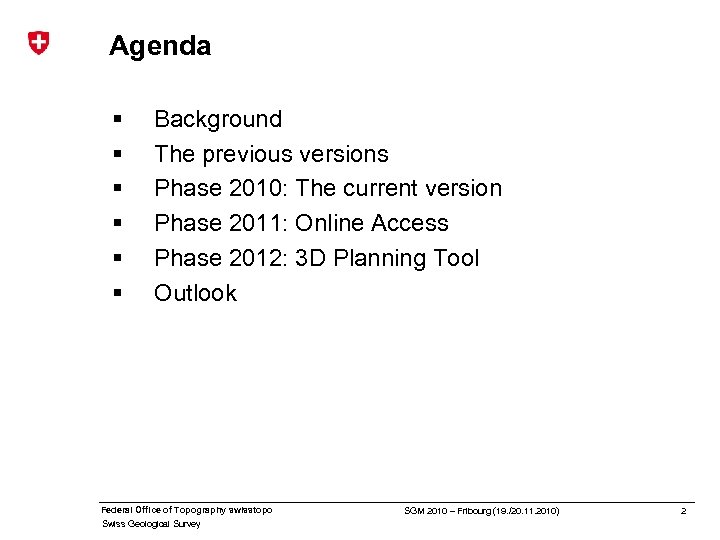

Agenda § § § Background The previous versions Phase 2010: The current version Phase 2011: Online Access Phase 2012: 3 D Planning Tool Outlook Federal Office of Topography swisstopo Swiss Geological Survey SGM 2010 – Fribourg (19. /20. 11. 2010) 2

Background Mont Terry Rock Laboratory § Mechanical, hydrogeological and geochemical test site for property investigation of the Opalinus Clay § Start in 1996, operated by swisstopo § Experiments carried out by partners (EU, US, JP, CA) The role of the drill holes § Most of the experiments are carried out in drill holes § Every drill hole has been exactly surveyed § The complete set of drill holes (~900) is accessible through the Borehole Information System Federal Office of Topography swisstopo Swiss Geological Survey SGM 2010 – Fribourg (19. /20. 11. 2010) 3

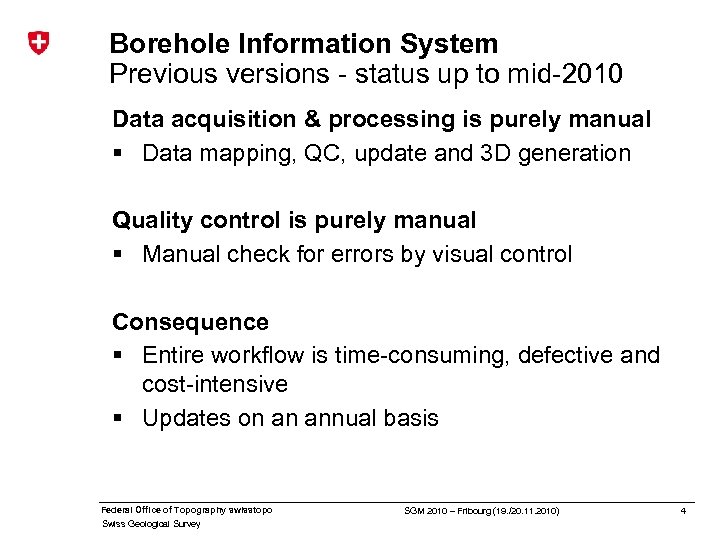

Borehole Information System Previous versions - status up to mid-2010 Data acquisition & processing is purely manual § Data mapping, QC, update and 3 D generation Quality control is purely manual § Manual check for errors by visual control Consequence § Entire workflow is time-consuming, defective and cost-intensive § Updates on an annual basis Federal Office of Topography swisstopo Swiss Geological Survey SGM 2010 – Fribourg (19. /20. 11. 2010) 4

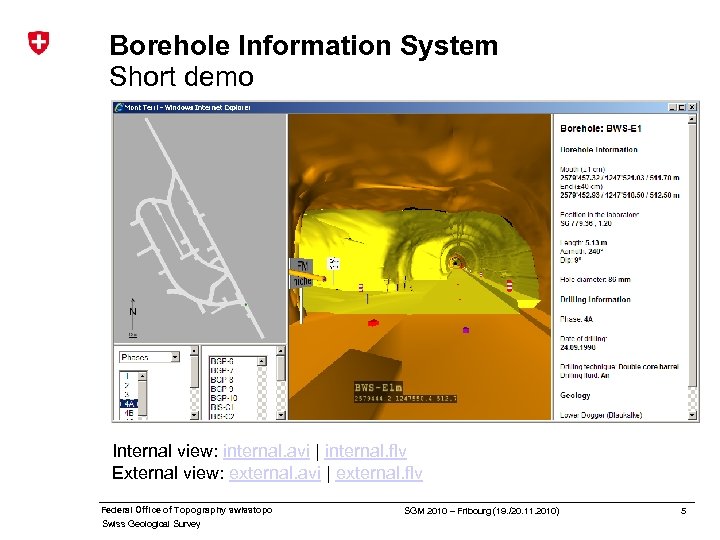

Borehole Information System Short demo Internal view: internal. avi | internal. flv External view: external. avi | external. flv Federal Office of Topography swisstopo Swiss Geological Survey SGM 2010 – Fribourg (19. /20. 11. 2010) 5

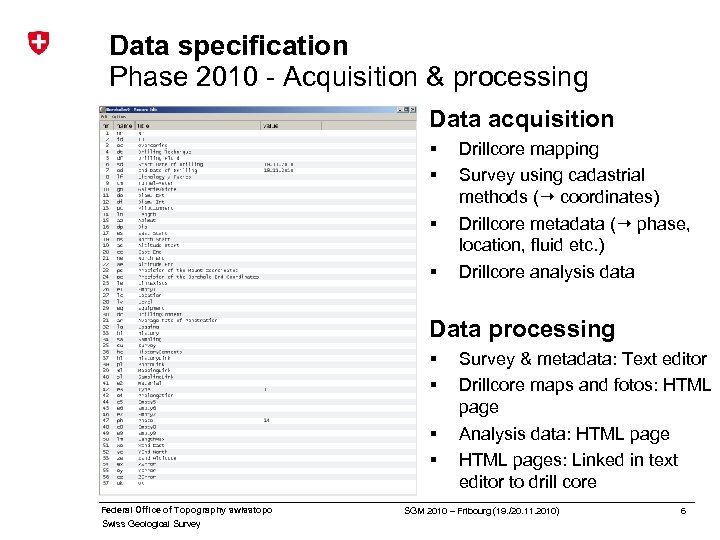

Data specification Phase 2010 - Acquisition & processing Data acquisition § § Drillcore mapping Survey using cadastrial methods ( coordinates) Drillcore metadata ( phase, location, fluid etc. ) Drillcore analysis data Data processing § § Federal Office of Topography swisstopo Swiss Geological Survey & metadata: Text editor Drillcore maps and fotos: HTML page Analysis data: HTML pages: Linked in text editor to drill core SGM 2010 – Fribourg (19. /20. 11. 2010) 6

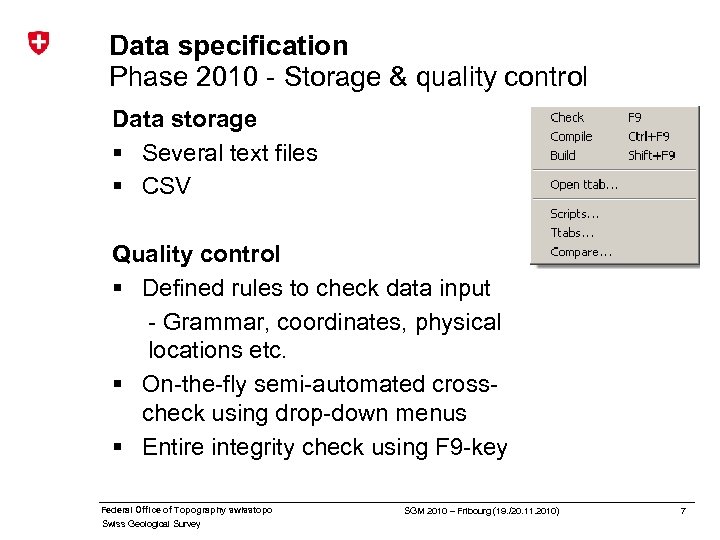

Data specification Phase 2010 - Storage & quality control Data storage § Several text files § CSV Quality control § Defined rules to check data input - Grammar, coordinates, physical locations etc. § On-the-fly semi-automated crosscheck using drop-down menus § Entire integrity check using F 9 -key Federal Office of Topography swisstopo Swiss Geological Survey SGM 2010 – Fribourg (19. /20. 11. 2010) 7

Borehole Information System Phase 2011 – Online access Driver § § Search engine to be a more dynamic, user-driven GUI Queries using well know operators (e. g. AND, OR etc. ) Annual update cycle should be shortened and eased Consequences § § § Migrate Borehole Information System to a database Distribute data in a portable environment (e. g. memory stick) Search engine gets more functionality Organisation § § Principle dataset: Extranet platform of the Mont Terri project Updates by automatic importation of database dumps Federal Office of Topography swisstopo Swiss Geological Survey SGM 2010 – Fribourg (19. /20. 11. 2010) 8

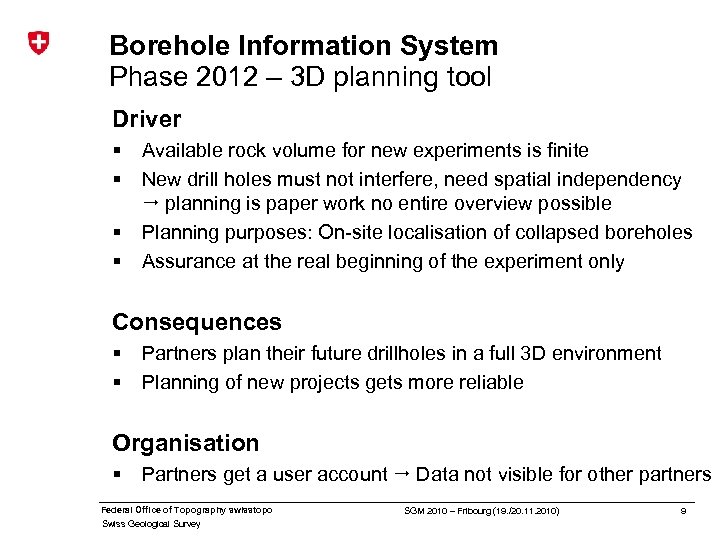

Borehole Information System Phase 2012 – 3 D planning tool Driver § § Available rock volume for new experiments is finite New drill holes must not interfere, need spatial independency planning is paper work no entire overview possible Planning purposes: On-site localisation of collapsed boreholes Assurance at the real beginning of the experiment only Consequences § § Partners plan their future drillholes in a full 3 D environment Planning of new projects gets more reliable Organisation § Partners get a user account Data not visible for other partners Federal Office of Topography swisstopo Swiss Geological Survey SGM 2010 – Fribourg (19. /20. 11. 2010) 9

Borehole Information System Summary & outlook Usability & functionality § § Front-end: Functionality increases with the user interface not changing that much Back-end: Semi-automated data acquisition workflow for higher data accuracy and more up-to-date data Benefit for partners (starting 2011) § § More detailed search queries Planning of new experiments gets faster & very easy General update intervals get shorter online access Data update gets very fast and easy Federal Office of Topography swisstopo Swiss Geological Survey SGM 2010 – Fribourg (19. /20. 11. 2010) 10

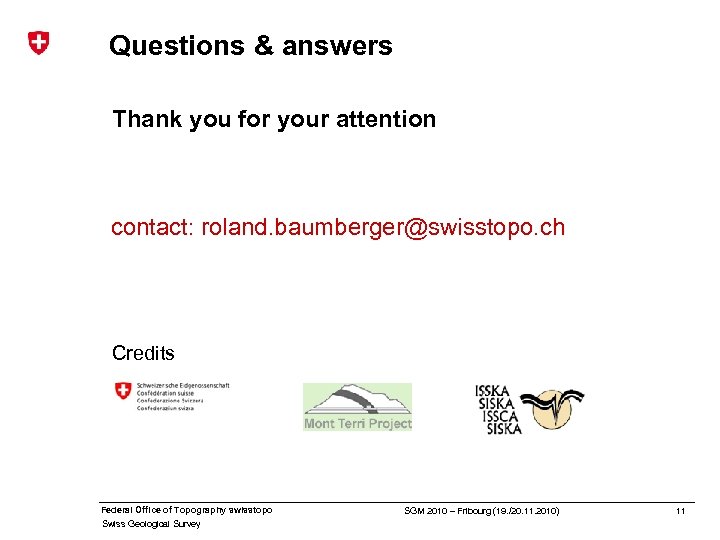

Questions & answers Thank you for your attention contact: roland. baumberger@swisstopo. ch Credits Federal Office of Topography swisstopo Swiss Geological Survey SGM 2010 – Fribourg (19. /20. 11. 2010) 11
