Federal Data for Modelers Ed Christopher Resource Center Planning Team Federal Highway Administration 19900 Federal Data for Modelers Ed Christopher Resource Center Planning Team Federal Highway Administration 19900 Governors Drive Olympia Fields, IL 60461 708 -283 -3534 [email protected] The. Fed. com

Workshop/Session S 1 Federal Data for Modelers: Are you prepared for the future? 2: Workshop/Session S 1 Federal Data for Modelers: Are you prepared for the future? 2: 00 pm - 4: 00 pm Census Transportation Planning Products (CTPP) Program Ed Christopher, FHWA Resource Center American Community Survey (ACS) Melissa Chiu, US Census Bureau Elaine Murakami, FHWA-Planning Longitudinal Employment Household Dynamics (LEHD) Matthew Graham, US Census Bureau National Household Travel Survey (NHTS) Heather Contrino, FHWA

National Household Travel Survey National Household Travel Survey

Obtains trips from one address to another by all modes… Obtains trips from one address to another by all modes…

NHTS Core Data Content § Household § Income, composition, location § Person § Age, NHTS Core Data Content § Household § Income, composition, location § Person § Age, sex, race, ethnicity, worker and student status, citizenship, education § Geography § High level geography – urban, rural, suburban, state and national analyses § Vehicles § Make, model, year, mileage, alternative fuels, commercially licensed § Trips § Mode, time of day, purpose, vehicle occupancy, distance, trip length

NHTS – Two Components § National Study § § Serves USDOT, Congress, and White NHTS – Two Components § National Study § § Serves USDOT, Congress, and White House Resource for State, metro areas (MPOs), etc. 40 years of trend data on U. S. travel behavior Sample size: 25, 000 households § Add-On Program § Service to States and MPOs since 1990 § Allows States and MPOs to purchase additional samples § 2008 sample size: 125, 000 (a doubling from 2001)

NHTS – Add On 125, 000 Add-On Samples Vermont DOT Wisconsin DOT South Dakota NHTS – Add On 125, 000 Add-On Samples Vermont DOT Wisconsin DOT South Dakota DOT New York State DOT Cedar Rapids, IA Iowa DOT Omaha, Nebraska California DOT Indiana DOT Virginia DOT Tennessee DOT Maricopa, AZ Pima, AZ North Carolina DOT Piedmont Region South Carolina DOT Georgia DOT Texas DOT Florida DOT

Survey Design - New for 2008 § Allows for valid statewide data-minimum sample (n=250) Survey Design - New for 2008 § Allows for valid statewide data-minimum sample (n=250) § Cell Phone only sample § Customizable content for Add-On participants § New data items for national study

New 2008 NHTS Content § Congestion § Interstate use and tolling § Telecommuting – New 2008 NHTS Content § Congestion § Interstate use and tolling § Telecommuting – opportunity and frequency § Work arrival time and flexibility § Safe Travel to School § Travel impacts of disability § Energy and Environment § § Shopping by Internet and deliveries to the household Hybrid/Alternative fuel vehicles Fuel costs by vehicle type and travel behavior Vehicle age, odometer reading, and annual mileage § Alternative Modes § Access (to transit) travel party size § Frequency of walk and bike § Motorcycle ownership and use

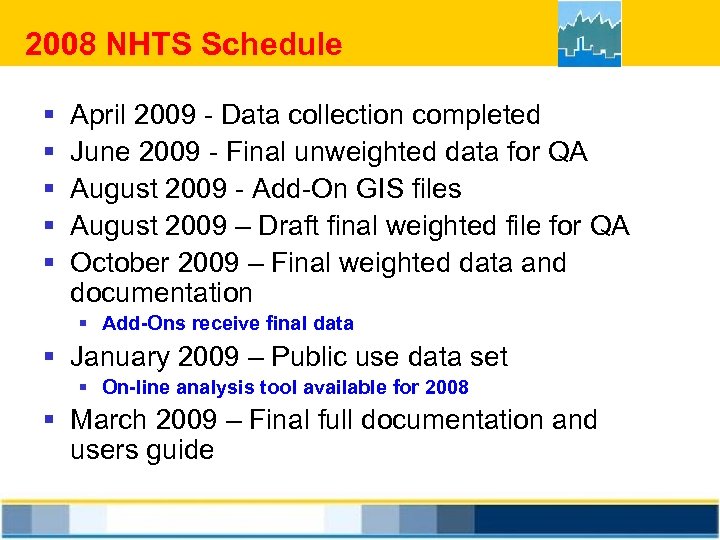

2008 NHTS Schedule § § § April 2009 - Data collection completed June 2009 2008 NHTS Schedule § § § April 2009 - Data collection completed June 2009 - Final unweighted data for QA August 2009 - Add-On GIS files August 2009 – Draft final weighted file for QA October 2009 – Final weighted data and documentation § Add-Ons receive final data § January 2009 – Public use data set § On-line analysis tool available for 2008 § March 2009 – Final full documentation and users guide

NHTS Products • Policy Briefs: http: //ornl. gov/publications. shtml#issue. Briefs • Trends Database: To NHTS Products • Policy Briefs: http: //ornl. gov/publications. shtml#issue. Briefs • Trends Database: To be posted soon • Transferable data for trip generation – http: //fmip. ornl. gov/nhts/ • Risk Assessment Tool: – http: //www. aaafoundation. org/traffic. STATS/ • On-line Analysis Tool: http: //nhts. ornl. gov – SAS Data Set: http: //nhts. ornl. gov/download. shtml http: //nhts. ornl. gov

NHTS Contact Heather Contrino Heather. Contrino@dot. gov Project Manager NHTS Contact Heather Contrino Heather. [email protected] gov Project Manager

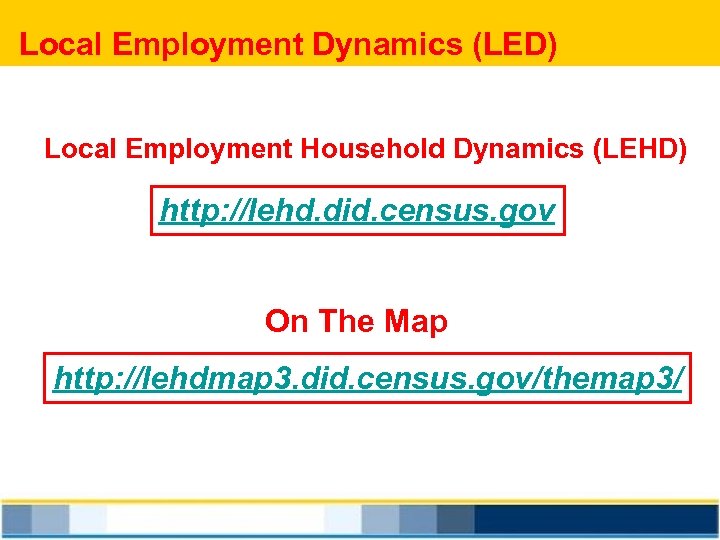

Local Employment Dynamics (LED) Local Employment Household Dynamics (LEHD) http: //lehd. did. census. gov Local Employment Dynamics (LED) Local Employment Household Dynamics (LEHD) http: //lehd. did. census. gov On The Map http: //lehdmap 3. did. census. gov/themap 3/

What is LED? • Local Employment Dynamics (LED) – Federal-State Partnership – Based on What is LED? • Local Employment Dynamics (LED) – Federal-State Partnership – Based on Administrative Records • State UI Wage Records • Quarterly Census of Employment and Wages – Database Updated Quarterly – Ongoing QA/QC and Data Improvement

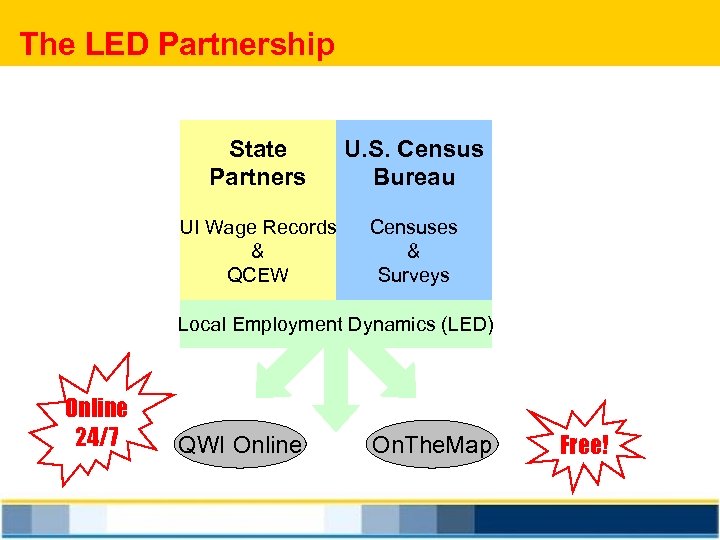

The LED Partnership State Partners U. S. Census Bureau UI Wage Records & QCEW The LED Partnership State Partners U. S. Census Bureau UI Wage Records & QCEW Censuses & Surveys Local Employment Dynamics (LED) Online 24/7 QWI Online On. The. Map Free!

What is On. The. Map? • A Dataset… – Origin-Destination Data – Census’ first What is On. The. Map? • A Dataset… – Origin-Destination Data – Census’ first partially synthetic dataset – Public-use data at the Census block level – Worker characteristic data: • Age, Earnings, Industry

What is On. The. Map? • and a Tool. – Online, free, 24/7, interactive What is On. The. Map? • and a Tool. – Online, free, 24/7, interactive – Mapping complex data for those without GIS knowledge or resources – Allows sophisticated queries based upon standard Census geography… …Or from arbitrary block-based areas.

How is the Data Constructed? • Start with LED data infrastructure • Employment information How is the Data Constructed? • Start with LED data infrastructure • Employment information based upon Quarterly Workforce Indicators (QWI) • Residential information and origindestination relationships synthesized – From PCF, 2000 Decennial Census, ACS, and St. ARS as well as SIPP and CPS – CTPP informs the prior

Add noise and protections • QWI and On. The. Map workplace data protected by Add noise and protections • QWI and On. The. Map workplace data protected by dynamically consistent noise infusion applied at the establishment level – Ramp distribution with a hole in the middle • On. The. Map residence, origin/destination, and QWI-suppressed workplace employment are protected by synthetic data – Multinomial/Dirichlet PPD

How to Access the Data? • On. The. Map Application • Download from Virtual. How to Access the Data? • On. The. Map Application • Download from Virtual. RDC – Hosted by Cornell University – Same data as in the application – Block based – Multiple labor segments

LED Partnership 2 1 LED Partnership 2 1

LED Products 22 LED Products 22

Links/Contacts • LED Partnership/LEHD Program – Jeremy Wu, LEHD Program Manager • jeremy. s. Links/Contacts • LED Partnership/LEHD Program – Jeremy Wu, LEHD Program Manager • jeremy. s. [email protected] gov – http: //lehd. did. census. gov – ces. local. employment. [email protected] gov • QWI Online – http: //lehd. did. census. gov/led/datatools/qwiapp. ht ml • On. The. Map – http: //lehdmap 3. did. census. gov/themap 3/

What is the American Community Survey Replacement of the Form Long Continuous Survey Methodology What is the American Community Survey Replacement of the Form Long Continuous Survey Methodology Conducted Monthly Produces characteristics, not population counts http: //www. census. gov/acs/www/

ACS Facts 250, 000 Households sampled per month About 1 in 40 Households sampled ACS Facts 250, 000 Households sampled per month About 1 in 40 Households sampled per year Same transportation questions as 2000 Long Form Decennial Long Form is History Kaput, Nada, Defunct, Gone!

How does the ACS work? Three Methods of Data Collection 1. Mail Self-administered mail-out/mail-back How does the ACS work? Three Methods of Data Collection 1. Mail Self-administered mail-out/mail-back 2. Telephone Computer Assisted Telephone Interviewing (CATI) 3. Personal Visits Computer Assisted Personal Interviewing (CAPI) 1: 3

Some of what the ACS provides ACS Standard Tables Standard Tabs include some “New” Some of what the ACS provides ACS Standard Tables Standard Tabs include some “New” tables previously only in CTPP, eg place of work - Mode to work by travel time - Mode to work by time leaving home - Household size by # of vehicles - Household size by # of workers http: //factfinder. census. gov/

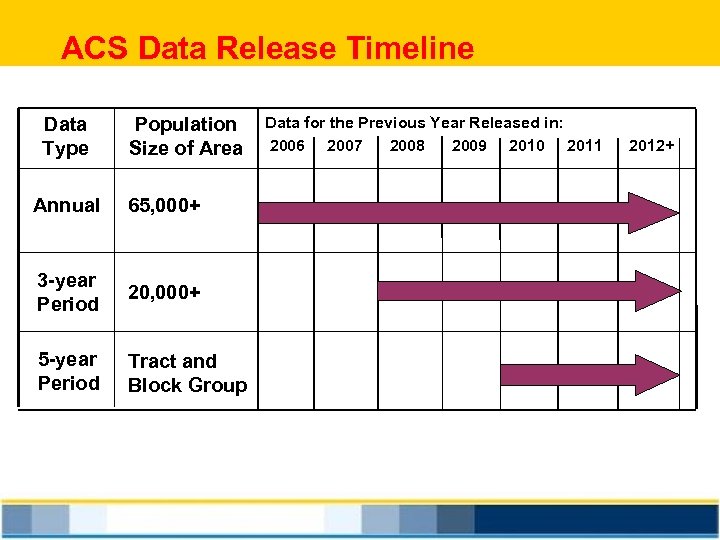

ACS Data Release Timeline Data Type Population Size of Area Annual 65, 000+ 3 ACS Data Release Timeline Data Type Population Size of Area Annual 65, 000+ 3 -year Period 20, 000+ 5 -year Period Tract and Block Group Data for the Previous Year Released in: 2006 2007 2008 2009 2010 2011 2012+

What does this mean? Users will have to choose which data to use Population What does this mean? Users will have to choose which data to use Population < 20, 000 5 -year estimates only Population >= 20, 000 and < 65, 000 3 -year estimates 5 -year estimates Population >= 65, 000 1 -year estimates 3 -year estimates 5 -year estimates Is it 1 or 3 or 5?

Geography simplified Annual > 65 K State County Place PUMA 3 -Year >20 K Geography simplified Annual > 65 K State County Place PUMA 3 -Year >20 K State County Place PUMA UA 5 -Year State County Place PUMA Tract Block Group

Percent of Population 5 Years and Older who Speak Spanish at Home - Lake Percent of Population 5 Years and Older who Speak Spanish at Home - Lake County, IL Reliability vs Currency

There are RESOURCES AVAILABLE A Compass for Understanding And Using ACS Data l Set There are RESOURCES AVAILABLE A Compass for Understanding And Using ACS Data l Set of user-specific handbooks l Train-the trainer materials l E-learning ACS Tutorial http: //www. census. gov/acs/www/Use. Data/Compass/compass_series. html

Training and Technical Assistance Report 588 A Guidebook for Using ACS Data for Transportation Training and Technical Assistance Report 588 A Guidebook for Using ACS Data for Transportation Planning ACS for Transportation Trend Analysis s ge 5 pa 7 2 How to recalculate Margins of Error (MOEs) http: //onlinepubs. trb. org/onlinepubs/nchrp_rpt_588. pdf

Census Transportation Planning Products 1960 OMB Journey-to-Work Tables 1970 and 1980 Urban Transportation Planning Census Transportation Planning Products 1960 OMB Journey-to-Work Tables 1970 and 1980 Urban Transportation Planning Package (UTPP) 1990 and 2000 Census Transportation Planning Package (CTPP) Flows between Home and Work At Workplace At Residence

Past Journey to Work data Buyers/Users 1960 1970 1980 1990 2005 + Direct Cost Past Journey to Work data Buyers/Users 1960 1970 1980 1990 2005 + Direct Cost Tables OMB 112 152 ? ? ? $0. 6 M $2. 0 M $2. 5 M $3. 0 M ? ? ? 43 82 120 203 All States and MPOs AASHTO Consolidated Purchase $5. 9 Million

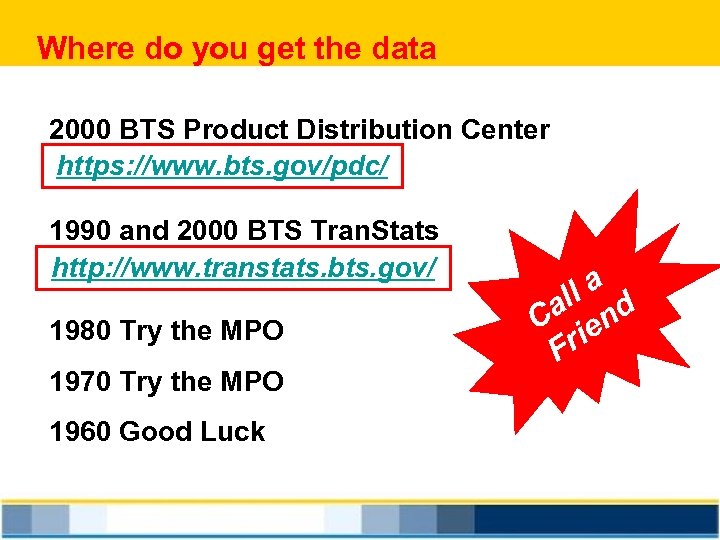

Where do you get the data 2000 BTS Product Distribution Center https: //www. bts. Where do you get the data 2000 BTS Product Distribution Center https: //www. bts. gov/pdc/ 1990 and 2000 BTS Tran. Stats http: //www. transtats. bts. gov/ 1980 Try the MPO 1970 Try the MPO 1960 Good Luck ll a d Ca ien Fr

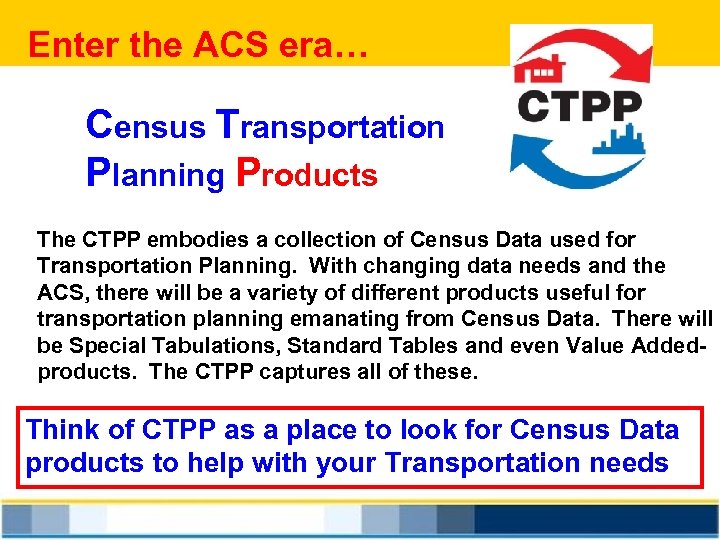

Enter the ACS era… Census Transportation Planning Products The CTPP embodies a collection of Enter the ACS era… Census Transportation Planning Products The CTPP embodies a collection of Census Data used for Transportation Planning. With changing data needs and the ACS, there will be a variety of different products useful for transportation planning emanating from Census Data. There will be Special Tabulations, Standard Tables and even Value Addedproducts. The CTPP captures all of these. Think of CTPP as a place to look for Census Data products to help with your Transportation needs

The NEW CTPP program l All States + DC l AASHTO Led l Oversight The NEW CTPP program l All States + DC l AASHTO Led l Oversight Board l Five Year period ~ 2011 Federal Technical Advisory Group TRB Subcommittee -- List Serve (700 strong) Quarterly Newsletter -- Outreach Several Websites

Staff Additions Penelope Weinberger CTPP Program Manager, AASHTO 444 North Capitol Street NE Suite Staff Additions Penelope Weinberger CTPP Program Manager, AASHTO 444 North Capitol Street NE Suite 249 Washington, DC 20001 202 -624 -3556 [email protected] org http: //ctpp. transportation. org Melissa Chiu CTPP Program Manager Census Bureau 301 -763 -2421 or (2454) melissa. c. [email protected] gov

Census Data Tabulations April 1, ‘ 09 New 3 -year Table Request Submitted Census Data Tabulations April 1, ‘ 09 New 3 -year Table Request Submitted

The 3 -year Product Design 2000 Geography Nation (US Total) Product Structure State 3 The 3 -year Product Design 2000 Geography Nation (US Total) Product Structure State 3 -Parts State-County Part 1 - Place of Residence State-County-MCD State-Place State-PUMA State-POW PUMA Part 2 - Place of Work Part 3 - Flows between Home and Work Metropolitan Statistical Area MSA – EACH Principal City (Extraction Software)

3 -year Product Detail Submittal Letter http: //trbcensus. com/aashto/docs/CTPP_3 -year_table_request. pdf Table Detail http: 3 -year Product Detail Submittal Letter http: //trbcensus. com/aashto/docs/CTPP_3 -year_table_request. pdf Table Detail http: //trbcensus. com/aashto/docs/CTPPtables-09 apr 01 -1. xls 1. Collapsed Mode to Work 2. Reduced Mode to Work Crosstabs to 5 variables 3. Increased Flows by Mode from 8 to 11 modes Also at http: //www. dot. gov/ctpp

Collapsing Schema Collapsing Schema

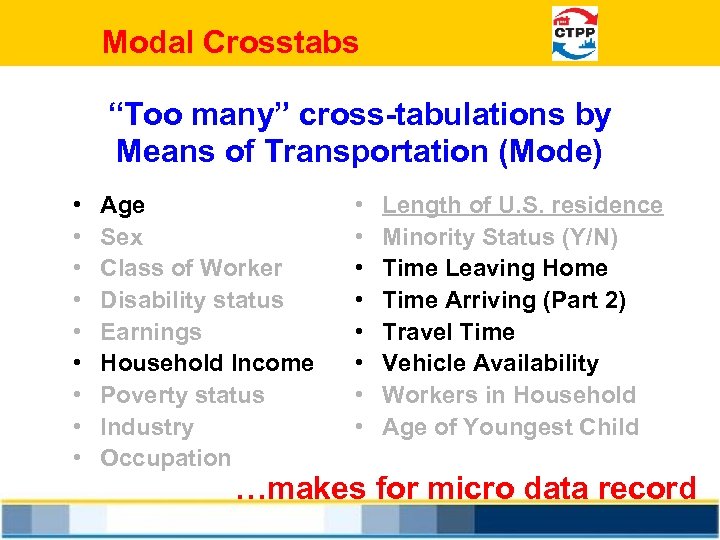

Modal Crosstabs “Too many” cross-tabulations by Means of Transportation (Mode) • • • Age Modal Crosstabs “Too many” cross-tabulations by Means of Transportation (Mode) • • • Age Sex Class of Worker Disability status Earnings Household Income Poverty status Industry Occupation • • Length of U. S. residence Minority Status (Y/N) Time Leaving Home Time Arriving (Part 2) Travel Time Vehicle Availability Workers in Household Age of Youngest Child …makes for micro data record

5 -year Data Product 5 -year Data Product

5 -year Data Product Likely to be all synthetic Hinges on some key research 5 -year Data Product Likely to be all synthetic Hinges on some key research NCHRP Project 8 -79 ($500 K) Identifying Credible Alternatives for Producing 5 -year CTPP Data Products from the ACS http: //trbcensus. com/notes/NCHRP_CTPP_Data_Proposal_Oct 2008. pdf

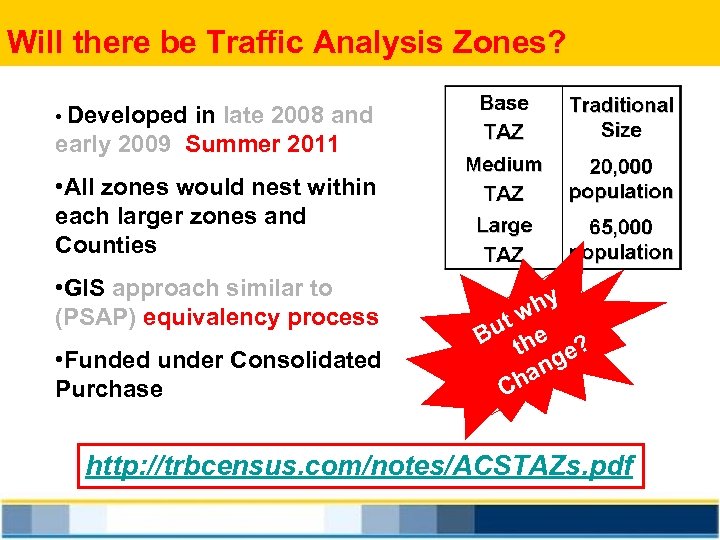

Will there be Traffic Analysis Zones? • Developed in late 2008 and early 2009 Will there be Traffic Analysis Zones? • Developed in late 2008 and early 2009 Summer 2011 • All zones would nest within each larger zones and Counties • GIS approach similar to (PSAP) equivalency process • Funded under Consolidated Purchase hy tw Bu the ? e ng ha C http: //trbcensus. com/notes/ACSTAZs. pdf

TRB Census Subcommittee www. trbcensus. com TRB Census Subcommittee www. trbcensus. com

USDOT (FHWA) Website http: //www. dot. gov/ctpp USDOT (FHWA) Website http: //www. dot. gov/ctpp

AASHTO Website http: //ctpp. transportation. org AASHTO Website http: //ctpp. transportation. org

CTPP List Serve http: //trbcensus. com CTPP List Serve http: //trbcensus. com

Status Report http: //www. fhwa. dot. gov/ctpp/status. htm http: //www. trbcensus. com/newsletters. html Status Report http: //www. fhwa. dot. gov/ctpp/status. htm http: //www. trbcensus. com/newsletters. html

The 3 -year Product http: //www. trbcensus. com/aashto/index. html The 3 -year Product http: //www. trbcensus. com/aashto/index. html

New Profiles Coming Soon Trend Data 2000 and -year ACS 3 Includes MOEs and New Profiles Coming Soon Trend Data 2000 and -year ACS 3 Includes MOEs and significance tests Keys on Transportation Variables Summer 2009

Research Efforts Report 588 Using ACS for Transportation Planning (9/06) 08 -36(63) Making NAICS Research Efforts Report 588 Using ACS for Transportation Planning (9/06) 08 -36(63) Making NAICS Work for Transportation (March 2007) 08 -36(71) Disclosure Avoidance Techniques to Improve ACS Data Availability (5/09) 8 -36(81) Enhancing the ACS as a Source for Home-to-Work Flows (10/09) www. trb. org/CRP/NCHRPProjects. asp? Area. ID=8

Research Efforts NCHRP Project 8 -79 ($500 K) Identifying Credible Alternatives for Producing 5 Research Efforts NCHRP Project 8 -79 ($500 K) Identifying Credible Alternatives for Producing 5 -year CTPP Data Products from the ACS Workplace Allocation-Research and Implementation ($250 K) Imputation of Vehicle Ownership and Means of Transportation (Done)

http: //www. dot. gov/ctpp http: //www. TRBcensus. com 202 -366 -5000 Ed Christopher 708 http: //www. dot. gov/ctpp http: //www. TRBcensus. com 202 -366 -5000 Ed Christopher 708 -283 -3534 [email protected] The. Fed. com
