Federal Aviation Administration (FAA) Aeronautical Information Management (AIM) Pilot’s Bill of Rights (PBo. R) Notices To Airmen (NOTAM) Improvement Program (NIP) via Federal NOTAM System (FNS) Presented to: NOTAM Industry portion of Air Transportation Information Exchange Conference (ATIEC) By: Glenn Sigley, Manager AIM Systems Group, FAA Date: August 29, 2013 Federal Aviation Administration

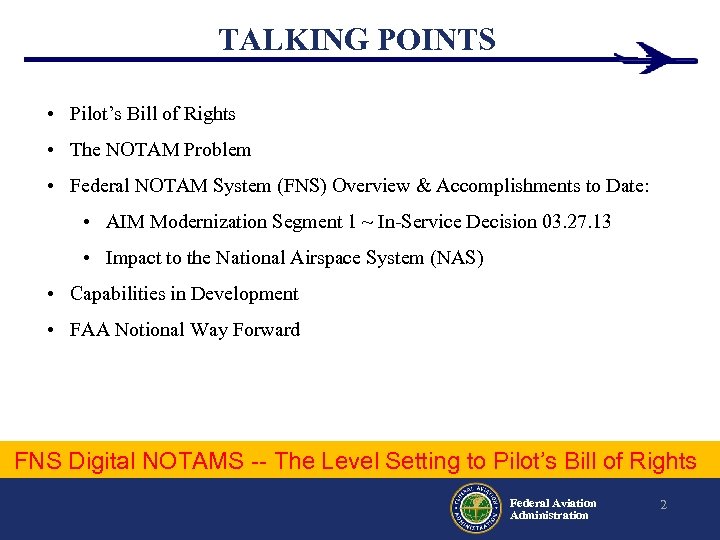

TALKING POINTS • Pilot’s Bill of Rights • The NOTAM Problem • Federal NOTAM System (FNS) Overview & Accomplishments to Date: • AIM Modernization Segment 1 ~ In-Service Decision 03. 27. 13 • Impact to the National Airspace System (NAS) • Capabilities in Development • FAA Notional Way Forward FNS Digital NOTAMS -- The Level Setting to Pilot’s Bill of Rights Federal Aviation Administration 2

The Federal NOTAM System (FNS) Pilot’s Bill of Rights Federal Aviation Administration 3

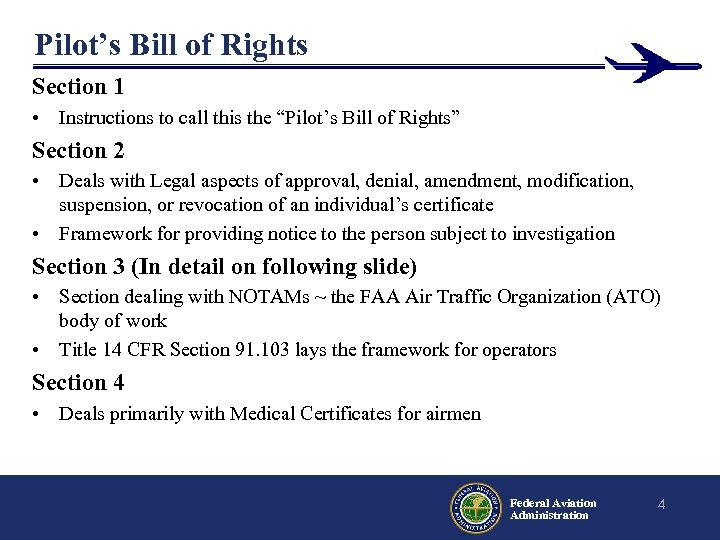

Pilot’s Bill of Rights Section 1 • Instructions to call this the “Pilot’s Bill of Rights” Section 2 • Deals with Legal aspects of approval, denial, amendment, modification, suspension, or revocation of an individual’s certificate • Framework for providing notice to the person subject to investigation Section 3 (In detail on following slide) • Section dealing with NOTAMs ~ the FAA Air Traffic Organization (ATO) body of work • Title 14 CFR Section 91. 103 lays the framework for operators Section 4 • Deals primarily with Medical Certificates for airmen Federal Aviation Administration 4

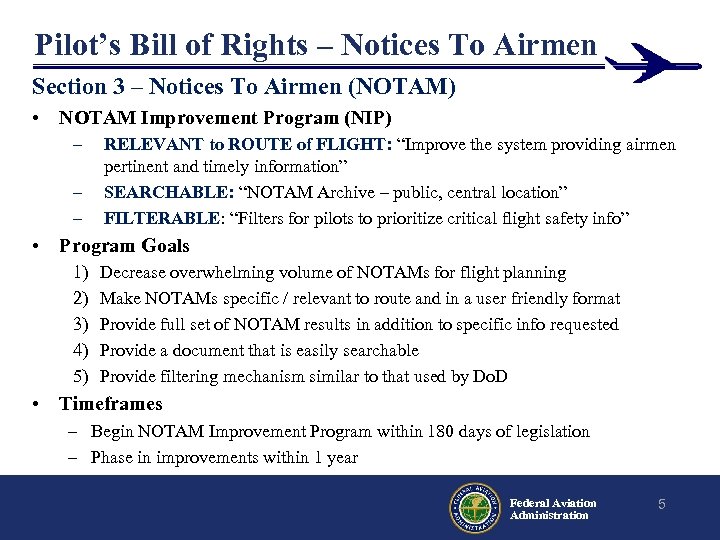

Pilot’s Bill of Rights – Notices To Airmen Section 3 – Notices To Airmen (NOTAM) • NOTAM Improvement Program (NIP) – – – RELEVANT to ROUTE of FLIGHT: “Improve the system providing airmen pertinent and timely information” SEARCHABLE: “NOTAM Archive – public, central location” FILTERABLE: “Filters for pilots to prioritize critical flight safety info” • Program Goals 1) 2) 3) 4) 5) Decrease overwhelming volume of NOTAMs for flight planning Make NOTAMs specific / relevant to route and in a user friendly format Provide full set of NOTAM results in addition to specific info requested Provide a document that is easily searchable Provide filtering mechanism similar to that used by Do. D • Timeframes – Begin NOTAM Improvement Program within 180 days of legislation – Phase in improvements within 1 year Federal Aviation Administration 5

The Federal NOTAM System (FNS) The NOTAM Problem Federal Aviation Administration 6

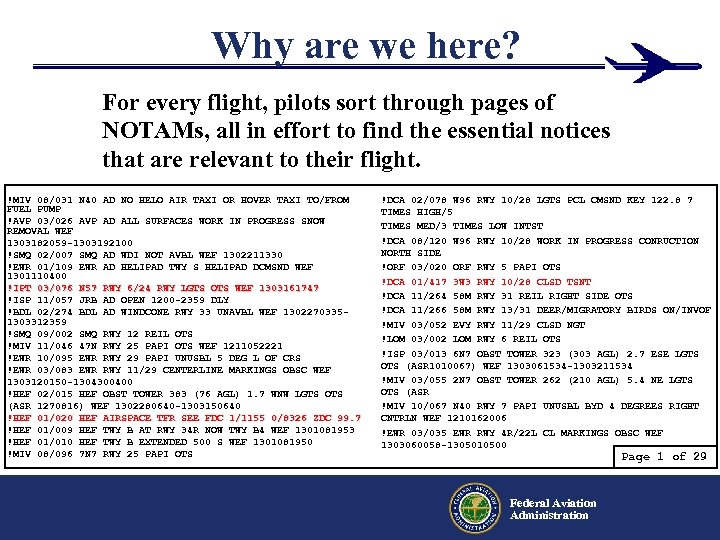

Why are we here? For every flight, pilots sort through pages of NOTAMs, all in effort to find the essential notices that are relevant to their flight. !MIV 08/031 N 40 AD NO HELO AIR TAXI OR HOVER TAXI TO/FROM FUEL PUMP !AVP 03/026 AVP AD ALL SURFACES WORK IN PROGRESS SNOW REMOVAL WEF 1303182059 -1303192100 !SMQ 02/007 SMQ AD WDI NOT AVBL WEF 1302211330 !EWR 01/109 EWR AD HELIPAD TWY S HELIPAD DCMSND WEF 1301110400 !IPT 03/076 N 57 RWY 6/24 RWY LGTS OTS WEF 1303161747 !ISP 11/057 JRB AD OPEN 1200 -2359 DLY !BDL 02/274 BDL AD WINDCONE RWY 33 UNAVBL WEF 13022703351303312359 !SMQ 09/002 SMQ RWY 12 REIL OTS !MIV 11/046 47 N RWY 25 PAPI OTS WEF 1211052221 !EWR 10/095 EWR RWY 29 PAPI UNUSBL 5 DEG L OF CRS !EWR 03/083 EWR RWY 11/29 CENTERLINE MARKINGS OBSC WEF 1303120150 -1304300400 !HEF 02/015 HEF OBST TOWER 383 (76 AGL) 1. 7 WNW LGTS OTS (ASR 1270816) WEF 1302280640 -1303150640 !HEF 01/020 HEF AIRSPACE TFR SEE FDC 1/1155 0/8326 ZDC 99. 7 !HEF 01/009 HEF TWY B AT RWY 34 R NOW TWY B 4 WEF 1301081953 !HEF 01/010 HEF TWY B EXTENDED 500 S WEF 1301081950 !MIV 08/096 7 N 7 RWY 25 PAPI OTS !DCA 02/078 W 96 RWY 10/28 LGTS PCL CMSND KEY 122. 8 7 TIMES HIGH/5 TIMES MED/3 TIMES LOW INTST !DCA 08/120 W 96 RWY 10/28 WORK IN PROGRESS CONRUCTION NORTH SIDE !ORF 03/020 ORF RWY 5 PAPI OTS !DCA 01/417 3 W 3 RWY 10/28 CLSD TSNT !DCA 11/264 58 M RWY 31 REIL RIGHT SIDE OTS !DCA 11/266 58 M RWY 13/31 DEER/MIGRATORY BIRDS ON/INVOF !MIV 03/052 EVY RWY 11/29 CLSD NGT !LOM 03/002 LOM RWY 6 REIL OTS !ISP 03/013 6 N 7 OBST TOWER 323 (303 AGL) 2. 7 ESE LGTS OTS (ASR 1010067) WEF 1303061534 -1303211534 !MIV 03/055 2 N 7 OBST TOWER 262 (210 AGL) 5. 4 NE LGTS OTS (ASR !MIV 10/067 N 40 RWY 7 PAPI UNUSBL BYD 4 DEGREES RIGHT CNTRLN WEF 1210162006 !EWR 03/035 EWR RWY 4 R/22 L CL MARKINGS OBSC WEF 1303060058 -1305010500 Page 1 of 29 Federal Aviation Administration

Richmond, VA to Teterboro, NJ Briefing provided by DUATS Federal Aviation Administration

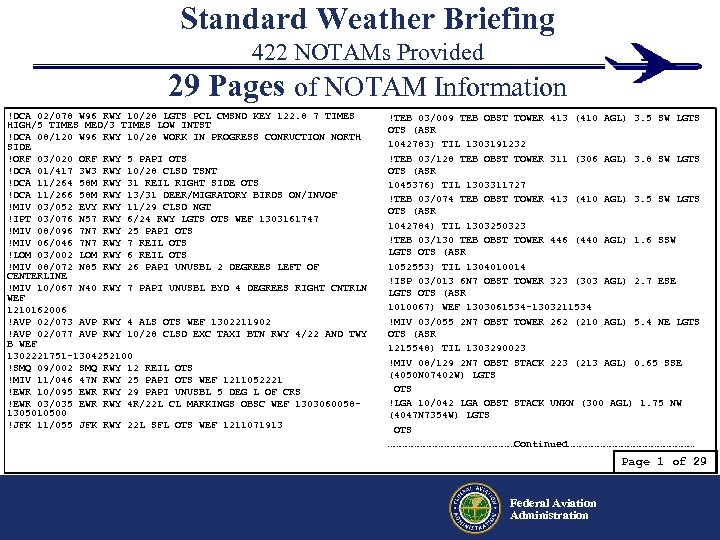

Standard Weather Briefing 422 NOTAMs Provided 29 Pages of NOTAM Information !DCA 02/078 W 96 RWY 10/28 LGTS PCL CMSND KEY 122. 8 7 TIMES HIGH/5 TIMES MED/3 TIMES LOW INTST !DCA 08/120 W 96 RWY 10/28 WORK IN PROGRESS CONRUCTION NORTH SIDE !ORF 03/020 ORF RWY 5 PAPI OTS !DCA 01/417 3 W 3 RWY 10/28 CLSD TSNT !DCA 11/264 58 M RWY 31 REIL RIGHT SIDE OTS !DCA 11/266 58 M RWY 13/31 DEER/MIGRATORY BIRDS ON/INVOF !MIV 03/052 EVY RWY 11/29 CLSD NGT !IPT 03/076 N 57 RWY 6/24 RWY LGTS OTS WEF 1303161747 !MIV 08/096 7 N 7 RWY 25 PAPI OTS !MIV 06/046 7 N 7 RWY 7 REIL OTS !LOM 03/002 LOM RWY 6 REIL OTS !MIV 08/072 N 85 RWY 26 PAPI UNUSBL 2 DEGREES LEFT OF CENTERLINE !MIV 10/067 N 40 RWY 7 PAPI UNUSBL BYD 4 DEGREES RIGHT CNTRLN WEF 1210162006 !AVP 02/073 AVP RWY 4 ALS OTS WEF 1302211902 !AVP 02/077 AVP RWY 10/28 CLSD EXC TAXI BTN RWY 4/22 AND TWY B WEF 1302221751 -1304252100 !SMQ 09/002 SMQ RWY 12 REIL OTS !MIV 11/046 47 N RWY 25 PAPI OTS WEF 1211052221 !EWR 10/095 EWR RWY 29 PAPI UNUSBL 5 DEG L OF CRS !EWR 03/035 EWR RWY 4 R/22 L CL MARKINGS OBSC WEF 13030600581305010500 !JFK 11/055 JFK RWY 22 L SFL OTS WEF 1211071913 !TEB 03/009 TEB OBST TOWER 413 (410 AGL) 3. 5 SW LGTS OTS (ASR 1042783) TIL 1303191232 !TEB 03/128 TEB OBST TOWER 311 (306 AGL) 3. 8 SW LGTS OTS (ASR 1045376) TIL 1303311727 !TEB 03/074 TEB OBST TOWER 413 (410 AGL) 3. 5 SW LGTS OTS (ASR 1042784) TIL 1303250323 !TEB 03/130 TEB OBST TOWER 446 (440 AGL) 1. 6 SSW LGTS OTS (ASR 1052553) TIL 1304010014 !ISP 03/013 6 N 7 OBST TOWER 323 (303 AGL) 2. 7 ESE LGTS OTS (ASR 1010067) WEF 1303061534 -1303211534 !MIV 03/055 2 N 7 OBST TOWER 262 (210 AGL) 5. 4 NE LGTS OTS (ASR 1215548) TIL 1303290023 !MIV 08/129 2 N 7 OBST STACK 223 (213 AGL) 0. 65 SSE (4050 N 07402 W) LGTS OTS !LGA 10/042 LGA OBST STACK UNKN (300 AGL) 1. 75 NW (4047 N 7354 W) LGTS OTS ……………………………Continued…………………………… Page 1 of 29 Federal Aviation Administration

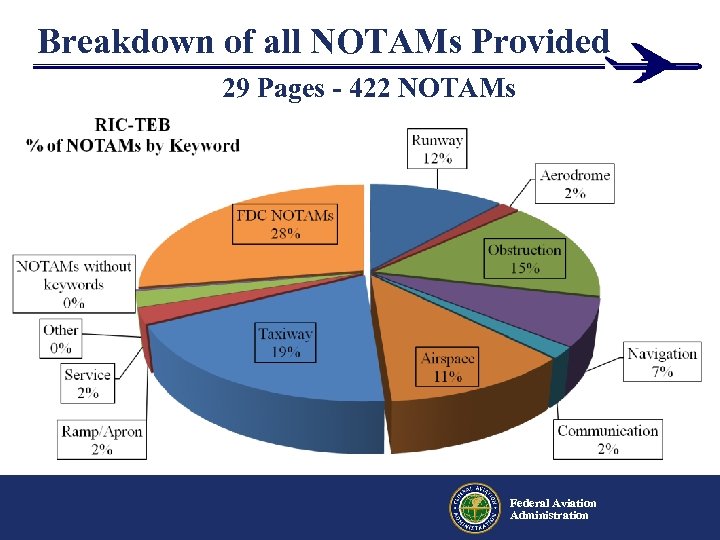

Breakdown of all NOTAMs Provided 29 Pages - 422 NOTAMs Federal Aviation Administration

The Federal NOTAM System (FNS) FNS Overview & Accomplishments to Date Federal Aviation Administration 11

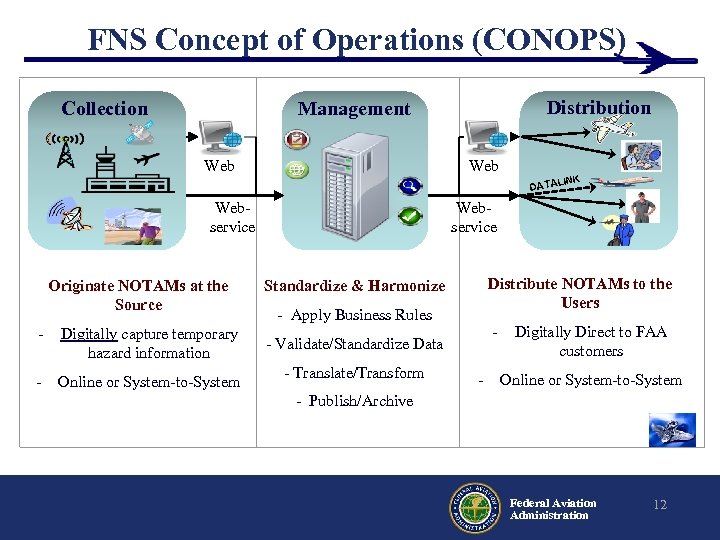

FNS Concept of Operations (CONOPS) Collection Distribution Management Web Webservice Originate NOTAMs at the Source - Digitally capture temporary hazard information - Online or System-to-System INK DATAL Webservice Distribute NOTAMs to the Users Standardize & Harmonize - Apply Business Rules - - Validate/Standardize Data - Translate/Transform - Digitally Direct to FAA customers Online or System-to-System - Publish/Archive Federal Aviation Administration 12

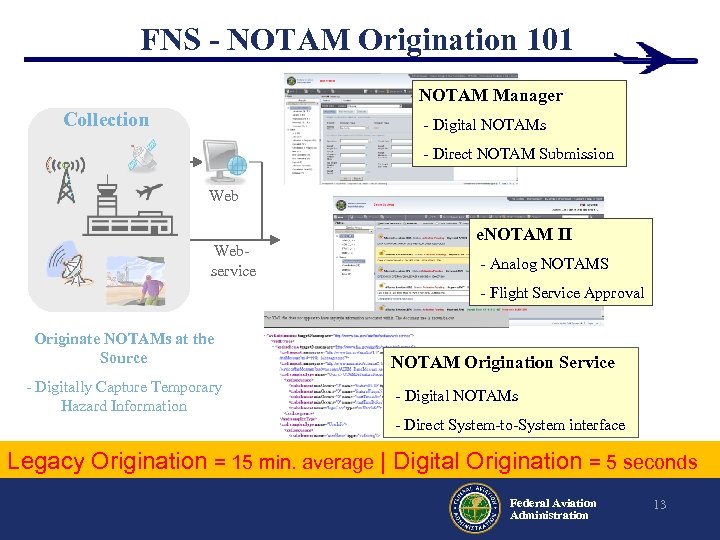

FNS - NOTAM Origination 101 NOTAM Manager Collection • Management Digital NOTAMs • Distribution - Direct NOTAM Submission Web • Web ALINK Webservice Originate NOTAMs at the Source - Digitally Capture Temporary Hazard Information • D T e. NOTAMAII • Web- Analog NOTAMS service - Flight Service Approval • Integrate Permanent and • Distribute NOTAMs to Temporary Information Origination Service the Users NOTAM • Apply Business Rules, • Electronic Distribution to - Digital NOTAMs Validate Data, FAA customers, - Direct Translate, and Publish System-to-System interface Computer Readable Legacy Origination = 15 min. average | Digital Origination = 5 seconds Federal Aviation Administration 13

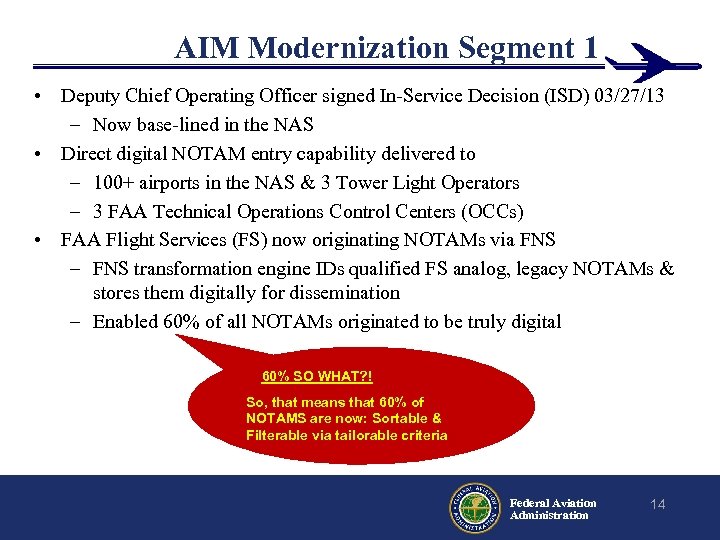

AIM Modernization Segment 1 • Deputy Chief Operating Officer signed In-Service Decision (ISD) 03/27/13 – Now base-lined in the NAS • Direct digital NOTAM entry capability delivered to – 100+ airports in the NAS & 3 Tower Light Operators – 3 FAA Technical Operations Control Centers (OCCs) • FAA Flight Services (FS) now originating NOTAMs via FNS – FNS transformation engine IDs qualified FS analog, legacy NOTAMs & stores them digitally for dissemination – Enabled 60% of all NOTAMs originated to be truly digital 60% SO WHAT? ! So, that means that 60% of NOTAMS are now: Sortable & Filterable via tailorable criteria Federal Aviation Administration 14

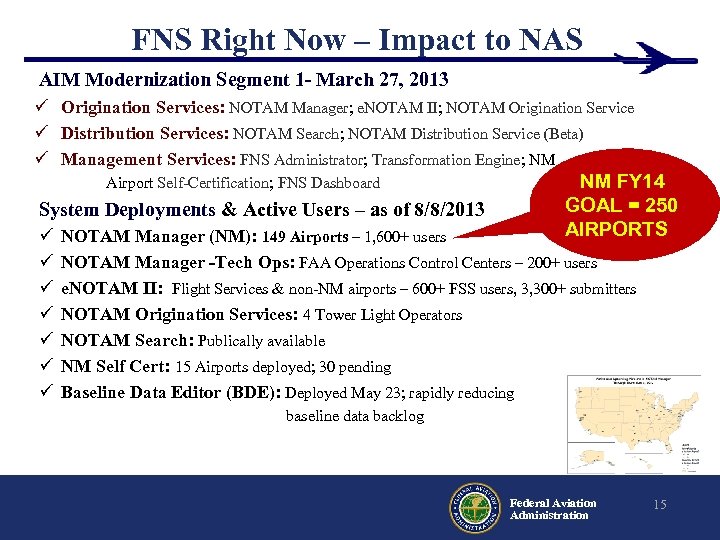

FNS Right Now – Impact to NAS AIM Modernization Segment 1 - March 27, 2013 ü Origination Services: NOTAM Manager; e. NOTAM II; NOTAM Origination Service ü Distribution Services: NOTAM Search; NOTAM Distribution Service (Beta) ü Management Services: FNS Administrator; Transformation Engine; NM Airport Self-Certification; FNS Dashboard System Deployments & Active Users – as of 8/8/2013 ü ü ü ü NM FY 14 GOAL = 250 AIRPORTS NOTAM Manager (NM): 149 Airports – 1, 600+ users NOTAM Manager -Tech Ops: FAA Operations Control Centers – 200+ users e. NOTAM II: Flight Services & non-NM airports – 600+ FSS users, 3, 300+ submitters NOTAM Origination Services: 4 Tower Light Operators NOTAM Search: Publically available NM Self Cert: 15 Airports deployed; 30 pending Baseline Data Editor (BDE): Deployed May 23; rapidly reducing baseline data backlog Federal Aviation Administration 15

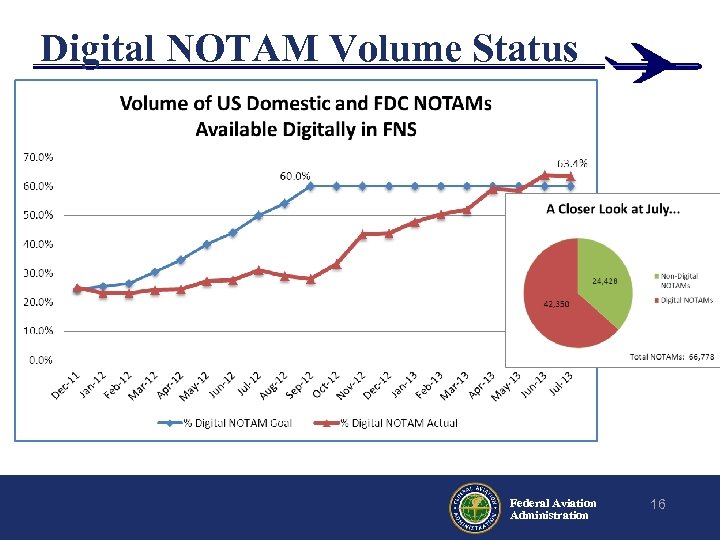

Digital NOTAM Volume Status Federal Aviation Administration 16

The Federal NOTAM System (FNS) Capabilities in Development Federal Aviation Administration 17

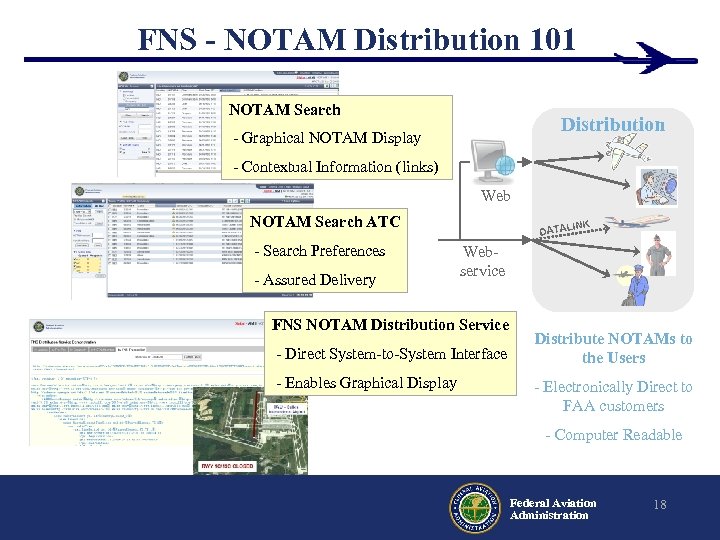

FNS - NOTAM Distribution 101 NOTAM Search Distribution - Graphical NOTAM Display - Contextual Information (links) Web NOTAM Search ATC - Search Preferences - Assured Delivery INK DATAL Webservice FNS NOTAM Distribution Service - Direct System-to-System Interface - Enables Graphical Display Distribute NOTAMs to the Users - Electronically Direct to FAA customers - Computer Readable Federal Aviation Administration 18

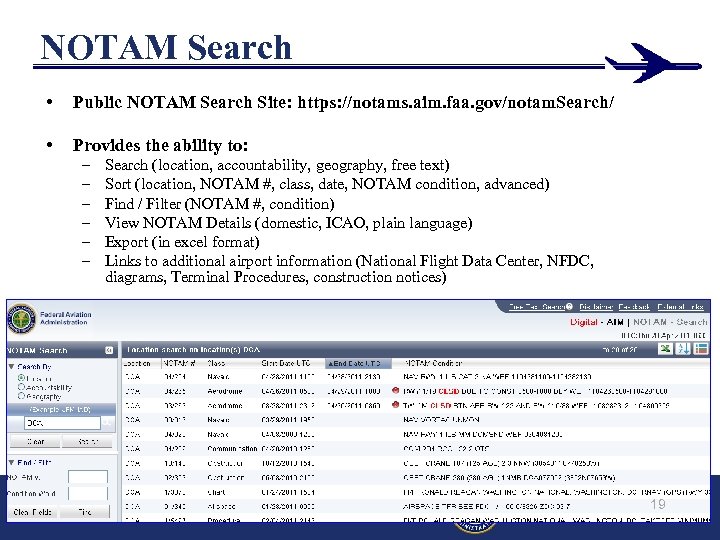

NOTAM Search • Public NOTAM Search Site: https: //notams. aim. faa. gov/notam. Search/ • Provides the ability to: – – – Search (location, accountability, geography, free text) Sort (location, NOTAM #, class, date, NOTAM condition, advanced) Find / Filter (NOTAM #, condition) View NOTAM Details (domestic, ICAO, plain language) Export (in excel format) Links to additional airport information (National Flight Data Center, NFDC, diagrams, Terminal Procedures, construction notices) Federal Aviation Administration 19

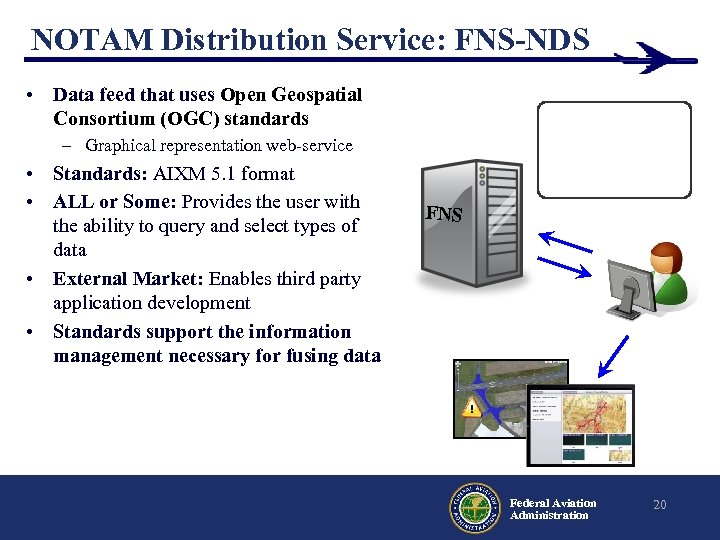

NOTAM Distribution Service: FNS-NDS • Data feed that uses Open Geospatial Consortium (OGC) standards – Graphical representation web-service • Standards: AIXM 5. 1 format • ALL or Some: Provides the user with the ability to query and select types of data • External Market: Enables third party application development • Standards support the information management necessary for fusing data FNS Federal Aviation Administration 20

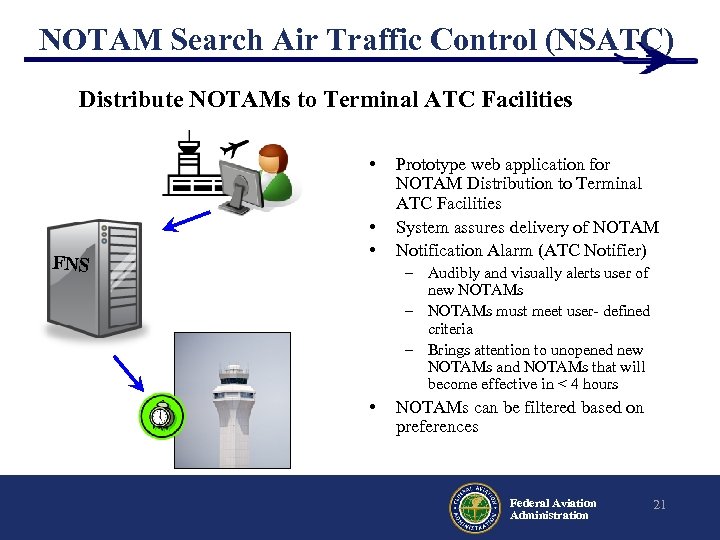

NOTAM Search Air Traffic Control (NSATC) Distribute NOTAMs to Terminal ATC Facilities • FNS • • Prototype web application for NOTAM Distribution to Terminal ATC Facilities System assures delivery of NOTAM Notification Alarm (ATC Notifier) – Audibly and visually alerts user of new NOTAMs – NOTAMs must meet user- defined criteria – Brings attention to unopened new NOTAMs and NOTAMs that will become effective in < 4 hours • NOTAMs can be filtered based on preferences Federal Aviation Administration 21

The Federal NOTAM System (FNS) FAA Notional Way Forward & TOC Feedback Federal Aviation Administration 22

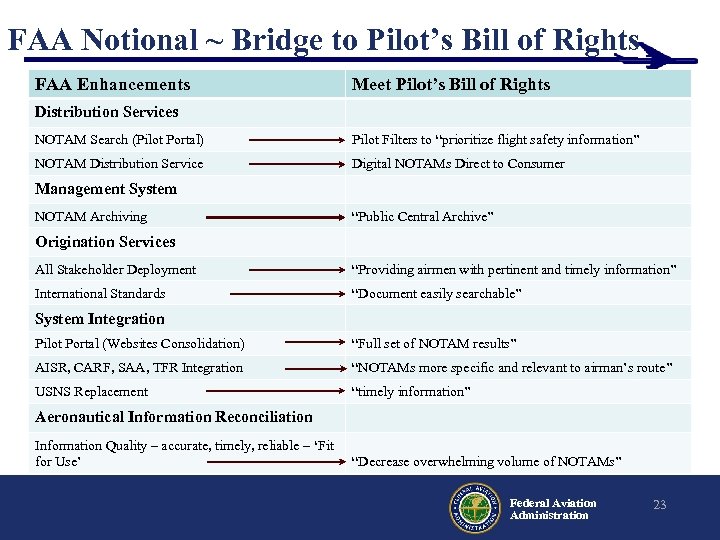

FAA Notional ~ Bridge to Pilot’s Bill of Rights FAA Enhancements Meet Pilot’s Bill of Rights Distribution Services NOTAM Search (Pilot Portal) Pilot Filters to “prioritize flight safety information” NOTAM Distribution Service Digital NOTAMs Direct to Consumer Management System NOTAM Archiving “Public Central Archive” Origination Services All Stakeholder Deployment “Providing airmen with pertinent and timely information” International Standards “Document easily searchable” System Integration Pilot Portal (Websites Consolidation) “Full set of NOTAM results” AISR, CARF, SAA, TFR Integration “NOTAMs more specific and relevant to airman’s route” USNS Replacement “timely information” Aeronautical Information Reconciliation Information Quality – accurate, timely, reliable – ‘Fit for Use’ “Decrease overwhelming volume of NOTAMs” Federal Aviation Administration 23

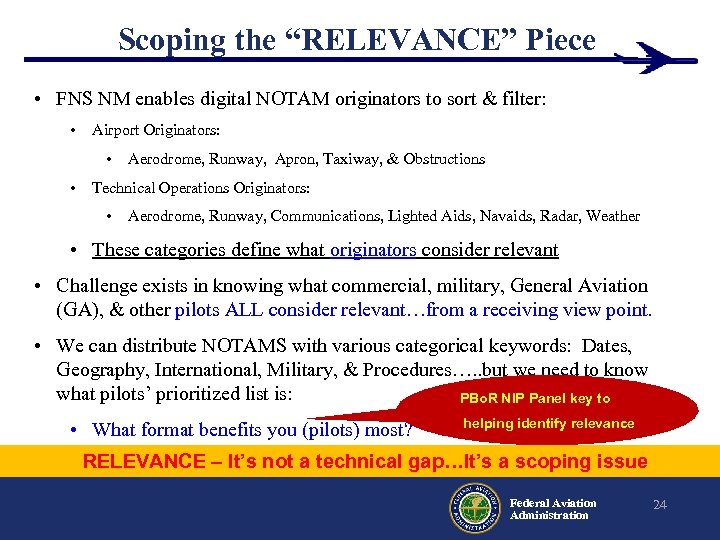

Scoping the “RELEVANCE” Piece • FNS NM enables digital NOTAM originators to sort & filter: • Airport Originators: • • Aerodrome, Runway, Apron, Taxiway, & Obstructions Technical Operations Originators: • Aerodrome, Runway, Communications, Lighted Aids, Navaids, Radar, Weather • These categories define what originators consider relevant • Challenge exists in knowing what commercial, military, General Aviation (GA), & other pilots ALL consider relevant…from a receiving view point. • We can distribute NOTAMS with various categorical keywords: Dates, Geography, International, Military, & Procedures…. . but we need to know what pilots’ prioritized list is: PBo. R NIP Panel key to • What format benefits you (pilots) most? helping identify relevance RELEVANCE – It’s not a technical gap…It’s a scoping issue Federal Aviation Administration 24
