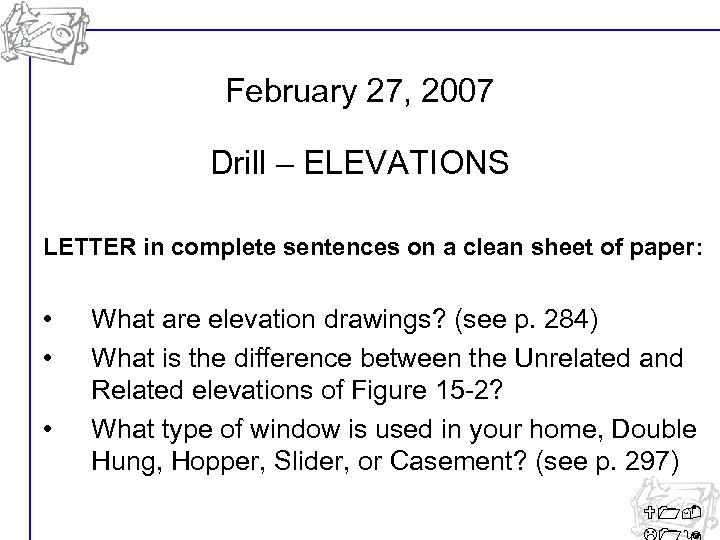

February 27, 2007 Drill – ELEVATIONS LETTER in complete sentences on a clean sheet February 27, 2007 Drill – ELEVATIONS LETTER in complete sentences on a clean sheet of paper: • • • What are elevation drawings? (see p. 284) What is the difference between the Unrelated and Related elevations of Figure 15 -2? What type of window is used in your home, Double Hung, Hopper, Slider, or Casement? (see p. 297) U 1 -

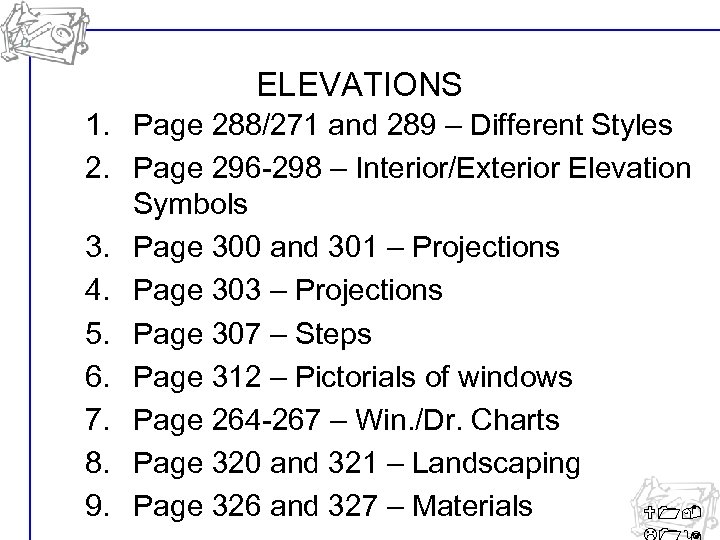

ELEVATIONS 1. Page 288/271 and 289 – Different Styles 2. Page 296 -298 – ELEVATIONS 1. Page 288/271 and 289 – Different Styles 2. Page 296 -298 – Interior/Exterior Elevation Symbols 3. Page 300 and 301 – Projections 4. Page 303 – Projections 5. Page 307 – Steps 6. Page 312 – Pictorials of windows 7. Page 264 -267 – Win. /Dr. Charts 8. Page 320 and 321 – Landscaping 9. Page 326 and 327 – Materials U 1 -

ELEVATIONS - STEPS • Square and tape finished floor plan to drawing board. Tape ELEVATIONS - STEPS • Square and tape finished floor plan to drawing board. Tape elevation drawing paper beneath it, with enough room for your t-square. 1. Lay out all horizontal heights 1) Finished Grade (ground) 2) Floor Line – 0’-8” above finished grade 3) Window and Door Heights – 6’-9” above floor 4) Window Bottom – Varies (generally 4’-0”) 5) Ceiling Line – 8’-0” above floor 6) Ridge Board and Chimney Top - Varies U 1 -

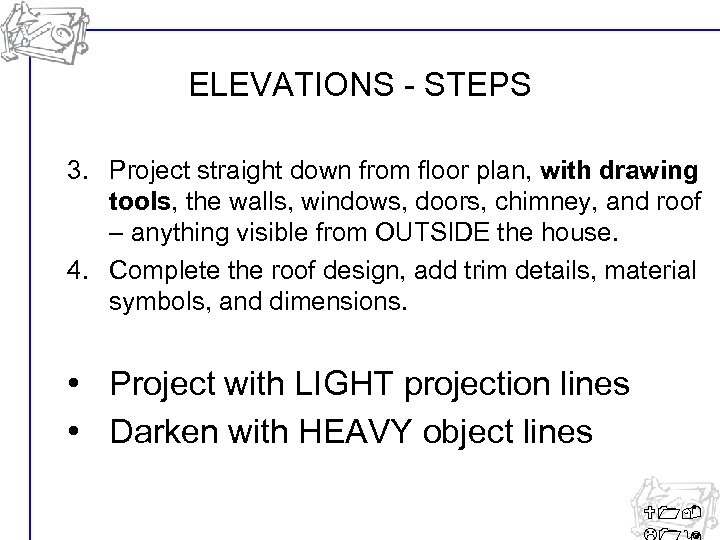

ELEVATIONS - STEPS 3. Project straight down from floor plan, with drawing tools, the ELEVATIONS - STEPS 3. Project straight down from floor plan, with drawing tools, the walls, windows, doors, chimney, and roof – anything visible from OUTSIDE the house. 4. Complete the roof design, add trim details, material symbols, and dimensions. • Project with LIGHT projection lines • Darken with HEAVY object lines U 1 -

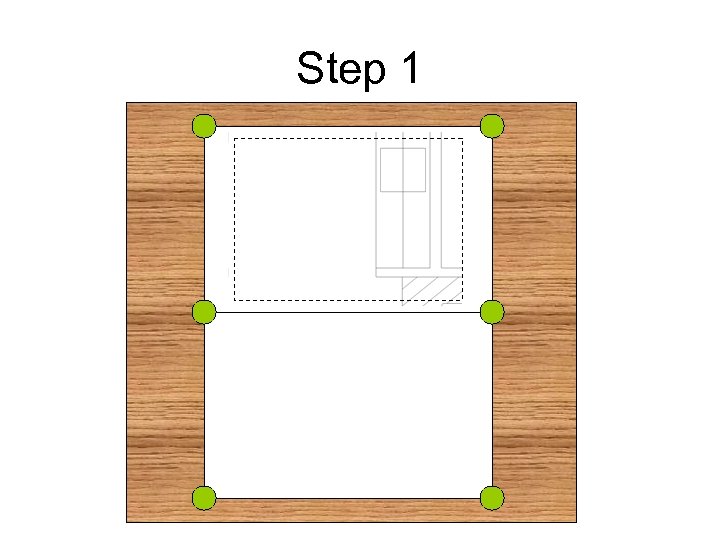

Step 1 Step 1

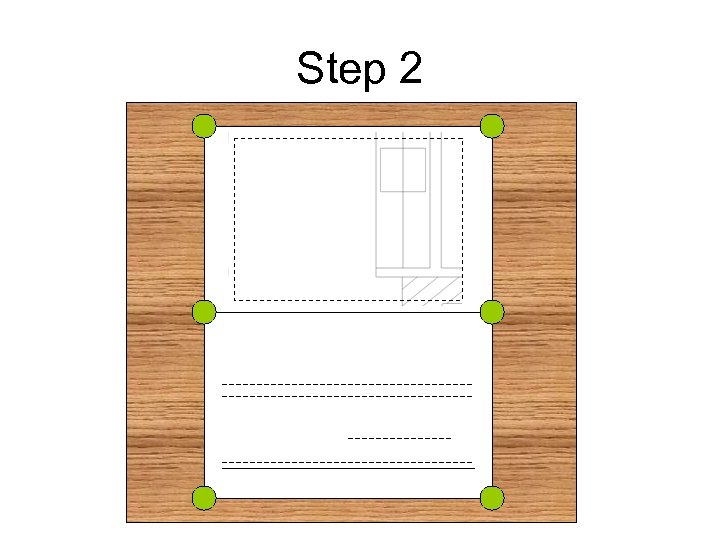

Step 2 Step 2

Step 3 Walls Windows Doors Chimney Roof Step 3 Walls Windows Doors Chimney Roof

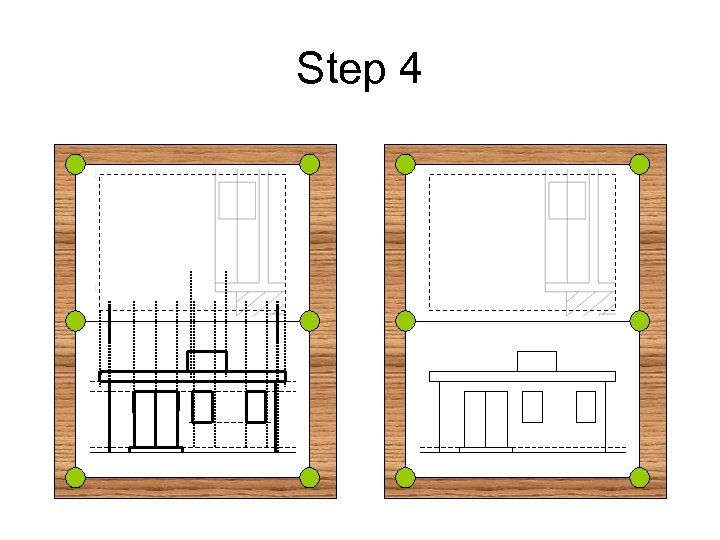

Step 4 Step 4

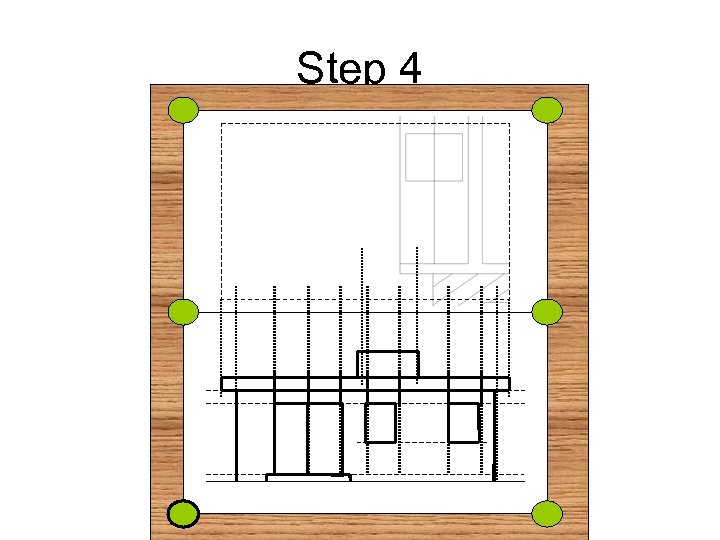

Step 4 Step 4

Roof Dimensions 0’-6” 1’-6” Roof Dimensions 0’-6” 1’-6”

STEPS 1 and 2 Finished Grade Floor Door/window Ht Ceiling STEPS 1 and 2 Finished Grade Floor Door/window Ht Ceiling

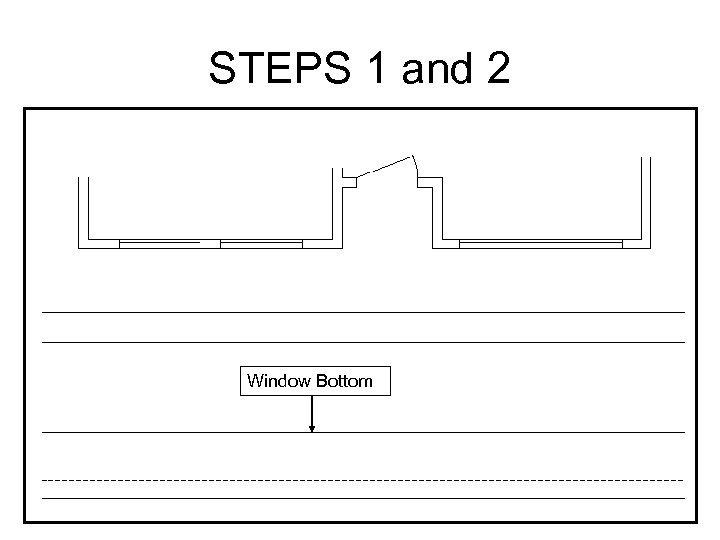

STEPS 1 and 2 Window Bottom STEPS 1 and 2 Window Bottom

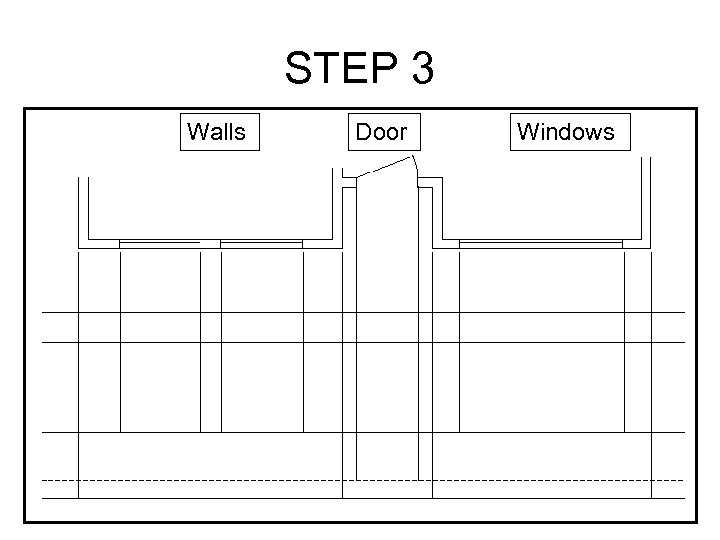

STEP 3 Walls Door Windows STEP 3 Walls Door Windows

STEP 4 STEP 4

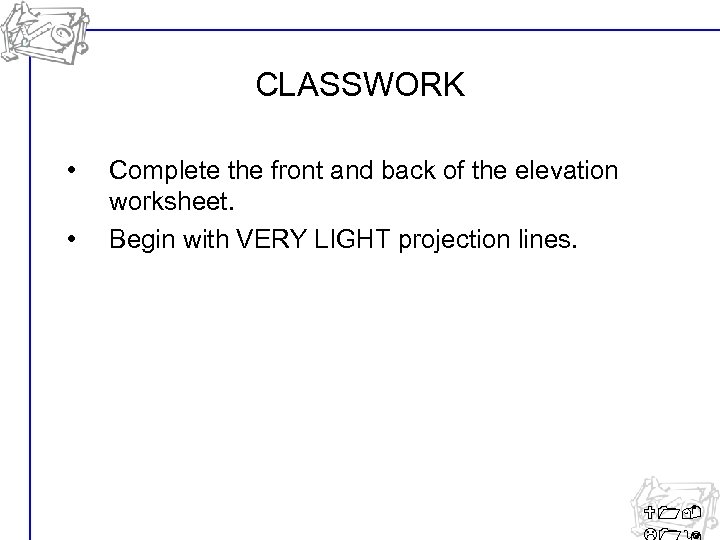

CLASSWORK • • Complete the front and back of the elevation worksheet. Begin with CLASSWORK • • Complete the front and back of the elevation worksheet. Begin with VERY LIGHT projection lines. U 1 -
